  1. Temperature Sensors on Flexible Substrates Z. Celik-Butler, D. Butler and M. Chitteboyina Nanotechnology Research and Teaching Facility University of Texas at Arlington http://www.uta.edu/engineering/nano/ March 13, 2009

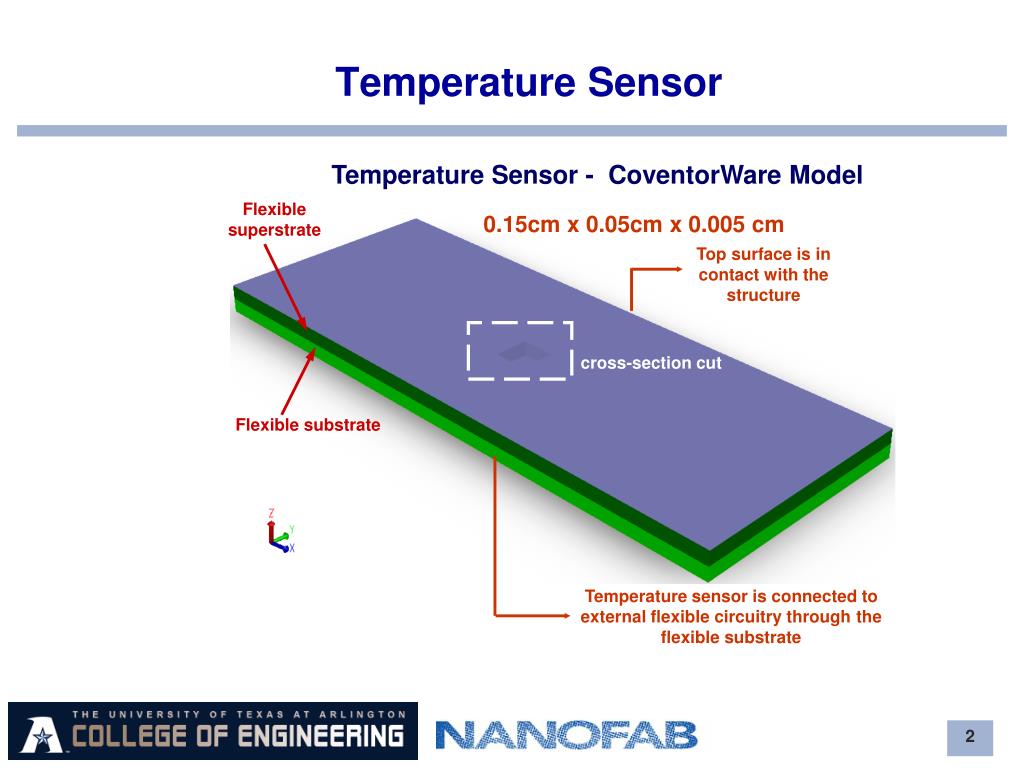

  2. Temperature Sensor - CoventorWare Model Flexible superstrate 0.15cm x 0.05cm x 0.005 cm Top surface is in contact with the structure Temperature Sensor cross-section cut Flexible substrate Temperature sensor is connected to external flexible circuitry through the flexible substrate

  3. Z-scale exaggerated 5 times Aluminum Temperature Sensor Insulation Layers Sensor Element Right arm of the temperature sensor Left arm of the temperature sensor Flexible Substrate

  4. Fabrication Process Flow for the Temperature Sensor Clean silicon wafer

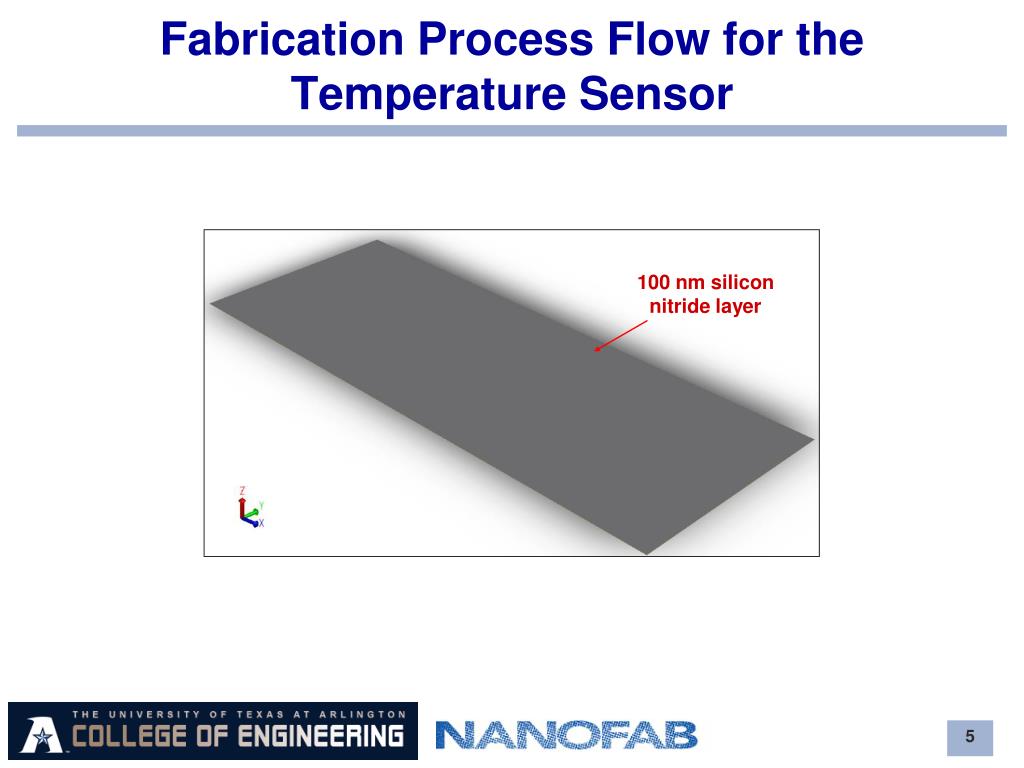

  5. Fabrication Process Flow for the Temperature Sensor 100 nm silicon nitride layer

  6. Fabrication Process Flow for the Temperature Sensor Flexible Substrate Polyimide ~ 40 µm

  7. Fabrication Process Flow for the Temperature Sensor Right electrode of the sensor

  8. Fabrication Process Flow for the Temperature Sensor Sensor Element

  9. Fabrication Process Flow for the Temperature Sensor First Insulation Layer

  10. Fabrication Process Flow for the Temperature Sensor Left electrode of the sensor

  11. Fabrication Process Flow for the Temperature Sensor Second Insulation Layer

  12. Fabrication Process Flow for the Temperature Sensor Flexible Superstrate Polyimide ~ 40 µm Undercut made to access the sensor Second Insulation Layer Silicon Nitride ~ 100 nm

  13. Top aluminum surface will be in contact with the structure Fabrication Process Flow for the Temperature Sensor Aluminum ~ 400 nm

  14. Back side view of the Temperature Sensor Fabrication Process Flow for the Temperature Sensor Sensor are connected to flexible circuitry through the flexible substrate

  15. 370.5 K 300.0 K Temperature pulse applied on the top aluminum surface Temperature Sensor CoventorWare Model Temperature Sensor Simulation Results Bottom Flexible substrate kept either floating or fixed at 300 K Simulated, heating thermal time constant = 0.07 ms cooling thermal time constant = 0.67 ms

  16. STEP 2 STEP 3 STEP 1 Sensor Element First Insulation Layer Right arm of the sensor Temperature Sensor Fabrication STEP 4 STEP 5 STEP 6, 7, 8 • Spin-coat and pattern polyimide superstrate layer • Deposit Aluminum layer • Etch the back-side of the wafer and get access to bond-pads Left arm of the sensor Second Insulation Layer

  17. Temperature Sensor Fabrication • Spin-coat and pattern polyimide superstrate layer • Then deposited Aluminum on top of the superstrate layer to make contact with the structure

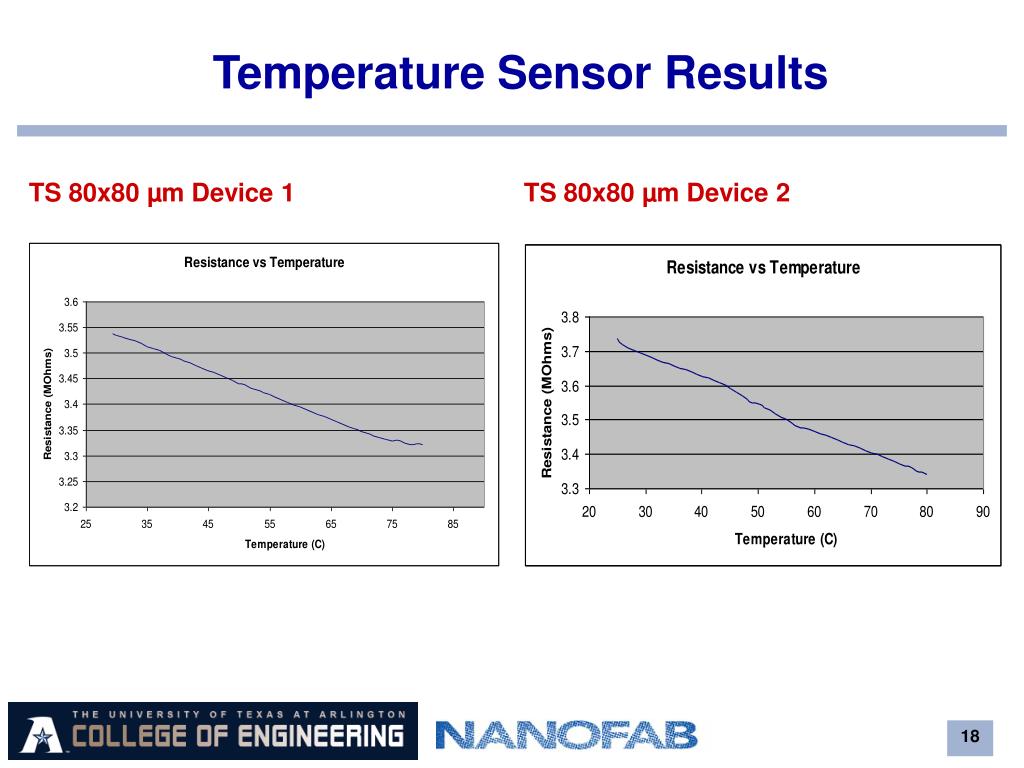

  18. Temperature Sensor Results TS 80x80 µm Device 1 TS 80x80 µm Device 2
