Axial Skeleton

clarke avatar
32 diapositives · 510 Views · Jul 20, 2014

The neurocranium is a critical part of the axial skeleton, protecting the brain and sensory structures. It reflects the evolutionary phylogeny common to all vertebrates. Its development involves various components, including chondrocranium replacement bone, prechordal cartilage forming under the brain, and parachordal cartilage forming alongside the notochord. Key structures like the olfactory and optic capsules develop concurrently. Ossification centers arise in the occipital, otic, sphenoid, and ethmoid regions, leading to the formation of critical structures such as the foramen magnum and occipital condyles.

Axial Skeleton - slide 1
01 / 32Axial Skeleton
1 / 17

Télécharger la présentation

Axial Skeleton
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation
  1. Axial Skeleton • Skull • Cephalization • Neurocranium • Protects brain & sensory structures • Phylogeny – common to all vertebrates • Replacement bone

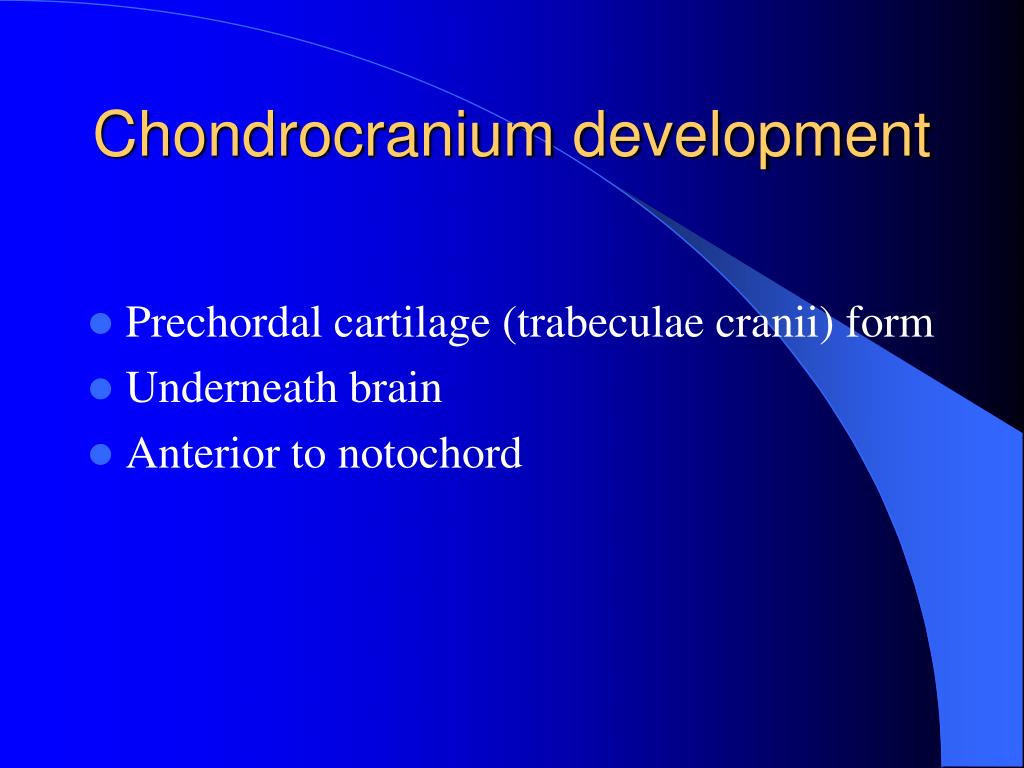

  2. Chondrocranium development • Prechordal cartilage (trabeculae cranii) form • Underneath brain • Anterior to notochord

  3. Prechordal cartilage • Form under forebrain region • Form nasal = olfactory capsules • Form optic capsules in orbit • Form rostrum • Finally expands to become ethmoid plate

  4. Parachordal cartilage • Forms beside and posterior to notochord • Forms floor of hindbrain • Expands to form basal plate • Forms occipital condyles (1-2) and foramen magnum

  5. Sensory capsules • As floor of cranium forms, so do sensory capsules • Olfactory capsule • Otic capsule for inner ear structures • Optic capsule (not attached – outer covering of eyeball)

  6. Plate expansion • Ethmoid plate expands and unites with olfactory capsule • Basal plate expands and unites with otic capsule • Formina remain for nerves & blood vessels • Hypophyseal fenestra remains for pituitary gland

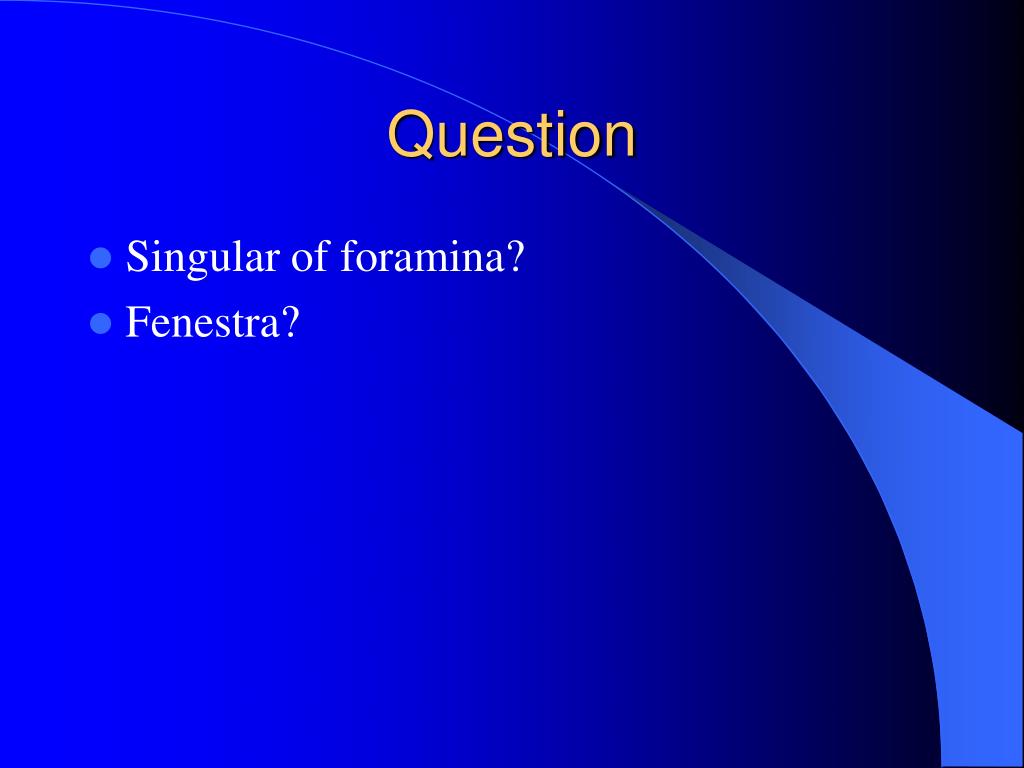

  7. Question • Singular of foramina? • Fenestra?

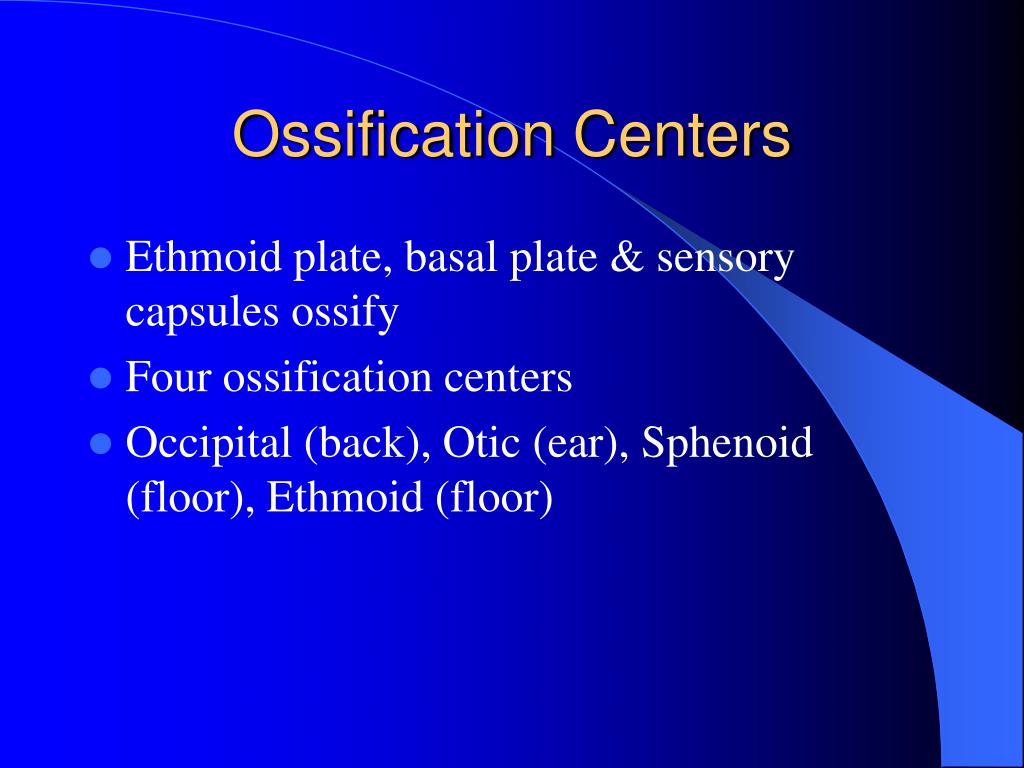

  8. Ossification Centers • Ethmoid plate, basal plate & sensory capsules ossify • Four ossification centers • Occipital (back), Otic (ear), Sphenoid (floor), Ethmoid (floor)

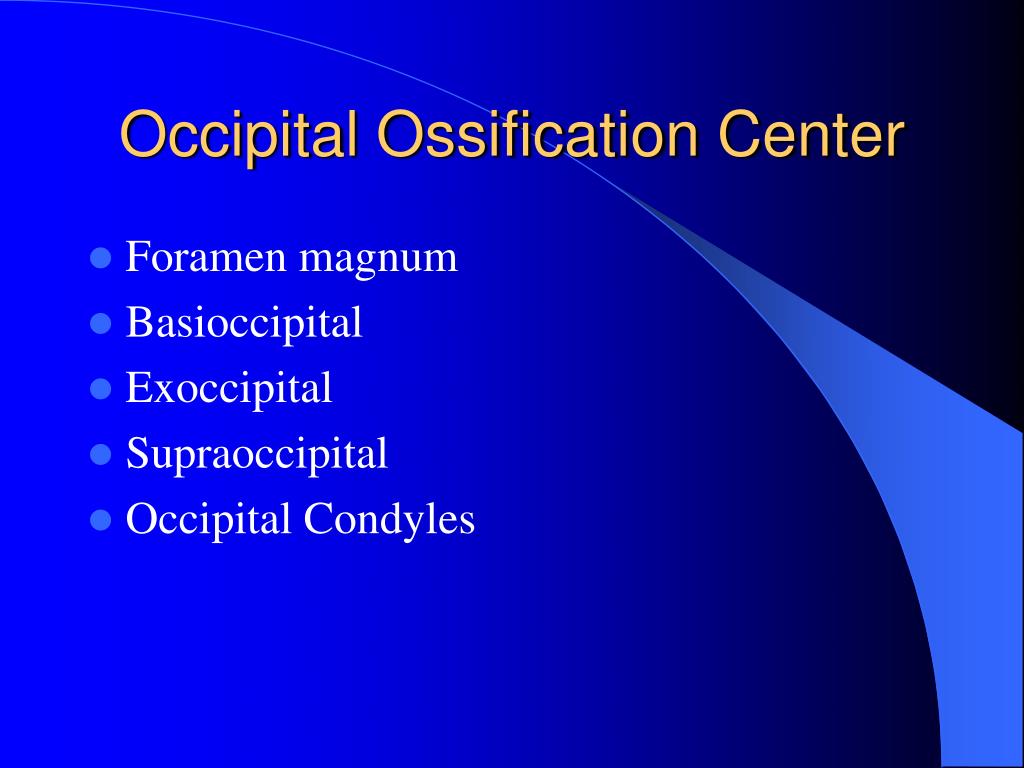

  9. Occipital Ossification Center • Foramen magnum • Basioccipital • Exoccipital • Supraoccipital • Occipital Condyles

  10. Otic ossification center

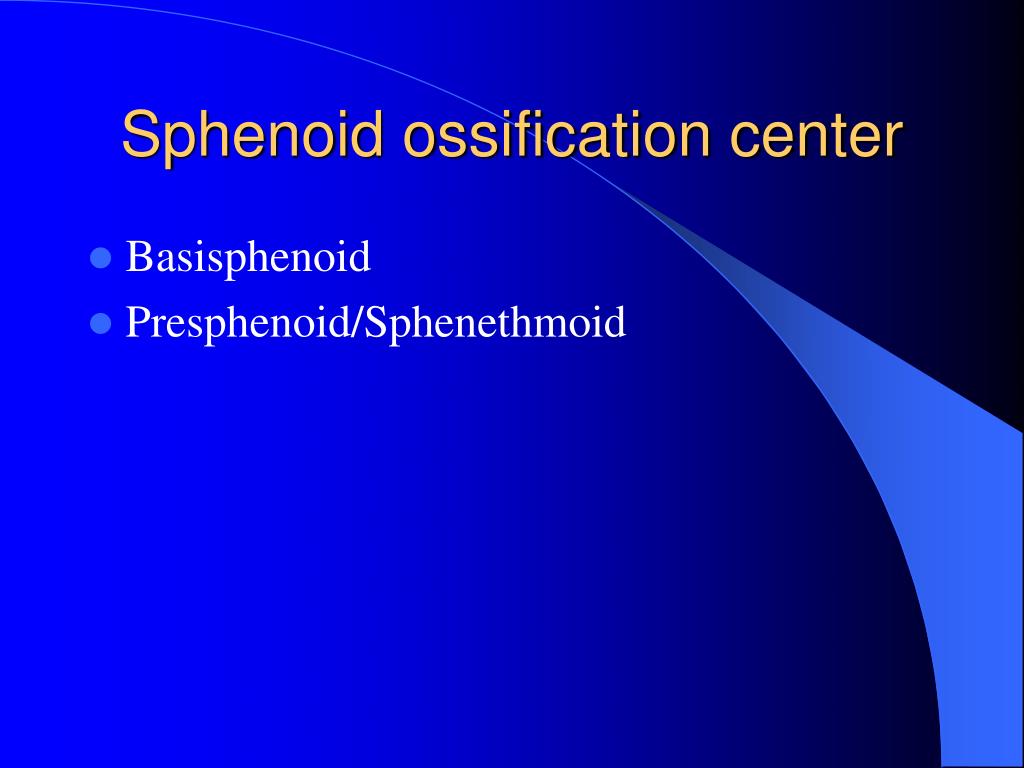

  11. Sphenoid ossification center • Basisphenoid • Presphenoid/Sphenethmoid

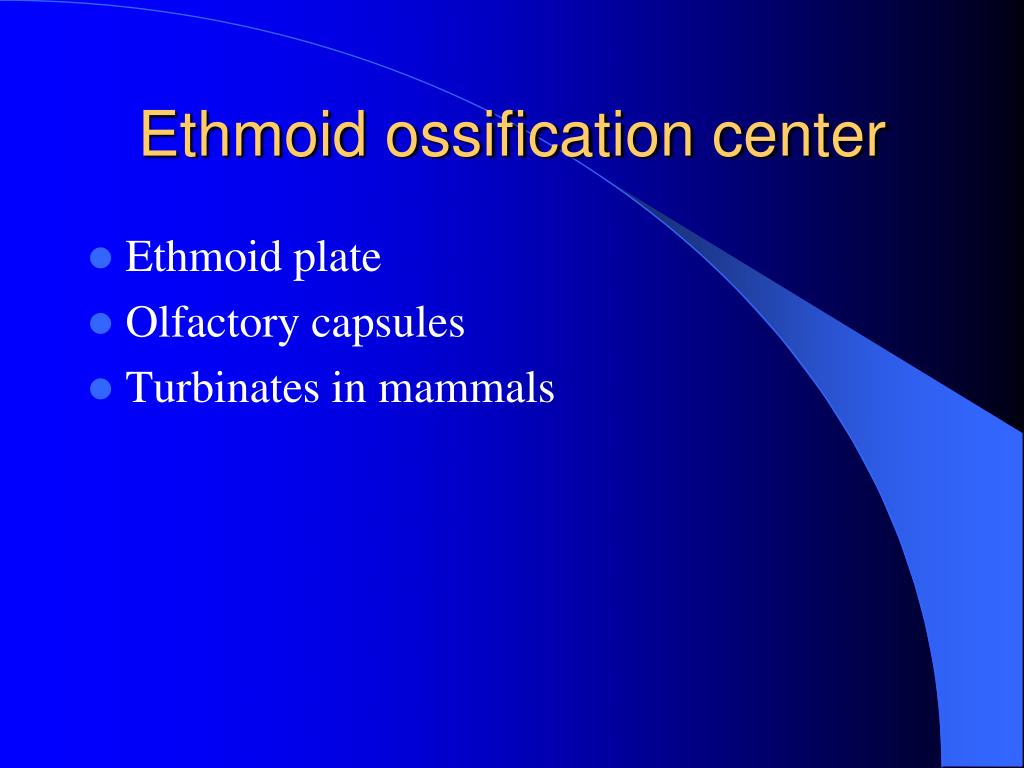

  12. Ethmoid ossification center • Ethmoid plate • Olfactory capsules • Turbinates in mammals

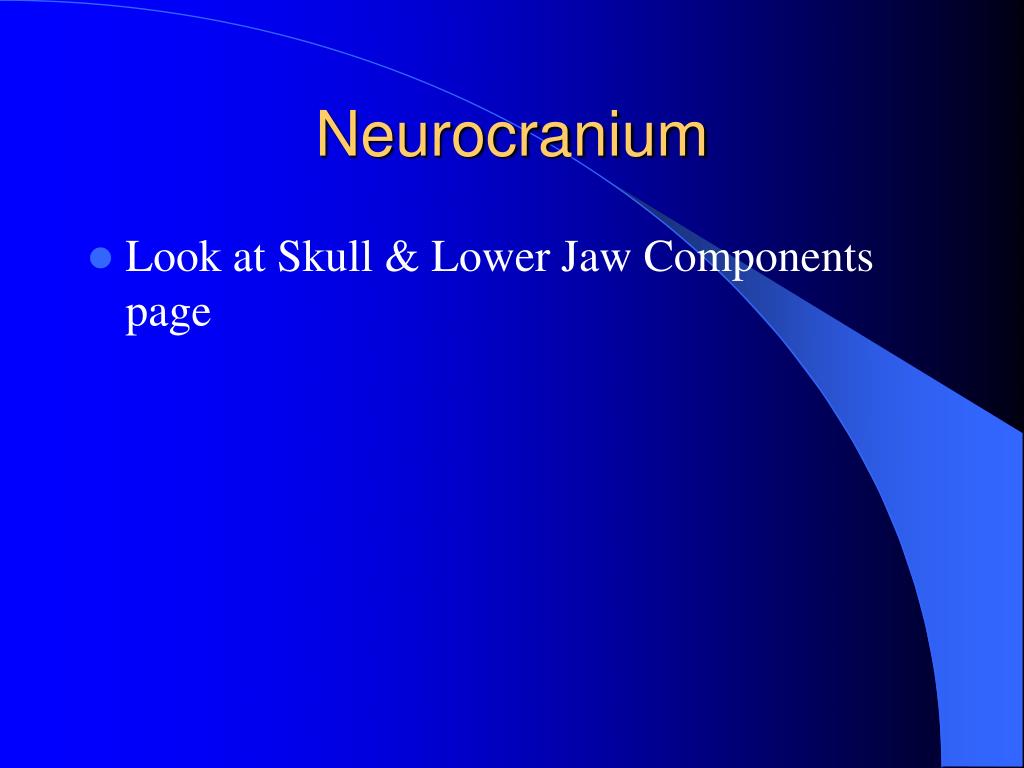

  13. Neurocranium • Look at Skull & Lower Jaw Components page

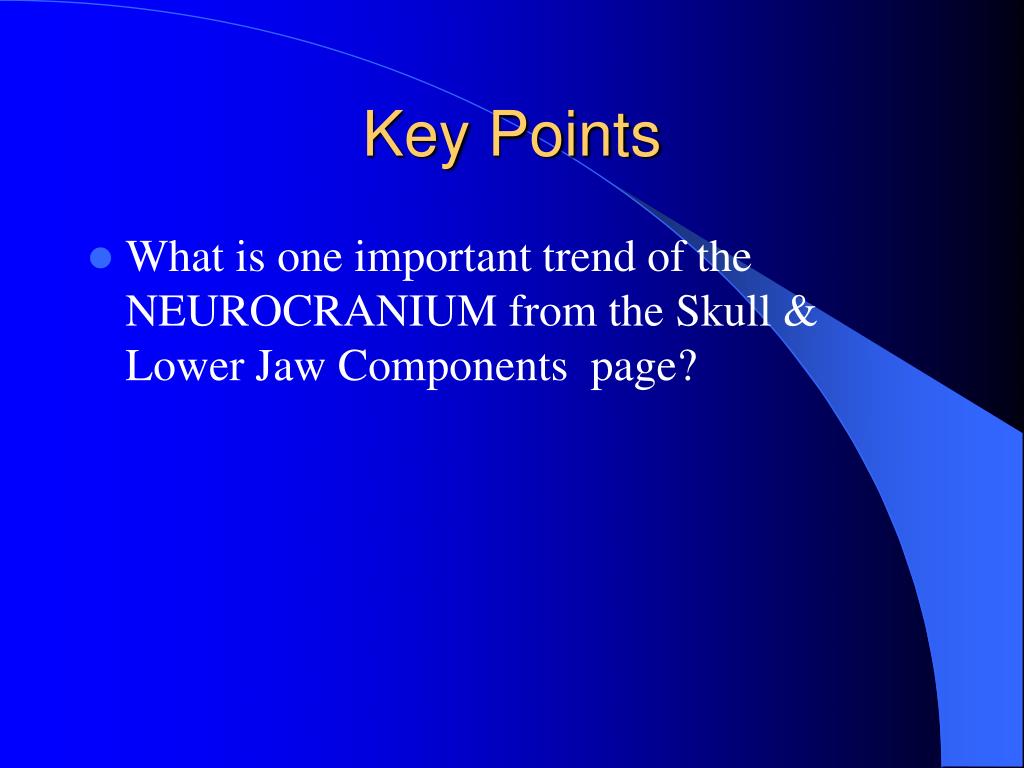

  14. Key Points • What is one important trend of the NEUROCRANIUM from the Skull & Lower Jaw Components page?
