NA62. Organisation of the work - proposal. NA62 – TC activities – Organisation of the work – proposals. Integration team. Integration team. Experimental Area team. Experimental Area team. Sub-system teams. Sub-system teams. Design phase. Installation phase.

connor-howard
Télécharger la présentation

NA62

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. NA62 Organisation of the work - proposal PD/DT/PO-MH

  2. NA62 – TC activities – Organisation of the work – proposals Integration team Integration team Experimental Area team Experimental Area team Sub-system teams Sub-system teams Design phase Installationphase PD/DT/PO-MH

  3. NA62 – Integration team– Design phase • Tasks of the INTEGRATION team: • CATIA model and layoutdrawing of the NA62 experiment • Envelopemodels & Envelopedrawings of individualsub-detectors • Check and agreement with ‘Beatch files’ • AIM = All partnersworking to agreedlayout & dimensions • Manage change requests in an official/agreedway • Manage CDD/EDMS/CATIA CAD files • Check that the individual parts canbefixedtogether = no clashes • Check with the surroundingenvironment – cavern & services • Studiesof proximityservices routing, support structures, accessstructures (in collaboration with Experimental area team). • Installation studies PD/DT/PO-MH

  4. NA62 – Experimental Area team– Design phase • Tasks of the EXPERIMENTAL AREA team: • Scheduling of the design and installation phases of the work • Liasonwith CERN groups for the provision of services: WATER, COOLING, GAS, VACUUM, VENTILATION, ELECTRICITY, CRYOGENICS, VACUUM, etc. Studies of external services routing by the CERN groups: support structures, access structures (in collaboration with Integration team). • Design of the Beamline /Liason with the machine • Study of the Beam dump. • Togetherwith the GLIMOS, the planning of the workincorporating the safety aspects and conformitywith CERN rules: work package descriptions, procedures, etc. • Arranging/Organising the removal of NA60 • Study of MNP33 Magnetdisplacement • TSO of Experimental area and buildings. PD/DT/PO-MH

  5. NA62 – Sub-detector teams– Design phase • Tasks of the SUB-SYSTEMteams: • The conceptual and detailed design of the DELIVERABLES = SUB-SYSTEMS. In accordance with the agreedenvelopes (Integration team). • Managingenvelope changes in an agreedway (Change requestprocedure). • Working in accordance with the agreedschedule (Experimental Area team). • Workingtogetherwith the integration team for the exchange of CAD models, installation studies, cross-checks. • Detailedassembly and installation studies of the sub-detectors. PD/DT/PO-MH

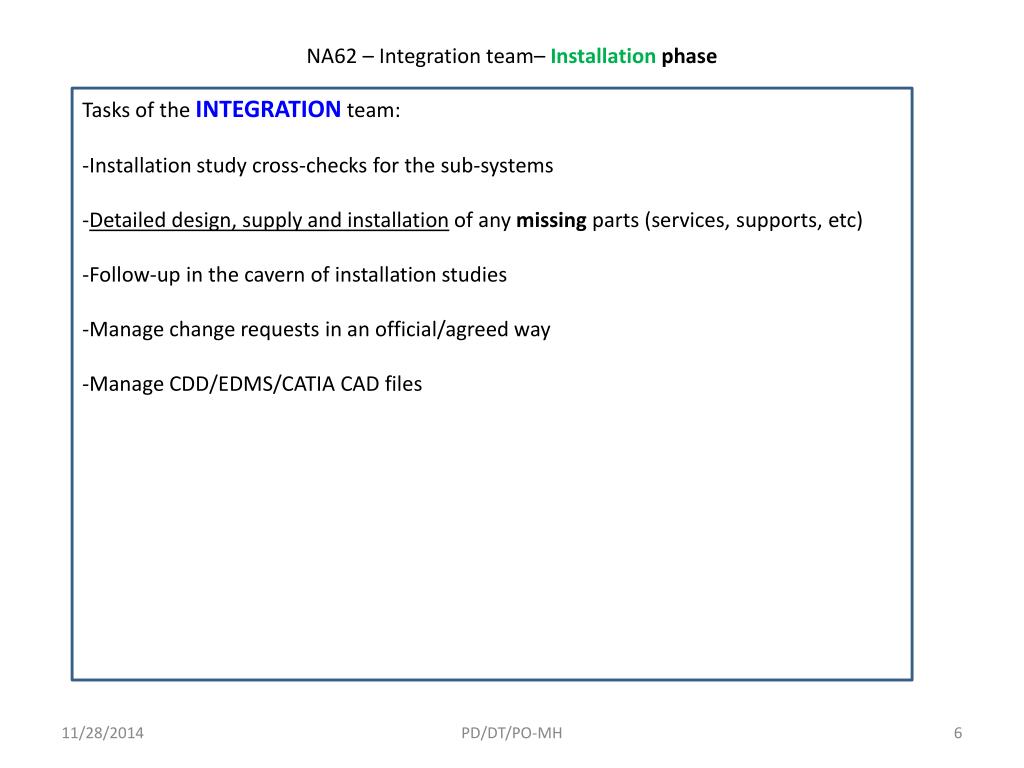

  6. NA62 – Integration team– Installation phase • Tasks of the INTEGRATION team: • Installation study cross-checks for the sub-systems • Detailed design, supply and installation of any missing parts (services, supports, etc) • Follow-up in the cavern of installation studies • Manage change requests in an official/agreed way • Manage CDD/EDMS/CATIA CAD files PD/DT/PO-MH

  7. NA62 – Experimental Area team– Installation phase • Tasks of the EXPERIMENTAL AREA team: • Scheduling and progress tracking of the work • Installation of external services / Liason with the CERN groups for the installation of services: WATER, COOLING, GAS, VACUUM, VENTILATION, ELECTRICITY, CRYOGENICS, VACUUM….. • Together with the GLIMOS, the planning of the work incorporating the safety aspects and conformity with CERN rules: installation procedure descriptions (work package analysis WPA’s ), procedures, etc. The management of the WPA’s: documents, approval procedures, realisation. • Manage the installation of the experiment (together with the TC & GLIMOS) • MNP33 Magnet : displacement, integration & services • Manage the technical assistance (technicians, travelling crane operators, surveyors..) • Installation and the setting up of the beamline • Liason with the machine • Realisation of the beam dump • TSO of the Experimental Area and buildings. PD/DT/PO-MH

  8. NA62 – Sub-detector teams– Installation phase • Tasks of the SUB-SYSTEMteams: • Working in accordance with the agreed schedule (Experimental Area team). • The writing of installation procedures (WPA’s) that describe: what work has to be executed, when it needs to be done, how it will be done (manpower and tooling), what safety measures will be taken, etc. • Interacting with the Experimental area team to prepare for, and obtain approval of, the installation procedures (WPA’s). • - All workers to attend CERN safety training courses (in order to obtain access, etc). • Providing the sub-detectors on the agreed dates and with the agreed means (manpower and tooling) to execute the work in accordance with the approved procedures. Respecting the safety rules. • Attendance at progress meetings. PD/DT/PO-MH
