  1. NA62 timing in 2014+ R. Fantechi

  2. Implications of the new timing • Actual timing based on WWE and delayed EE • Regular intervals between signals • Need of a minimum interburst timing • The new proposal have new features • Double flat tops with different interburst time • Day/night differences • Timing distribution using the Talk board • Already proposed for timing • Additional logic to create NA62 signals (next slide) • State machine to synchronize on the right WWE and to automatically switch between day and night

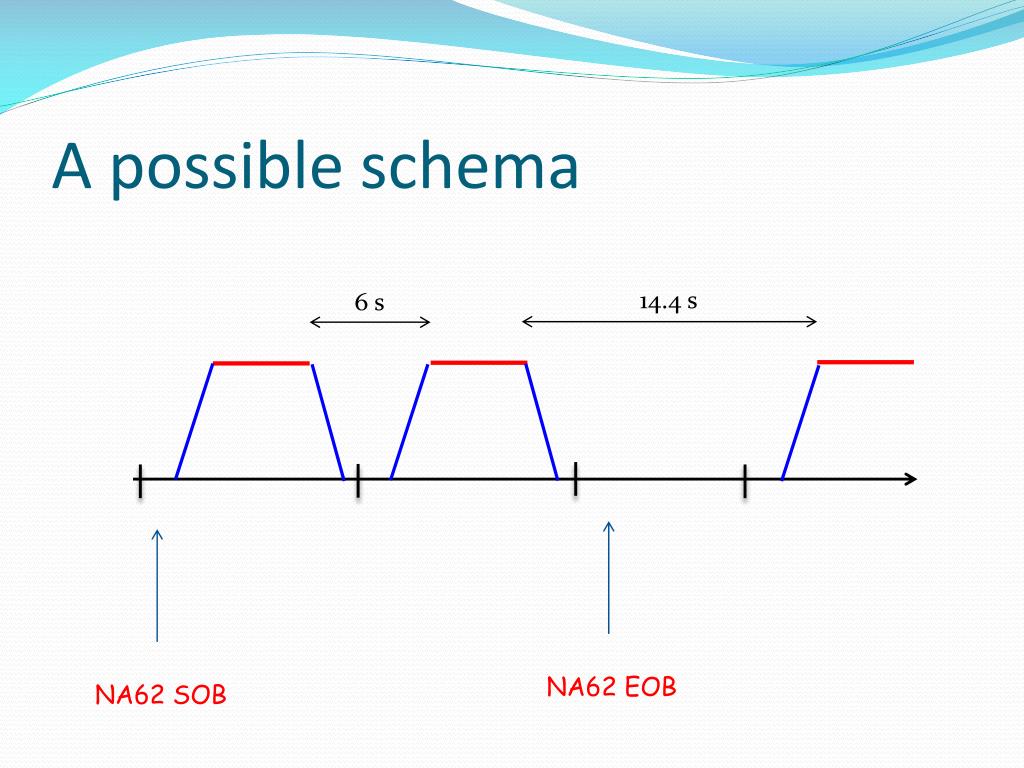

  3. A possible schema 14.4 s 6 s NA62 SOB NA62 EOB
