  1. Scientific Use Cases to be implemented to IVOQL Masahiro Tanaka and JVO team (NAOJ) IVOA Interoperability 14 May 2003 Scientific Use Cases - Masahiro Tanaka

  2. Major Query items • Fundamental dimensions • position with coordinate system • wavelength • time • flux / apparent magnitude • Other parameters • redshift • distance (from parallax / photometric / redshift) • absolute magnitude • … • Attributes • object names • object types (star / galaxy / …) • instrument (telescope / detector / filter / …) • … Scientific Use Cases - Masahiro Tanaka

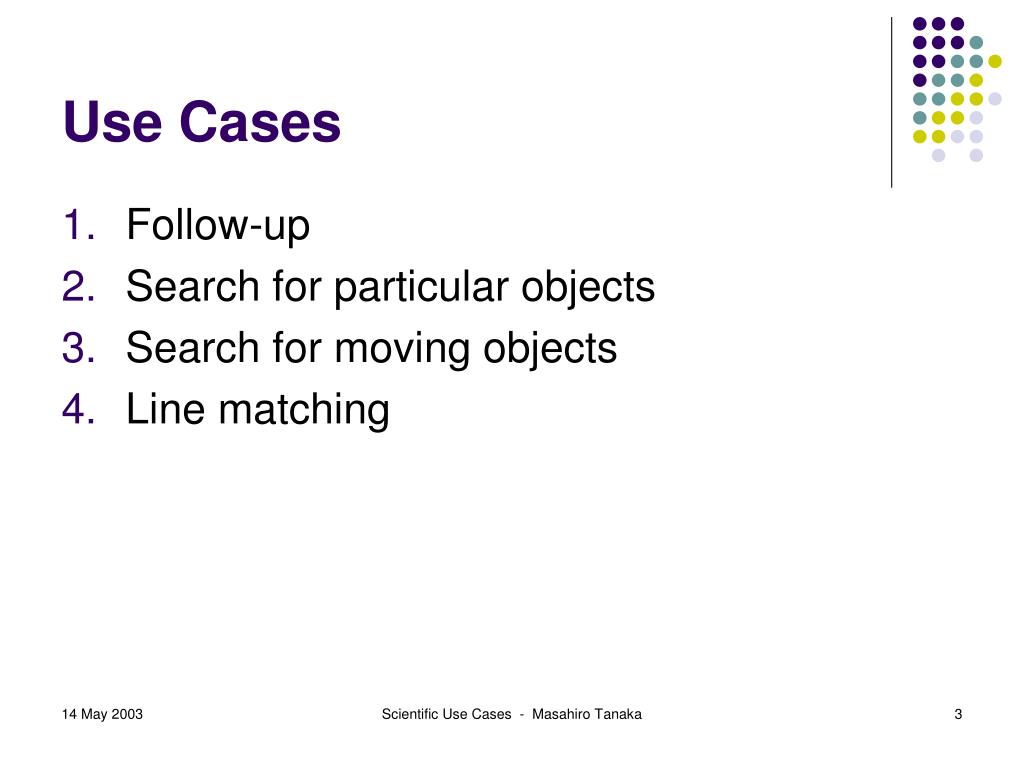

  3. Use Cases • Follow-up • Search for particular objects • Search for moving objects • Line matching Scientific Use Cases - Masahiro Tanaka

  4. Use Case 1: Follow-up Obtain supplemental data of objects you have observed • Targets • Gamma-ray burst • Super Nova • AGN • … • Query • Position • Time • Cross-match Scientific Use Cases - Masahiro Tanaka

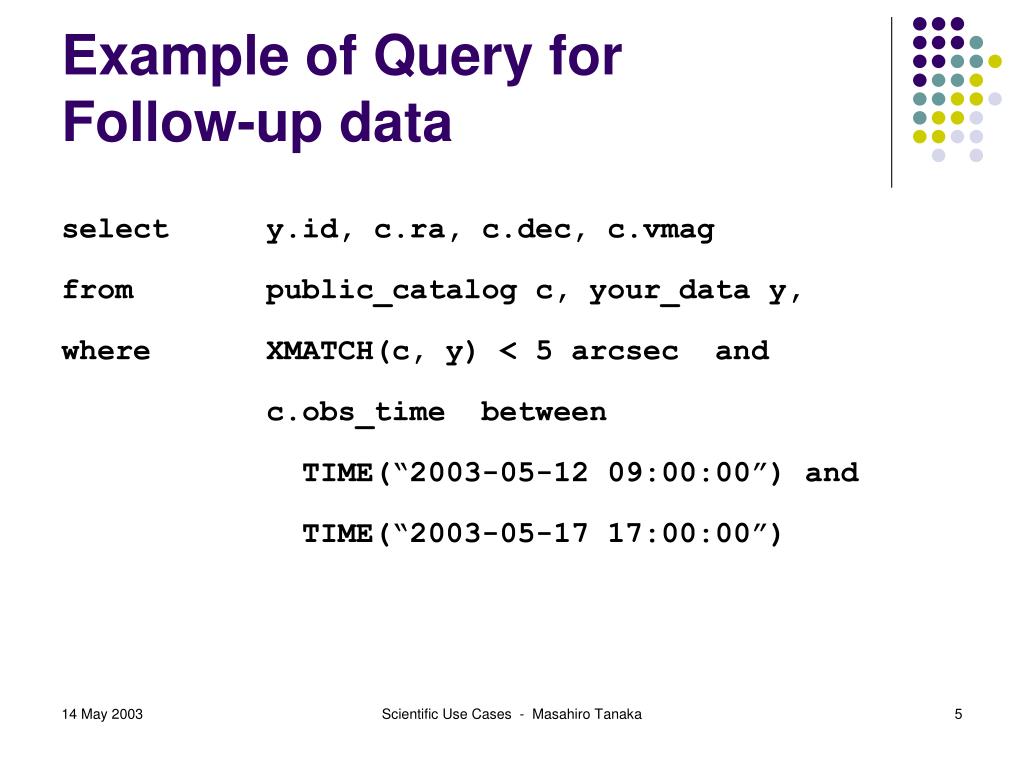

  5. Example of Query forFollow-up data select y.id, c.ra, c.dec, c.vmag from public_catalog c, your_data y, where XMATCH(c, y) < 5 arcsec and c.obs_time between TIME(“2003-05-12 09:00:00”) and TIME(“2003-05-17 17:00:00”) Scientific Use Cases - Masahiro Tanaka

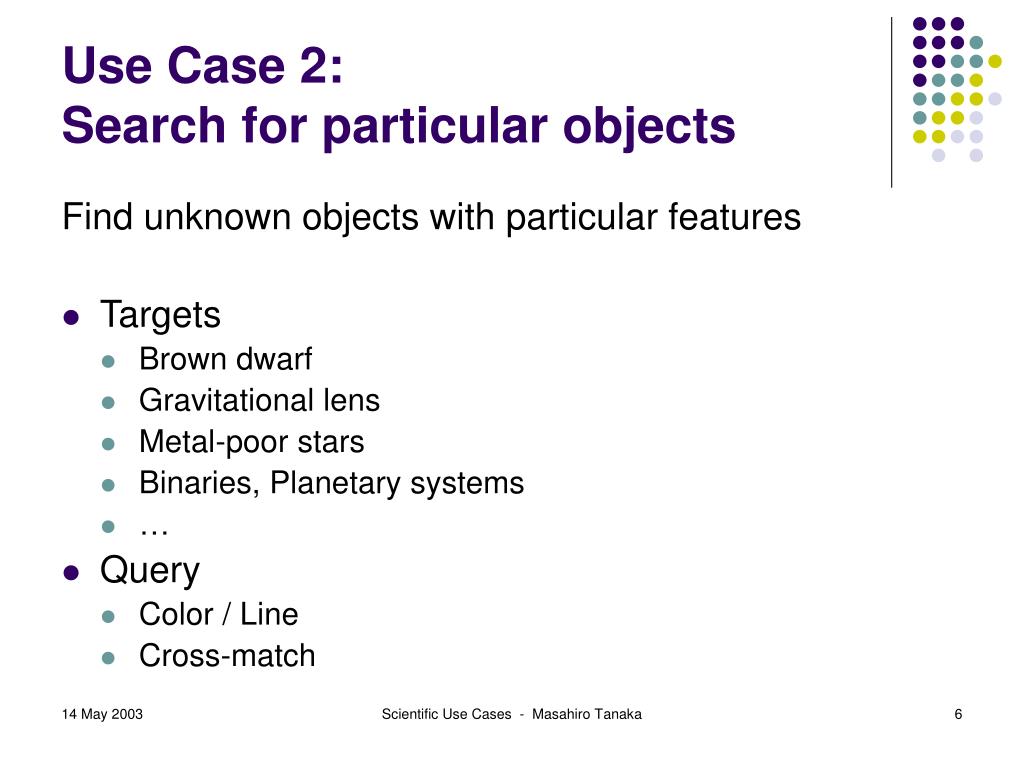

  6. Use Case 2:Search for particular objects Find unknown objects with particular features • Targets • Brown dwarf • Gravitational lens • Metal-poor stars • Binaries, Planetary systems • … • Query • Color / Line • Cross-match Scientific Use Cases - Masahiro Tanaka

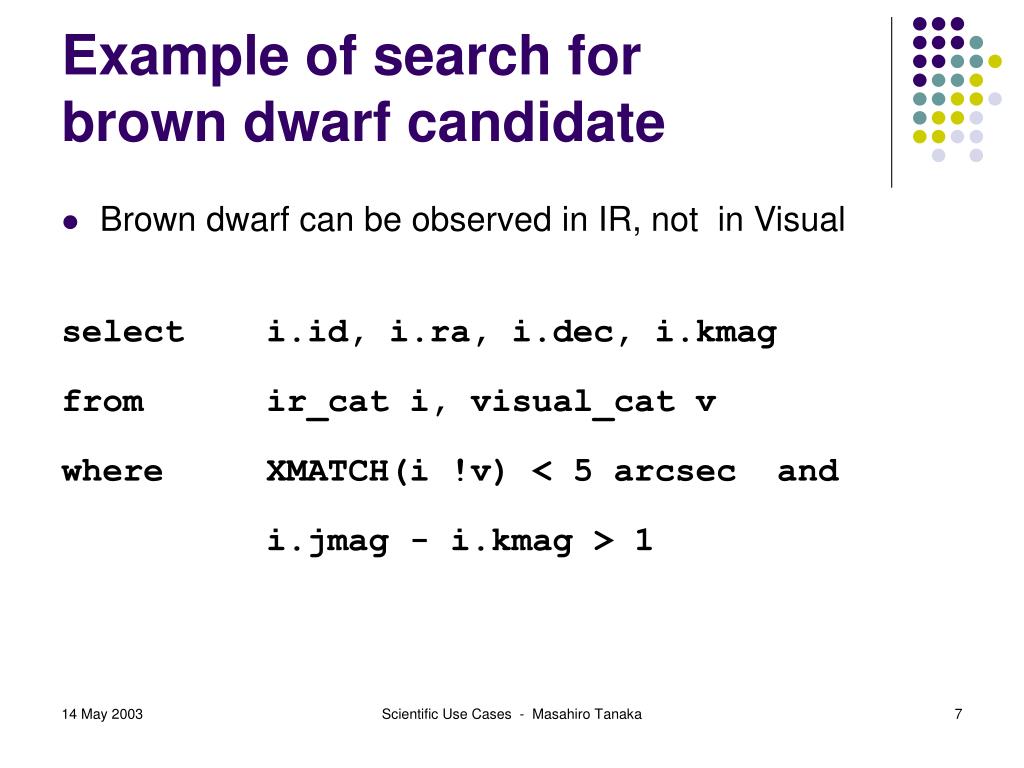

  7. Example of search forbrown dwarf candidate • Brown dwarf can be observed in IR, not in Visual select i.id, i.ra, i.dec, i.kmag from ir_cat i, visual_cat v where XMATCH(i !v) < 5 arcsec and i.jmag - i.kmag > 1 Scientific Use Cases - Masahiro Tanaka

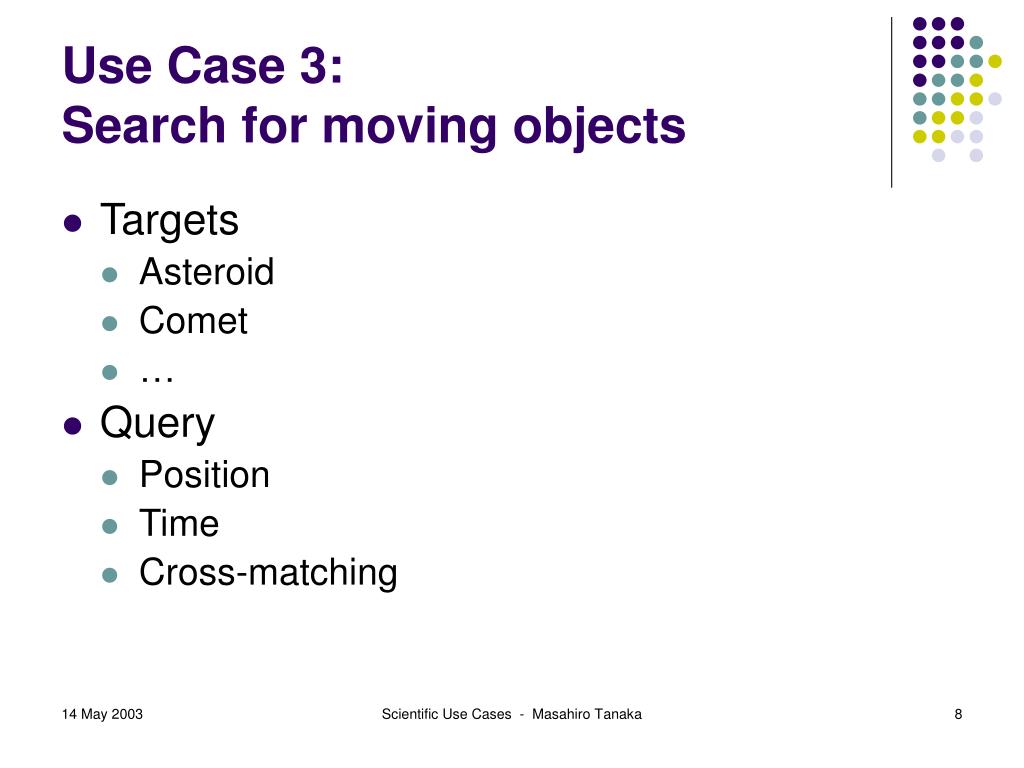

  8. Use Case 3:Search for moving objects • Targets • Asteroid • Comet • … • Query • Position • Time • Cross-matching Scientific Use Cases - Masahiro Tanaka

  9. Example of search formoving objects select c1.ra, c1.dec, c1.vmag, c2.ra, c2.dec, c2.vmag from cat1 c1, cat2 c2 where XMATCH(c1, !c2) < 30 arcsec and XMATCH(!c1, c2) < 30 arcsec and ABS(c1.vmag - c2.vmag) < 2 cat1 cat2 Scientific Use Cases - Masahiro Tanaka

  10. Use Case 4:Line matching select m.molecule, m.mode, m.frequency, y.strength from your_data y, lte_model_20K m where LINEMATCH(y, m) < 0.1 GHz and y.sn > 3 LINEMATCH can work with Doppler shift. more than ABS(m.frequency - y.frequency) < 0.1 GHz Scientific Use Cases - Masahiro Tanaka

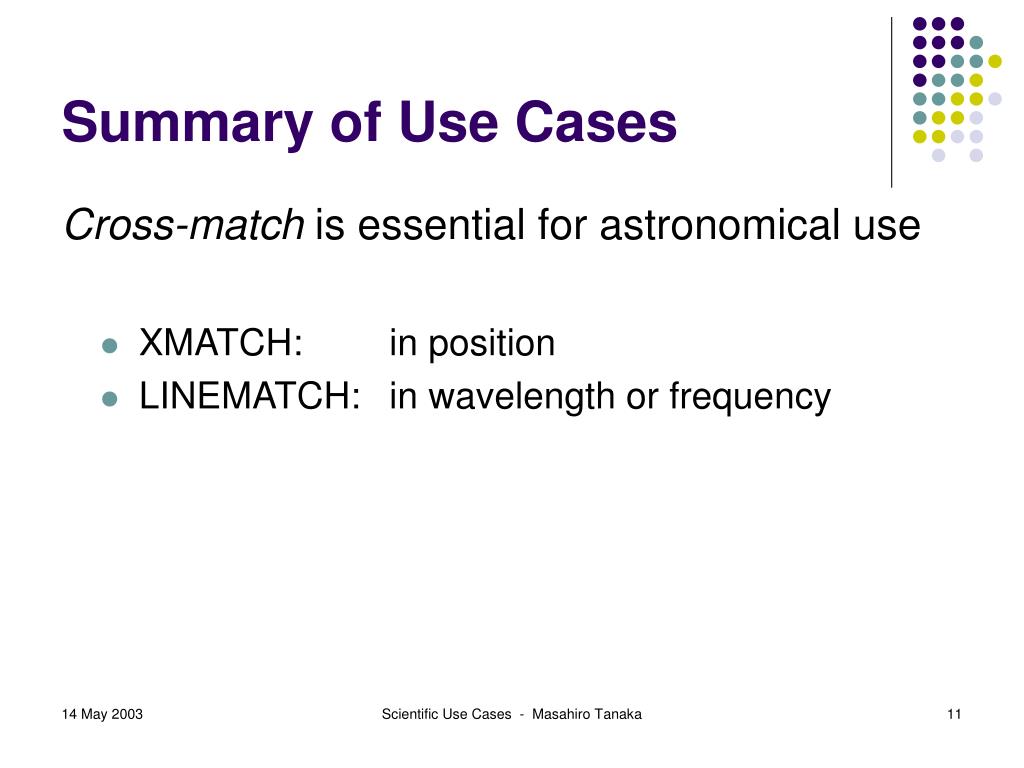

  11. Summary of Use Cases Cross-match is essential for astronomical use • XMATCH: in position • LINEMATCH: in wavelength or frequency Scientific Use Cases - Masahiro Tanaka

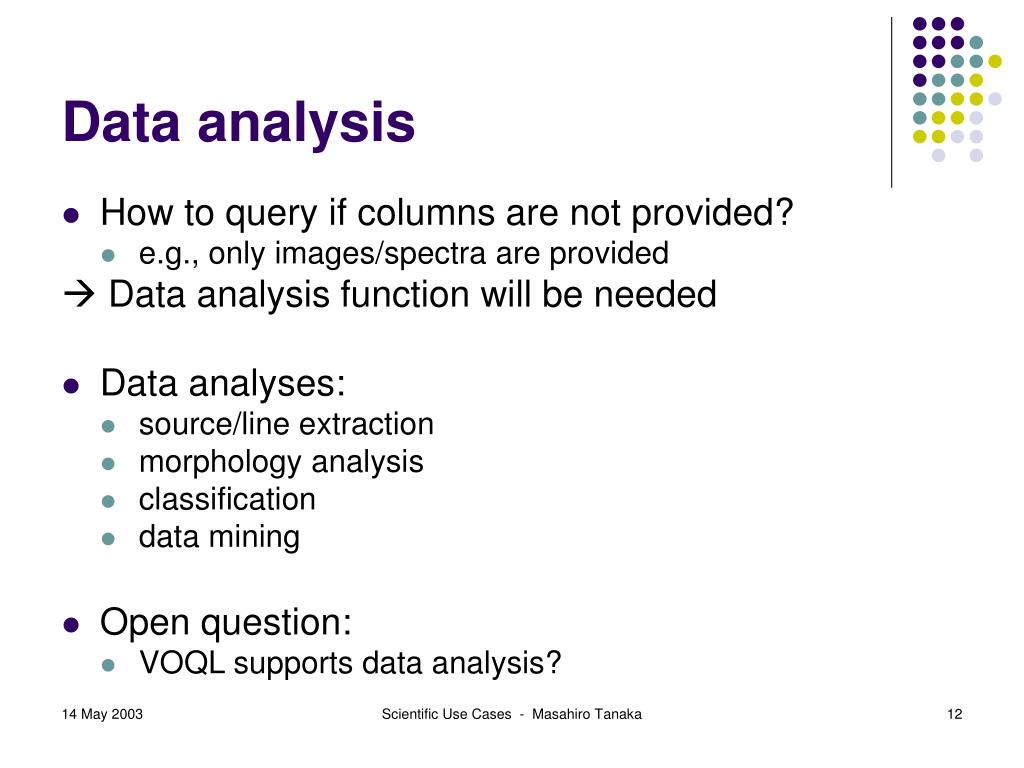

  12. Data analysis • How to query if columns are not provided? • e.g., only images/spectra are provided  Data analysis function will be needed • Data analyses: • source/line extraction • morphology analysis • classification • data mining • Open question: • VOQL supports data analysis? Scientific Use Cases - Masahiro Tanaka
