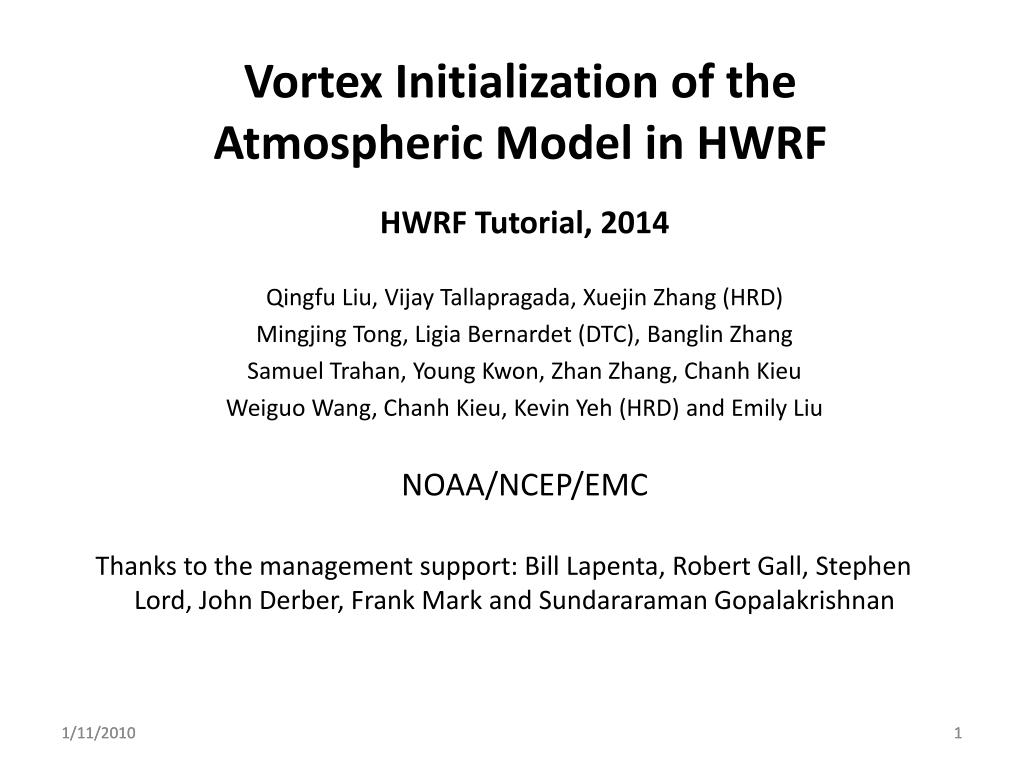

  1. Vortex Initialization of theAtmospheric Model in HWRF 1/11/2010 HWRF Tutorial, 2014 Qingfu Liu, Vijay Tallapragada, Xuejin Zhang (HRD) Mingjing Tong, Ligia Bernardet (DTC), Banglin Zhang Samuel Trahan, Young Kwon, Zhan Zhang, Chanh Kieu Weiguo Wang, Chanh Kieu, Kevin Yeh (HRD) and Emily Liu NOAA/NCEP/EMC Thanks to the management support: Bill Lapenta, Robert Gall, Stephen Lord, John Derber, Frank Mark and Sundararaman Gopalakrishnan 1/11/2010 1 1

  2. Outline Overview HWRF cycling system Bogus storm Storm relocation Storm size correction Storm intensity correction Summary and discussions 1/11/2010 2

  3. 1. Overview • HWRF initialization design: • Mini analysis for background vortex + GSI (Hybrid) • The mini analysis is to create a better background fields, and includes three parts: • storm relocation (data: storm center position) • storm size correction (data: radius of maximum surface wind speed, and radius of the outermost closed isobar or average radius of 34 knots wind speed) • storm intensity correction (data: maximum surface wind speed, to some extent, minimum surface pressure). • Important for model consistent formulation: • if vortex location, size and intensity in background are close to observations: all corrections are small. • If they match the observations: no changes to the background fields 1/11/2010 3

  4. Followings are considered: 1). No bogus data in data assimilation Reasons: a) bogus data may conflict with observation data b) we will get the storm structure we specified 2) No conflict between the mini-vortex analysis and the traditional data assimilation a) if we have no/few data in hurricane areas, we can use the results from mini-vortex analysis + GSI to give the final analysis, and the result can be used for hurricane model initialization b) If we have more data (such as the airborne radar data), we can still use the results from mini-vortex analysis + GSI to further improve the vortex structure and the environment fields through GSI data assimilation

  5. 3) Model-consistent Generally speaking, the differences are large between the model and the observation in hurricane area. We have two choices: a) Small correction pro: model-consistent small adjustment in model forecast con: vortex structure may be bad  HWRF initialization can be considered as small correction (correction is large in a few cases): Storm size correction is limited to 15% wind speed correction < 15% (generally speaking) As model physics improve, the vortex structure will become better, and eventually converge to observation (theoretically).

  6. 3) Model-consistent (continue) b) Large correction pro: good vortex structure con: generally speaking, Not model-consistent Large adjustment in model forecast Once model forecast starts, the good vortex structure can be lost in several hours forecast time. Case study: 2005 Wilma has an 8-km eyewall size at 140 knots wind. Model forecast gives ~ 20km eyewall size in the background fields. If we produce a nice initial vortex with 8-km eyewall size in HWRF initial fields, the eyewall will collapse, and significant spin-down will occur in model forecast. The current HWRF model does not have the capability to maintain this kind of hurricane structure.

  7. 2. HWRF Cycling System • Ligia already gave an overview of the HWRF initialization system, here I want to emphasize that only the HWRF vortex is cycled, and the environment guess field comes from GDAS forecast (global model). So, HDAS guess field = GDAS environment field (interpolated to HWRF model grid) + corrected vortex from HWRF 6h forecast If there is no inner core data, the initialization order is slightly different, HDAS guess field = GDAS environment field (interpolated to HWRF model grid) Final analysis = HDAS environment field + corrected 6h HWRF vortex

  8. 3. Bogus vortex • Only used to increase storm intensity if background vortex is weaker compared to observation • Cold start: background vortex comes from HDAS (or GFS) analysis • Bogus storm has the same storm size as the observation • Bogus storm is created from a 2D axi-symmetric composite vortex. The 2D axi-symmetric composite vortex is pre-generated. • The 2D vortex has hurricane perturbations U, V, T, r (water vapor mixing ratio) and Ps

  9. Bogus vortex (continue) Creation of the bogus vortex Horizontally smooth the 2D storm profiles (U, V, T, r and Ps, note: Ps is 1D) until the radius of maximum wind or the maximum wind speed of the 2D vortex is close to the observation. After smooth, the storm size is corrected to match the observation The 2D composite vortex should be recreated whenever the changes of model physics strongly affect the storm structures 1/11/2010 9

  10. 4. Vortex relocation • GFS (Liu et al., 2000) A vortex relocation procedure to initialize hurricanes was implemented in GFS in year 2000. The relocation procedure takes the guess field and moves the hurricane vortex to the correct location before the GSI updates the analysis. The steps can be briefly summarized as follows: 1) locate the hurricane vortex center in the guess field, 2) separate hurricane model's vortex from its environmental field, 3) move the hurricane vortex to the NHC's official position, and 4) if the vortex is too weak in the guess field, add a bogus vortex in the GSI analysis* *this step is not done in HWRF 1/11/2010 13

  11. 4. Vortex relocation • GFS (Liu et al., 2000) • 31% improvement in track forecasts from GFS • 25% improvement from GFDL model • GFS Ensemble (Liu et al. 2006b) • Reduce the spreads of storm track and storm intensity forecasts • COAMPS-TC (Liou, 2008, personal communication) • ARW (Hsiao et al., MWR, 2009) • 28%-50% improvements in track forecasts 1/11/2010 14

  12. 5. Storm Size Correction • Observation data used from TC vitals for the eyewall and storm size corrections are: • radius of maximum wind speed • radius of outmost closed isobar • radius of 34 knots wind (for strong storms) We use this information to correct the size of the composite storm, as well as the storm produced from the 6-h model forecast by stretching or compressing the model grid.

  13. Storm Size Correction (continue) • Stretch/compress the model grid (1.4.1.1) Integrate equation (4.1.1), we have (1.4.1.2) Where a and b are constants, r and r* are the distances from the storm center before and after the model grid is stretched

  14. Storm Size Correction (continue) • Data used: • Radius of the maximum wind speed (rm and rm*) • Radius of the outmost closed isobar (Rm and Rm*) • Model data: rm , Rm • Observation data: rm* , Rm* • We compress/stretch the model grids such that At , (1.4.1.3) At , (1.4.1.4)

  15. Storm Size Correction (continue) • Substituting (1.4.1.3) and (1.4.1.4) into (1.4.1.2), (1.4.1.5) (1.4.1.6) • Solve equations (1.4.1.5) and (1.4.1.6), we have (1.4.1.7)

  16. Storm Size Correction (continue) • Define the radius of outmost closed isobar from model output As discussed in 2013 HWRF v3.5a Scientific Document, the minimum surface pressure need to be scaled to observation value before calculating the radius of outmost isobar, we define, for 6-h HWRF vortex (vortex #1), for composite storm (vortex #2), Where Dp1 and Dp2 are the 2D perturbation pressures for vortex #1 and vortex #2, respectively. Dp1c and Dp2c are the minimum values form Dp1 and Dp2. Dpobs is the observed minimum perturbation pressure.

  17. Storm Size Correction (continue) • Define radius of outmost closed isobar from model output (continue) The radius of outmost closed isobar for vortex #1 and vortex #2 can be defined as the radius of the 1mb contour from f1 and f2, respectively. Calculation of the ROCI from model output has large errors. Therefore, we use the ROCI from model output only as a reference, we set the model ROCI to be the same as observed ROCI. Parameter ROCI only used to correct storms with the max wind speed less than 34 knots. Once we can define the R34, we will switch to R34 as the second parameter used in storm size correction.

  18. Storm Size Correction (continue) • Define the radius of 34 knots wind Similar to the calculation of the radius of the outmost closed isobar, we need to scale the max wind speed for vortex #1 and vortex #2 before calculating the radius of 34 knot wind. We define, for 6-h HWRF vortex (vortex #1), for composite storm (vortex #2), Where v1m and v2m are the maximum wind speed for vortex #1 and vortex #2, respectively, and is the observed maximum wind speed subtract the environment wind. The environment wind is defined as where U1m is the max wind speed at 6h forecast

  19. Storm Size Correction (continue) • Define the radius of 34 knots wind (continue) The radius of 34 knot wind for vortex #1 and vortex #2 are calculated as the radius by setting g1 and g2 to be 34 knot, respectively. The combination of vortex #1 and vortex #2 can be written as At 34 knot radius, we have (g1 =34, g2 =34) Note we have used,

  20. Storm Size Correction (continue) • In 2010 operational HWRF, only radius of the maximum wind speed was used for storm size correction, and ai was set to be constant (b=0). We limit the correction to be 15% of the model value (0.85 < ai<1.15), and (1.4.1.9) In 2011 HWRF, Kevin Yeh (HRD) added the second parameter in the storm size correction according to equation (1.4.1.7)

  21. Storm Size Correction (continue) • Sea-level pressure adjustment (1.4.1.1.9) where, (1.4.1.1.6) And (1.4.1.1.4)

  22. Storm Size Correction (continue) • Temperature adjustment Temperature adjustment is proportional to the magnitude of the vortex temperature perturbation, (1.4.1.2.9)

  23. Storm Size Correction (continue) Water vapor adjustment Assumption: relative humidity is unchanged before and after the temperature correction, we have (1.4.1.3.4) and (1.4.1.3.6) 1/11/2010 26

  24. Storm Size Correction (continue) • Convergence If a=1.0, no storm size correction, we have from equations (1.4.1.1.9), (1.4.1.2.9) and (1.4.1.3.6), there will be no adjustments in 2D sea-level pressure, 3D temperature and 3D water vapor fields in the background

  25. 6. Storm Intensity Correction • Wind speed correction • Denotes u1 and v1 as the background horizontal velocity, and u2 and v2 as the vortex horizontal velocity • Define two functions (1.4.2.1.1) (1.4.2.1.2) F1 is the 3D wind speed if we simply add a vortex to the background fields, and F2 is the new wind speed after intensity correction. • To find b, assume that the maximum wind speed for F1 and F2 are at the same model grid point. • First find the model grid point m where F1 is at its maximum (denotes the wind components as u1m , v1m , u2m , and v2m ). • At model grid m, let F2=vobs , then solve the equation to obtain b.

  26. Storm Intensity Correction (continue) • New initial 3D wind fields And (1.4.2.1.4) where vobs is the maximum 10m observed wind converted to the first model level.

  27. Storm Intensity Correction (continue) • We consider two cases in the following discussion  Case I: wind speed in background is stronger than obs. • The background fields are the same as the HWRF (or GFS) environment fields (no vortex). • We correct the intensity of vortex #1 (6h HWRF model vortex) before adding it to the background fields • Case II: wind speed in background is weaker than obs. • First, we add back the 6-h HWRF model vortex to the GFS environment fields (after relocation and storm size correction) • Correct the intensity of vortex #2 (axi-symmetric vortex) before adding it to the new background fields. Note: Vortex #2 has the observed radius of the maximum wind speed and radius of outmost closed isobar (or radius of 34 knot wind) as vortex #1

  28. Storm Intensity Correction (continue) • Sea-level pressure adjustment after wind speed correction • Case I: wind speed in background is stronger than obs. • If the background vortex is close to observation, we have, b is close to 1 And the pressure adjustment is (1.4.2.2.5) and (1.4.2.2.2) (1.4.2.2.3)

  29. Storm Intensity Correction (continue) • Sea-level pressure adjustment after wind speed correction • Case II: wind speed in background is weaker than obs. • Since the background vortex is already added back, we have, b is close to 0 • model consistent pressure adjustment (1.4.2.2.7) And (1.4.2.2.5) (1.4.2.2.6)

  30. Storm Intensity Correction (continue) • Temperature and water vapor adjustments after wind speed correction • Model consistent temperature adjustment: Case I: wind speed in background is stronger than obs. • If the background vortex is close to observation, we have, b is close to 1 • Define Then temperature fields can be corrected using equation (1.4.1.2.9), and water vapor fields can be corrected following equations (1.4.1.3.4) and (1.4.1.3.6).

  31. Storm Intensity Correction (continue) • Temperature and water vapor adjustments after wind speed correction • Model consistent temperature adjustment: Case II: wind speed in background is weaker than obs. • If the background vortex is close to observation, we have, b is close to 0 • Define Then temperature field and moisture fields can be similarly corrected as in Case I. Note: Intensity correction can be moderately large, the nonlinear effect of the balance equation is included in the formulation.

  32. Storm Intensity Correction (continue) • Convergence for intensity adjustment Case I: wind speed in background is stronger than obs. In this case b=1.0, no wind speed correction, from equations (1.4.1.2.2), (1.4.2.2.3) and (1.4.1.2.5), we have, Case II: wind speed in background is weaker than obs. In Case II, b=0, no wind speed correction, from equations (1.4.2.2.5), (1.4.1.2.6), we have (1.4.1.2.7), From equations (1.4.1.1.9), (1.4.1.2.9) and (1.4.1.3.6), there will be no adjustments in 2D surface pressure, 3D temperature and 3D water vapor fields in the background

  33. 7. Summary and discussions • Creation of the guess fields can be considered as a mini data analysis for storm vortex in the background fields which includes three parts: • storm relocation (data used: storm center position) • storm size correction (data used: radius of maximum surface wind speed, and radius of the outermost closed isobar) • storm intensity correction (data used: maximum surface wind speed, and to some extent, the minimum sea level pressure) Note: Do storm size correction before storm intensity correction to avoid broad eyewall structure, or worse, two distinct eyewalls. • If the background vortex is close to the observation, all corrections are small. • From the convergence discussions, if the vortex location, vortex size and vortex intensity in the background fields match the observations, there will be no changes to any of the background fields 1/11/2010 36

  34. Summary and discussions (continue) • Limitation in 2013 operational HWRF vortex initialization The purpose of the mini-analysis is to create better background fields using TCVitals. Then add 3D data on top of the new vortex. The current GSI has the capability to add airborne radar data. Since the airborne radar data are expensive to collect, only less than 10% of the forecast cycles have these data. So, for most of the storms, we only have the low level control, upper level structure (for example, storm depth) may be very different from observation, particularly in shear environment. • Current work in HWRF vortex initialization We are working to add the satellite radiance data in the hurricane core area. We are hoping a major improvement in hurricane intensity forecast after the work is completed. Thank you very much for attending this tutorial !!!
