Simulator for the observation of atmospheric entries from orbit. D. Baratoux (IRAP) J. Vaubaillon (IMCCE) D. Mimoun (ISAE) M. Gritsevich (Univ. of Helsinki) O. Mousis (UTINAM, Univ. Franche-Comté). A. Bouquet (Student, IRAP). IPPW 10, June 20 th 2013.
E N D

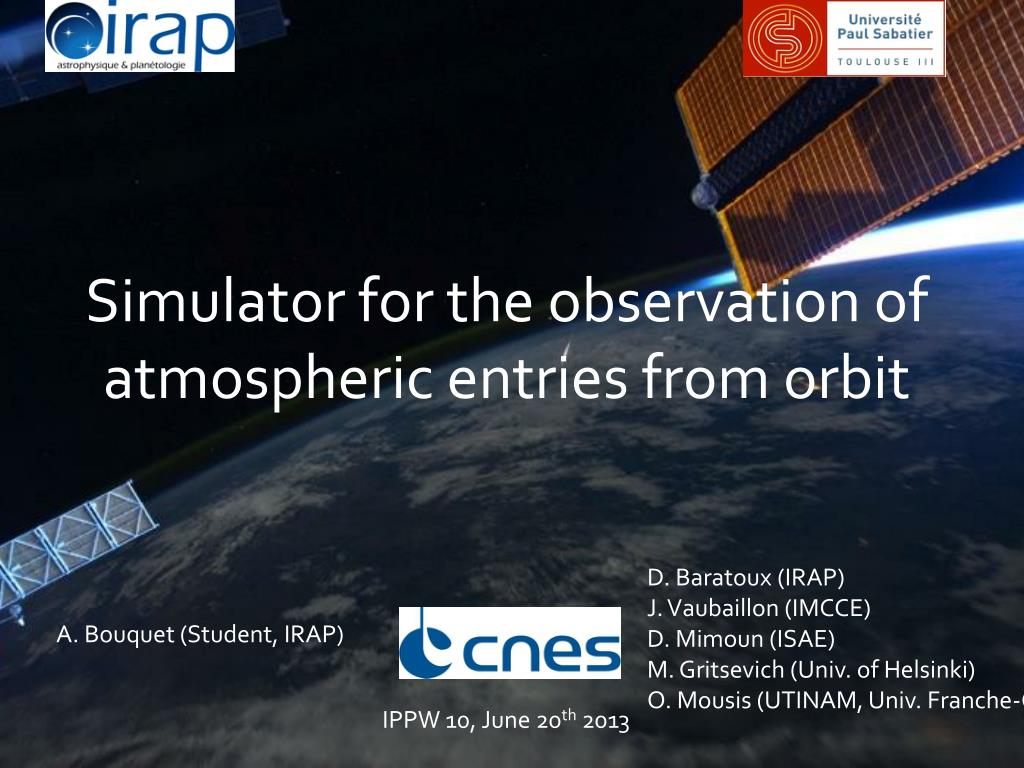

Simulator for the observation of atmospheric entries from orbit D. Baratoux (IRAP) J. Vaubaillon (IMCCE) D. Mimoun (ISAE) M. Gritsevich (Univ. of Helsinki) O. Mousis (UTINAM, Univ. Franche-Comté) A. Bouquet (Student, IRAP) IPPW 10, June 20th 2013
Simulator for the observation of atmospheric entries from orbit • Context • Simulator • Hypotheses for simulations, analysis of a large sample of meteors • Current results Introduction Conclusions and way forward
Introduction Why do we monitor meteors? • Quantification of the flux of matterentering the atmosphereand enrichingplanetaryatmospheres • Deduction on meteoroidsproperties (composition) • Indirect probing of atmospheres (throughatmosphericlines), process of entry athigh speed • Trajectory reconstruction: • Link to parent body • Meteoriterecovery Credit: Max Planck Institute
1.Usefuldefinitions • (International MeteorOrganization) • Meteoroid: a solidobjectmoving in interplanetaryspace, considerablysmallerthan a asteroid (10m) and considerablylargerthana molecule • Meteor: A light phenomenonwhichresultsfrom the entry into the Earth'satmosphere of a solidparticlefromspace. • Meteorite: a naturalobject of extraterrestrialorigin (meteoroid) that survives passage through the atmosphere and hits the ground.

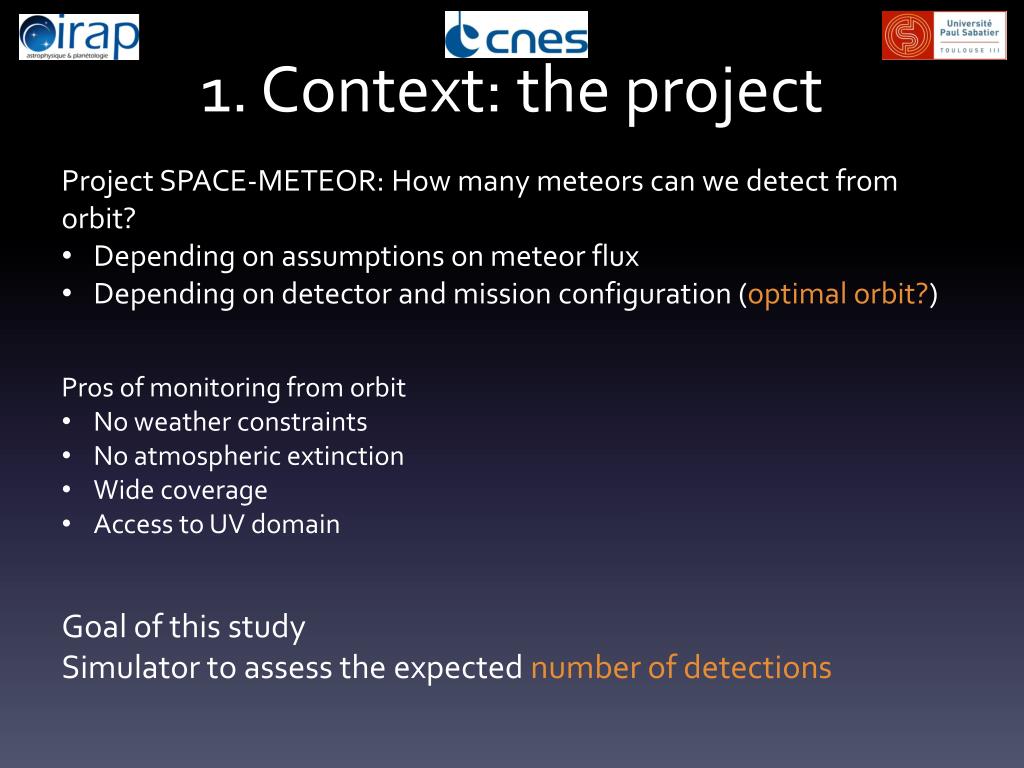

1. Context: the project • Project SPACE-METEOR: How many meteors can we detect from orbit? • Depending on assumptions on meteor flux • Depending on detector and mission configuration (optimal orbit?) • Pros of monitoring from orbit • No weather constraints • No atmospheric extinction • Wide coverage • Access to UV domain Goal of this study Simulator to assess the expected number of detections
2.Simulator: From meteoroid to meteor detection Credit: ESA Panchromatic τ Luminous Energy Mass 0.5mV2 Detector Measured luminous energy Kinetic energy Velocity • Main difficulties: • Mass evaluation (indirectly if no meteorite!) • τvaries for eachmeteor
2.Architecture of the simulator(Python language) Distributions Set of events with their properties Masses Speeds Determination of τ Luminous energy Density Number of detections Position in the field of view of the monitoring device Characteristics, position, orientation of the detector
3.Required data: Masses • Masses distribution: Halliday et al (96) Mass index s: Here s=1.48 at low mass (slope -0.48) Number of events N with mass > MI (per year and million square kilometers) Observations of Canadian Network
3.Required data(2): Velocities • Velocities distribution: Radar Survey Hunt et al (2004) Maximum at 15-20 km/s Peak width: 10 km/s
3.Required data (3): Densities • Density distribution: No simple answer Deductions from meteorites are biased Conservative assumption: Uniform distribution (1 to 4)

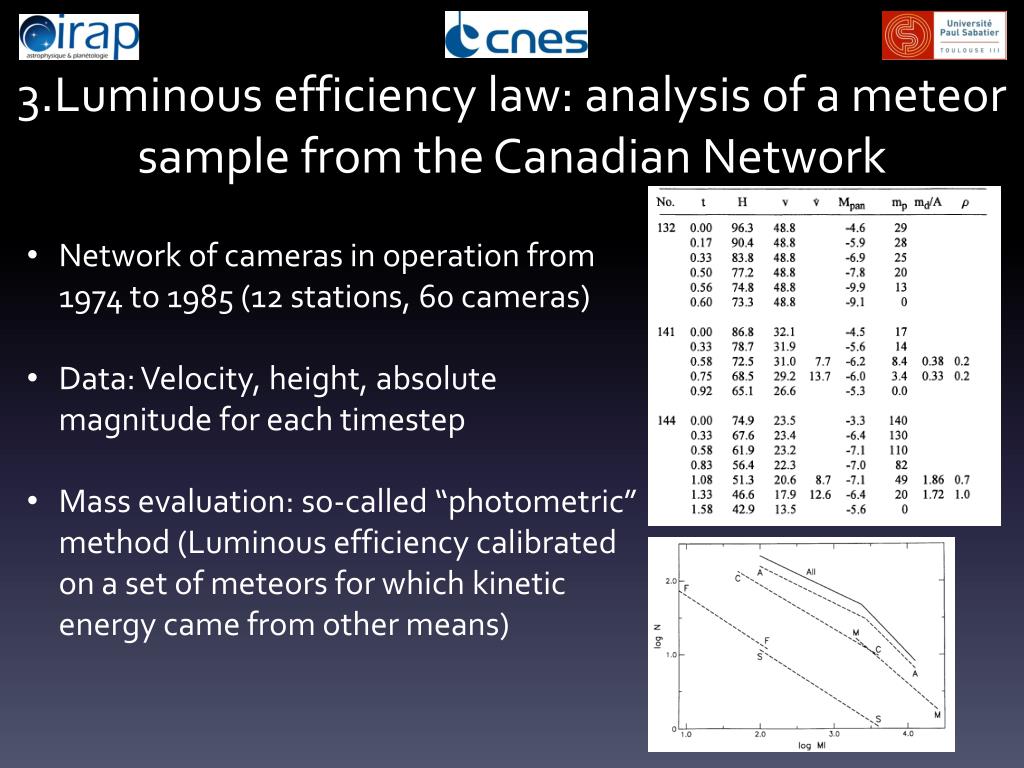

3.Luminous efficiency law: analysis of a meteor sample from the Canadian Network • Network of cameras in operation from 1974 to 1985 (12 stations, 60 cameras) • Data: Velocity, height, absolute magnitude for each timestep • Mass evaluation: so-called “photometric” method (Luminous efficiency calibrated on a set of meteors for which kinetic energy came from other means)
3. Analysis of Canadian Network meteors: Reconstruction of main parameters (Python algorithm) • Method proposed by M. Gritsevich et al • Link between drag and mass loss equation Air density Cross-section area Drag coefficient Drag equation Mass loss equation Massic enthalpy of destruction Heat exchange coefficient
3. Analysis of Canadian Network meteors: Reconstruction of main parameters (2) It can be demonstrated (M. Gritsevich) that one can write a differential equation linking trajectory to two parameters α and β Determination of luminous efficiency Empirical parameters α and β Assumption on shape and density ρ • Deduction of ρ(Ceplecha-Revelle 2001) α: “ballistic parameter” β: “Mass loss parameter” Ablation coefficient

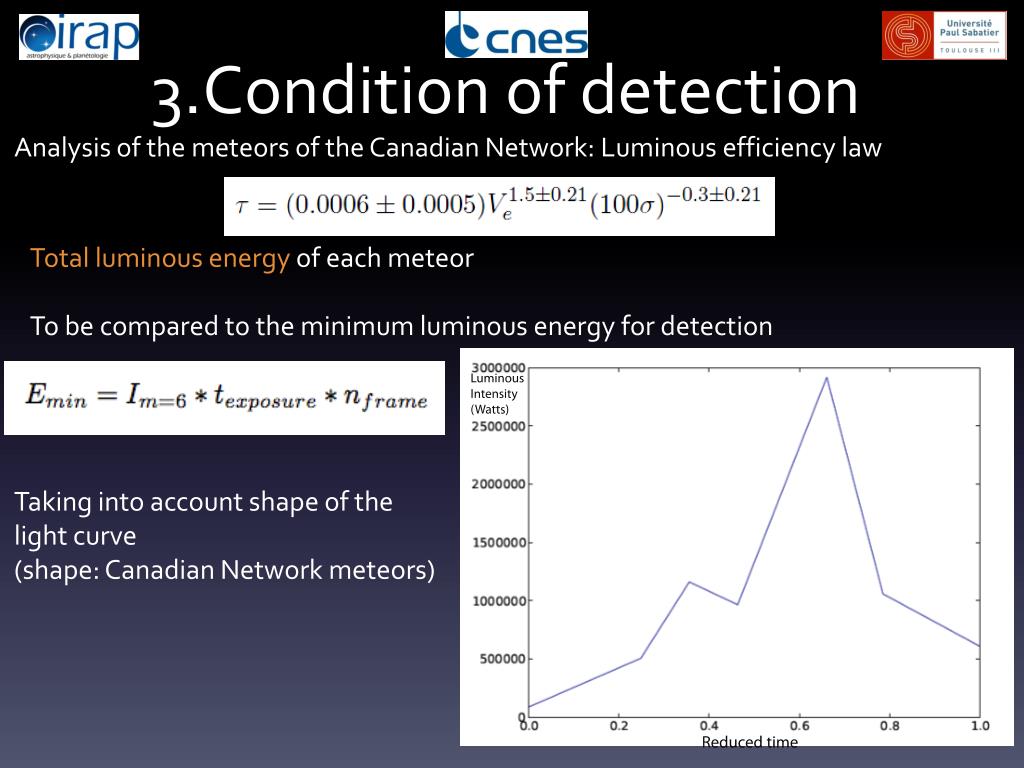

3.Condition of detection Analysis of the meteors of the Canadian Network: Luminous efficiency law Total luminous energy of each meteor To be compared to the minimum luminous energy for detection Taking into account shape of the light curve (shape: Canadian Network meteors)

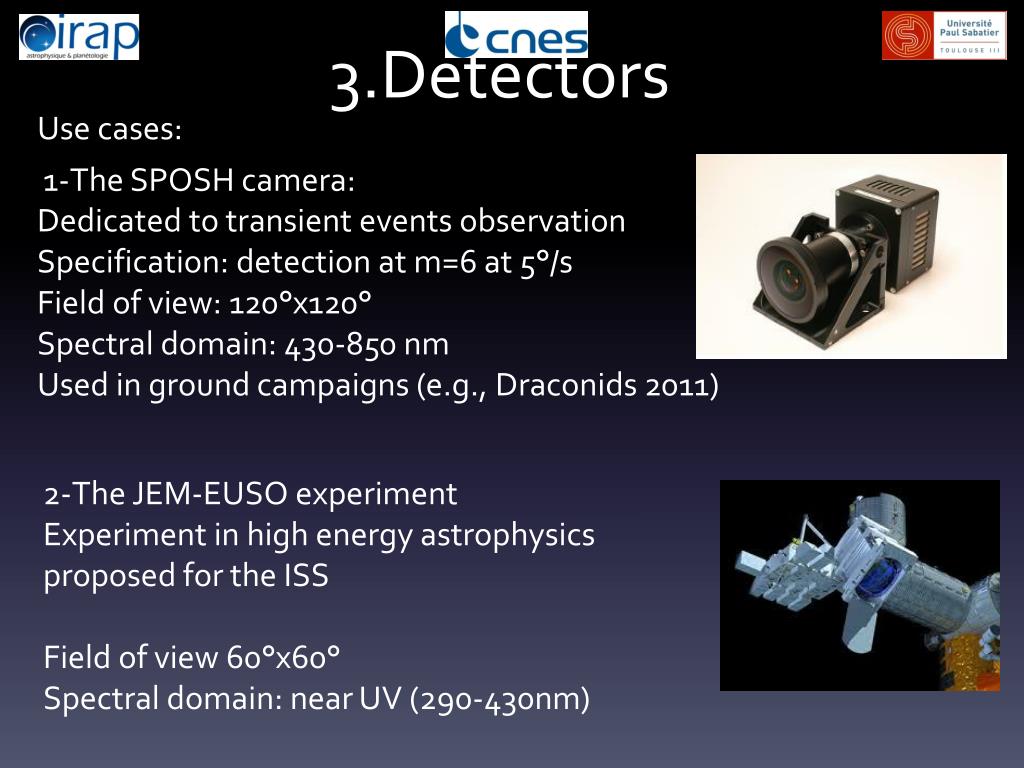

3.Detectors Use cases: 1-The SPOSH camera: Dedicated to transient events observation Specification: detection at m=6 at 5°/s Field of view: 120°x120° Spectral domain: 430-850 nm Used in ground campaigns (e.g., Draconids 2011) 2-The JEM-EUSO experiment Experiment in high energy astrophysics proposed for the ISS Field of view 60°x60° Spectral domain: near UV (290-430nm)
4.Results (1) With the SPOSH camera (120°x120°) Evolution of coverage “Horizon to Horizon” above 900km
4.Results (2) With the SPOSH camera (120°x120°) Hourly rate of detection Maximum of12 detections/hour at 3000km
4.Results (3) With the SPOSH camera (120°x120°) Underlines the importance of coverage
4.Results (4) With the JEM-EUSO experiment (60°x60°, onboard ISS) Evolution of coverage with tilt angle
4.Results (5) With the JEM-EUSO experiment (60°x60°, onboard ISS) Maximum of 1.4 detections/hour
4.Results (6) Impact of mass index: if s>2 Population shifted towards low masses: low orbits become more interesting Need to refine hypothesis on flux

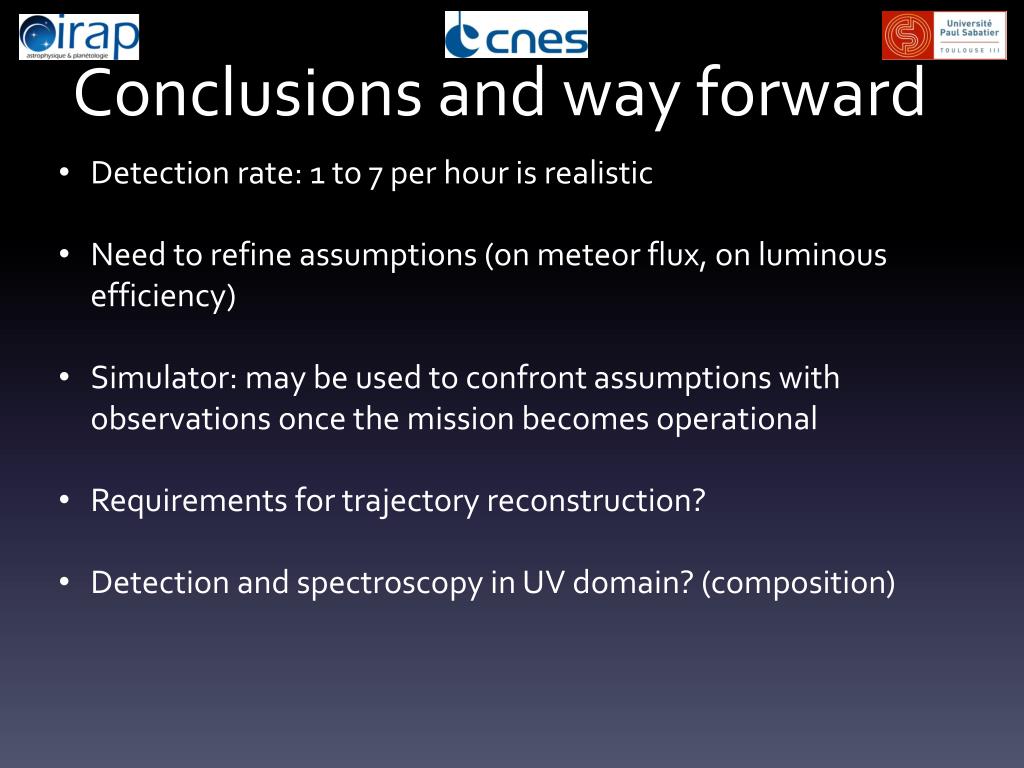

Conclusions and way forward • Detection rate: 1 to 7 per hour is realistic • Need to refine assumptions (on meteor flux, on luminous efficiency) • Simulator: may be used to confront assumptions with observations once the mission becomes operational • Requirements for trajectory reconstruction? • Detection and spectroscopy in UV domain? (composition)
