  1. DSP Term Project By: Ashley Downs And Jeff Malen

  2. Sound Effects • Delay • Multiple Echoes • Natural Reverb • Flanging

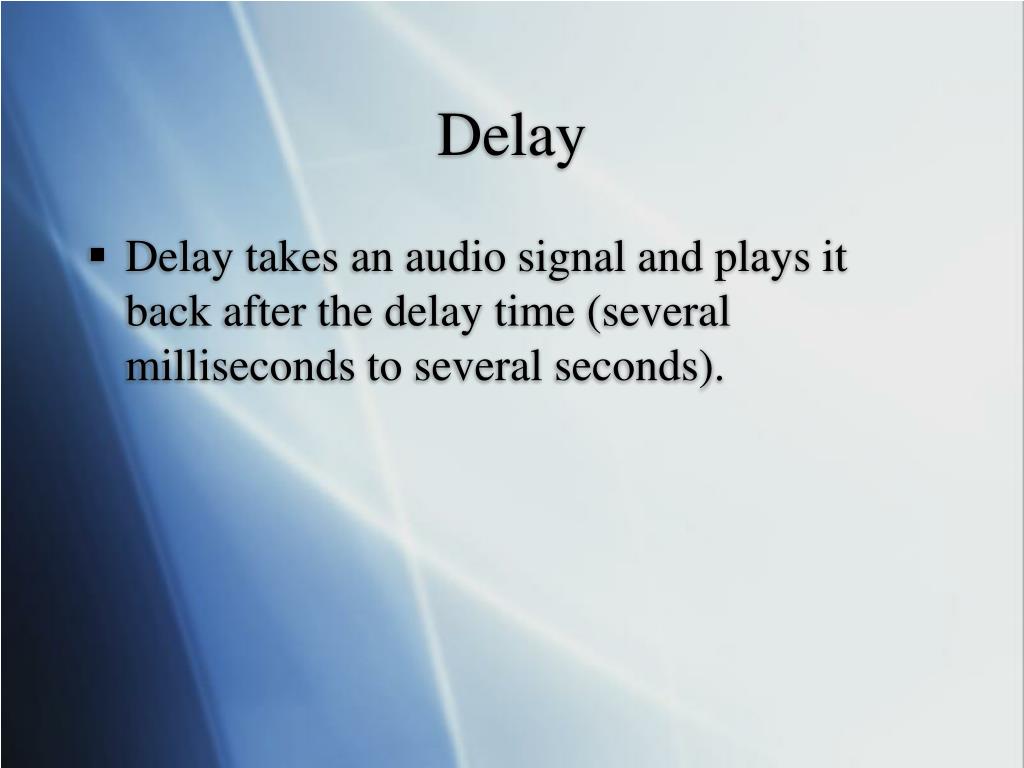

  3. Delay • Delay takes an audio signal and plays it back after the delay time (several milliseconds to several seconds).

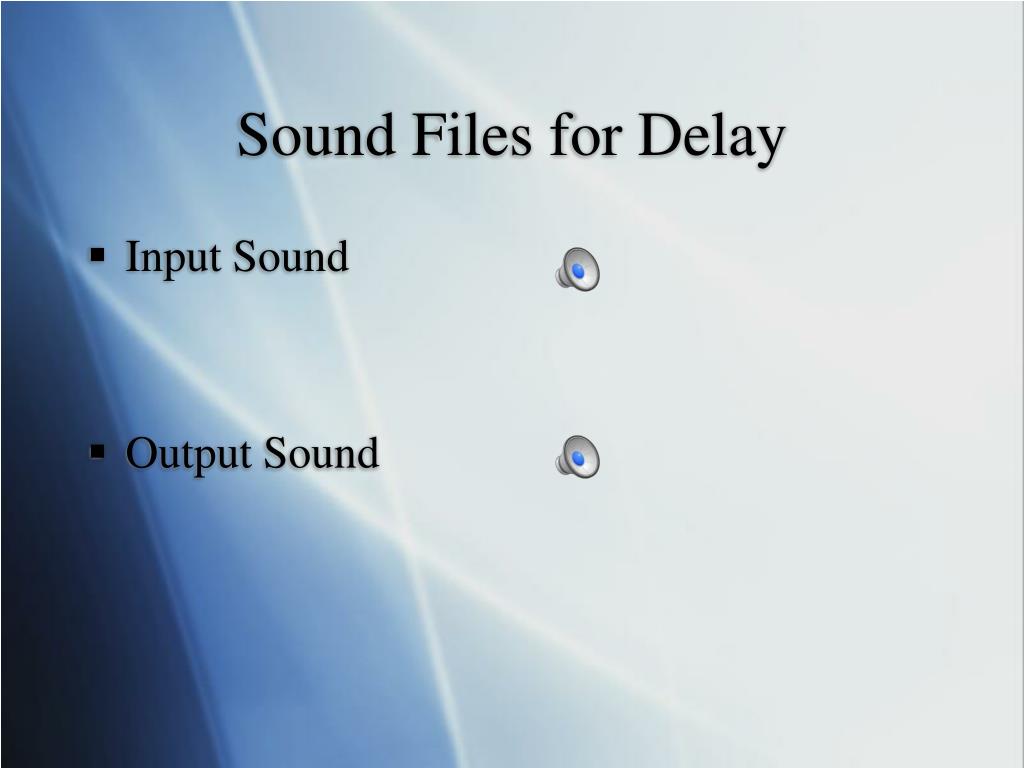

  4. Sound Files for Delay • Input Sound • Output Sound

  5. Multiple Echo Filter • H(z)= Z^-R . • (1- alpha * (Z^-R))

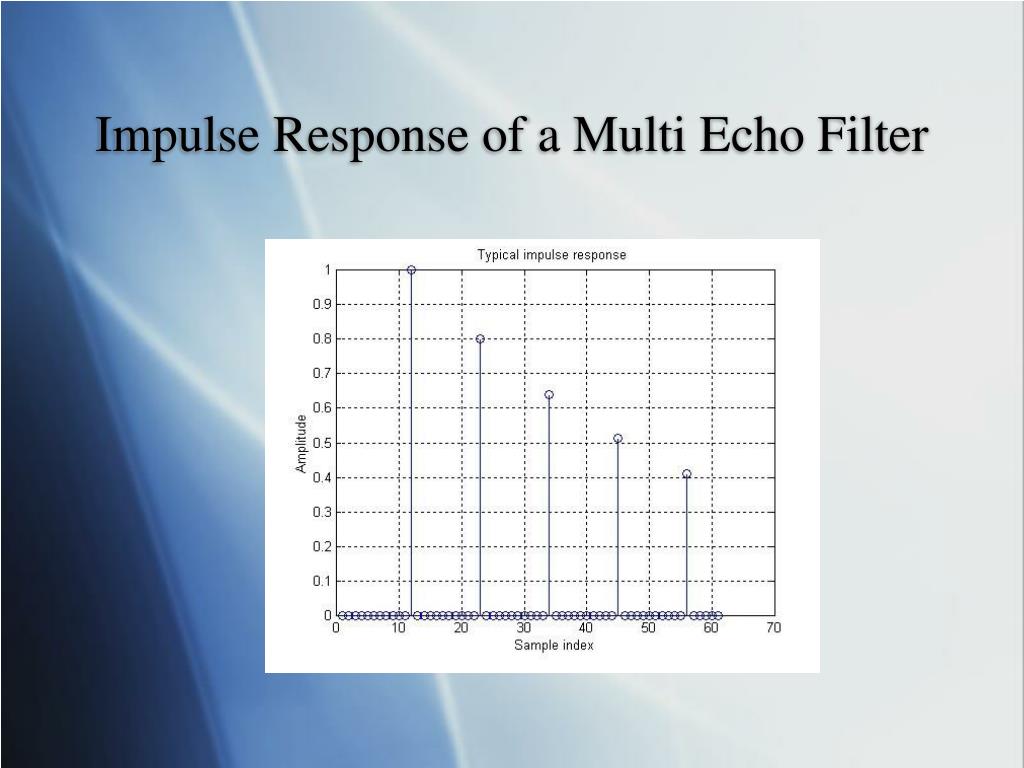

  6. Impulse Response of a Multi Echo Filter

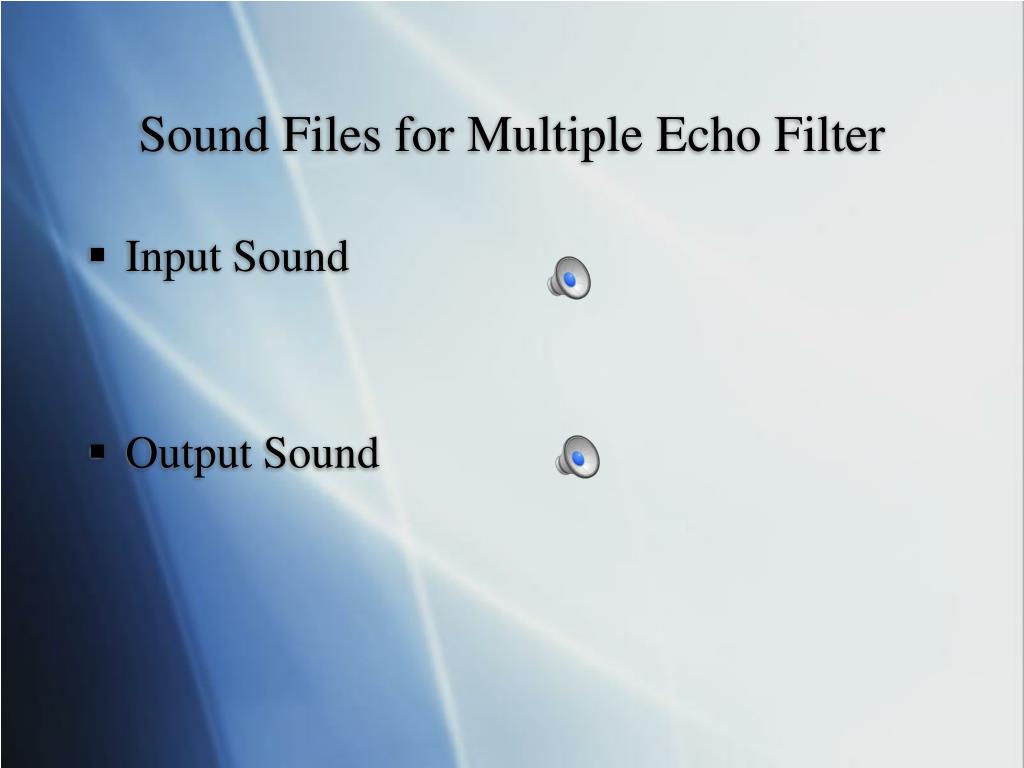

  7. Sound Files for Multiple Echo Filter • Input Sound • Output Sound

  8. Reverberation • Reverberation is the result of many reflections of a sound that occur in a particular space.

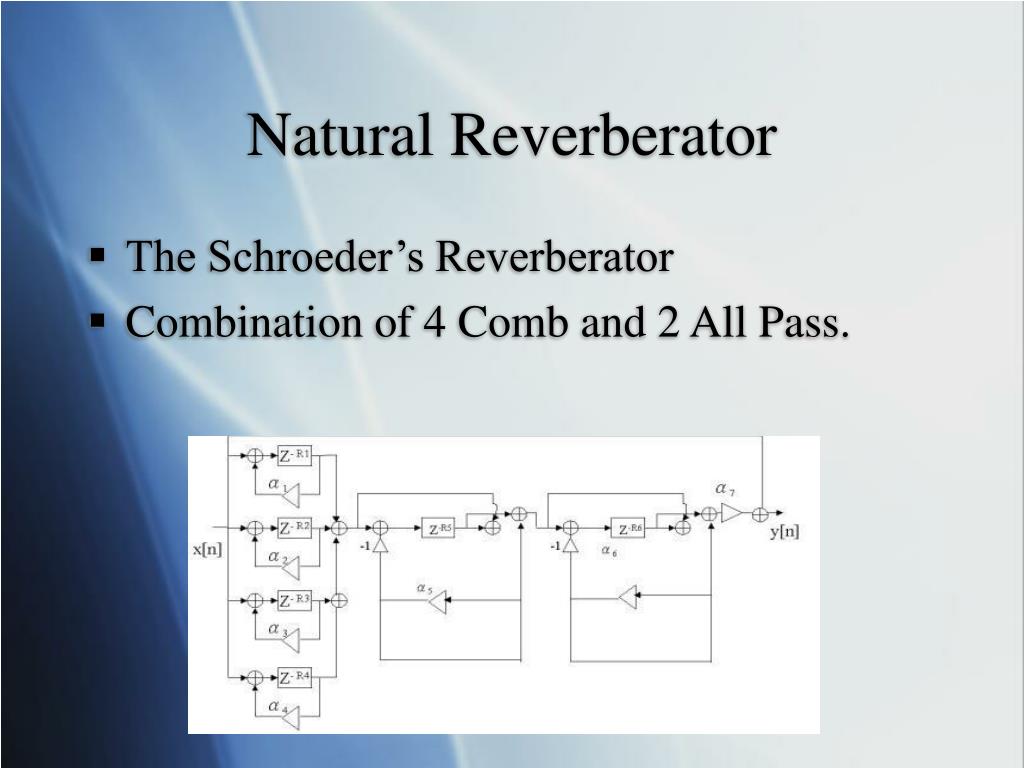

  9. Natural Reverberator • The Schroeder’s Reverberator • Combination of 4 Comb and 2 All Pass.

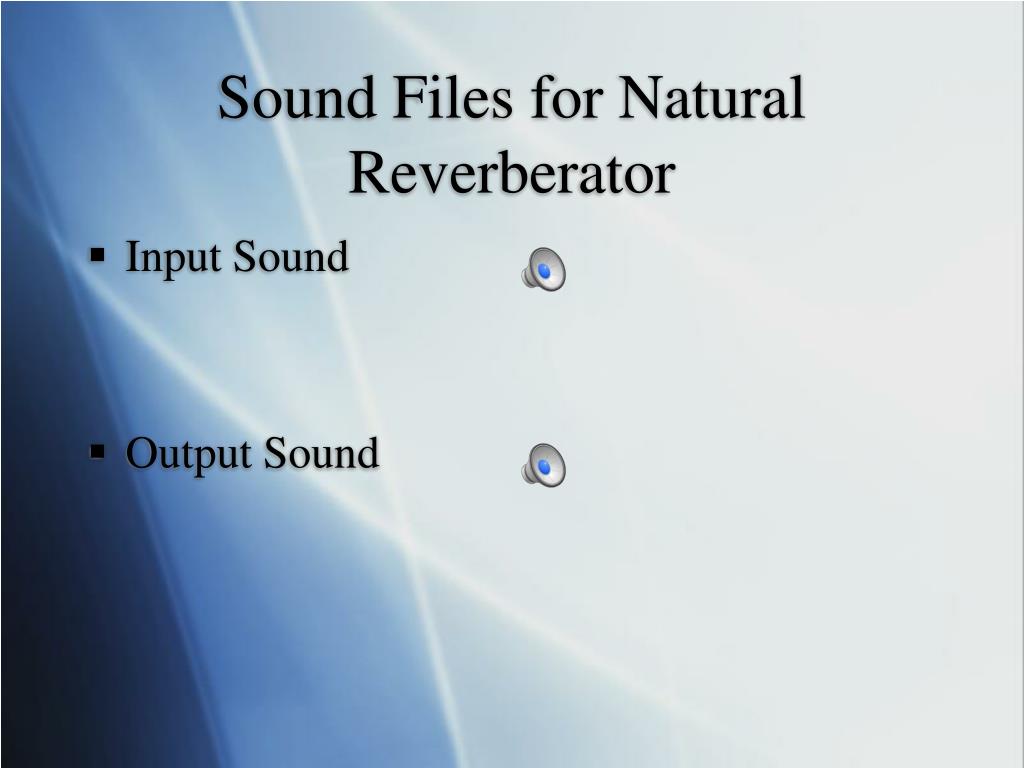

  10. Sound Files for Natural Reverberator • Input Sound • Output Sound

  11. Flanging • H(z)= (1+ alpha*(Z^-beta(n)))

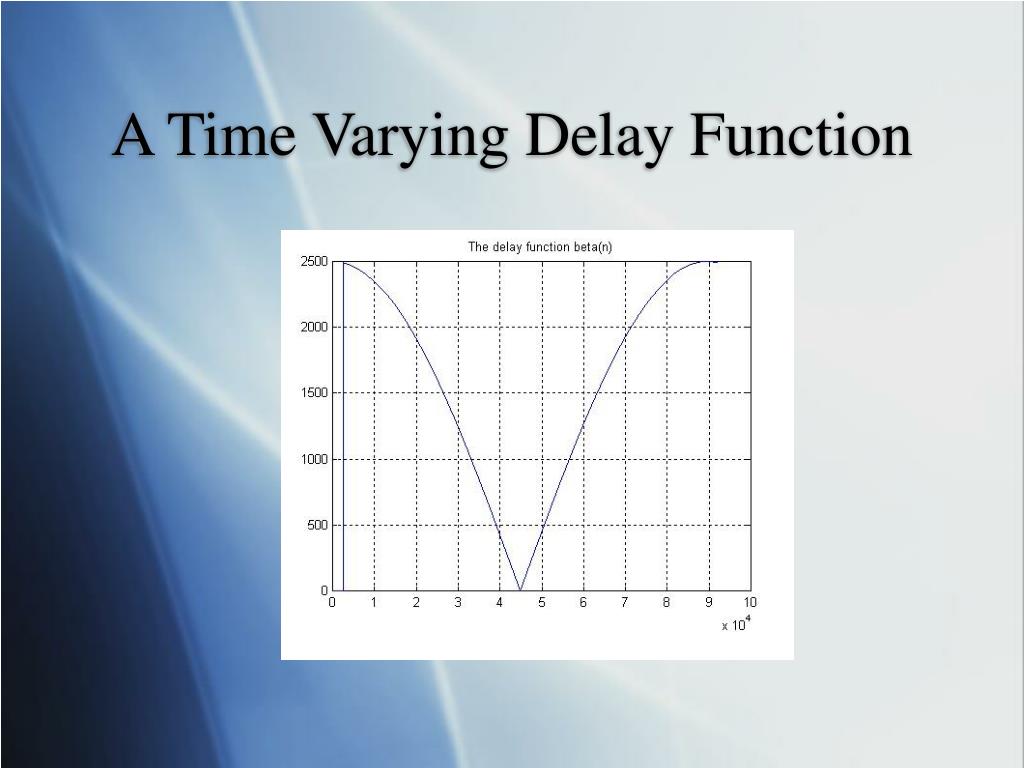

  12. A Time Varying Delay Function

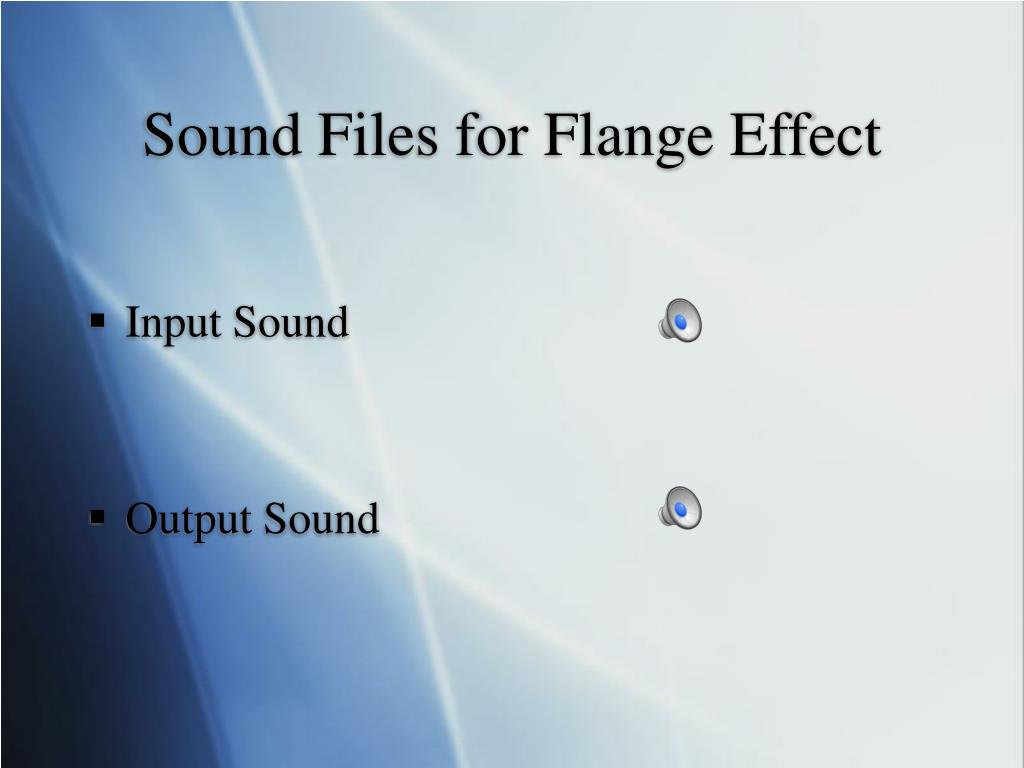

  13. Sound Files for Flange Effect • Input Sound • Output Sound

  14. That’s All Folks!
