Lightning

eliora avatar
eliora
18 diapositives · 489 Views · Aug 02, 2014

Lightning. Lightning Facts. 2 nd Leading Cause of Weather Deaths in the United States. Kills more than Hurricanes and Tornadoes combined! Kills ~ 100 / Year Kills ~ 10% of those Struck. See how lightning works….

#lightning #lightning ppt #powerpoint #presentation
Lightning - slide 1
01 / 18Lightning
1 / 17

Télécharger la présentation

Lightning
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Lightning

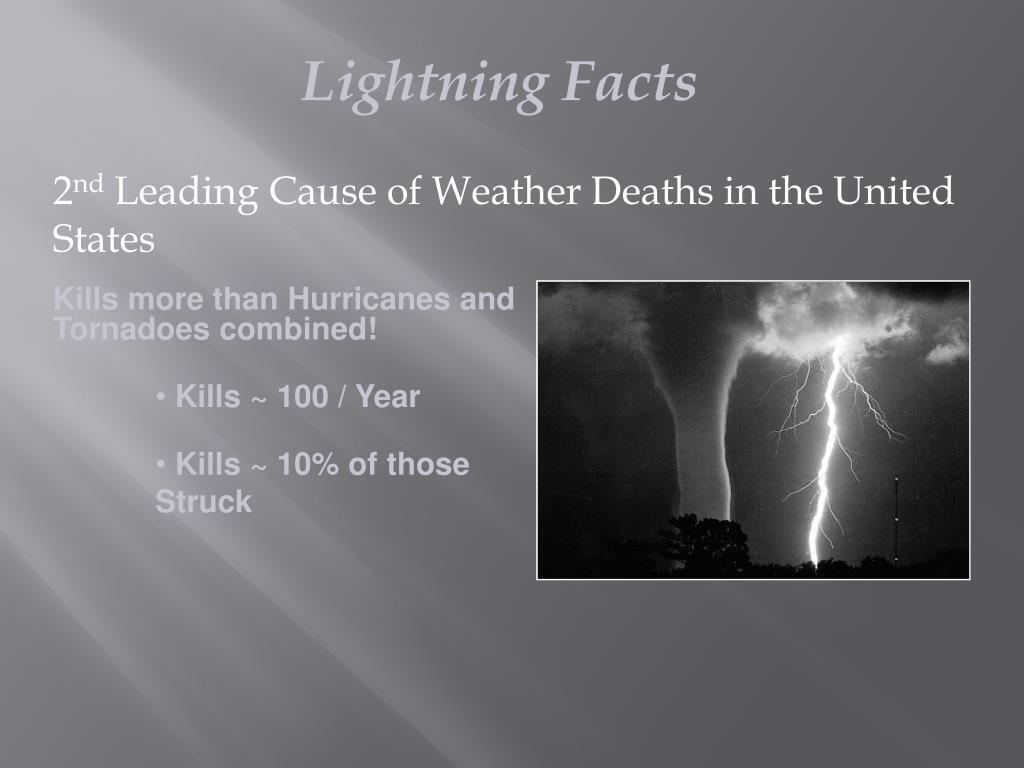

  2. Lightning Facts 2nd Leading Cause of Weather Deaths in the United States • Kills more than Hurricanes and Tornadoes combined! • Kills ~ 100 / Year • Kills ~ 10% of those Struck

  3. See how lightning works… • http://environment.nationalgeographic.com/environment/natural-disasters/lightning-interactive/

  4. Cool You Tube Videos • http://www.youtube.com/watch?v=_X_7YRVGvtA&feature=related • http://www.youtube.com/watch?v=-bvmEYxEYiA&NR=1

  5. Facts about Lightning • A strike can average 100 million volts of electricity • Current of up to 100,000 amperes • Can generate 54,000 oF • Lightning strikes somewhere on the Earth every second • Kills 100 US residents per year

  6. Lightning Doesn’t Go Straight Down

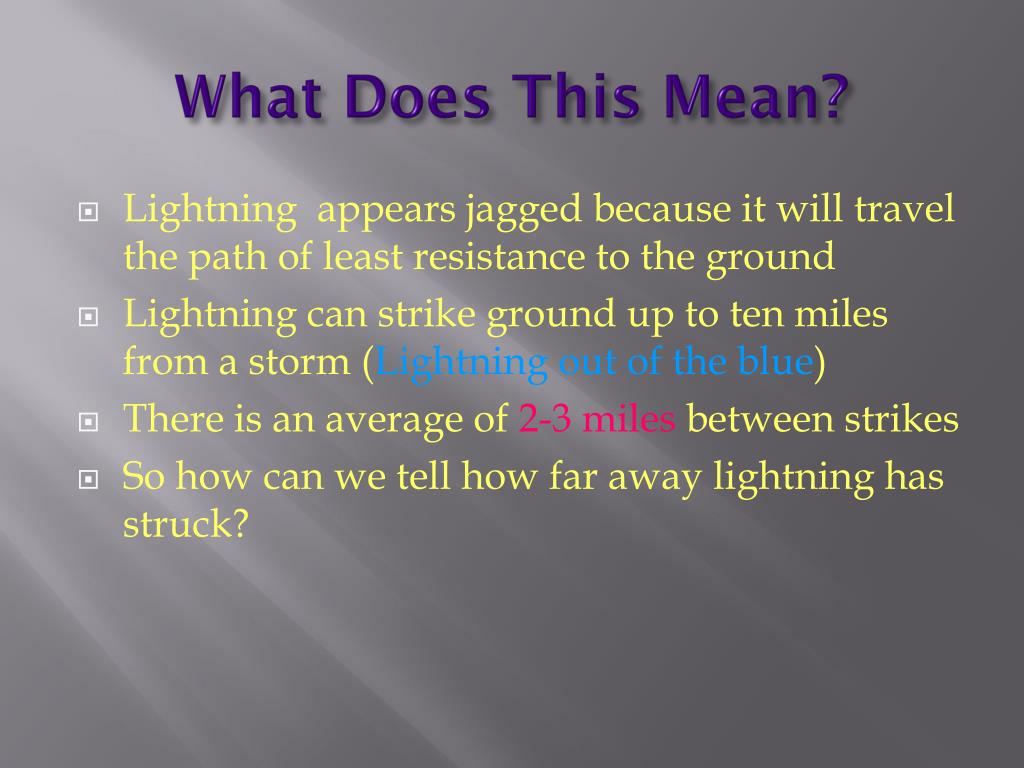

  7. What Does This Mean? • Lightning appears jagged because it will travel the path of least resistance to the ground • Lightning can strike ground up to ten miles from a storm (Lightning out of the blue) • There is an average of 2-3 miles between strikes • So how can we tell how far away lightning has struck?

  8. “30 / 30 Rule” • If 30 Secs Or Less “Flash To Bang”- Seek Shelter • COMMON MISCONCEPTION • 1 second = 1 mile • ACTUALLY • 5 seconds = 1 mile • Wait 30 Min After Last Lightning, Before Leaving Shelter • May Seem Too Conservative--It’s NOT!

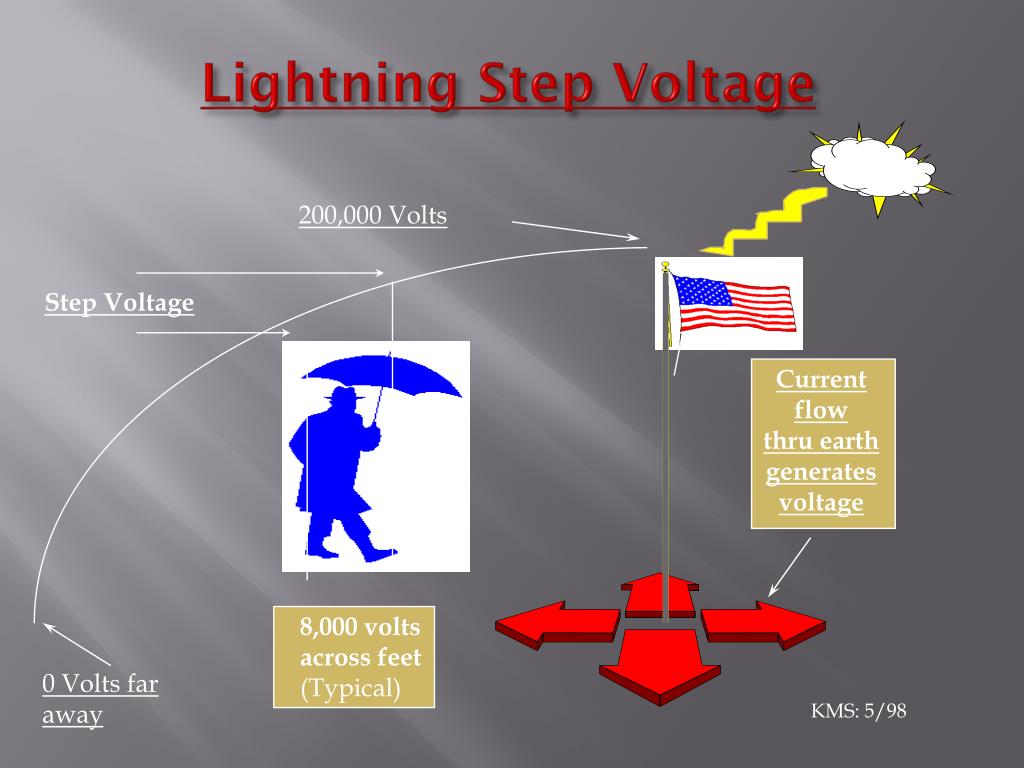

  9. Lightning Step Voltage 200,000 Volts Step Voltage Current flow thru earth generates voltage 8,000 volts across feet (Typical) 0 Volts far away KMS: 5/98

  10. Struck flag pole and dispersed

  11. Tree root system

  12. Indoor Lightning Safety • Avoid using telephone (remember the wires). • Avoid using water – sink, tub, etc. (plumbing) • Unplug appliances (remember the wires). • Inner rooms the best.

  13. Safe Locations #2 • Fully enclosed metal vehicles – car, bus, etc. • Close windows • Keep hands on lap It’s not the rubber tires that make a vehicle safe – it’s the metal enclosure (Faraday Cage)

  14. Safe Locations #3 • Remaining Outdoors • Stay away from rivers, lakes, or other bodies of water. Be aware of the potential for flooding in low-lying areas. • Stay away from natural lightning rods/tall structures such as: towers, tall trees, telephone poles/lines, tents with metal supports, etc. • Take shelter under a small tree among several large ones if possible. Stay at least six feet away from the tree trunk to minimize a side strike and step voltage. NEVER stand under an isolated tree.

  15. Lightning Safety Position (LSP) • Assume LSP. Crouch with feet as close together as possible. Have heels touch. Place hands over ears. -REMEMBER- DO NOT LIE FLAT ON THE GROUND

  16. 10 9 8 7 6 5 4 3 2 1 0 Lightning Certified Facility Lightning Protected Building Relative Lightning Protection Outdoors Lightning Safe Locations • Seek Proper Shelter • Buildings Much Better Than Vehicles • Large, Fully Enclosed, Substantially Built • Vehicles Offer Some Safety • No Place Outside Is Safe Near A Thunderstorm • Near  6 Miles

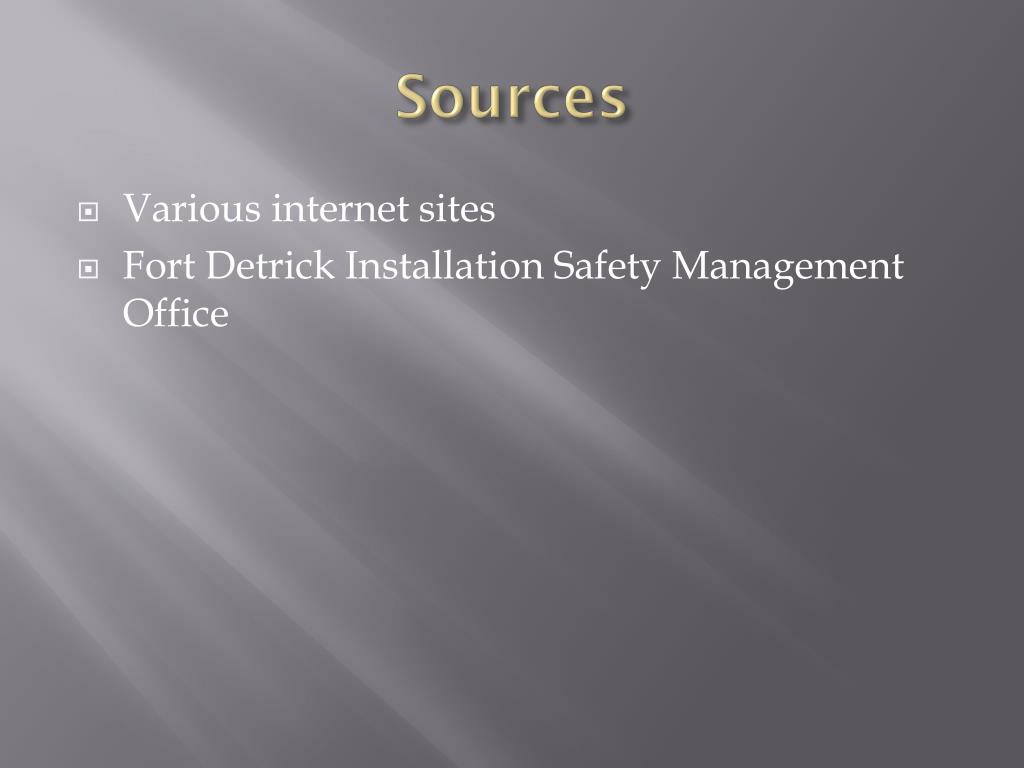

  17. Sources • Various internet sites • Fort Detrick Installation Safety Management Office
