  1. Development of ECAL COOLING PLANT Application to a Super Module 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

  2. Contents Introduction First step Module 0 New design Application to a Super Module 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

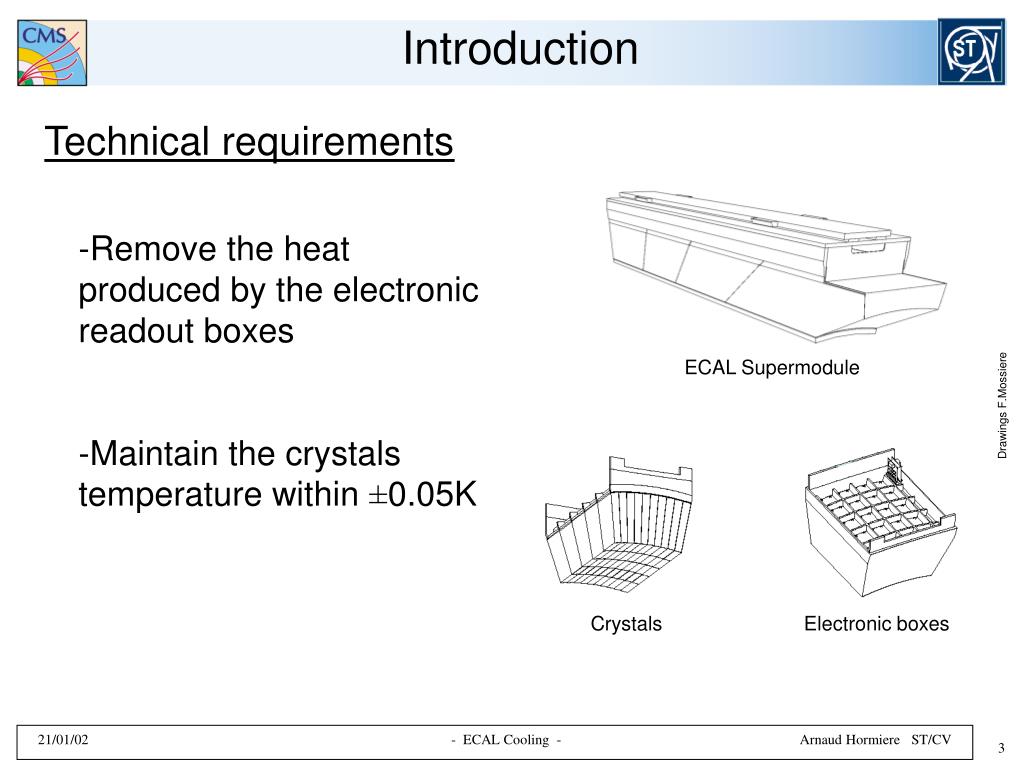

  3. Introduction Technical requirements • Remove the heat produced by the electronic readout boxes • Maintain the crystals temperature within ±0.05K ECAL Supermodule Drawings F.Mossiere Crystals Electronic boxes 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

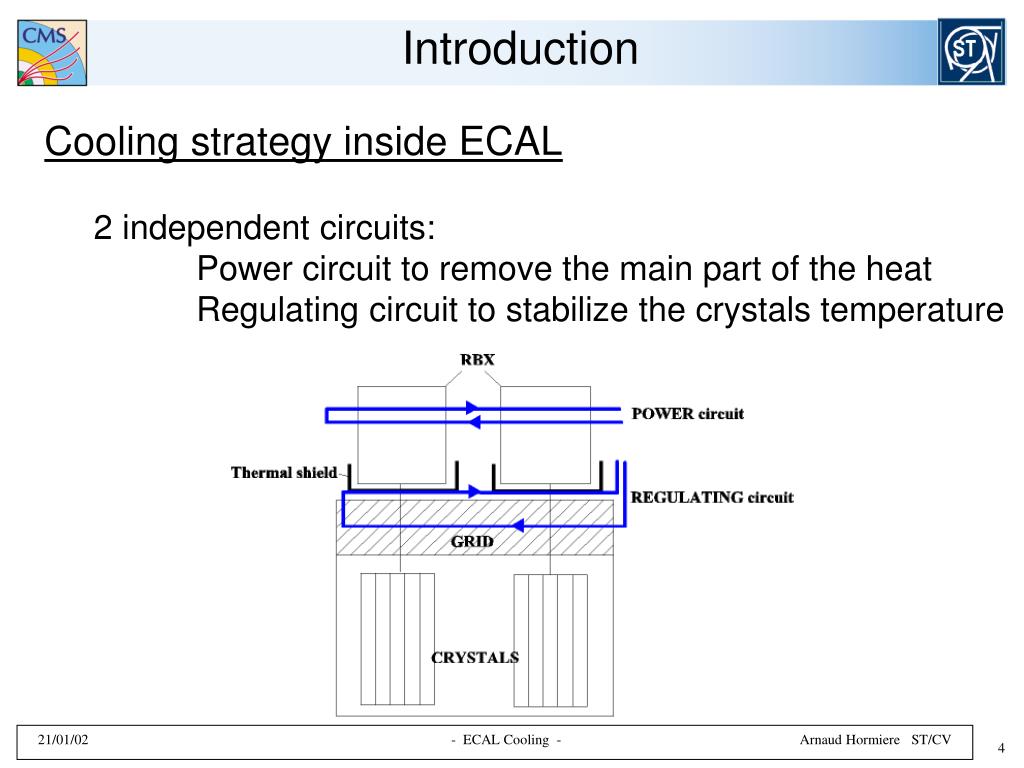

  4. Introduction Cooling strategy inside ECAL 2 independent circuits: Power circuit to remove the main part of the heat Regulating circuit to stabilize the crystals temperature 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

  5. First step: Module0 Principle Power circuit Regulating circuit Flow splitting to increase accuracy 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

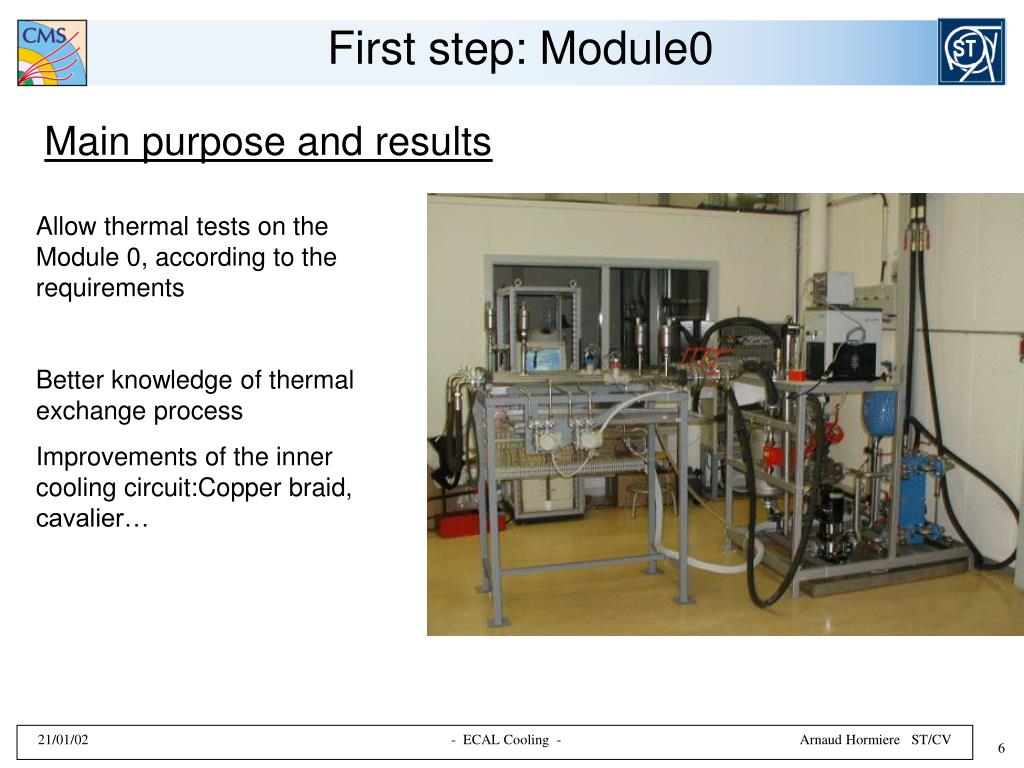

  6. First step: Module0 Main purpose and results Allow thermal tests on the Module 0, according to the requirements Better knowledge of thermal exchange process Improvements of the inner cooling circuit:Copper braid, cavalier… 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

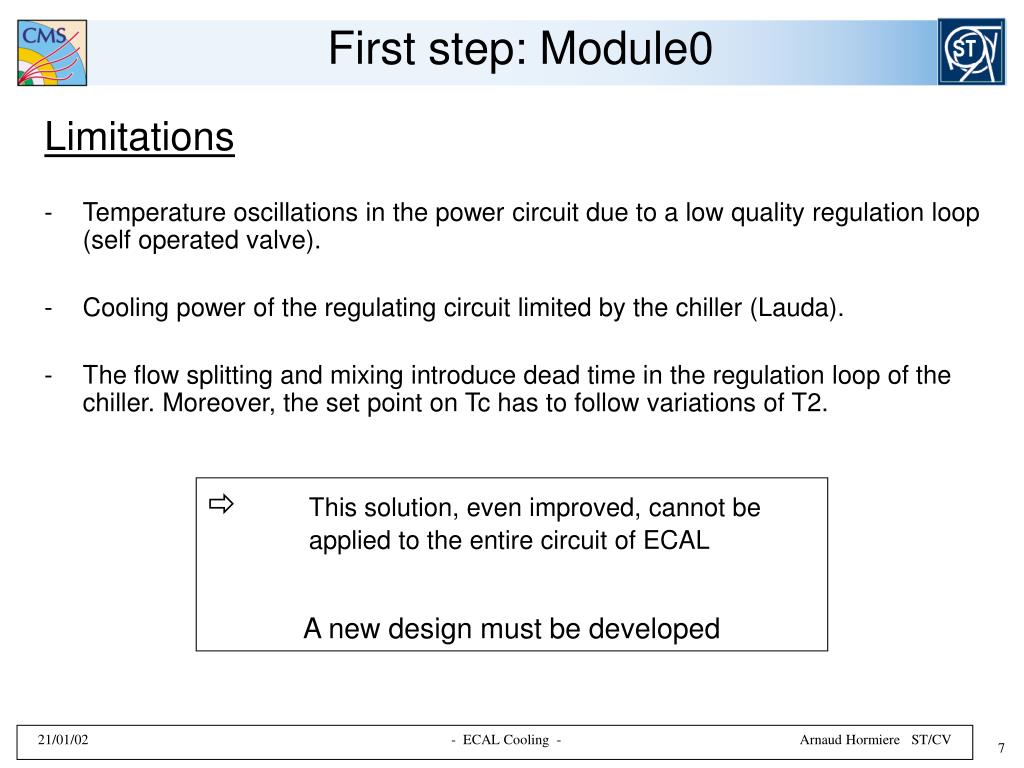

  7. First step: Module0 Limitations • Temperature oscillations in the power circuit due to a low quality regulation loop (self operated valve). • Cooling power of the regulating circuit limited by the chiller (Lauda). • The flow splitting and mixing introduce dead time in the regulation loop of the chiller. Moreover, the set point on Tc has to follow variations of T2.  This solution, even improved, cannot be applied to the entire circuit of ECAL A new design must be developed 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

  8. New Design Origin Discussion with companies: Samson, valve manufacturerEurotherm Automation, specialized in thermal regulationEurodifroid, manufacturer of chiller units The attempt to use a chiller unit failed, the precision required was not reached. Key ideas Use CERN facilities: Chilled water in underground area Provide a design with a technology independent from the size (Super Module, final circuit) 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

  9. New Design Principles Chiller made with plate heat exchanger Double stage heat exchanger Already used in industry for its stability No flow splitting as a first approach Regulation on a constant value Easier regulation Regulate the temperature value lower than requirement (18ºC) and adjust with a heater Use of an immersion heater Fast response time 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

  10. New Design Proposal Possible multi-variable regulation (temperature, flow) 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

  11. New Design Immersion heater Regulation Command Heater current Power supply Phase angle regulation – 20 ms period 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

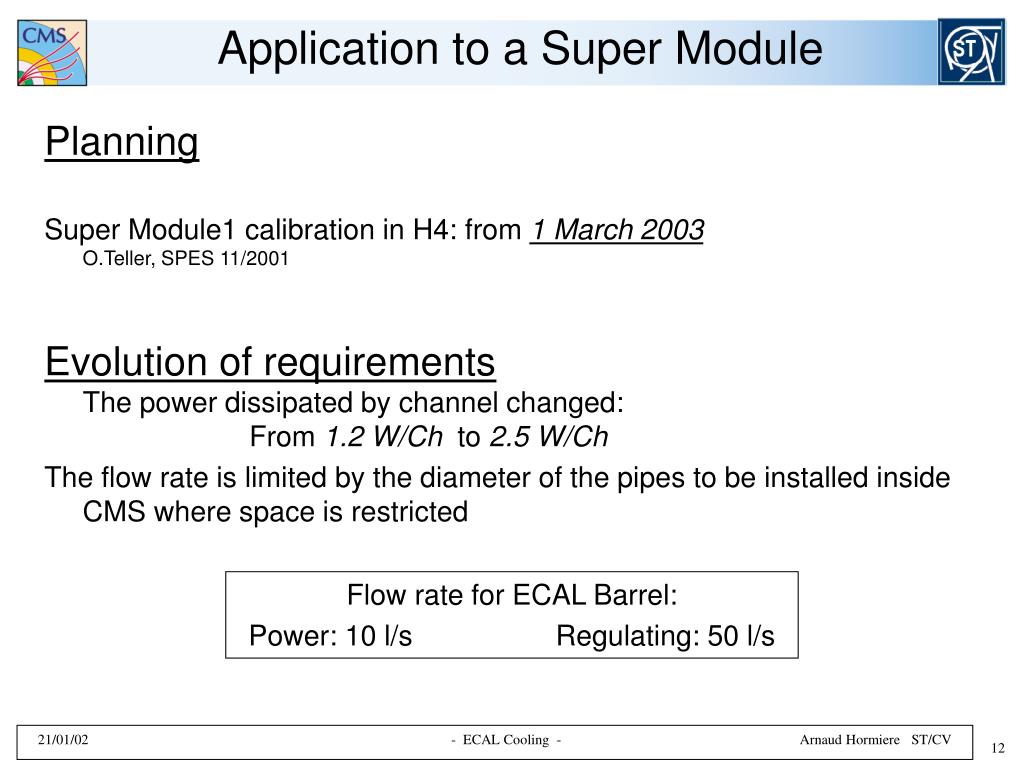

  12. Application to a Super Module Planning Super Module1 calibration in H4: from 1 March 2003O.Teller, SPES 11/2001 Evolution of requirementsThe power dissipated by channel changed: From 1.2 W/Ch to 2.5 W/Ch The flow rate is limited by the diameter of the pipes to be installed inside CMS where space is restricted Flow rate for ECAL Barrel: Power: 10 l/s Regulating: 50 l/s 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

  13. Application to a Super Module Instrumentation This cooling station will provide the cooling for the calibration of the Super Modules, but it is also a hydraulic test bench to understand the process. For this reason, a lot of instrumentation will be installed on it, mainly temperature probes (TT), but also pressure (PT) and flow (FT) measurement. Flexibility Every pump will be equipped with a variable speed drive to give a wide range of operating condition. The cost (~ +10% of the pump’s price) is negligible compare to the project price. Reliability Calibration of 36 Super Modules over a long period 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

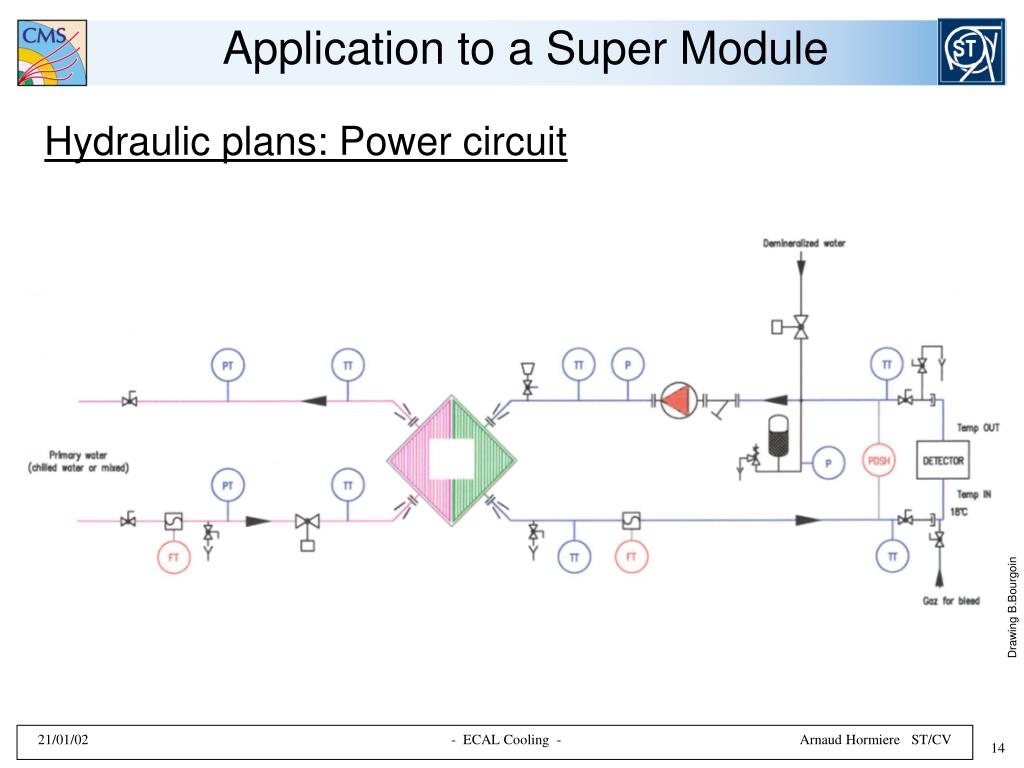

  14. Application to a Super Module Hydraulic plans: Power circuit Drawing B.Bourgoin 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

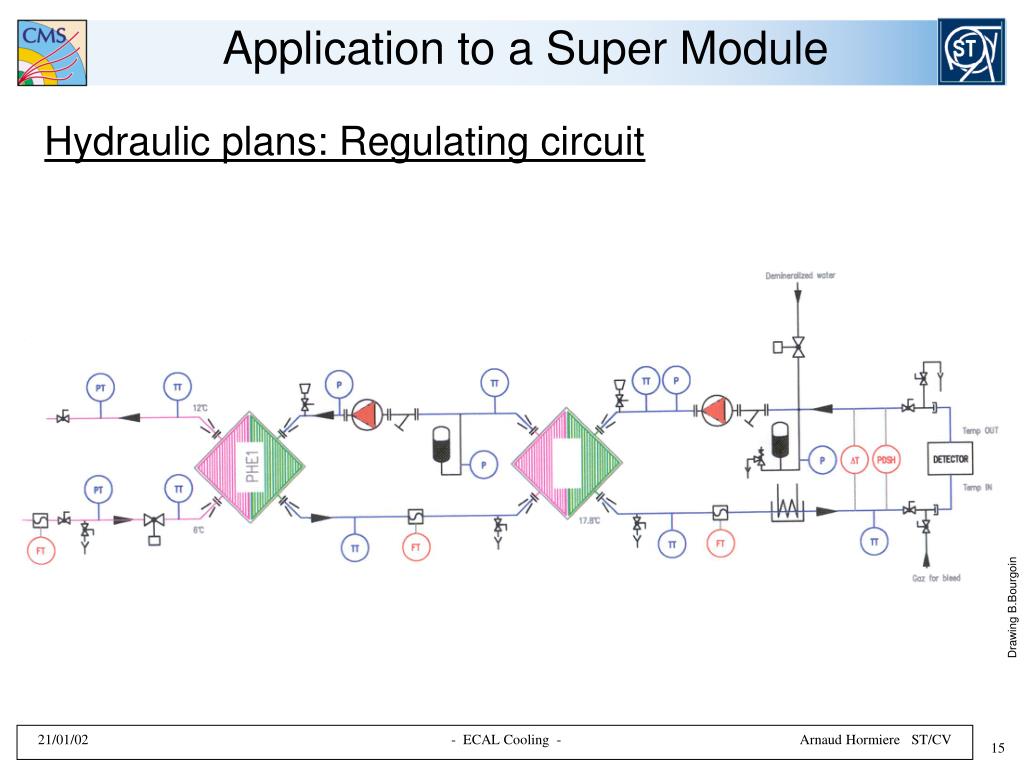

  15. Application to a Super Module Hydraulic plans: Regulating circuit Drawing B.Bourgoin 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

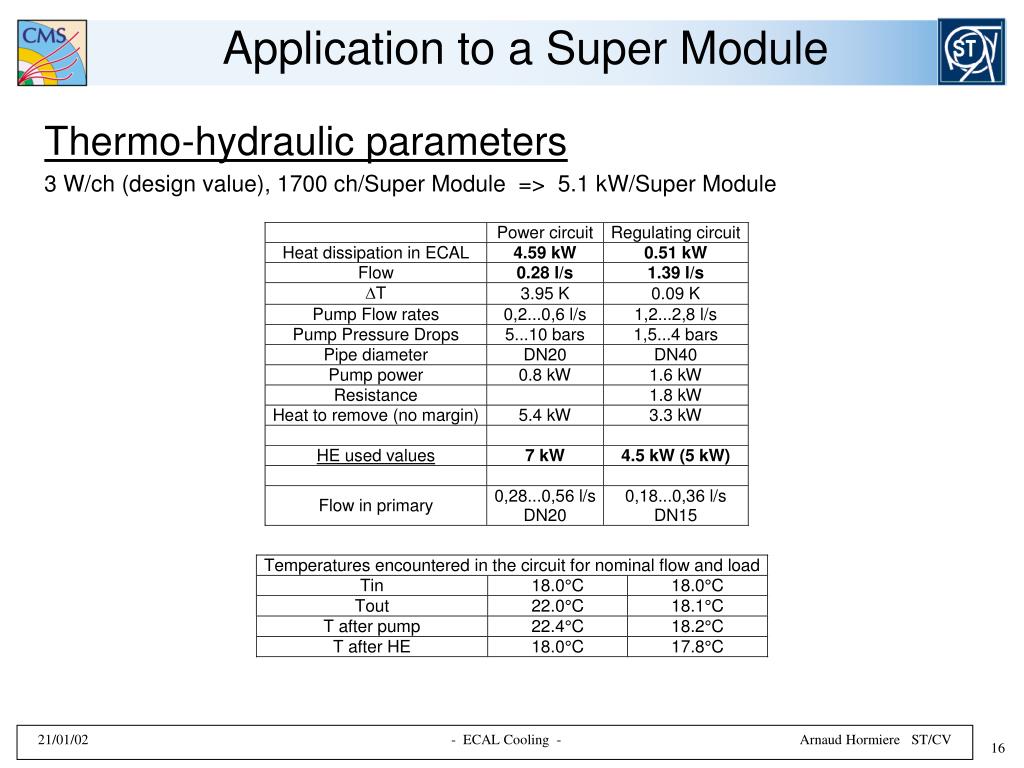

  16. Application to a Super Module Thermo-hydraulic parameters 3 W/ch (design value), 1700 ch/Super Module => 5.1 kW/Super Module 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

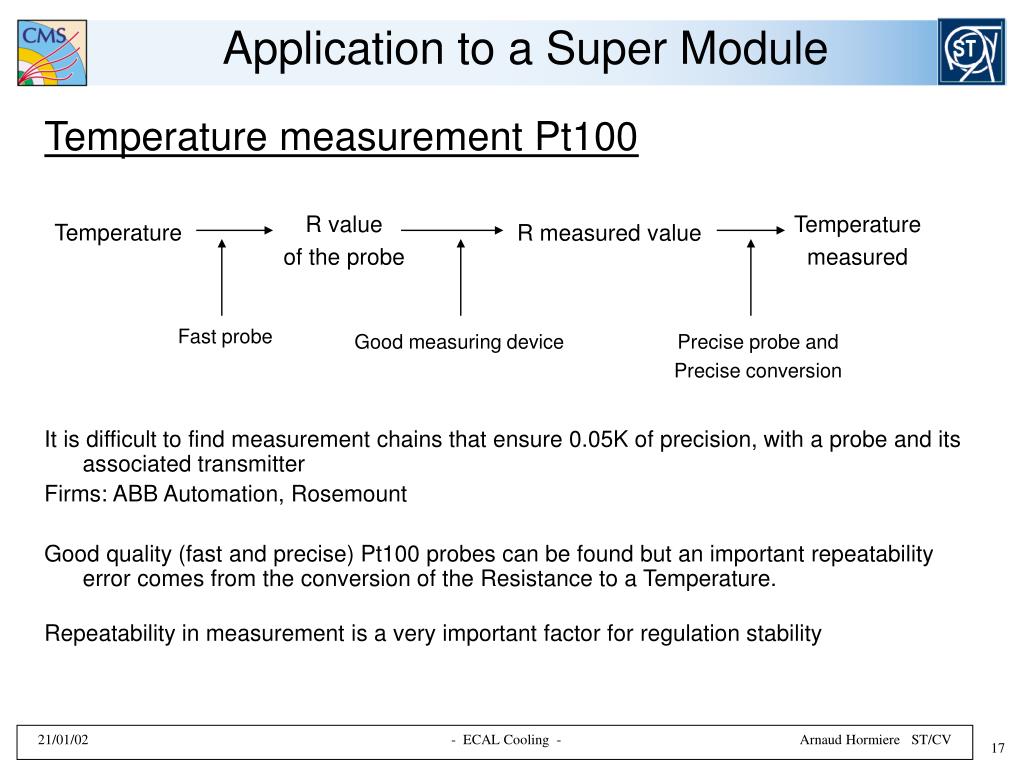

  17. R value of the probe Temperature measured Temperature R measured value Fast probe Good measuring device Precise probe and Precise conversion Application to a Super Module Temperature measurement Pt100 It is difficult to find measurement chains that ensure 0.05K of precision, with a probe and its associated transmitter Firms: ABB Automation, Rosemount Good quality (fast and precise) Pt100 probes can be found but an important repeatability error comes from the conversion of the Resistance to a Temperature. Repeatability in measurement is a very important factor for regulation stability 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

  18. Application to a Super Module Temperature measurement Pt100 Alternative solution with acquisition unit: Agilent 34970ALaboratory device. Very precise measurement, multiplexingPrice ~3500 CHF for 20 Pt100 The communication with a PLC needs a small developmentRS232 ASCII communication => Very interesting Solution, far better than former solutions 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

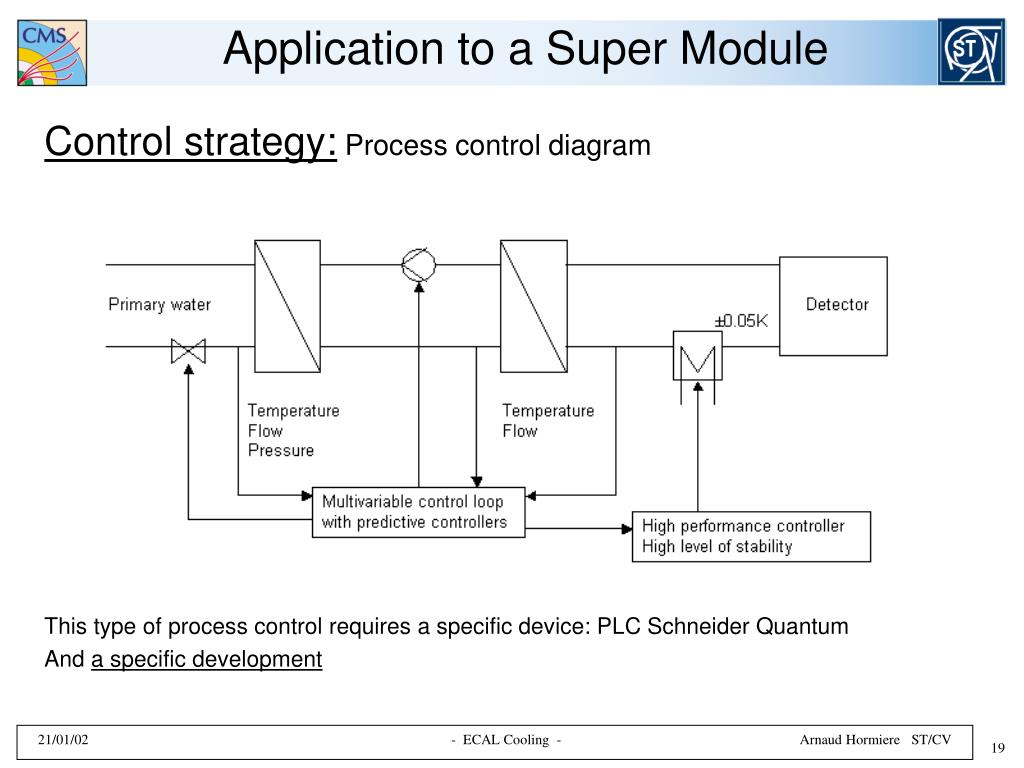

  19. Application to a Super Module Control strategy: Process control diagram This type of process control requires a specific device: PLC Schneider Quantum And a specific development 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

  20. Application to a Super Module Control strategy: Control architecture 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

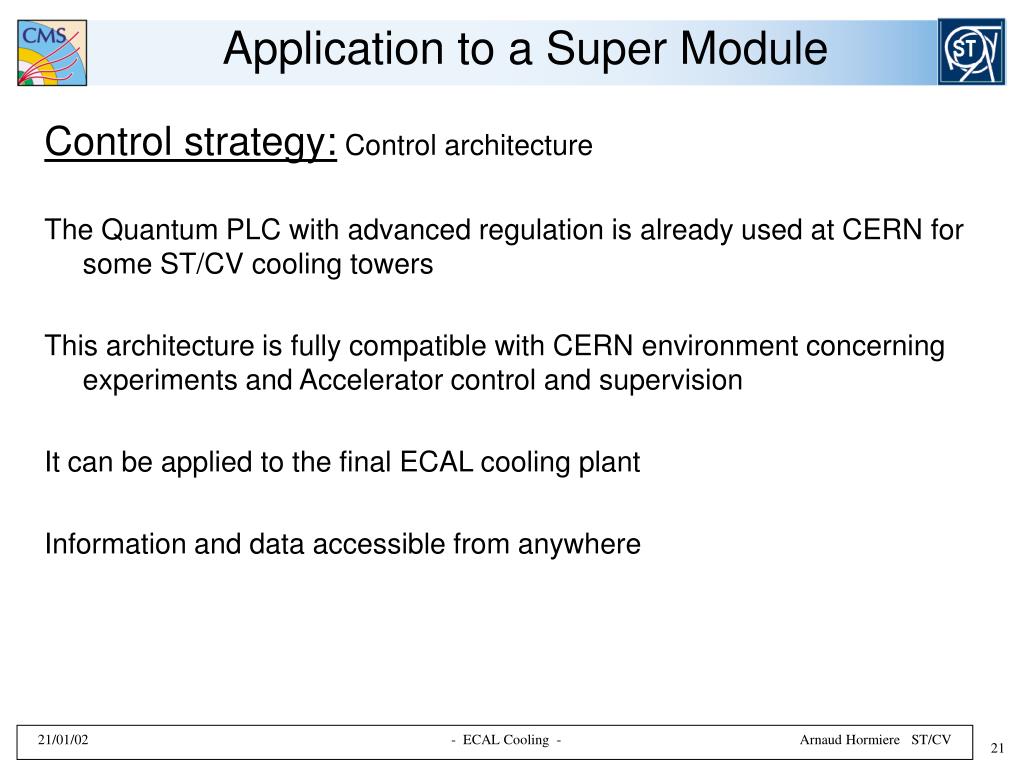

  21. Application to a Super Module Control strategy: Control architecture The Quantum PLC with advanced regulation is already used at CERN for some ST/CV cooling towers This architecture is fully compatible with CERN environment concerning experiments and Accelerator control and supervision It can be applied to the final ECAL cooling plant Information and data accessible from anywhere 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

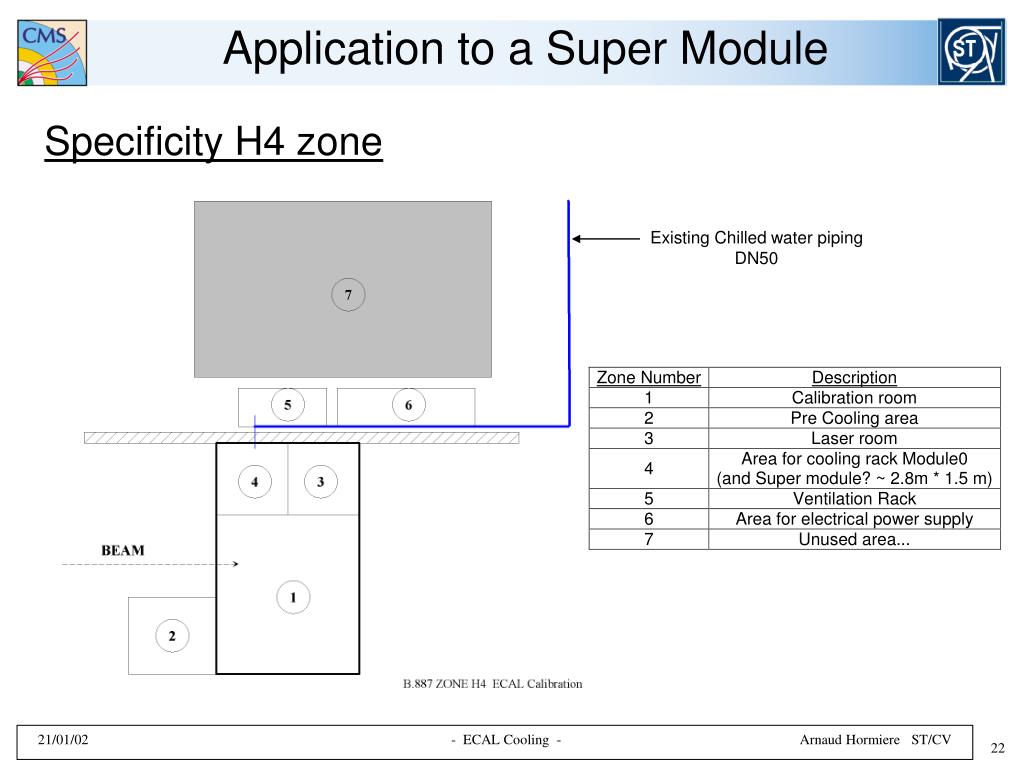

  22. Application to a Super Module Specificity H4 zone Existing Chilled water piping DN50 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

  23. Application to a Super Module Specificity H4 zone Need to define the space used by the cooling plant and in which zone it can be installed Some minor piping from the existing DN50 to the heat exchangers has to be done Check that the chilled water circuit gives enough flow rate, which is not the case now. This circuit is a part of a circuit feeding several buildings, and it is the end of the line. Only a little pressure drop is available. 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

  24. Application to a Super Module Operating conditions in H4 Some points need to be defined more precisely, especially the procedures linked with Super Modules replacement in calibration chain. Purging and refilling of one part of the circuit The cooling plant can be stopped or loop in a by-pass or in a fake load during Super Module replacement … 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

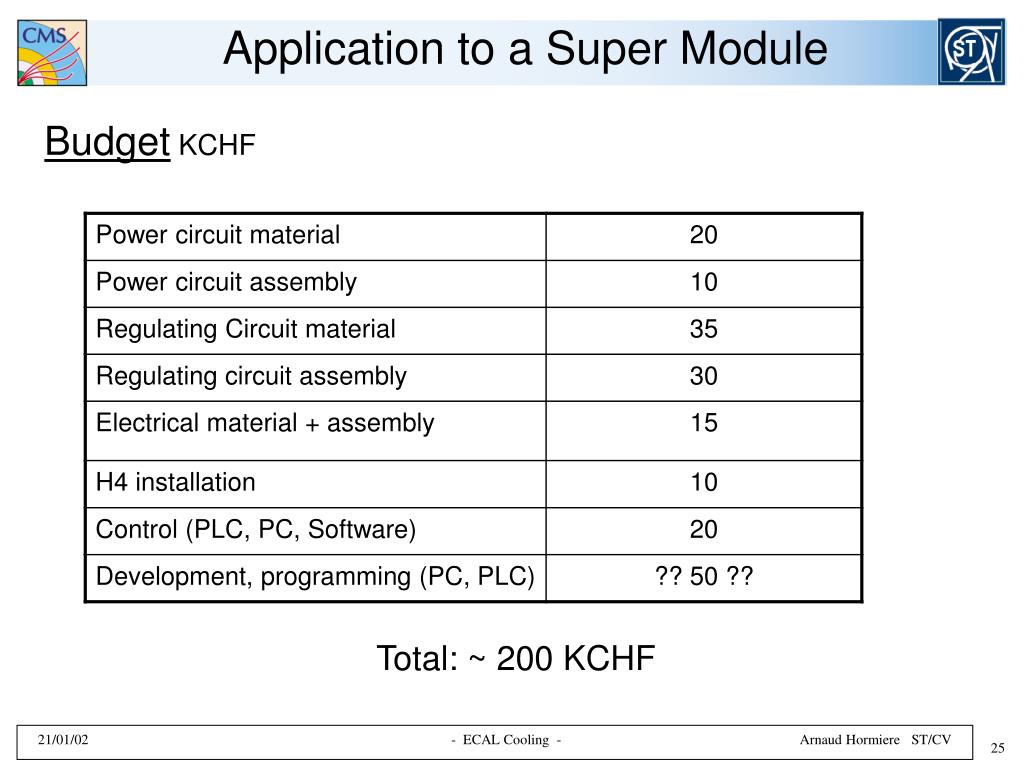

  25. Application to a Super Module Budget KCHF Total: ~ 200 KCHF 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

  26. Conclusion Concerning the cooling plant for Super Modules calibration, work has been done on: Next step is to prepare a SPEC and start a CERN project • System design • Hydraulic plans • Specific material (temperature measurement) • Control architecture • H4 local constraints • Budget • Industrial contacts 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV

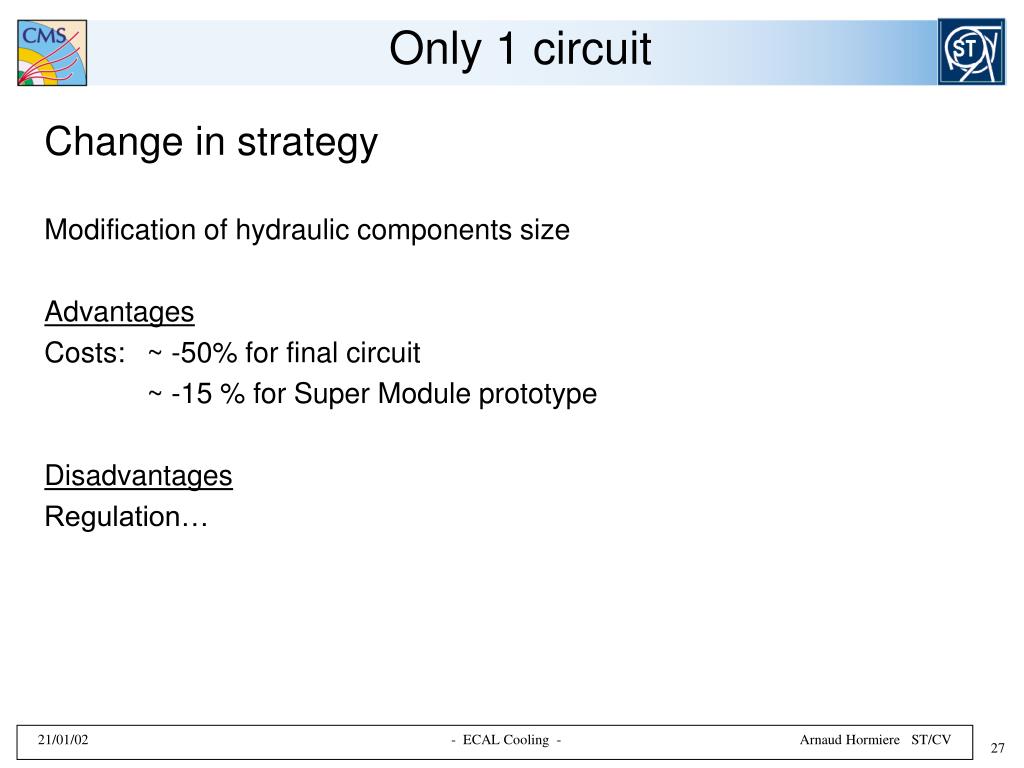

  27. Only 1 circuit Change in strategy Modification of hydraulic components size Advantages Costs: ~ -50% for final circuit ~ -15 % for Super Module prototype Disadvantages Regulation… 21/01/02 - ECAL Cooling - Arnaud Hormiere ST/CV
