  1. Franklin Square Hospital Center Patient Tower and Emergency Department Addition Schematic Design | December 9, 2009 | Cassandra Watson

  2. Presentation Overview • Building Information • Building Location • Schematic Design Spaces • Design Concept • Emergency Department Lobby and Waiting Area • 2 Psychological Impressions • Team Station • Gift Shop • 3 Schematic Designs • Main Entrance and Parking Lot Schematic Design | December 9, 2009 | Cassandra Watson

  3. Building Information Building Name | Franklin Square Hospital Center Patient Tower and Emergency Department Addition Emergency Location |9000 Franklin Square Drive, Baltimore, MD 21237 Building Occupant Name |MedStar Health Facilities Function | Medical Size|356,000 sq. ft. Number of Stories |7 stories Dates of Construction |Fall 2007 - Summer 2010 Overall Project Cost |$175 million Project Delivery Method |Design - Bid – Build Primary Project Team Owner| Franklin Square Hospital Center Project Manager |LillibridgeHealthcare Services, Inc. Architect| Wilmot/ SanzInc MEP Engineer | Leach Wallace Associates Structural Engineer |Rathgeber/Goss Associates Civil Engineer | Dewberry & Davis Schematic Design | December 9, 2009 | Cassandra Watson

  4. Building Location Schematic Design | December 9, 2009 | Cassandra Watson

  5. Building Location Schematic Design | December 9, 2009 | Cassandra Watson

  6. Building Location Schematic Design | December 9, 2009 | Cassandra Watson

  7. Building Location Schematic Design | December 9, 2009 | Cassandra Watson

  8. Building Location Emergency Department Schematic Design | December 9, 2009 | Cassandra Watson

  9. Building Location Emergency Department Patient Tower Schematic Design | December 9, 2009 | Cassandra Watson

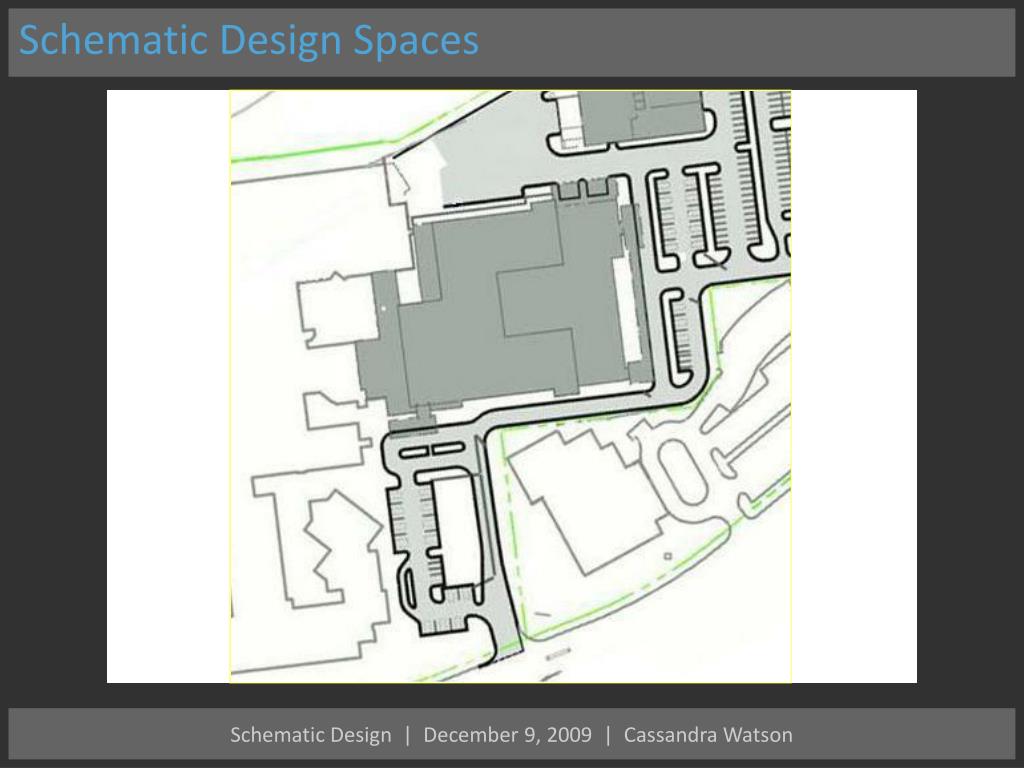

  10. Schematic Design Spaces Schematic Design | December 9, 2009 | Cassandra Watson

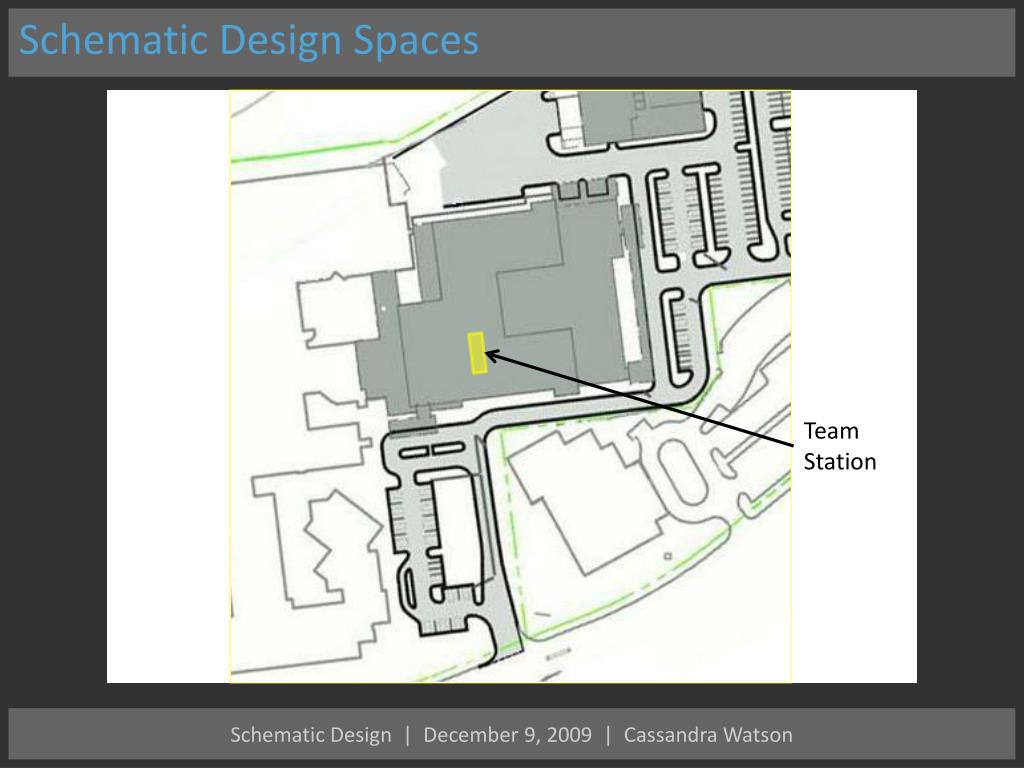

  11. Schematic Design Spaces Team Station Schematic Design | December 9, 2009 | Cassandra Watson

  12. Schematic Design Spaces Emergency Department Lobby and Waiting Area Team Station Schematic Design | December 9, 2009 | Cassandra Watson

  13. Schematic Design Spaces Emergency Department Lobby and Waiting Area Gift Shop Team Station Schematic Design | December 9, 2009 | Cassandra Watson

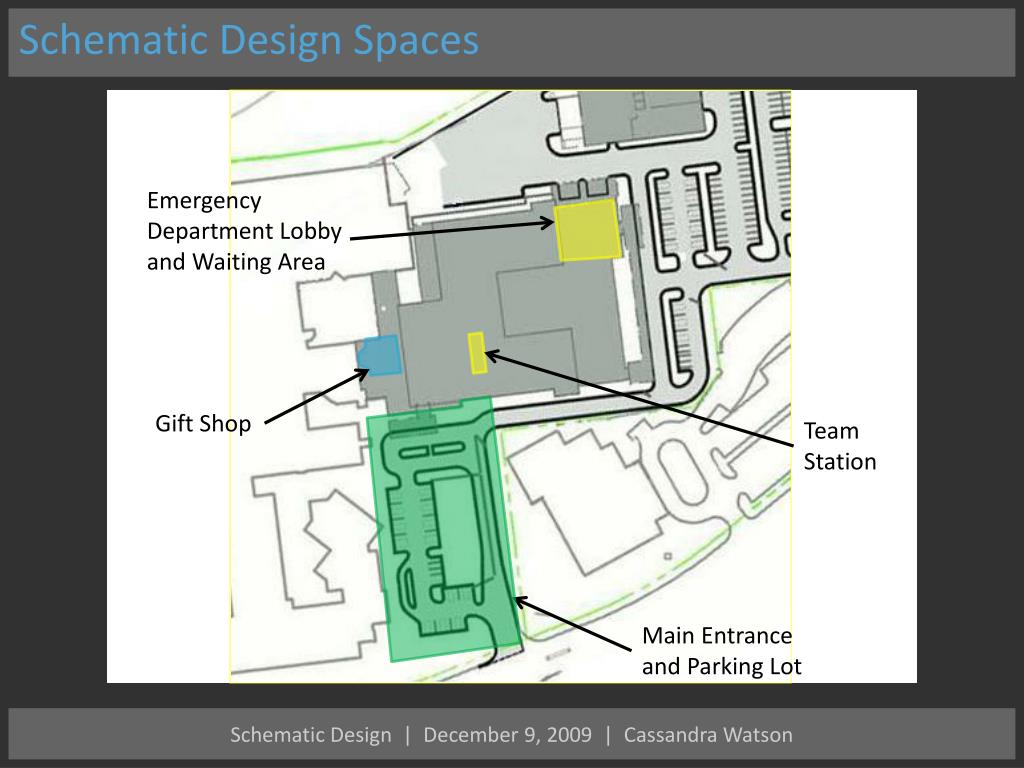

  14. Schematic Design Spaces Emergency Department Lobby and Waiting Area Gift Shop Team Station Main Entrance and Parking Lot Schematic Design | December 9, 2009 | Cassandra Watson

  15. Design Concept Franklin Square Hospital Center, a member of MedStar Health, provides the highest quality healthcare and education to our communities. -FSHC Mission Statement S ervice P atient First I ntegrity R espect I nnovation T eamwork Schematic Design | December 9, 2009 | Cassandra Watson

  16. Emergency Department Lobby and Waiting Area 2 Psychological Impressions • Tension • Stress and anxiety • Uneasiness • Relaxation • Comfort • Relief Schematic Design | December 9, 2009 | Cassandra Watson

  17. Emergency Department Lobby and Waiting Area Schematic Design | December 9, 2009 | Cassandra Watson

  18. Emergency Department Lobby and Waiting Area Vending Wood Finish Reception Desk Vestibule Security Window Schematic Design | December 9, 2009 | Cassandra Watson

  19. Emergency Department Lobby and Waiting Area Design Concept • Tension vs. Relaxation Criteria • Harsh shadows • High illuminance • Low CRI • Horizontal illuminance • General area | 20 fc • Reception task plane | 30 fc • Vertical illuminance • General area | 5 fc Schematic Design | December 9, 2009 | Cassandra Watson

  20. Emergency Department Lobby and Waiting Area Tension Schematic Design | December 9, 2009 | Cassandra Watson

  21. Emergency Department Lobby and Waiting Area Design Concept • Tension vs. Relaxation Criteria • Visual clarity • Guidance through space • Daylighting control • High CRI • Horizontal illuminance • General area and reception task plane | 30 fc • Vertical illuminance • General area | 5 fc Schematic Design | December 9, 2009 | Cassandra Watson

  22. Emergency Department Lobby and Waiting Area Relaxation Schematic Design | December 9, 2009 | Cassandra Watson

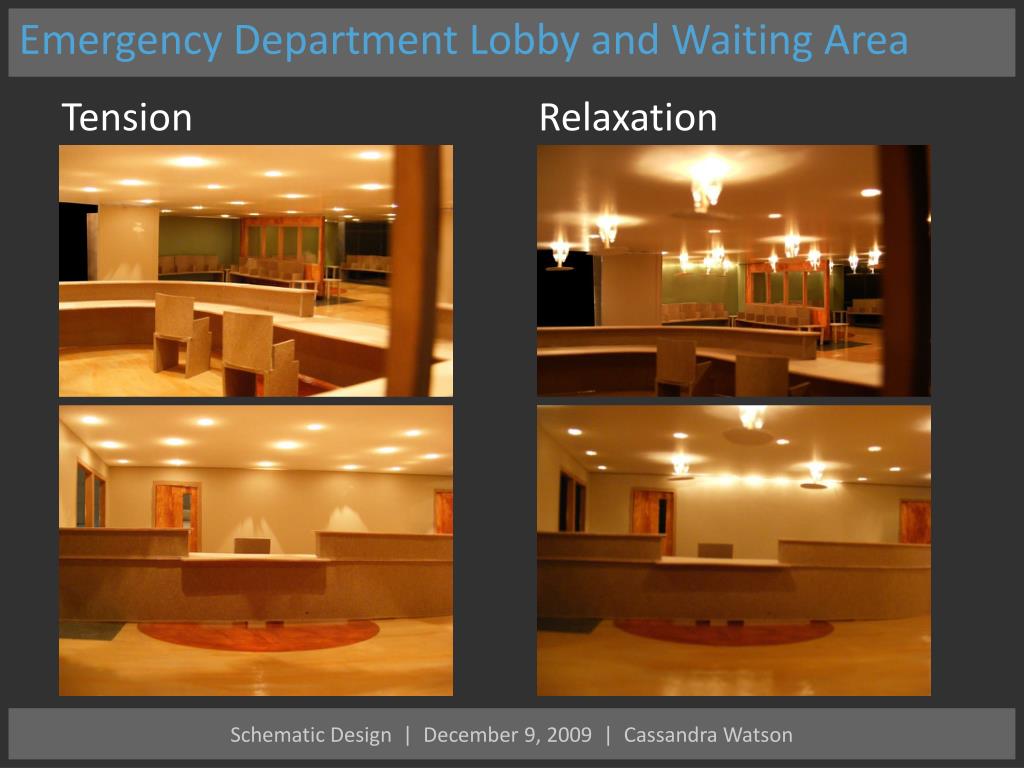

  23. Emergency Department Lobby and Waiting Area Tension Relaxation Schematic Design | December 9, 2009 | Cassandra Watson

  24. Team Station Design Concept • Organization • Private Criteria • Uniform illuminance on task plane • Visual clarity • High CRI • Scene control • Horizontal illuminance • At task plane | 50 fc • General area | 30 fc • Vertical illuminance • At task area | 10 fc Schematic Design | December 9, 2009 | Cassandra Watson

  25. Team Station Schematic Design | December 9, 2009 | Cassandra Watson

  26. Team Station Schematic Design | December 9, 2009 | Cassandra Watson

  27. Team Station Schematic Design | December 9, 2009 | Cassandra Watson

  28. Team Station Schematic Design | December 9, 2009 | Cassandra Watson

  29. Team Station |Space Description Patient Information Meds Alcove Schematic Design | December 9, 2009 | Cassandra Watson

  30. Team Station |Schematic Design Indirect Luminaires Schematic Design | December 9, 2009 | Cassandra Watson

  31. Team Station |Schematic Design Indirect Luminaires Downlight Luminaires Schematic Design | December 9, 2009 | Cassandra Watson

  32. Gift Shop |3 Schematic Designs Design Concept • Inviting • Pleasantness Criteria • Non-uniform throughout space but uniform on task plane • Visual interest • High CRI • Direct glare • Horizontal illuminance • At task plane | 50 fc • General area | 30 fc • Vertical illuminance • General area | 10 fc Schematic Design | December 9, 2009 | Cassandra Watson

  33. Gift Shop|Space Description Display Window Storage Access Shop Entrance Schematic Design | December 9, 2009 | Cassandra Watson

  34. Gift Shop|Design 1 Schematic Design | December 9, 2009 | Cassandra Watson

  35. Gift Shop|Design 2 Schematic Design | December 9, 2009 | Cassandra Watson

  36. Gift Shop|Design 3 Schematic Design | December 9, 2009 | Cassandra Watson

  37. Main Entrance and Parking Lot Design Concept • Welcoming Criteria • Light pollution/trespass • Visual clarity • Direct glare • Control • Horizontal illuminance • Parking area | 0.2 fc • Active area | 5 fc • Vertical illuminance • Parking area | 1 fc • Active area | 3 fc Schematic Design | December 9, 2009 | Cassandra Watson

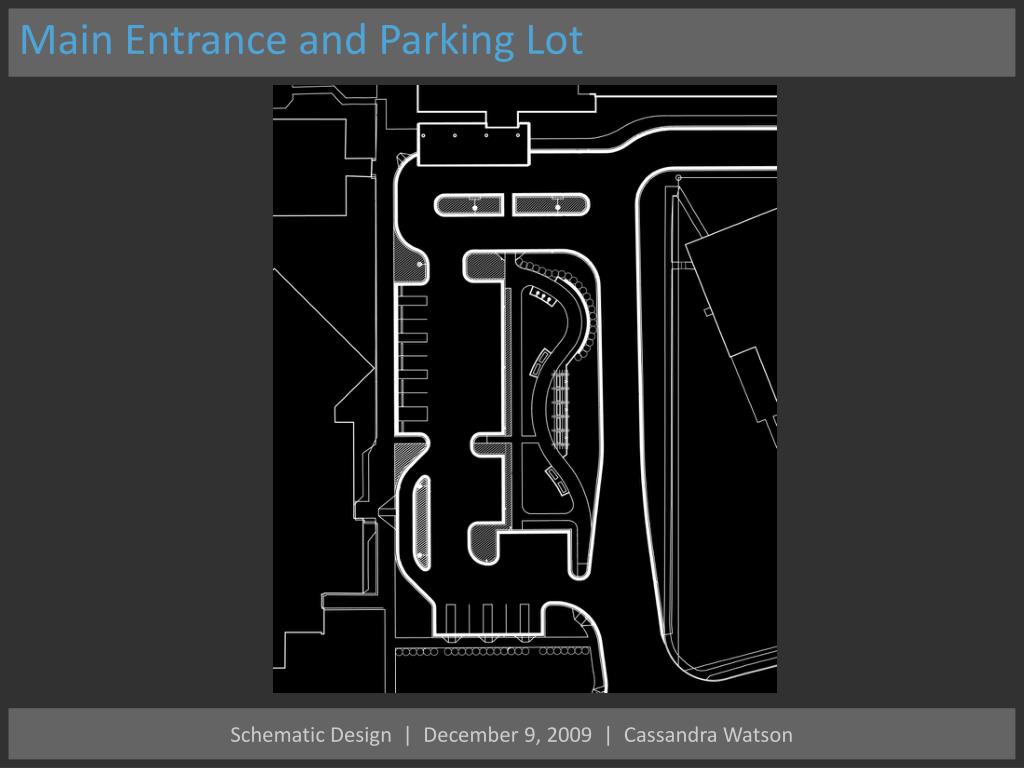

  38. Main Entrance and Parking Lot Schematic Design | December 9, 2009 | Cassandra Watson

  39. Main Entrance and Parking Lot Schematic Design | December 9, 2009 | Cassandra Watson

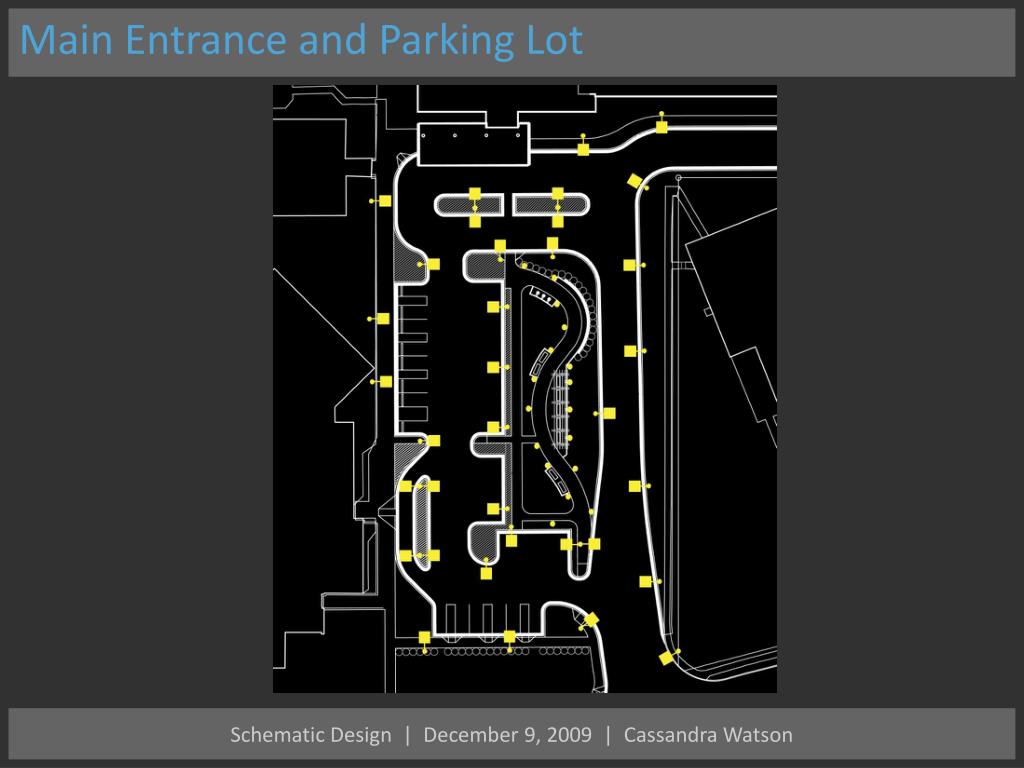

  40. Main Entrance and Parking Lot Schematic Design | December 9, 2009 | Cassandra Watson

  41. Main Entrance and Parking Lot Schematic Design | December 9, 2009 | Cassandra Watson

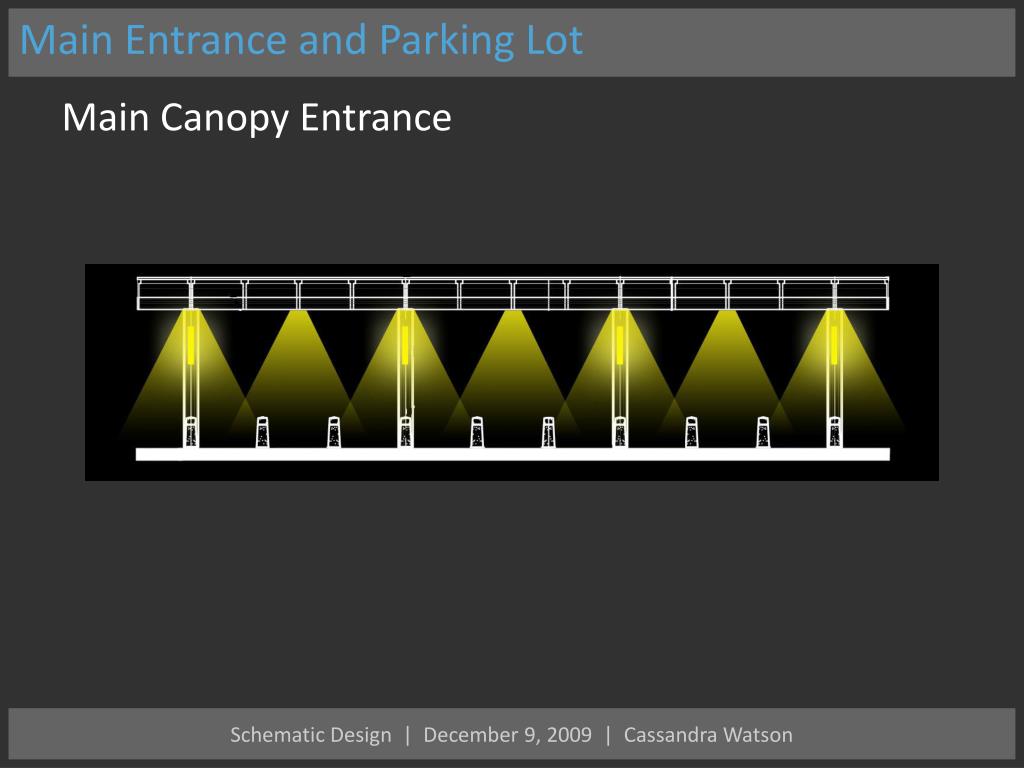

  42. Main Entrance and Parking Lot Main Canopy Entrance Schematic Design | December 9, 2009 | Cassandra Watson

  43. Main Entrance and Parking Lot Main Canopy Entrance Schematic Design | December 9, 2009 | Cassandra Watson

  44. Main Entrance and Parking Lot Main Canopy Entrance Schematic Design | December 9, 2009 | Cassandra Watson

  45. Main Entrance and Parking Lot Main Entrance Schematic Design | December 9, 2009 | Cassandra Watson

  46. Main Entrance and Parking Lot Main Entrance Schematic Design | December 9, 2009 | Cassandra Watson

  47. Main Entrance and Parking Lot Main Entrance Schematic Design | December 9, 2009 | Cassandra Watson

  48. Questions? Schematic Design | December 9, 2009 | Cassandra Watson
