Bahen Centre for Information TechnologyUniversity of TorontoToronto, Ontario, Canada TM Schematic Design Proposal Rebecca HoLighting/Electrical OptionDecember 10th, 2002 Bahen Centre for Information Technology – University of Toronto

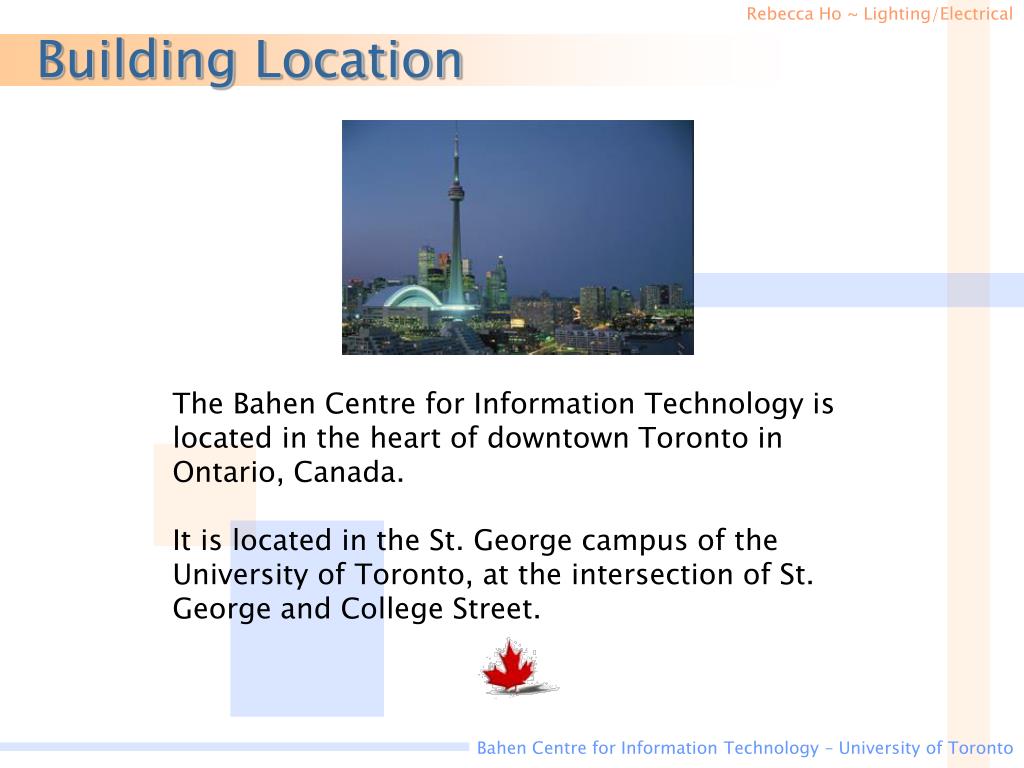

Building Location The Bahen Centre for Information Technology is located in the heart of downtown Toronto in Ontario, Canada. It is located in the St. George campus of the University of Toronto, at the intersection of St. George and College Street. Bahen Centre for Information Technology – University of Toronto

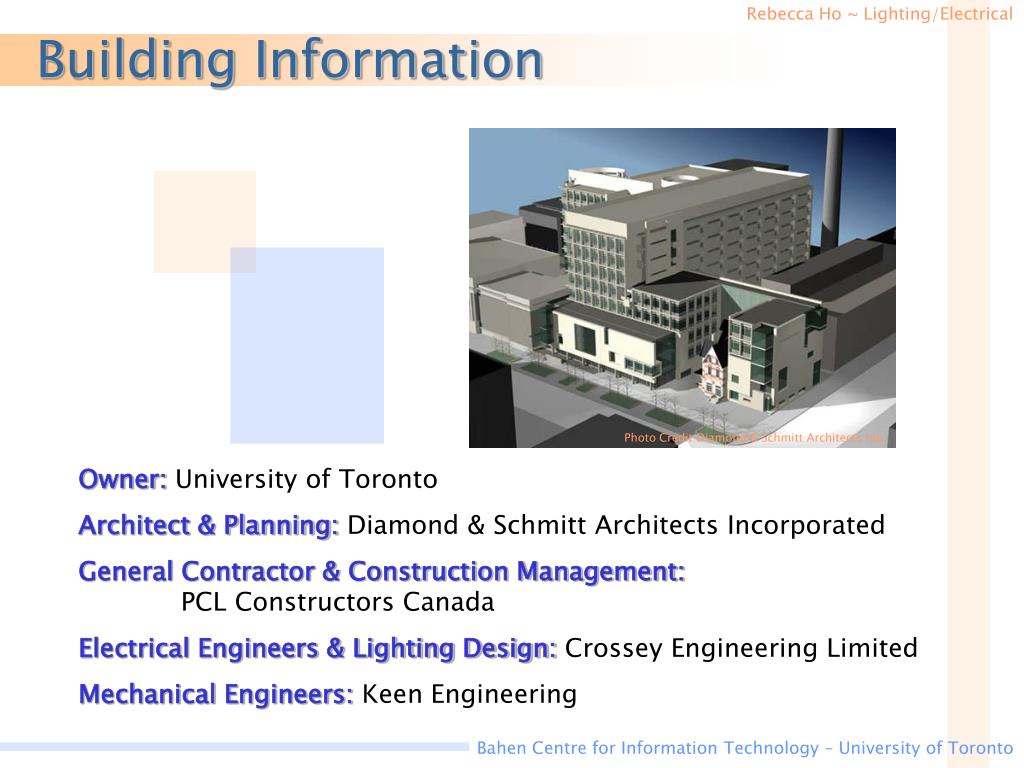

Building Information Photo Credit Diamond & Schmitt Architects Inc. Owner: University of Toronto Architect & Planning: Diamond & Schmitt Architects Incorporated General Contractor & Construction Management: PCL Constructors Canada Electrical Engineers & Lighting Design: Crossey Engineering Limited Mechanical Engineers: Keen Engineering Bahen Centre for Information Technology – University of Toronto

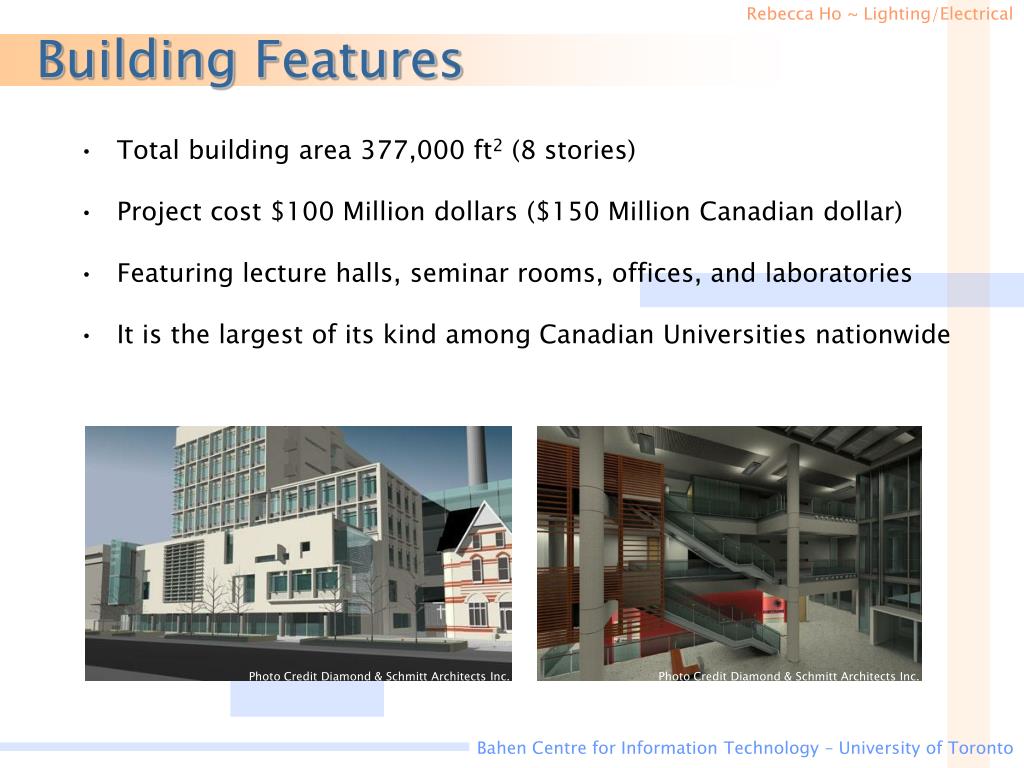

Building Features • Total building area 377,000 ft2 (8 stories) • Project cost $100 Million dollars ($150 Million Canadian dollar) • Featuring lecture halls, seminar rooms, offices, and laboratories • It is the largest of its kind among Canadian Universities nationwide Photo Credit Diamond & Schmitt Architects Inc. Photo Credit Diamond & Schmitt Architects Inc. Bahen Centre for Information Technology – University of Toronto

Building Use Photo Credit Diamond & Schmitt Architects Inc. • Facility for information technology, electrical engineering, computer engineering, and industrial engineering education at the University of Toronto. Photo Credit Diamond & Schmitt Architects Inc. Bahen Centre for Information Technology – University of Toronto Photo Credit Diamond & Schmitt Architects Inc.

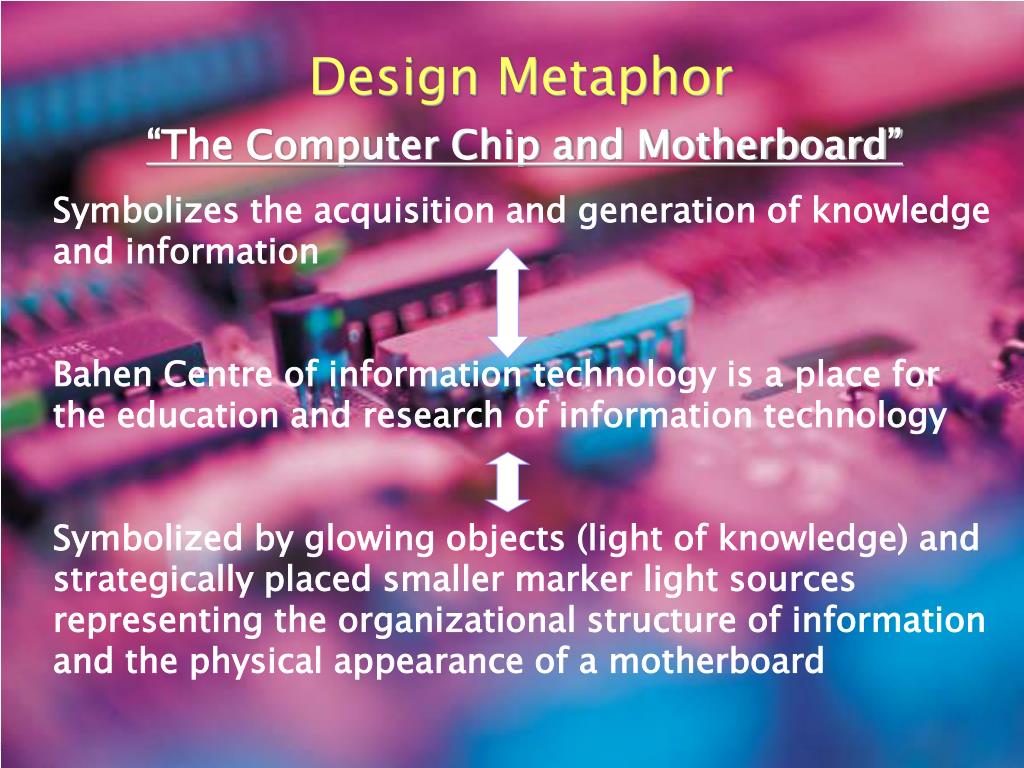

Design Metaphor “The Computer Chip and Motherboard” Symbolizes the acquisition and generation of knowledge and information Bahen Centre of information technology is a place for the education and research of information technology Symbolized by glowing objects (light of knowledge) and strategically placed smaller marker light sources representing the organizational structure of information and the physical appearance of a motherboard Bahen Centre for Information Technology – University of Toronto

Spaces • Gallery 1134 • Lecture Hall 1210 • Meeting Room 4287 • Outdoor Patio (on 4th floor) N Bahen Centre for Information Technology – University of Toronto

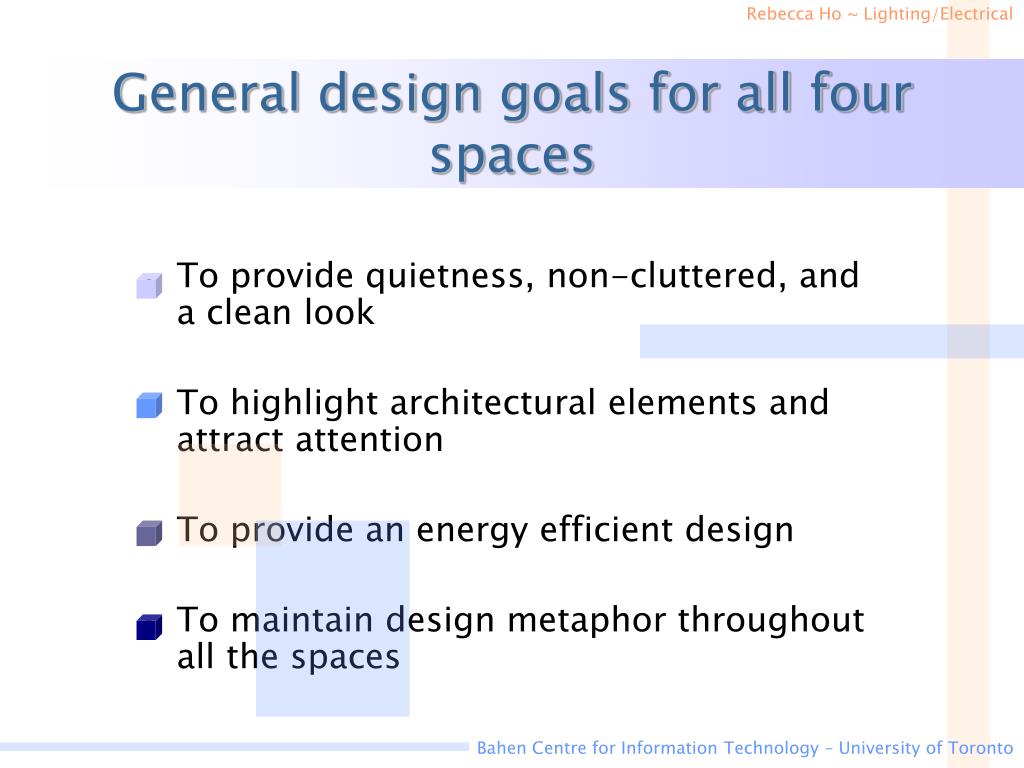

General design goals for all four spaces • To provide quietness, non-cluttered, and a clean look • To highlight architectural elements and attract attention • To provide an energy efficient design • To maintain design metaphor throughout all the spaces Bahen Centre for Information Technology – University of Toronto

First space to consider • Gallery 1134 • Lecture Hall 1210 • Meeting Room 4287 • Outdoor Patio N Bahen Centre for Information Technology – University of Toronto

Gallery The gallery space is a corridor enclosed by a glass lined wall of auditorium #1130… …and a large plane of windows facing the pedestrian walkway of St. George Street. N Ground Floor Plan Bahen Centre for Information Technology – University of Toronto

Gallery The large windows adjacent to the sidewalk makes this a very visible area from outside. Computer lab and auditorium walls are lined with glass panels, which will provide sunlight into those spaces N Ground Floor Plan Bahen Centre for Information Technology – University of Toronto

Gallery Design Criteria • To direct movement through the corridor • To be adequately lit to promote safety • Direct glare and shadowing issues from overhead luminaire should be considered • To add visual interest to the corridor space • Target illuminance • Horizontal: 5 fc (50 Lux) Bahen Centre for Information Technology – University of Toronto

Gallery Design Concept Goal: To eliminate clutter in the space and achieve a clean look Corridor will be lighted indirectly by the light shining through the glass. Use patterned ceramicfritted glass for glass panels on wall. Backlight frit glass panels from above to create a grazing effect. Bahen Centre for Information Technology – University of Toronto

Gallery Design Concept continued… Wall wash fixture with glass wall detail Fixtures will be placed inside the auditorium and computer lab side of the glass to avoid glare for occupants of those rooms. Bahen Centre for Information Technology – University of Toronto

Gallery Design Concept (Ceramic Fritted Glass side note) • “Ceramic fritted glass consists of a ceramic based paint screen-printed onto glass. The glass is then heat strengthened or toughened which fuses the paint to the glass creating a permanent durable coating” - National Glass Catalogue and Reference Guide 2000 • Can be used to filter light or reduce glare with different pattern designs. • When fritted glass is used in conjunction with a light source, it can create a “glowing” visual appearance. Examples of Application: Bahen Centre for Information Technology – University of Toronto

Gallery Design Concept continued… Goal: To enhance architectural elements (curved glass wall) The lighted fritted glass panels will create a “glowing” curved wall appearance for onlookers from the outside. Fiber optics lining the top and bottom of the curved wall, creating movement along the corridor. Bahen Centre for Information Technology – University of Toronto

Gallery Design Concept continued… Goal: To attract the attention of pedestrians looking through windows The lighted fritted glass panels will create a “glowing” curved wall appearance for onlookers from the outside. It also represents the metaphor for the project, where the glowing wall symbolizes a source of knowledge and information. Bahen Centre for Information Technology – University of Toronto

Gallery Design Concept continued… Goal: To provide adequate illuminance safety in the corridor Corridor will be lighted indirectly by the light shining through the glass. Bahen Centre for Information Technology – University of Toronto

Gallery Lighting Equipment Side emitting fiber encased along top and bottom of curved wall in Gallery. Ceiling mounted, small concealed, one lamp fluorescent T-8 wallwash fixture. Fritted glass washed by linear fluorescent fixture will become a light source itself, lighting up the corridor. The patter of the frit should be horizontal to promote movement along the gallery. Bahen Centre for Information Technology – University of Toronto

Next space to consider • Gallery 1134 • Lecture Hall 1210 • Meeting Room 4287 • Outdoor Patio N Bahen Centre for Information Technology – University of Toronto

Lecture Hall The side walls of the lecture hall features mahogany wood architectural detail designed by the architect. The lecture hall is equipped with an overhead video projector, screen for the projector, and blackboard at the front of the room. N This 85 seat Lecture Hall features eight rows of seats on a stepped floor. The room does not have windows. Ground Floor Plan Bahen Centre for Information Technology – University of Toronto

Lecture Hall Design Criteria • Consider veiling reflections on table and blackboard, glare, and reflected glare issues of the space • Lighting of the vertical surfaces such as chalkboards • Visual appearance of lecturer at the front of the room and shadows • Provide different levels of illumination for different tasks (lecture, note-taking, audiovisual presentation) • Target Illuminance: • Horizontal: 50 fc (500 Lux) • Vertical: 50 fc (500 Lux) Bahen Centre for Information Technology – University of Toronto

Lecture Hall Design Concept Goal: To provide an even ambient lighting scheme that causes minimal shadow and glare Suspended indirect/Direct fixtures (with LED lights on the bottom side) to provide a comfortable, diffuse illumination for the entire space. Fixtures will be aligned orthogonally to the orientation of the rows of tables to avoid glare from the downlight portion of the fixtures. Bahen Centre for Information Technology – University of Toronto

Lecture Hall Design Concept continued… The LED on the fixture continues to symbolize the project metaphor Bahen Centre for Information Technology – University of Toronto

Lecture Hall Design Concept continued… Goal: To highlight the architectural detail in the space Cove lighting for drop ceiling to illuminate the perimeter of the room, preventing the “caved-in” feeling. The lights will also highlight the mahogany wood architectural detail mounted on the walls all around the room. Bahen Centre for Information Technology – University of Toronto

Lecture Hall Design Concept continued… Bahen Centre for Information Technology – University of Toronto

Lecture Hall Design Concept continued… Goal: To provide adequate illuminance for the vertical surfaces at the front of the room Recessed asymmetrical fluorescent fixture to light vertical surfaces (blackboards, screen) and lecturer at the front of the room Bahen Centre for Information Technology – University of Toronto

Lecture Hall Design Concept continued… Bahen Centre for Information Technology – University of Toronto

Lecture Hall Control Systems Requirements: Special controls are need to set different scenes and zones of lighting for the lecture hall. The control should have the capability to dim different groups of lighting required for various tasks and to achieve a desire illuminance level on the various workplane levels. • At least two different scenes will be required for: • Regular lectures and note-taking • Audio-visual presentations Bahen Centre for Information Technology – University of Toronto

Lecture Hall Control Systems continued… A number of dimming zones must be set up for the linear fluorescent fixtures so that there will be the same illuminance level for the different desktop elevation levels of the room. An additional zone should also be set up for the front of the room and another zone for the cove lighting around the room. Zone 1 – Front of the room for vertical surfaces and face rendering Zone 2,3,4 – Above desks and seats for tasks such as note taking and reading Zone 5 – Cove lighting region Bahen Centre for Information Technology – University of Toronto

Lecture Hall Lighting Equipment Direct/indirect fluorescent cable suspended fixture with LED on the bottom. Fixtures will be arranged end to end (tandem wiring) and complete with a dimmable ballast. 1’x4’ recessed wall wash fixture for lighting blackboard, screen and vertical surfaces at the front of the room. Small concealed, one lamp fluorescent T-8 (32W) wallwash fixture with remote transformer. Bahen Centre for Information Technology – University of Toronto

Third spaces to consider • Gallery 1134 • Lecture Hall 1210 • Meeting Room 4287 • Outdoor Patio (on 4th floor) N Bahen Centre for Information Technology – University of Toronto

Meeting Room Approximately half of the perimeter of this circular room is constructed of glass panels (similar to Gallery). The meeting room is located on the 4th floor within the core of the grand spiral staircase in the atrium. 4th Floor Plan The ceiling of the room is a drop ceiling with two columns at the edge of the room. A large conference table is located in the center of the room Bahen Centre for Information Technology – University of Toronto

Meeting Room Design Criteria • The lighting system should provide an even, comfortable ambient lighting level for meetings. It should be a dimmable which is useful for audio/visual presentation and special purpose uses. • Sufficient vertical illumination for whiteboard and presentations • Facial rendering quality of lights should be considered • Target Illuminance • Horizontal 30 fc (300 Lux) • Vertical 10 fc (100 Lux) Bahen Centre for Information Technology – University of Toronto

Meeting Room Design Concept Goal: To highlight architectural detail (cove and circular room) Cove lighting for drop ceiling illuminates the perimeter of the room, preventing the “caved-in” feeling. It also highlights the architectural circular ceiling to make it “float”. Bahen Centre for Information Technology – University of Toronto

Meeting Room Design Concept continued… Goal: To provide an even ambient lighting for the space Dimmable compact fluorescent downlight provides even ambient lighting for the space. Bahen Centre for Information Technology – University of Toronto

Meeting Room Design Concept continued… Goal: To generate interest in the space and showcase architectural features Bahen Centre for Information Technology – University of Toronto

Meeting Room Design Concept continued… Bahen Centre for Information Technology – University of Toronto

Meeting Room Lighting Equipment LED strip light with RGB color mixing capability 32W Triple Tube compact fluorescent downlight fixture with a medium beam, and open reflector. Small concealed, one lamp fluorescent T-8 (32W) wallwash fixture with remote transformer. Bahen Centre for Information Technology – University of Toronto

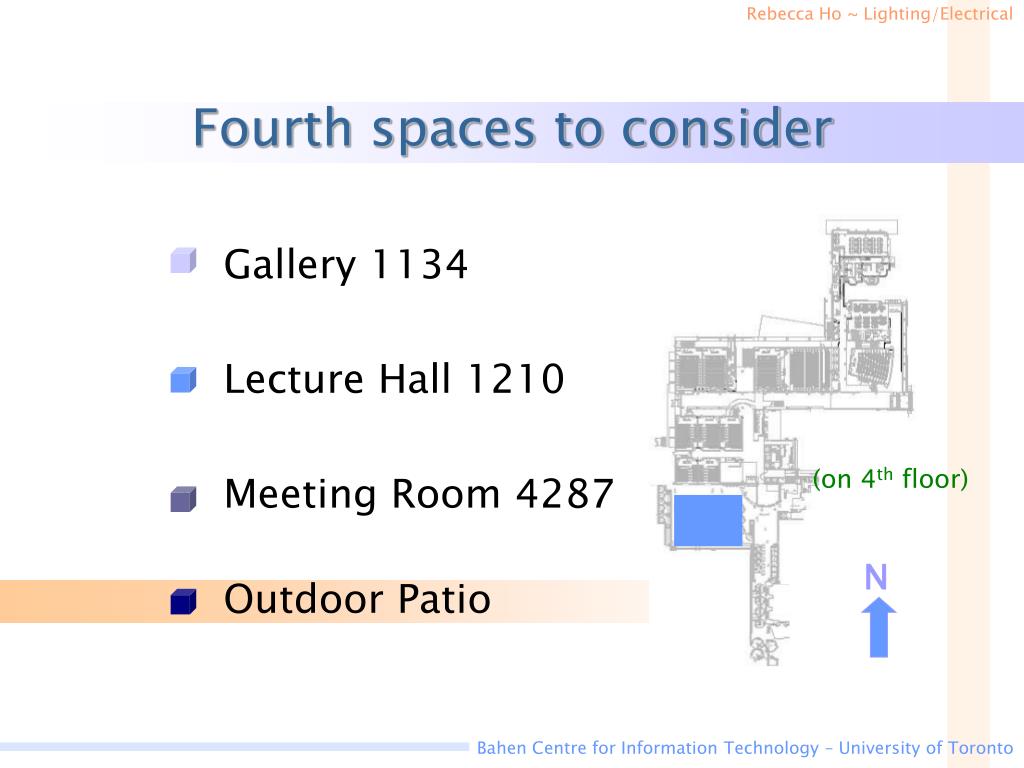

Fourth spaces to consider • Gallery 1134 • Lecture Hall 1210 • Meeting Room 4287 • Outdoor Patio (on 4th floor) N Bahen Centre for Information Technology – University of Toronto

South Courtyard Located in the southwest end of the Bahen Centre. All the rooms on the south side of the building has a view of the courtyard. Ground Floor Plan It features a green lawn area, groups of trees, and a custom designed water feature Bahen Centre for Information Technology – University of Toronto

South Courtyard The water feature consists of three concrete-casted silos used to collect rain water. The collected rain water is then drained into troughs and trickle down to the pool. It then flows to a lower level trough (which runs north/south) and to another trough which is at street level to College Street. Bahen Centre for Information Technology – University of Toronto

To promote safety and security to the area by providing sufficient lighting at night To direct movement through dark paths in the courtyard To attract attention to the water feature the building, while eliminating glare to the adjacent buildings caused by lighting Target illuminance: Horizontal: 5 fc (50 Lux) Vertical: 2 fc (20 Lux) South Courtyard Design Criteria Bahen Centre for Information Technology – University of Toronto

South Courtyard Design Concept Goal: To attract attention to the water feature and provide sufficient illuminance for safety in the outdoor space Bahen Centre for Information Technology – University of Toronto

South Courtyard Design Concept continued… Submersible uplight fixtures are recessed into the bottom of the trough. (Similar application) Steplights used at the base of the water trough to provide a well lit path for pedestrians through the courtyard Bahen Centre for Information Technology – University of Toronto

South Courtyard Design Concept continued… Mounting detail for LED fixture inside silo Bahen Centre for Information Technology – University of Toronto

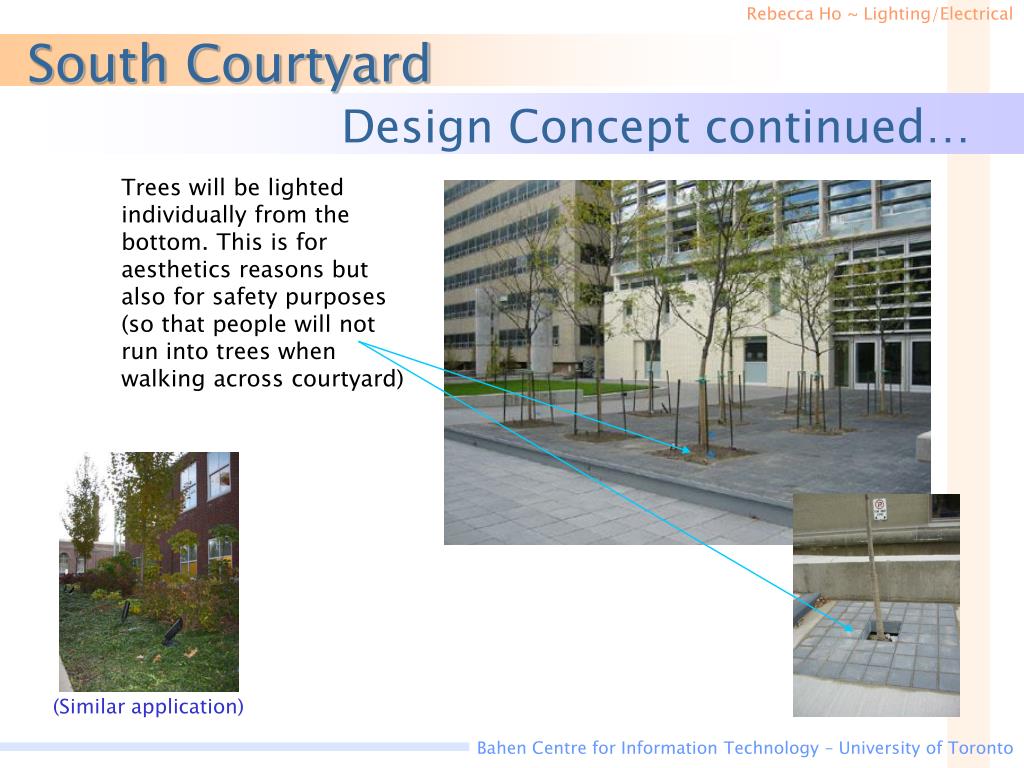

South Courtyard Design Concept continued… Trees will be lighted individually from the bottom. This is for aesthetics reasons but also for safety purposes (so that people will not run into trees when walking across courtyard) (Similar application) Bahen Centre for Information Technology – University of Toronto
