  1. A: Wave Phenomena A.2 Standing (Stationary) Waves

  2. Standing (Stationary) Waves When two identical travelling waves pass in the opposite direction through a medium, a stationary wave may be produced. In this situation there is zero net transfer of energy through the medium. Demo: Stationary waves on a rubber cord: Vibration generator Pulley

  3. Formation of Standing Waves Standing waves form as a result of constructive and destructive superposition of two waves moving in opposite directions with equal amplitude and frequency. If at an instant when the waves overlap any points are in-phase, constructive superposition occurs. If each wave moves ¼ of a cycle in opposite directions, the waves become ½ a cycle out of phase and destructive interference occurs.

  4. Nodes and Antinodes Points oscillating with the biggest amplitude in a stationary wave are called antinodes. Points undergoing zero oscillation are called nodes.

  5. Harmonic Frequencies For any stationary wave the node to node (loop) distance = ½ λ So for waves on a string, a stationary wave will only occur when the length is a whole number of half wavelengths. Thus, because the speed of the wave in the string is fixed (depending on the string and its tension), a stationary wave pattern can only be formed at certain frequencies – ‘harmonics’—thank you resonance.

  6. λ = 2L Frequency = f λ = L Frequency = 2f λ = 2/3 L Frequency = 3f

  7. The lowest resonant frequency of the system is called the fundamental frequency (or 1st harmonic frequency). The next are called the 2nd harmonic, 3rd harmonic etc. For a stationary wave in a string: Harmonic frequency = no. of loops x natural frequency

  8. Comparing Standing Waves to Progressive Waves

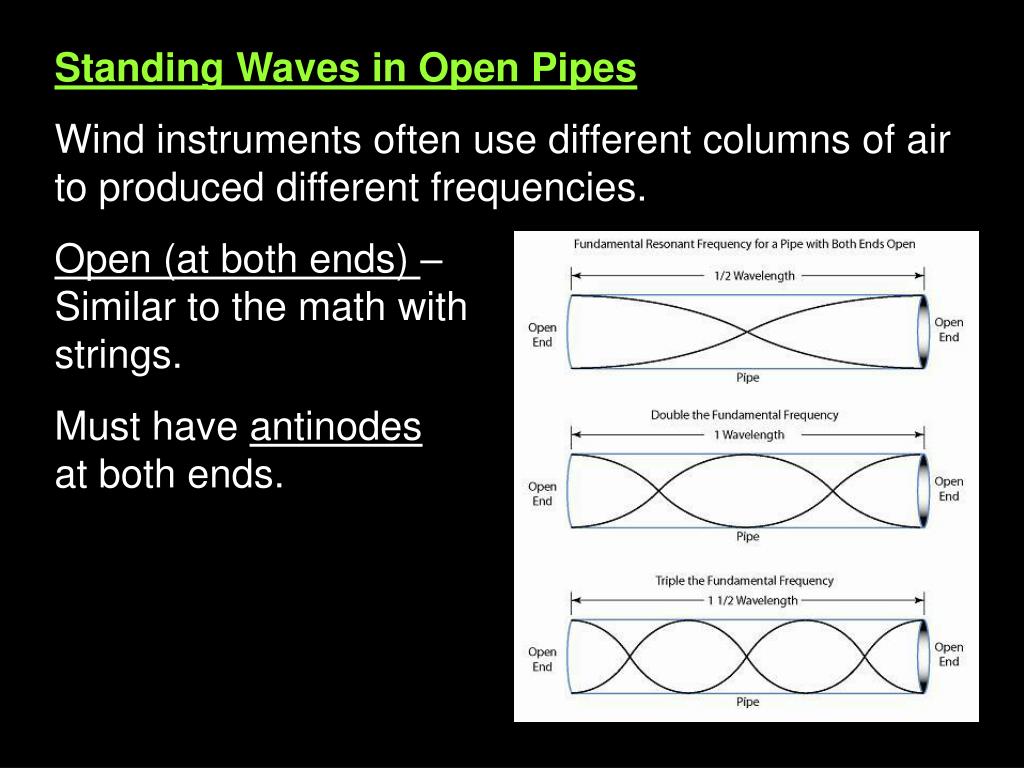

  9. Standing Waves in Open Pipes Wind instruments often use different columns of air to produced different frequencies. Open (at both ends) – Similar to the math withstrings. Must have antinodesat both ends.

  10. Standing Waves in Closed Pipes The second type of pipe is a closed pipe—however, one end is closed and the other is open (air has to enter somehow). Nodes are at the closed end. Antinodes are at the open end. Notice the harmonics!

  11. Click HERE for a Standing Waves Visual Simulation Click Here for a Standing Wave Simulation Notice the top ones are similar to closed pipes The middle ones are similar to open pipes The bottom ones are for strings.

  12. Question Find the fundamental frequency of an open pipe of length 85 cm. The speed of sound in air is 340 m/s.
