Presentation Transcript

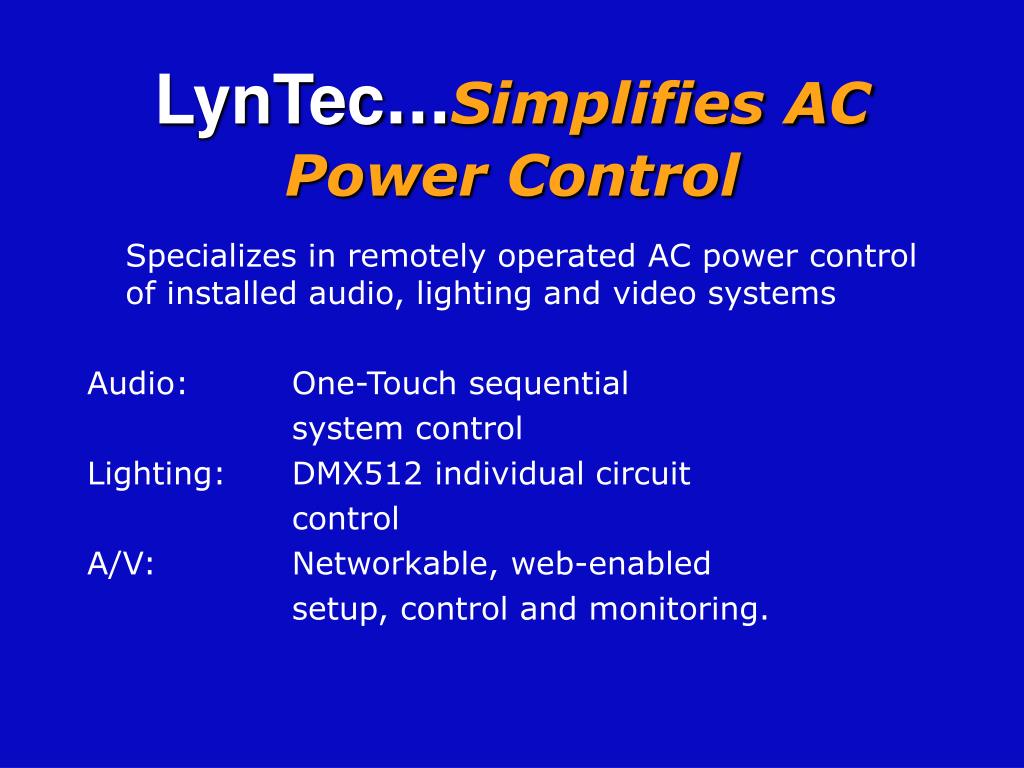

  1. LynTec…Simplifies AC Power Control Specializes in remotely operated AC power control of installed audio, lighting and video systems Audio: One-Touch sequential system control Lighting: DMX512 individual circuit control A/V: Networkable, web-enabled setup, control and monitoring.

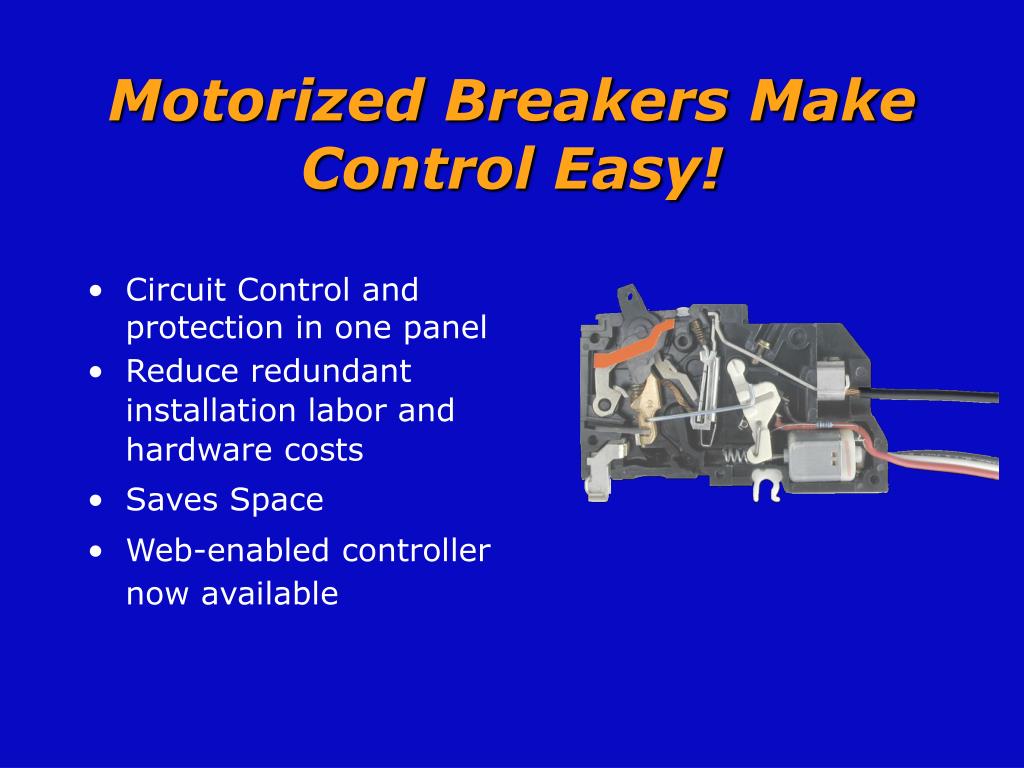

  2. Motorized Breakers Make Control Easy! • Circuit Control and protection in one panel • Reduce redundant installation labor and hardware costs • Saves Space • Web-enabled controller now available

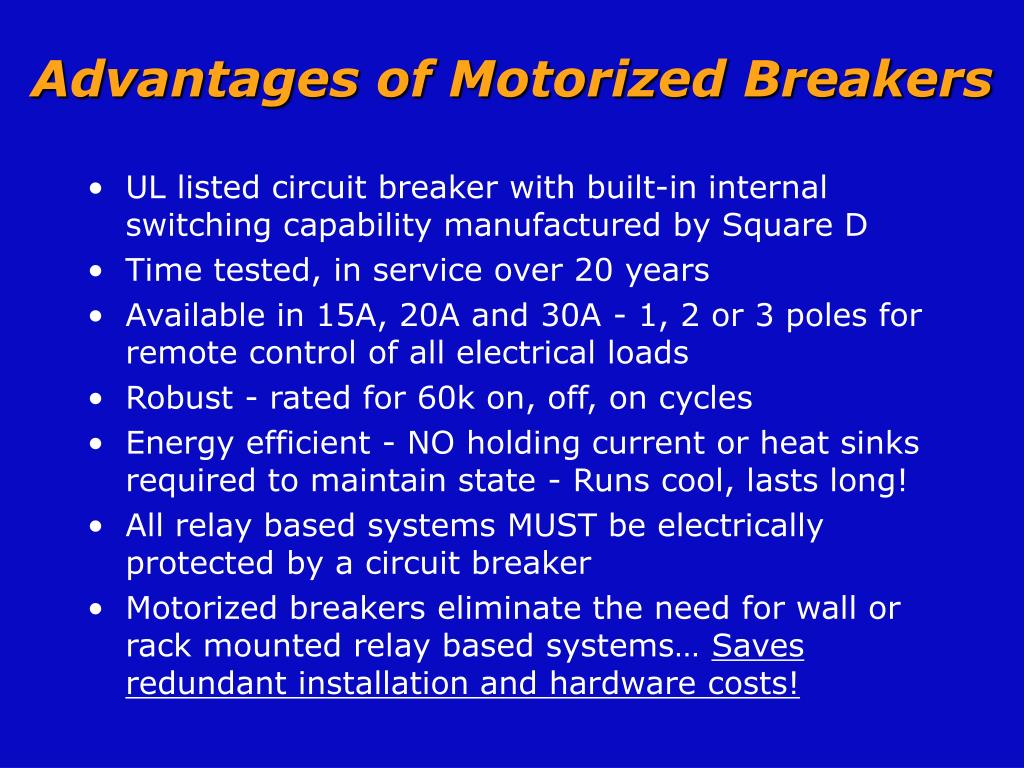

  3. Advantages of Motorized Breakers • UL listed circuit breaker with built-in internal switching capability manufactured by Square D • Time tested, in service over 20 years • Available in 15A, 20A and 30A - 1, 2 or 3 poles for remote control of all electrical loads • Robust - rated for 60k on, off, on cycles • Energy efficient - NO holding current or heat sinks required to maintain state - Runs cool, lasts long! • All relay based systems MUST be electrically protected by a circuit breaker • Motorized breakers eliminate the need for wall or rack mounted relay based systems… Saves redundant installation and hardware costs!

  4. Simplified Lighting Power Control Remote DMX-512 Individual Circuit Control Perfect for ON/OFF or RESET control of: • Non-Dimmed circuits • House Lighting • Intelligent Lighting • LED Fixtures • Curtain motors and other electrical rigging fixtures

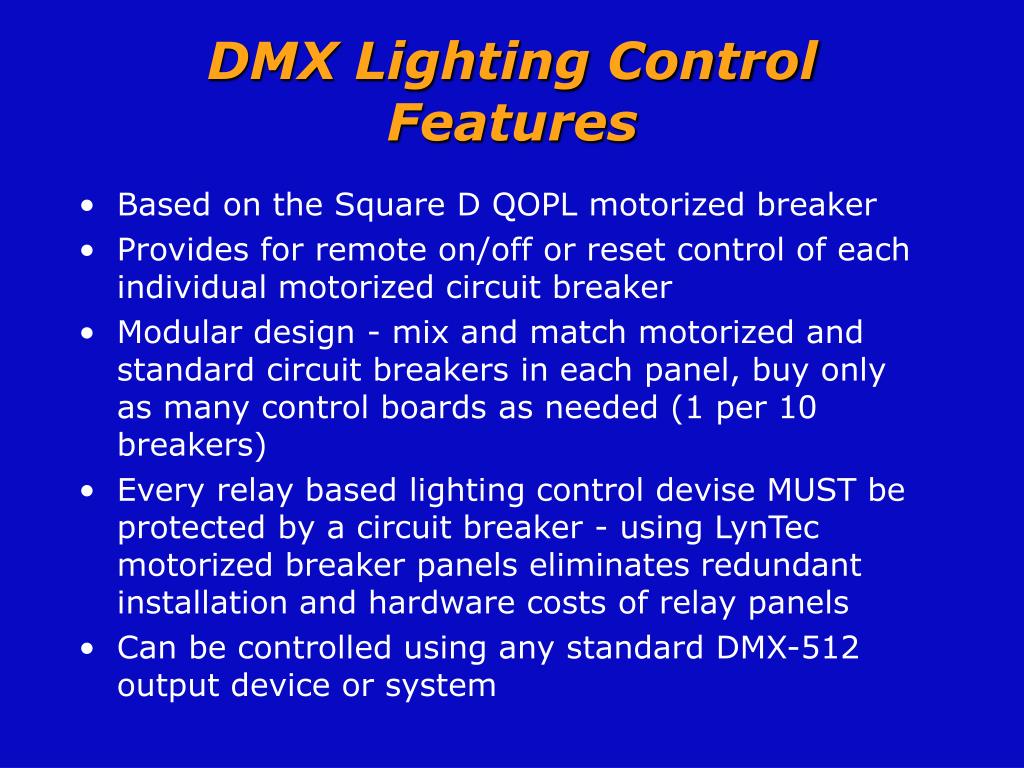

  5. DMX Lighting Control Features • Based on the Square D QOPL motorized breaker • Provides for remote on/off or reset control of each individual motorized circuit breaker • Modular design - mix and match motorized and standard circuit breakers in each panel, buy only as many control boards as needed (1 per 10 breakers) • Every relay based lighting control devise MUST be protected by a circuit breaker - using LynTec motorized breaker panels eliminates redundant installation and hardware costs of relay panels • Can be controlled using any standard DMX-512 output device or system

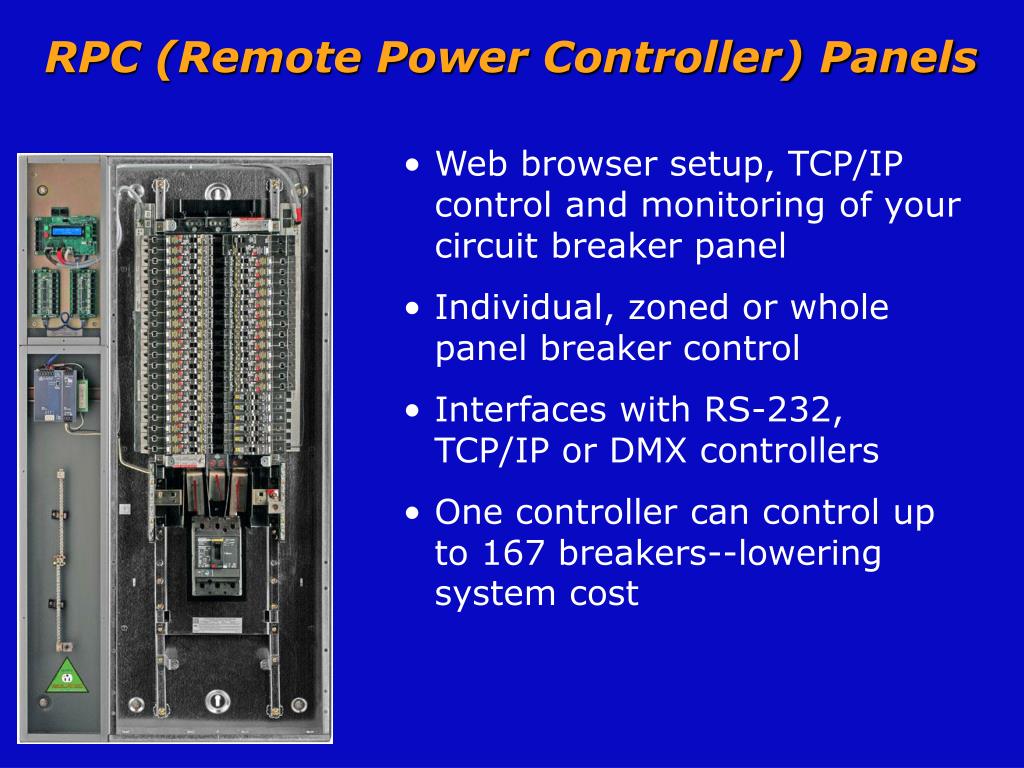

  6. RPC (Remote Power Controller) Panels • Web browser setup, TCP/IP control and monitoring of your circuit breaker panel • Individual, zoned or whole panel breaker control • Interfaces with RS-232, TCP/IP or DMX controllers • One controller can control up to 167 breakers--lowering system cost

  7. RPC Features • Based on the latest Square D PowerLink G3 motorized breaker with internal bi-directional communication and rated for 200k on/off/on cycles • One control board can manage 4 panels (up to 167 breakers). Master/slave configuration reduces costs substantially in systems exceeding 41 circuits • Web server built into control board, eliminating expensive software to install or manage • A/V integrator can set-up, monitor and control circuits over any standard web browser • Programmable software allows for individual, grouped or panel-wide circuit control. • One controller can manage all of your audio, lighting and video system control needs in a single system!
