  1. Rover Power Toy Ball Power (Budget and Resizing) Jeff Knowlton [Jeff Knowlton] [Power] 1

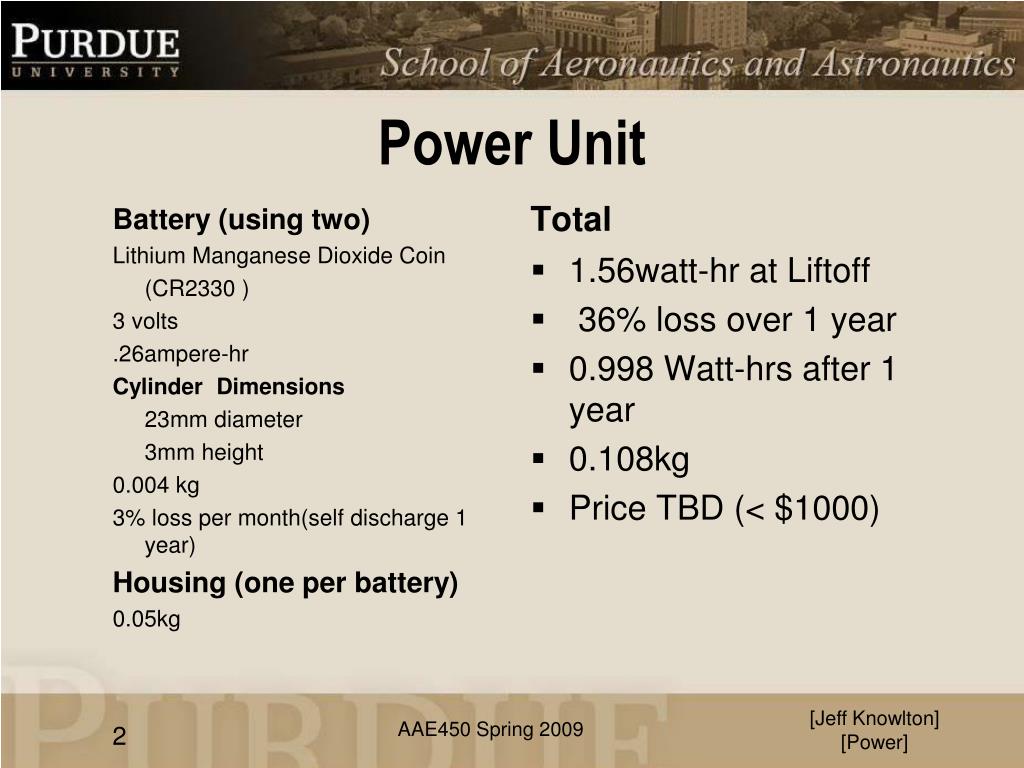

  2. Power Unit Total 1.56watt-hr at Liftoff 36% loss over 1 year 0.998 Watt-hrs after 1 year 0.108kg Price TBD (< $1000) Battery (using two) Lithium Manganese Dioxide Coin (CR2330 ) 3 volts .26ampere-hr Cylinder Dimensions 23mm diameter 3mm height 0.004 kg 3% loss per month(self discharge 1 year) Housing (one per battery) 0.05kg [Jeff Knowlton] [Power] 2

  3. Turn on Photograph Deploy Charge Travel Transmit Status Relays Excess power First Minute Blowup Mission Duration • 1 Minute Deploy • 2 Status Relays • 8 Minutes Travel • 1 Photograph • 8 Minutes Transmitting [Jeff Knowlton] [Power] 3

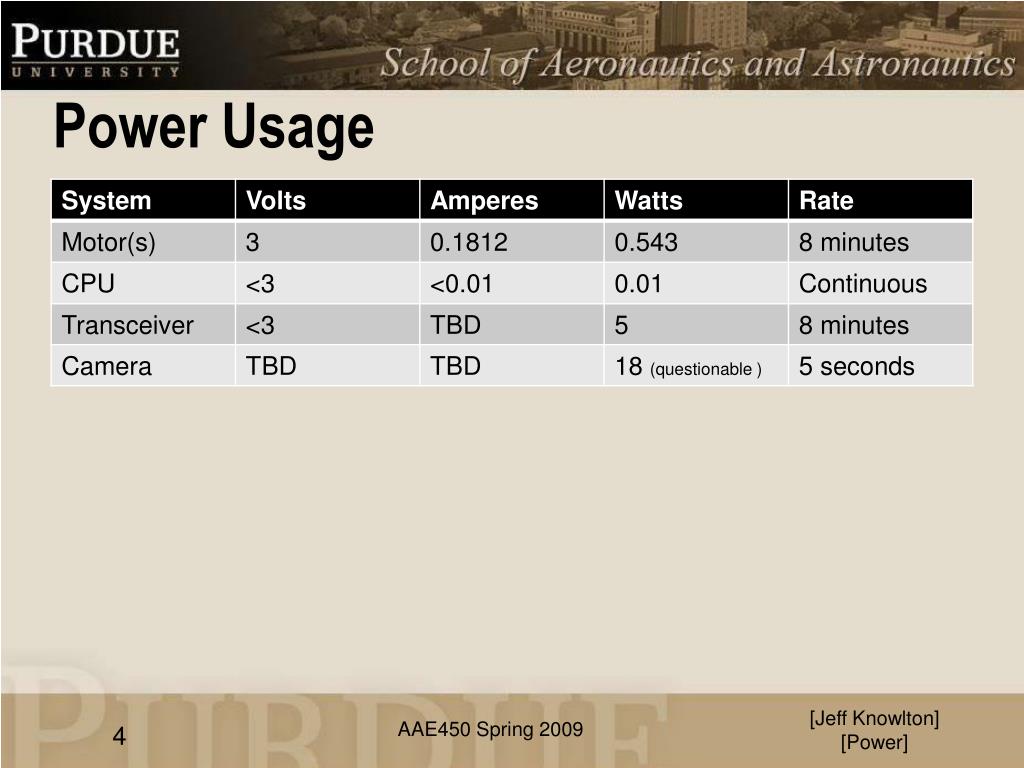

  4. Power Usage [Jeff Knowlton] [Power] 4

  5. Missing Details <10 %( Hopefully ) [Jeff Knowlton] [Power] ~0.875 m wires; 15 gauge? Voltage control for motor (slower for acc.) Battery Housing Dimensions (for newest update) 5
