  1. Raster Products Update Joel Vignola

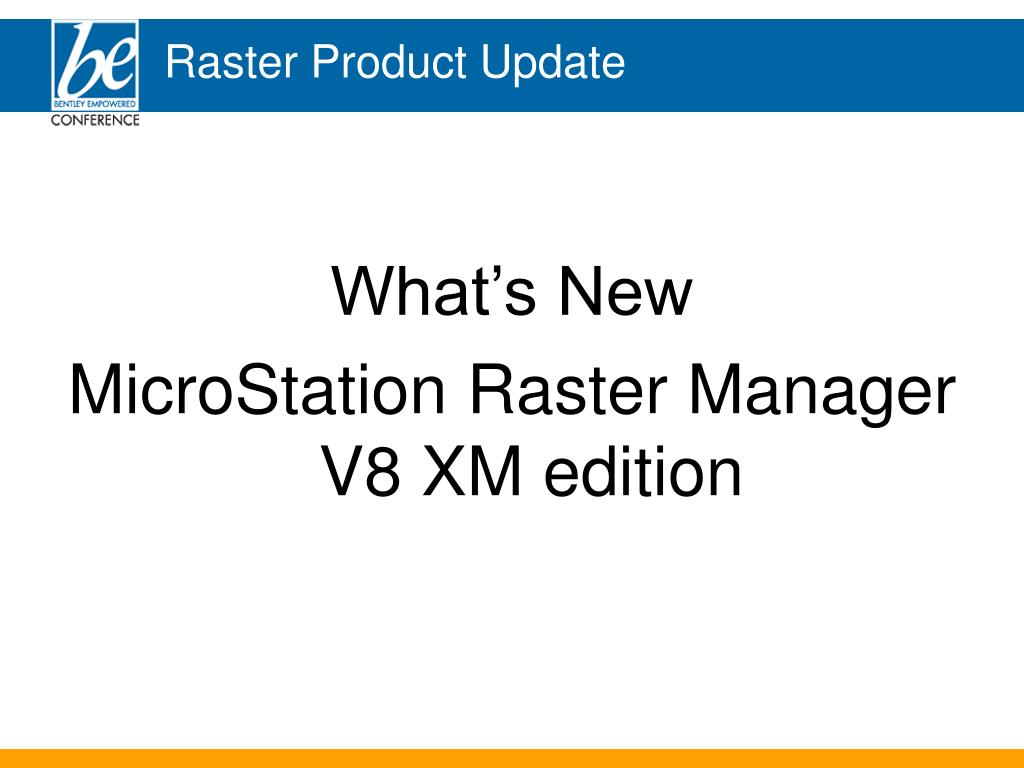

  2. Raster Product Update What’s New MicroStation Raster Manager V8 XM edition

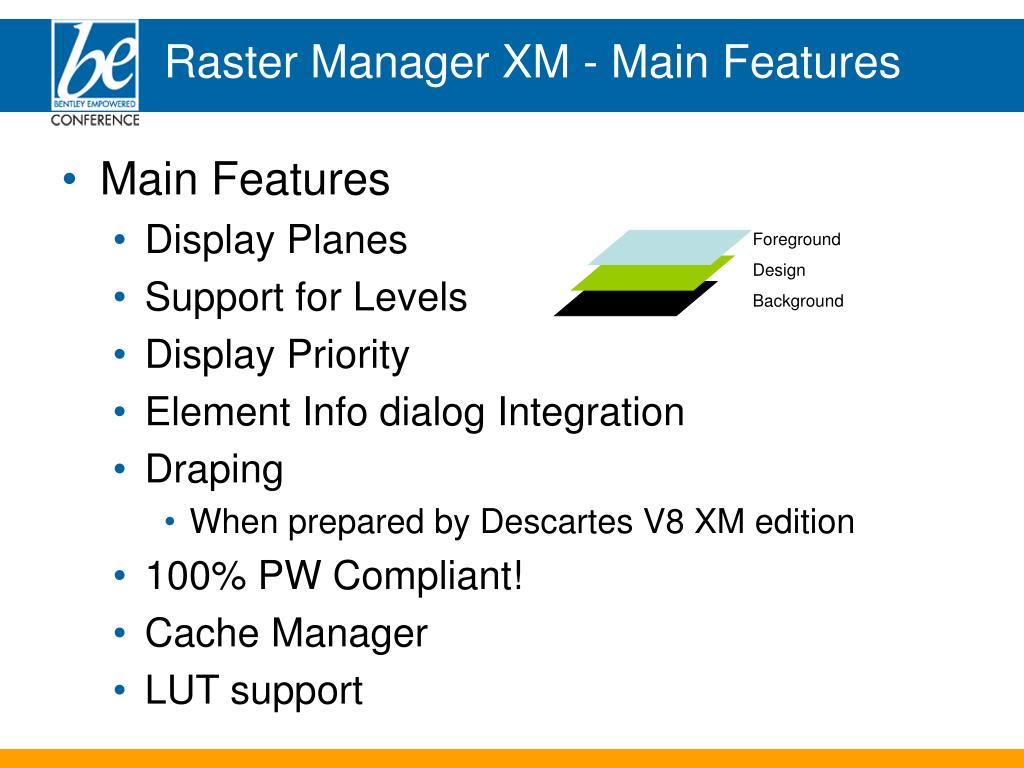

  3. Raster Manager XM - Main Features • Main Features • Display Planes • Support for Levels • Display Priority • Element Info dialog Integration • Draping • When prepared by Descartes V8 XM edition • 100% PW Compliant! • Cache Manager • LUT support Foreground Design Background Raster Elements Raster

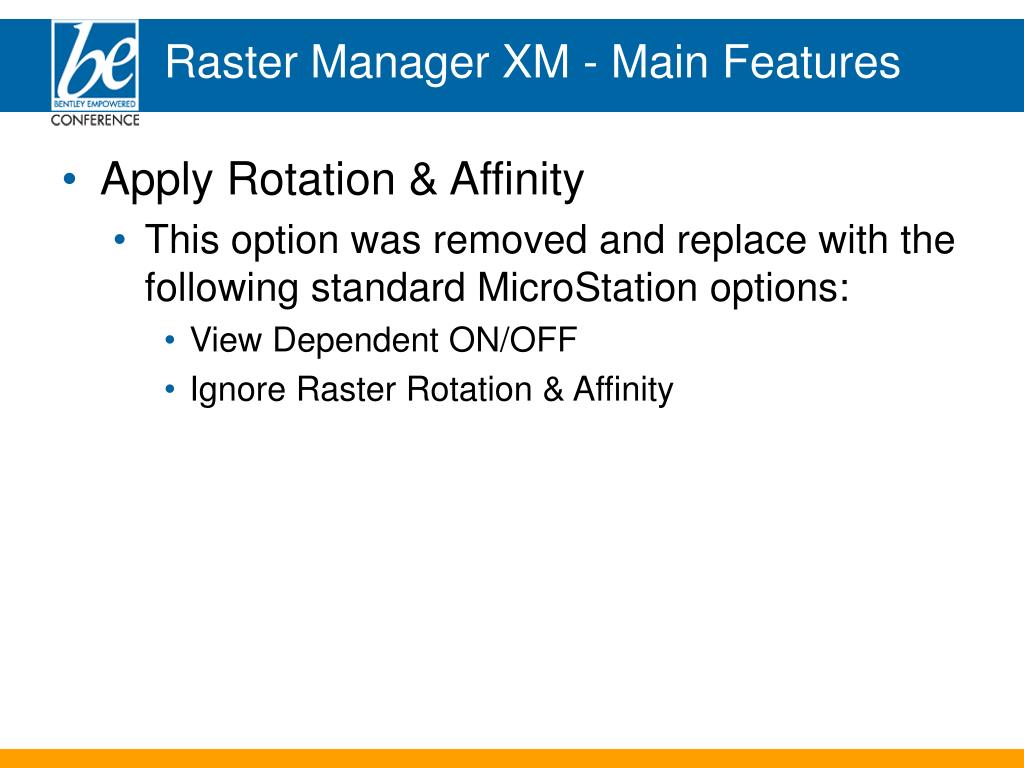

  4. Raster Manager XM - Main Features • Apply Rotation & Affinity • This option was removed and replace with the following standard MicroStation options: • View Dependent ON/OFF • Ignore Raster Rotation & Affinity

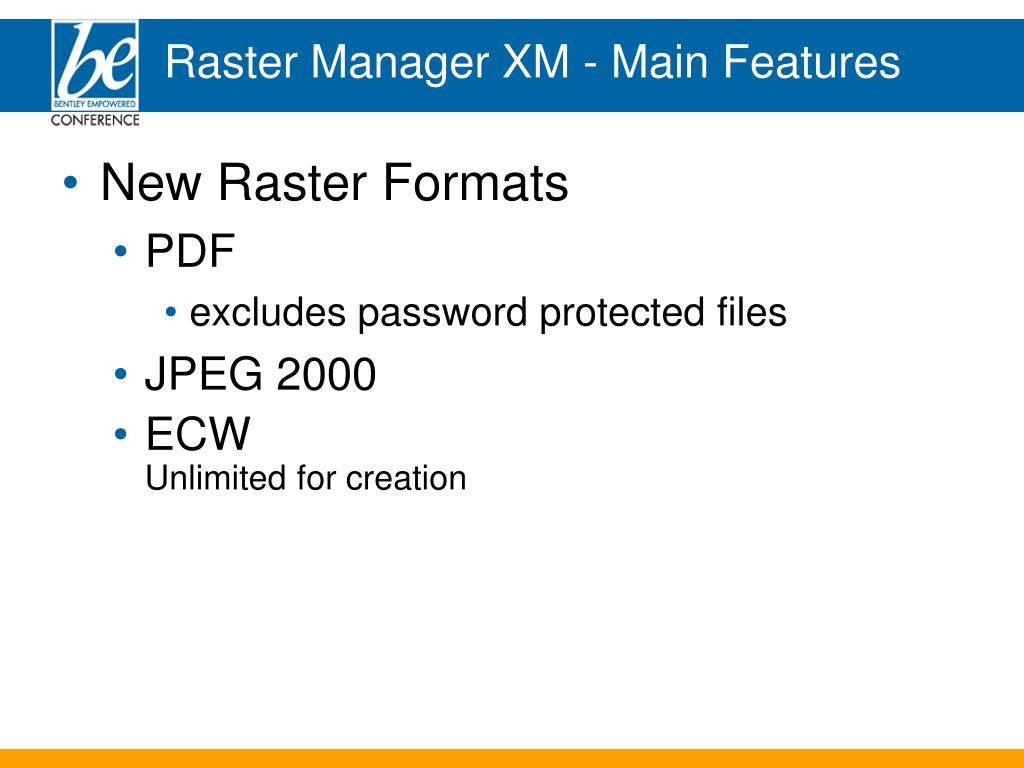

  5. MPF (I/RAS B) • SPOT • JPEG (CMYK) • 16/32/48/64 bit imagery • FLI • ECWUnlimited for creation • LRD • BIP • JPEG (Type6) • Multi-Page TIF • BIL • CRL (I/RAS B) • JPEG 2000 • DOQ • RST (I/RAS B) • PDF Raster Manager XM - Main Features • New Raster Formats • PDF • excludes password protected files • JPEG 2000 • ECWUnlimited for creation

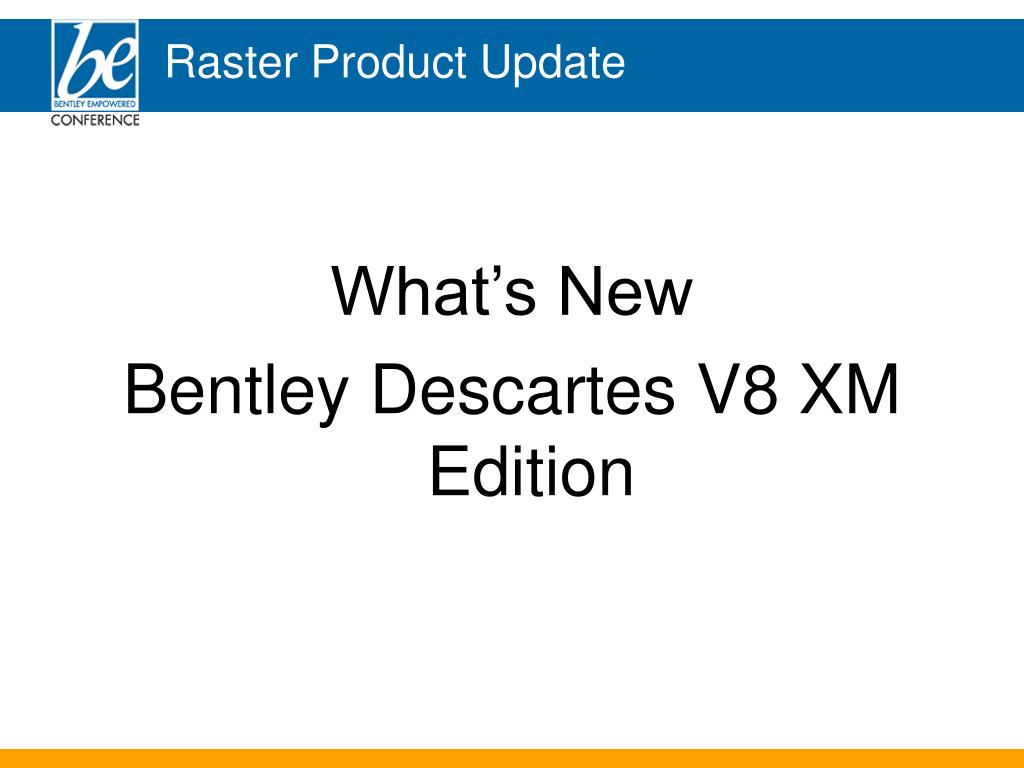

  6. Raster Product Update What’s New Bentley Descartes V8 XM Edition

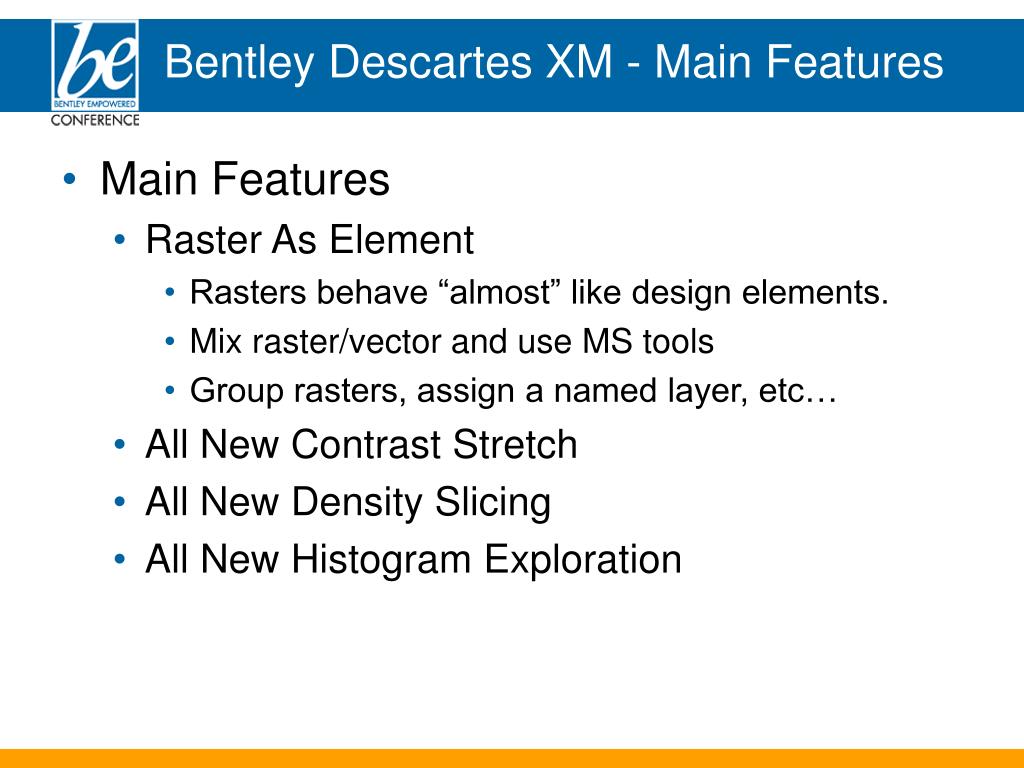

  7. Bentley Descartes XM - Main Features • Main Features • Raster As Element • Rasters behave “almost” like design elements. • Mix raster/vector and use MS tools • Group rasters, assign a named layer, etc… • All New Contrast Stretch • All New Density Slicing • All New Histogram Exploration

  8. Bentley Descartes XM - Main Features • New Overhauled Vectorize • New OCR Engine! • New Line Following Core Algorithm • New Line Generalization algorithm

  9. Raster Product Update What’s New Bentley I/RAS B V8 XM edition

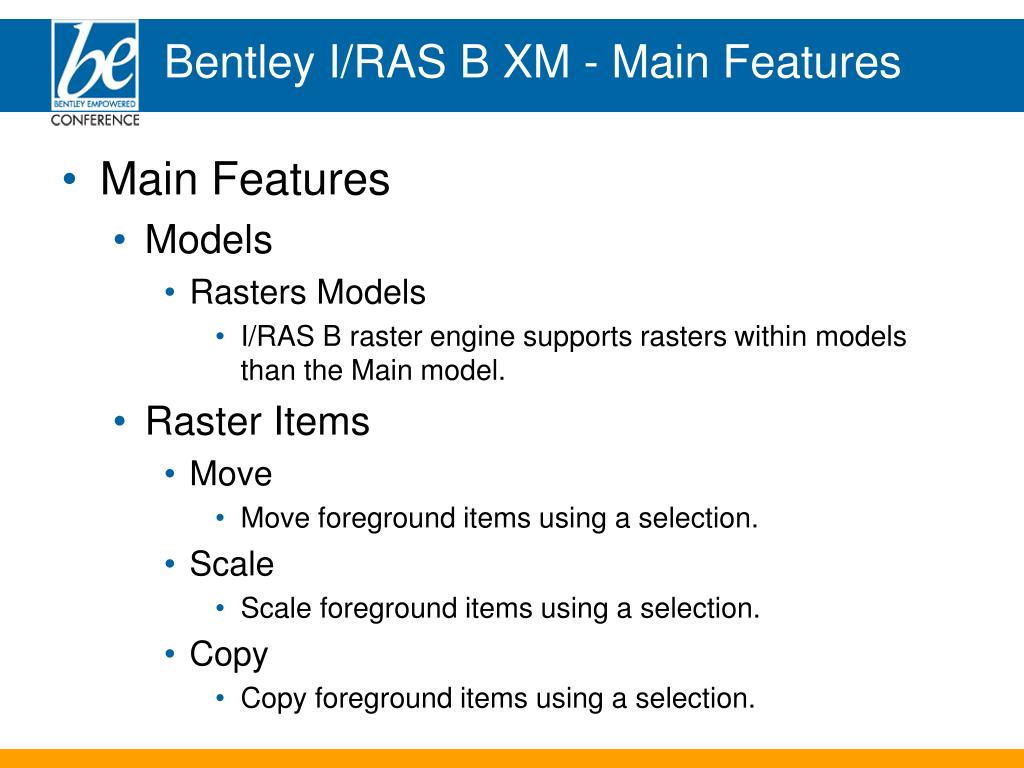

  10. Bentley I/RAS B XM - Main Features • Main Features • Models • Rasters Models • I/RAS B raster engine supports rasters within models than the Main model. • Raster Items • Move • Move foreground items using a selection. • Scale • Scale foreground items using a selection. • Copy • Copy foreground items using a selection.

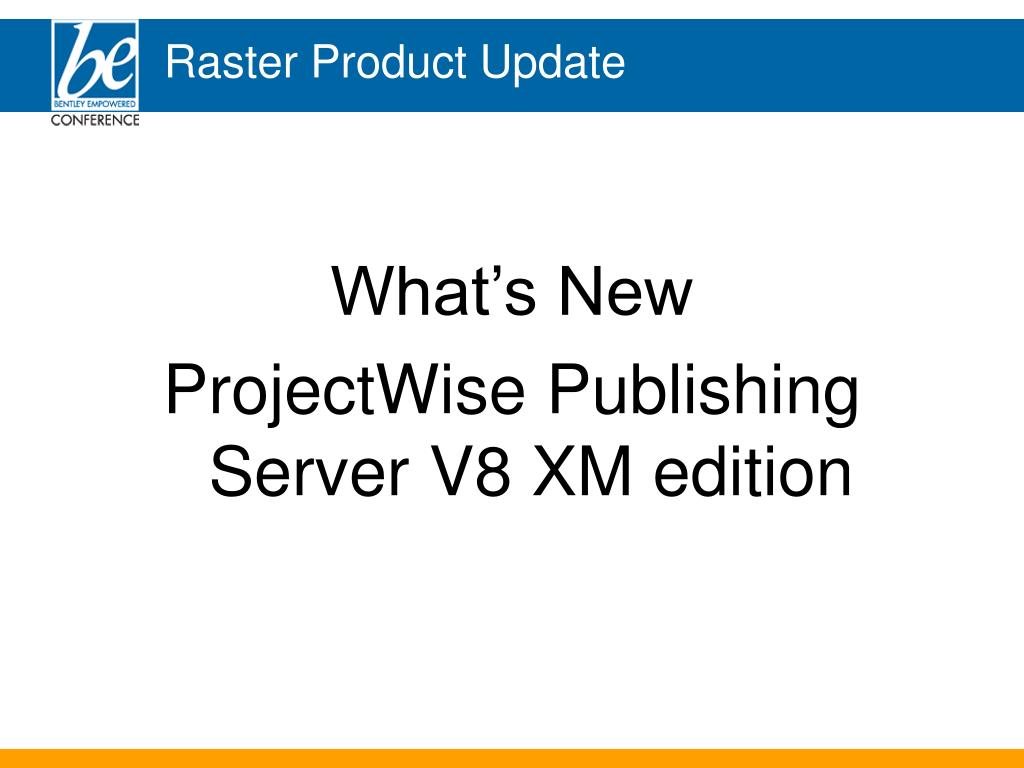

  11. Raster Product Update What’s New ProjectWise Publishing Server V8 XM edition

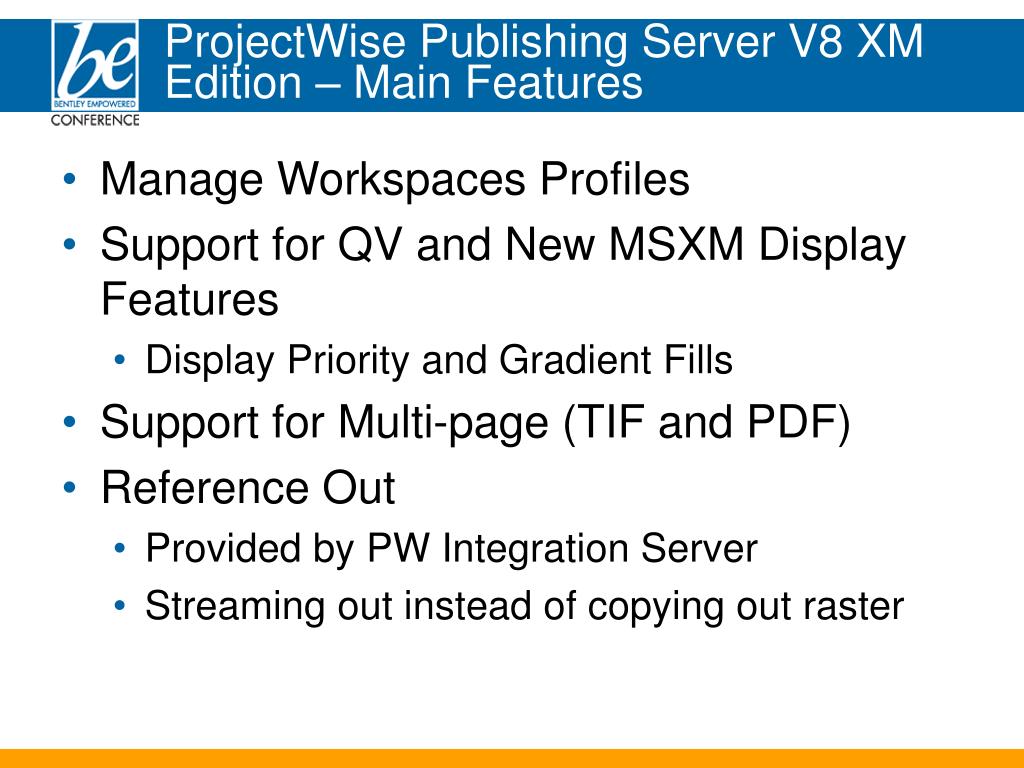

  12. ProjectWise Publishing Server V8 XM Edition – Main Features • Manage Workspaces Profiles • Support for QV and New MSXM Display Features • Display Priority and Gradient Fills • Support for Multi-page (TIF and PDF) • Reference Out • Provided by PW Integration Server • Streaming out instead of copying out raster

  13. Demonstration

  14. Raster Manager Additional Feature Lists

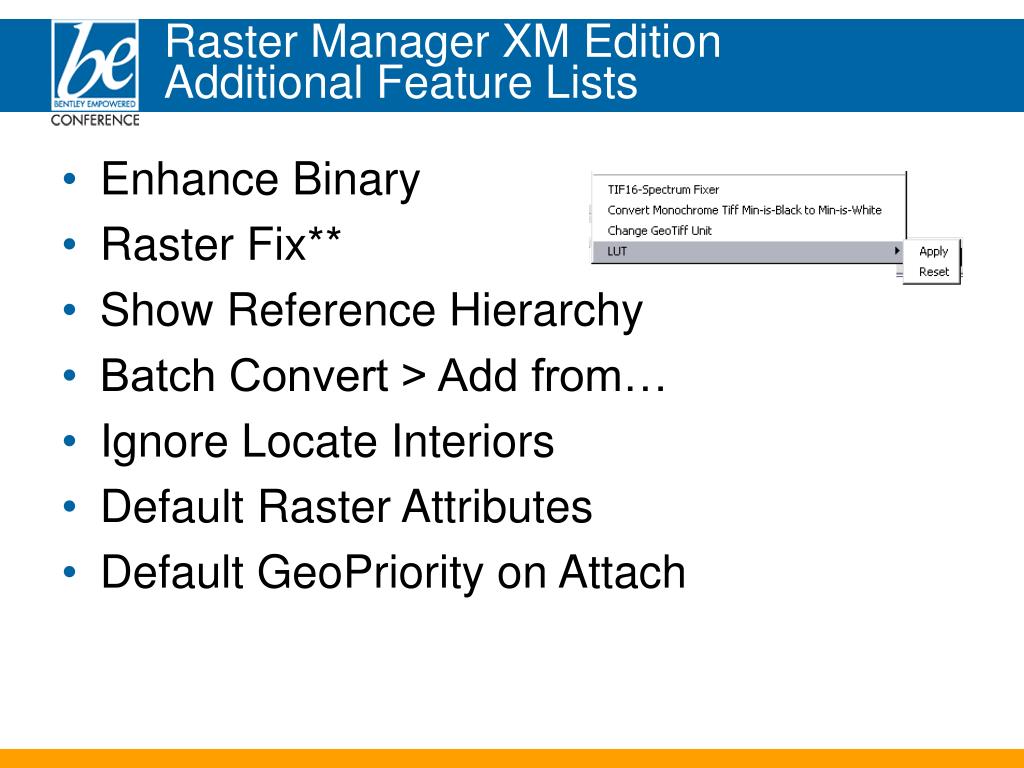

  15. Raster Manager XM EditionAdditional Feature Lists • Enhance Binary • Raster Fix** • Show Reference Hierarchy • Batch Convert > Add from… • Ignore Locate Interiors • Default Raster Attributes • Default GeoPriority on Attach

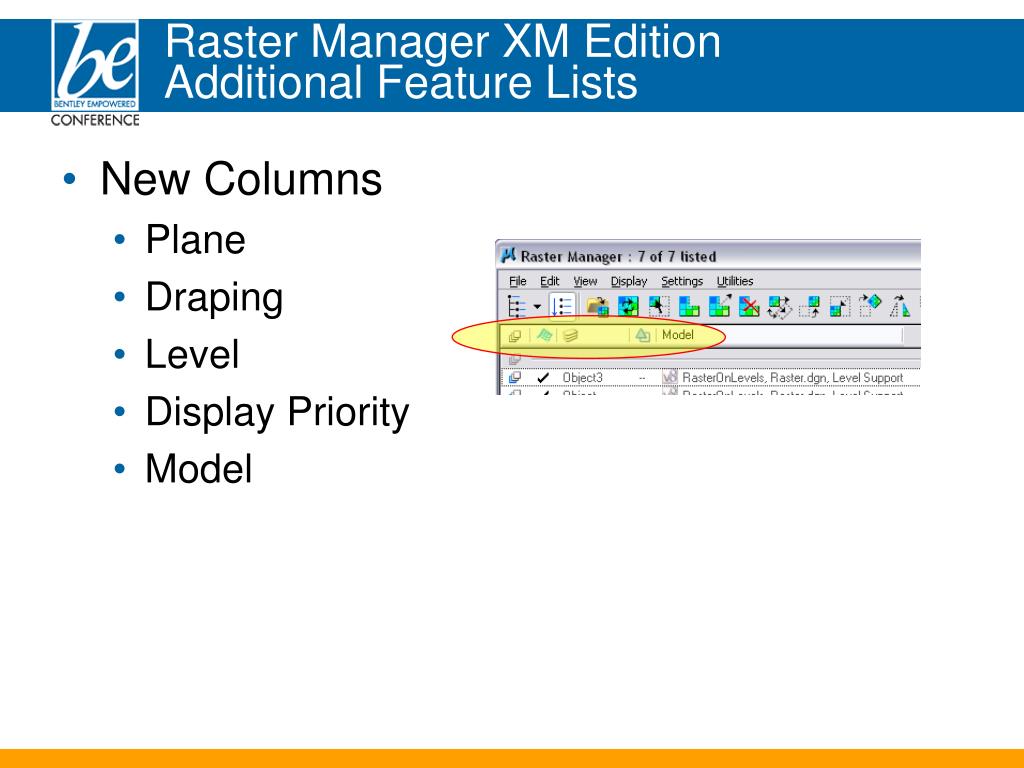

  16. Raster Manager XM EditionAdditional Feature Lists • New Columns • Plane • Draping • Level • Display Priority • Model

  17. New Raster Formats Multi-Page TIF PDF excludes password protected files DOQ LRD CRL (I/RAS B) MPF (I/RAS B) RST (I/RAS B) Raster Manager XM EditionAdditional Feature Lists • JPEG 2000 • ECWUnlimited for creation • FLI • BIL • BIP • 16/32/48/64 bit imagery • SPOT • JPEG (CMYK) • JPEG (Type6)

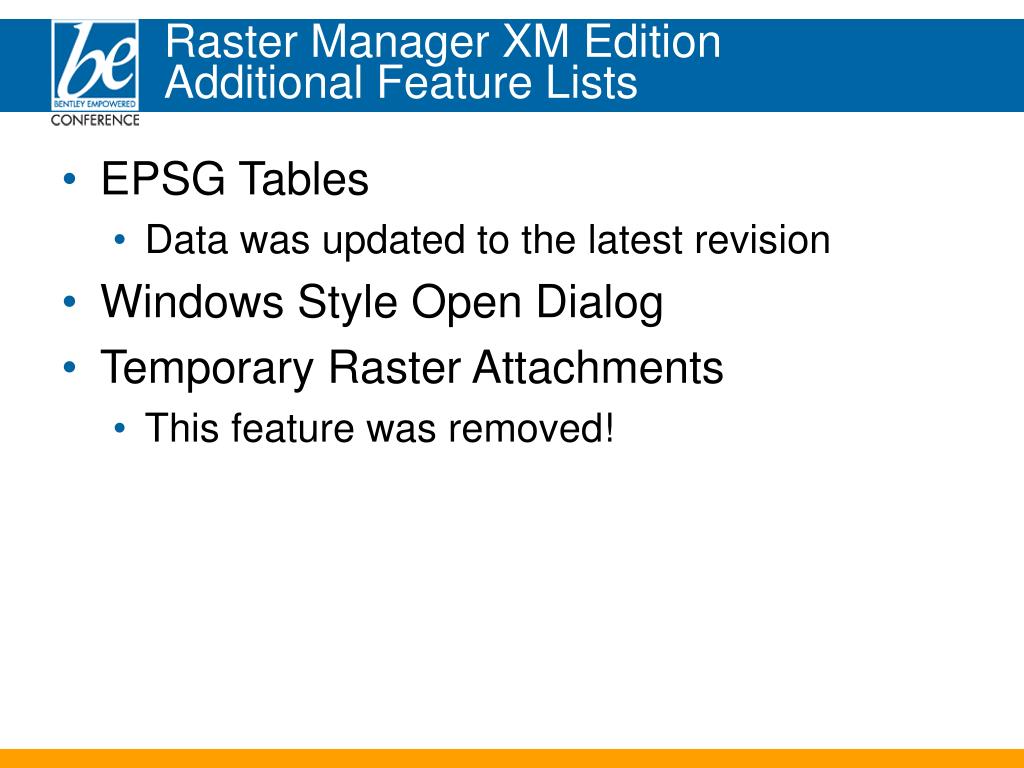

  18. Raster Manager XM EditionAdditional Feature Lists • EPSG Tables • Data was updated to the latest revision • Windows Style Open Dialog • Temporary Raster Attachments • This feature was removed!

  19. Raster Manager XM EditionAdditional Feature Lists • View menu changes

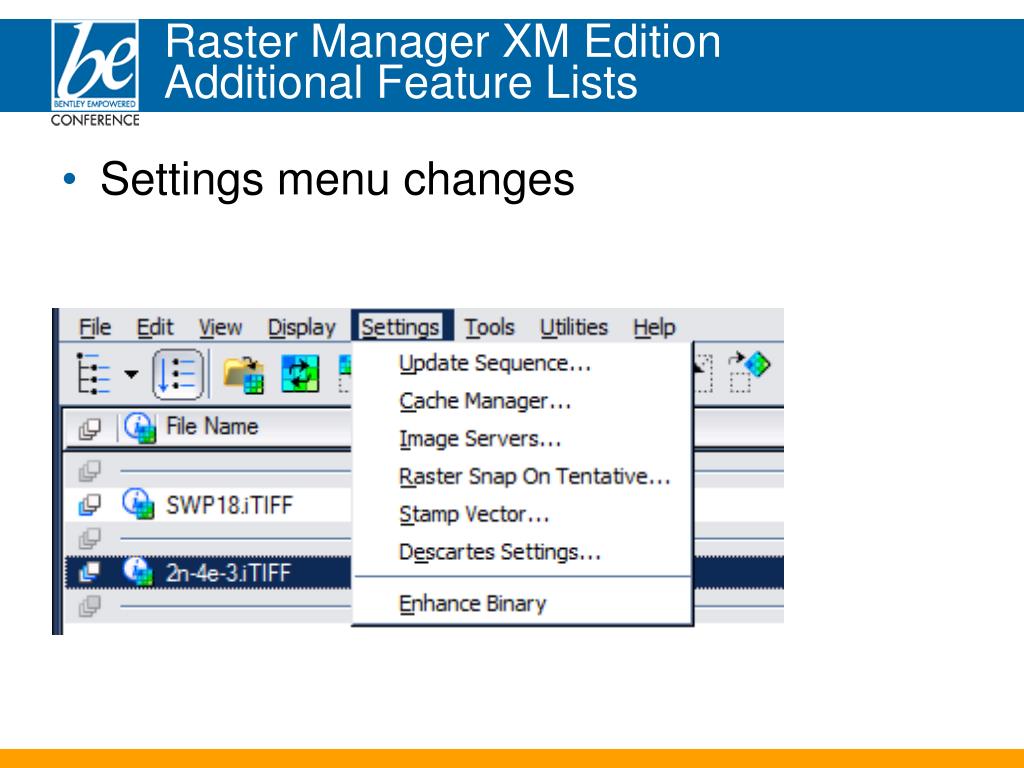

  20. Raster Manager XM EditionAdditional Feature Lists • Settings menu changes

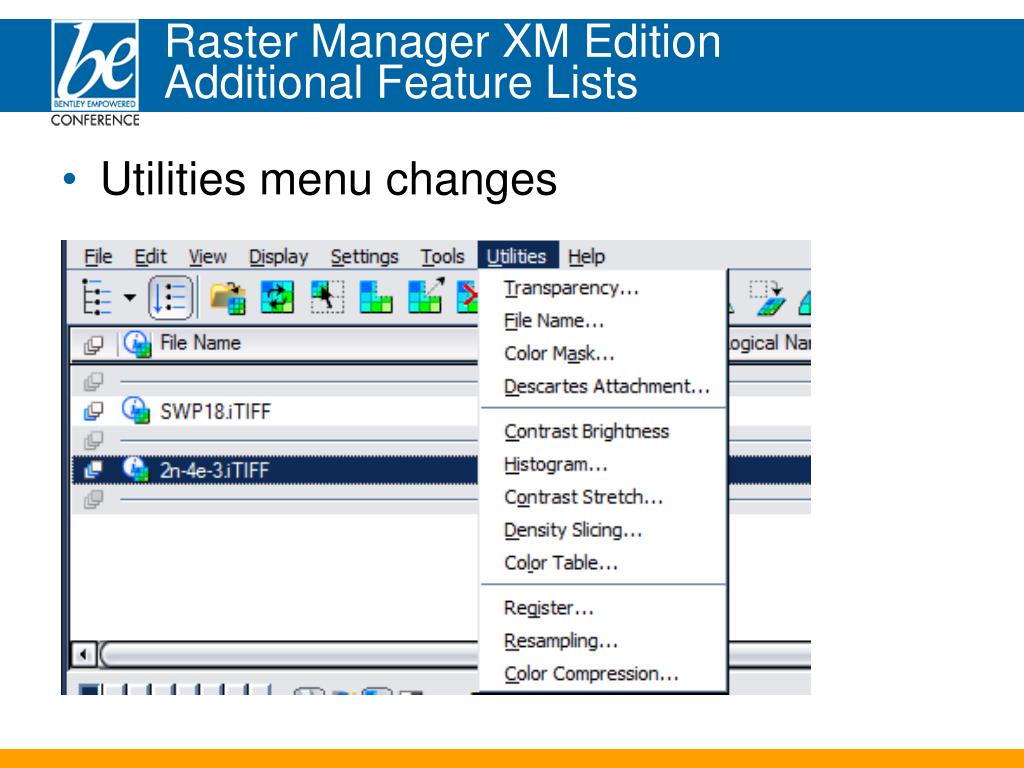

  21. Raster Manager XM EditionAdditional Feature Lists • Utilities menu changes

  22. Raster Manager XM EditionAdditional Feature Lists • Show Reference Hierarchy

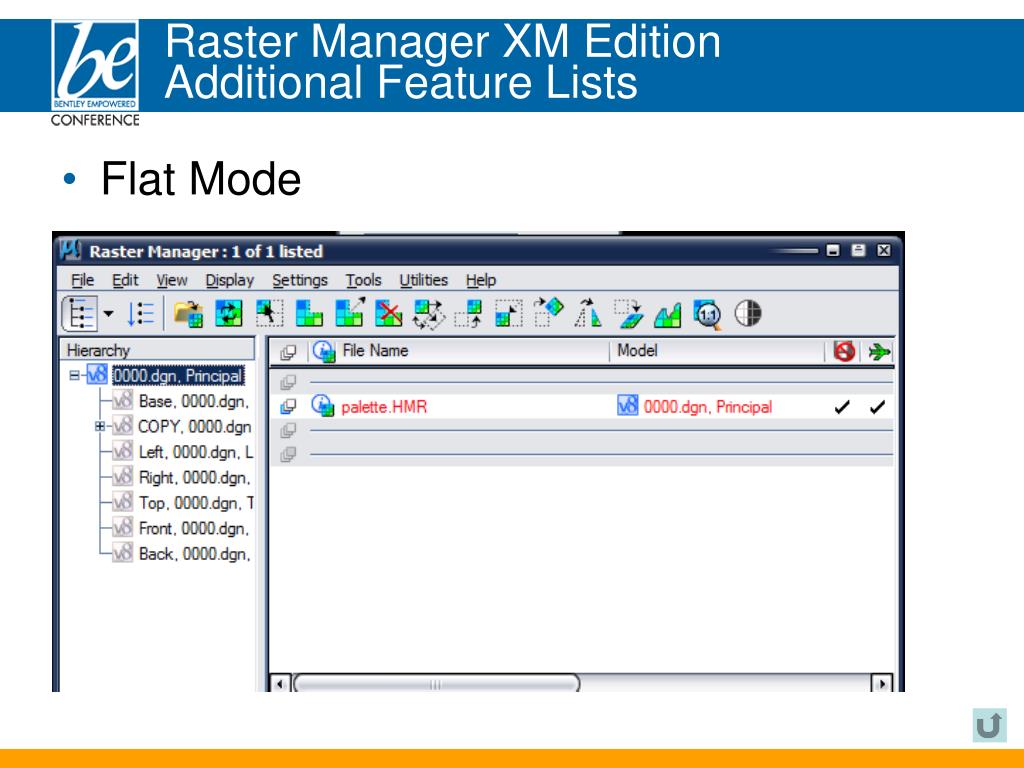

  23. Raster Manager XM EditionAdditional Feature Lists • Flat Mode

  24. Descartes XM Edition Additional Feature Lists

  25. Descartes XM EditionAdditional Feature Lists • Pixel Grid • Zoom in to the pixel level. • Register • Import/Export Control Points • Sub-Resolution • Create sub-resolution in Nearest or Average for selected raster files

  26. I/RAS B XM Edition Additional Feature Lists

  27. Bentley I/RAS B XM EditionAdditional Feature Lists • UI Changes • Open replaced with Attach • Close replaced by Detach • Reference menu is gone • Auto Attach as Reference replaced by Auto Detach on Exit • Max number of layers set to 256 • …and other subtle changes here and there!

  28. Huh?
