Converging nozzle

Converging nozzle. Air at 145 psia and 1100 F enters a converging nozzle with a velocity of 492 ft/s (335 mph). Determine the mass flow rate through the nozzle with a throat area of 7.7 in 2 when the back is a) 100 psia , b) 58 psia. Solution:. Assumptions:

gage
Télécharger la présentation

Converging nozzle

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

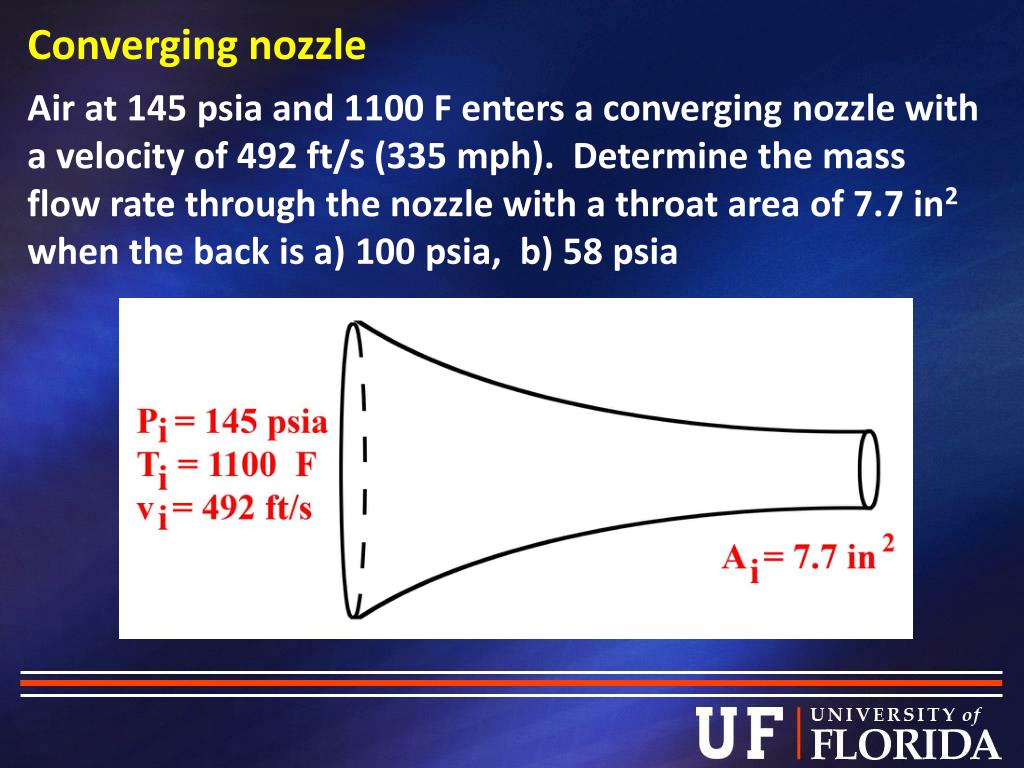

  1. Converging nozzle Air at 145 psia and 1100 F enters a converging nozzle with a velocity of 492 ft/s (335 mph). Determine the mass flow rate through the nozzle with a throat area of 7.7 in2 when the back is a) 100 psia, b) 58 psia

  2. Solution: Assumptions: Air is ideal gas with constant specific heats at room temperature 2) Flow through nozzle is steady, 1-D, isentropic Properties: Cp = 0.2404 BTU/lbm∙R = 6019 ft2/s2∙R 2) γ = 1.4

  3. Converging nozzle Air enters a duct with a varying flow area at T1 = 261 °F and p1 = 14.51 psia, and M1 = 0.3. Assuming steady isentropic flow, determine T2, p2, and M2 at a location where the flow area has been reduced by 20%.

  4. Solution: Assumptions: Air is ideal gas with constant specific heats at room temperature 2) Flow through nozzle is steady, 1-D, isentropic Properties: Cp = 0.2404 BTU/lbm∙R = 6019 ft2/s2∙R 2) γ = 1.4
