  1. SKETCHES IN SOLIDWORKS FIRST YOU SKETCH…THEN YOU FEATURE

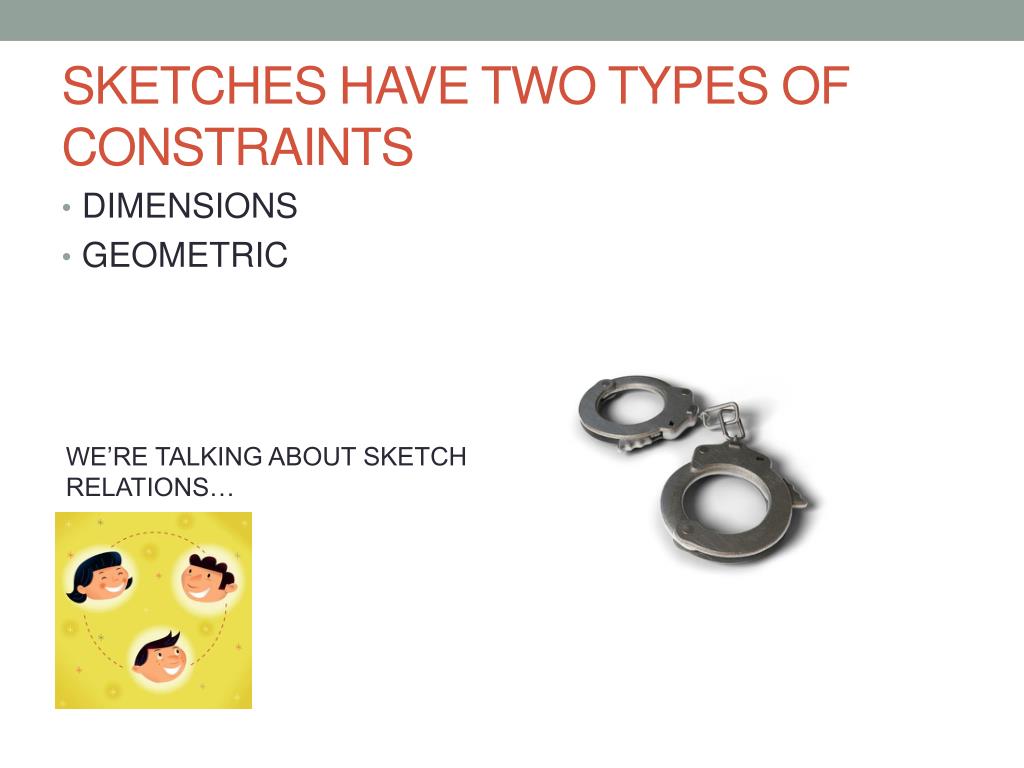

  2. SKETCHES HAVE TWO TYPES OF CONSTRAINTS • DIMENSIONS • GEOMETRIC WE’RE TALKING ABOUT SKETCH RELATIONS…

  3. DIMENSION CONSTRAINS • DEFINE SIZE • DEFINE LOCATION

  4. GEOMETRIC CONSTRAINTS • Define the relationship of the element to other elements in the sketch

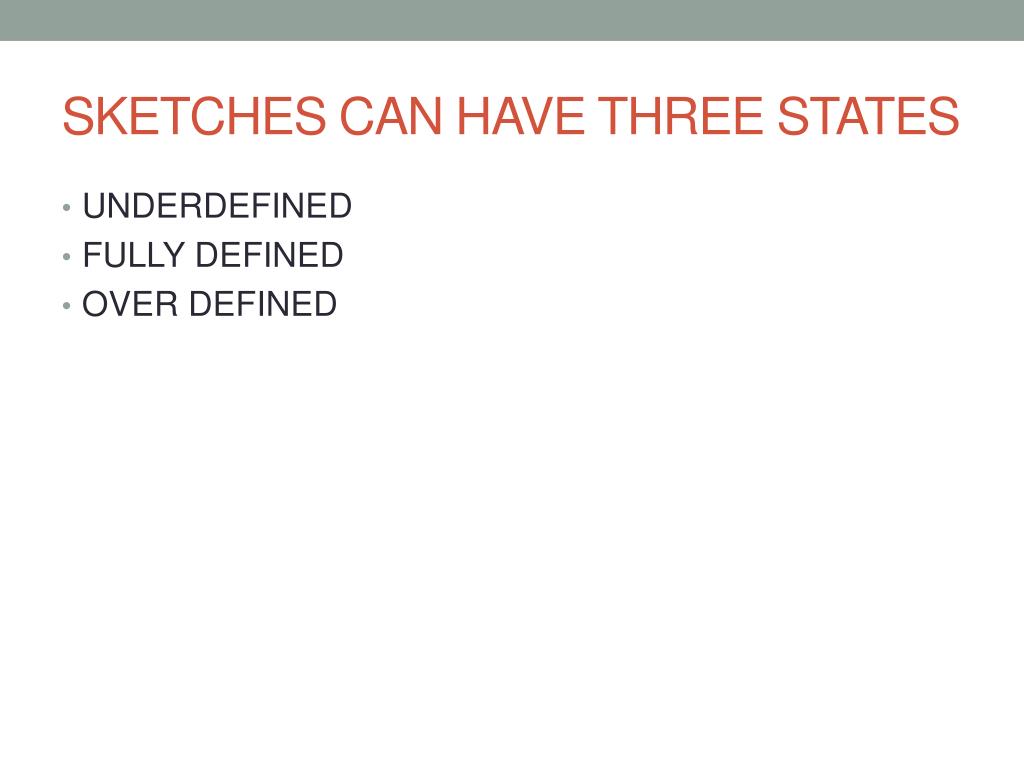

  5. SKETCHES CAN HAVE THREE STATES • UNDERDEFINED • FULLY DEFINED • OVER DEFINED

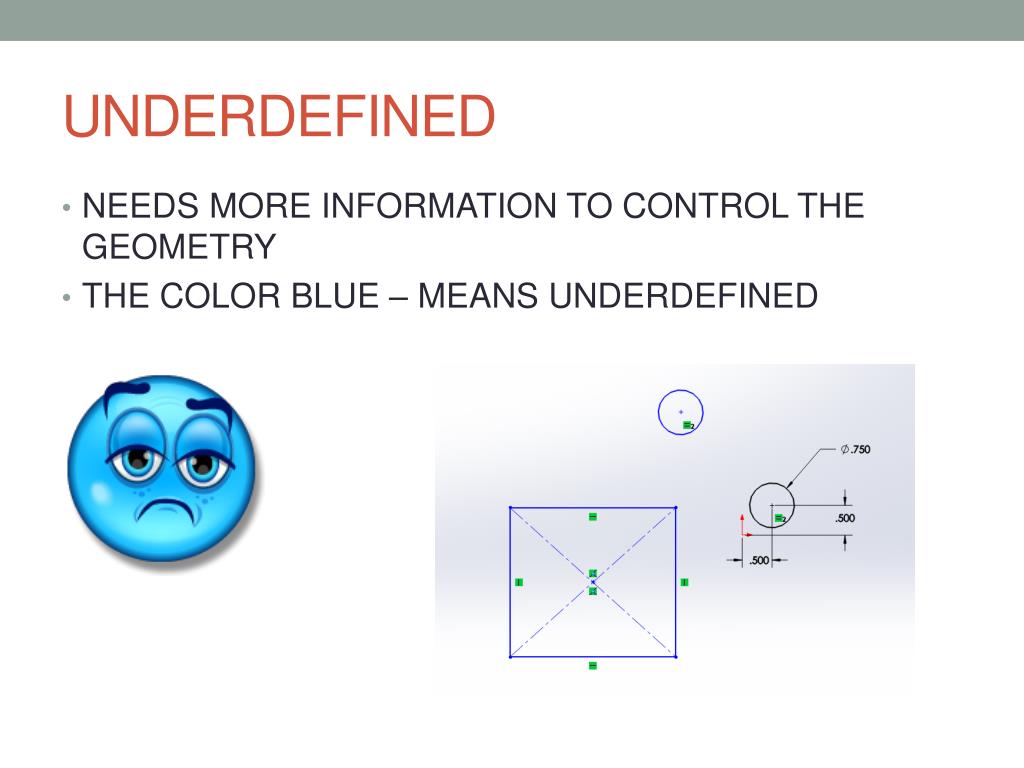

  6. UNDERDEFINED • NEEDS MORE INFORMATION TO CONTROL THE GEOMETRY • THE COLOR BLUE – MEANS UNDERDEFINED

  7. FULLY DEFINED • SOLIDWORKS HAS ALL THE INFORMATION IT NEEDS FOR THE GEOMETRY • THE COLOR BLACK INDICATES FULLY DEFINED

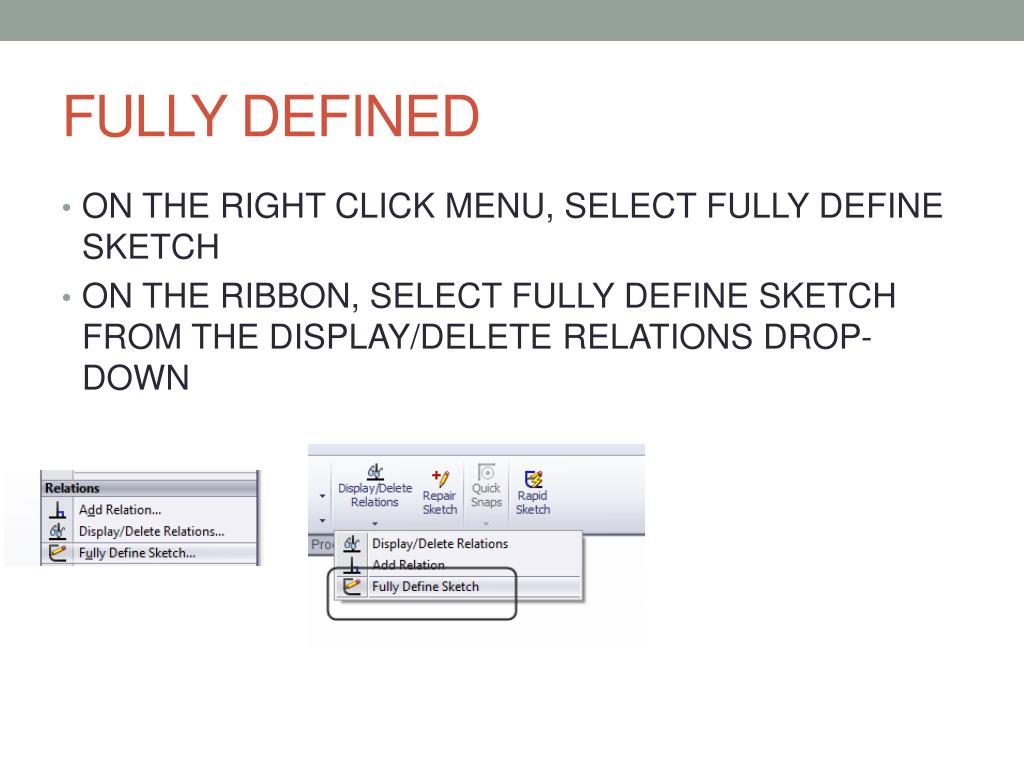

  8. FULLY DEFINED • ON THE RIGHT CLICK MENU, SELECT FULLY DEFINE SKETCH • ON THE RIBBON, SELECT FULLY DEFINE SKETCH FROM THE DISPLAY/DELETE RELATIONS DROP-DOWN

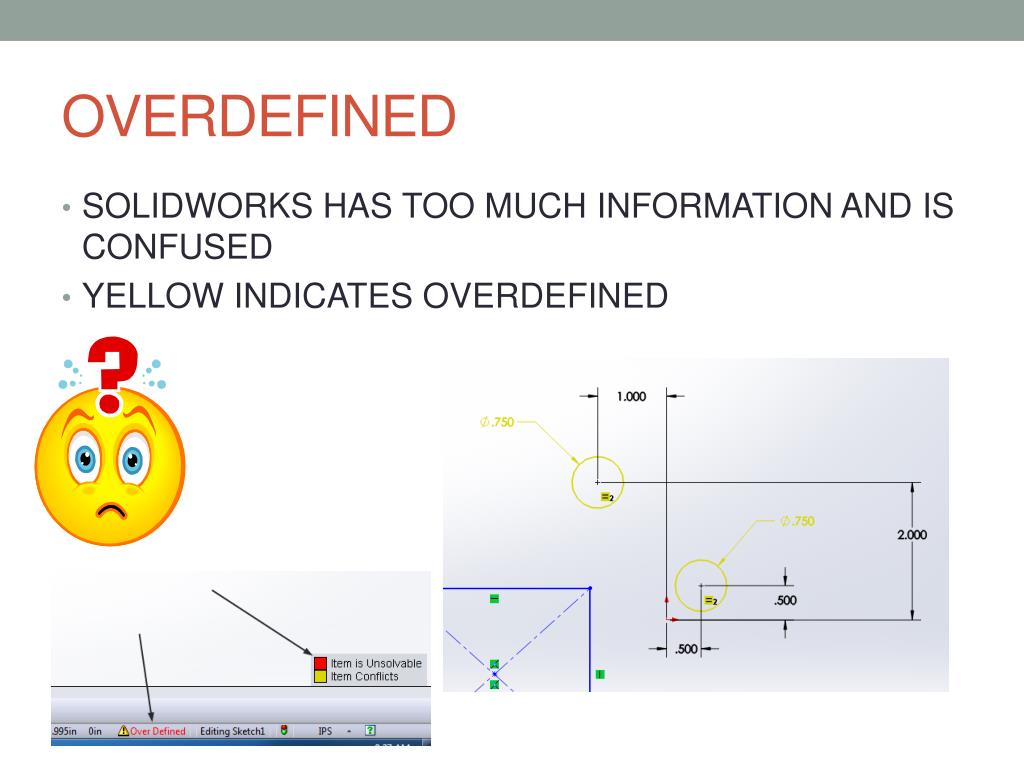

  9. OVERDEFINED • SOLIDWORKS HAS TOO MUCH INFORMATION AND IS CONFUSED • YELLOW INDICATES OVERDEFINED

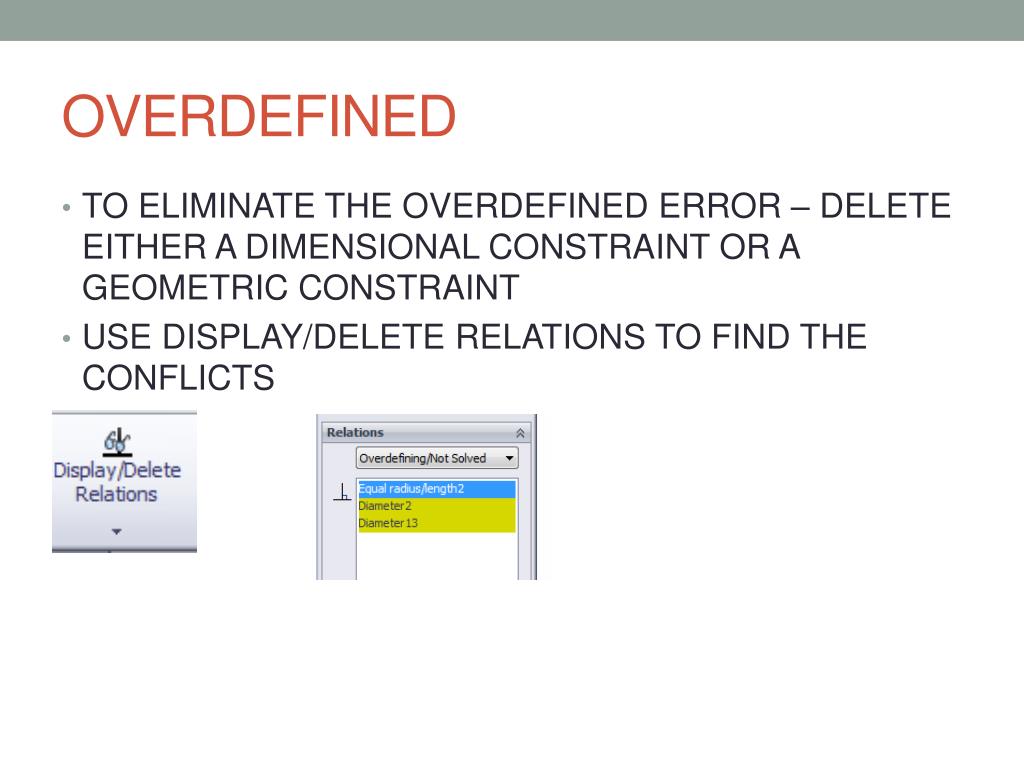

  10. OVERDEFINED • TO ELIMINATE THE OVERDEFINED ERROR – DELETE EITHER A DIMENSIONAL CONSTRAINT OR A GEOMETRIC CONSTRAINT • USE DISPLAY/DELETE RELATIONS TO FIND THE CONFLICTS

  11. TO ADD A DIMENSIONCAL CONSTRAINT • USE SMART DIMENSION

  12. TO ADD A GEOMETRIC CONSTRAINT • USE ADD RELATION

  13. TO DELETE A DIMENSION OR GEOMETRIC CONSTRAINT • SELECT IT • PRESS THE DELETE KEY ON YOUR KEYBOARD • RIGHT CLICK AND SELECT DELETE

  14. TIME TO SKETCH… TIPS FOR SKETCHING…. YOU CAN DRAG GEOMETRY TO THE LOCATION YOU WANT IT START OUT BIGGER THAN YOU NEED DON’T DELETE AND UNDO – FIX IT!

  15. It’s all about the Relationships

  16. SKETCH THERE IS ONE EXTRA CONSTRAINT IN THIS SKETCH
