Gates logicstate. Left click here. Left click here. There are three different choices for parts: 1. Simulating primitives/gates: Ideal elements, These gate has two inputs only. 2. Modelling primitives: Ideal elements, these gates may have two or more inputs.
E N D

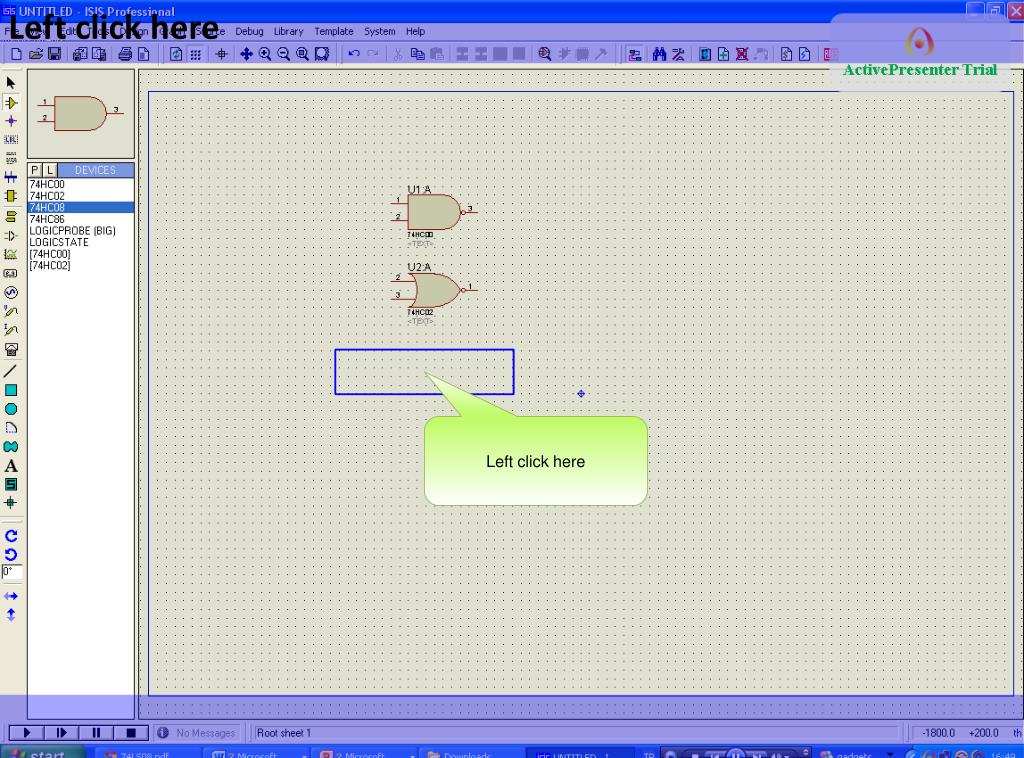

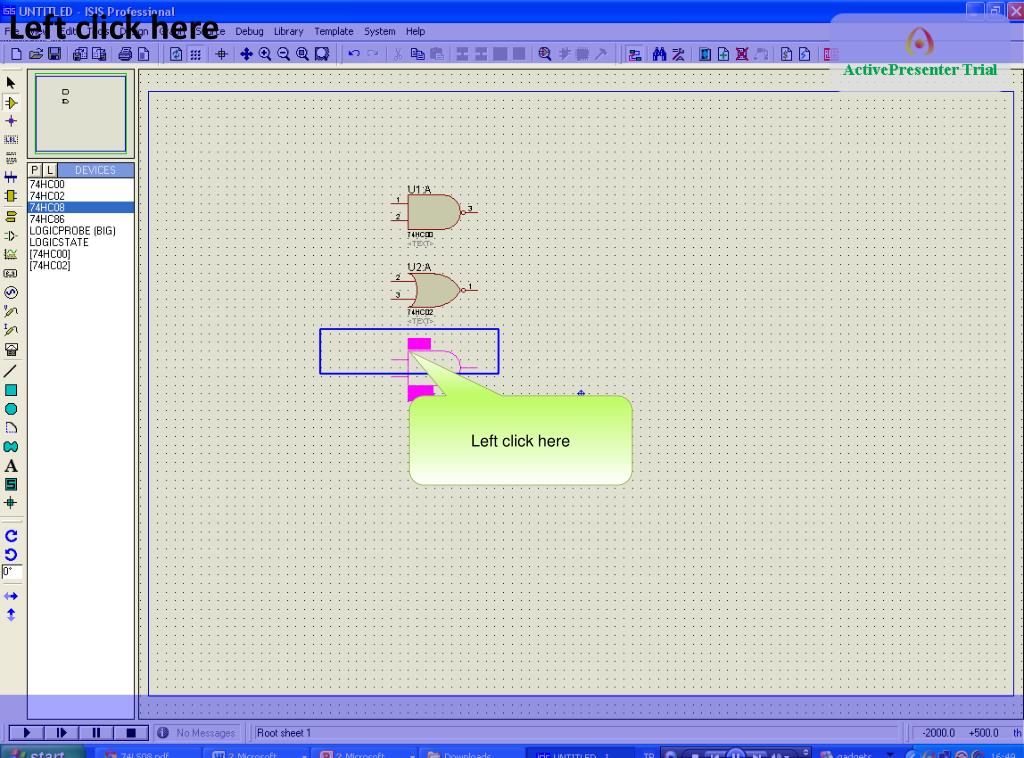

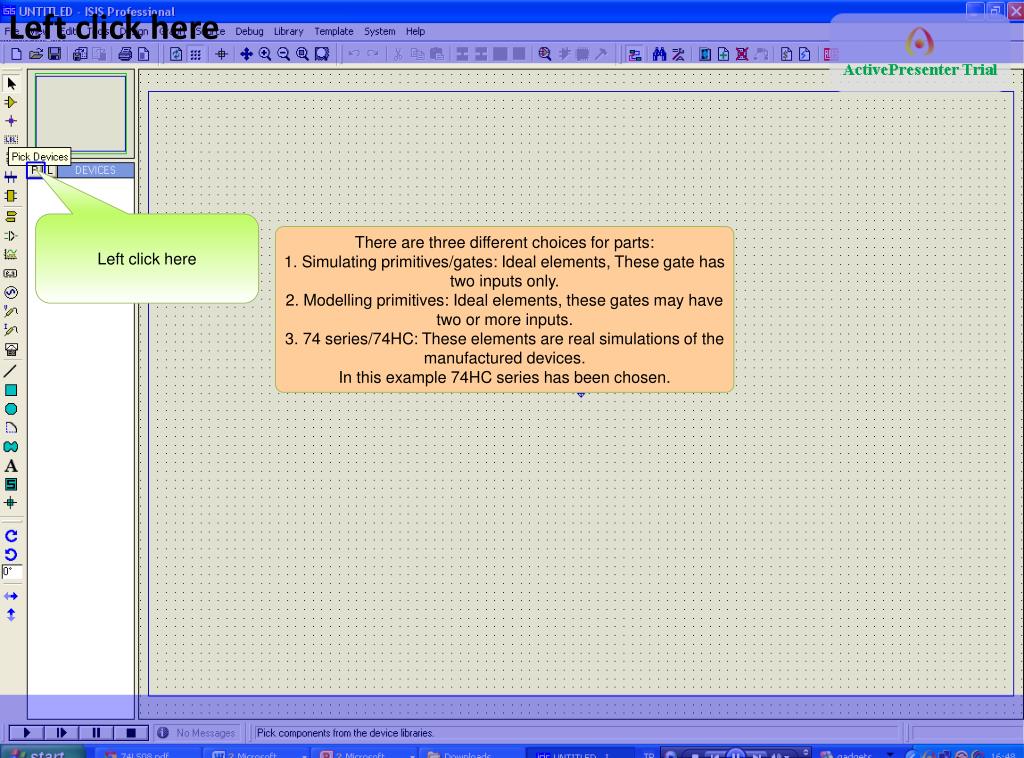

Left click here Left click here There are three different choices for parts: 1. Simulating primitives/gates: Ideal elements, These gate has two inputs only. 2. Modelling primitives: Ideal elements, these gates may have two or more inputs. 3. 74 series/74HC: These elements are real simulations of the manufactured devices. In this example 74HC series has been chosen.
Slide 2 PROTEUS OBJECTIVES FOR THE "GATES" EXPERIMENT: FIRST EXAMPLE INPUTS: LOGIC STATES PARTS: 74 SERIES OUTPUTS: LOGIC PROBES SIMULATION: INTERACTIVE
Click on [TTL 74HC series] item Click on [TTL 74HC series] item
Click on [74HC00] item Click on [74HC00] item
Double click on [74HC02] item Double click on [74HC02] item

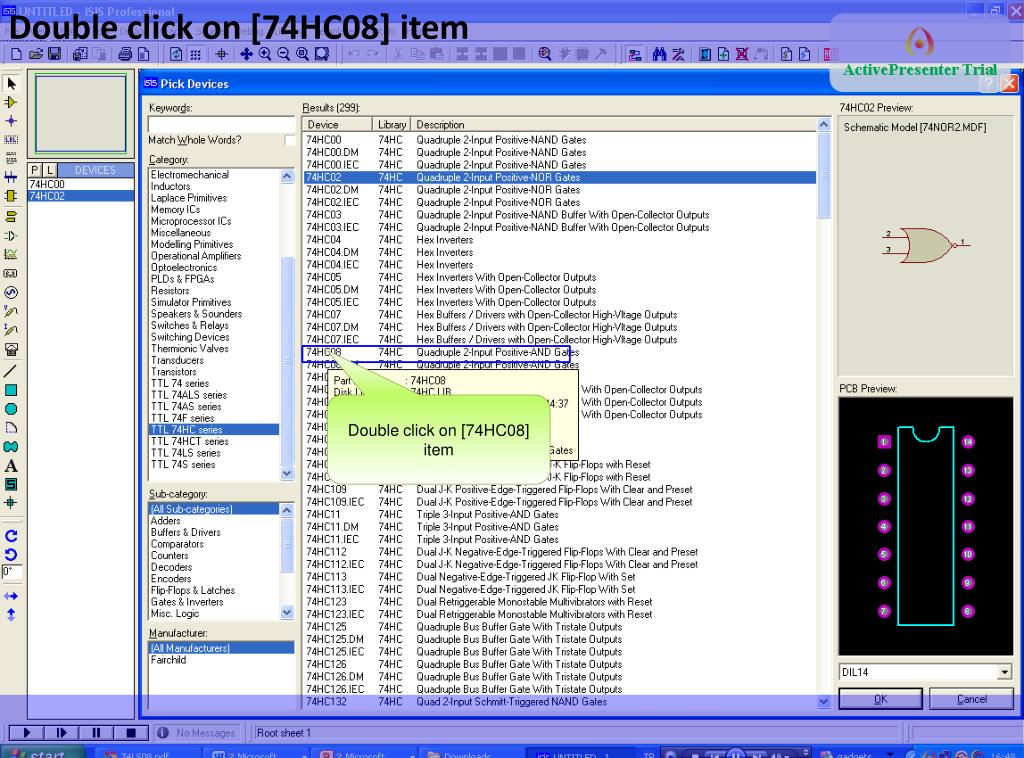

Double click on [74HC08] item Double click on [74HC08] item
Click on [Position] indicator Click on [Position] indicator

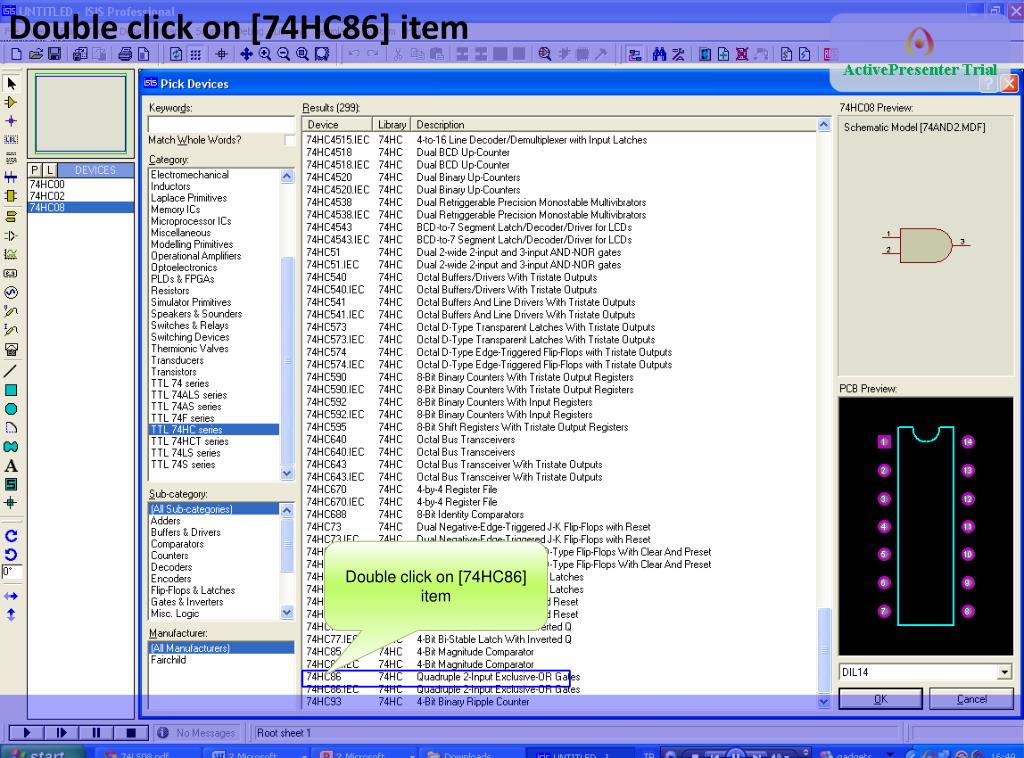

Double click on [74HC86] item Double click on [74HC86] item

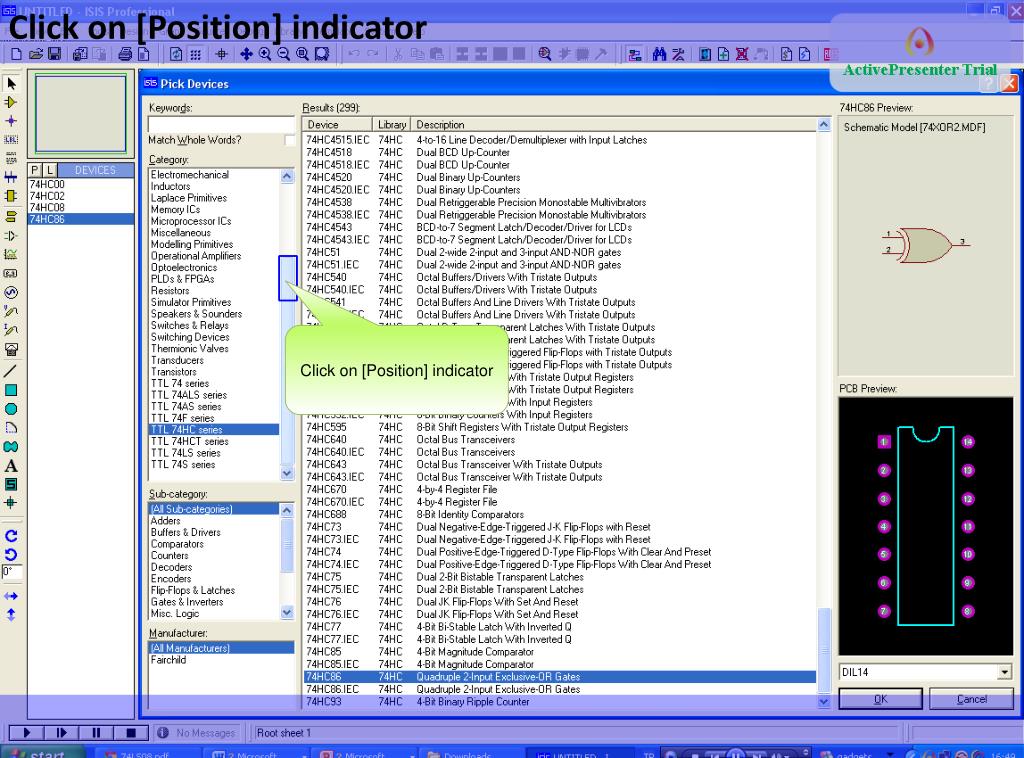

Click on [Position] indicator Click on [Position] indicator

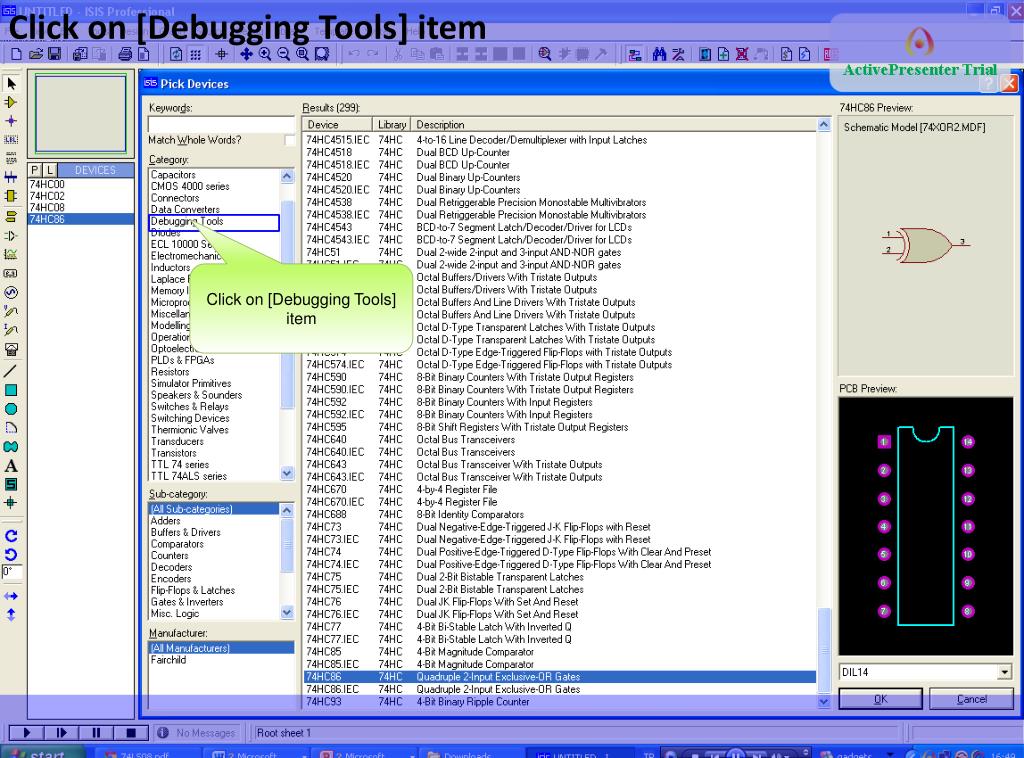

Click on [Debugging Tools] item Click on [Debugging Tools] item
Double click on [LOGICSTATE] item Double click on [LOGICSTATE] item

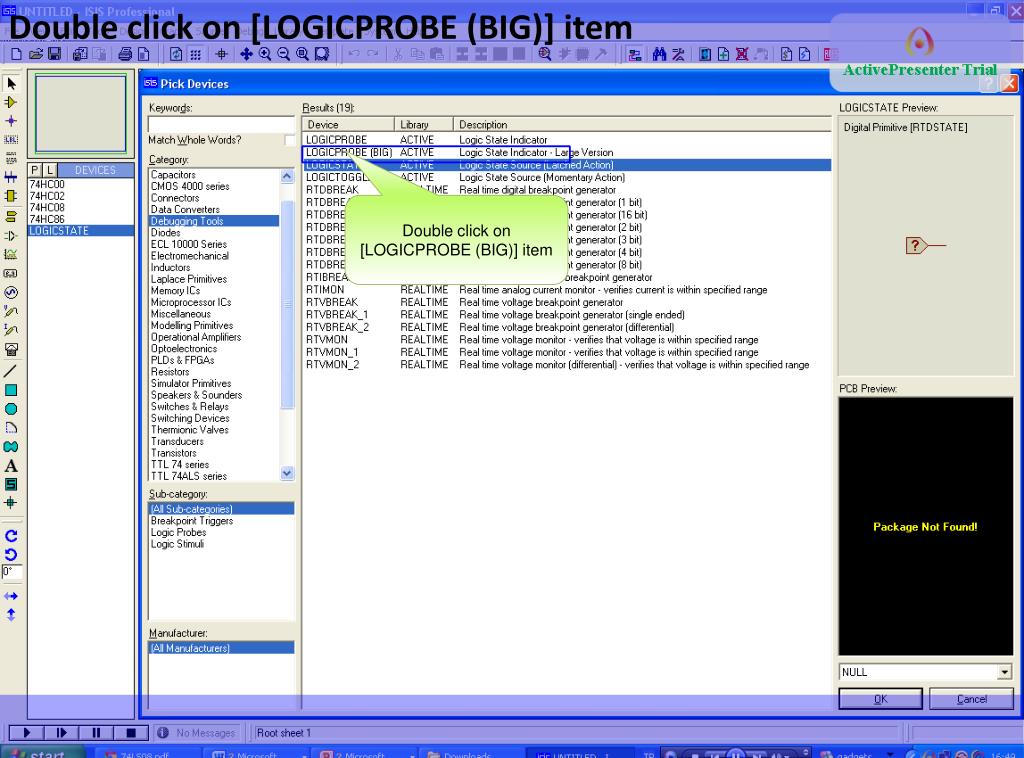

Double click on [LOGICPROBE (BIG)] item Double click on [LOGICPROBE (BIG)] item
Click on [OK] button Click on [OK] button

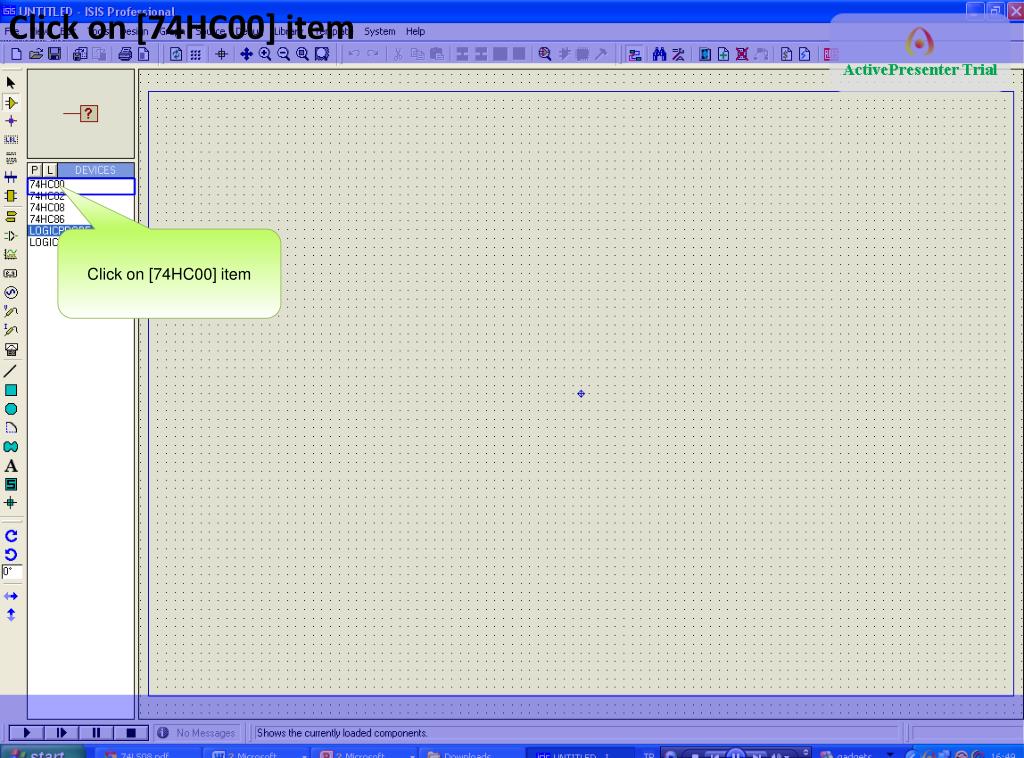

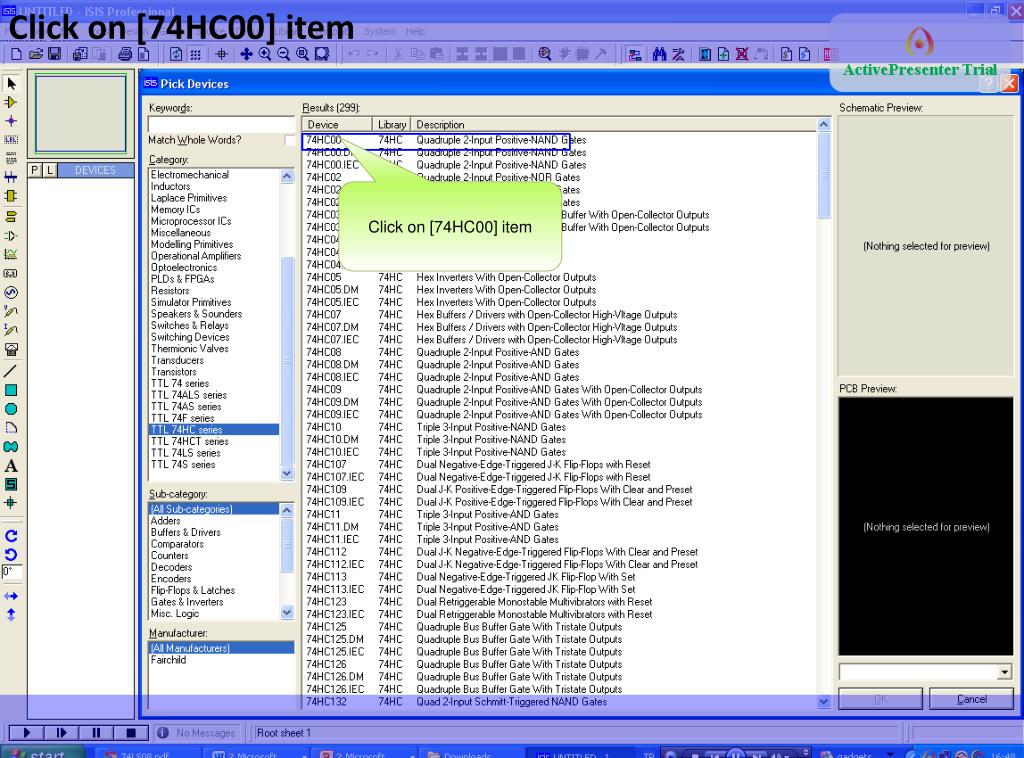

Click on [74HC00] item Click on [74HC00] item

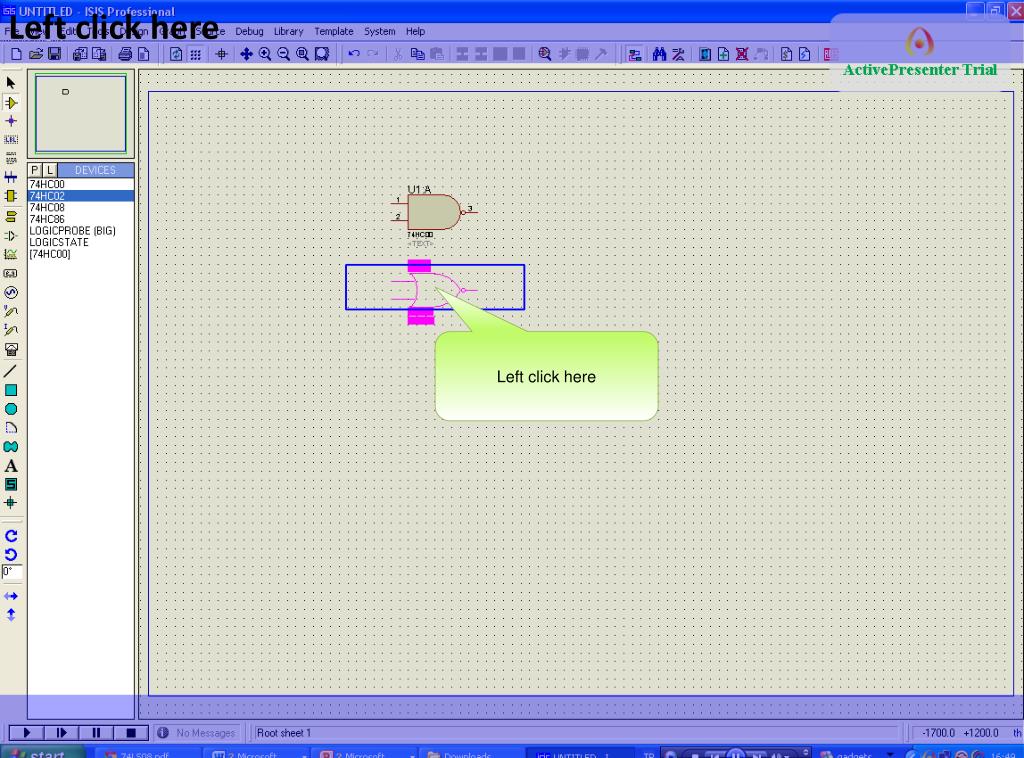

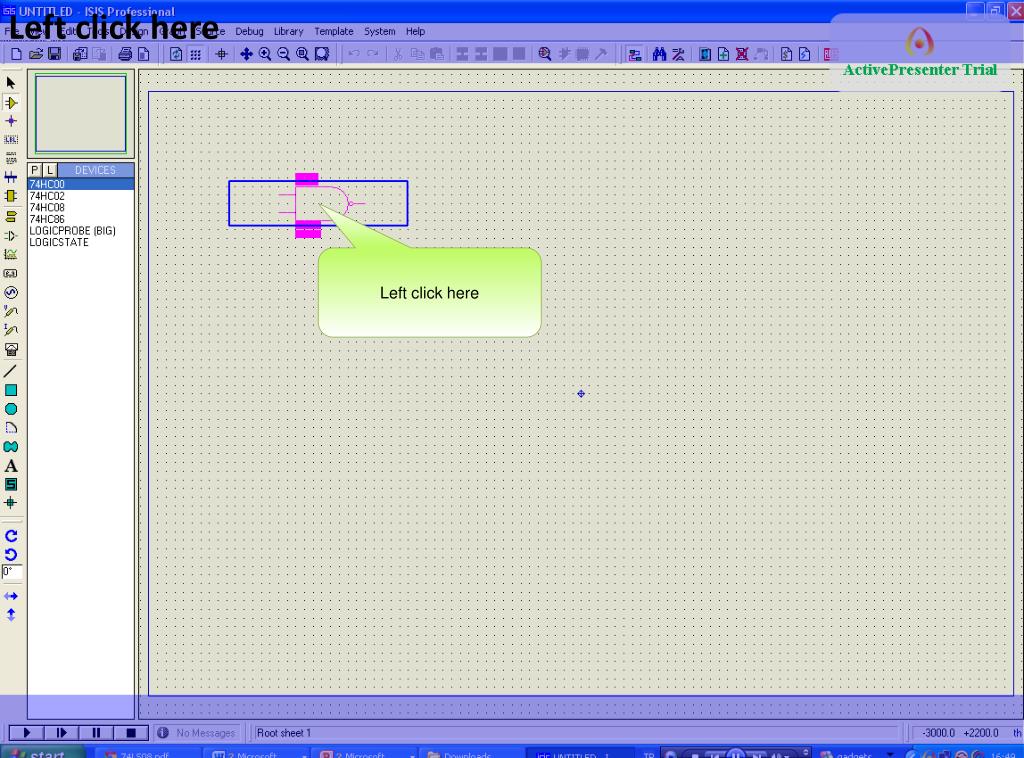

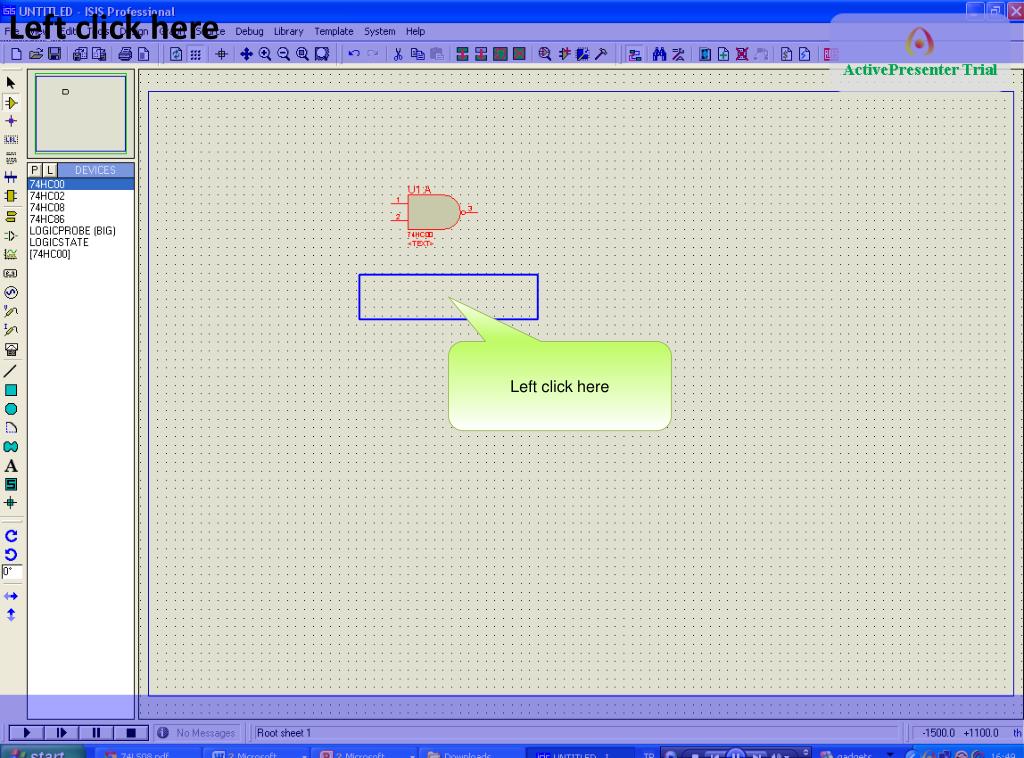

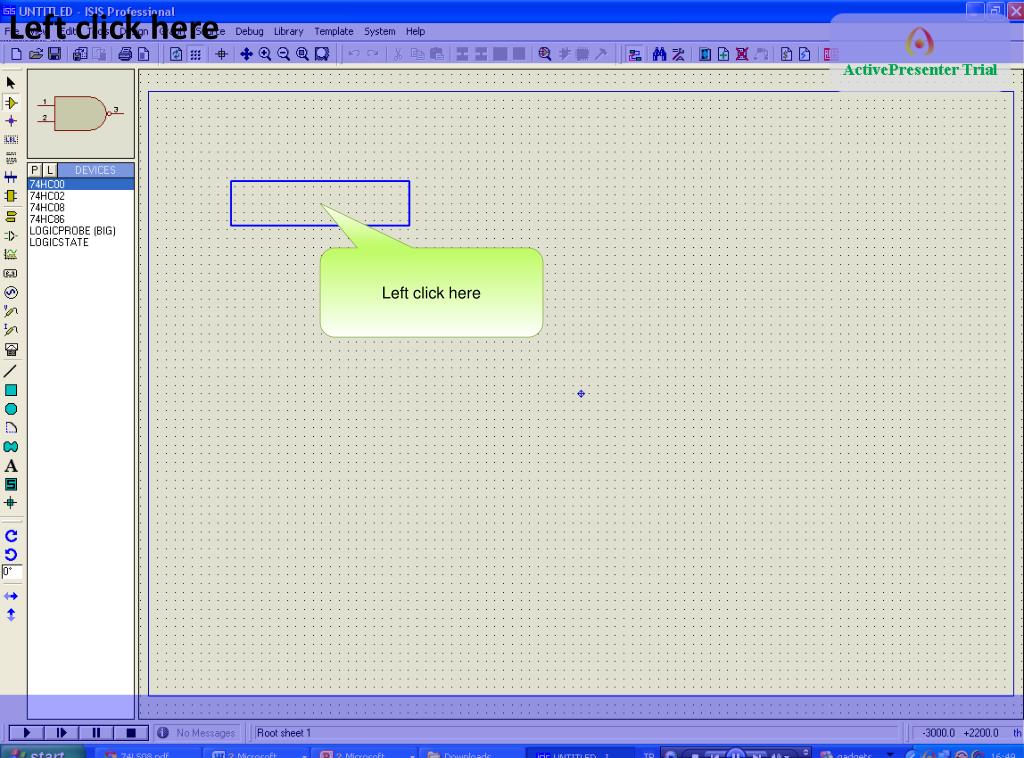

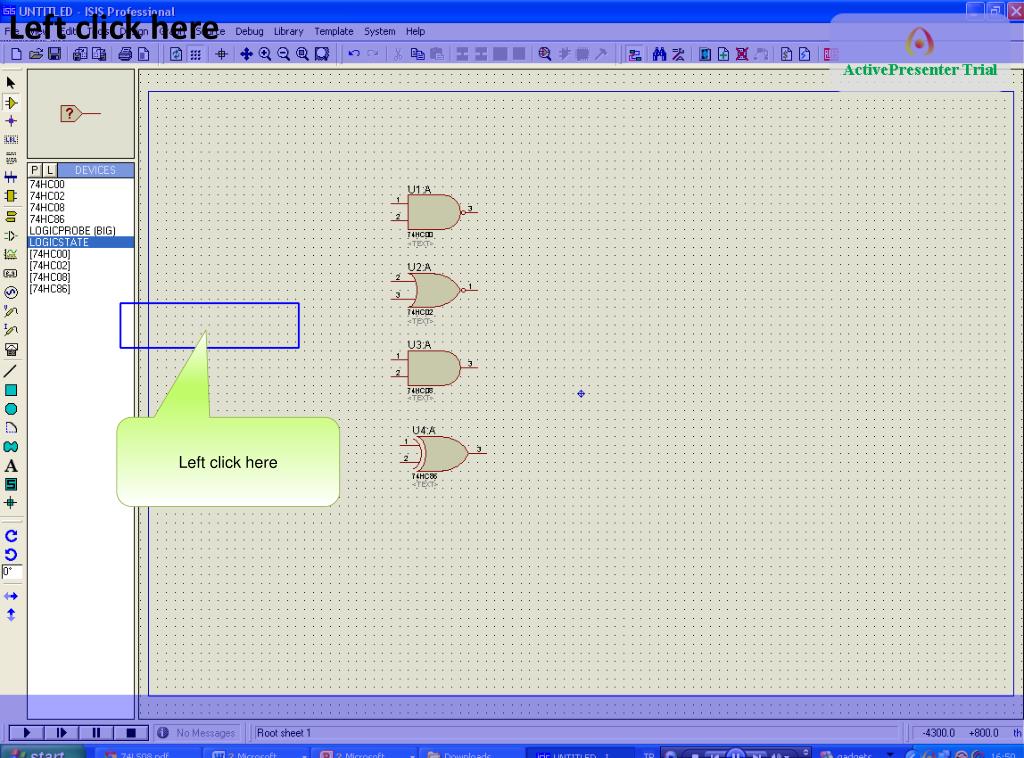

Left click here Left click here
Left click here Left click here

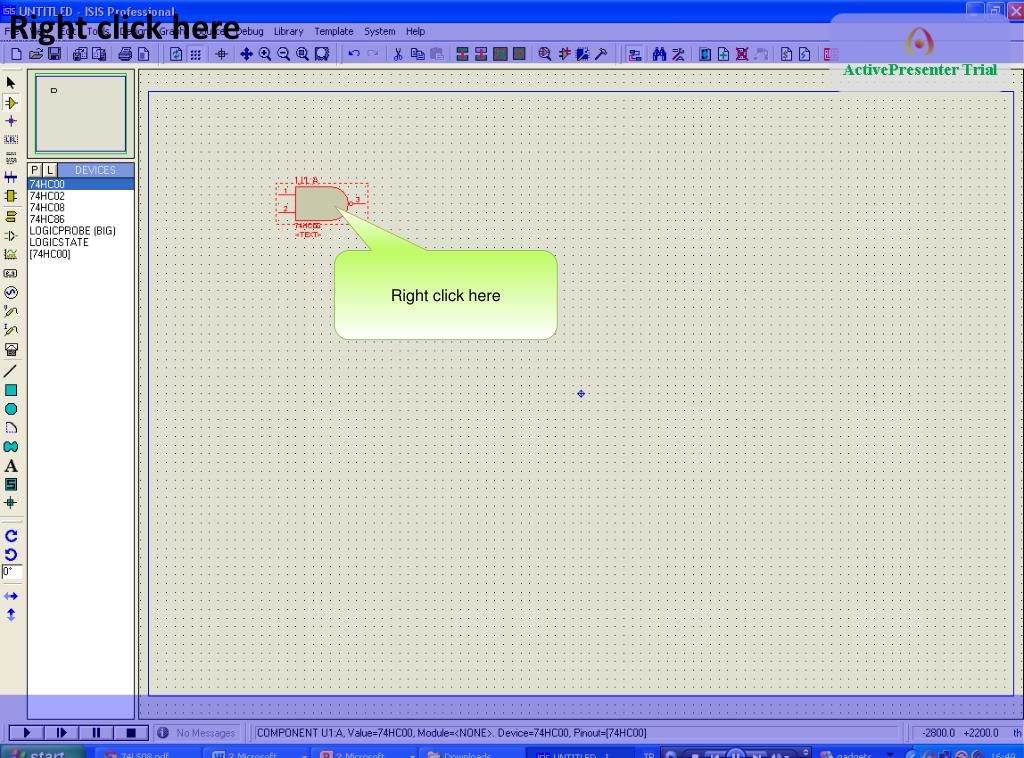

Right click here Right click here
Left click here Left click here

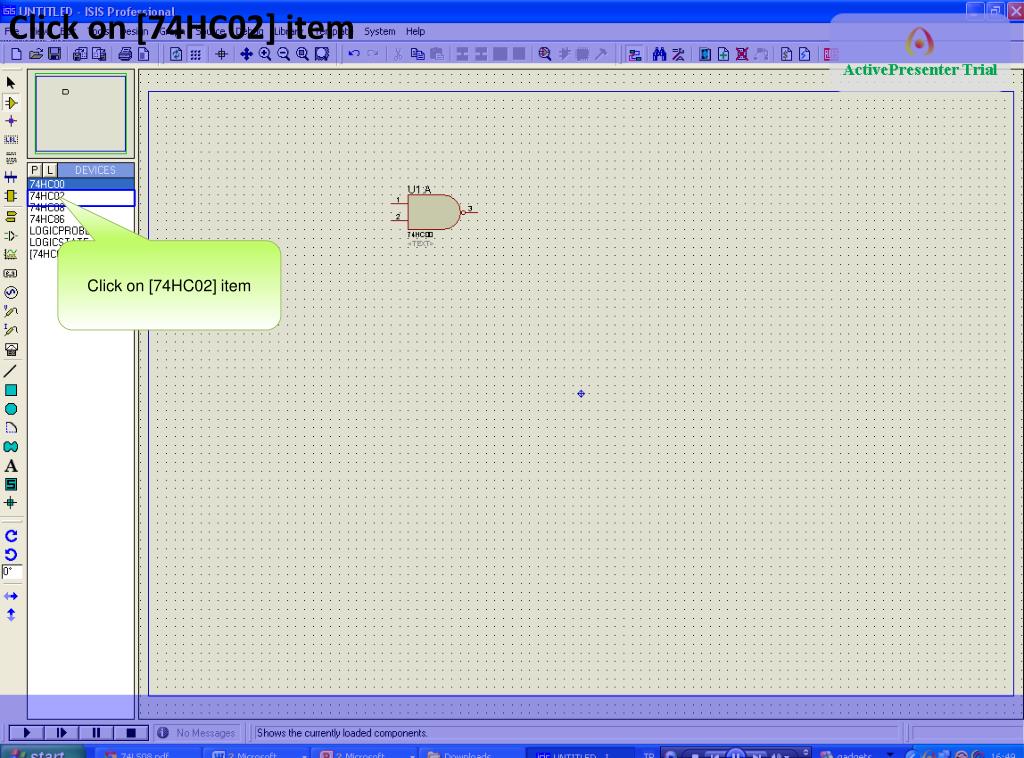

Click on [74HC02] item Click on [74HC02] item

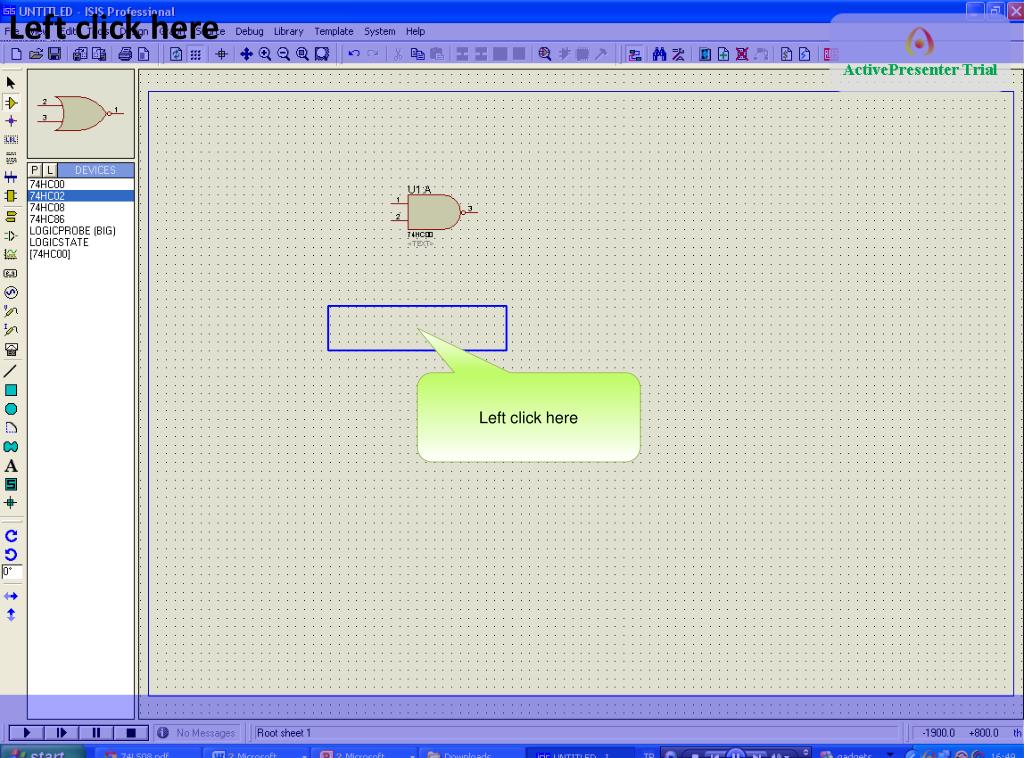

Left click here Left click here
Left click here Left click here
Click on [74HC08] item Click on [74HC08] item

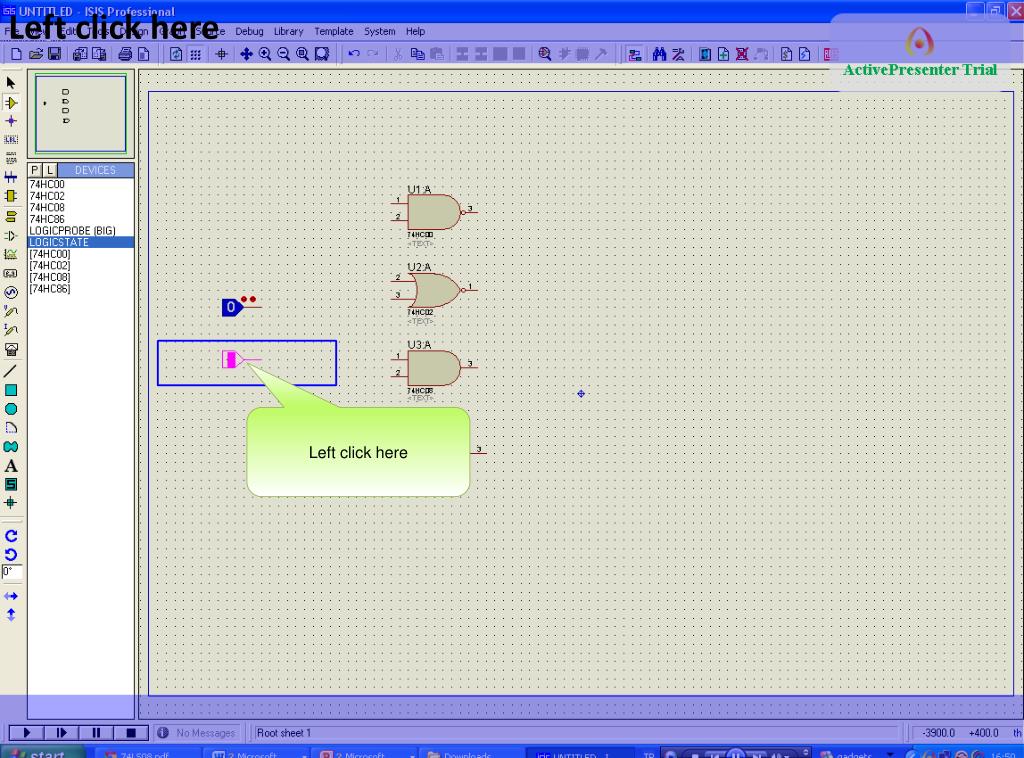

Left click here Left click here
Left click here Left click here
Click on [74HC86] item Click on [74HC86] item

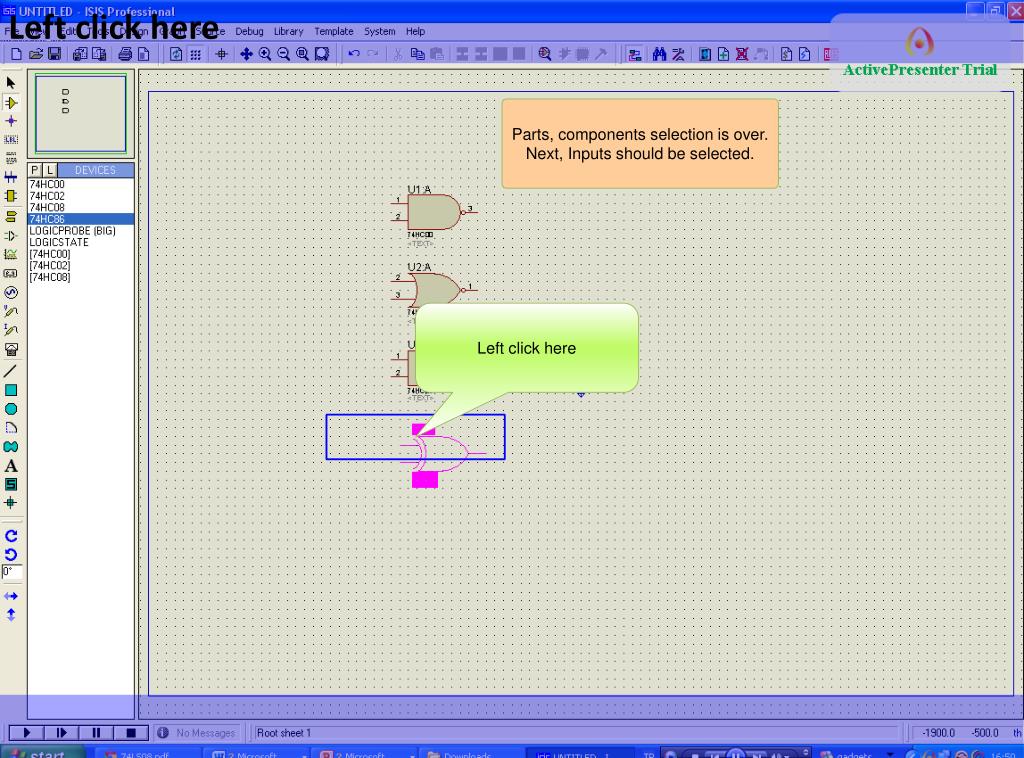

Left click here Parts, components selection is over. Next, Inputs should be selected. Left click here

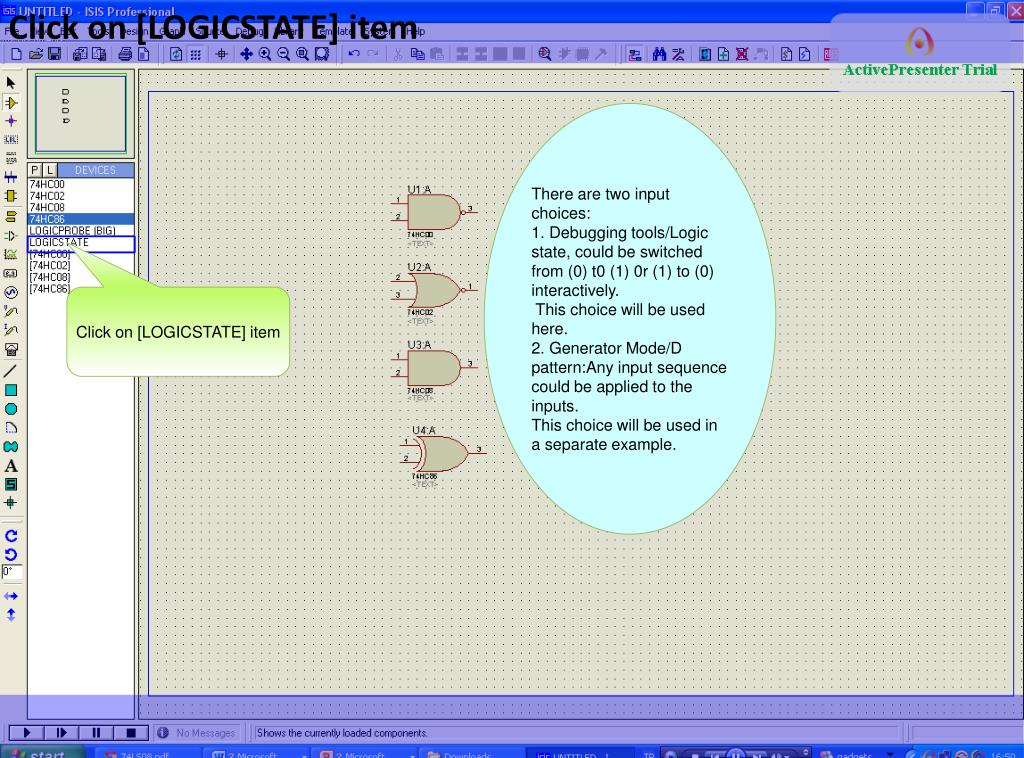

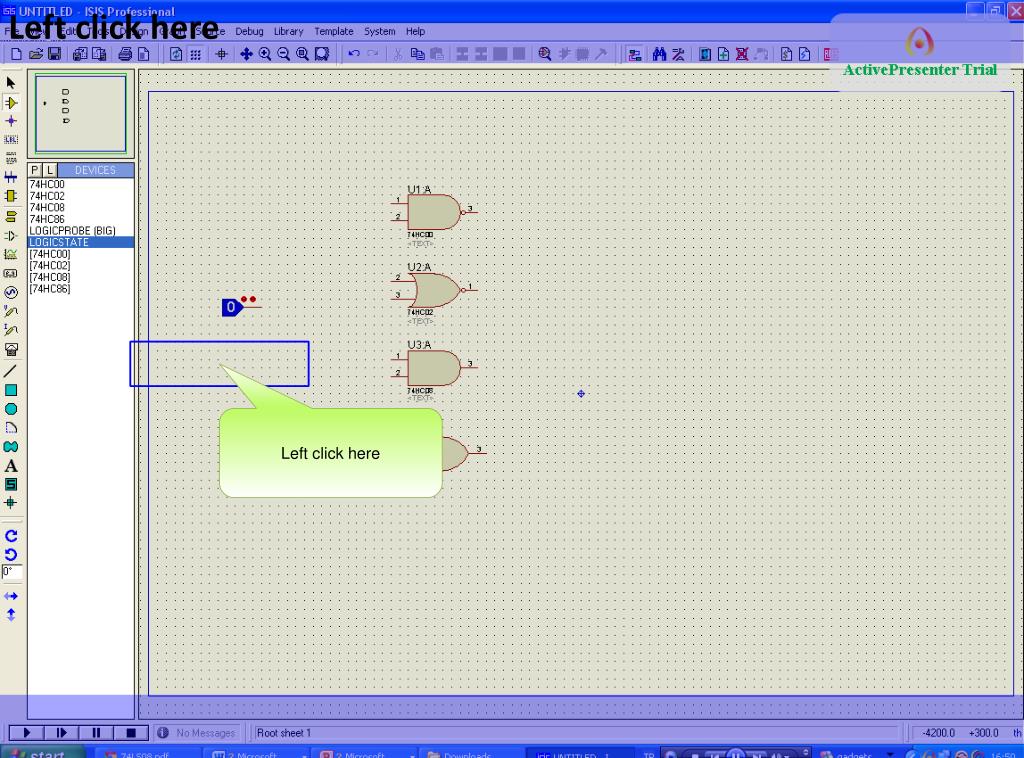

Click on [LOGICSTATE] item There are two input choices: 1. Debugging tools/Logic state, could be switched from (0) t0 (1) 0r (1) to (0) interactively. This choice will be used here. 2. Generator Mode/D pattern:Any input sequence could be applied to the inputs. This choice will be used in a separate example. Click on [LOGICSTATE] item

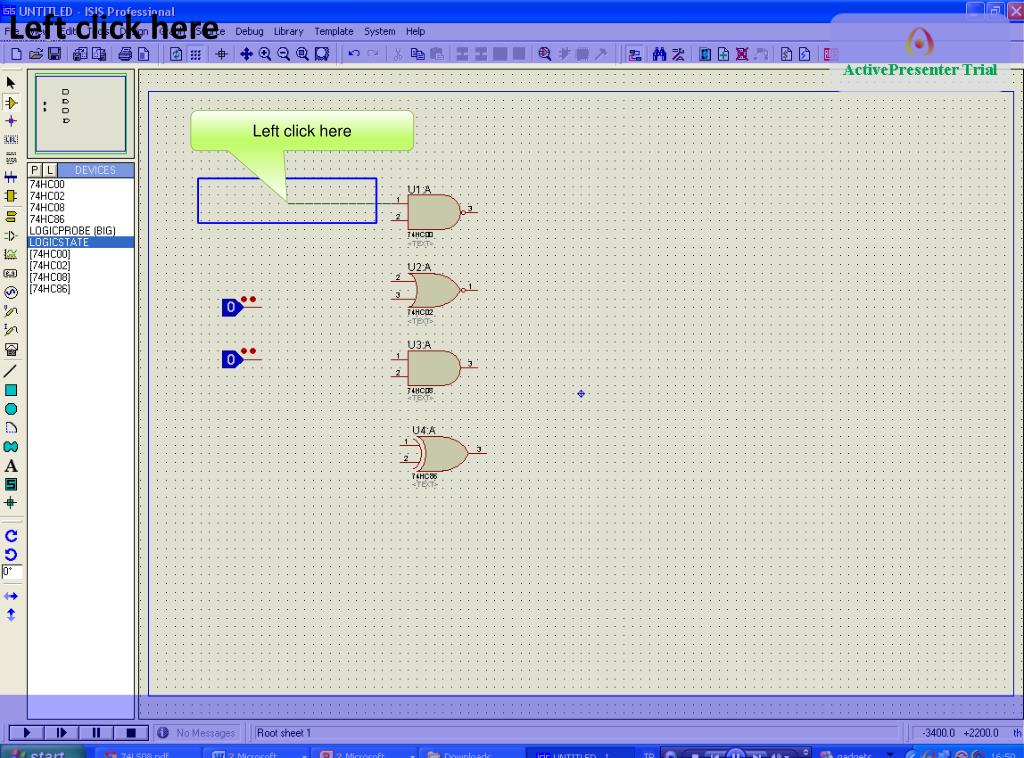

Left click here Left click here
Left click here Left click here
Left click here Left click here
Left click here Left click here

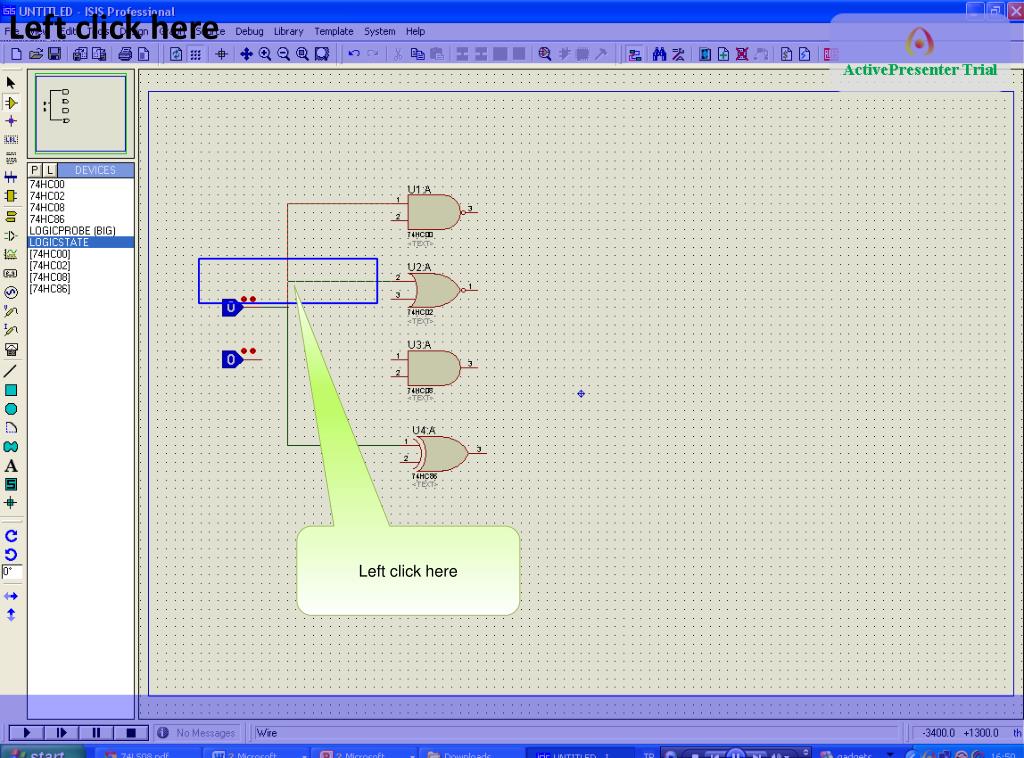

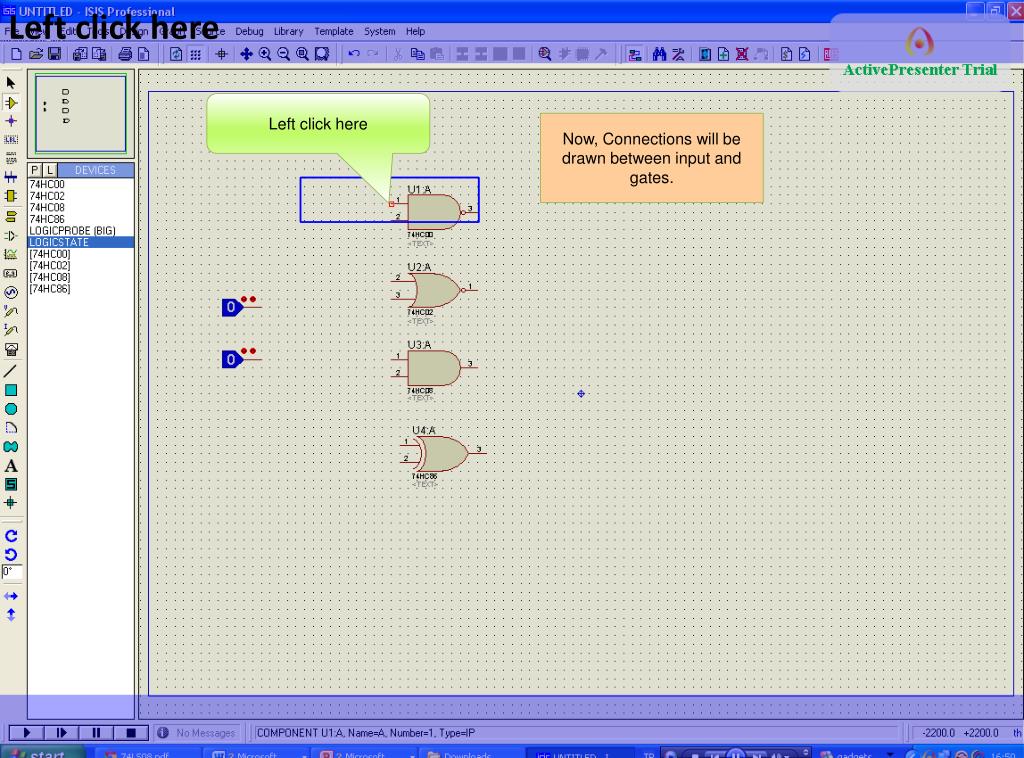

Left click here Left click here Now, Connections will be drawn between input and gates.

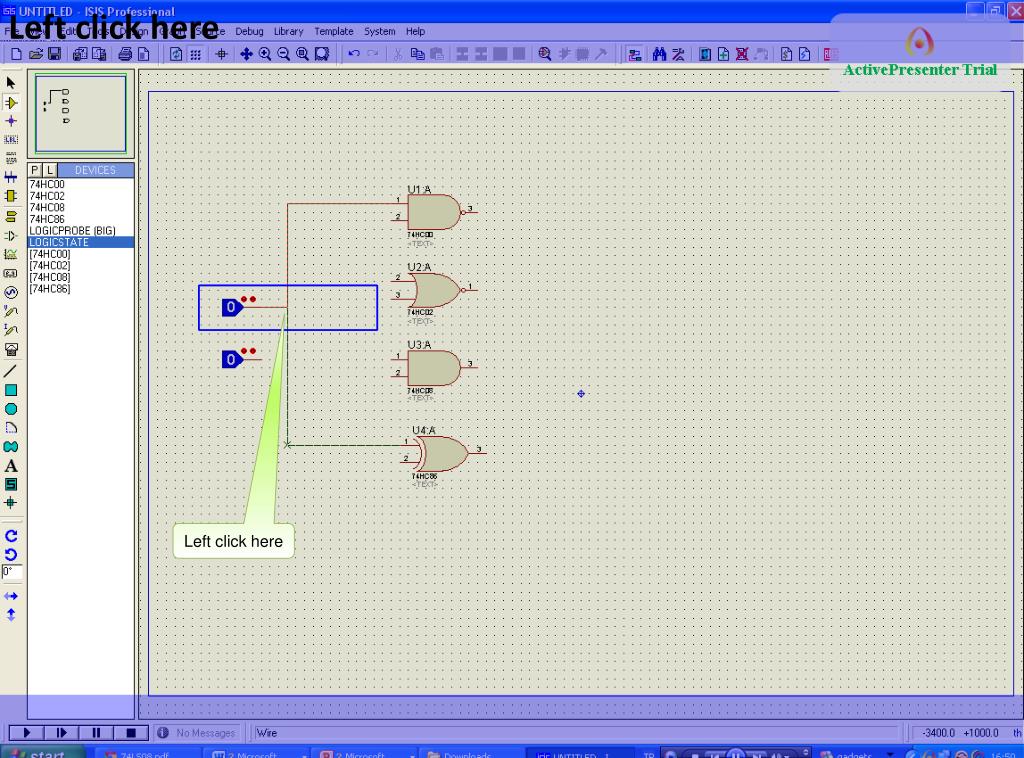

Left click here Left click here
Left click here Left click here

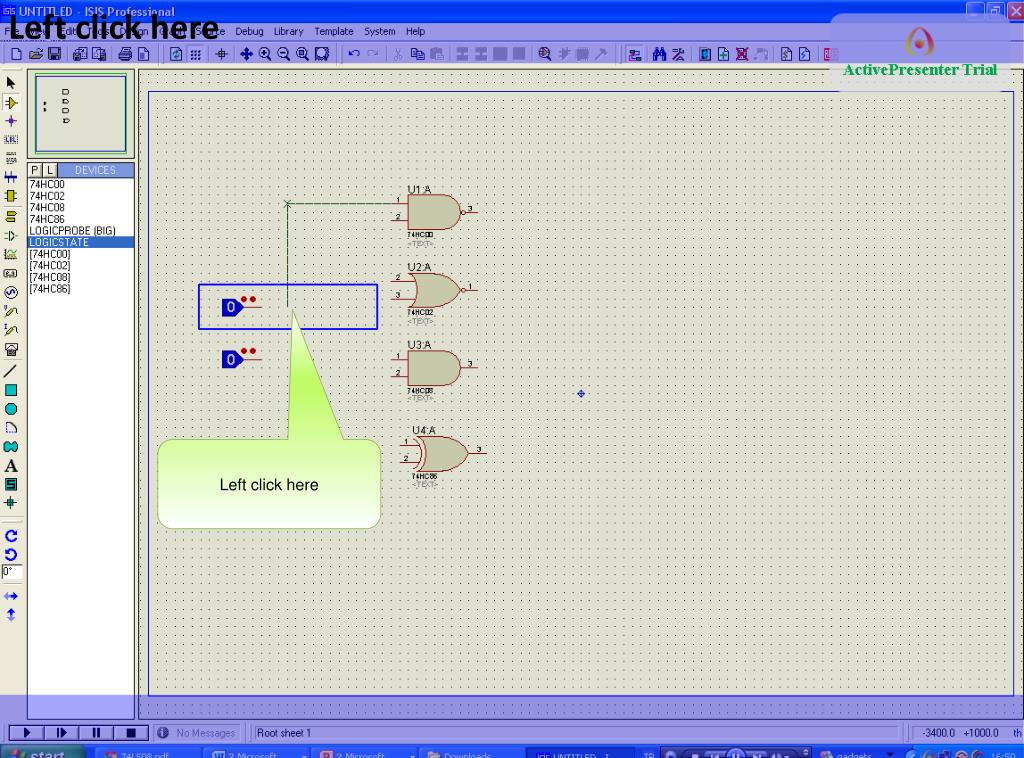

Left click here Left click here

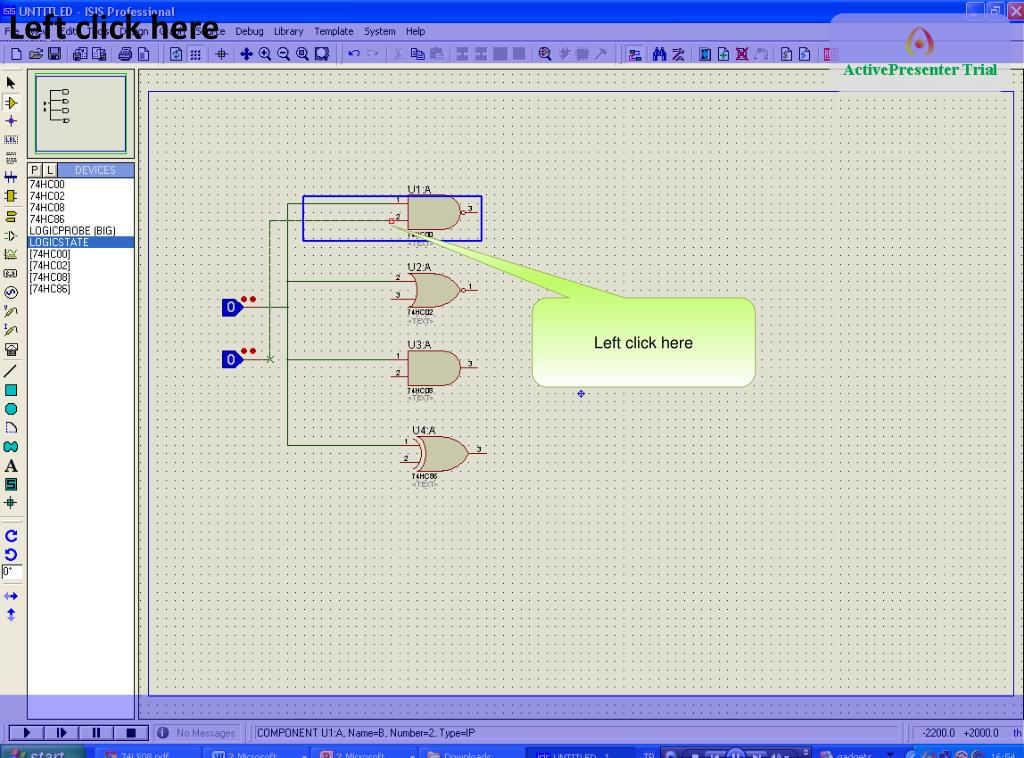

Left click here Left click here

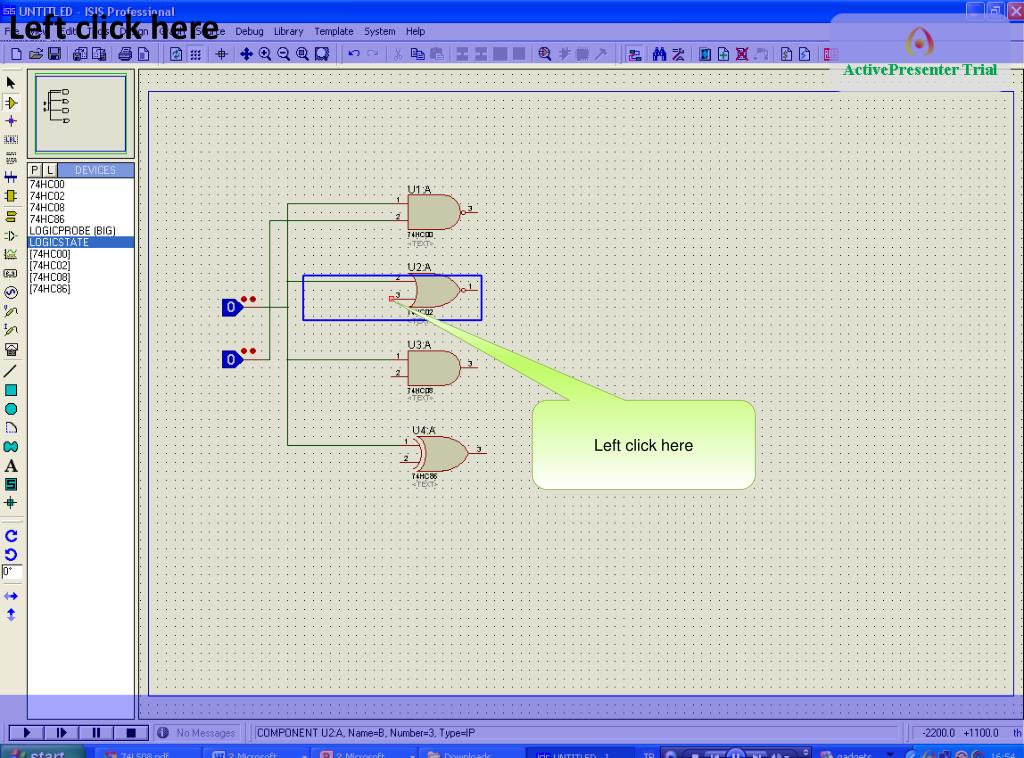

Left click here Left click here
Left click here Left click here
Left click here Left click here

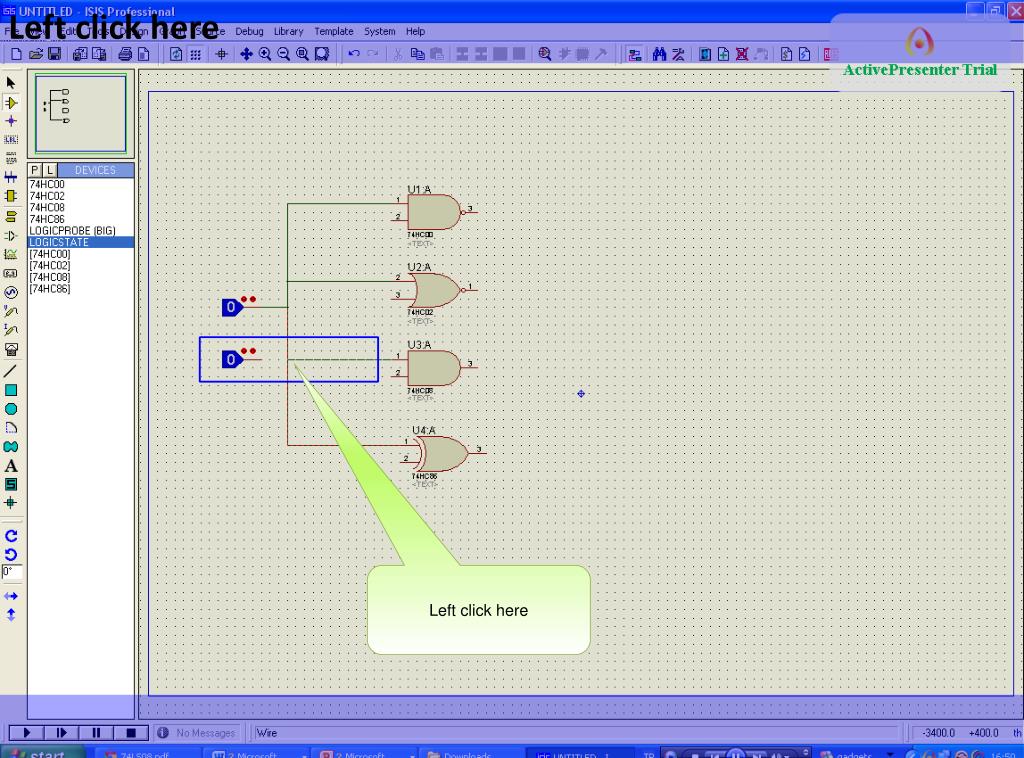

Left click here Left click here

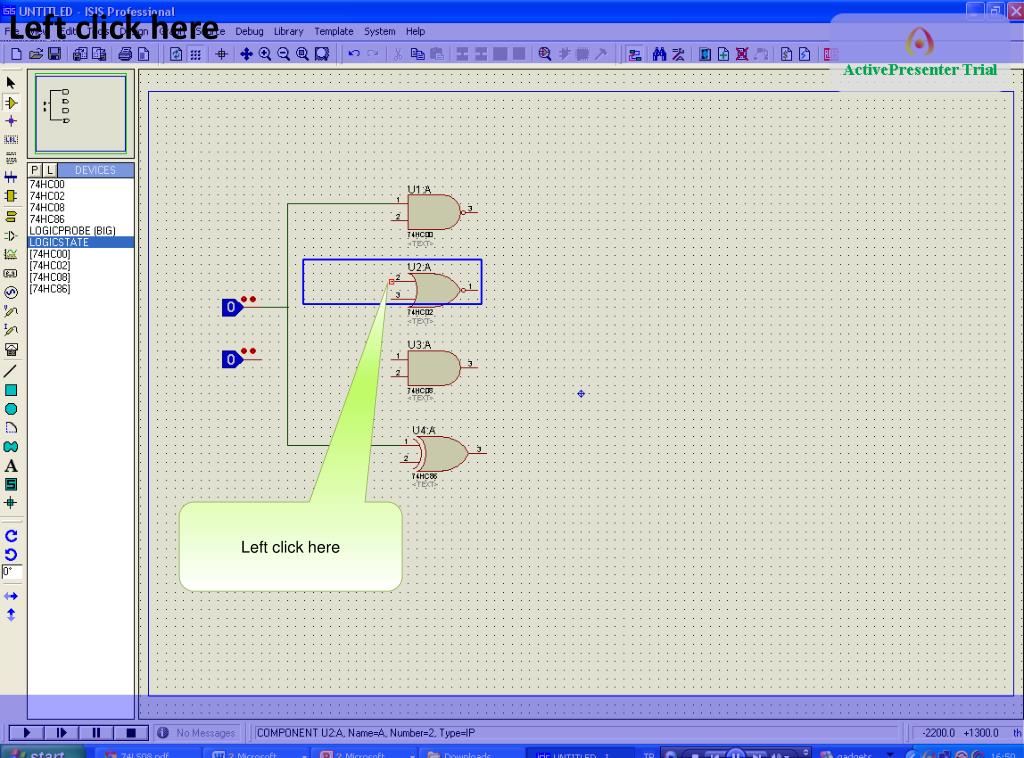

Left click here Left click here
Left click here Left click here

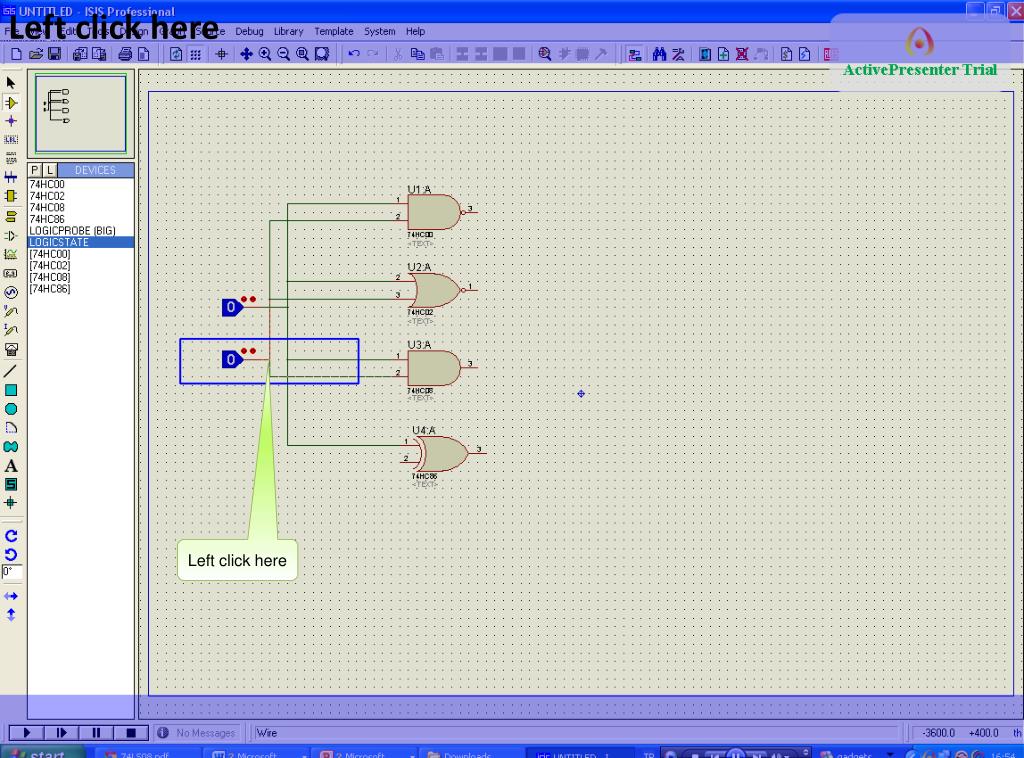

Left click here Left click here
Left click here Left click here
Left click here Left click here
Left click here Left click here
Left click here Left click here
Left click here Left click here

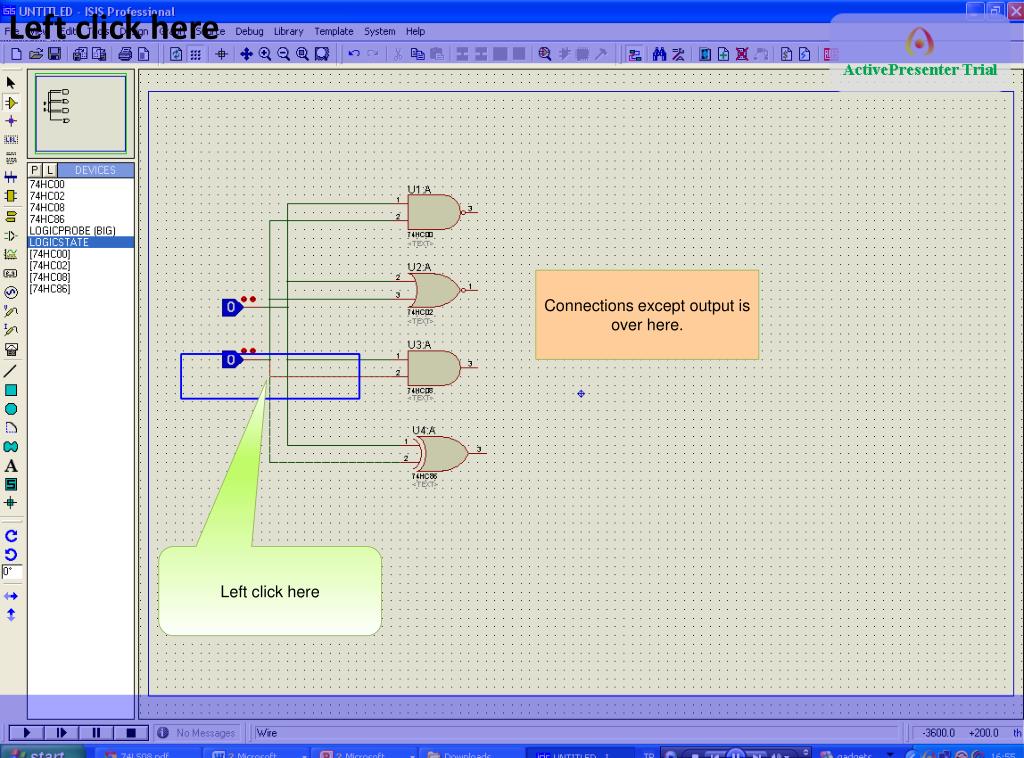

Left click here Connections except output is over here. Left click here
