  1. HCAL digital optic link and trigger mapping Ianos Schmidt The university of Iowa HCAL Fall meeting, Nov 11-13,`04

  2. HCAL HTR crates to RTC crates mapping HCAL Fall meeting, Nov 11-13,`04

  3. Detector view of HB/HE to RTC mapping HCAL Fall meeting, Nov 11-13,`04

  4. Layout of HCAL HTR racks in row F on the second floor of USC55 L M M S M S L L M S S HE “Far side” fibers must reach to here (Fibers from RBX #’s 4 to 9) HE “middle” fibers must reach to here (Fibers from RBX #’s 1 to 3 and 10 to 12) HE “near side” fibers must reach to here (Fibers from RBX #’s 13 to 18) HCAL Fall meeting, Nov 11-13,`04

  5. Cable length database table for HE(-) on-detector Digital optic cables General safety contingency 1.0m Medium Long Medium Short Longest “long” cable 23.1m Longest “medium” cable 20.2m Longest “short” cable 17.3m Delta = 2.9m HCAL Fall meeting, Nov 11-13,`04

  6. HCAL Fall meeting, Nov 11-13,`04

  7. HCAL Fall meeting, Nov 11-13,`04

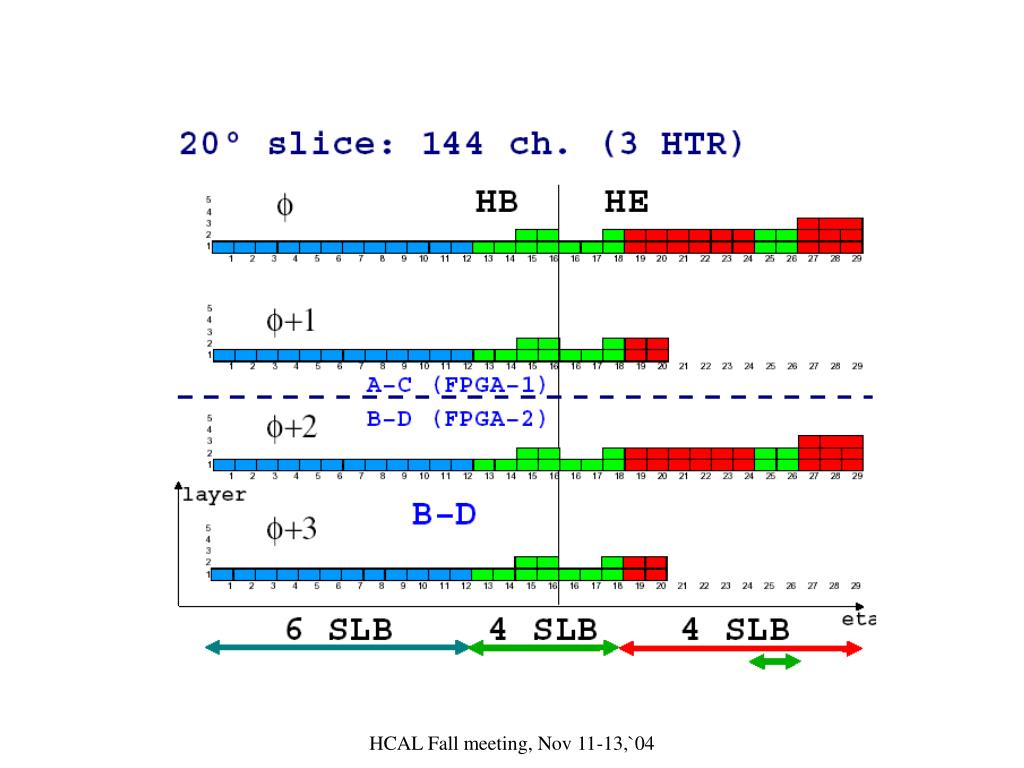

  8. Tower Mapping for HE RM1, 4 QIE Ch.# HE Tower Card1 Card2 Card30 17 28f 19r 1 16 28m 20f 2 26f 29f 22r 3 26r 24f 22f 4 18f 28r 19f 5 18r 24r 20r Tower Mapping for HB QIE Ch.# HB Tower Card1 Card2 Card3 0 16r 10 11 1 15r 6 7 2 14 2 3 3 16f 12 9 4 15f 8 5 5 13 4 1 Tower Mapping for HE RM2, 3 QIE Ch.# HE Tower Card1 Card2 Card3 0 17 27f 19r 1 16 27m 20f 2 25f 29m 21r 3 25r 23f 21f 4 18f 27r 19f 5 18r 23r 20r f – front section; m – middle section; r – rear section HCAL Fall meeting, Nov 11-13,`04

  9. HCAL Fall meeting, Nov 11-13,`04

  10. Detector view of HF mapping HCAL Fall meeting, Nov 11-13,`04

  11. HCAL Fall meeting, Nov 11-13,`04

  12. HF HTR crates HCAL Fall meeting, Nov 11-13,`04

  13. HO? HO crates are divided into 90 degree segments, with each RM covering 15 degrees. A 90 degree slice across all HO rings requires 13.5 HTR’s. There are many possible ways to map RM fibers to HTR’s. Are there any patterns such as muon triggers… that require a particular mapping of HO signals? HCAL Fall meeting, Nov 11-13,`04

  14. Detector view of HO (rings -1 & -2) HCAL Fall meeting, Nov 11-13,`04

  15. Calibration module readout fibers and HTR’s There are at least three options for organizing the calibration readout. • keep Calibration readout in time with signal readout. • Results in having many half used HTR’s • Have calibration HTR’s in the crates with associated RBX signal HTR’s. • Calibration readout will be delayed in relation to signal. • Patching is not “modular”, best solved by dedicated calibration patch panel. • 6 out of 8 fibers would be used in every HTR input. • Have all calibration HTR’s in dedicated crate. • Calibration HTR’s would not be on same partition as the associated RBX’s. • HTR’s could be fully utilized. HCAL Fall meeting, Nov 11-13,`04

  16. HB/HE Calibration module readout map option 2. HCAL Fall meeting, Nov 11-13,`04
