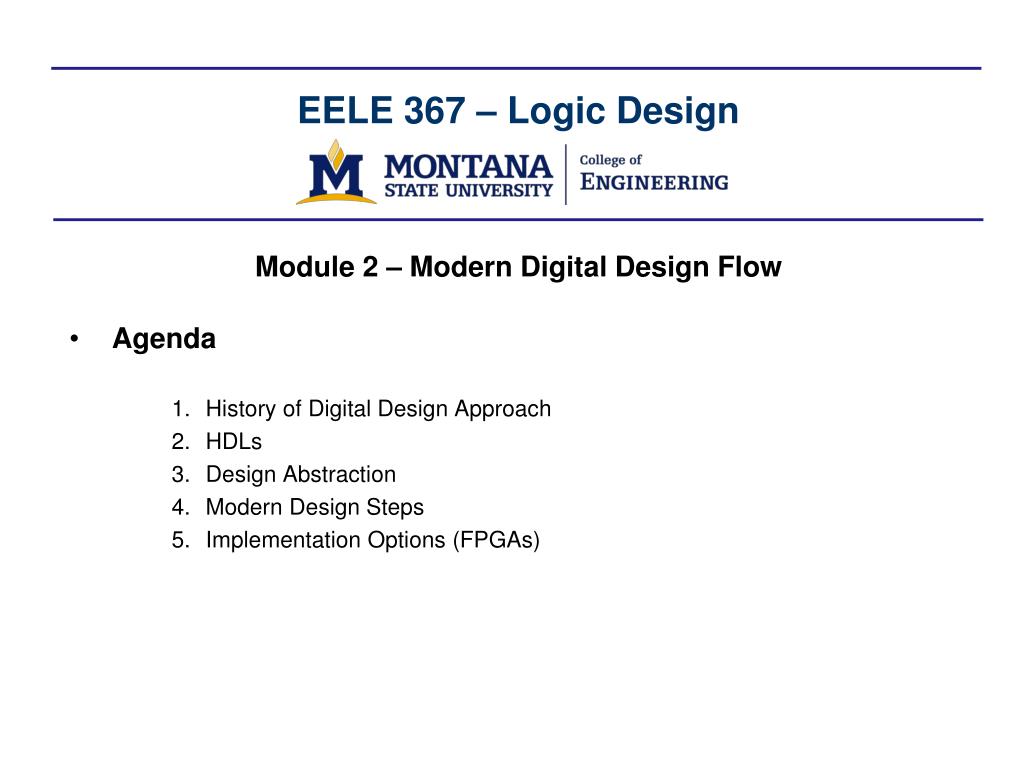

  1. EELE 367 – Logic Design • Module 2 – Modern Digital Design Flow • Agenda • History of Digital Design Approach • HDLs • Design Abstraction • Modern Design Steps • Implementation Options (FPGAs)

  2. History • In the beginning…1970's - designers used Paper/Pencil & Boolean Equations to create schematics - the drawback : - each flop required a Boolean equation - impractical in large designs1980's - schematic based designs using electronic editors - this enabled Copy/Past & Hierarchy - Design-reuse was enabled which increased design sizesmid 80's - HDL's became more common (created mid 80's) - Text-based Compilers (C, PASCAL) could be adapted to perform digital simulation - Larger Designs could be described using text Design Simulation PhysicalImplementation Still separate

  3. Sel Synthesis A Out B History • More recently 1990's - Synthesis became practical due to increase in computational power of computersSynthesis - the creation of circuitry from a functional description ex) "Functional Description of MUX" if (Sel = 0) Out = A else Out = B

  4. HDL • Real Power 1990's - Now engineers had a power combination "HDL" if (Sel = 0) Out = A else Out = B "Synthesis" "Simulation" Sel A Out B

  5. HDL • Abstraction Engineers could now stay at a higher level of abstraction and rely on the tools to 1) Simulation 2) Synthesize the circuitry- This allows larger systems to be described/designed in the same time- Since HW is expensive to build, using the tools to reduce prototyping was the next step

  6. HDL • Timing Verification - Let the tool "Verify" timing- Less time spent prepping design for a prototyping run HDL FunctionalSimulation Synthesis TechnologyMapping Place/Route(extract RC's) Match? Post ImplementationSimulation Fab

  7. Design Abstraction • At What level can we design?

  8. Design Abstraction • What does abstraction give us?- The higher in abstraction we go, the more complex & larger the system becomes- But, we let go over the details of how it performs (speed, fine tuning)- There are engineering jobs at each level- Guru's can span multiple levels • What does VHDL model?- System : Chip : Register : Gate- VHDL let's us describe systems in two ways: 1) Structural (text netlist) 2) Behavioral (requires synthesis)

  9. Modern Digital Design Flow • Designing Large Digital Circuits- this is the ideal process

  10. Digital Design Flow • Designing Large Digital Circuits- this is reality

  11. Digital Design Flow • A More Detailed Breakdown Relation to our class HW or Lab Assignment Write VHDL, Simulate with ModelSim Synthesize in Quartus, Run Timing Simuluation Place/Route on FPGA, Download, Test Take idea, create custom HW to reduce coststart your own companysell and become rich

  12. Digital Implementation • What options do we have for hardware implementation?- Discrete Devices (i.e., go to the stock room and buy NAND gates & Flip-flops)- ASICs (Application Specific Integrated Circuits (custom silicon)- Programmable Logic (CPLDs, FPGAs) • FPGAs have become one of the most popular technologies recently- We’ll use an FPGA in this class to test our designs- We’ll use the ModelSim simulator for functional simulation- We’ll use the AlteraQuartus II design software for synthesis, place/route, and post-synthesis verification.- We’ll use an Altera Cyclone II FPGA on a DE2 evaluation board to test our designs in hardware.

  13. FPGA's • What is an FPGAField Programmable Gate Array • An FPGA uses Re-configurable Logic Blocks- we set the config bits of this block to set its Boolean logic function- the configuration is a Truth Table (or Look Up Table) of functionality configOut 000 NOT(In1) 001 NOT(In2)010 OR 011 NOR 100 AND 101 NAND 110 XOR111 XNOR In1 Out In2 config

  14. In1 In1 In1 In1 In1 In1 In1 In1 In1 Out Out Out Out Out Out Out Out Out In2 In2 In2 In2 In2 In2 In2 In2 In2 config config config config config config config config config FPGA's • LUTs = Look Up Tables- we can program the LUTs to be whatever type of gate is needed by the design- there are a finite number of LUTs within a given FPGA (also called "resources") • The LUTs are configured into an ARRAY on the silicon- Array of LUT's = Array of Gates = Gate Array

  15. LUT LUT LUT LUT LUT LUT LUT LUT LUT FPGA's • Programmable Interconnect - there are programmable interconnect switches that connect the LUTs X X X X X X X X X X X X X X X X X

  16. LUT LUT LUT LUT LUT LUT LUT LUT LUT FPGA's • Configuration- We start with a Gate Level Schematic of our design (from synthesis)- The FPGA LUTs are configured to implement Gates X X X X X X X X X X X X X X X X X

  17. LUT LUT LUT INV OR LUT INV AND LUT FPGA's • Configuration- The interconnect switches are then programmed to implement the net connections A X X B Out X X X X X C X X X X X X X X X X

  18. LUT LUT LUT INV OR LUT INV AND LUT FPGA's • Configuration- The LUT and Interconnect configuration is volatile (i.e., it goes away when power is removed)- Since the programming is done by the user after fabrication, we call it "Field Programmable”- We now understand where the name “Field Programmable Gate Array” comes from. A X X B Out X X X X X C X X X X X X X X X X

  19. CLB CLB CLB CLB FPGA's • Adding More Functionality - FPGA manufacturer's quickly learned that Flip-Flops would be useful- They put a DFF next to a 4-Input LUT to form a "Configurable Logic Block" (CLB) X X X X X

  20. FPGA's • Adding Even More Functionality - To Improve performance, common logic functions were "hard coded" on the silicon - Block RAM - Adders / Multipliers - Global Clock Buffers - even Microprocessors!

  21. FPGA's • What else can we program? - Which Pins to use on the package- What logic levels - CMOS_33, CMOS25 - SSTL, SSTL2, etc…
