  1. Plant and Animal Cells 2 Lesson 2 September 23rd, 2010

  2. Plant and Animal cell diagrams • We will refer back to these diagrams all lesson • Every time we go back to the diagram add the organelle name to your diagram

  3. From Yesterday -Add these to your diagrams Nucleus Cell Membrane Nucleolus • Chromatin Cell Membrane Cytoplasm

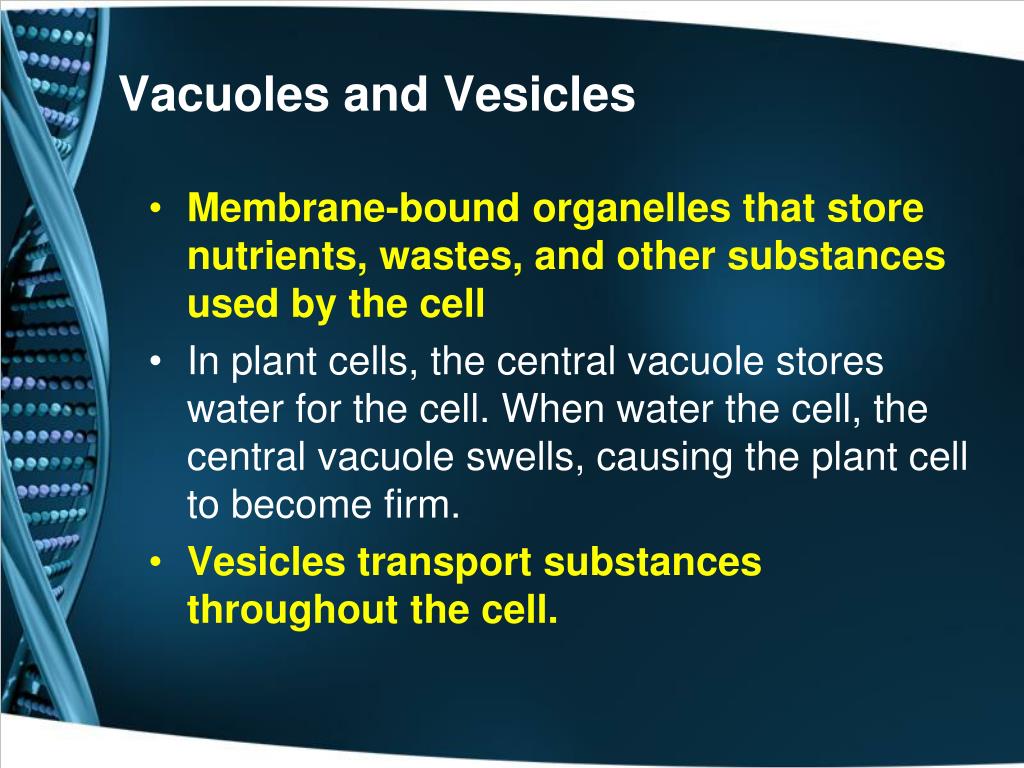

  4. Vacuoles and Vesicles • Membrane-bound organelles that store nutrients, wastes, and other substances used by the cell • In plant cells, the central vacuole stores water for the cell. When water the cell, the central vacuole swells, causing the plant cell to become firm. • Vesicles transport substances throughout the cell.

  5. Vacuoles and Vesicles

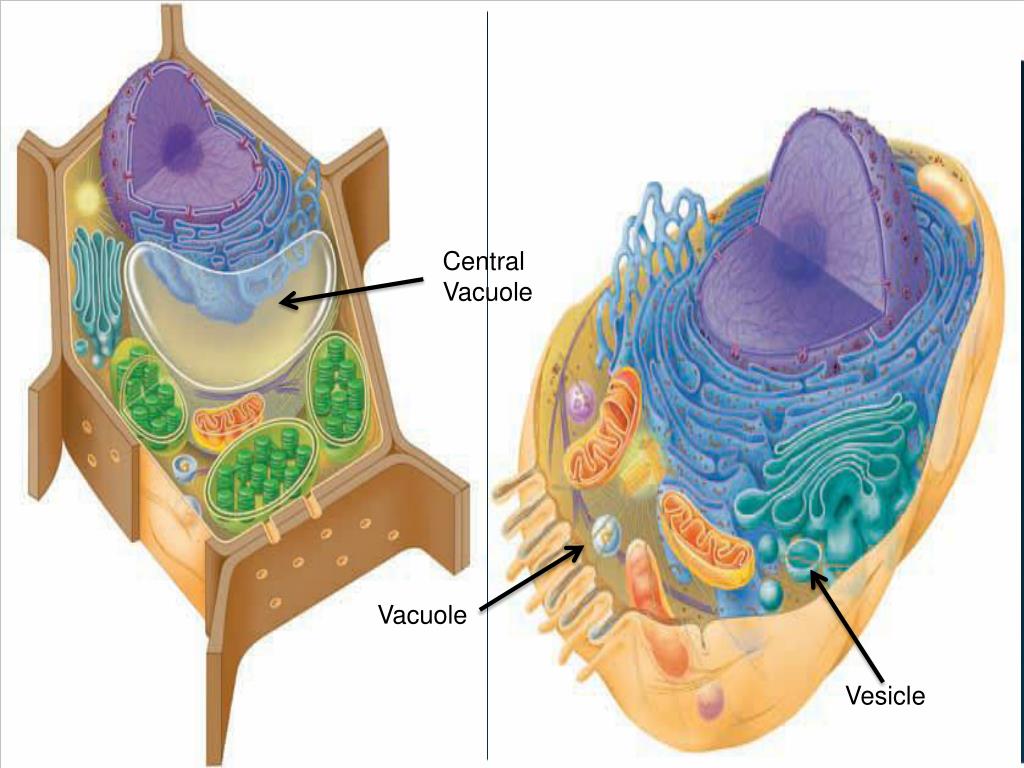

  6. Central Vacuole Vacuole Vesicle

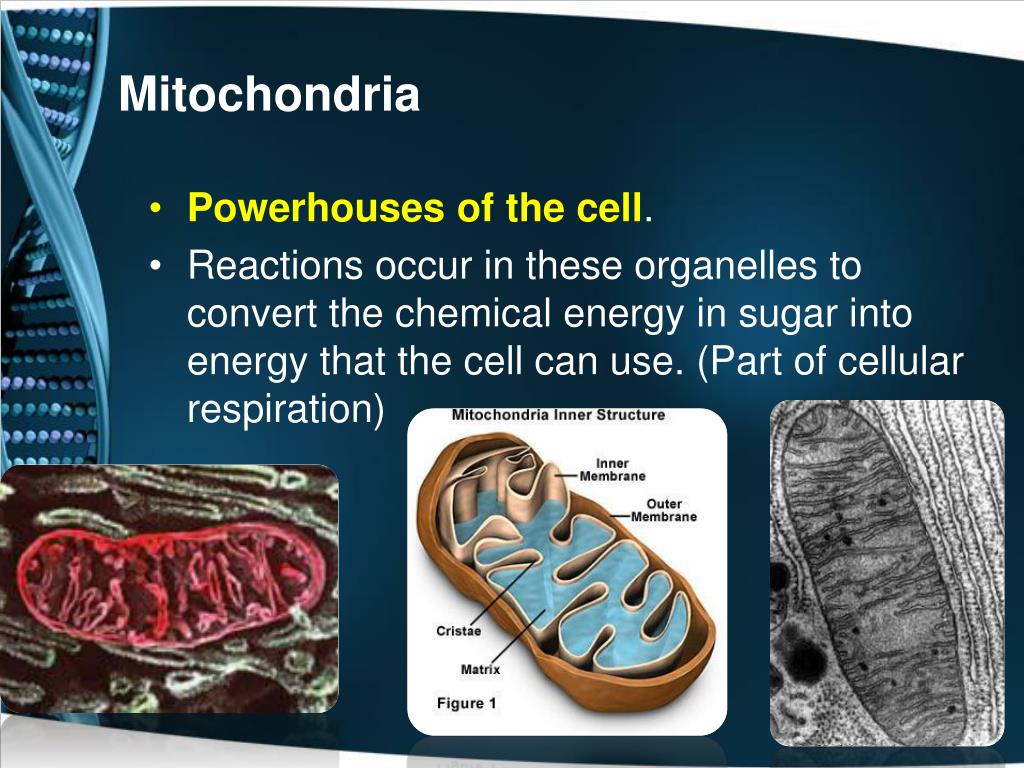

  7. Mitochondria • Powerhouses of the cell. • Reactions occur in these organelles to convert the chemical energy in sugar into energy that the cell can use. (Part of cellular respiration)

  8. Mitochondria

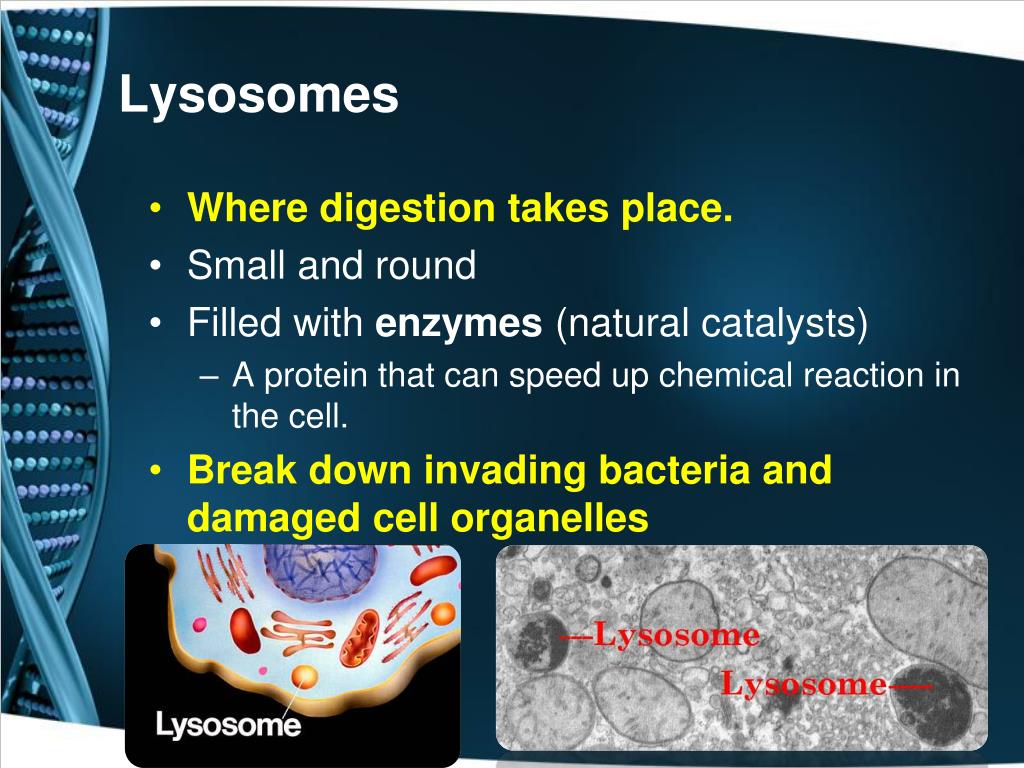

  9. Lysosomes • Where digestion takes place. • Small and round • Filled with enzymes (natural catalysts) • A protein that can speed up chemical reaction in the cell. • Break down invading bacteria and damaged cell organelles

  10. Lysosome

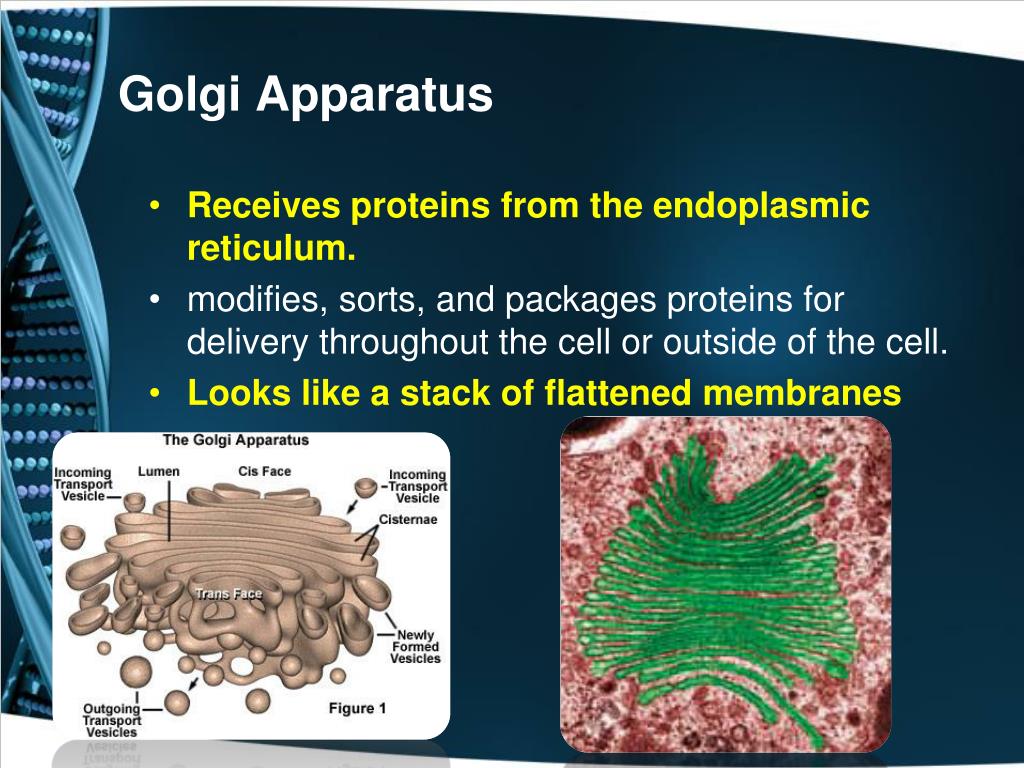

  11. Golgi Apparatus • Receives proteins from the endoplasmic reticulum. • modifies, sorts, and packages proteins for delivery throughout the cell or outside of the cell. • Looks like a stack of flattened membranes

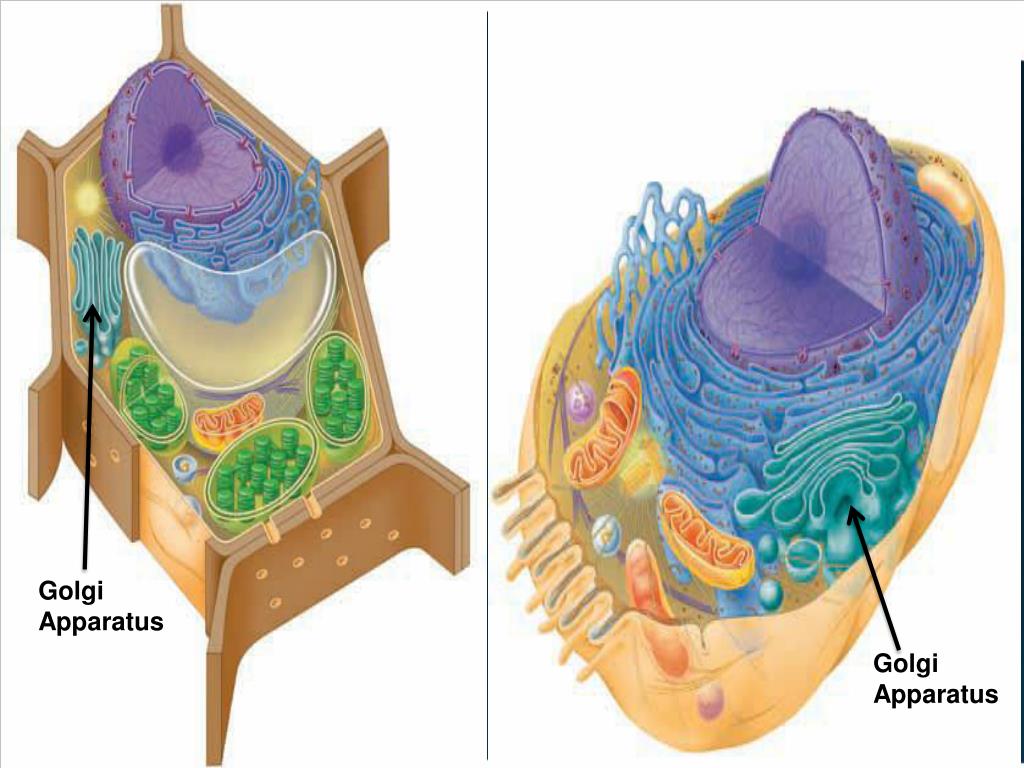

  12. Golgi Apparatus Golgi Apparatus

  13. Endoplasmic Reticulum (ER) • Made of a series of interconnected small tubes that carry materials through the cell.

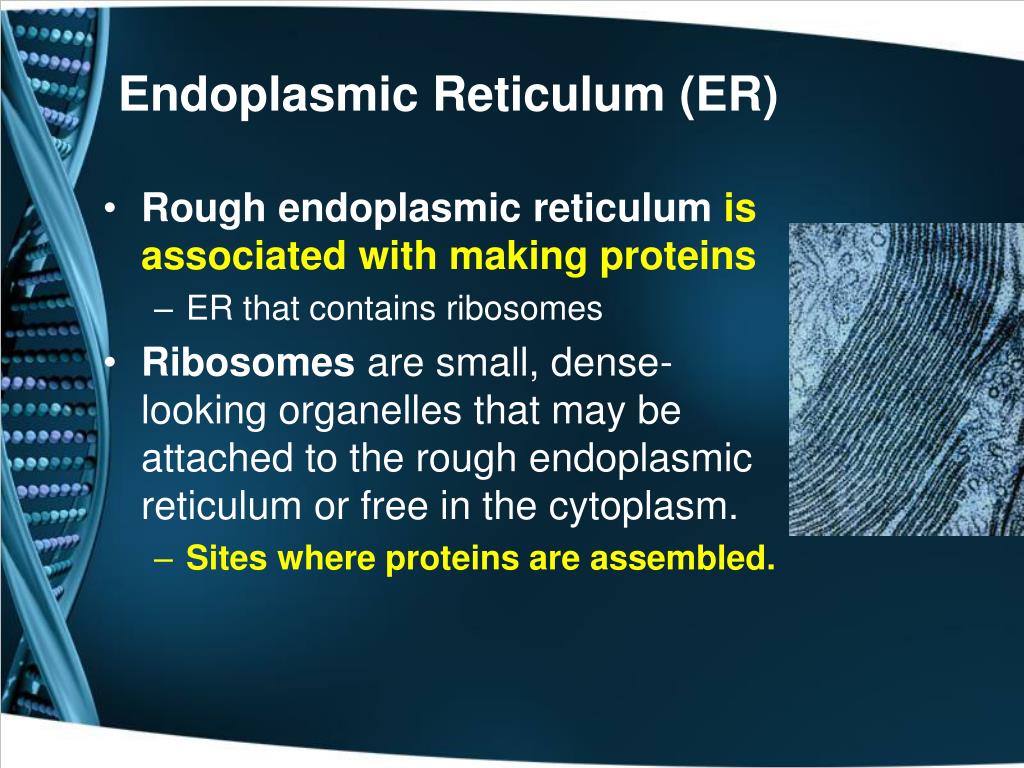

  14. Endoplasmic Reticulum (ER) • Rough endoplasmic reticulum is associated with making proteins • ER that contains ribosomes • Ribosomes are small, dense-looking organelles that may be attached to the rough endoplasmic reticulum or free in the cytoplasm. • Sites where proteins are assembled.

  15. Endoplasmic Reticulum (ER) • Smooth endoplasmic reticulum • Associated with the production of fats and oils • Does not have ribosome's

  16. Rough endoplasmic reticulum Smooth endoplasmic reticulum Ribosomes (small dots)

  17. Cytoskeleton • Internal network of fibres of protein filaments. • Maintains the cell’s shape.

  18. Cytoskeleton

  19. Organelles in Plant Cells • Some organelles are found only in plant cells. Cell Wall • Only plant cells, bacteria, fungi, and some algae have a cell wall. • The Rigid frame around the cell that provides strength, protection, and support

  20. Cell Wall

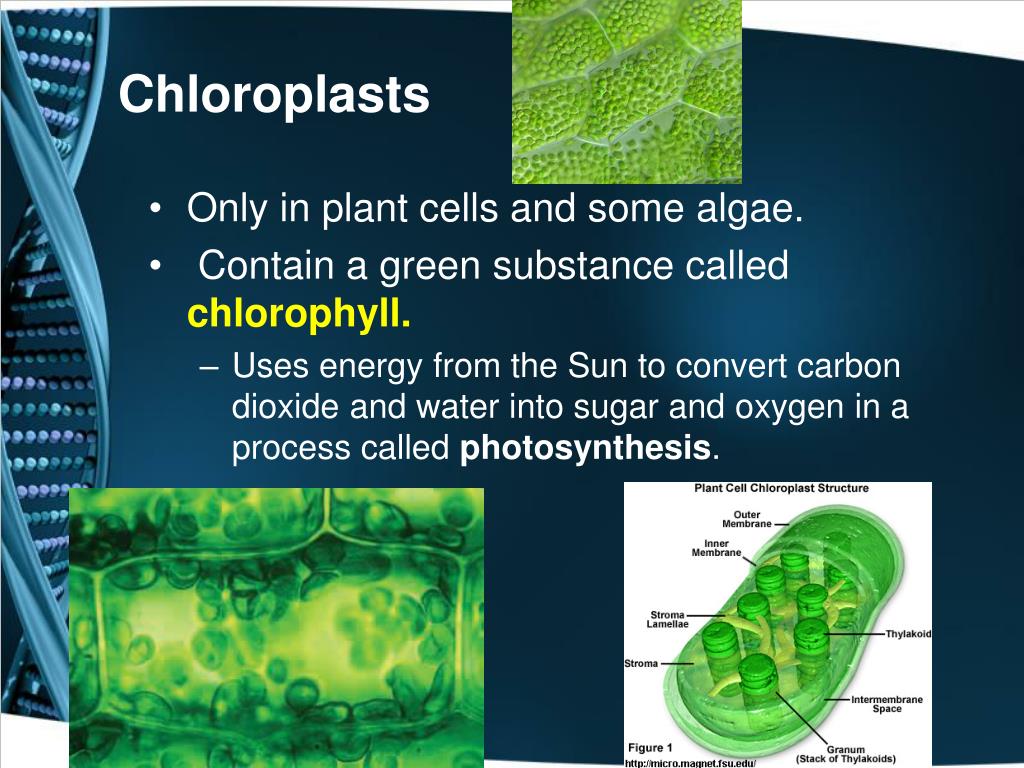

  21. Chloroplasts • Only in plant cells and some algae. • Contain a green substance called chlorophyll. • Uses energy from the Sun to convert carbon dioxide and water into sugar and oxygen in a process called photosynthesis.

  22. Chloroplasts

  23. Chloroplasts • Made up of little sacs known as thylakoids. • Resemble a stack of coins. • Surrounded by a thick fluid called stroma. • A stack of thylakoids is called a granum

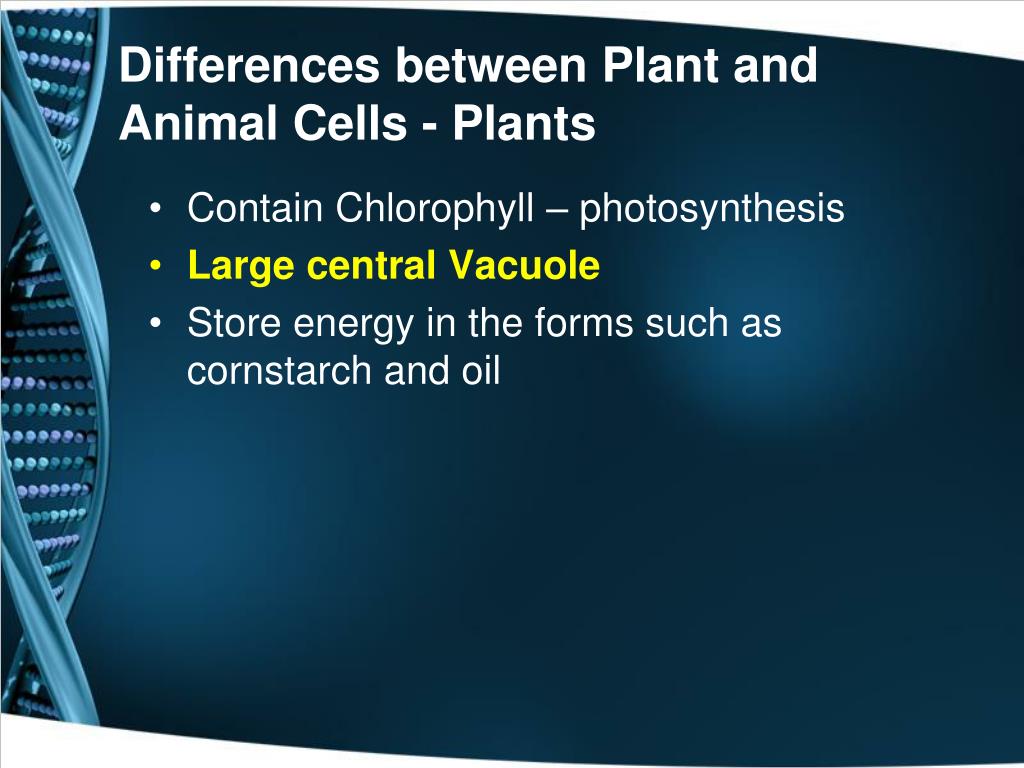

  24. Differences between Plant and Animal Cells - Plants • Contain Chlorophyll – photosynthesis • Large central Vacuole • Store energy in the forms such as cornstarch and oil

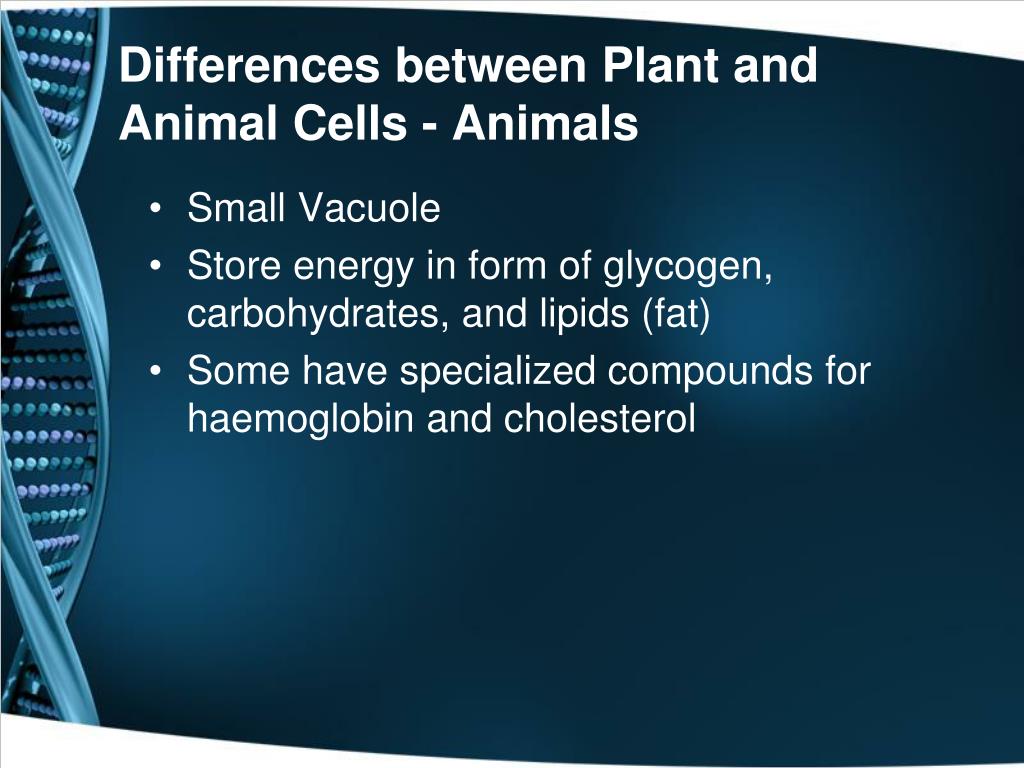

  25. Differences between Plant and Animal Cells - Animals • Small Vacuole • Store energy in form of glycogen, carbohydrates, and lipids (fat) • Some have specialized compounds for haemoglobin and cholesterol

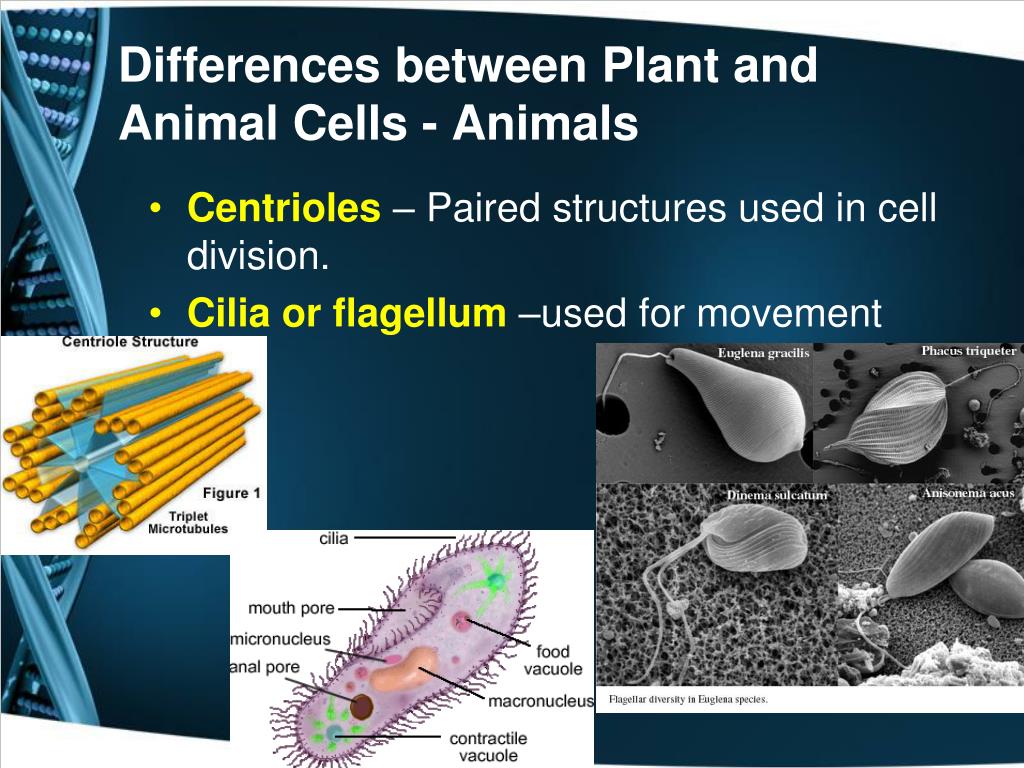

  26. Differences between Plant and Animal Cells - Animals • Centrioles – Paired structures used in cell division. • Cilia or flagellum –used for movement

  27. http://www.youtube.com/watch?v=a6boqEbcJWI

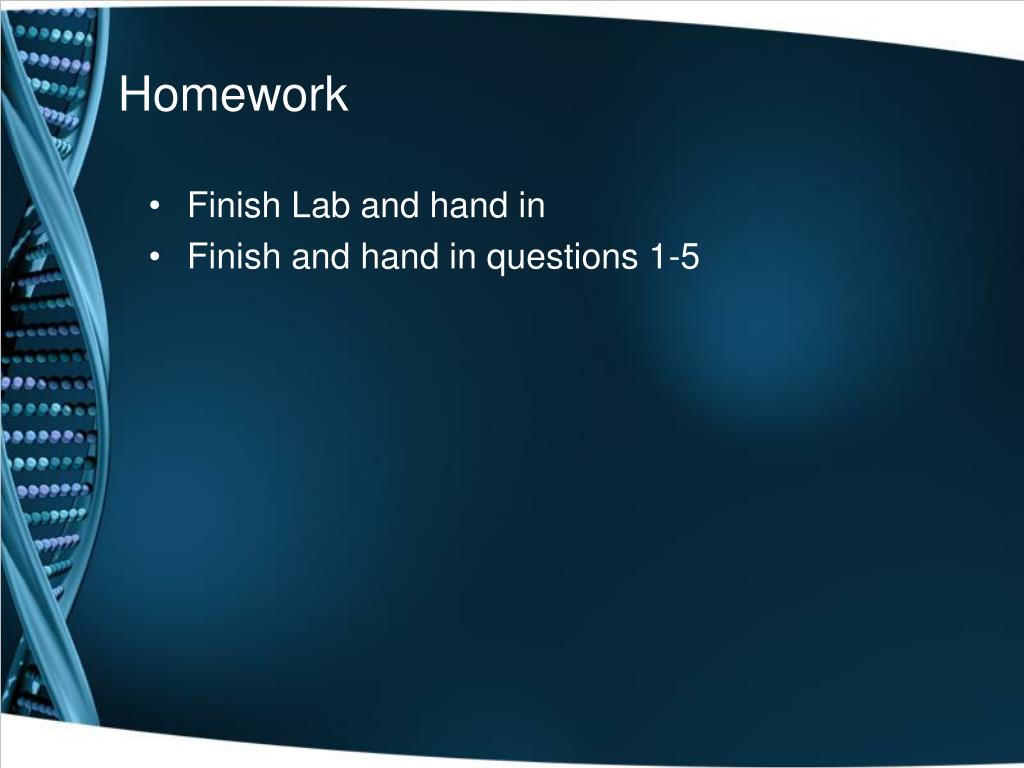

  28. Homework • Finish Lab and hand in • Finish and hand in questions 1-5
