  1. Wesley Thomas Raymond'S Tree DMX Algorithm

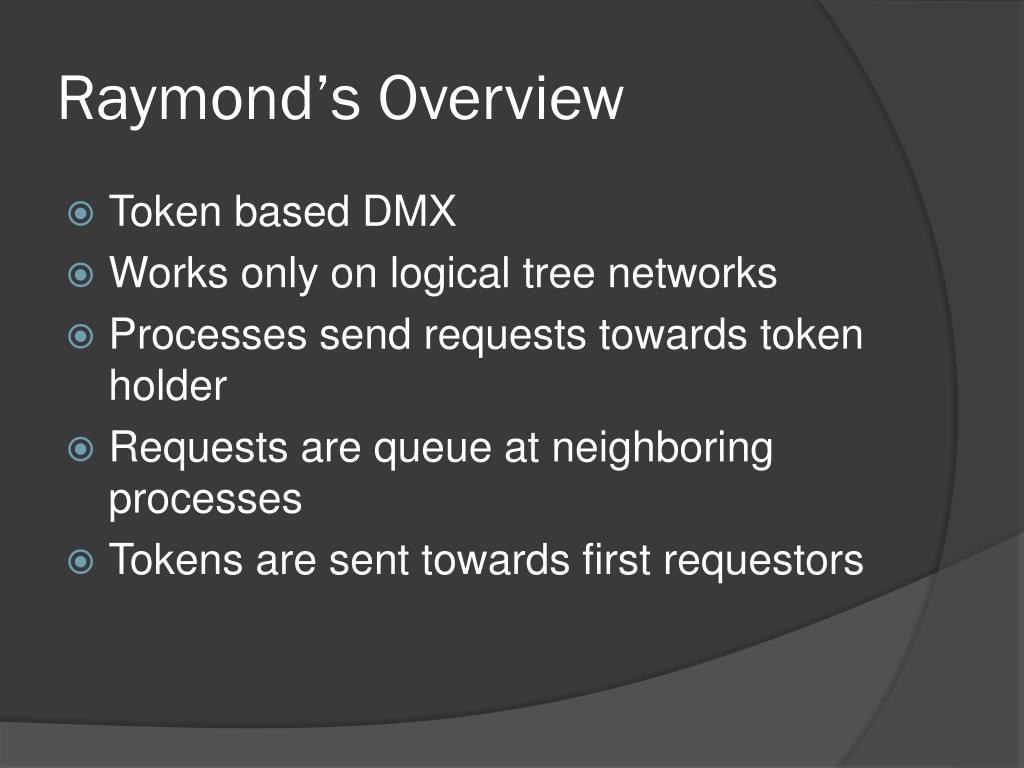

  2. Raymond’s Overview • Token based DMX • Works only on logical tree networks • Processes send requests towards token holder • Requests are queue at neighboring processes • Tokens are sent towards first requestors

  3. Experimental Setup • 50 processes • Average load • 25 processes request CS from start • Varying tree heights from 2 to 100 • 10 runs for each tree height • Trees are built by creating a chain with the specified height and randomly adding children until process limit is reached

  4. 1 1 10 2 2 3 12 3 9 4 4 5 8 5 7 6 11 6 Tree Generation Example: Height = 6 Process Count = 12

  5. Experimental Setup Continued • Measuring Time and Messages • Time is measured as number of steps • Steps are counted when a process does the following: • Request CS • Enter CS • Exit CS • Send Token • Receive Request • Receive Token

  6. Results

  7. Results Cont.

  8. Conclusions • Time is a trivial measurement when also measuring number of messages • Very small tree heights have an advantage as the number of messages passed is less than in trees with larger heights • Trees that are 2 in height average 1.78 messages per process • It appears that as systems move closer to chain-like topologies, the number of messages increase (slowly).

  9. Future Work • Use different process counts • Use different loads and run loads during different times of the simulation
