Presentation Transcript

  1. Cell Structure and Function

  2. The Cell Theory • All living things are composed of cells. • Cells are the basic units of structure and function in living things. • All cells come from pre-existing cells.

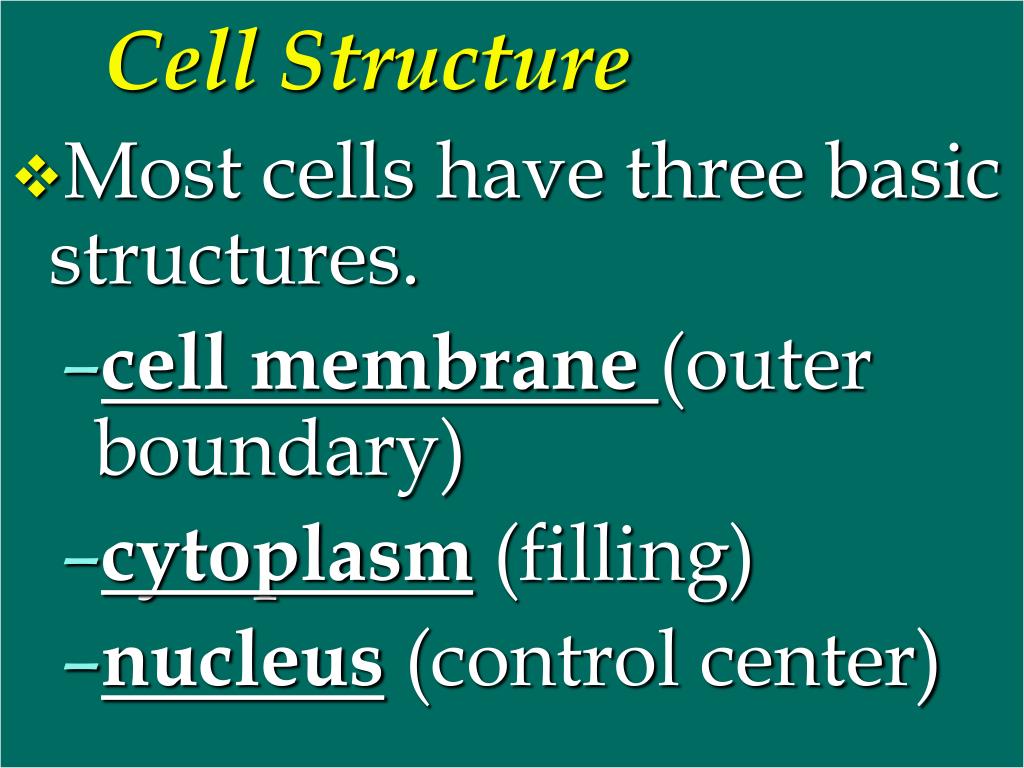

  3. Cell Structure • Most cells have three basic structures. • cell membrane (outer boundary) • cytoplasm (filling) • nucleus (control center)

  4. All cells have a cell membrane and cytoplasm.

  5. However some do not have a nucleus. These are called Prokaryotes.(bacteria)

  6. Cells with a nucleus are called eukaryotes. (plant, animal, fungus and protists) Nucleus

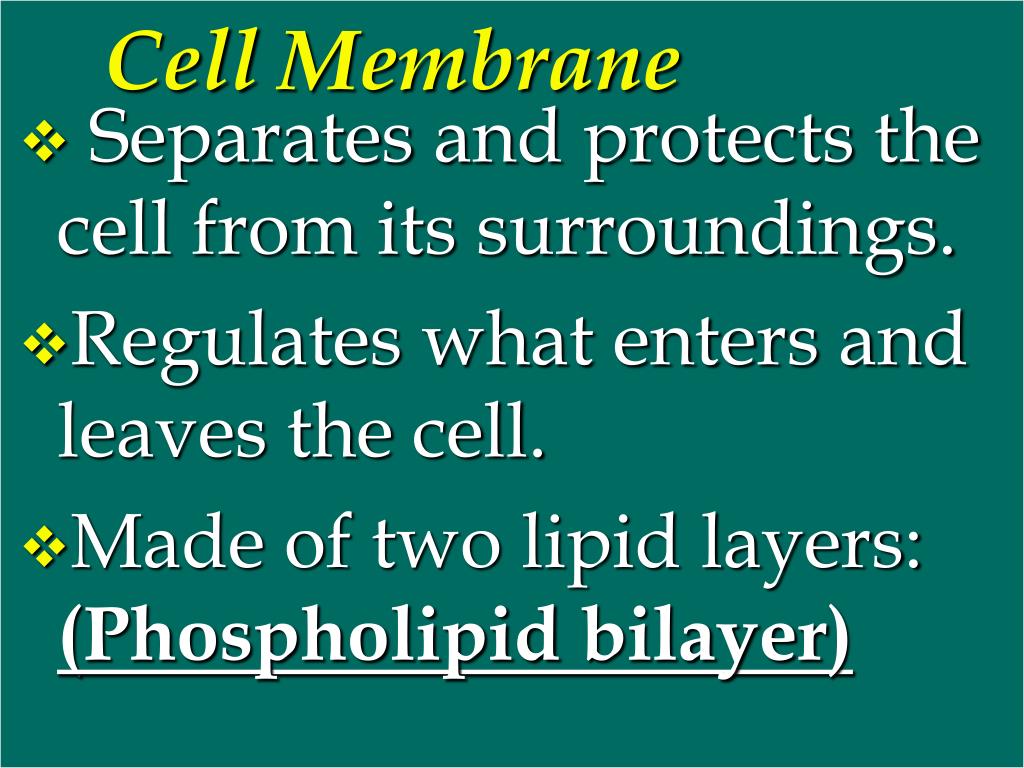

  7. Cell Membrane • Separates and protects the cell from its surroundings. • Regulates what enters and leaves the cell. • Made of two lipid layers: (Phospholipidbilayer)

  8. The Cell Membrane Phospholipid Bilayer Hydro-phobic (Fatty acids) Hydro-phyllic (Phos-phates)

  9. Cytoplasm • The area between the cell membrane and nucleus. • Contains structures called organelles and each one performs a specific job.

  10. Cytoplasm

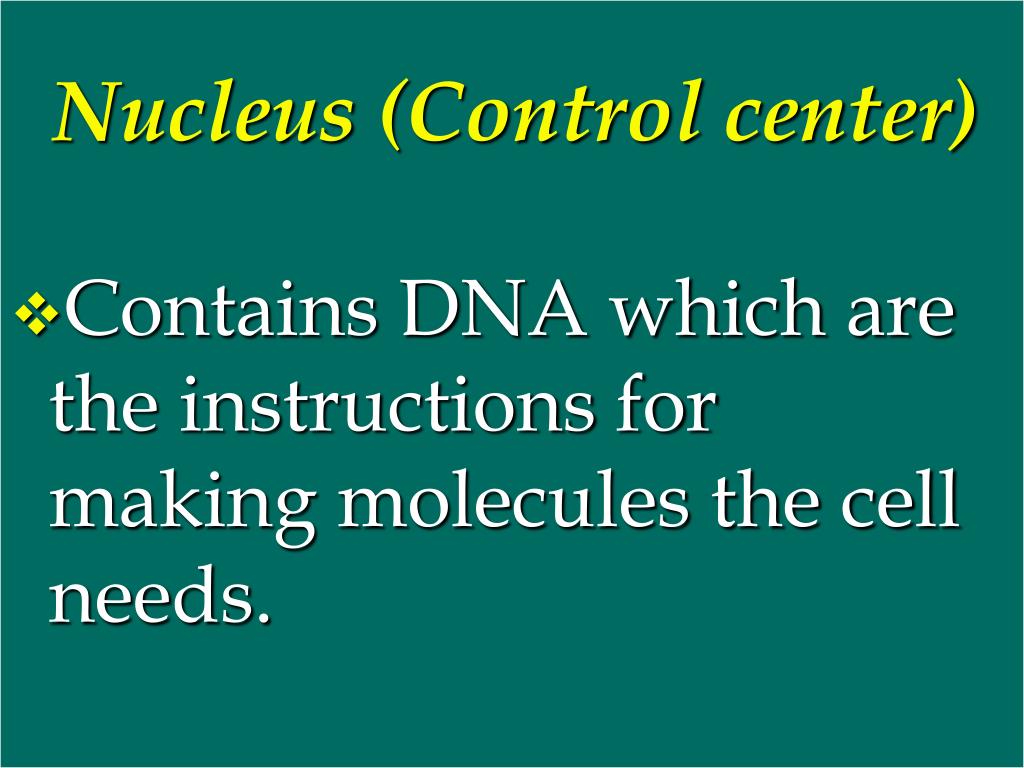

  11. Nucleus (Control center) • Contains DNA which are the instructions for making molecules the cell needs.

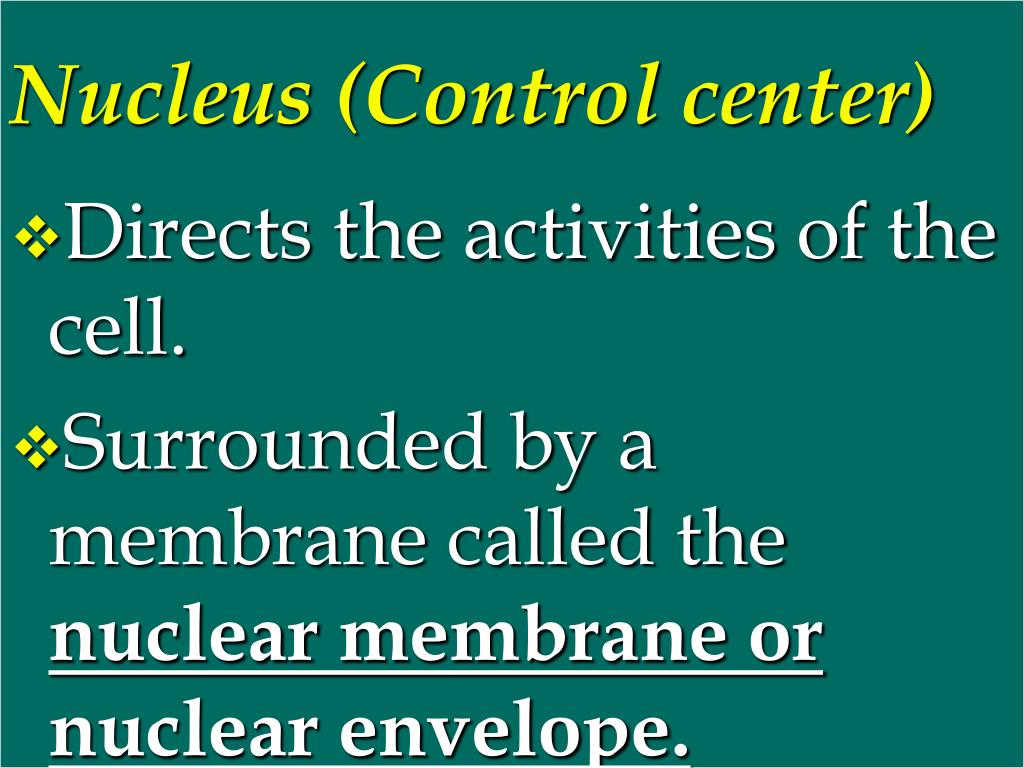

  12. Nucleus (Control center) • Directs the activities of the cell. • Surrounded by a membrane called the nuclear membrane or nuclear envelope.

  13. Nucleus

  14. Nucleolus

  15. A small region of the nucleus made up of RNA and proteins. • The nucleolus makes ribosomes.

  16. Nucleolus Nucleus

  17. Ribosomes • Found in prokaryotic and eukaryotic cells • Protein factories. • Some ribosomes are attached to the endoplasmic reticulum.

  18. Ribosomes • Others are free in the cytoplasm. • Smallest organelle.

  19. Ribosomes Rough ER

  20. Endoplasmic Reticulum • Two forms Rough ER Smooth ER

  21. Endoplasmic ReticulumSmooth ER: no ribosomes are attached. Special enzymes and chemicals are stored here. Lipids (fats) are produced

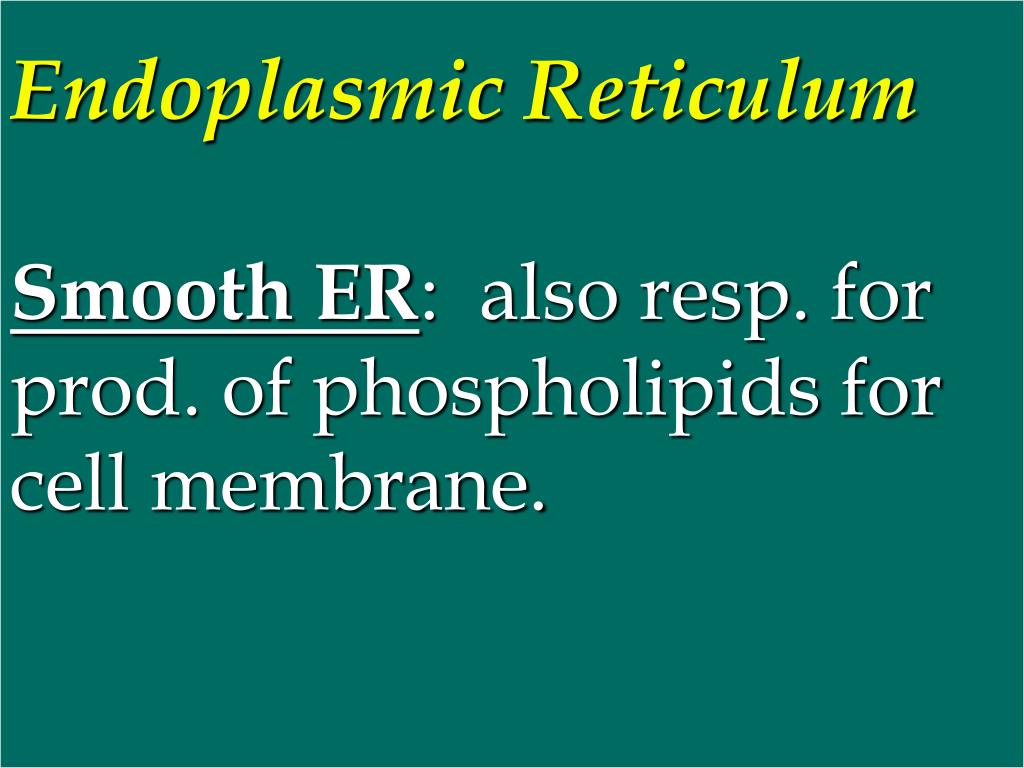

  22. Endoplasmic ReticulumSmooth ER: also resp. for prod. of phospholipids for cell membrane.

  23. Endoplasmic Reticulum Rough ER: has ribosomes attached. After proteins are made in the ribosomes they are inserted in the rough ER where they can be modified.

  24. Endoplasmic Reticulum Rough ER: from the ER, proteins are sent to the Golgi Apparatus

  25. Golgi Apparatus (UPS) • modifies, collects, and packages molecules in the cell. • Also distributes the molecules to where they need to be in the cell.

  26. Golgi Apparatus

  27. Lysosomes • Cleanup crews for the cell. • Lysosomes are formed in the Golgi apparatus.

  28. Lysosomes • Contain chemicals and enzymes that digest and breakdown waste particles.

  29. Lysosome in action:

  30. Vacuoles (Warehouse) • Storage tanks in the cell. • Store materials like water, salts, proteins, and carbohydrates. • Plants have only one big vacuole filled primarily with water.

  31. Vacuoles (Warehouse)

  32. Cytoskeleton • The framework of the cell. • Made of microfilaments and microtubules • Provide support and are often involved in cell movement.

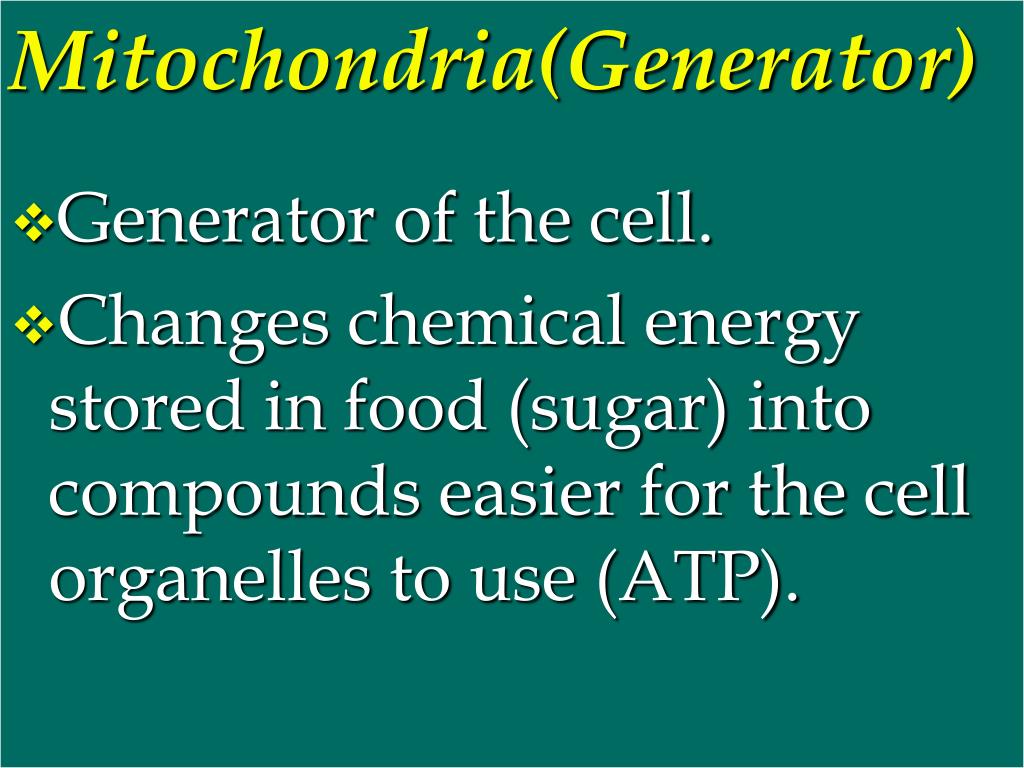

  33. Mitochondria(Generator) • Generator of the cell. • Changes chemical energy stored in food (sugar) into compounds easier for the cell organelles to use (ATP).

  34. Mitochondrion

  35. Chloroplast (Solar Panel) • Where photosynthesis takes place • Found only in plant cells and algae.

  36. Chloroplast (Solar Panel) • Traps energy from sunlight and changes it into chemical energy (makes sugars).

  37. Plant Cell Chloroplast

  38. Cell Wall • In addition to the cell membrane, plant (& fungus) cells have a cell wall. • Provides extra support. • Made up of cellulose and lignin

  39. Cell WallFound outside the cell membrane

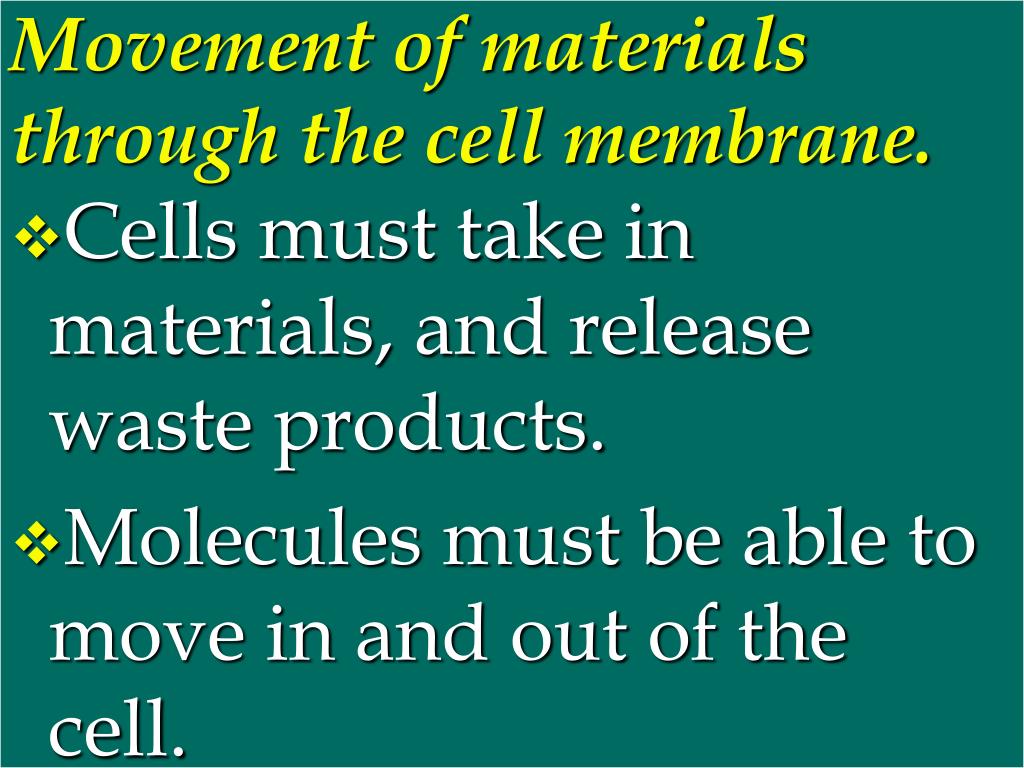

  40. Movement of materials through the cell membrane. • Cells must take in materials, and release waste products. • Molecules must be able to move in and out of the cell.

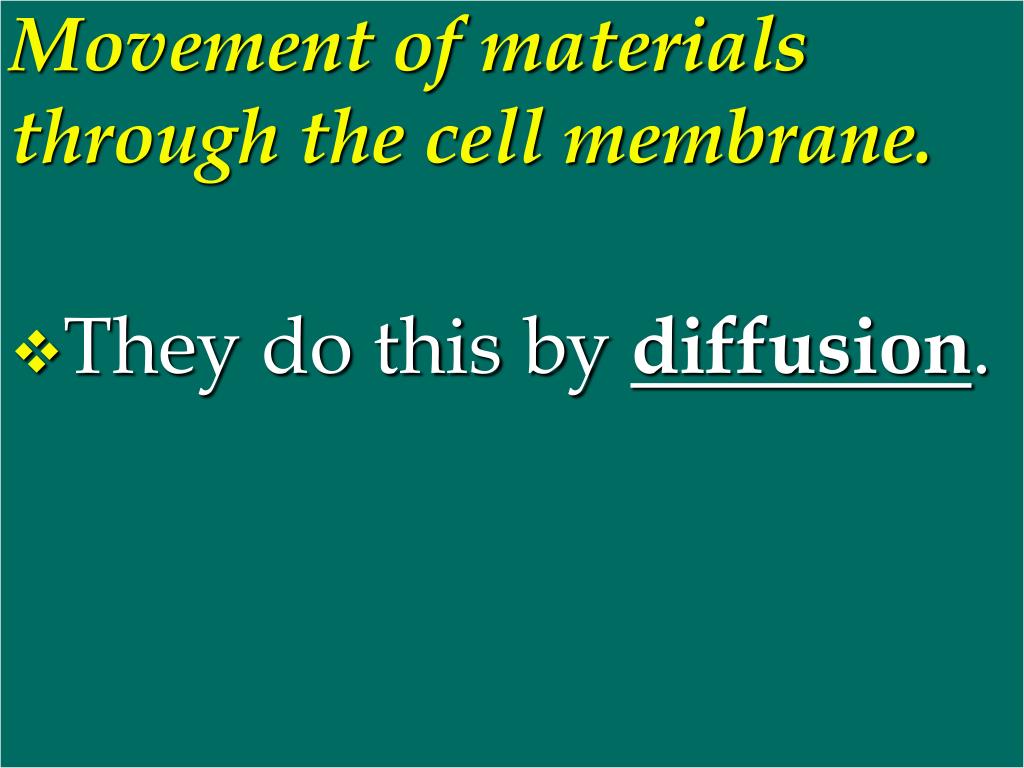

  41. Movement of materials through the cell membrane. • They do this by diffusion.

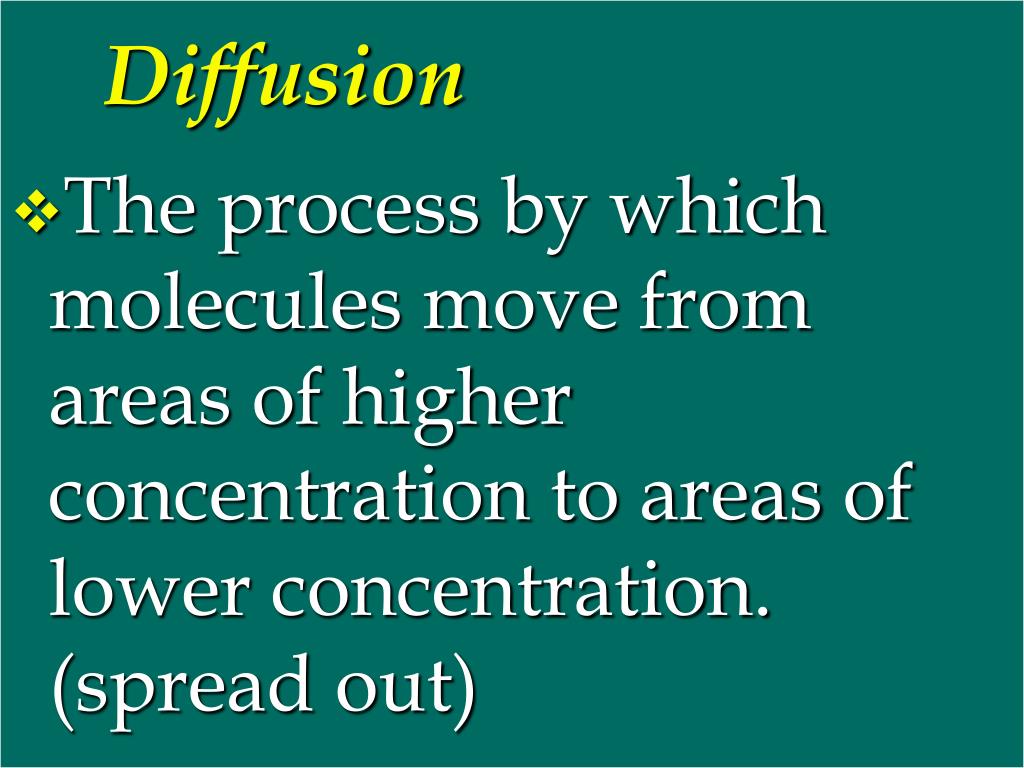

  42. Diffusion • The process by which molecules move from areas of higher concentration to areas of lower concentration. (spread out)

  43. Diffusion • Driven by the random movement of molecules.

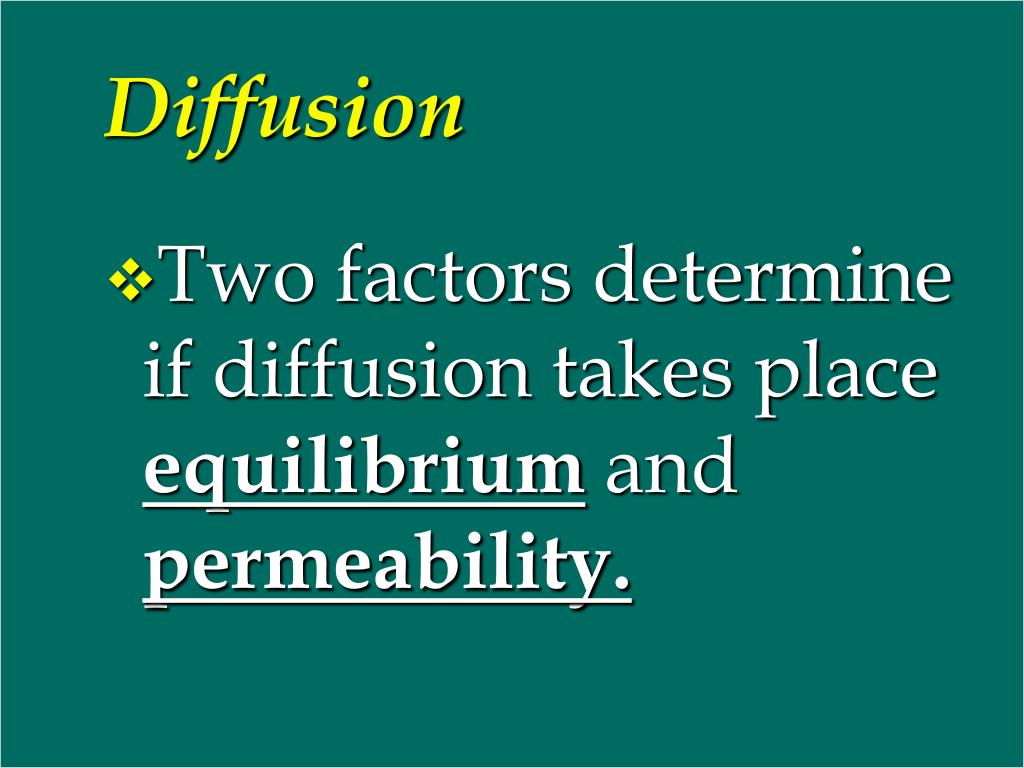

  44. Diffusion • Two factors determine if diffusion takes place equilibrium and permeability.

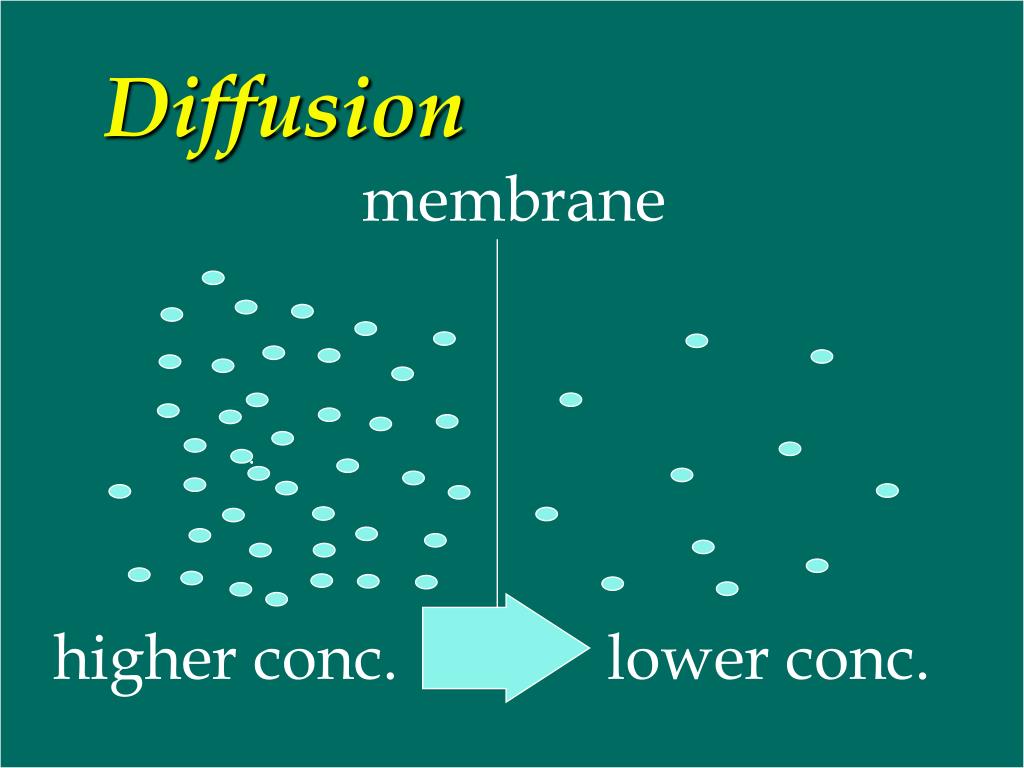

  45. Diffusion membrane higher conc. lower conc.

  46. Equilibrium • Equilibrium is when the concentrations on both sides of the membrane are equal.

  47. Equilibrium Semi-permeable membrane

  48. Permeability • If a molecule can diffuse across a membrane, the membrane is permeable.

  49. Permeability • If a molecule cannot diffuse across a membrane, the membrane is impermeable to that membrane.
