Cell Structure and Function

Cell Structure and Function. Chapter 4. commons.wikimedia.org/wiki/File:SEM_blood_cel. xenophilius.wordpress.com/2008/09/21/. What is a Cell?. The smallest unit of matter that can carry all processes of life. Structure directly related to Function ≈ 10-100 trillion cell in the human body

ivan-cunningham
Télécharger la présentation

Cell Structure and Function

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

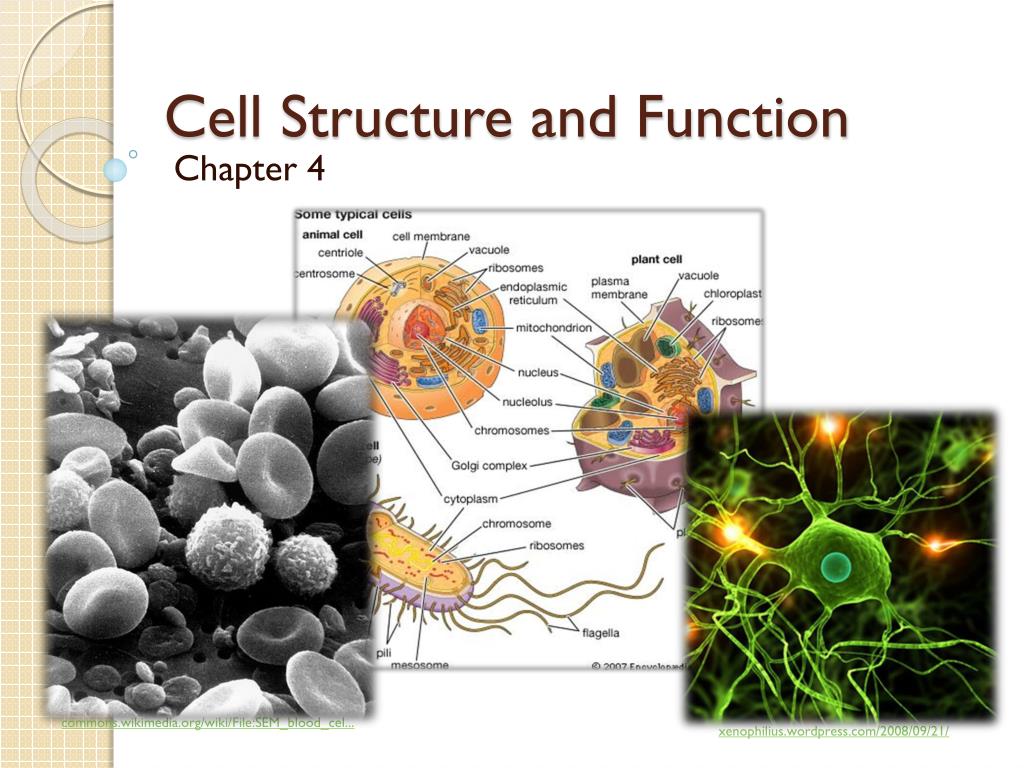

  1. Cell Structure and Function Chapter 4 commons.wikimedia.org/wiki/File:SEM_blood_cel... xenophilius.wordpress.com/2008/09/21/

  2. What is a Cell? • The smallest unit of matter that can carry all processes of life. • Structure directly related to Function • ≈ 10-100 trillion cell in the human body • All cells are not created equal • cell diversity-cells differ in shape, size, and organization • Limited in size by surface area to volume ratio • Shape indicates function • At least 200 cell types in your body! www.tutorvista.com/.../structure-cell.php

  3. Background Check • Cell Discovery: • Possible by development of microscope • Robert Hooke-examined cork • Anton van Leeuwenhoek-1st to observe living cells • Cell Theory: • All living things are composed of one or more cells • Cells are the basic units of structure and function in an organism • Cells come only from the reproduction of existing cells www.microbeworld.org/index.php?option=com_con... askabiologist.asu.edu/.../rhooke.html

  4. Eukaryotes Vs. Prokaryotes • Eukaryotes: • Membrane-bound nucleus and organelles • Example(s): YOU, animals, plants, fungi, protists • Prokaryotes: • Lack nucleus and membrane-bound organelles • Example(s): bacteria www.uoregon.edu/~bsl/astronomy/

  5. Cell Membrane • Surrounds entire cell • Selectively permeable – some substances pass with ease while others cannot pass at all • Made of: -- Lipids and proteins • Fluid Mosaic Model commons.wikimedia.org/wiki/File:Cell_membrane...

  6. Membrane Lipids and Proteins • Phospholipids • Polar head: hydrophilic • Nonpolar tails: hydrophobic • Forms lipid bilayer • Steroids • Cholesterol main steroid in animal cells • Stabilize membrane/maintain fluidity • Proteins • Peripheral proteins: on exterior or interior surface of cell membrane • Integral proteins: embedded in lipid bilayer • Carbohydrates: involved with self recognition and attachment • Transport of molecules through bilayer (channels or pores)

  7. Cytoplasm/Cytosol • Cytoplasm: • Area between cell membrane and nucleus contains organelles • Cytosol: • Gelatin-like aqueous in cytoplasm • Salts, minerals, organic molecules

  8. Mitochondria • Site of chemical reactions producing ATP – “power house” • Own DNA and grow and divide on own • 2 membranes • Smooth outer: boundary • Inner: cristae (folds)- enlarge surface area for reactions www.yellowtang.org/cells.php

  9. Ribosomes • No membrane • Two compounds- proteins and RNA • Assembled in nucleus • Free or attached to Endoplasmic reticulum • Role: protein synthesis www.biologie.uni-hamburg.de/b-online/library/...

  10. Endoplasmic Reticulum (ER) • System of membranous tubules and sacs • Function: intracellular highway • 2 types: • Rough- has ribosomes • cells with high rate of proteins being exported out or inserted into membrane • Smooth- no ribosomes • calcium regulation in muscle cells • Breaks down toxic materials www.yellowtang.org/cells.php

  11. Golgi Apparatus • The UPS of the cell • Packaging, processing, and secreting proteins • System of membranes/sacs • Works closely with ER www.yellowtang.org/cells.php

  12. Lysosomes • Small and spherical • Enclose hydrolytic enzymes • Enzyme use: • Digest- proteins, carbohydrates, lipids, RNA, DNA • Digest- old organelles, viruses, and bacteria • Common in: • Animals, fungi, and protists • RARE in plants

  13. Cytoskeleton • Long protein strands in cytosol • maintain cell shape and size • support and movement • No membrane • 2 Components: • Microfilaments- • Actin polymer chains • Smallest • Contribute to movement and contraction of muscle • Microtubules- • hollow tubes • Largest • Active role in cell division- spindle fibers

  14. Cilia and Flagella • Cilia • Hair-like organelles • Numerous on cell • Crawling motion • Help unicellular bacteria search for food/escape • On surface of respiratory tract • Flagella • Hair-like organelles • Long, less numerous • Swimming/whipping motion • Quick movement for unicellular organisms

  15. Nucleus- “the brain” • Nuclear matrix • Protein skeleton • Maintains shape • Nuclear envelope • Double membrane • Chromatin within • DNA and protein combination • Coil for cell division forming chromosomes • Nuclear Pores-visible • Holes in envelope • Nucleolus-visible • Ribosome synthesis/partially assembled www.cartage.org.lb/.../Nucleus/Nucleus.htm

  16. Cell Wall- Plant cells • Outside cell membrane • Rigid- support and protection • Long chains of cellulose • Pores-allow passage of ions and molecules • 2 types • Primary- when cell being formed • Secondary- when cell reaches full size • Between primary wall and membrane • Tough and woody www.microscopy-uk.org.uk/.../fixation.html

  17. Vacuoles- Plant cells • Fluid-filled • Often large can occupy up to 90% of cell volume • Storage: • Store enzymes and metabolic waste • Some waste toxic- can be a defense www.yellowtang.org/cells.php

  18. Plastids- Plant cells • Double membrane and contains DNA • Store: • Starch, fats, or pigments • Chloroplast- most common • Chlorophyll- green pigment • Thylakoids: system of flattened, membranous sacs • Sunlight converted to chemical energy- Photosynthesis • Other plastids contian pigments that give fruit and flowers color www.yellowtang.org/cells.php
