# Traveling Wave

Traveling Wave. Transient Overvoltages. 1.Introduction. Transient Phenomenon : Aperiodic function of time Short duration

Télécharger la présentation

## Traveling Wave

An Image/Link below is provided (as is) to download presentation Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

### Presentation Transcript

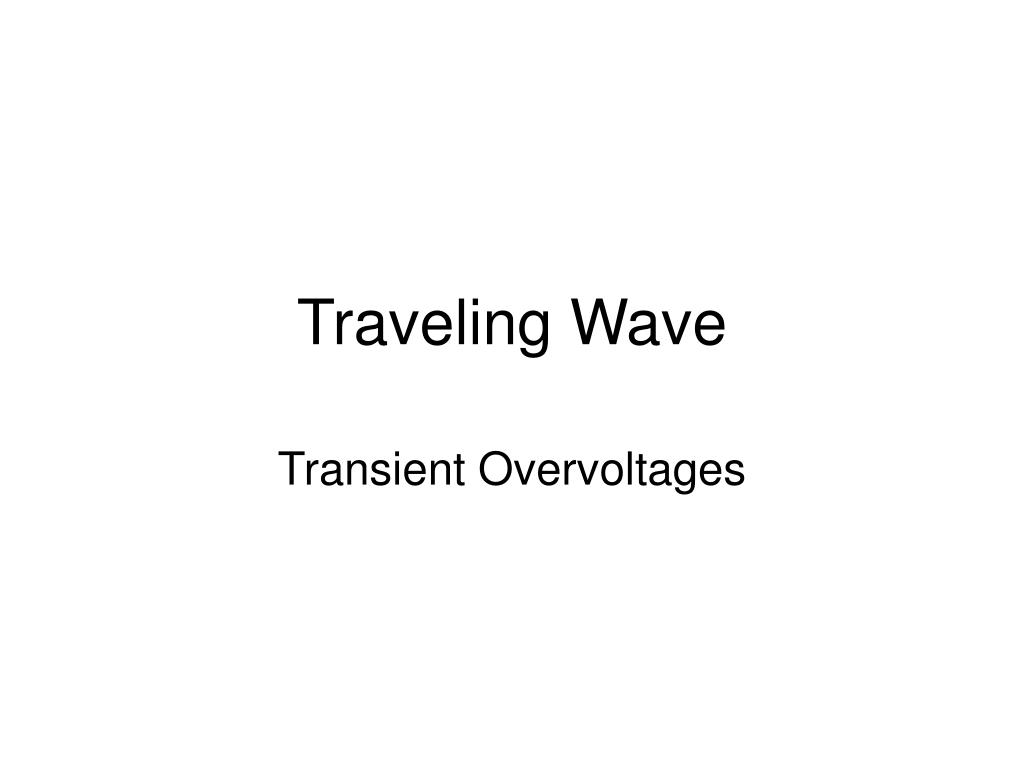

1. Traveling Wave Transient Overvoltages

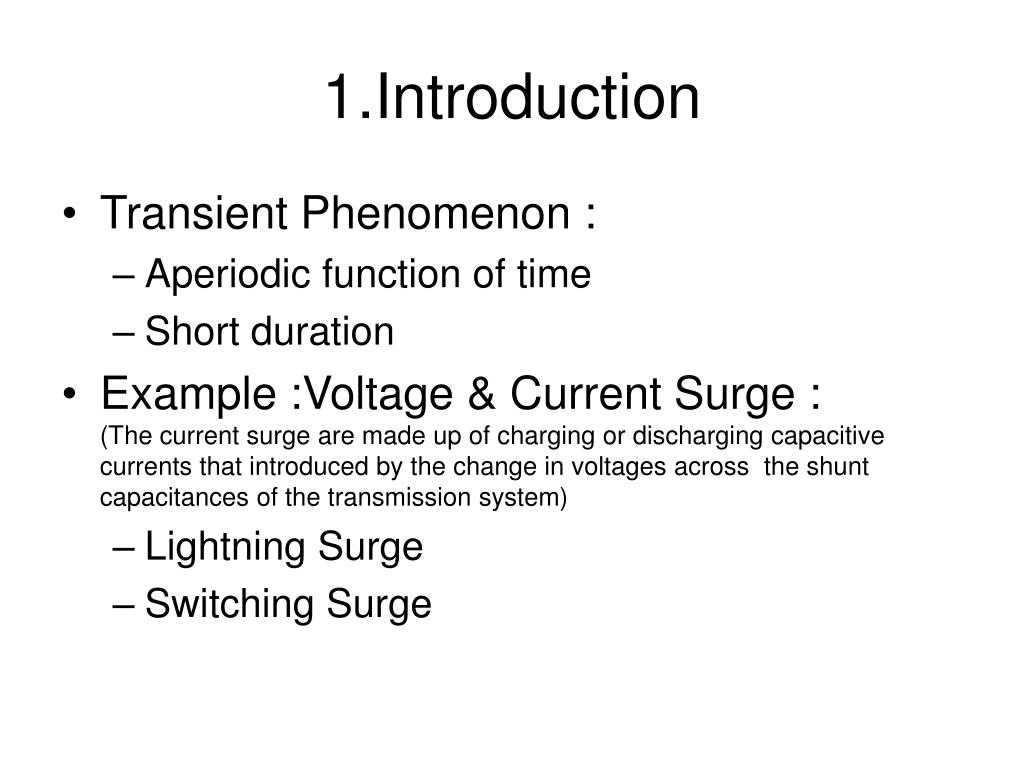

2. 1.Introduction • Transient Phenomenon : • Aperiodic function of time • Short duration • Example :Voltage & Current Surge :(The current surge are made up of charging or discharging capacitive currents that introduced by the change in voltages across the shunt capacitances of the transmission system) • Lightning Surge • Switching Surge

3. Impulse Voltage Waveform

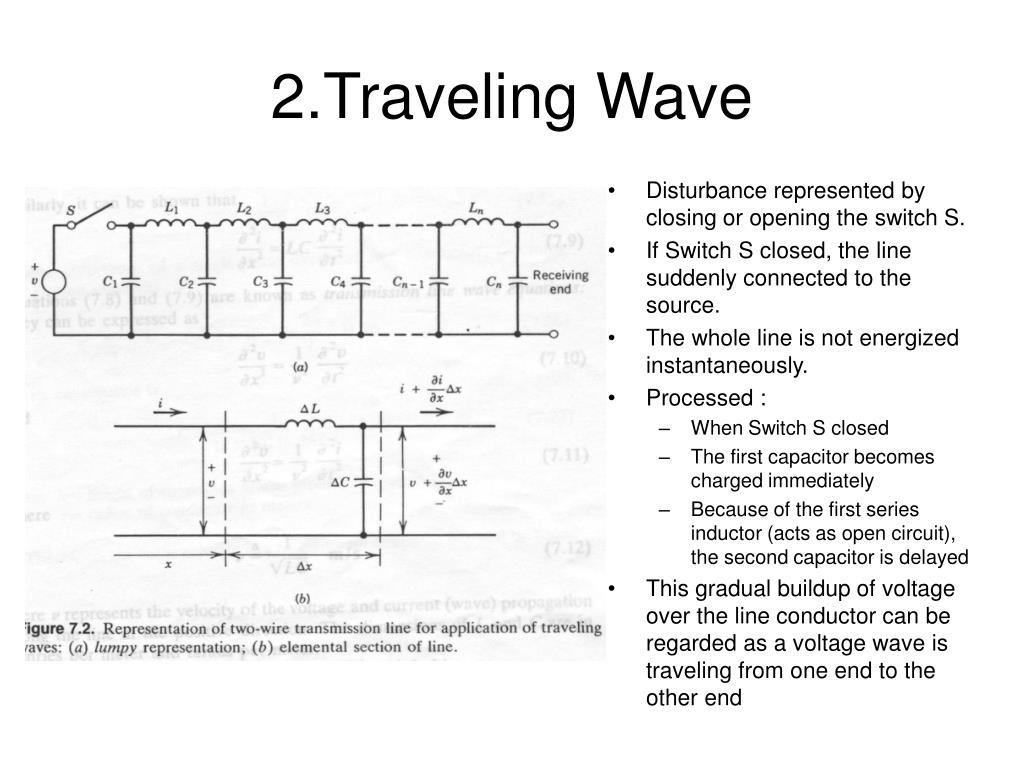

4. 2.Traveling Wave • Disturbance represented by closing or opening the switch S. • If Switch S closed, the line suddenly connected to the source. • The whole line is not energized instantaneously. • Processed : • When Switch S closed • The first capacitor becomes charged immediately • Because of the first series inductor (acts as open circuit), the second capacitor is delayed • This gradual buildup of voltage over the line conductor can be regarded as a voltage wave is traveling from one end to the other end

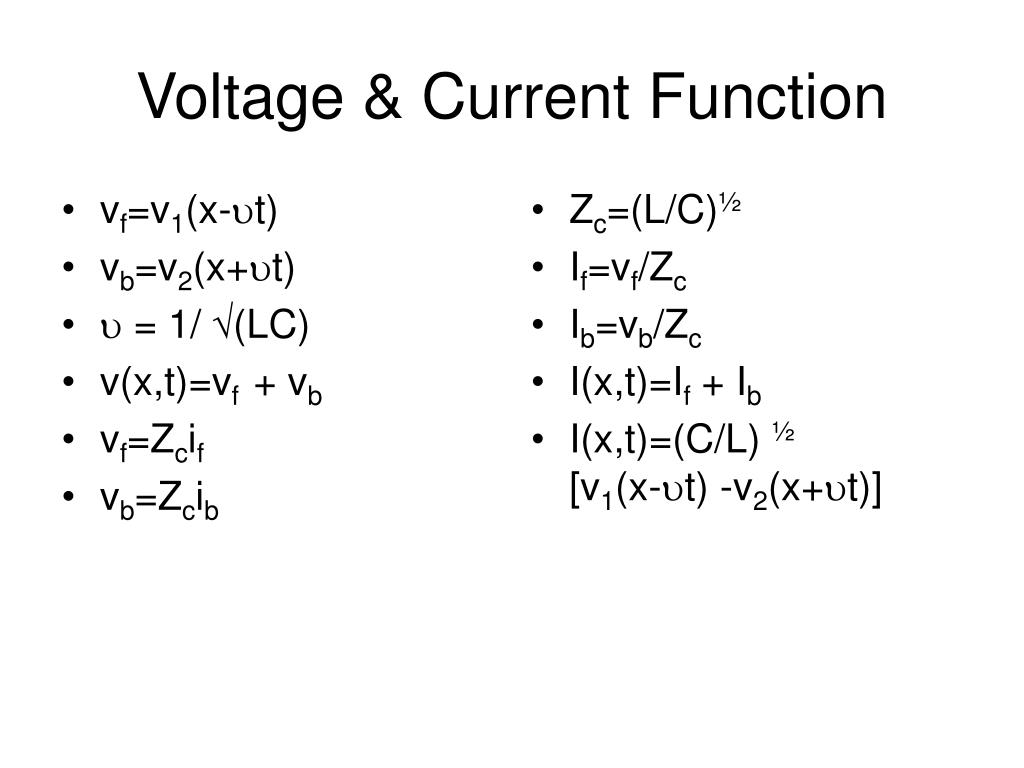

5. vf=v1(x-t) vb=v2(x+t)  = 1/(LC) v(x,t)=vf + vb vf=Zcif vb=Zcib Zc=(L/C)½ If=vf/Zc Ib=vb/Zc I(x,t)=If + Ib I(x,t)=(C/L) ½[v1(x-t) -v2(x+t)] Voltage & Current Function

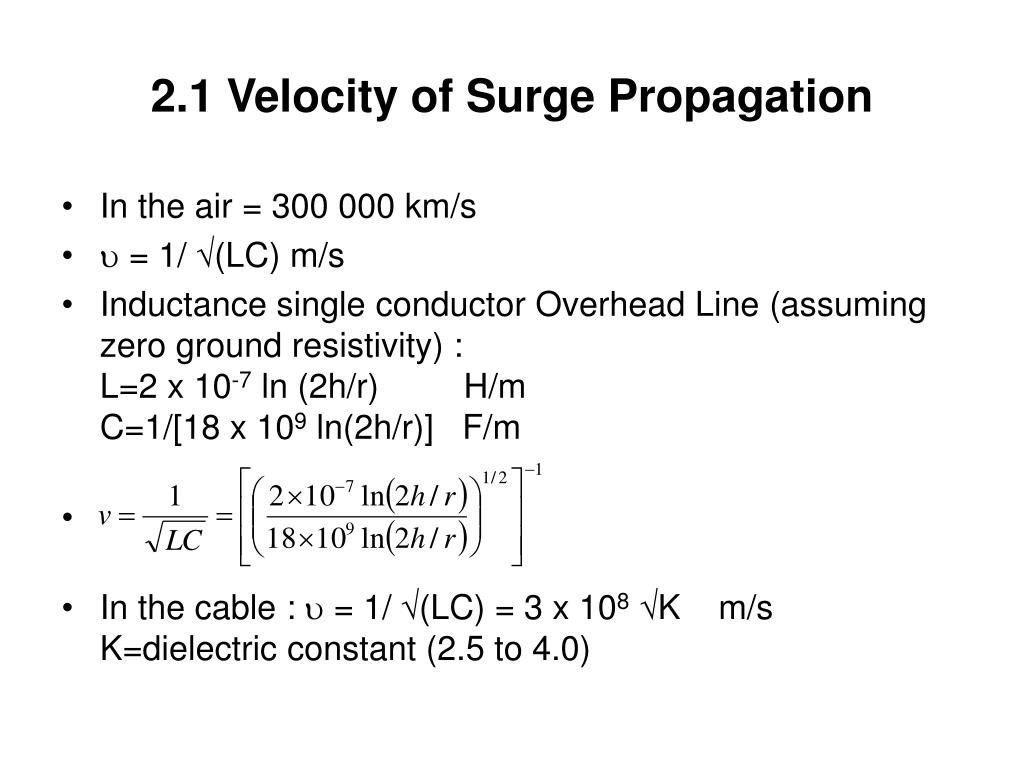

6. 2.1 Velocity of Surge Propagation • In the air = 300 000 km/s •  = 1/(LC) m/s • Inductance single conductor Overhead Line (assuming zero ground resistivity) :L=2 x 10-7 ln (2h/r) H/mC=1/[18 x 109 ln(2h/r)] F/m • In the cable :  = 1/(LC) = 3 x 108 K m/sK=dielectric constant (2.5 to 4.0)

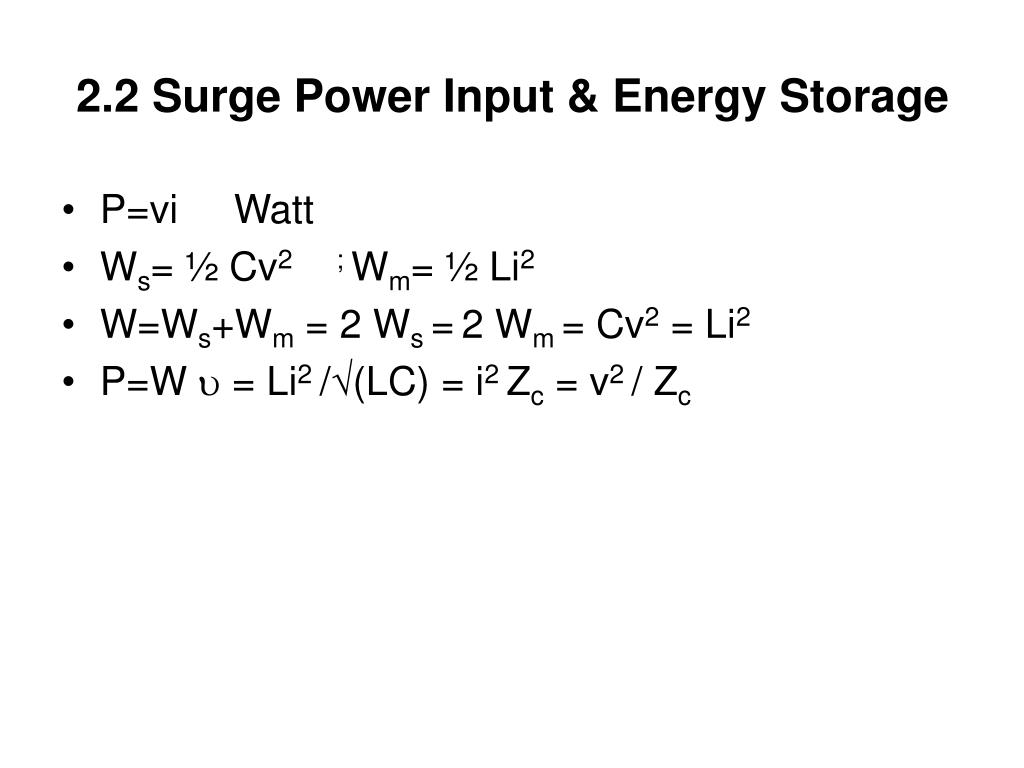

7. 2.2 Surge Power Input & Energy Storage • P=vi Watt • Ws= ½ Cv2 ; Wm= ½ Li2 • W=Ws+Wm = 2 Ws =2 Wm = Cv2 = Li2 • P=W  = Li2 /(LC) = i2 Zc = v2 / Zc

8. 2.3 Superposition of Forward and Backward-Traveling Wave

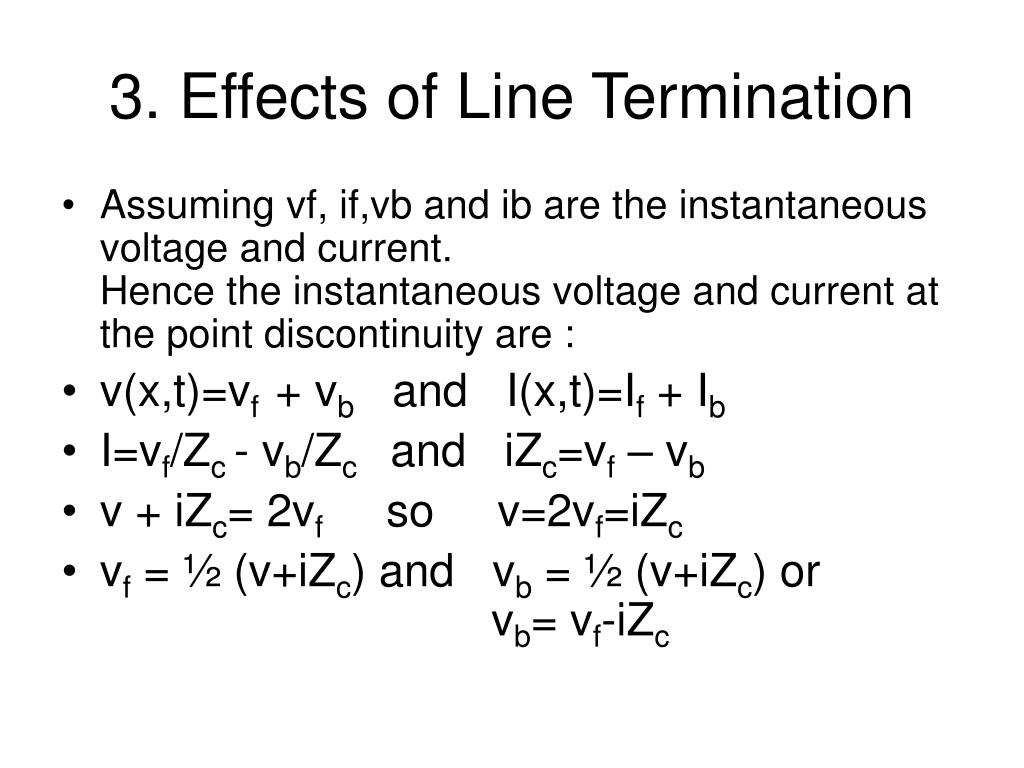

9. 3. Effects of Line Termination • Assuming vf, if,vb and ib are the instantaneous voltage and current. Hence the instantaneous voltage and current at the point discontinuity are : • v(x,t)=vf + vb and I(x,t)=If + Ib • I=vf/Zc - vb/Zc and iZc=vf – vb • v + iZc= 2vf so v=2vf=iZc • vf = ½ (v+iZc) and vb = ½ (v+iZc) or vb= vf-iZc

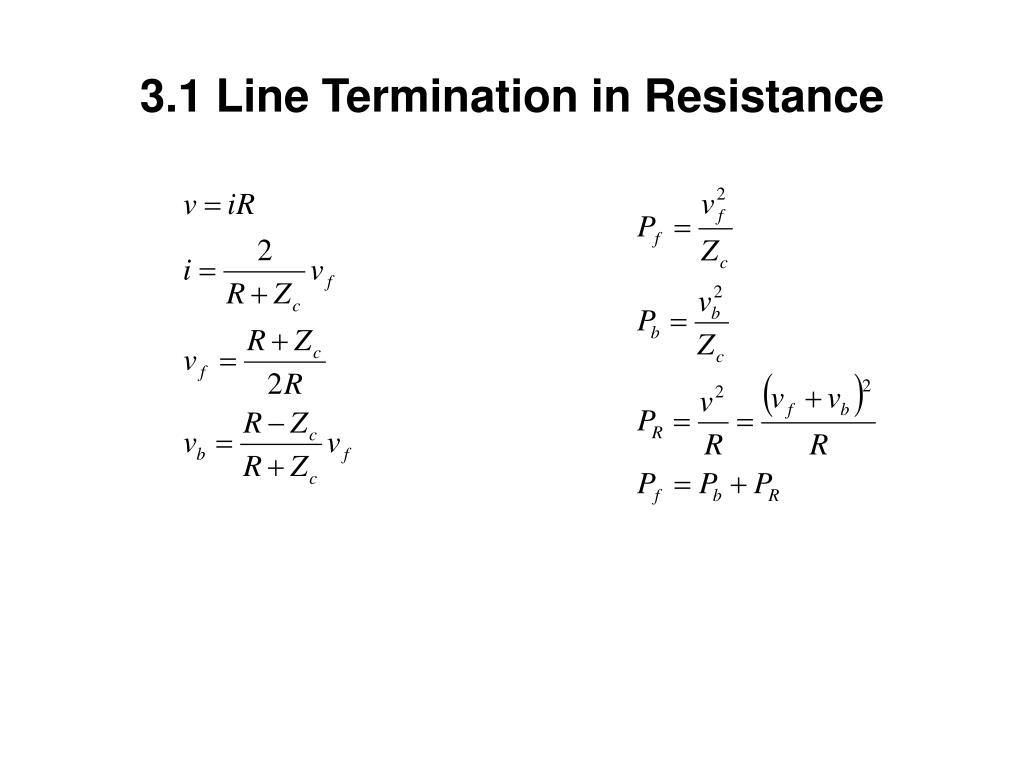

10. 3.1 Line Termination in Resistance

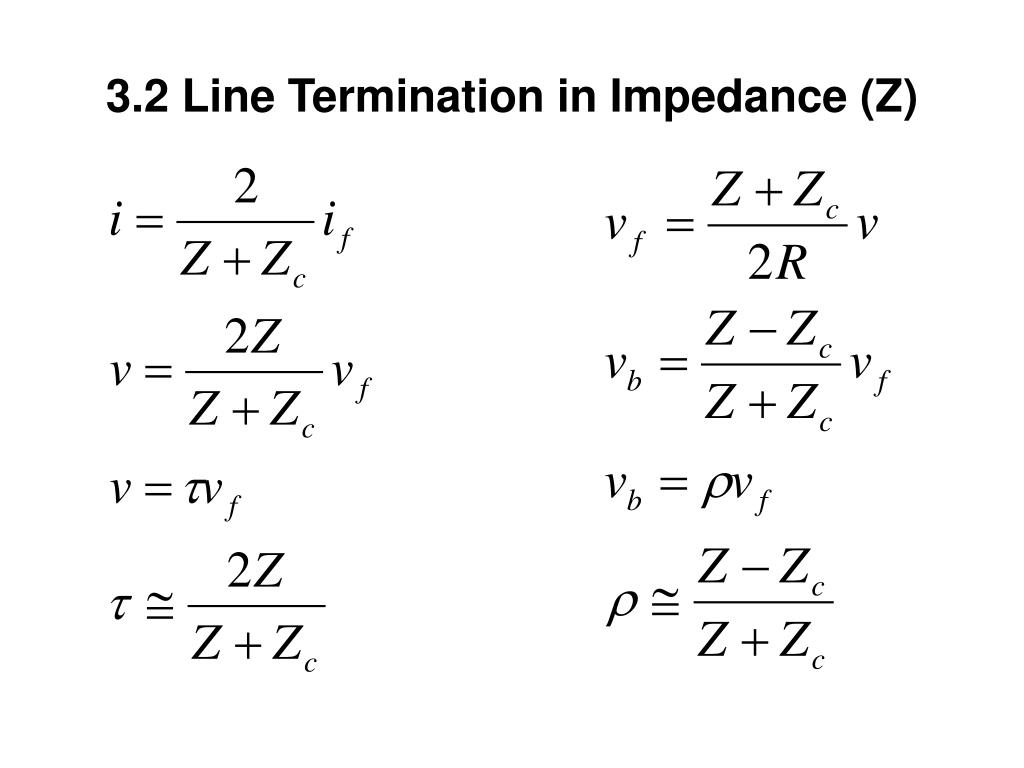

11. 3.2 Line Termination in Impedance (Z)

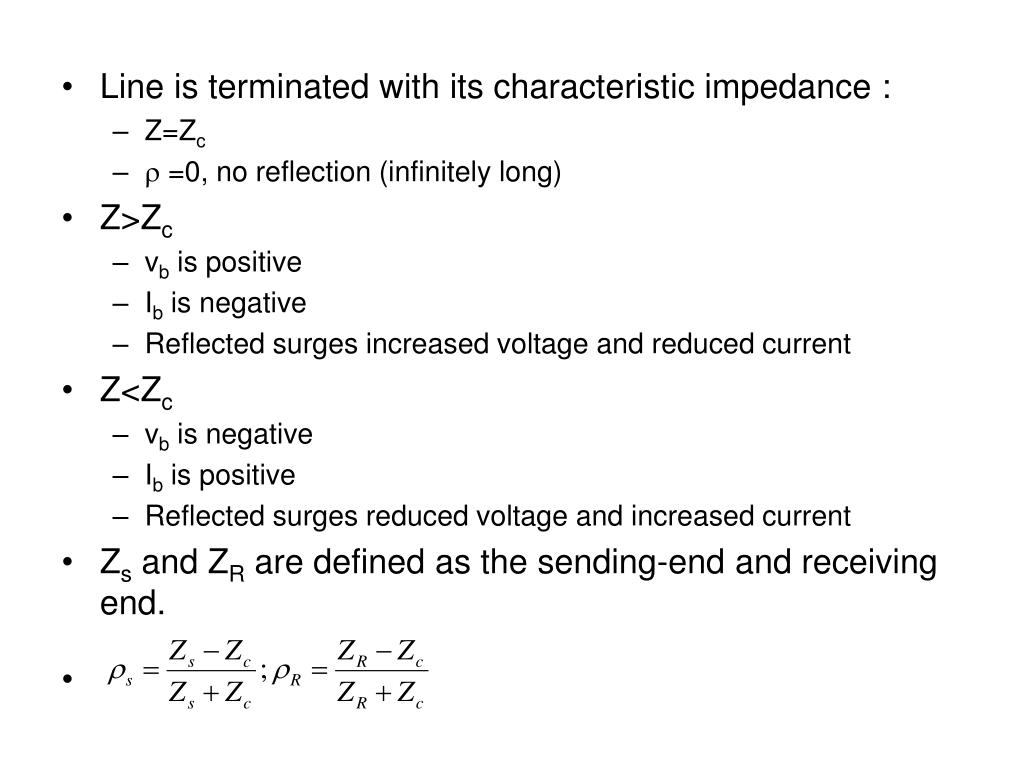

12. Line is terminated with its characteristic impedance : • Z=Zc •  =0, no reflection (infinitely long) • Z>Zc • vb is positive • Ib is negative • Reflected surges increased voltage and reduced current • Z<Zc • vb is negative • Ib is positive • Reflected surges reduced voltage and increased current • Zs and ZR are defined as the sending-end and receiving end.

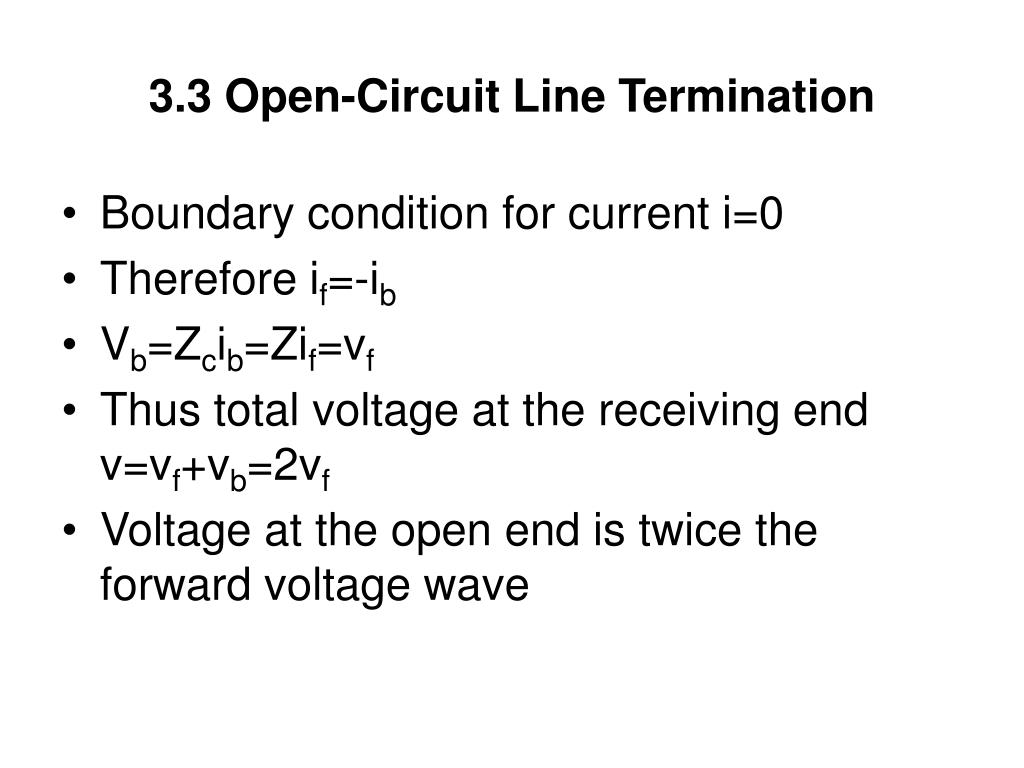

13. 3.3 Open-Circuit Line Termination • Boundary condition for current i=0 • Therefore if=-ib • Vb=Zcib=Zif=vf • Thus total voltage at the receiving endv=vf+vb=2vf • Voltage at the open end is twice the forward voltage wave

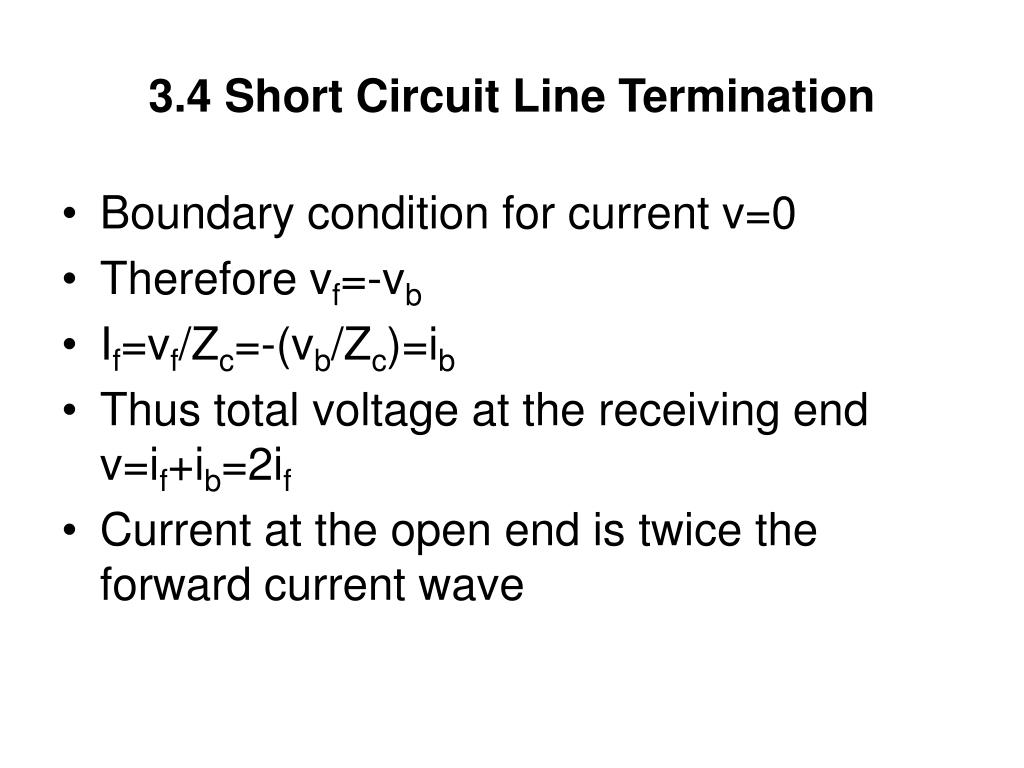

14. 3.4 Short Circuit Line Termination • Boundary condition for current v=0 • Therefore vf=-vb • If=vf/Zc=-(vb/Zc)=ib • Thus total voltage at the receiving endv=if+ib=2if • Current at the open end is twice the forward current wave

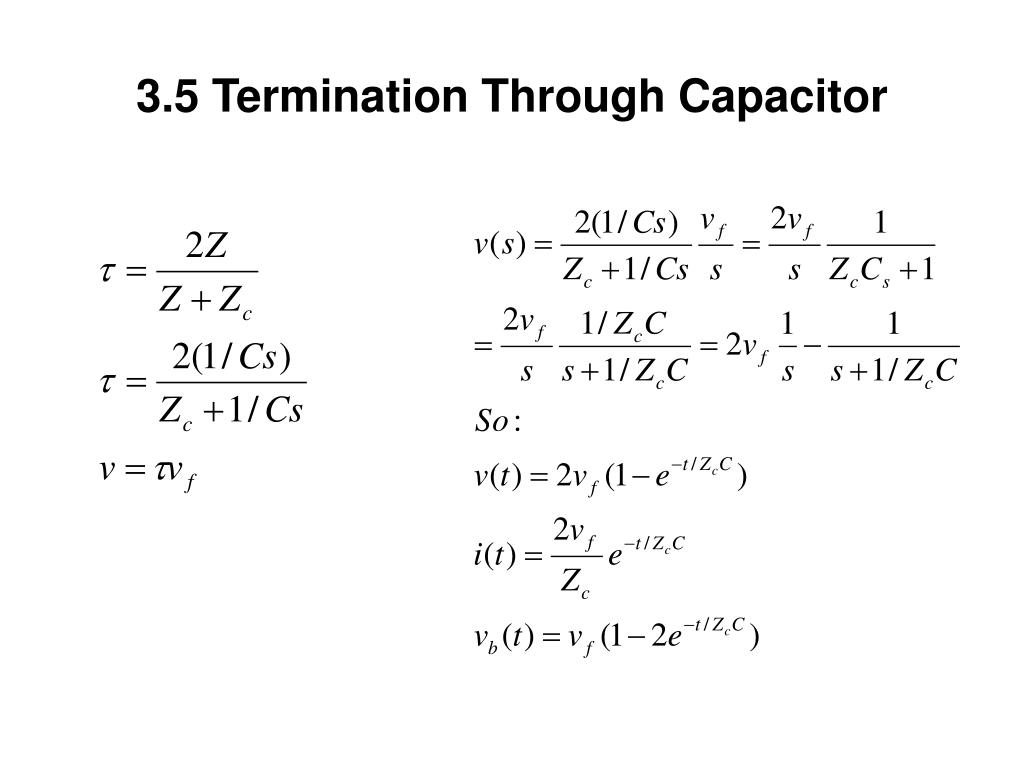

15. 3.5 Termination Through Capacitor

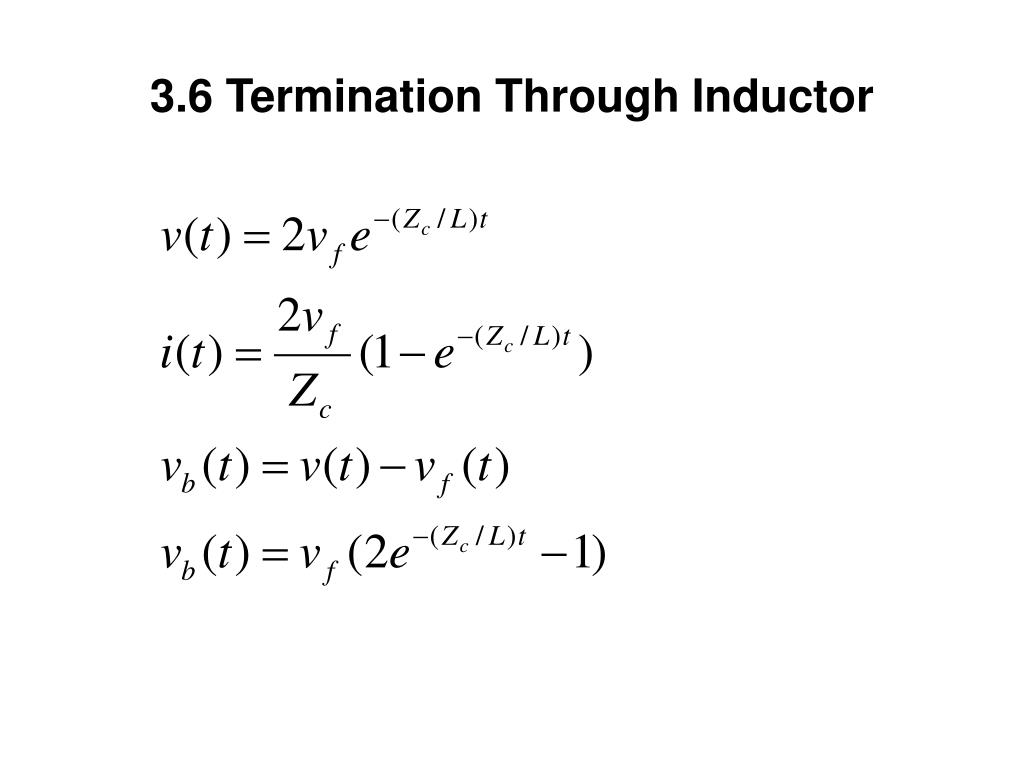

16. 3.6 Termination Through Inductor

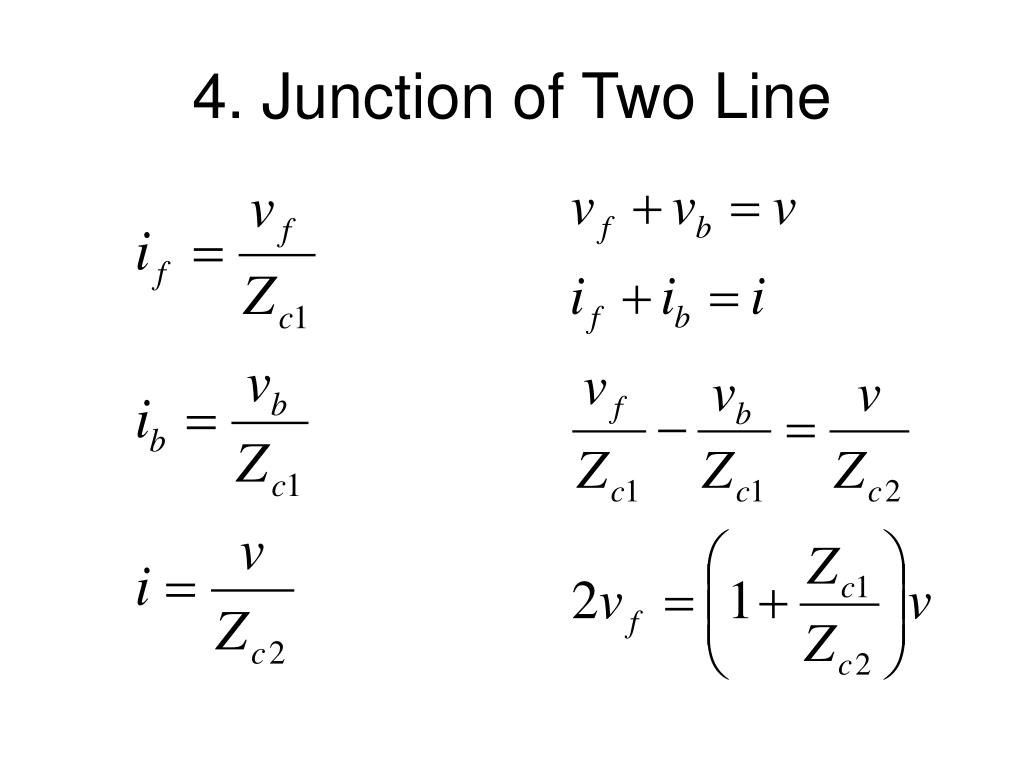

17. 4. Junction of Two Line

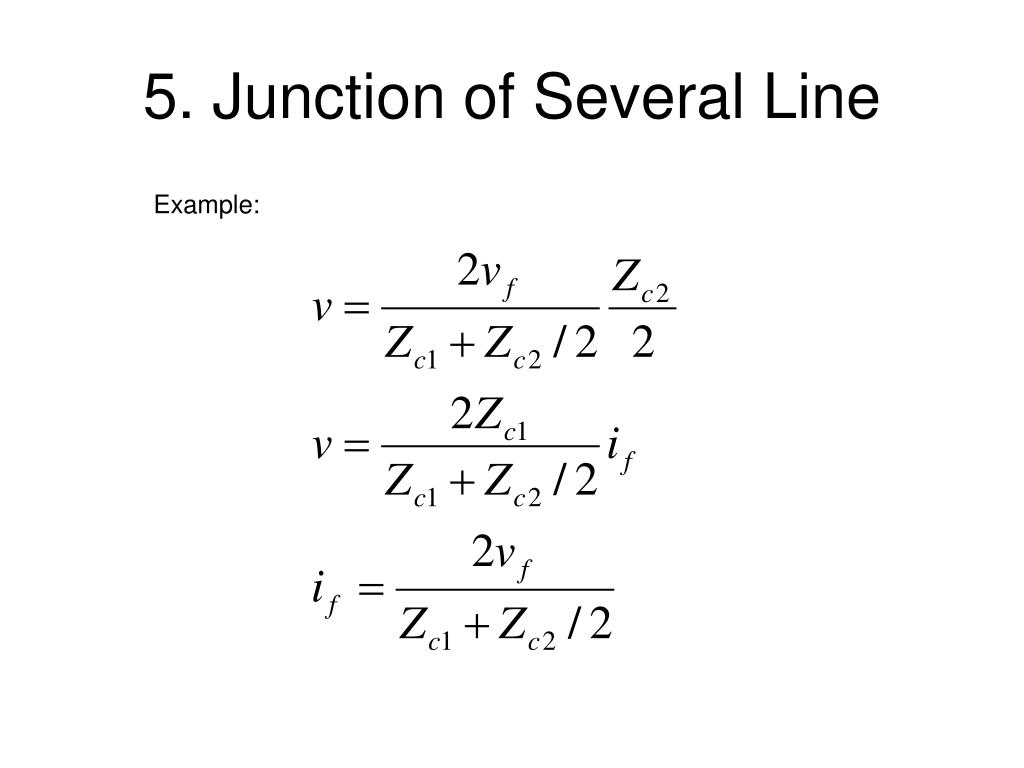

18. 5. Junction of Several Line Example:

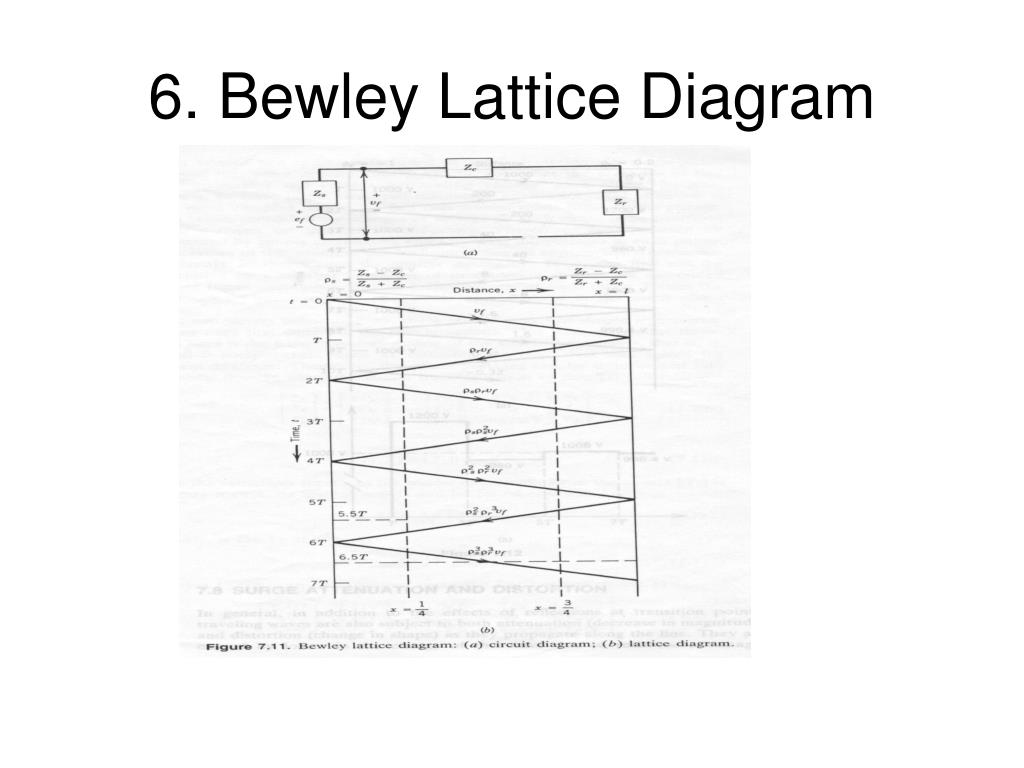

19. 6. Bewley Lattice Diagram
