Distributed Query Processing

1. Distributed Query Processing Based on “The state of the art in distributed query processing” Donald Kossman (ACM Computing Surveys, 2000)

2. Motivation • Cost and scalability: network of off-shelf machines • Integration of different software vendors (with own DBMS) • Integration of legacy systems • Applications inherently distributed, such as workflow or collaborative-design • State-of-the-art distributed information technologies (e-businesses)

3. Part 1 : Basics • Query Processing Basics • centralized query processing • distributed query processing

4. Problem Statement • Input: Query such as „Biological objects in study A referenced in a literature in journal Y“. • Output: Answer • Objectives: • response time, throughput, first answers, little IO, ... • Centralized vs. Distributed Query Processing • same basic problem • but, more and different parameters, such(data sites or available machine power) and objectives

5. Steps in Query Processing • Input: Declarative Query • SQL, XQuery, ... • Step 1: Translate Query into Algebra • Tree of operators (query plan generation) • Step 2: Optimize Query • Tree of operators (logical) - also select partitions of table • Tree of operators (physical) – also site annotations • (Compilation) • Step 3: Execution • Interpretation; Query result generation

6. Algebra A.d SELECT A.d FROM A, B WHERE A.a = B.b AND A.c = 35 • relational algebra for SQL very well understood • algebra for XQuery mostly understood A.a = B.b, A.c = 35 X A B

7. Query Optimization A.d A.d • logical, e.g., push down cheap predicates • enumerate alternative plans, apply cost model • use search heuristics to find cheapest plan A.a = B.b, A.c = 35 hashjoin X B.b A B index A.c B

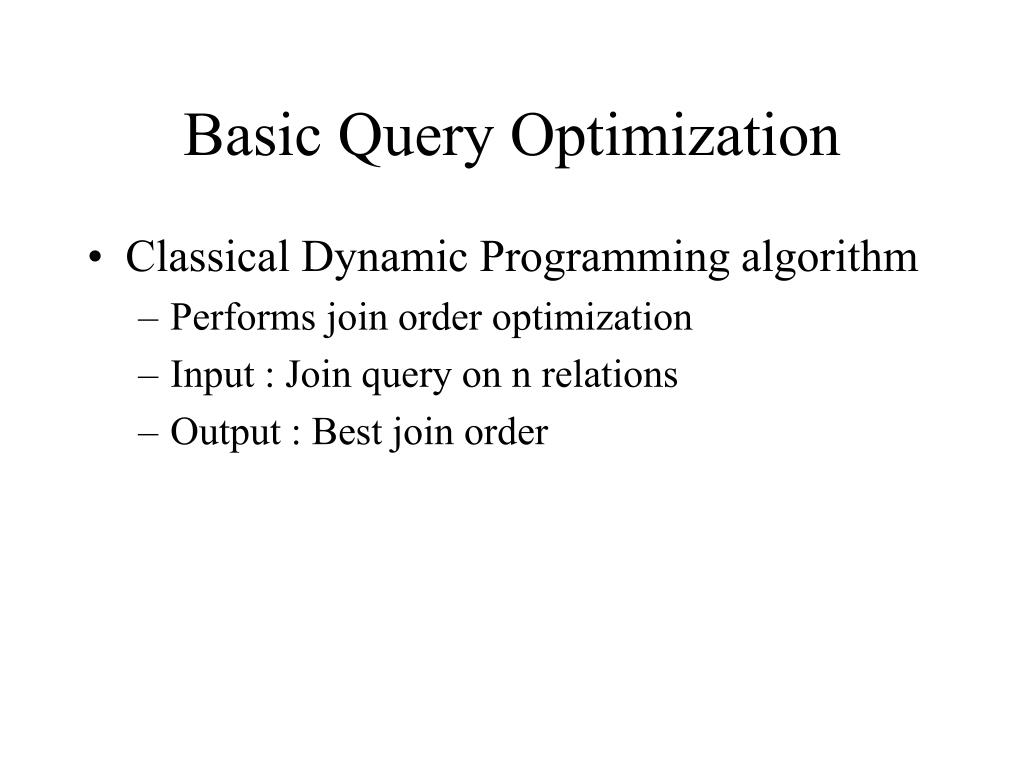

8. Basic Query Optimization • Classical Dynamic Programming algorithm • Performs join order optimization • Input : Join query on n relations • Output : Best join order

9. The Dynamic Prog. Algorithm for i = 1 to n do { optPlan({Ri}) = accessPlans(Ri) prunePlans(optPlan({Ri})) } for i = 2 to n do for all S  { R1, R2 … Rn } such that |S| = i do { optPlan(S) =  for all O  S do { optPlan(S) = optPlan(S)  joinPlans(optPlan(O), optPlan(S – O)) prunePlans(optPlan(S)) } } return optPlan({R1, R2, … Rn})

10. Query Execution John A.d (John, 35, CS) • library of operators (hash join, merge join, ...) • exploit indexes and clustering in database • pipelining (iterator model) hashjoin (CS) (AS) (John, 35, CS) (Mary, 35, EE) B.b (Edinburgh, CS,5.0) (Edinburgh, AS, 6.0) index A.c B

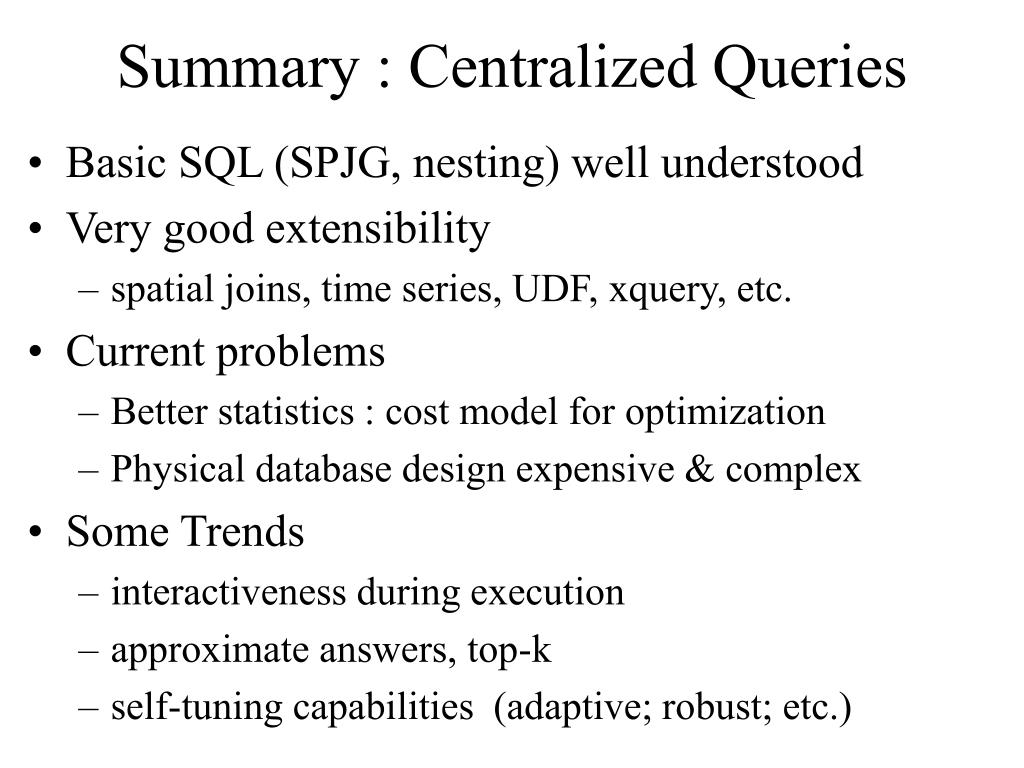

11. Summary : Centralized Queries • Basic SQL (SPJG, nesting) well understood • Very good extensibility • spatial joins, time series, UDF, xquery, etc. • Current problems • Better statistics : cost model for optimization • Physical database design expensive & complex • Some Trends • interactiveness during execution • approximate answers, top-k • self-tuning capabilities (adaptive; robust; etc.)

12. Distributed Query Processing: Basics • Idea: Extension of centralized query processing. (System R* et al. in 80s) • What is different? • extend physical algebra: send&receive operators • other metrics : optimize for response time • resource vectors, network interconnect matrix • caching and replication • less predictability in cost model (adaptive algos) • heterogeneity in data formats and data models

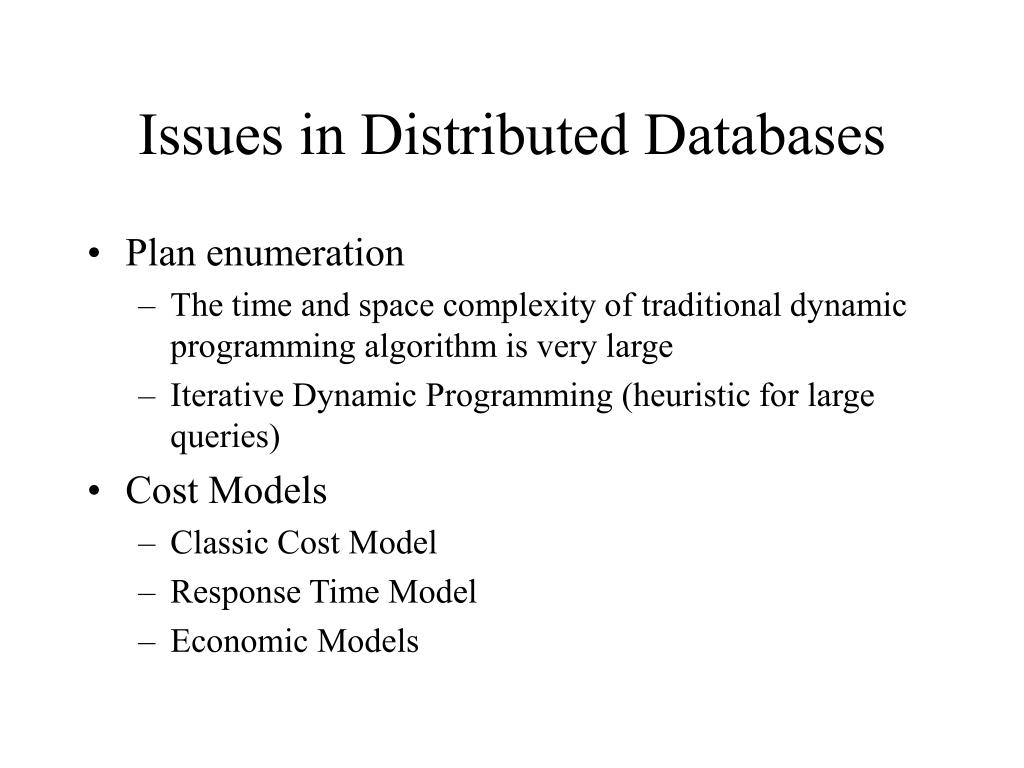

13. Issues in Distributed Databases • Plan enumeration • The time and space complexity of traditional dynamic programming algorithm is very large • Iterative Dynamic Programming (heuristic for large queries) • Cost Models • Classic Cost Model • Response Time Model • Economic Models

14. Distributed Query Plan A.d Forms Of Parallelism? hashjoin receive receive send send B.b index A.c B

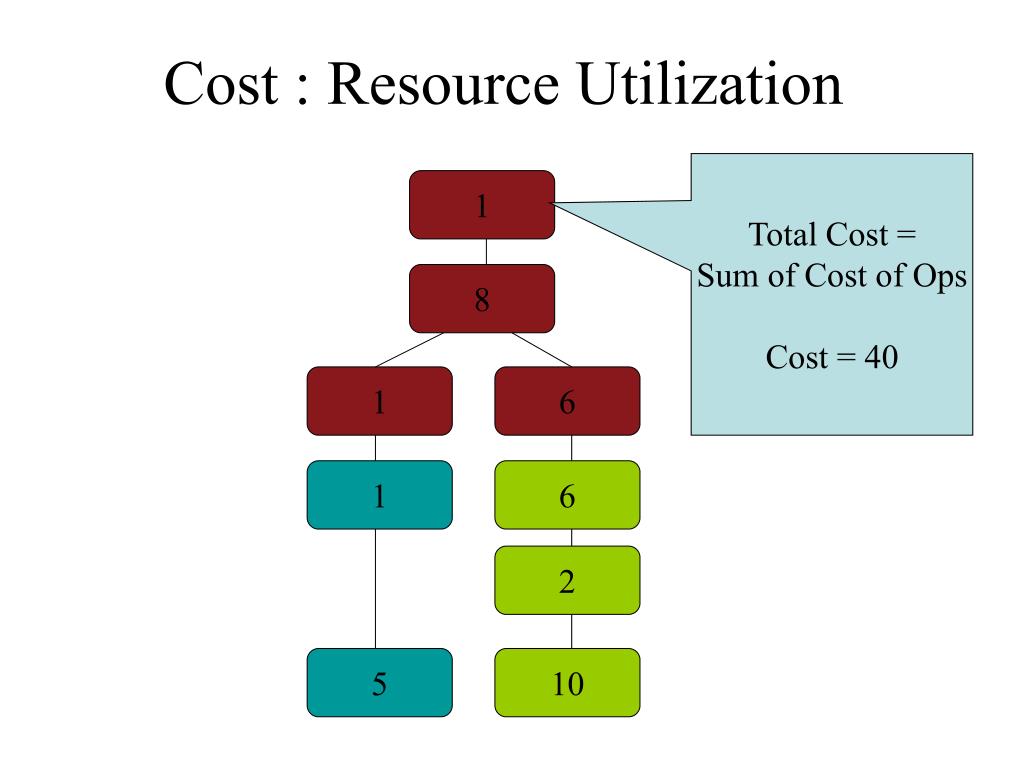

15. Cost : Resource Utilization Total Cost = Sum of Cost of Ops Cost = 40 1 8 1 6 1 6 2 5 10

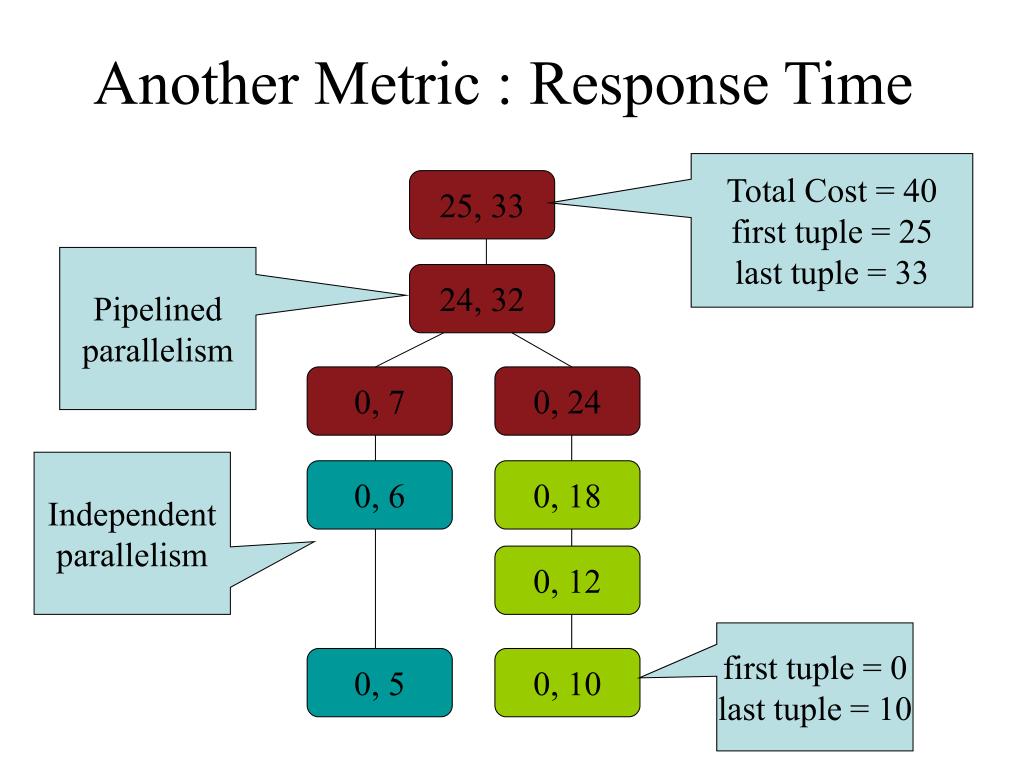

16. Another Metric : Response Time Total Cost = 40 first tuple = 25 last tuple = 33 25, 33 Pipelined parallelism 24, 32 0, 7 0, 24 Independent parallelism 0, 6 0, 18 0, 12 first tuple = 0 last tuple = 10 0, 5 0, 10

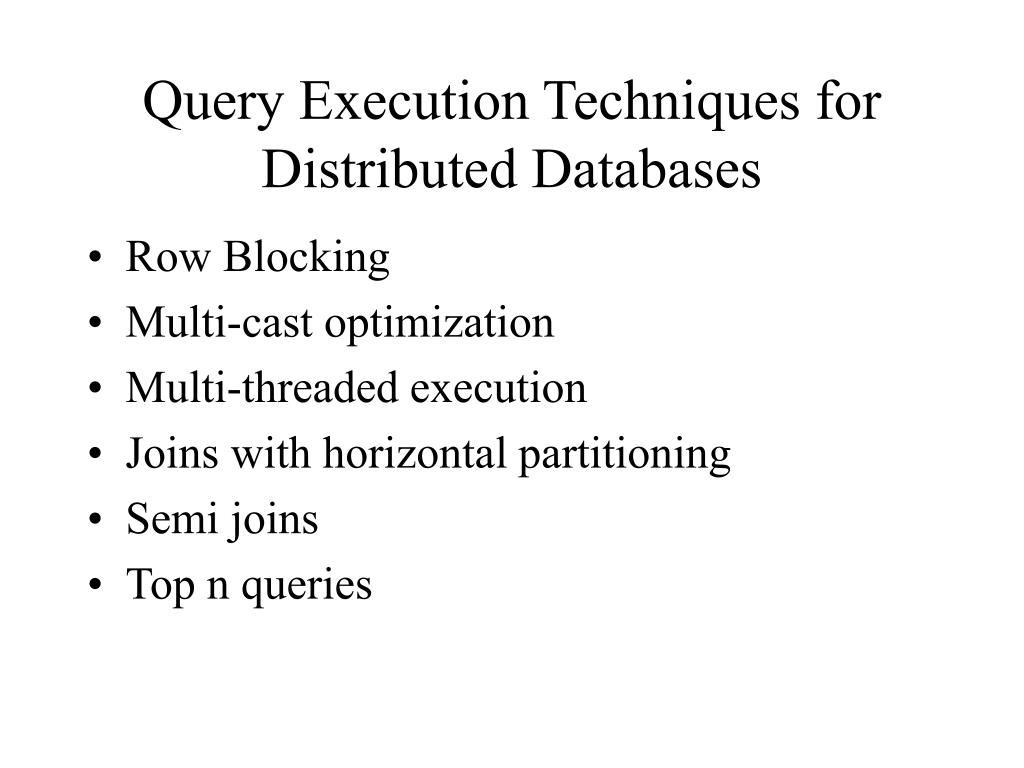

17. Query Execution Techniques for Distributed Databases • Row Blocking • Multi-cast optimization • Multi-threaded execution • Joins with horizontal partitioning • Semi joins • Top n queries

18. Query Execution Techniques for DD • Row Blocking – • SEND and RECEIVE operators in query plan to model communication • Implemented by TCP/IP, UDP, etc. • Ship tuples in block-wise fashion (batch); smooth burstiness

19. Query Execution Techniques for DD • Multi-cast Optimization • Location of sending/receiving may affect communication costs; forwarding versus multi-casting • Multi-threaded execution • Several threads for operators at the same site (intra-query parallelism) • May be useful to enable concurrent reads for diverse machines (while continuing query processing) • Must consider if resources warrant concurrent operator execution (say two sorts each needing all memory)

20. Query Execution Techniques for DD • Joins with Data (horizontal) partitioning: • Hash-based partitioning to conduct joins on independent partitions • Semi Joins : • Reduce communication costs; Send only “join keys” instead of complete tuples to the site to extract relevant join partners • Double-pipelined hash joins : • Non-blocking join operators to deliver first results quickly; fully exploit pipelined parallelism, and reduce overall response time • Top n queries : • Isloate top n tuples quickly and only perform other expensive operations (like sort, join, etc) on those few (use “stop” operators)

21. Adaptive Algorithms • Deal with unpredictable events at run time • delays in arrival of data, burstiness of network • autonomity of nodes, changes in policies • Example: double pipelined hash joins • build hash table for both input streams • read inputs in separate threads • good for bursty arrival of data • Re-optimization at run time (LEO, etc.) • monitor execution of query • adjust estimates of cost model • re-optimize if delta is too large

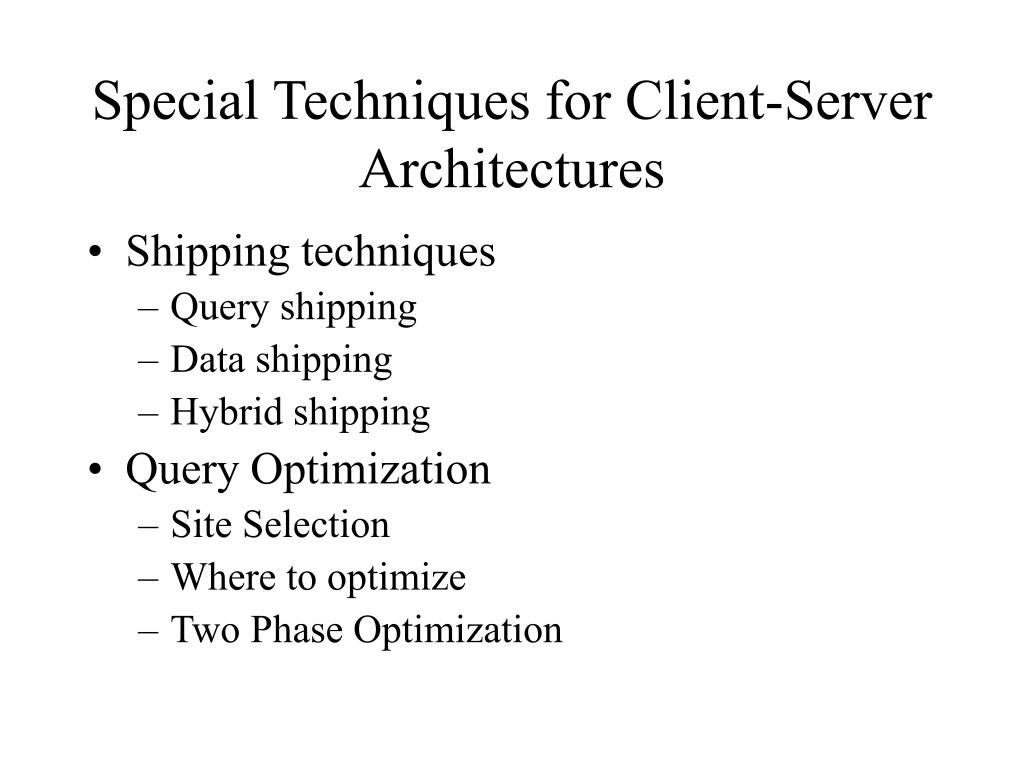

22. Special Techniques for Client-Server Architectures • Shipping techniques • Query shipping • Data shipping • Hybrid shipping • Query Optimization • Site Selection • Where to optimize • Two Phase Optimization

23. Special Techniques for Federated Database Systems • Wrapper architecture • Query optimization • Query capabilities • Cost estimation • Calibration Approach • Wrapper Cost Model • Parameter Binding

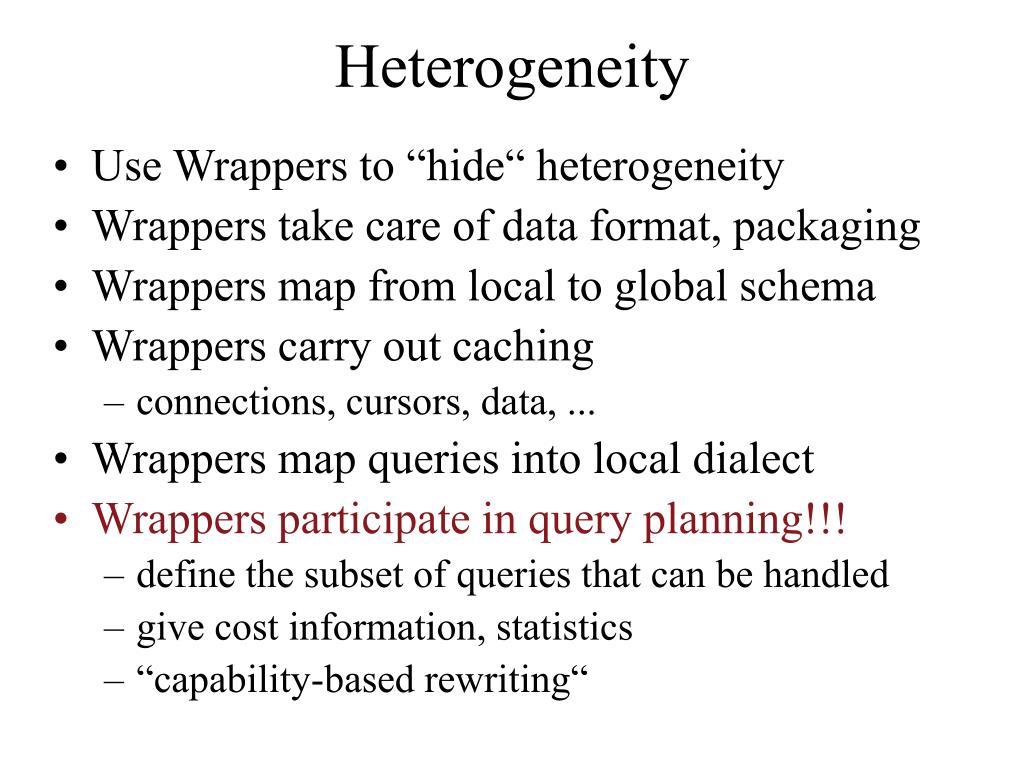

24. Heterogeneity • Use Wrappers to “hide“ heterogeneity • Wrappers take care of data format, packaging • Wrappers map from local to global schema • Wrappers carry out caching • connections, cursors, data, ... • Wrappers map queries into local dialect • Wrappers participate in query planning!!! • define the subset of queries that can be handled • give cost information, statistics • “capability-based rewriting“

25. Middleware • Two kinds of middleware • data warehouses • virtual integration • Data Warehouses • good: query response times • good: materializes results of data cleaning • bad: high resource requirements in middleware • bad: staleness of data • Virtual Integration • the opposite • caching possible to improve response times

26. Virtual Integration Query Middleware (query decomposition, result composition) wrapper wrapper sub query sub query DB1 DB2

27. IBM Data Joiner SQL Query Data Joiner wrapper wrapper sub query sub query SQL DB1 SQL DB2

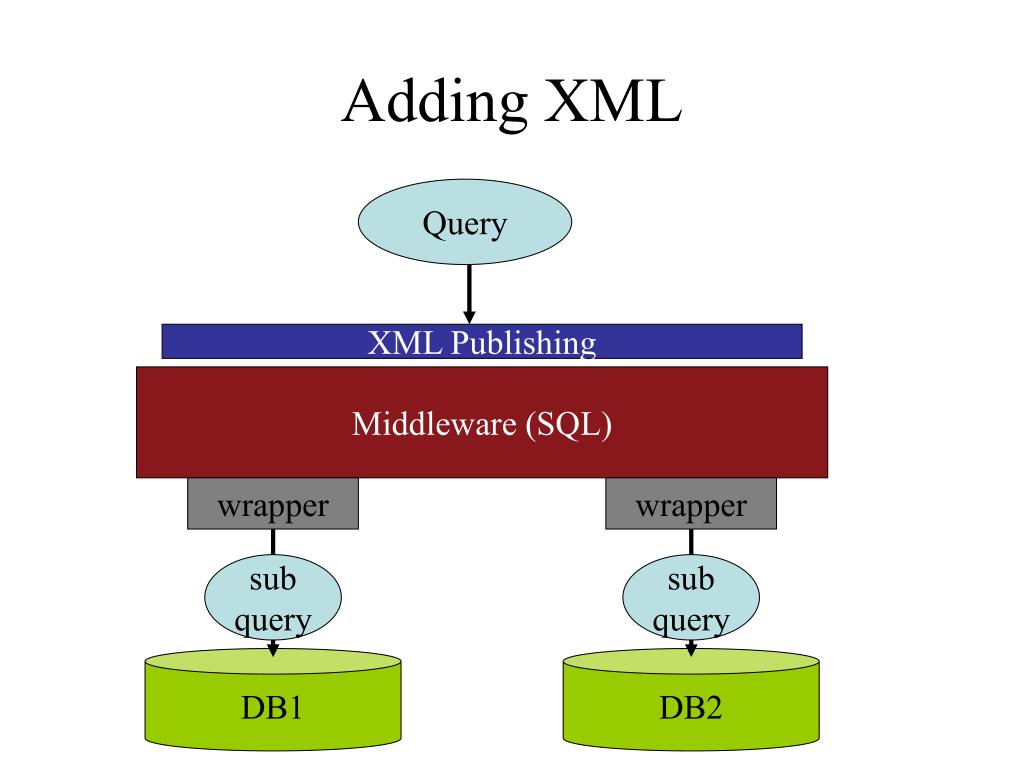

28. Adding XML Query XML Publishing Middleware (SQL) wrapper wrapper sub query sub query DB1 DB2

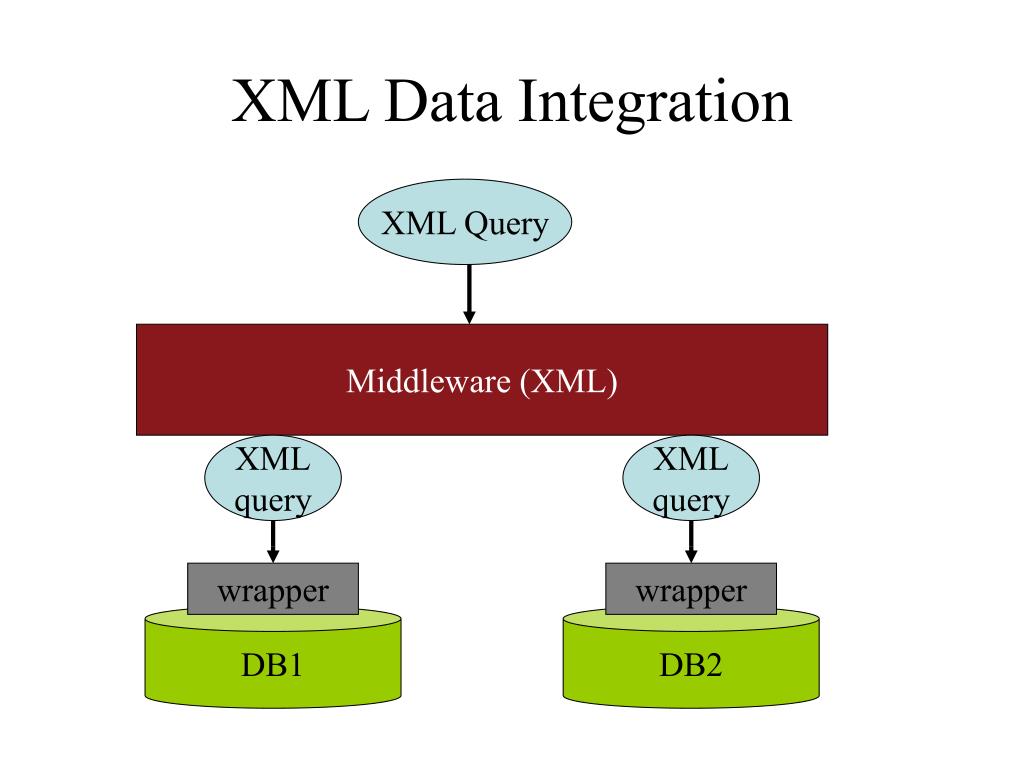

29. XML Data Integration XML Query Middleware (XML) XML query XML query wrapper wrapper DB1 DB2

30. XML Data Integration • Example: BEA Liquid Data • Advantage • Availability of XML wrappers for all major databases • Problems • XML - SQL mapping is very difficult • XML is not always the right language (e.g., decision support style queries)

31. Summary • Middleware looks like a homogenous centralized database • location transparency • data model transparency • Middleware provides global schema • data sources map local schemas to global schema • Various kinds of middleware (SQL, XML) • “Stacks“ of middleware possible • Data cleaning requires special attention
