  1. Seismic waves on a boundary: refraction method Earth Physics EPSC 320 Autumn 2010

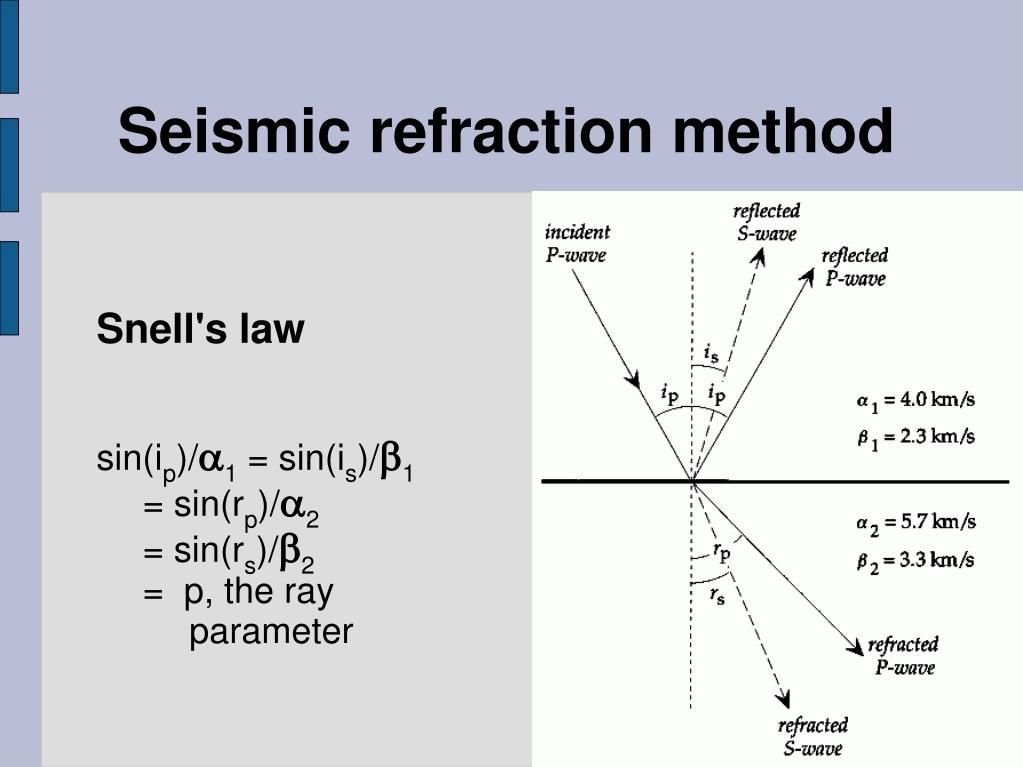

  2. Seismic refraction method Snell's law sin(ip)/1 = sin(is)/1 = sin(rp)/2 = sin(rs)/2 = p, the ray parameter

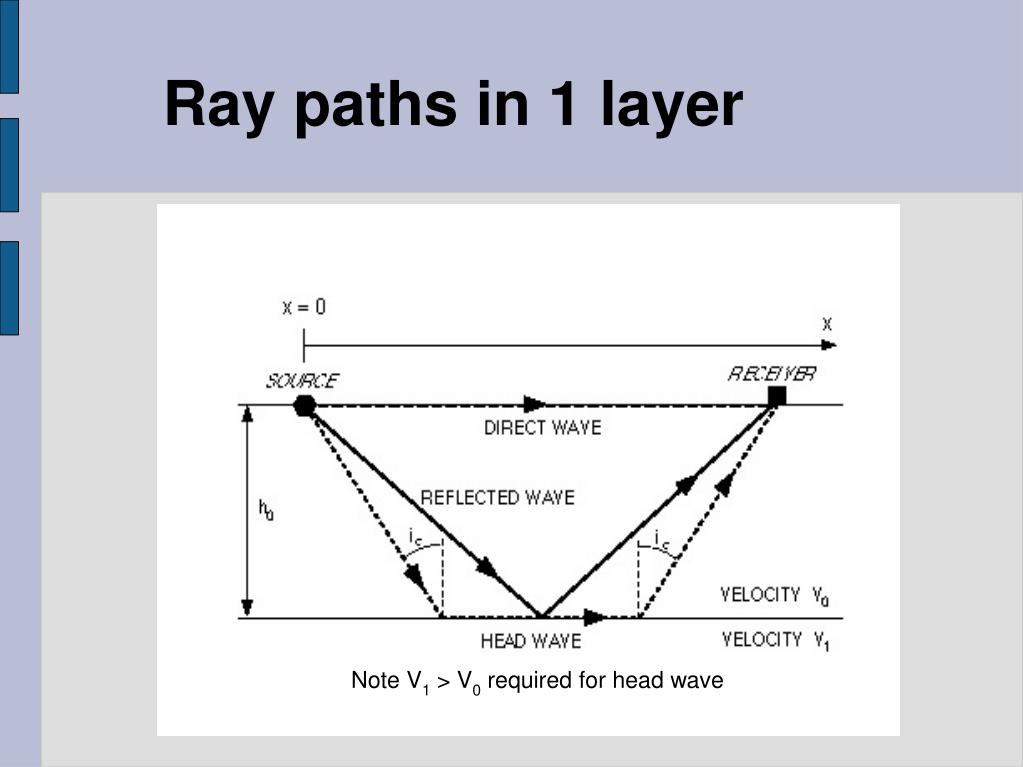

  3. Ray paths in 1 layer Note V1 > V0 required for head wave

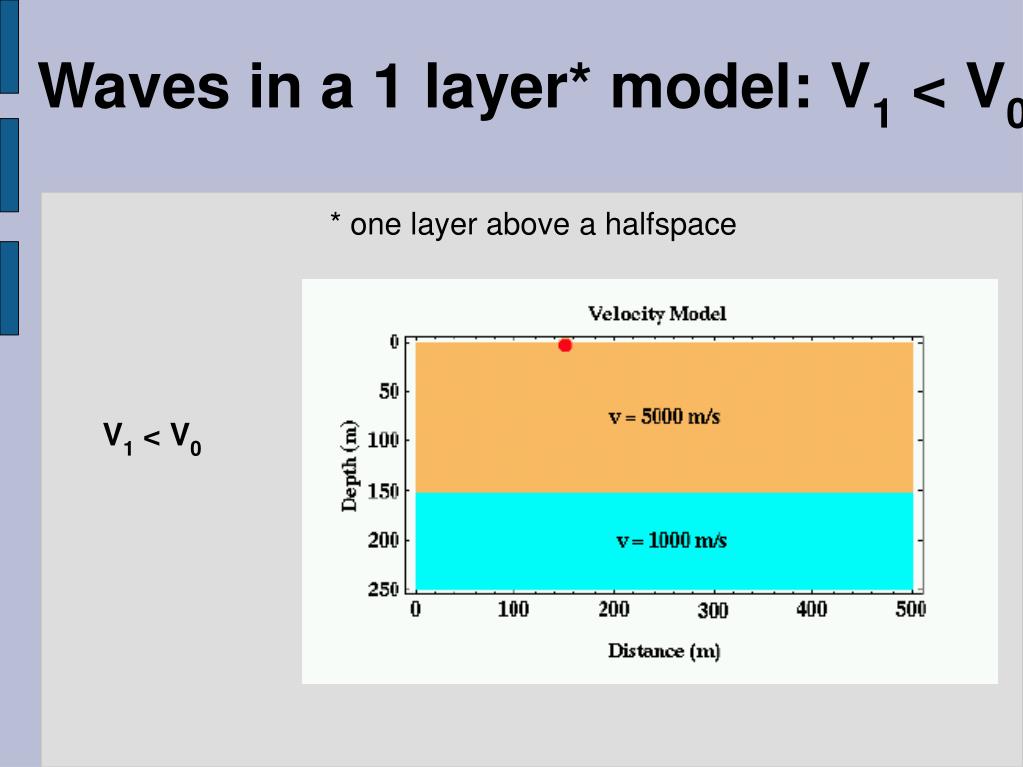

  4. Waves in a 1 layer* model: V1 < V0 * one layer above a halfspace V1 < V0

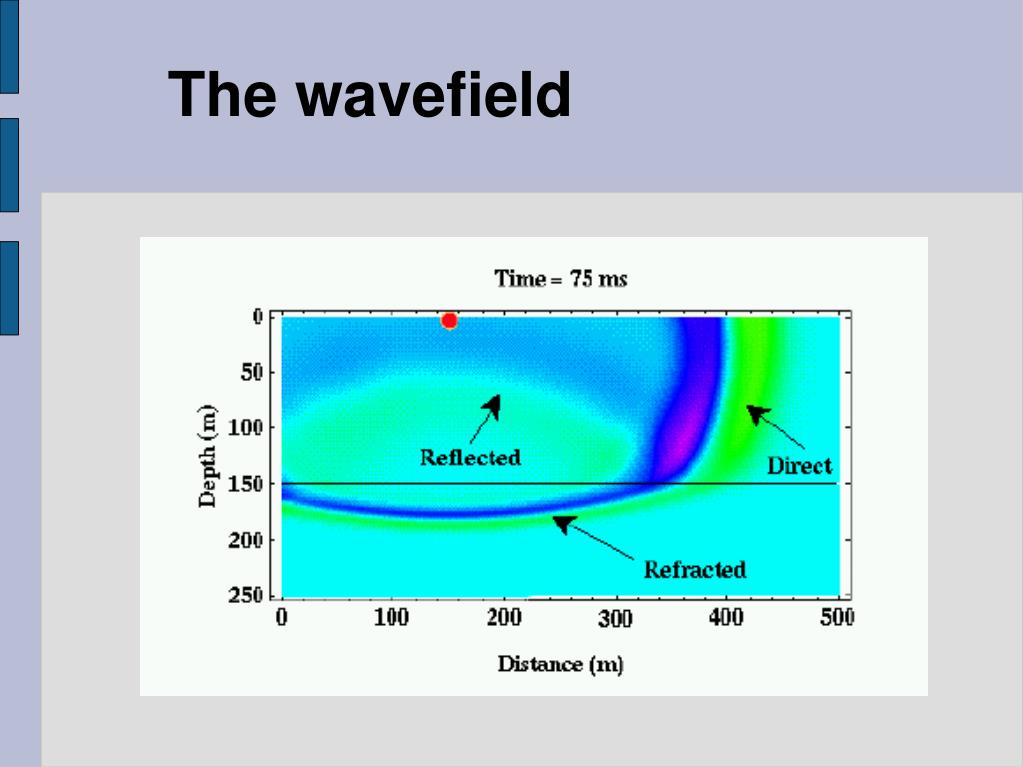

  5. The wavefield

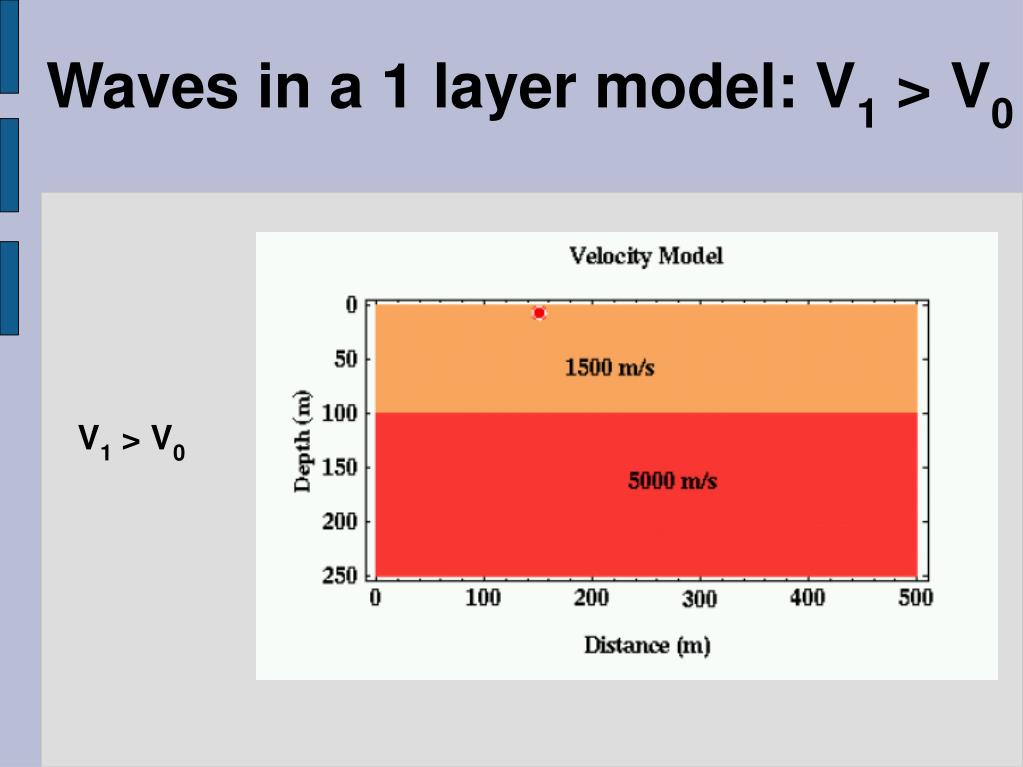

  6. Waves in a 1 layer model: V1 > V0 V1 > V0

  7. Wavefield at 65 ms

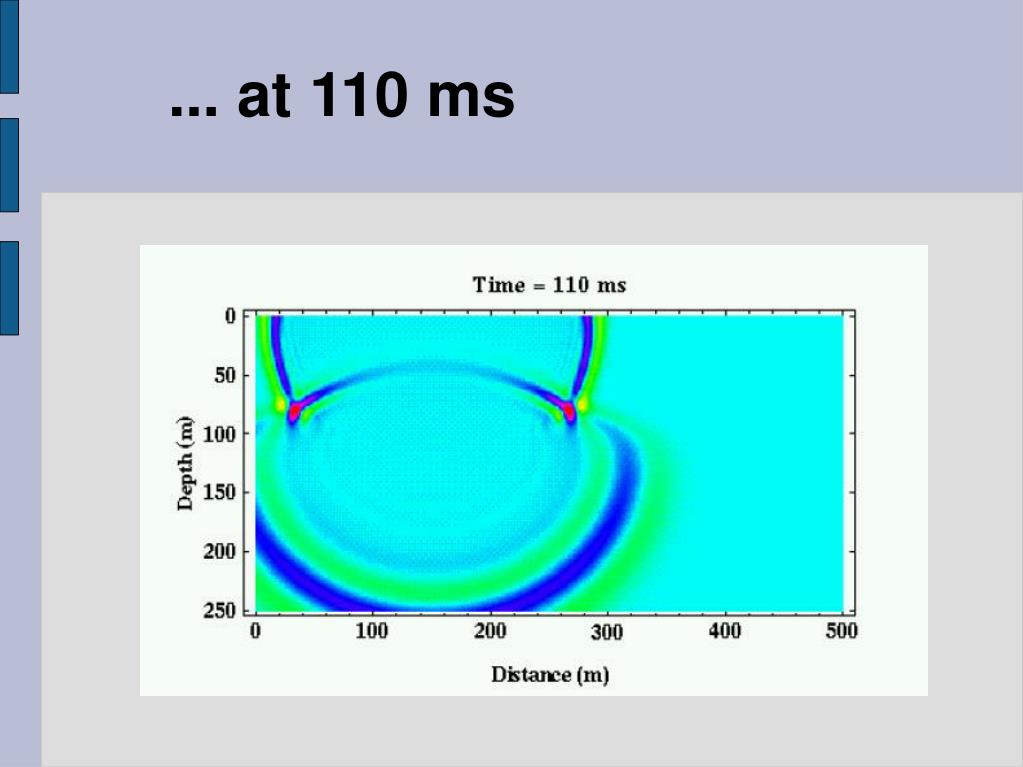

  8. ... at 110 ms

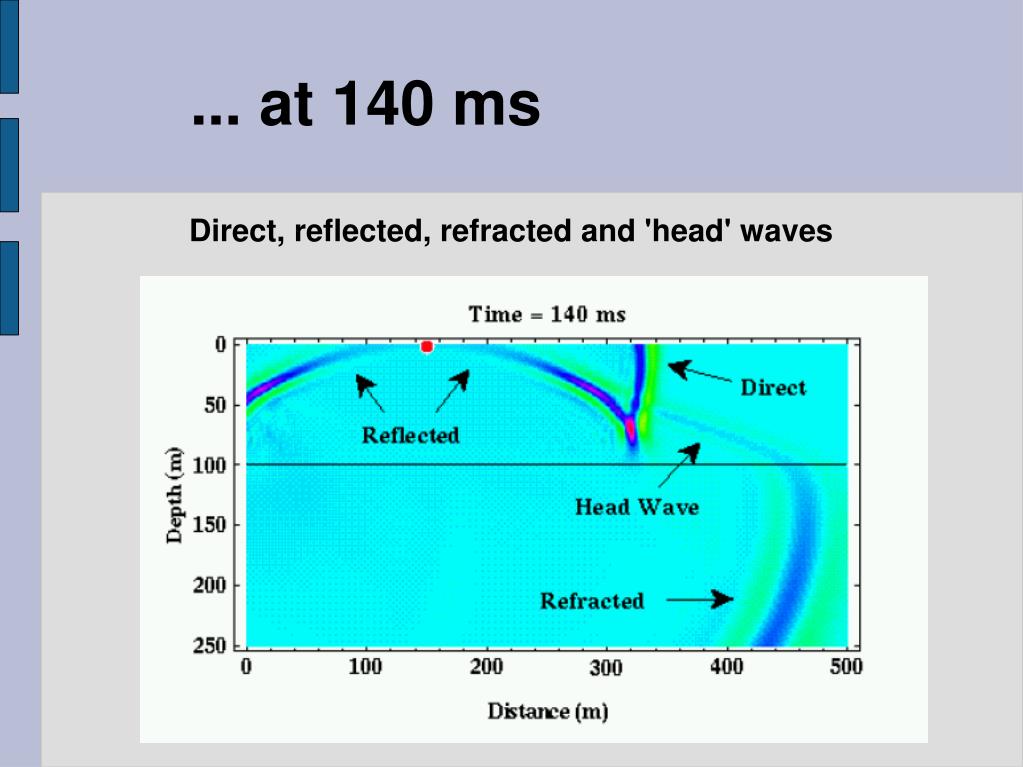

  9. ... at 140 ms Direct, reflected, refracted and 'head' waves

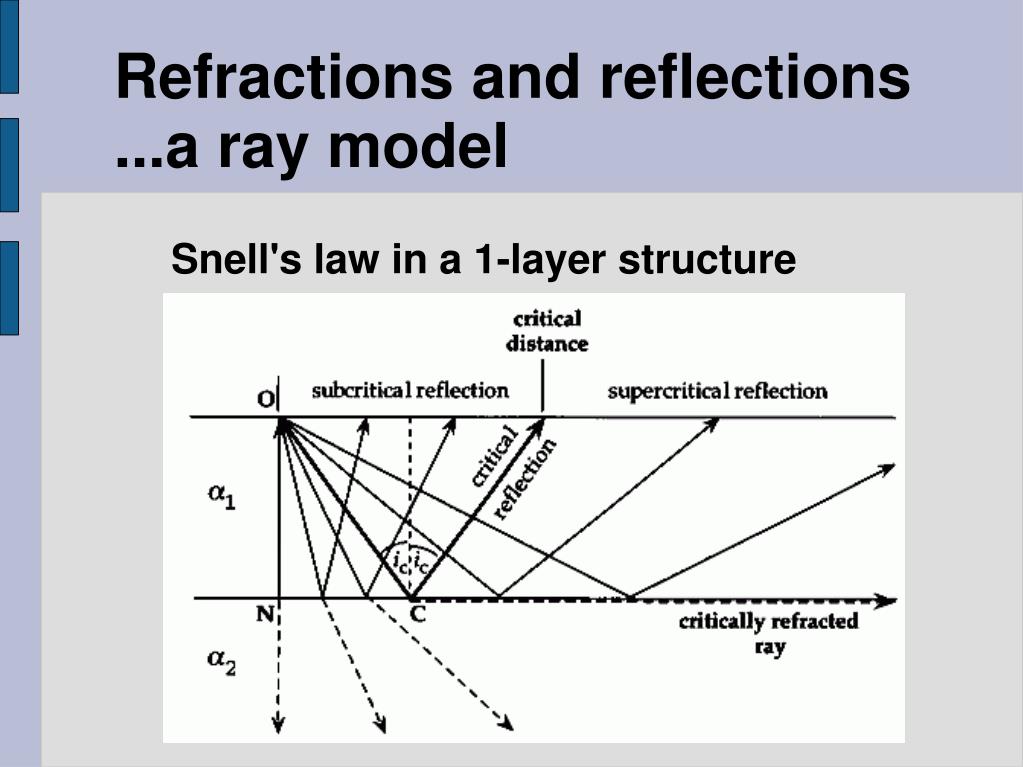

  10. Refractions and reflections ...a ray model Snell's law in a 1-layer structure

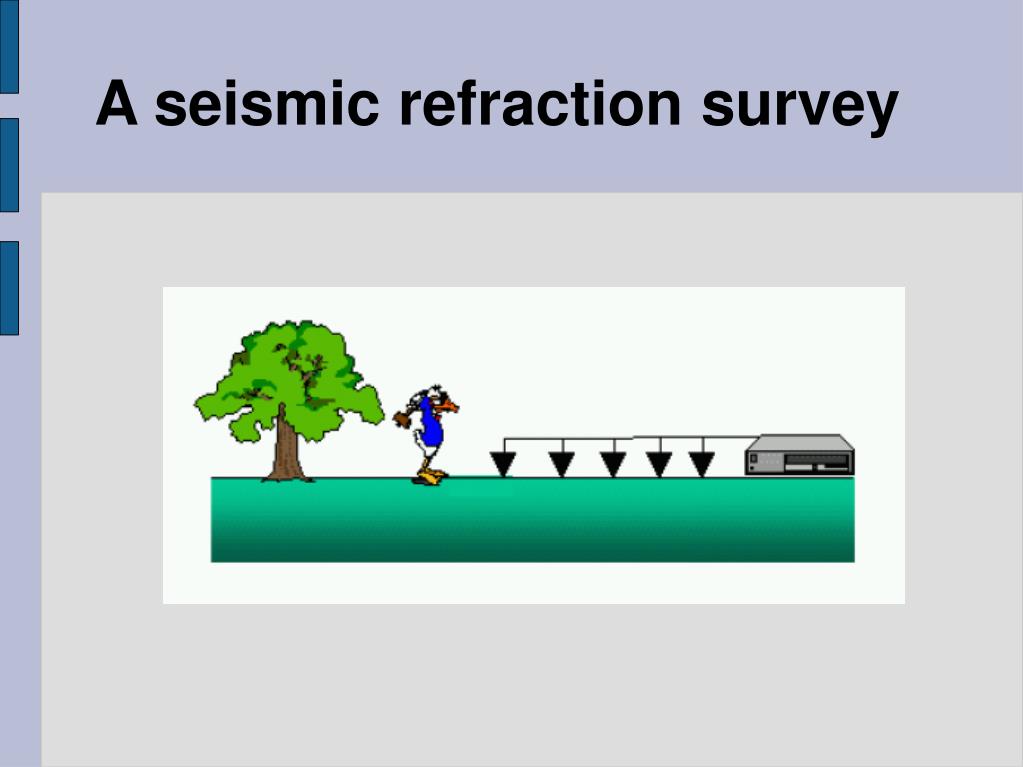

  11. A seismic refraction survey

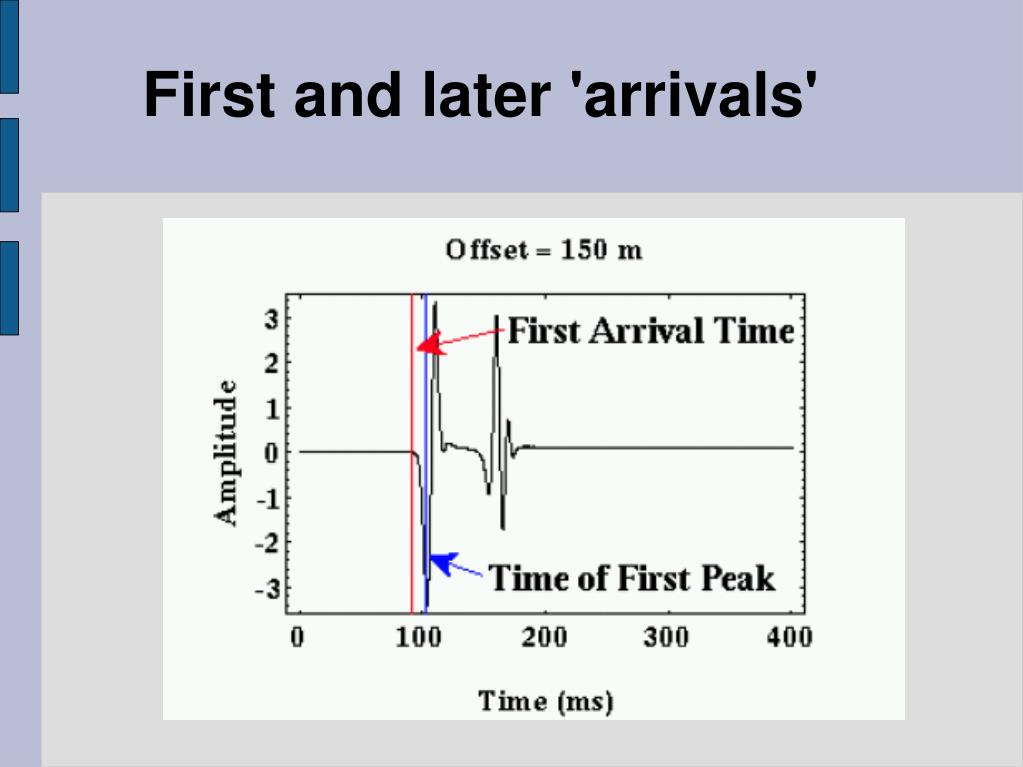

  12. First and later 'arrivals'

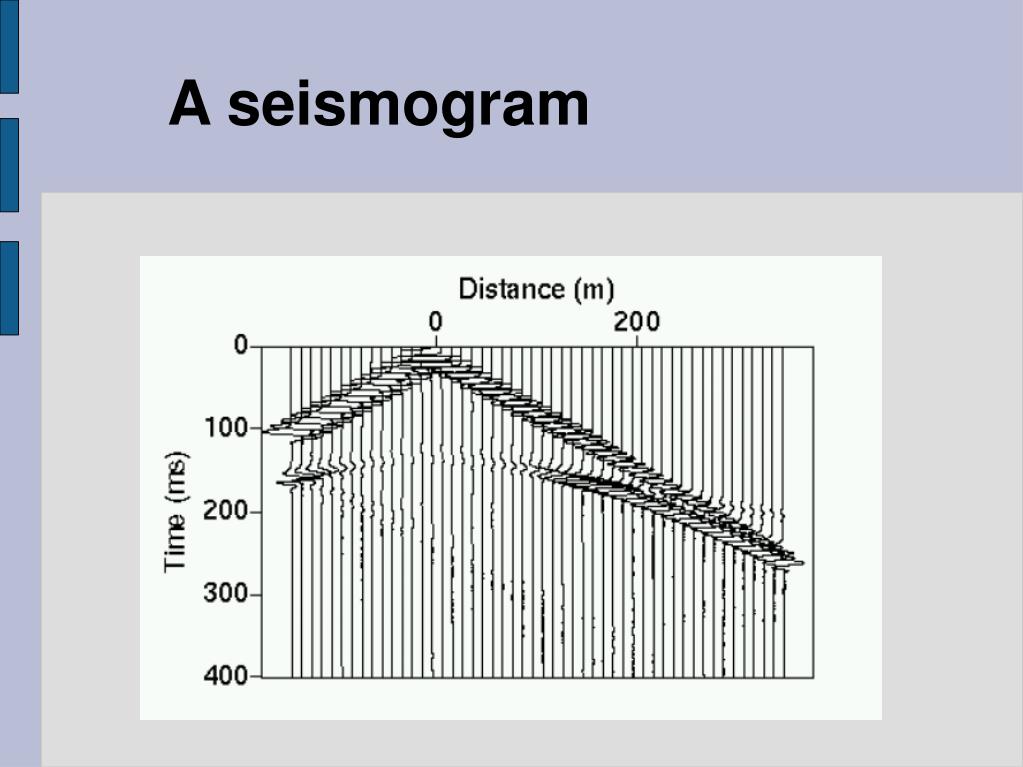

  13. A seismogram

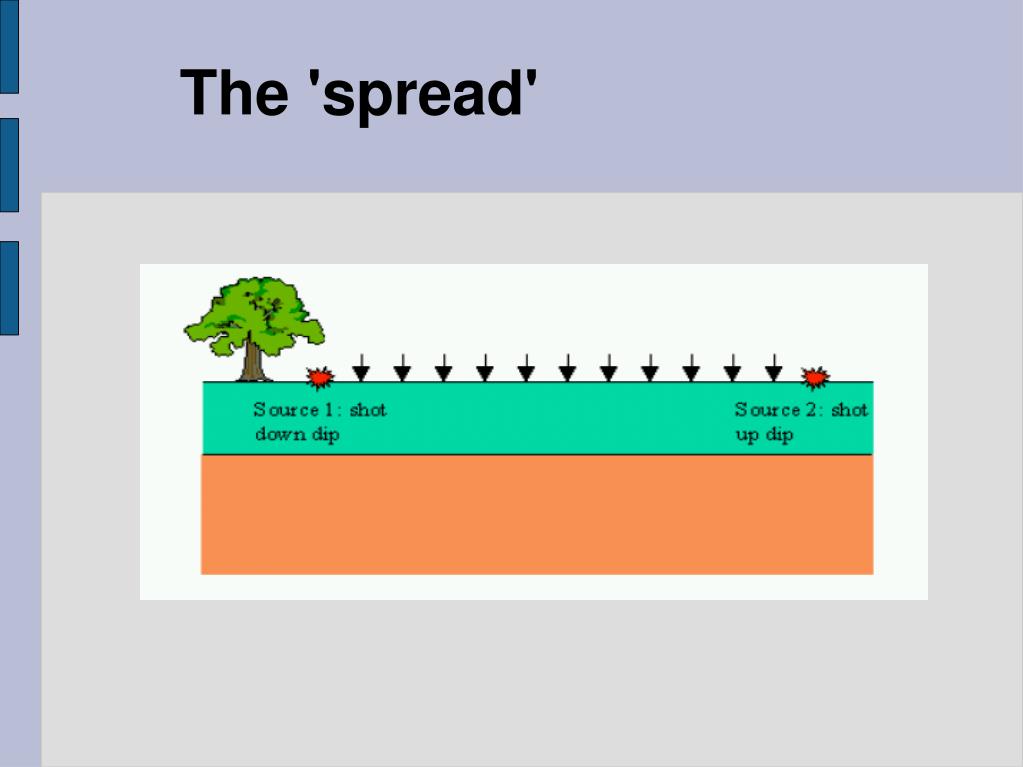

  14. The 'spread'

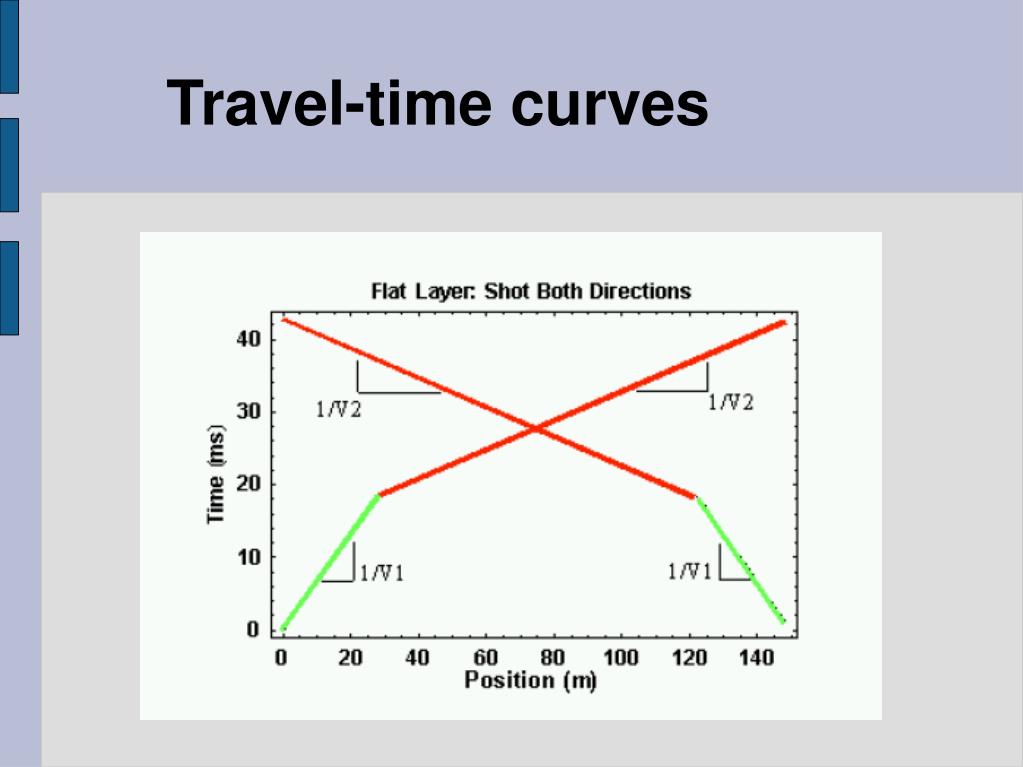

  15. Travel-time curves

  16. Dipping layer?

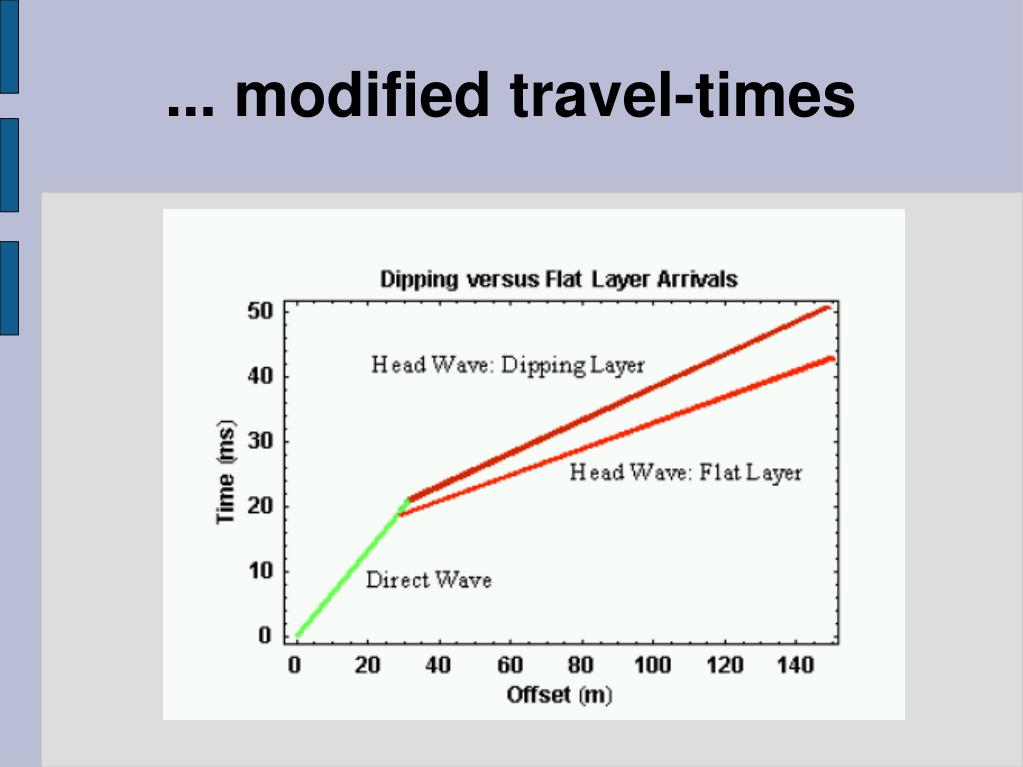

  17. ... modified travel-times

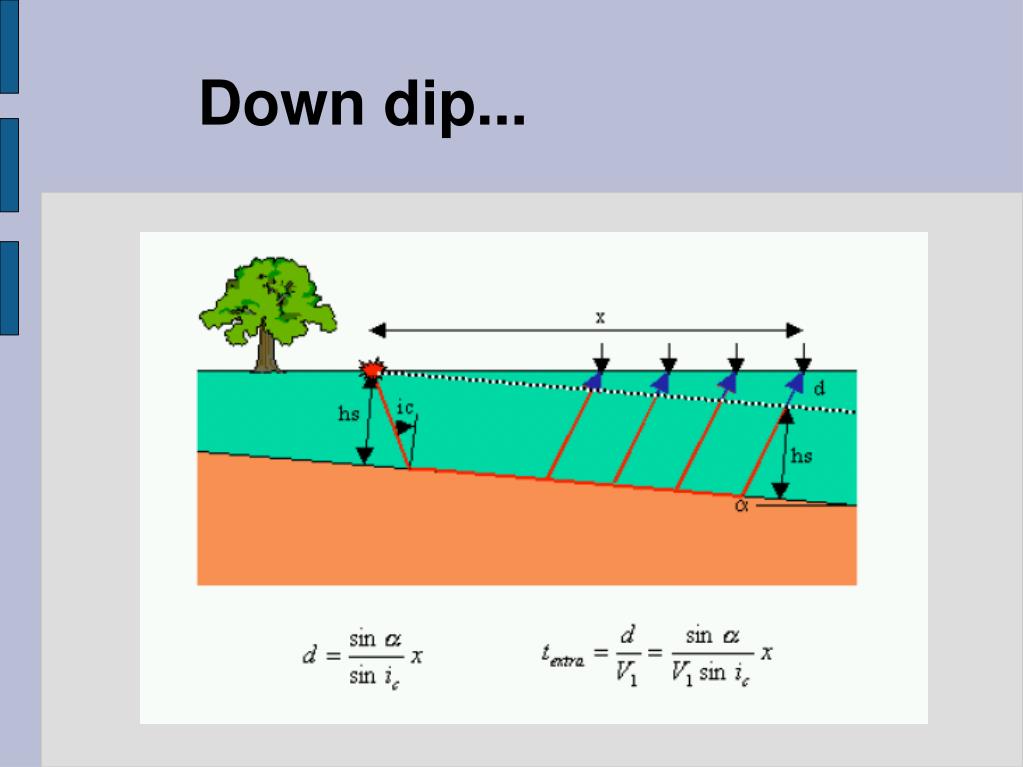

  18. Down dip...

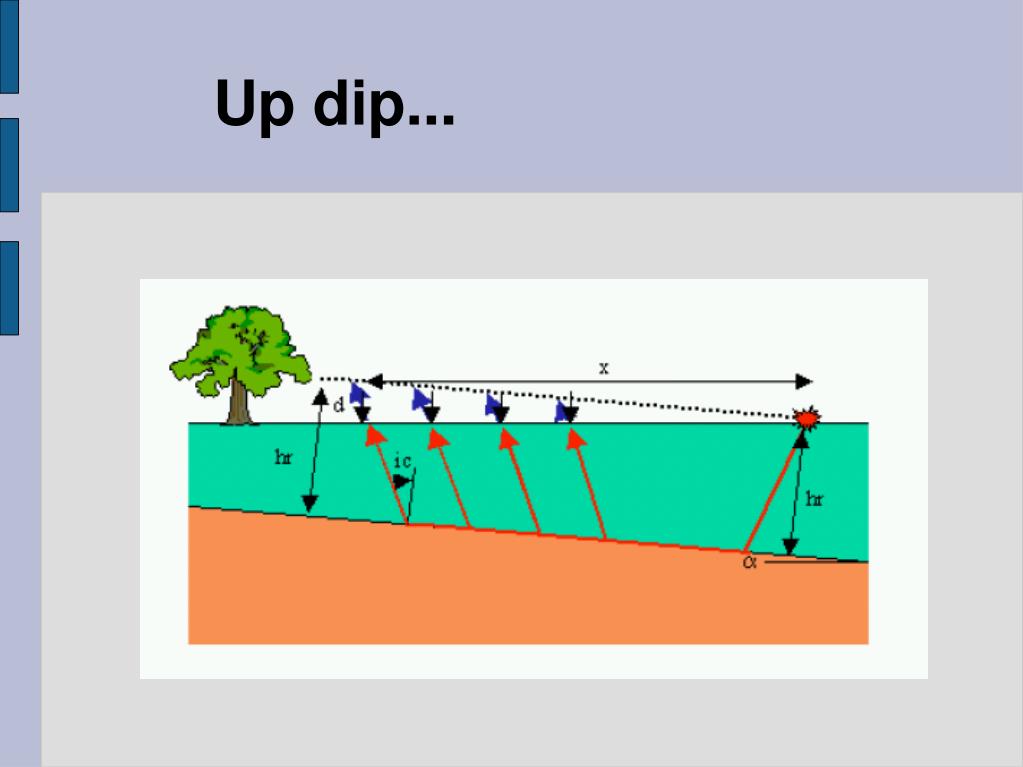

  19. Up dip...

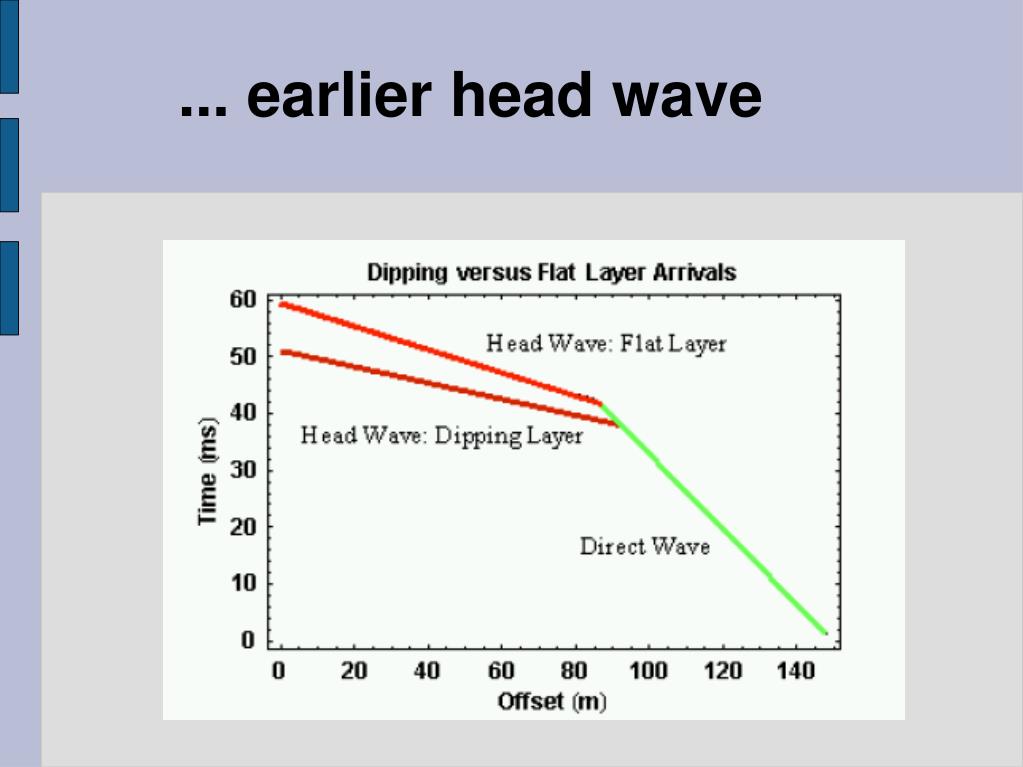

  20. ... earlier head wave

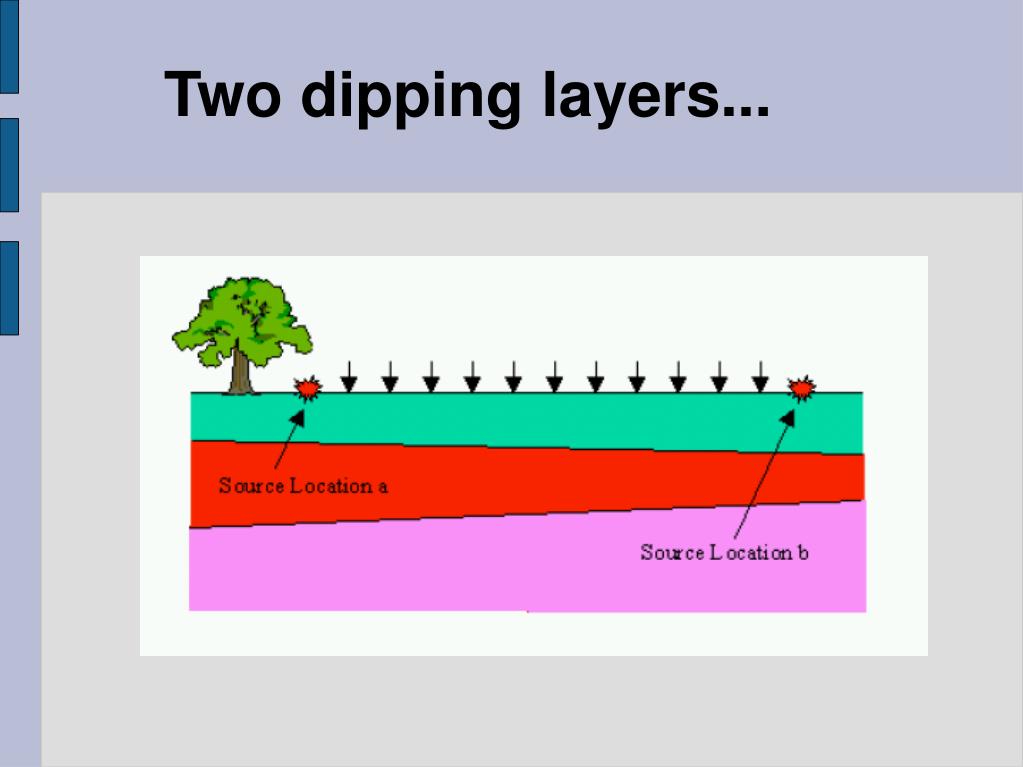

  21. Two dipping layers...

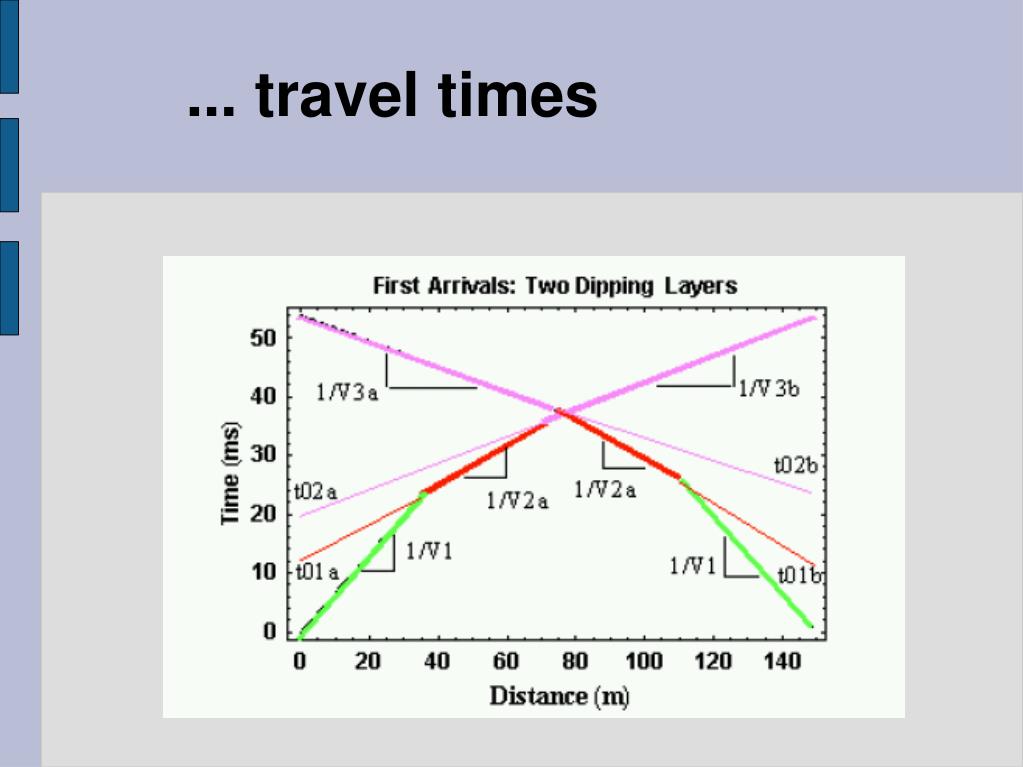

  22. ... travel times

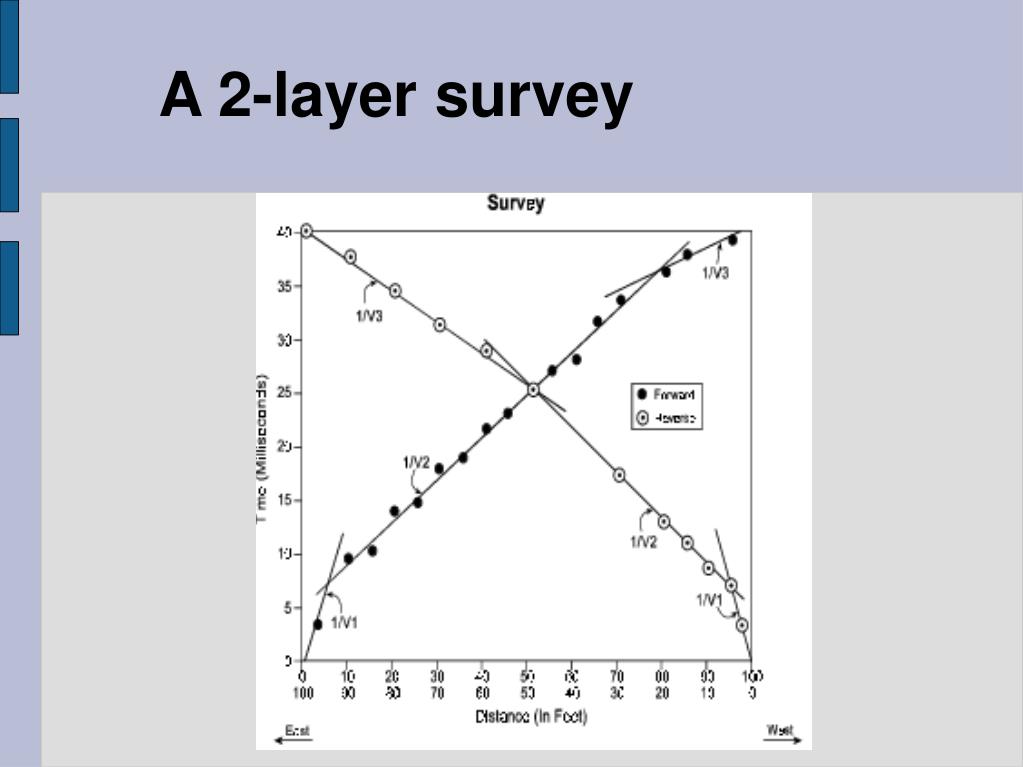

  23. A 2-layer survey

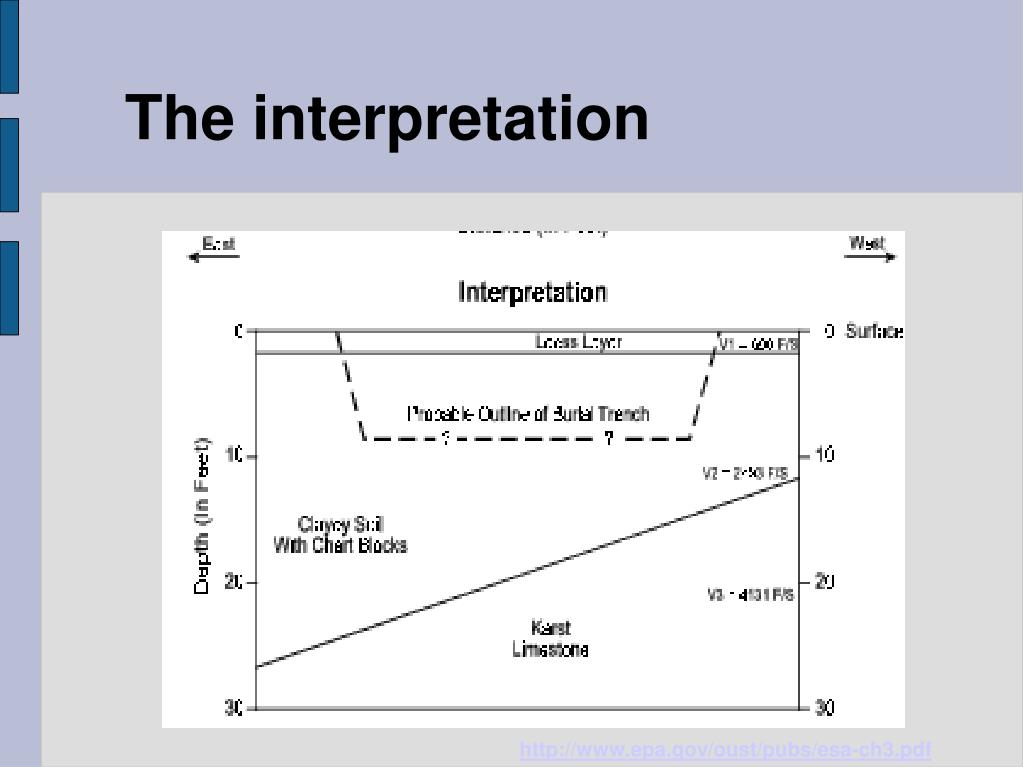

  24. The interpretation http://www.epa.gov/oust/pubs/esa-ch3.pdf

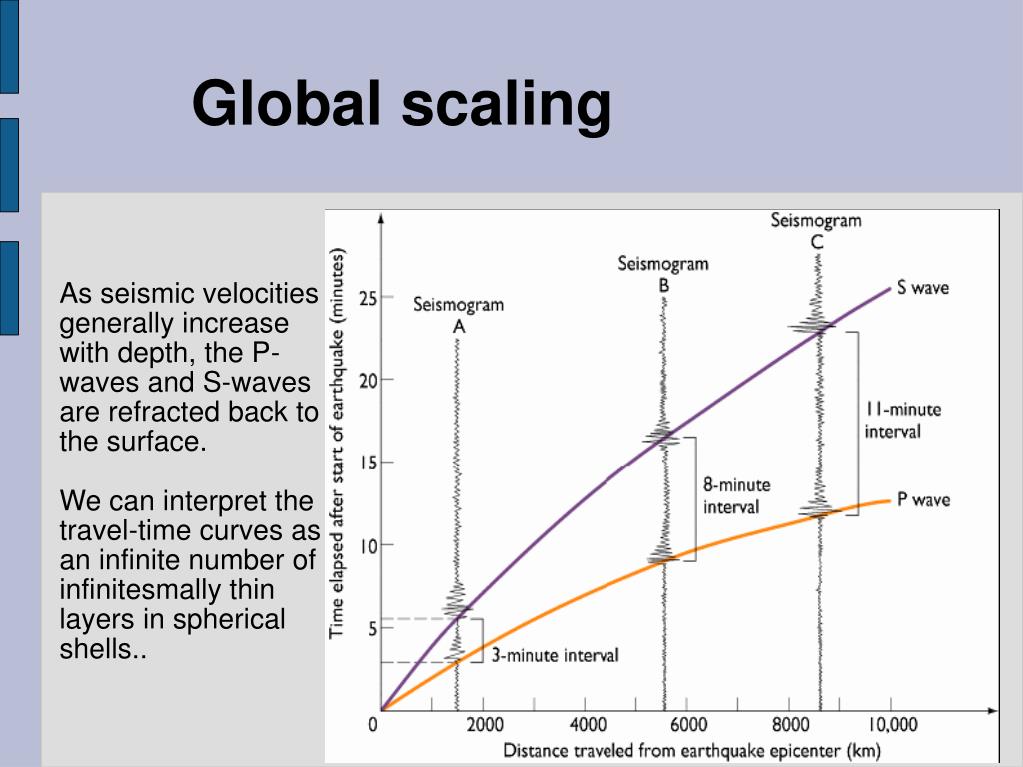

  25. Global scaling As seismic velocities generally increase with depth, the P-waves and S-waves are refracted back to the surface. We can interpret the travel-time curves as an infinite number of infinitesmally thin layers in spherical shells..

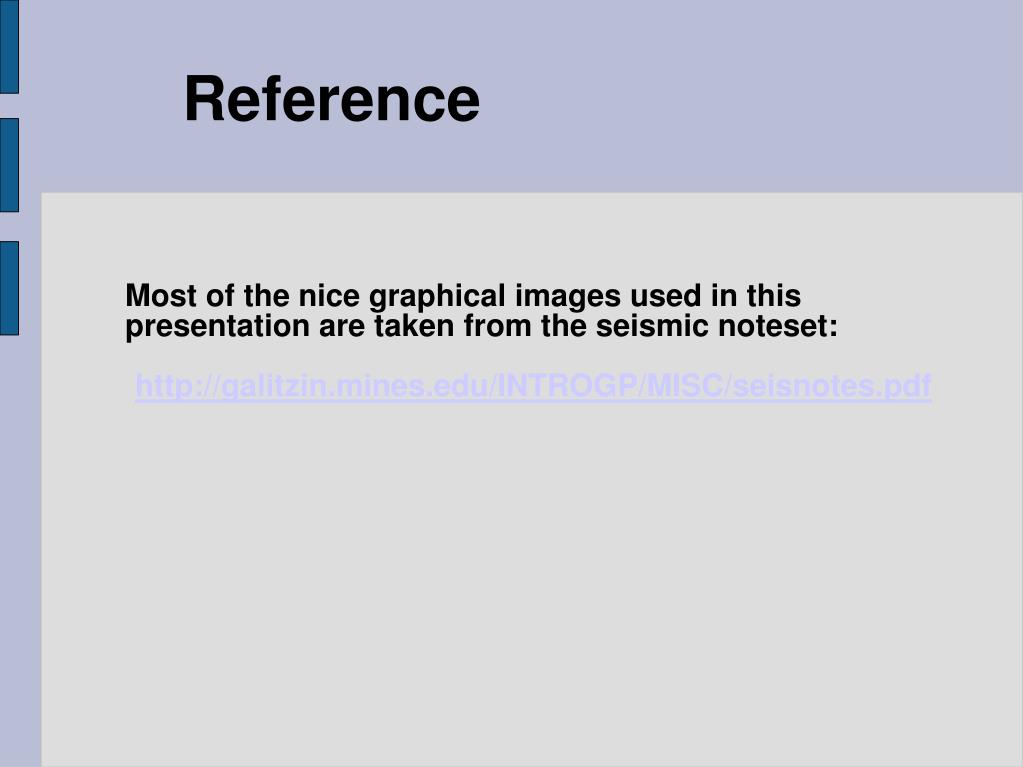

  26. Reference Most of the nice graphical images used in this presentation are taken from the seismic noteset: http://galitzin.mines.edu/INTROGP/MISC/seisnotes.pdf
