6 diapositives · 222 Views · Sep 27, 2014

Routing. Imre Varga University of Debrecen, Faculty of Informatics For internal use only!. Routing table. How to reach the node with IP 172.15.0.78? Via which interface ? Which node is the next hop ?. Process of routing. Not the same. Process of routing. Not the same.

Routing - slide 1
01 / 6Routing
1 / 17

Télécharger la présentation

Routing
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation
  1. Routing ImreVargaUniversity of Debrecen, Faculty of Informatics For internal use only!

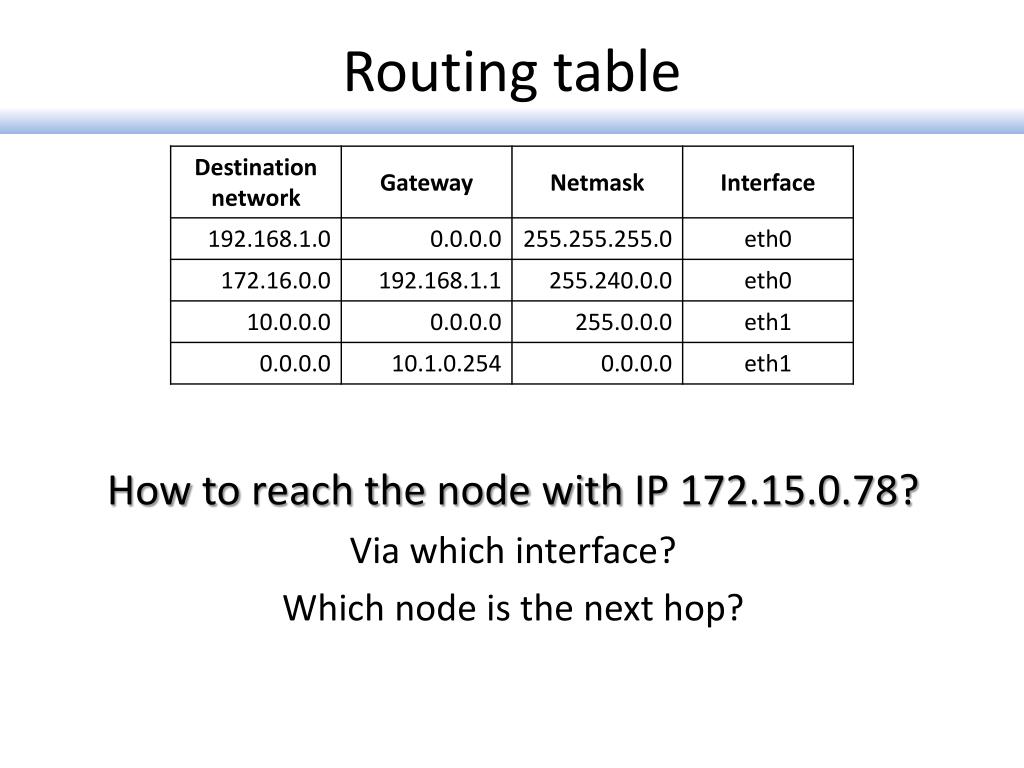

  2. Routingtable • Howtoreachthenodewith IP 172.15.0.78? • Viawhichinterface? • Whichnode is thenexthop?

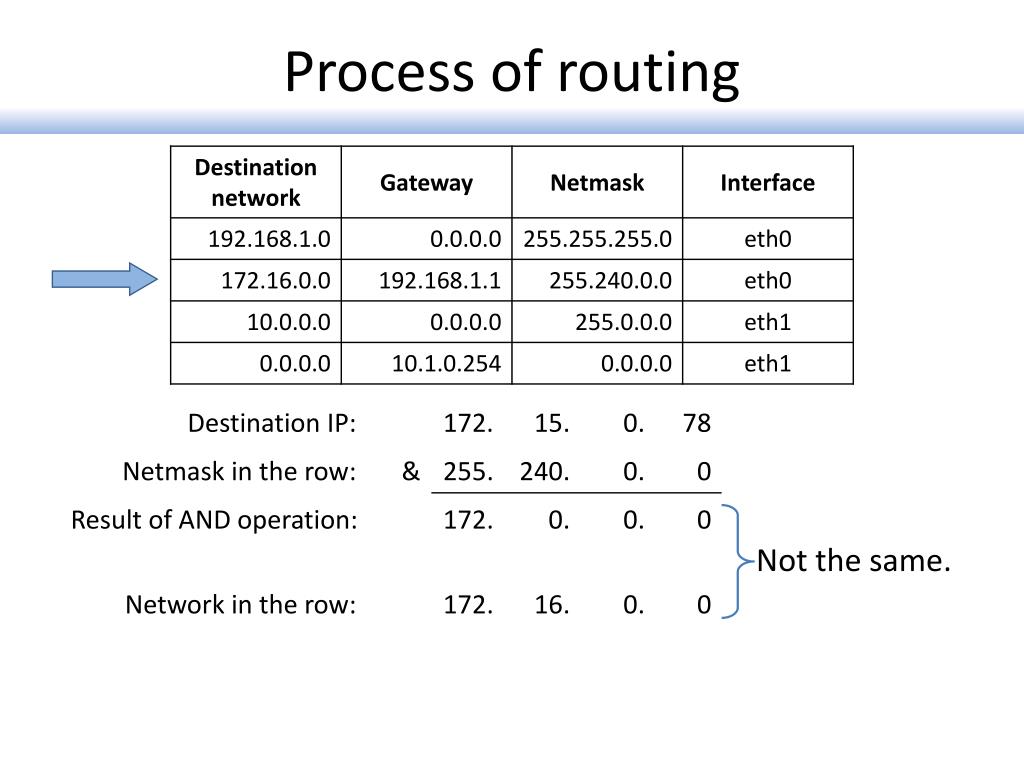

  3. Process of routing Notthesame.

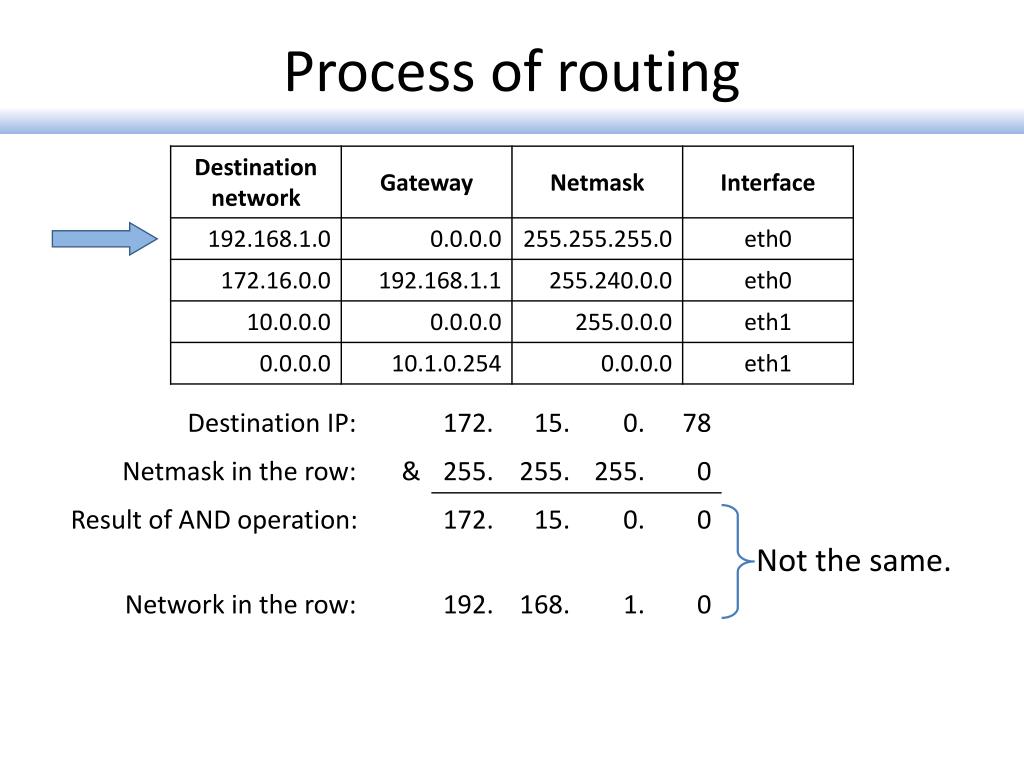

  4. Process of routing Notthesame.

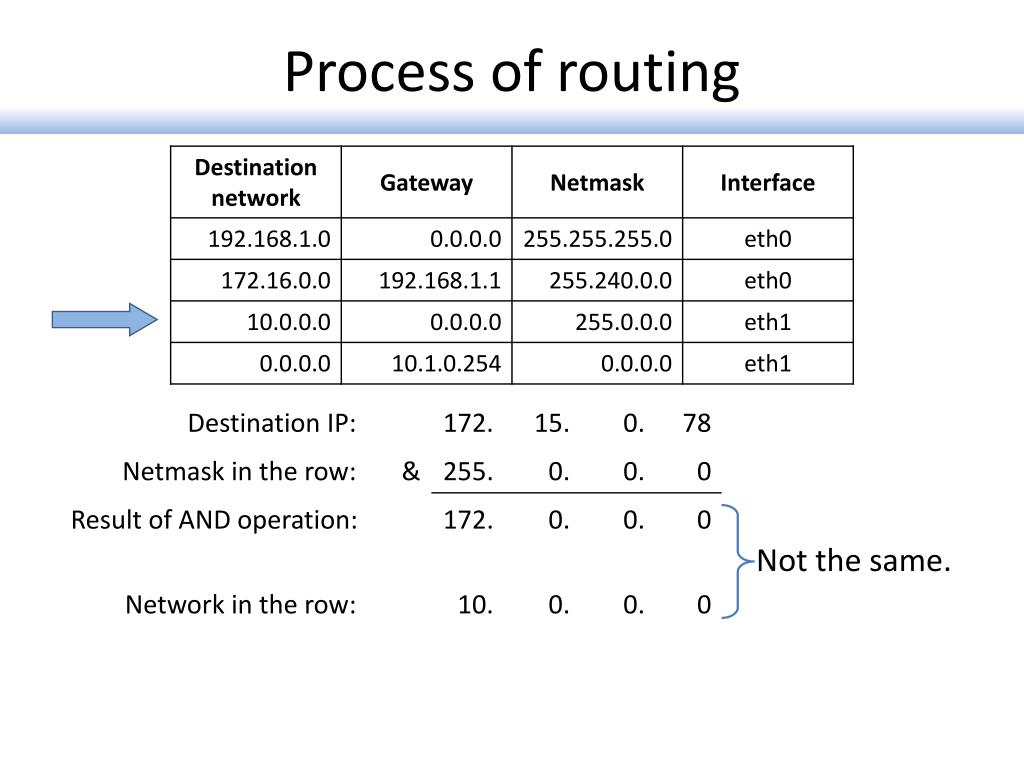

  5. Process of routing Notthesame.

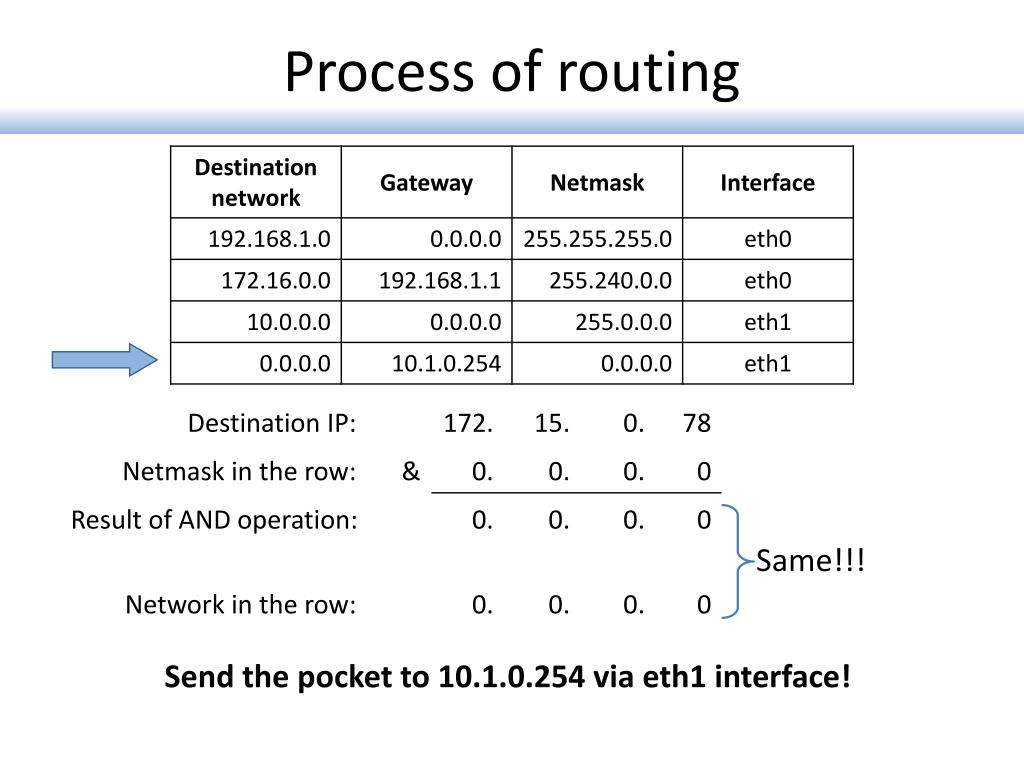

  6. Process of routing Same!!! Sendthepocketto 10.1.0.254 via eth1 interface!
