CARTILAGE

CARTILAGE. Hard connective tissue, next to bone and teeth Made up of cells, fibers and jell like matrix . FEATURES :- Translucent, firm, and elastic It can be compressible It can with stand considerable pressure, pull and torsion. CARTILAGE. STRUCTURE (HISTOLOGY) :-

juro
Télécharger la présentation

CARTILAGE

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

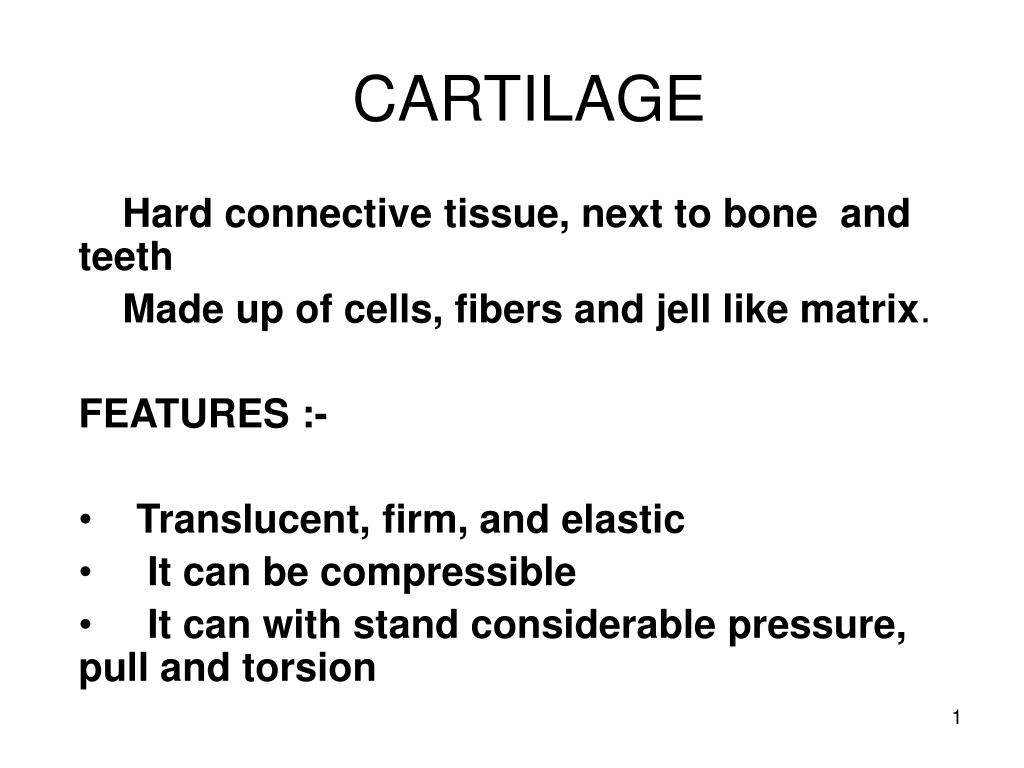

  1. CARTILAGE Hard connective tissue, next to bone and teeth Made up of cells, fibers and jell like matrix. FEATURES :- Translucent, firm, and elastic It can be compressible It can with stand considerable pressure, pull and torsion

  2. CARTILAGE • STRUCTURE (HISTOLOGY) :- It is made up of 3 basic structures 1. Chondrocytes (Cartilage cells) 2. Matrix (Inter cellular substance) 3. Fibers.

  3. CARTILAGE • Chondrocytes :- - Large, Rounded And Encapsulated - Embedded In The Matrix • Matrix :- - Jell Like Ground Substance - Tissue Characters Depend On It - Makes The Cartilage Solid - Major Portion Is Made Up Of Water - Contains Chondrocytes & Fibers 3. Fibers :- - Mainly Collagen Fibers

  4. CARTILAGE • PERICHONDRIUM :- - FIBROUS MEMBRANE WICH COVERS CARTILAGE - ABSENT OVER EXPOSED SURFACES OF JOINTS Growth Two types of growth can occur in cartilage appositional and interstitial

  5. CARTILAGE • TYPES ;- 1. HYALINE CARTILAGE 2. FIBRO CARTILAGE 3. ELASTIC CARTILAGE

  6. CARTILAGE HYALINE CARTILAGE :- - Appearance White, resilient and glossy CELLS :- Large, rounded encapsulated arranged in groups (2 to 8 in 1 caps.) MATRIX :-Abundance, homogeneous ground substance FIBERS :- It is avascular hyaline cartilage that is made predominantly of type II collagen.

  7. HYALINE CARTILAGE • DISTRIBUTION • Hyaline cartilage is found lining bones in joints and is also present inside bones, serving as a center of ossification or bone growth. In addition, hyaline cartilage forms most of the embryonic skeleton. - Articular cartilage - costal cartilage - Epiphysial cartilage - Cartilage of nose - Trachea & Bronchi - Larynx (except glottis) e.c.t. * IN CAPABLE OF REPAIR * FILLED WITH FIBROUS TISSUE

  8. CARTILAGE 2. FIBRO CARTILAGE :- - White & Glistening - very tough & strong but resilient - present where strength & elasticity is required STRUCTURE:- Cells : Few & wide a part Matrix : Less in quantity Fibers : Dense bundles of parallel running collagen fibers

  9. FIBRO CARTILAGE DISTRIBUTION : - I.V.D. - Meniscus (Semi lunar) - Pubic symphysis - Glenoid labrum - Acetabular labrum. E.c.t. IF DAMAGED – REPAIR ITSELF SLOWLY

  10. CARTILAGE 3. ELASTIC CARTILAGE : -Yellow, very elastic and rebouncive STRUCTURE : CELL : Many in No. MATRIX : Less in quantity FIBERS : Branched, elastic and forms net work round the Chondrocytes, called “LACUNAE”.

  11. ELASTIC CARTILAGE DISTRIBUTION : - Pinnae of ear - External auditory meatus - Eustachian tube - Epiglottis (Larynx). E.c.t. * IF DAMAGED, REPAIR ITSELF W FIBROUS TISSUE

  12. CARTILAGE BLOOD SUPPLY : - Hyaline & Elastic are completely avascular (except during growth) - Nourished by diffusion of lymph From perichondrial vessels - Fibrous cartilage has some blood supply from neighboring vessels *REPAIR IS POOR  POOR BLOOD SUPPLY

  13. CARTILAGE • NERVE SUPPLY : - NO Nerve supply - Insensitive • APPLIDE ANATOMY : - Height of the body is more in early morning due to more accumulation of fluids(H2O) in the cartilage tissue (IVD). - x -
