1 / 1

Notes: 1) LUXFER SERIAL NUMBER 2) EMPTY WEIGHT OF CYLINDER ONLY

Luxfer Gas Cylinders. CUSTOMER MARKING INSTRUCTION SHEET. L3155V. 3. Issue No:. Cylinder Type. Suffix:. 1. Customer. Issue Date:. REV ES TARSAI GAZIPARI KERESKEDELMI KFT. 02.07.03. Approved For:. 97/23/EC - PED - POLAND. Stamping Positions :. For Internal use only. VALVE WEIGHT.

kaseem-bond
Télécharger la présentation

Notes: 1) LUXFER SERIAL NUMBER 2) EMPTY WEIGHT OF CYLINDER ONLY

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

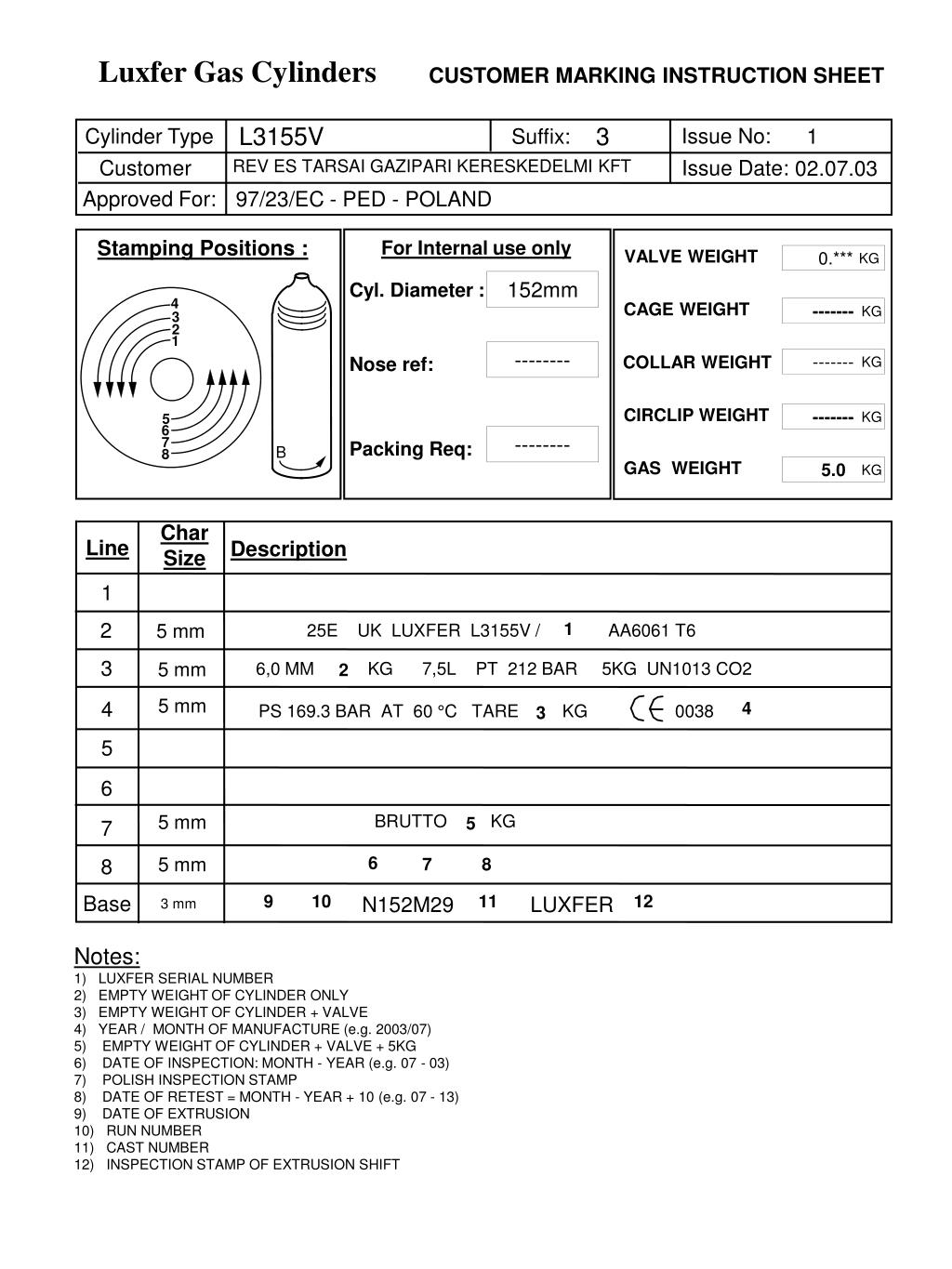

  1. Luxfer Gas Cylinders CUSTOMER MARKING INSTRUCTION SHEET L3155V 3 Issue No: Cylinder Type Suffix: 1 Customer Issue Date: REV ES TARSAI GAZIPARI KERESKEDELMI KFT 02.07.03 Approved For: 97/23/EC - PED - POLAND Stamping Positions : For Internal use only VALVE WEIGHT 152mm Cyl. Diameter : 4 CAGE WEIGHT 3 2 1 -------- 0.*** ------- ------- ------- 5.0 KG KG KG KG Nose ref: COLLAR WEIGHT CIRCLIP WEIGHT 5 6 -------- 7 Packing Req: B 8 GAS WEIGHT Char Size Line Description 1 2 5 mm 3 5 mm 4 5 6 7 8 Base N152M29 LUXFER Notes: 1) LUXFER SERIAL NUMBER 2) EMPTY WEIGHT OF CYLINDER ONLY 3) EMPTY WEIGHT OF CYLINDER + VALVE 4) YEAR / MONTH OF MANUFACTURE (e.g. 2003/07) 5) EMPTY WEIGHT OF CYLINDER + VALVE + 5KG 6) DATE OF INSPECTION: MONTH - YEAR (e.g. 07 - 03) 7) POLISH INSPECTION STAMP 8) DATE OF RETEST = MONTH - YEAR + 10 (e.g. 07 - 13) 9) DATE OF EXTRUSION 10) RUN NUMBER 11) CAST NUMBER 12) INSPECTION STAMP OF EXTRUSION SHIFT KG 25E UK LUXFER L3155V / AA6061 T6 1 6,0 MM KG 7,5L PT 212 BAR 5KG UN1013 CO2 2 5 mm PS 169.3 BAR AT 60 °C TARE KG 0038 4 3 5 mm BRUTTO KG 5 5 mm 6 7 8 3 mm 9 10 11 12
