  1. Semantics

  2. Describing the meanings of Programs: • Programmers need to know precisely what the statements of a language do. • English explanations in language manuals are often imprecise and incomplete. • Semantics formalisms are needed by programmers and compiler writers.

  3. Operational Semantics • Describe the meaning of a program by executing its statements on a machine (real or virtual) • The changes that occur in the machine’s state when it executes a given statement define the meaning of that statement. • Imagine a machine: • It represents a change in the machine state

  4. Describing the operational semantics of high-level language statements requires the construction of a real or abstract (virtual) computer. • Example: • The hardware of a computer is a pure interpreter for its machine language Example: • load x architecture

  5. A pure interpreter for a programming language can be constructed in software. (The interpreter is a virtual computer) • Problems with this approach: 1. Complexities of the hardware and operating system will make the interpreter difficult to understand. 2. The semantic definition done this way would be available only for those with an identically configured computer. (machine dependent) • A better alternative is to make a complete computer simulation. • The process: • Build a translatorTo translate source code to the machine code of an idealized computer • Build a simulator for the idealized computer.

  6. This approach describes the meaning of high-level language statements in terms of statements in a simpler, lower-level language. Example C statement: for ( i = 0; I < 50; ++i ) { - - - - } for ( expr1; expr2; expr3 ) { - - - - } Operational semantics: expr1; loop: if expr2 == 0 goto out - - - expr3; goto loop out- - -

  7. The first and most significant use of formal operational semantics was to describe the semantics of PL/1 (Wegner, 1972). • That particular abstract machine and the translation rules for PL/1 were together named the Vienna Definition Language (VDL), after the city where IBM devised it. • Operational semantics depends on programming languages of lower levels, not mathematics

  8. Axiomatic Semantics • It was defined in conjunction with the development of a method to prove the correctness of programs. • Such correctness proofs, when they can be constructed, show that a program performs the computation described by its specification.

  9. Axiomatic Semantics is: • Based on formal logic (predicate calculus) • Original purpose: formal program verification • Axioms or inference rules are defined for each statement type in the language

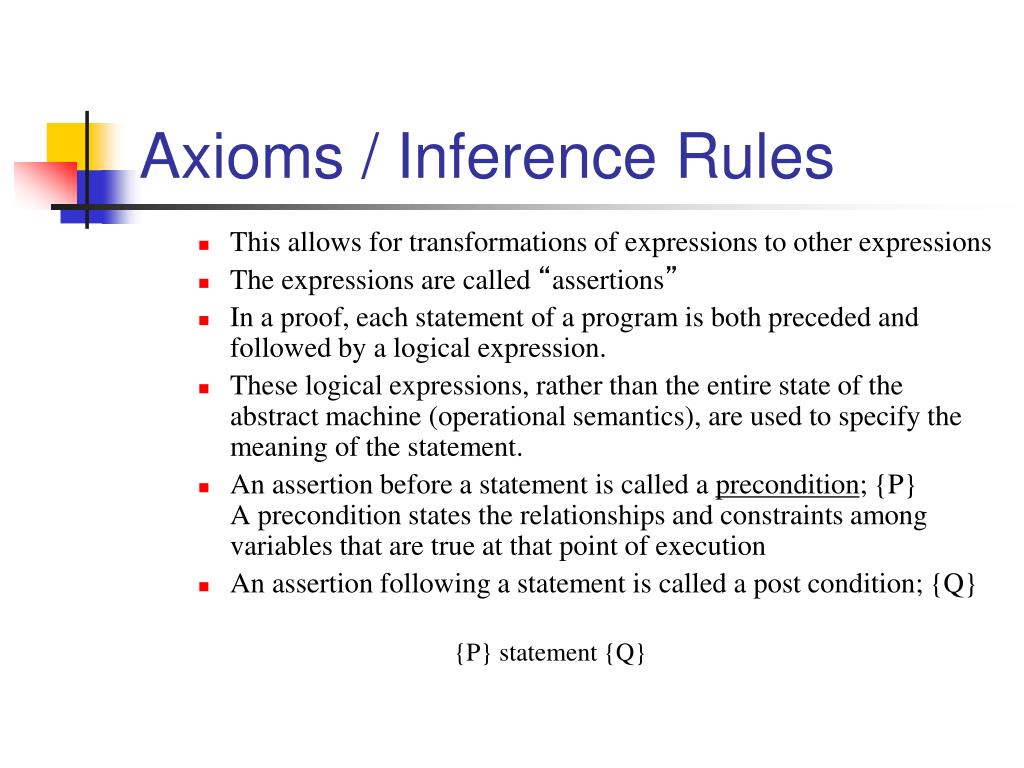

  10. Axioms / Inference Rules • This allows for transformations of expressions to other expressions • The expressions are called “assertions” • In a proof, each statement of a program is both preceded and followed by a logical expression. • These logical expressions, rather than the entire state of the abstract machine (operational semantics), are used to specify the meaning of the statement. • An assertion before a statement is called a precondition; {P}A precondition states the relationships and constraints among variables that are true at that point of execution • An assertion following a statement is called a post condition; {Q} {P} statement {Q}

  11. Note:We assume all variables are integer type Examples Assignment statement 1. {k = 5} k  k + 1 {k = 6} 2. {j = 3  k = 4} j  j + k {j = 7  k = 4} 3. {a > 0} a  a – 1 {a  0}

  12. For these examples, correctness is easy to prove either proceeding from the precondition to the post condition or from the post condition to the precondition. • Many times starting with the post condition and working backwards to derive the precondition proves easier.

  13. Example 1 • {k = 6} post condition • {k + 1 = 6} substituting k + 1 for k in post condition • {k = 5} precondition, after simplification

  14. Example 2 • {j = 7 and k = 4} post condition • {j + k = 7 and k = 4} substituting j + k for j in post condition • {j = 3 and k = 4} precondition, after simplification.

  15. Example 3 • {a  0} post condition • {a – 1  0} substituting a – 1 for a in post condition • {a  1} simplification • {a > 0} precondition, since a  1  a > 0 assuming a is an integer

  16. In {PRE} C {POST} The meaning of the command C can be viewed as the order pair <PRE, POST>, called a specification of C • We say that the command C is correct with respect to the specification, if: • The precondition is true • The command halts • And the resulting values make the post condition true. *Extending this notation to an entire program supplies a meaning of program correctness and a semantics to programs in a language.

  17. A Weakest Precondition is the least restrictive one that will guarantee the postcondition Example {b > 10} a  b + 1 {a > 1} WP {b > 0} a  b + 1 {a > 1}

  18. Definition • A program is partially correct with respect to a precondition and a post condition provided that if the program is started with values that make the precondition true, the resulting values make the post condition true when the program halts (if ever). • Partial Correctness = (precondition  termination  post condition)

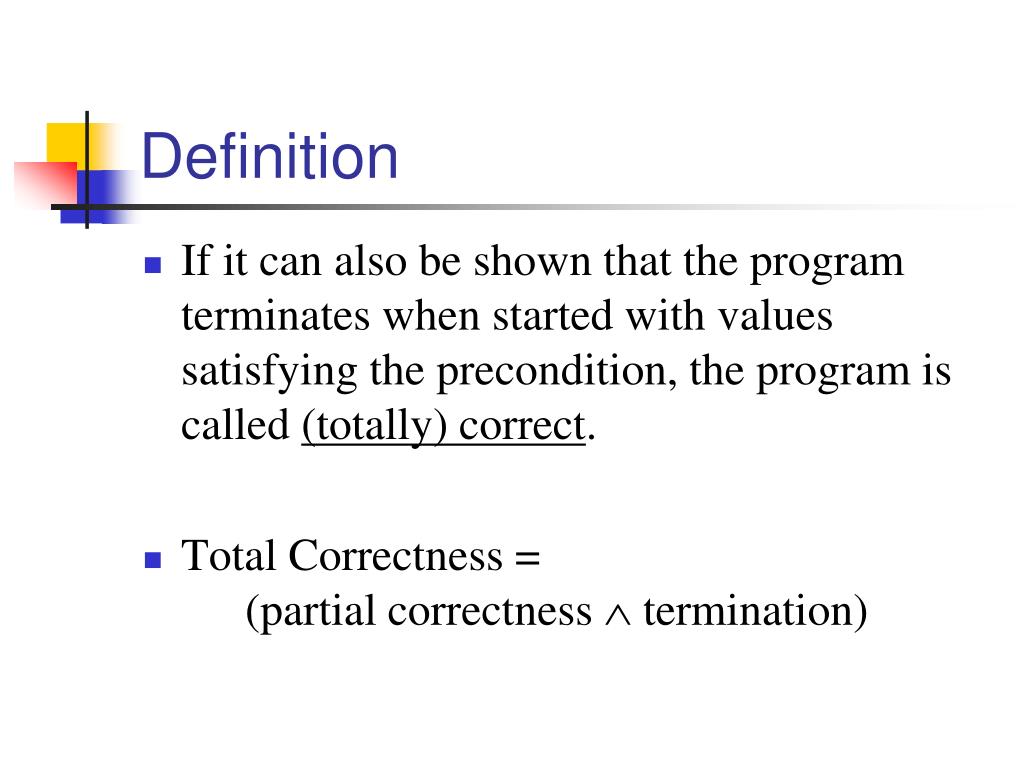

  19. Definition • If it can also be shown that the program terminates when started with values satisfying the precondition, the program is called (totally) correct. • Total Correctness = (partial correctness  termination)

  20. Axioms and Rules of Inference Given an assignment of the form: V = E and a post condition Q, we use the notation: P = [E / V] or P = Q[VE] or P = QVE to indicate the substitution of E in place of each free occurrence of V in Q This notation enables us to give an axiomatic definition for the assignment command. {Q[VE]} V = E {Q}

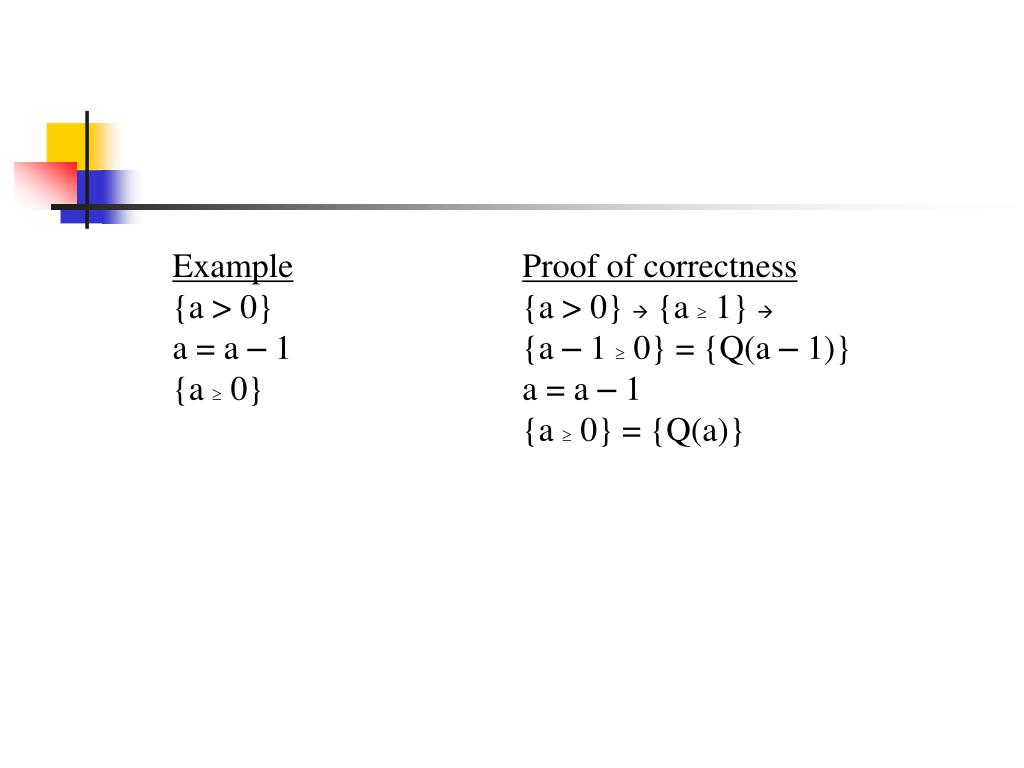

  21. Example {a > 0} a = a – 1 {a  0} Proof of correctness {a > 0}  {a  1}  {a – 1  0} = {Q(a – 1)} a = a – 1 {a  0} = {Q(a)}

  22. Example Compute the weakest precondition of the following statement and post condition: x = 2 * y – 3 {x > 25} {2 * y – 3 > 25} {2 * y > 28} {y > 14} {y > 14} WP

  23. Note: • A given assignment statement with both a precondition and a post condition can be considered a theorem. • We could say that proving the correctness of a program is like proving a theorem.

  24. Rules of Inference • For axiomatic specifications, we introduce rules of inference that have the form:

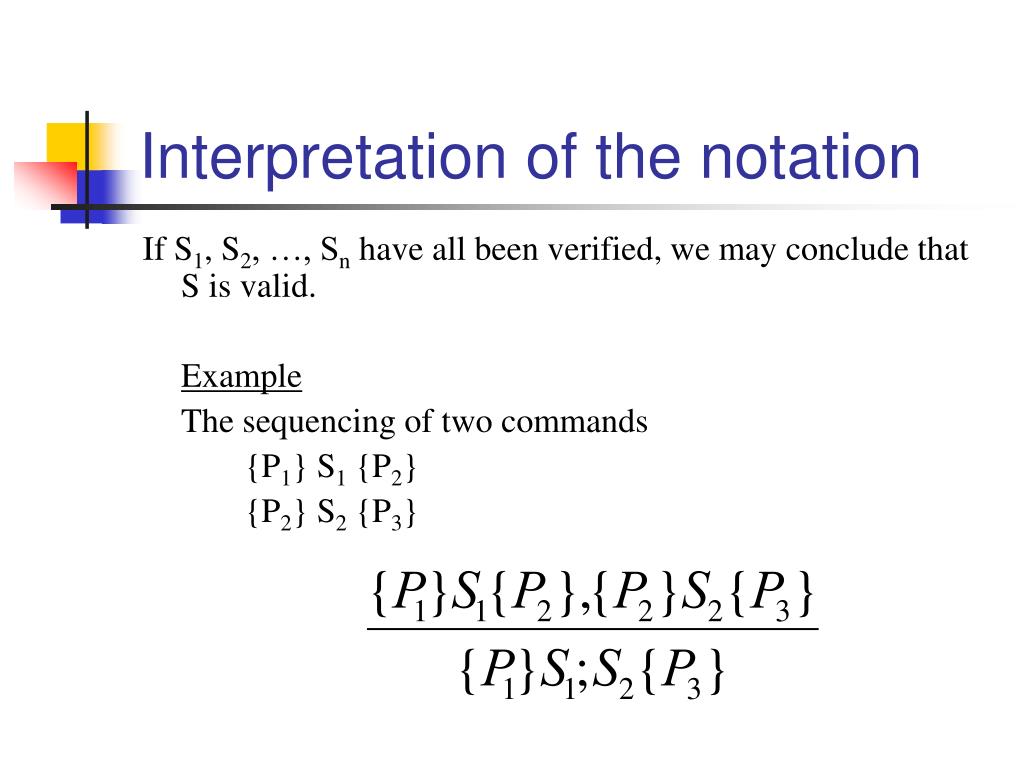

  25. Interpretation of the notation If S1, S2, …, Sn have all been verified, we may conclude that S is valid. Example The sequencing of two commands {P1} S1 {P2} {P2} S2 {P3}

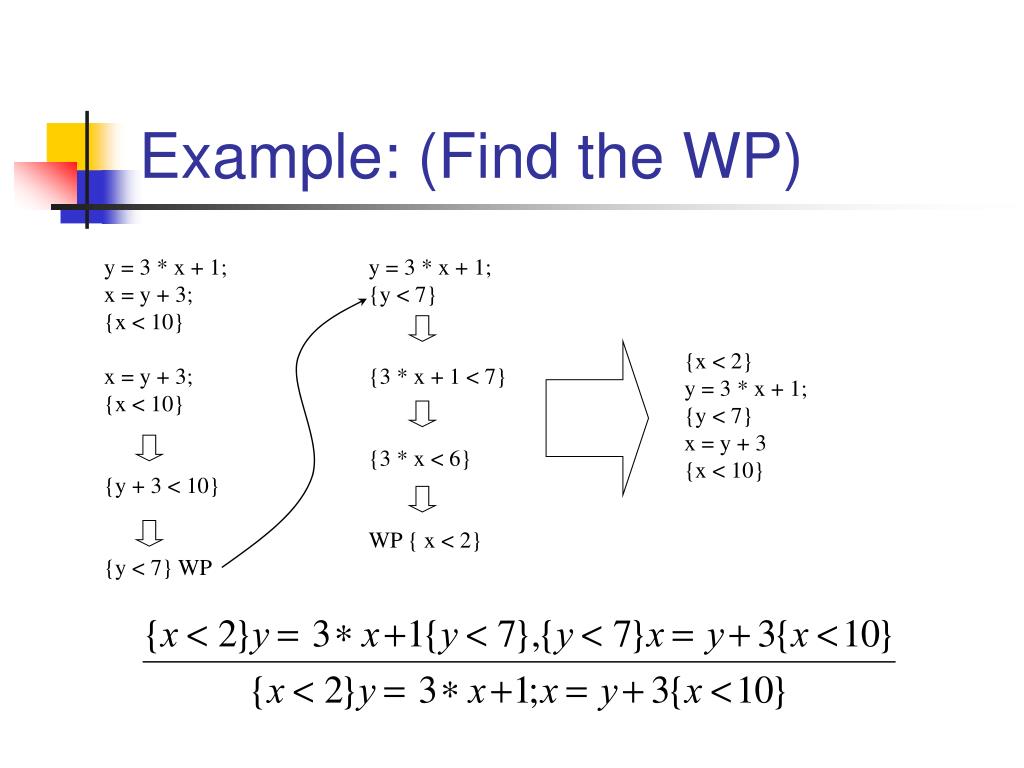

  26. Example: (Find the WP) y = 3 * x + 1; x = y + 3; {x < 10} x = y + 3; {x < 10} {y + 3 < 10} {y < 7} WP y = 3 * x + 1; {y < 7} {3 * x + 1 < 7} {3 * x < 6} WP { x < 2} {x < 2} y = 3 * x + 1; {y < 7} x = y + 3 {x < 10}

  27. The IF command ( IF – THEN – ELSE ) • The if command involves a choice between alternatives. • Note that the Boolean expression B is used as part of the assertion in the premises of the rule.

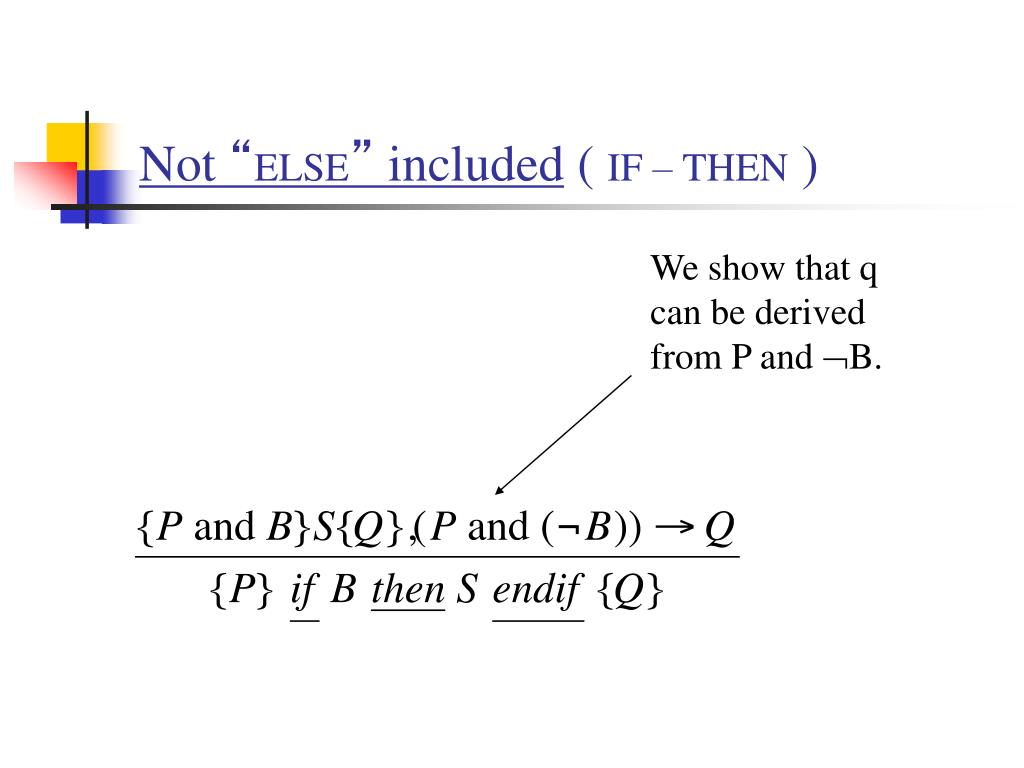

  28. Not “ELSE” included ( IF – THEN ) We show that q can be derived from P and B.

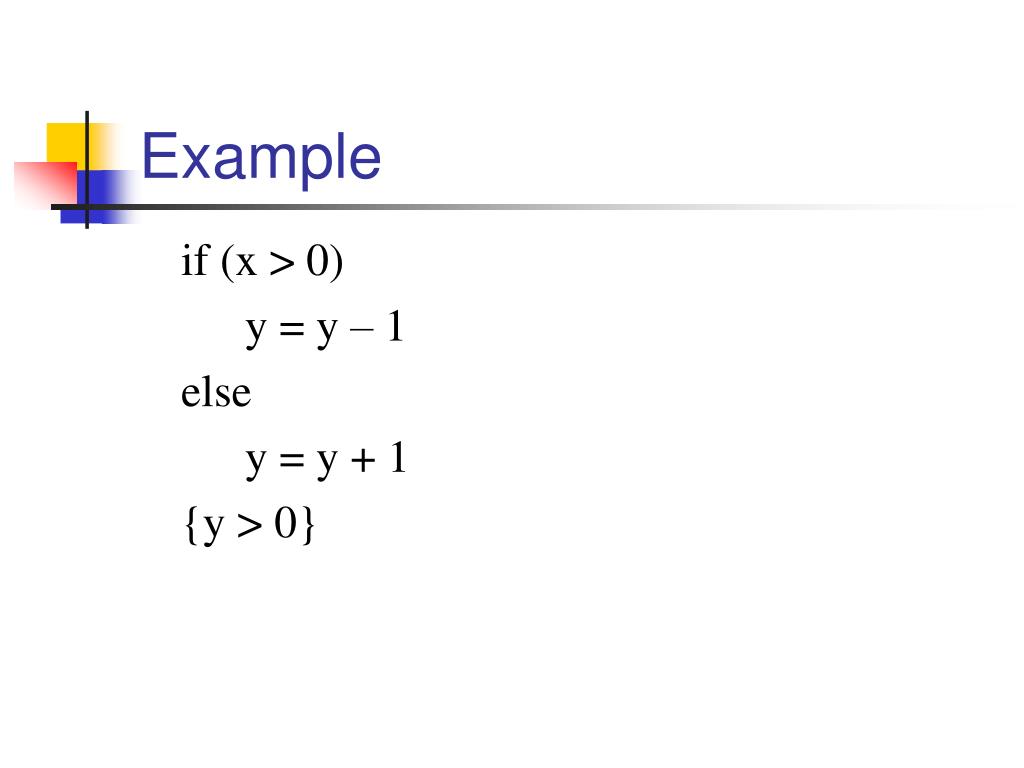

  29. Example if (x > 0) y = y – 1 else y = y + 1 {y > 0}

  30. 1) We use the axiom in the first assignment statement 2) Second assignment statement. y = y + 1 {y > 0} {y + 1 > 0} {y > – 1} y = y – 1 {y > 0} {y – 1 > 0} {y > 1} The rule of consequence allows us to use {y > 1} as the precondition of the whole statement. { y > 1}  {y > – 1}

  31. While command and the Loop Invariant • In this definition P is called the Loop Invariant.

  32. {I} 1 B 2 {I  B} 1 Shows that the loop invariant is valid initially Verify that the loop invariant holds each time the loop executes Proves that the loop invariant and the exit condition imply the final assertion. S 2 3 {I  (B)} 3 The complexity lies in finding an appropriate loop invariant

  33. As we have called P the invariant, let us rewrite the while axiom as: • Where I is the loop invariant

  34. The complete axiomatic description of a while construct requires all of the following to be true, in which I is the loop invariant: 1) P  I, the weakest precondition for the while statement must guarantee the truth of I. 2) {I and B}S{I}, the statement does not affect the loop invariant. 3) (I and (not B))  Q, the loop invariant implies the post condition at termination. 4) The loop terminates (In general, this may be very difficult to prove).

  35. To find the loop invariant, we can use a method similar to that used for determining the inductive hypothesis in mathematical induction: • “The relationship for a few cases is computed, with the hope that a pattern emerges that will apply to the general case.” • It is useful to treat the process of producing a WP as a function: • WP(statement, post condition) = precondition

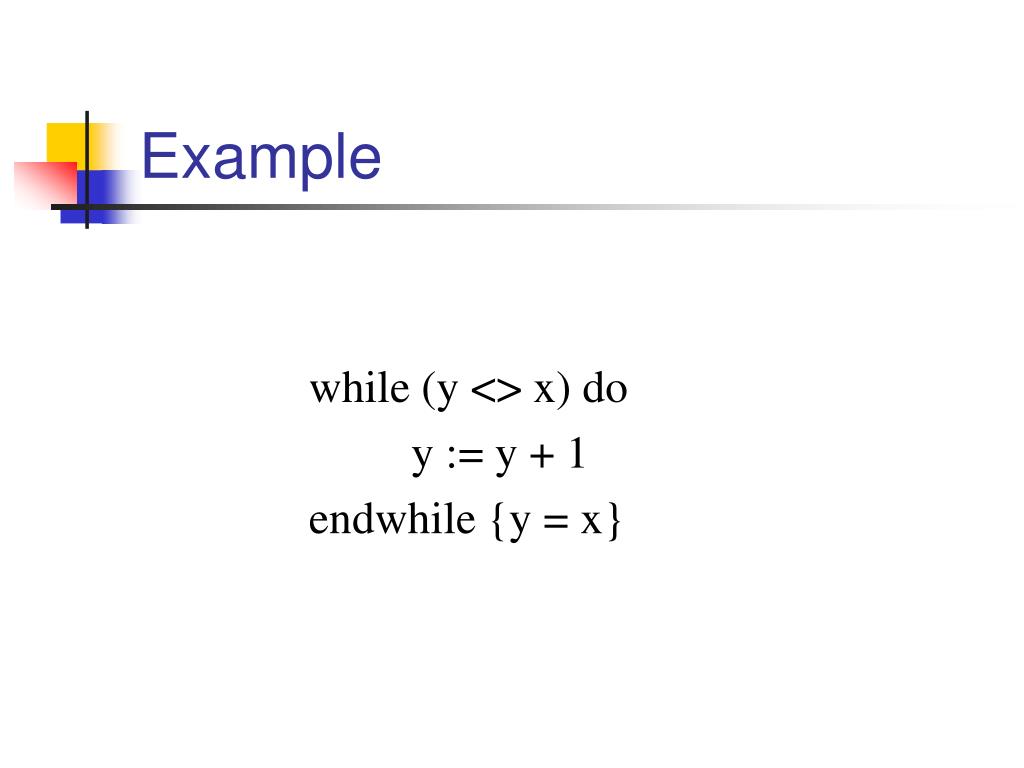

  36. Example while (y <> x) do y := y + 1 endwhile {y = x}

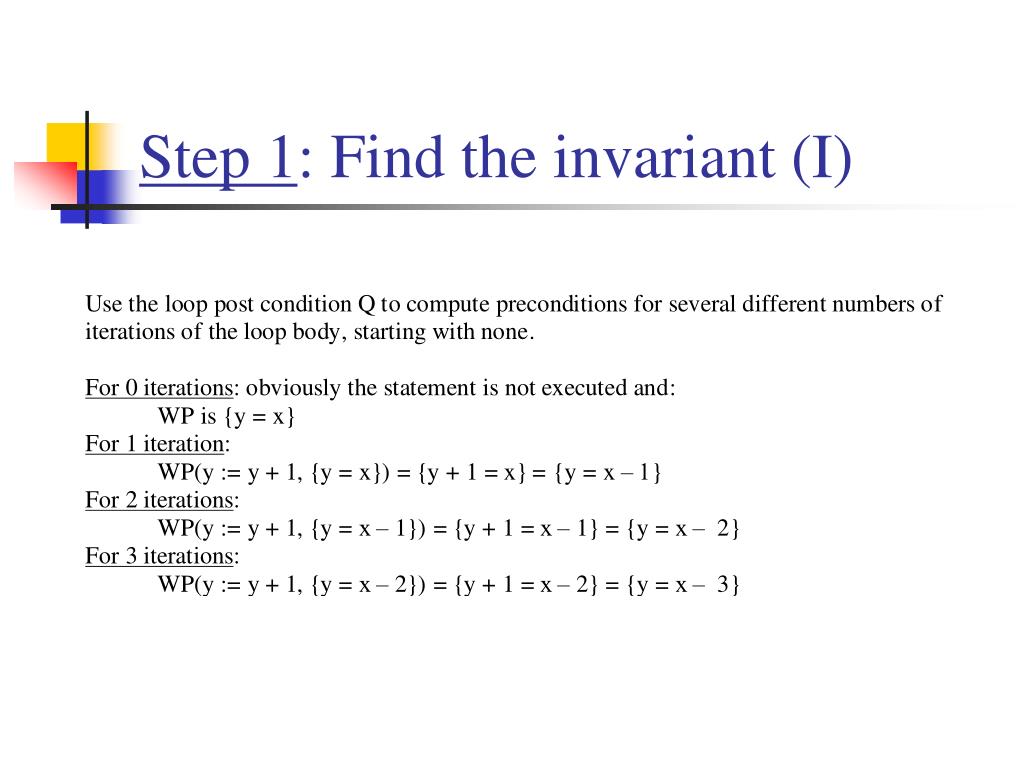

  37. Step 1: Find the invariant (I)

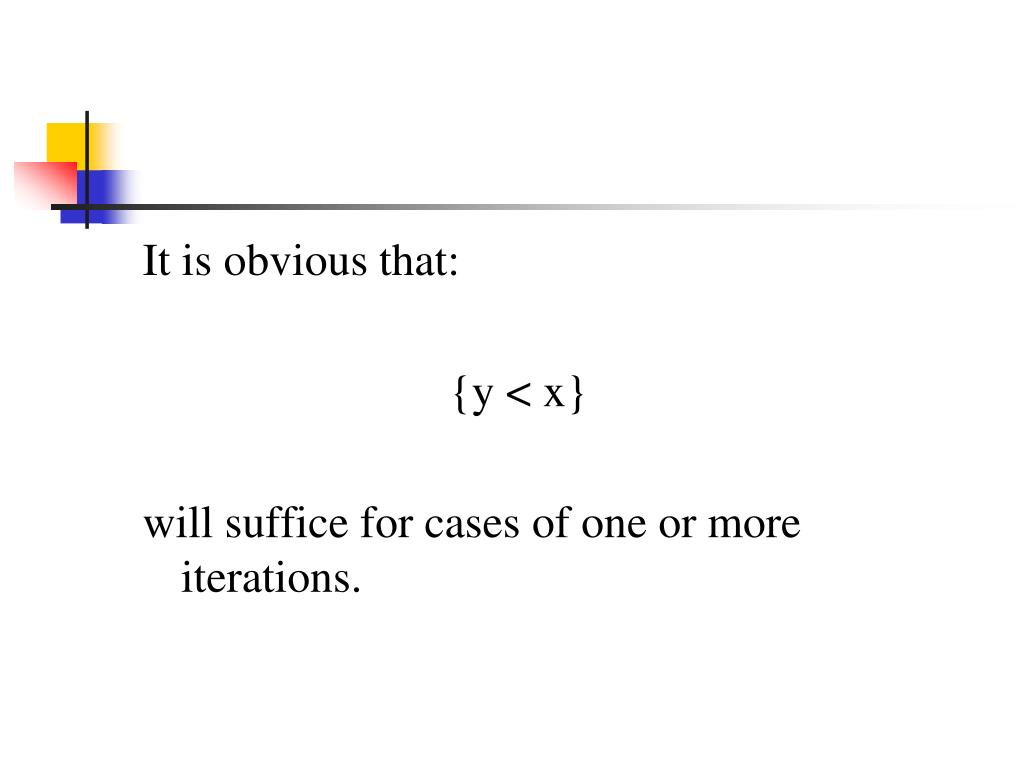

  38. It is obvious that: {y < x} will suffice for cases of one or more iterations.

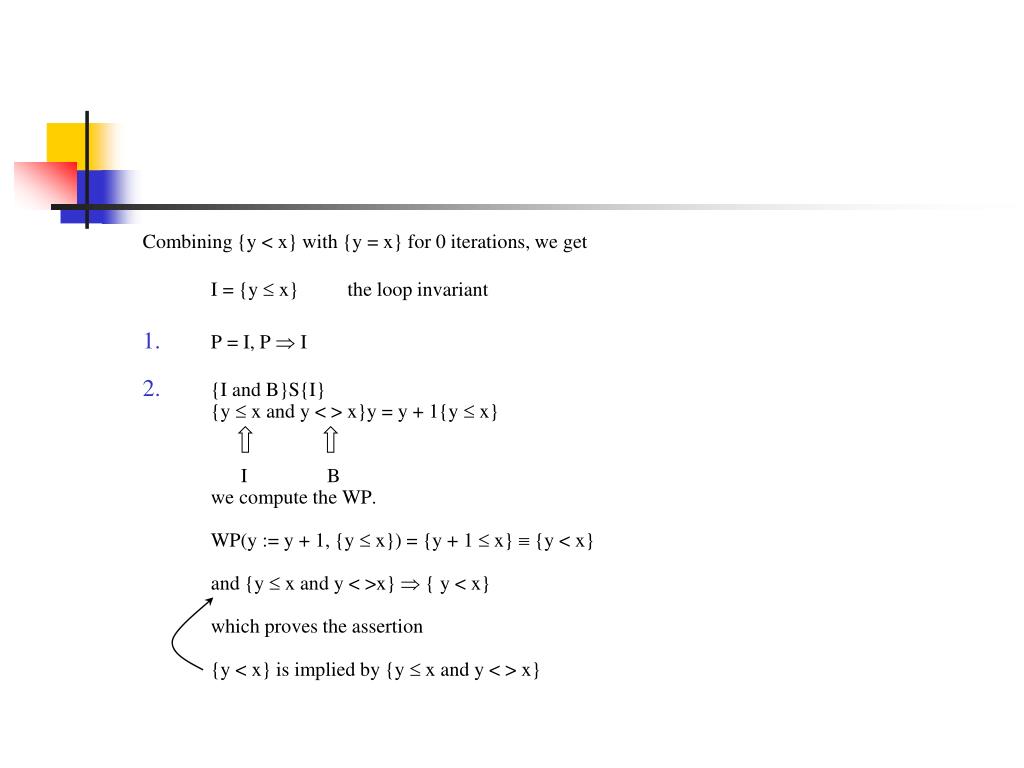

  39. Combining {y < x} with {y = x} for 0 iterations, we get I = {y  x} the loop invariant • P = I, P  I • {I and B}S{I}{y  x and y < > x}y = y + 1{y  x} I Bwe compute the WP.WP(y := y + 1, {y  x}) = {y + 1  x}  {y < x}and {y  x and y < >x}  { y < x}which proves the assertion{y < x} is implied by {y  x and y < > x}

  40. {(I and not(B)}  Q ?{(y  x) and not(y <> x)}  {y = x}{(y  x) and (y = x)}  {y = x}{y = x}  {y = x}, so proven. • The loop terminates?Since x and y are integers and {P} = {I} states that {y  x}, and the loop body increases y with each iteration until y is equal to x, it will eventuallyterminate.

  41. To define the entire semantics of a programming language using axiomatic methods, there must be an axiom or an inference rule for each statement type in the language.

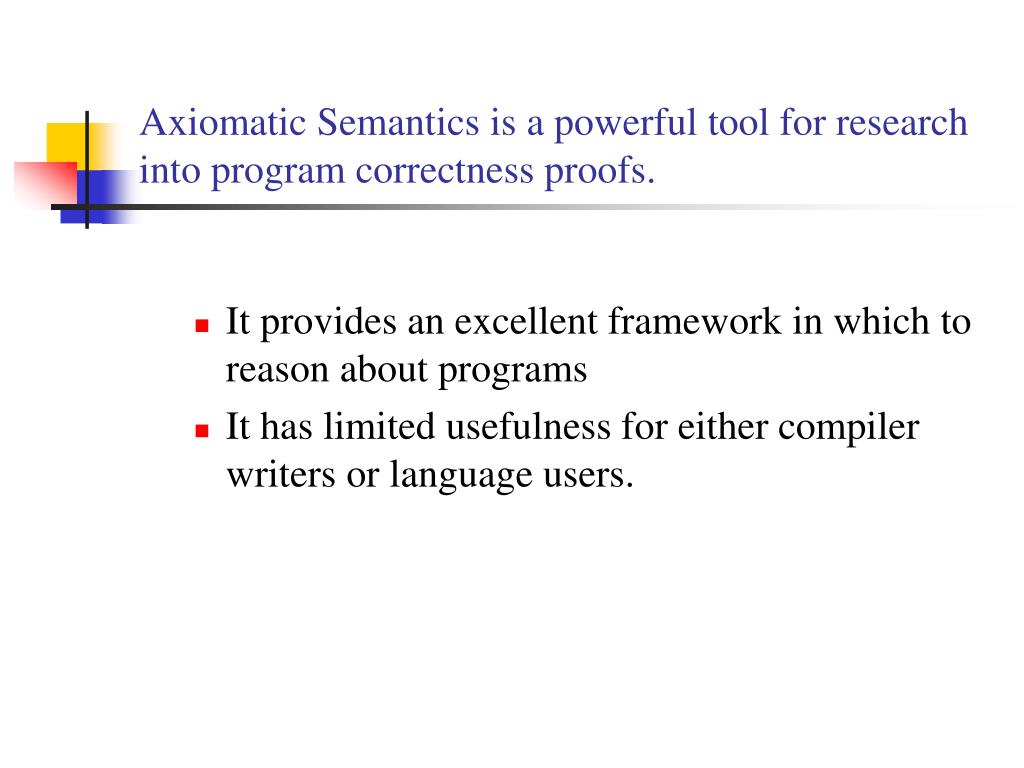

  42. Axiomatic Semantics is a powerful tool for research into program correctness proofs. • It provides an excellent framework in which to reason about programs • It has limited usefulness for either compiler writers or language users.

  43. Denotational Semantics is the most rigorous, widely-known method for describing the meaning of programs. • Based on recursive function theory • The most abstract semantics description method • Originally developed by Scott and Strachey (1970) • We can predict the behavior of each program without actually executing it on a compiler • Denotational Semantics assigns a meaning not only to a complete program, but also to every phrase in the programming language • Every expression • Every command • Every declaration • Etc.

  44. The meaning of each phrase is called a denotation and it represents a mathematical entity. (A denotation of the phrase) • We specify the programming language’s semantics by functions that map phrases to their denotations. • These functions are called: Semantic functions

  45. Example • Consider a language of binary numerals, such as ‘110’ and ‘10101’. • The numeral ‘110’ is intended to denote the number six and ‘10101’ denotes twenty-one. • It is important to understand that a numeral is a syntactic entity, whereas a number is a semantic entity. • A number is an abstract concept, not dependent on any particular syntactic representation.

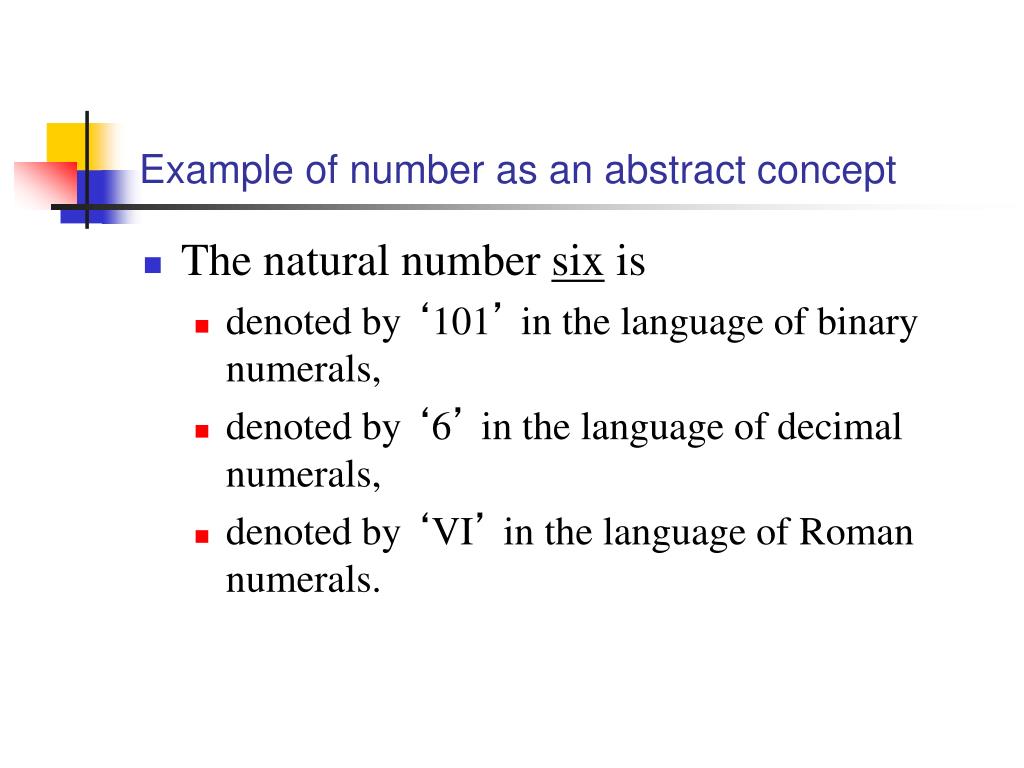

  46. Example of number as an abstract concept • The natural number six is • denoted by ‘101’ in the language of binary numerals, • denoted by ‘6’ in the language of decimal numerals, • denoted by ‘VI’ in the language of Roman numerals.

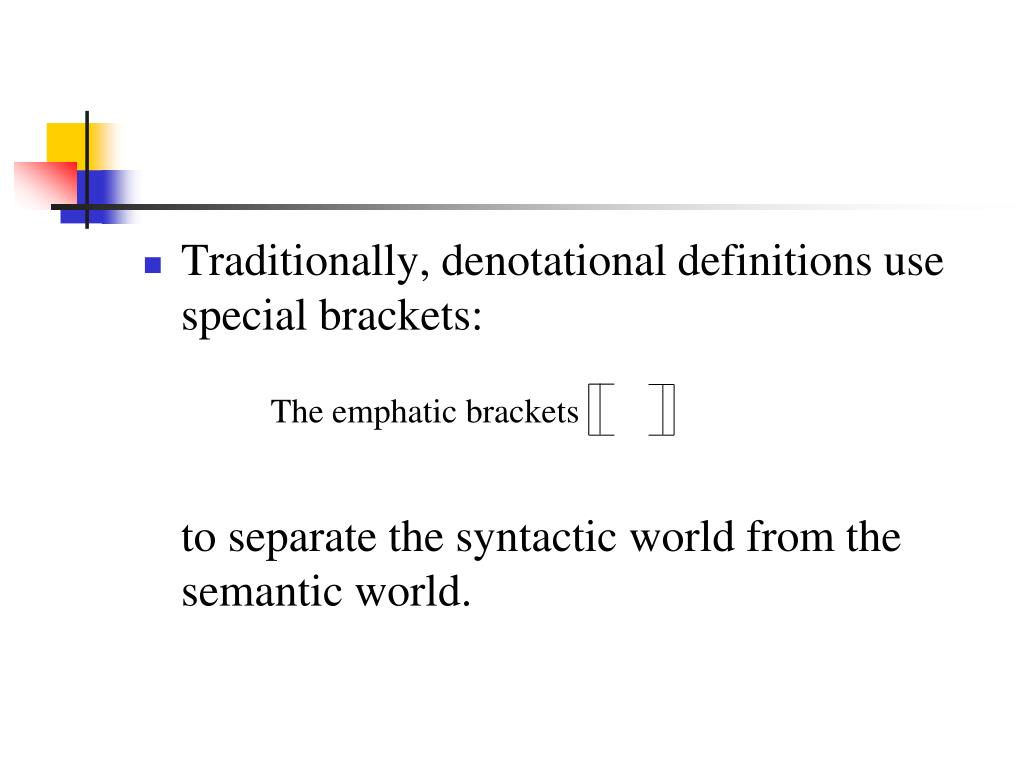

  47. Traditionally, denotational definitions use special brackets: The emphatic brackets to separate the syntactic world from the semantic world.

  48. For instance, if P is a syntactic phrase in a programming language, then the denotational specification of the language will define a mapping meaning so that meaning P is the denotation of P An abstract mathematical entity that models the semantic of P.

  49. Example • The expressions “2 * 4”, “(5 + 3)”, “008”, and “8” are syntactic phrases that all denote the same abstract object, namely the integer 8. • The denotational definition is • meaning 2*4 = meaning (5 + 3) = meaning 008 = meaning 8 = 8

  50. sometimes we call it valuation instead of meaning meaning 2*4  valuation 2*4 = 8
