  1. Hotspot ExpressProduct Presentation

  2. Hotspot Express • One of the Pioneers of complete WiFi solutions in India • Specialist in Out-Door Transmitters • Software to secure HOTSPOTs & Manage the users and their usage • Have been providing WiFi solutions for the last 18 months • First in India to Integrate Subscriber Management Software into a special purpose appliance running on LINUX kernel

  3. Basic WiFi Internet • By default a WiFi is unsecured network • Any laptop user can come inside the hotspot area and start using it Systems Department WiFi Network Sales Department Finance Department Wired LAN Wireless LAN

  4. With hotspot Express Appliance for Wired & Wireless Networks Internet • Hotspot Express is a WiFi Router as well as a Billing Server • Only authenticated users can reach Internet • Hotspot Express can manage the wired users too (in the same IP segment) hotspot Express WiFi Network Systems Department Secure Sales Department Finance Department

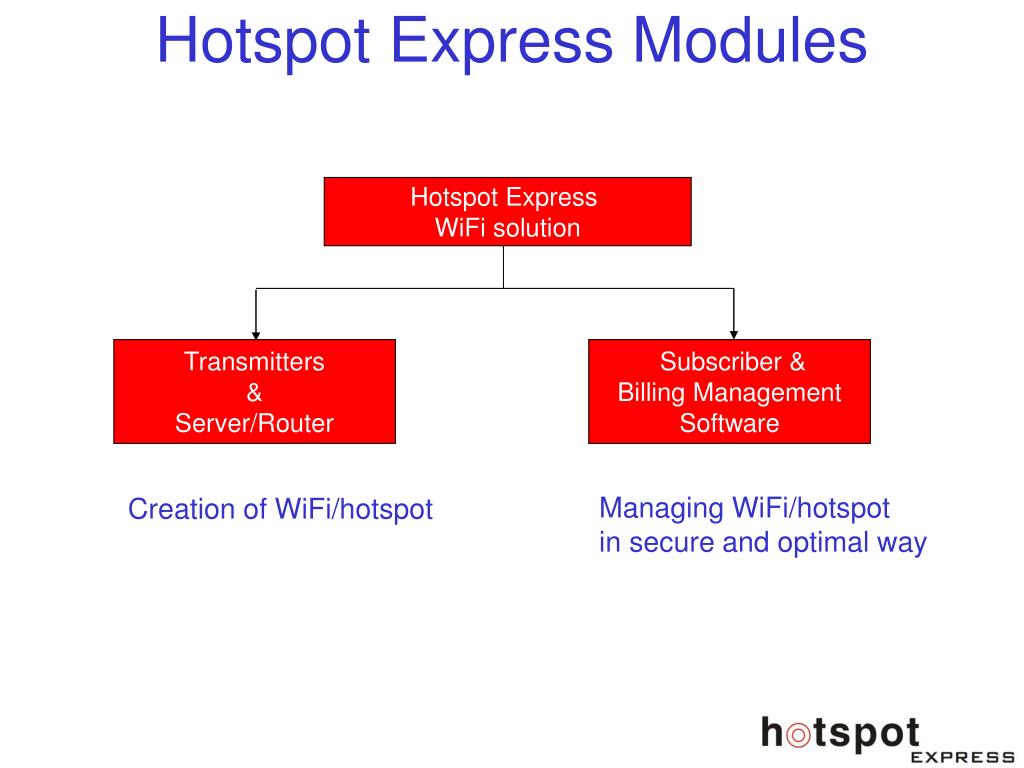

  5. Hotspot Express Modules Hotspot Express WiFi solution Transmitters & Server/Router Subscriber & Billing Management Software Managing WiFi/hotspot in secure and optimal way Creation of WiFi/hotspot

  6. Software Architecture Hotspot Express Subscriber & Billing Management Software AAA Server Database Server Bandwidth Manager Billing Manager Access Controller LINUX OS

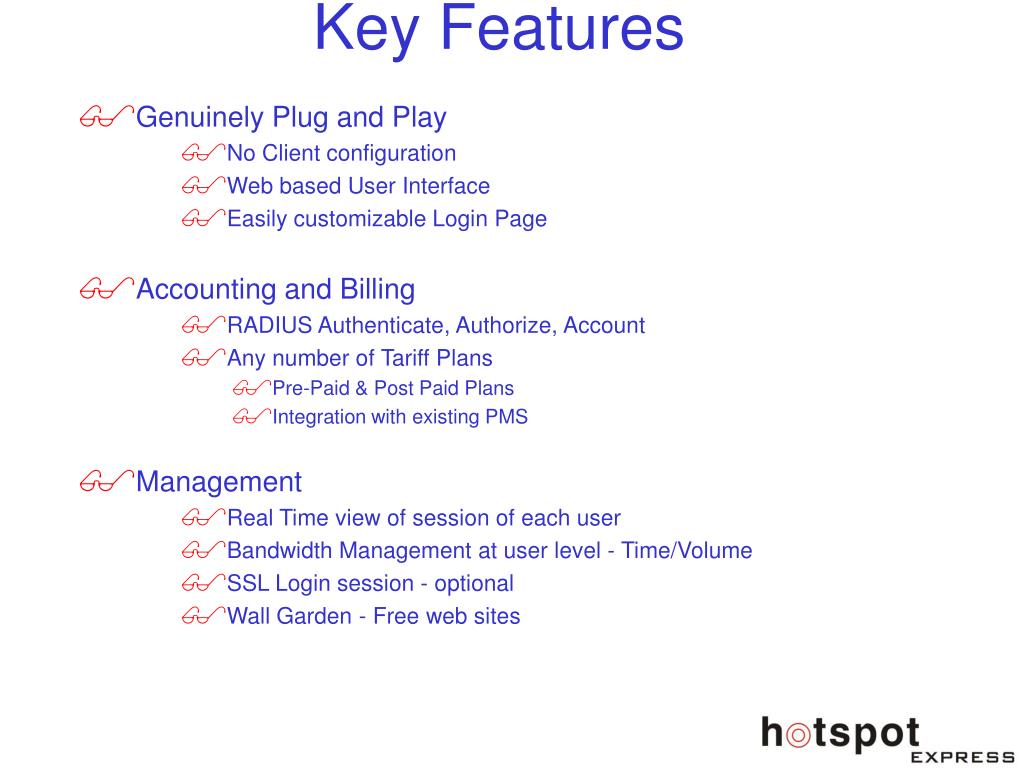

  7. Key Features • Genuinely Plug and Play • No Client configuration • Web based User Interface • Easily customizable Login Page • Accounting and Billing • RADIUS Authenticate, Authorize, Account • Any number of Tariff Plans • Pre-Paid & Post Paid Plans • Integration with existing PMS • Management • Real Time view of session of each user • Bandwidth Management at user level - Time/Volume • SSL Login session - optional • Wall Garden - Free web sites

  8. User Module

  9. Login Sequence 1. Open Browser Internet 2. Send Login Page 3. Username/Password 4. Authenticate hotspot Express 5. Allow or Deny 6. Start metering WiFi

  10. Login Page Customizable Area

  11. User Registration

  12. Administrator Module

  13. Sample Plans Plans based on Time or Volume or Speed or a combination of these three Any number of Pre-Paid/ Post-Paid Plans

  14. Pre-Paid Generate PINs Print PINs Sell Cards Settle unused Cards at end of business cycle Plans based on Time/Volume/Speed

  15. Post-paid Option1: PIN is mapped to Room No Option2: Guest can choose a PLAN Integration with existing PMS for Post Paid

  16. Flexible Tariff Structure Expiry Date Off peak hour discounts

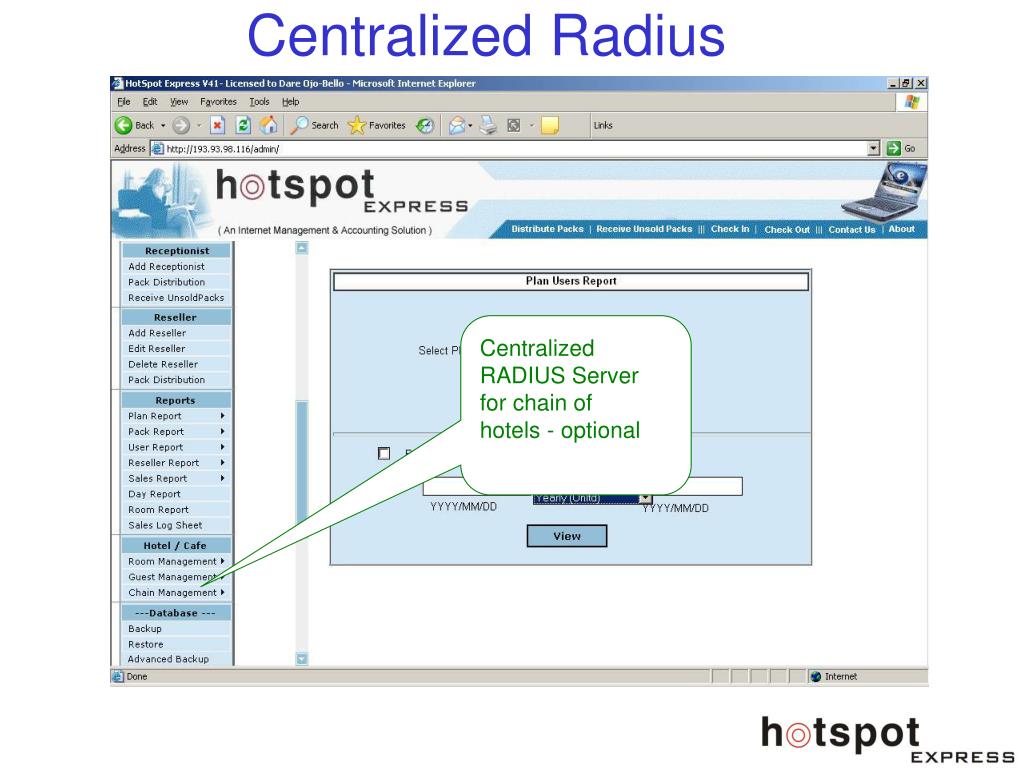

  17. Centralized Radius Centralized RADIUS Server for chain of hotels - optional

  18. List of Active Users User Name Start Time Usage Minutes Usage Volume IP Address

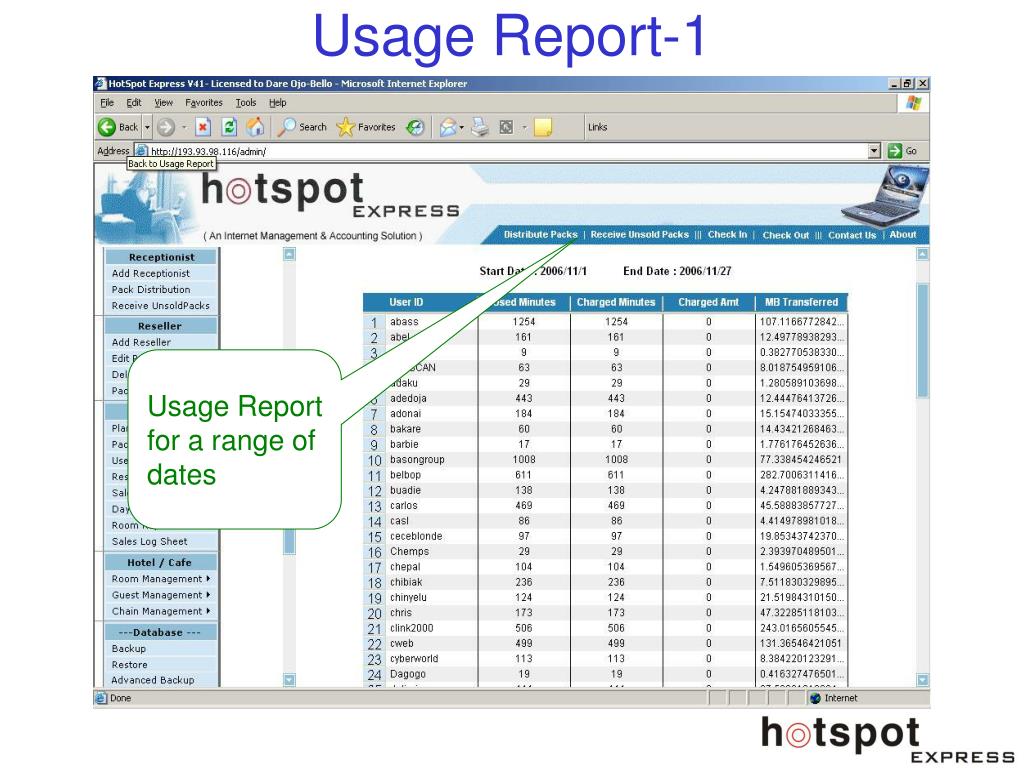

  19. Usage Report-1 Usage Report for a range of dates

  20. Usage Report-2 Usage Report of a specific user

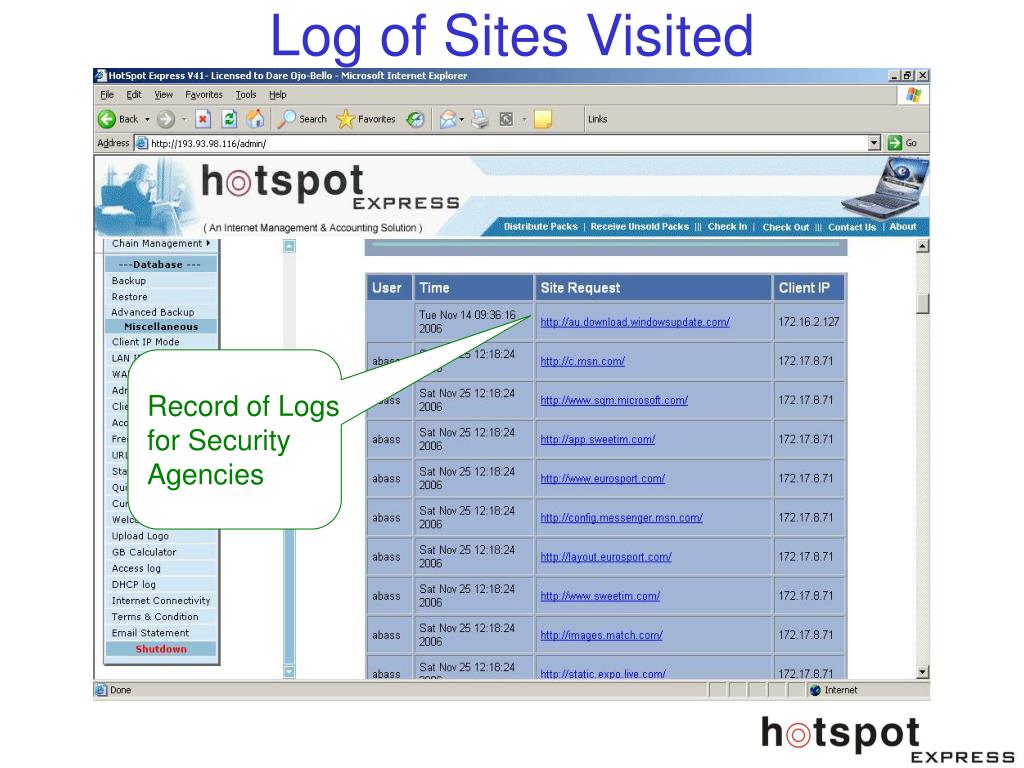

  21. Log of Sites Visited Record of Logs for Security Agencies

  22. Partial List of Customers Abad Group of Hotels, Kochi Woodlands,Kochi Radha Park Inn, Chennai Radha HomeTel, Bangalore Ananda Inn, Chennai Hotel Quality Inn Sabari, Chennai Hotel Ambica Empire Best Western, Chennai Shine Korea – Hyundai Korean Guest House, Chennai Ideal Beach Resort, Chennai Hotel Alankar Grand, Coimbatore Hotel CAG Pride, Coimbatore Hotel Jenny Club, Coimbatore Hotel Royal Court, Madurai Hotel InterContinental Nehru Place, Delhi Hotel Regent, Jamshedpur Pan Gulf Suites Hotel, Sarjah, UAE Al Raya, Dubai Holiday Inn, Dubai Hawthorn, Dubai Versailles, Dubai

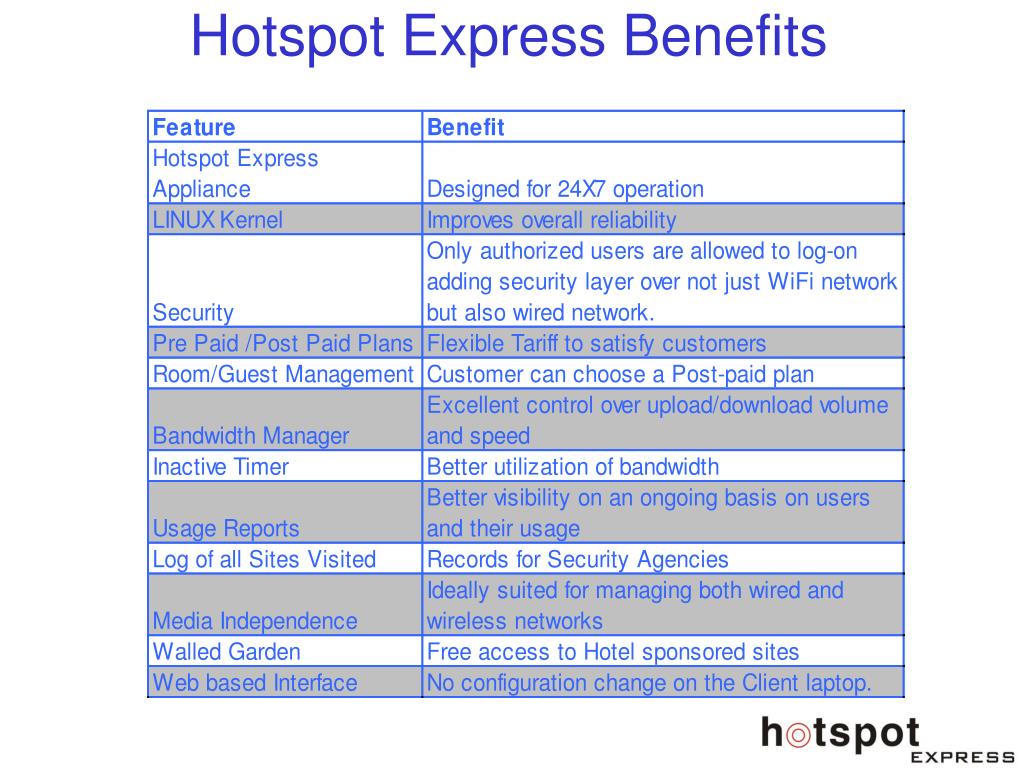

  23. Hotspot Express Benefits
