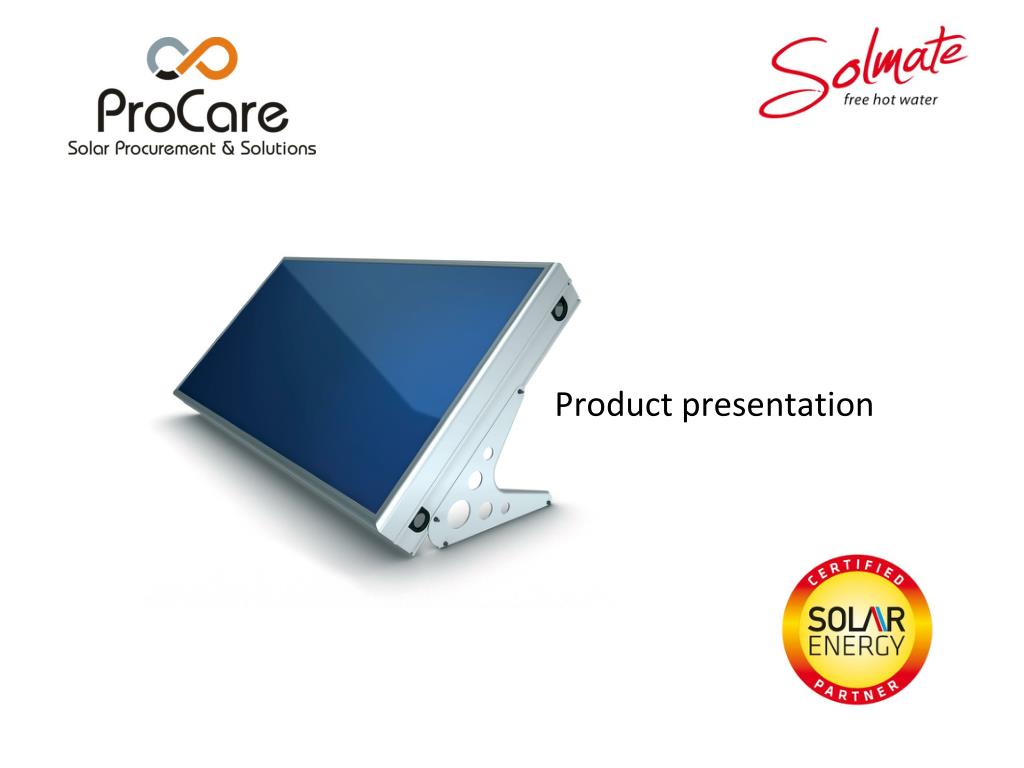

  1. Product presentation

  2. Content • USP‘s • Specification • Design • Technical Buildup / Concept • Fastening • Mounting • Fastening • System Installation • Packaging and Transport

  3. USP´s • Easy to install • Plug & Play • Half weight of a thermo siphon system • New Design • Perfect integration on the roof • Half height of a thermo siphon system • Flat-roof and On-roof Mounting System • Same fastening system for both variants • Optimal Price/Performance Ratio • Lower price at same performance level compared to a thermo siphon system • Optimized for Full-Truck-Load • Min. 96 pcs./truck (TSA : 48 pcs./truck ; HP: 38 pcs./truck )

  4. Specification

  5. Optimized Design Connections don’t preside over Prismatic Glass Harmonic frame design Shapely Mounting Foot

  6. Technical Buildup 3,2 mm glass + frame sealing upper frame (aluminum profile) Flangeplate caps sealed with O-rings lower frame (aluminum profile) 30 mm transparent insulation NIRO-pipe 30 mm PU-plate (Al plated)

  7. Technical Dimensions

  8. Technical Concept Hot water Heating element + cover(optional) Cold water

  9. Fastening • Flat roof • 2 pcs. Mounting foot • 4 pcs. Fastening pieces • Fixation direct on frame • On roof • 4 pcs. Sifting belt 25x1 • Fixation direct on frame

  10. Mounting of Fastening Important Mounting instructions • SOLMATE has to stand on the ground • Hammer head screws have to be fixed correctly

  11. Protective Foil Attention • Please remove the protective foil after filling!SOLMATE can be damaged without filling!

  12. System integration / Connections Non-return-/ safety valve Hot water pipe Blocking valve Drain valve Cold water pipe Mixer Mounting instruction: To avoid skin injuries (hot water up to 100°C possible) the installation of a mixer is recommended! Shower

  13. System integration / Connections non-return-/ safety valve Hot water pipe Blocking valve Drain valve Cold water pipe Mixer Shower

  14. Maintenance Attention • If the SOLMATE will be draining for maintenance, the SOLMATE have to be covered with a rag!SOLMATE can be damaged without filling!

  15. Packaging Upper Carton , white, printed(2- colour printing) with recessed grips SOLMATE with Protective Foil Accessories(fastening, valves, screws, etc.) Lower carton, brawn with recessed grips

  16. Transport – Truck Concept • Single packing (incl. fastening): 2-part carton (upper carton white printed) with recessed grips • Packaging palette: PE-Foil on the top + stretch foil • Dimension palette : 2.230 x 1.141 x 2.312 mm • VL 8; 12 palette storage positions • 96 pcs./truck (TSA : 48 pcs./truck ; HP: 33 pcs./truck ) • Degree of capacity utilization: 90.12%

  17. Transport – 40“ HC-Container Concept • Single packing (incl. fastening):2-partcarton (upper carton white printed) with recessed grips • Packaging palette: PE-Foil on the top + stretch foil • Dimension palette : 2.230 x 1.141 x 2.312 mm • VL 8; 10 palette storage positions • 80 pcs./truck (TSA : 48 pcs./truck ; HP: 33 pcs./truck ) • Degree of capacity utilization: 77,46%

  18. THANK YOU FOR YOUR ATTENTION !
