  1. NUMERICAL DIFFERENTIATION AND INTEGRATION ENGR 351 Numerical Methods for Engineers Southern Illinois University Carbondale College of Engineering Dr. L.R. Chevalier Dr. B.A. DeVantier

  2. Numerical Differentiation and Integration • Calculus is the mathematics of change. • Engineers must continuously deal with systems and processes that change, making calculus an essential tool of our profession. • At the heart of calculus are the related mathematical concepts of differentiation and integration.

  3. Differentiation • Dictionary definition of differentiate - “to mark off by differences, distinguish; ..to perceive the difference in or between” • Mathematical definition of derivative - rate of change of a dependent variable with respect to an independent variable

  4. f(x) Dy Dx x

  5. Integration • The inverse process of differentiation • Dictionary definition of integrate - “to bring together, as parts, into a whole; to unite; to indicate the total amount” • Mathematically, it is the total value or summation of f(x)dx over a range of x. In fact the integration symbol is actually a stylized capital S intended to signify the connection between integration and summation.

  6. f(x) x

  7. Mathematical Background

  8. Mathematical Background

  9. Overview • Newton-Cotes Integration Formulas • Trapezoidal rule • Simpson’s Rules • Unequal Segments • Open Integration • Integration of Equations • Romberg Integration • Gauss Quadrature • Improper Integrals

  10. Overview • Numerical Differentiation • High accuracy formulas • Richardson’s extrapolation • Unequal spaced data • Uncertain data • Applied problems

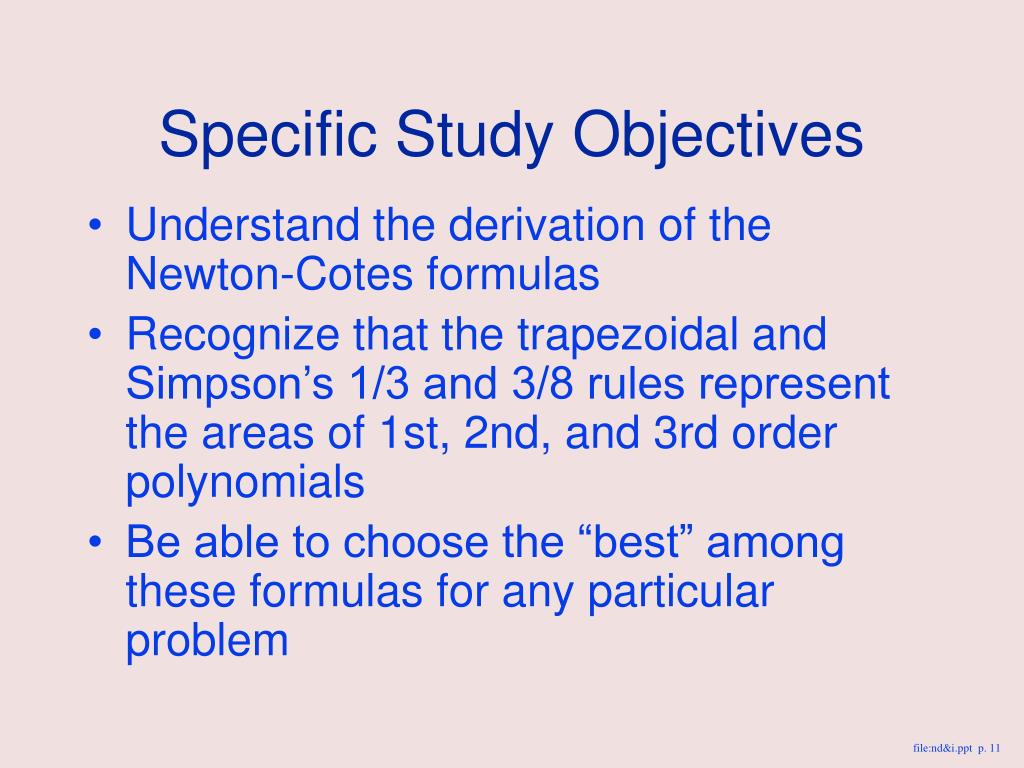

  11. Specific Study Objectives • Understand the derivation of the Newton-Cotes formulas • Recognize that the trapezoidal and Simpson’s 1/3 and 3/8 rules represent the areas of 1st, 2nd, and 3rd order polynomials • Be able to choose the “best” among these formulas for any particular problem

  12. Specific Study Objectives • Recognize the difference between open and closed integration formulas • Understand the theoretical basis of Richardson extrapolation and how it is applied in the Romberg integration algorithm and for numerical differentiation

  13. Specific Study Objectives • Recognize why both Romberg integration and Gauss quadrature have utility when integrating equations (as opposed to tabular or discrete data). • Understand the application of high-accuracy numerical-differentiation. • Recognize data error on the processes of integration and differentiation.

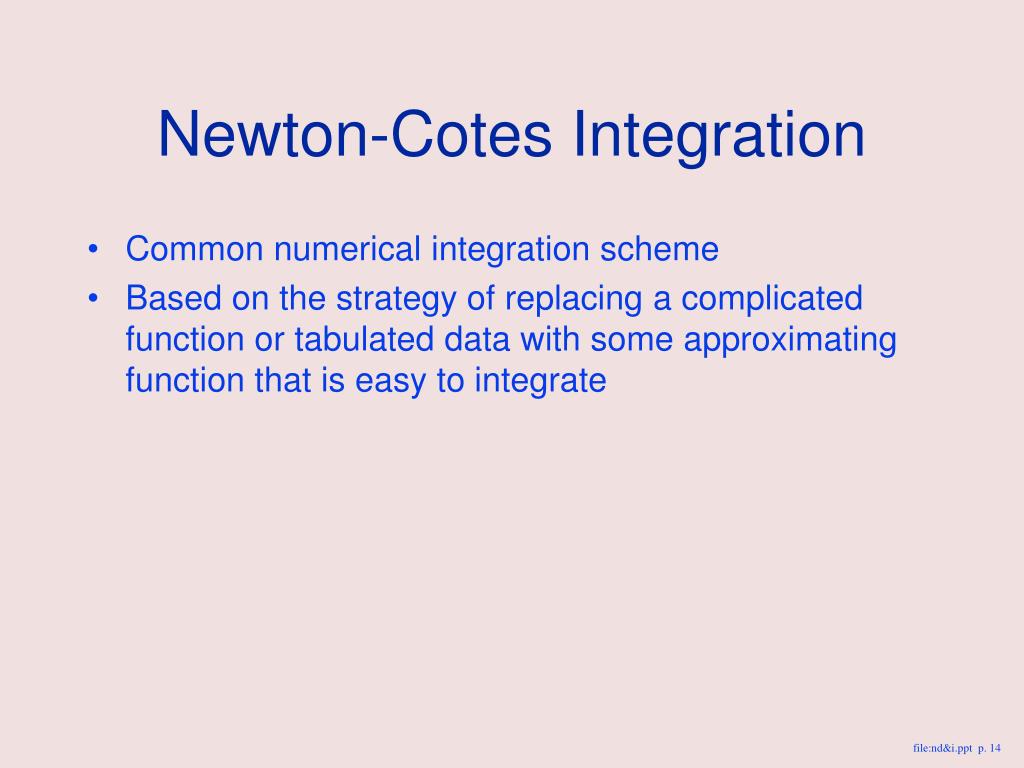

  14. Newton-Cotes Integration • Common numerical integration scheme • Based on the strategy of replacing a complicated function or tabulated data with some approximating function that is easy to integrate

  15. Newton-Cotes Integration • Common numerical integration scheme • Based on the strategy of replacing a complicated function or tabulated data with some approximating function that is easy to integrate

  16. Newton-Cotes Integration • Common numerical integration scheme • Based on the strategy of replacing a complicated function or tabulated data with some approximating function that is easy to integrate fn(x) is an nth order polynomial

  17. The approximation of an integral by the area under - a first order polynomial - a second order polynomial We can also approximated the integral by using a series of polynomials applied piece wise.

  18. An approximation of an integral by the area under straight line segments.

  19. Newton-Cotes Formulas • Closed form - data is at the beginning and end of the limits of integration • Open form - integration limits extend beyond the range of data.

  20. Trapezoidal Rule • First of the Newton-Cotes closed integration formulas • Corresponds to the case where the polynomial is a first order

  21. A straight line can be represented as:

  22. Integrate this equation. Results in the trapezoidal rule.

  23. The concept is the same but the trapezoid is on its side. base height height height width base

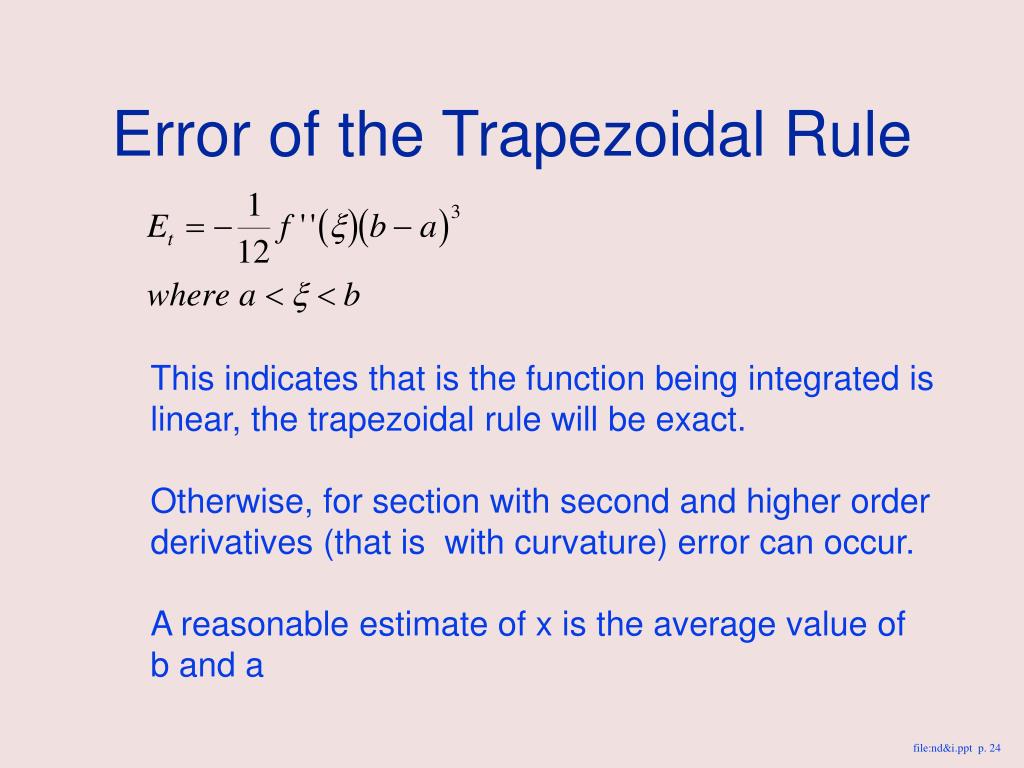

  24. Error of the Trapezoidal Rule This indicates that is the function being integrated is linear, the trapezoidal rule will be exact. Otherwise, for section with second and higher order derivatives (that is with curvature) error can occur. A reasonable estimate of x is the average value of b and a

  25. Multiple Application of the Trapezoidal Rule • Improve the accuracy by dividing the integration interval into a number of smaller segments • Apply the method to each segment • Resulting equations are called multiple-application or composite integration formulas

  26. Multiple Application of the Trapezoidal Rule where there are n+1 equally spaced base points.

  27. We can group terms to express a general form } } width average height

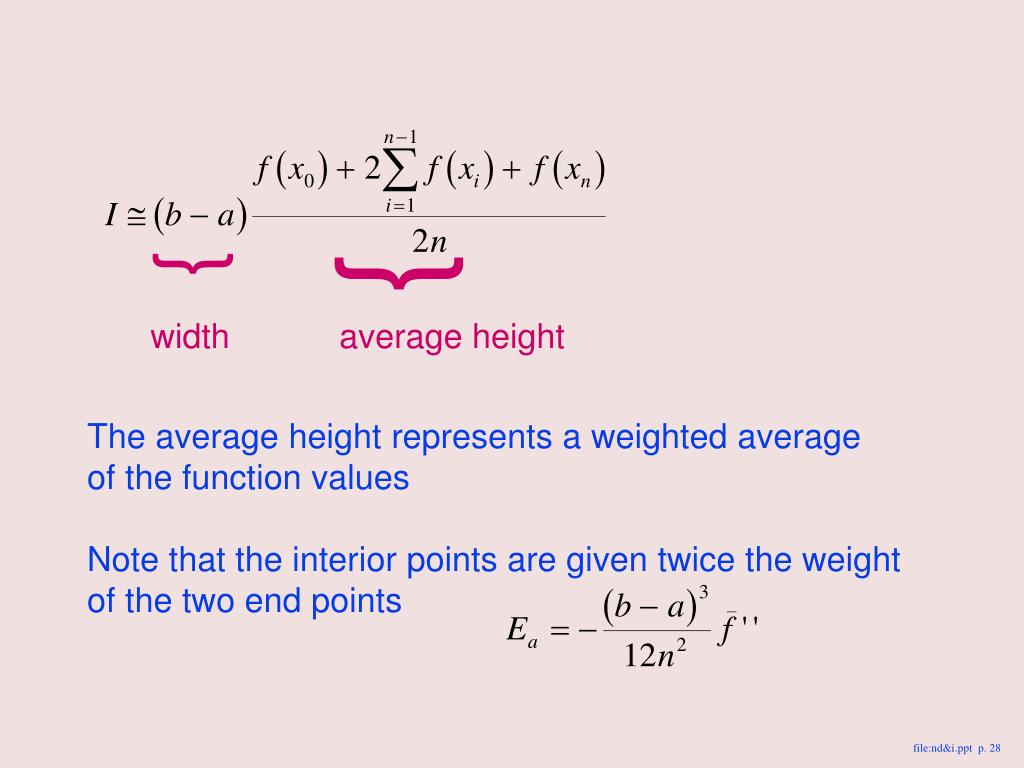

  28. } } width average height The average height represents a weighted average of the function values Note that the interior points are given twice the weight of the two end points

  29. EXAMPLE Evaluate the following integral using the trapezoidal rule and h = 0.1

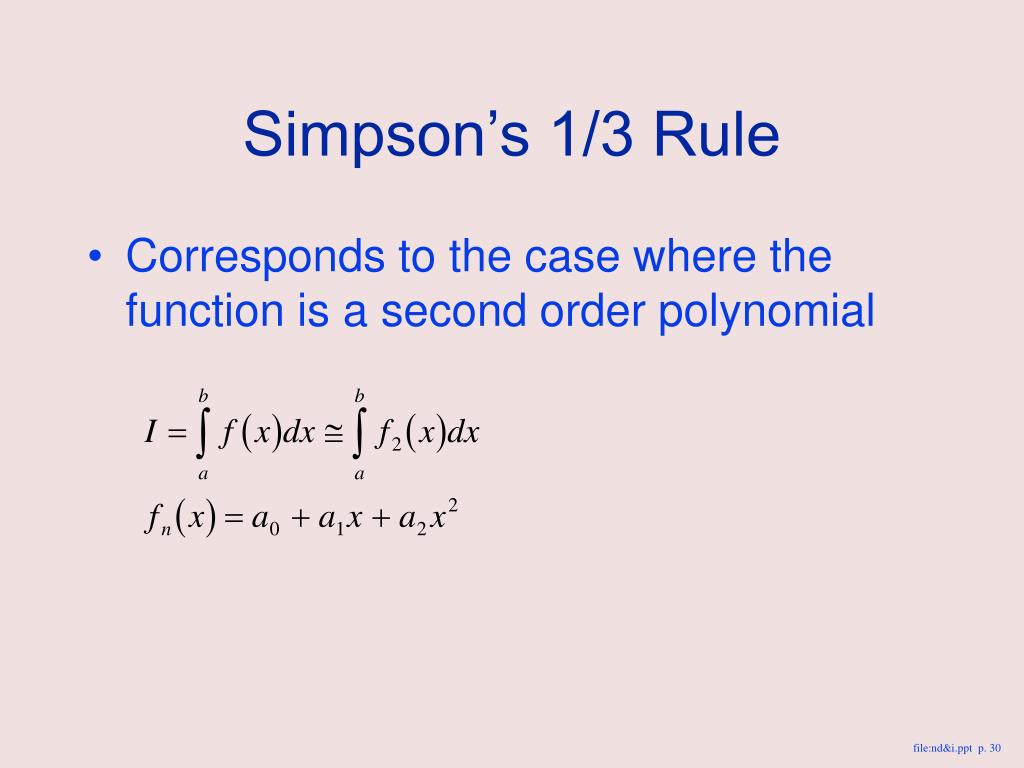

  30. Simpson’s 1/3 Rule • Corresponds to the case where the function is a second order polynomial

  31. Simpson’s 1/3 Rule • Designate a and b as x0and x2, and estimate f2(x) as a second order Lagrange polynomial

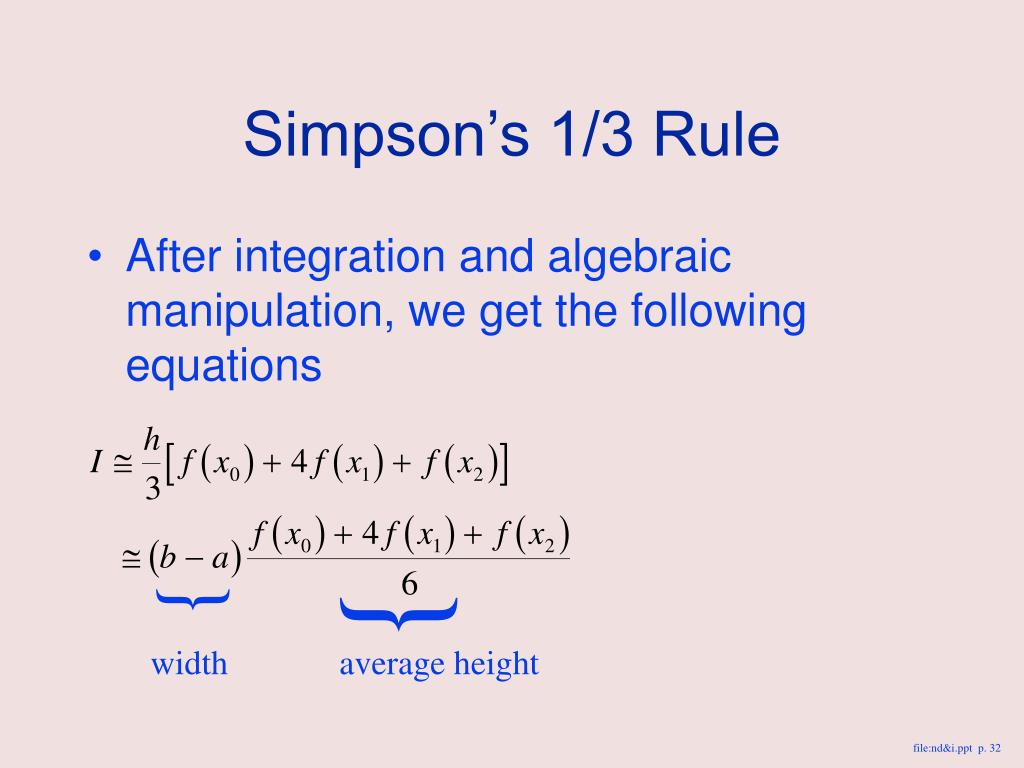

  32. } } width average height Simpson’s 1/3 Rule • After integration and algebraic manipulation, we get the following equations

  33. Error Single application of Trapezoidal Rule. Single application of Simpson’s 1/3 Rule

  34. Multiple Application of Simpson’s 1/3 Rule

  35. The odd points represent the middle term for each application. Hence carry the weight 4 The even points are common to adjacent applications and are counted twice.

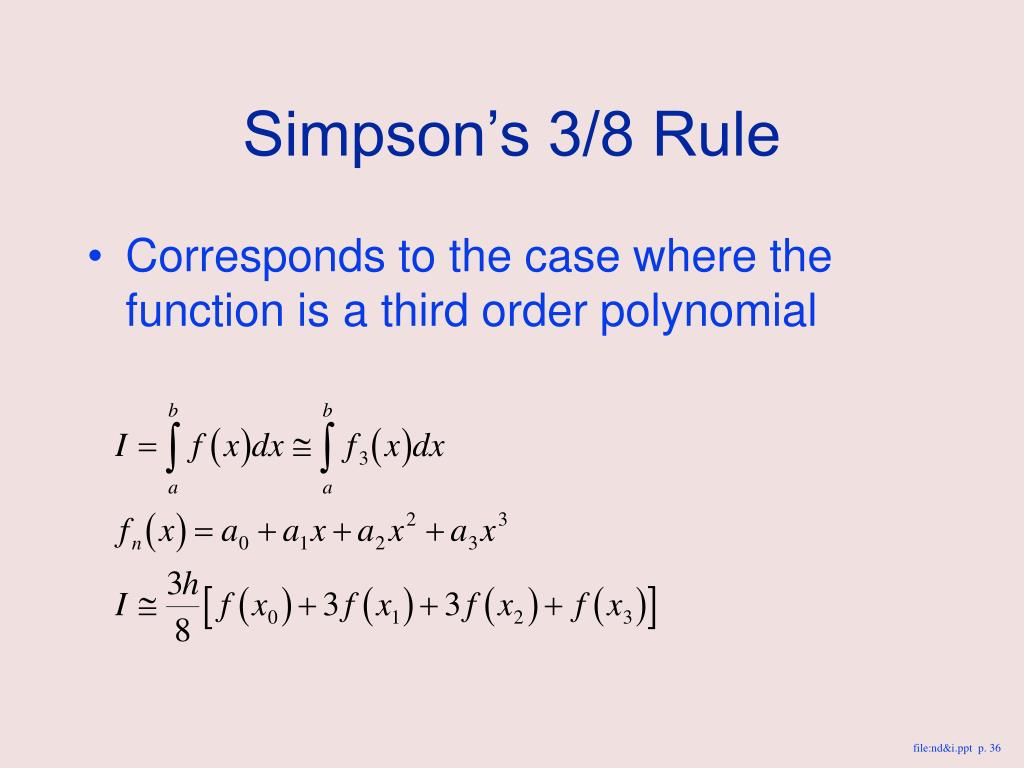

  36. Simpson’s 3/8 Rule • Corresponds to the case where the function is a third order polynomial

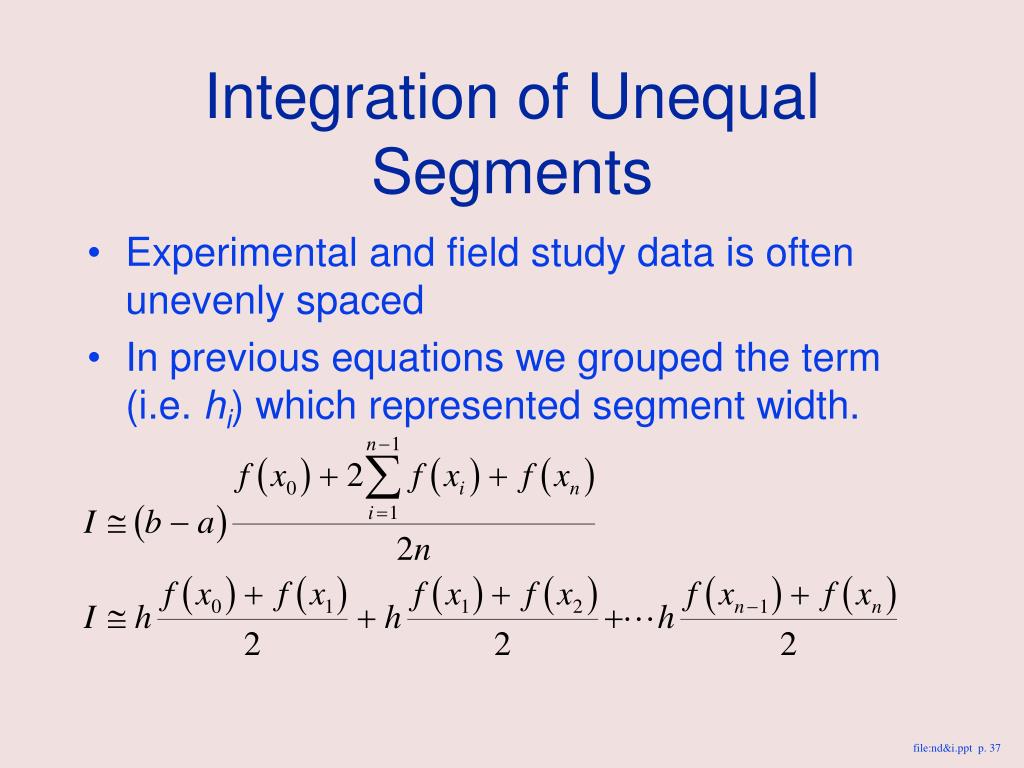

  37. Integration of Unequal Segments • Experimental and field study data is often unevenly spaced • In previous equations we grouped the term (i.e. hi) which represented segment width.

  38. Integration of Unequal Segments • We should also consider alternately using higher order equations if we can find data in consecutively even segments trapezoidal rule 1/3 rule trapezoidal rule 3/8 rule

  39. EXAMPLE Integrate the following using the trapezoidal rule, Simpson’s 1/3 Rule and a multiple application of the trapezoidal rule with n=2. Compare results with the analytical solution.

  40. Simpson’s 1/3 Rule f(2) = 109.196

  41. Multiple Application of the Trapezoidal Rule We are obviously not doing very well on our estimates. Lets consider a scheme where we “weight” the estimates ....end of example

  42. Integration of Equations • Integration of analytical as opposed to tabular functions • Romberg Integration • Richardson’s Extrapolation • Romberg Integration Algorithm • Gauss Quadrature • Improper Integrals

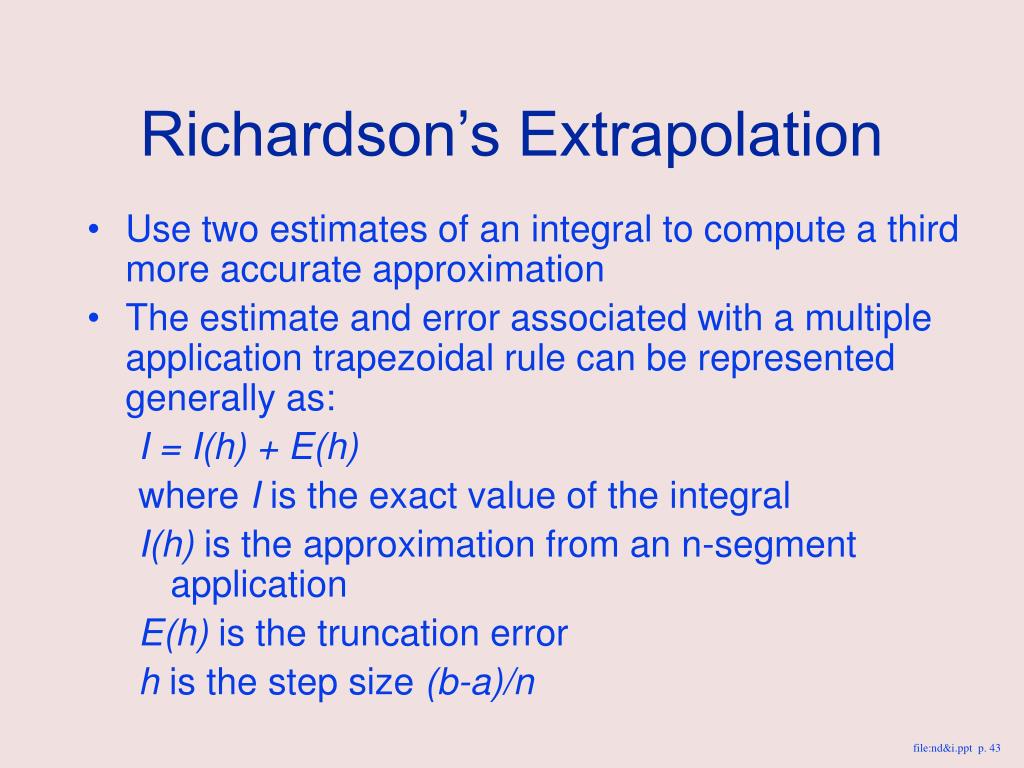

  43. Richardson’s Extrapolation • Use two estimates of an integral to compute a third more accurate approximation • The estimate and error associated with a multiple application trapezoidal rule can be represented generally as: • I = I(h) + E(h) • where I is the exact value of the integral • I(h) is the approximation from an n-segment application • E(h) is the truncation error • h is the step size (b-a)/n

  44. Make two separate estimates using step sizes of h1and h2. I(h1) + E(h1) = I(h2) + E(h2) Recall the error of the multiple-application of the trapezoidal rule Assume that is constant regardless of the step size

  45. Substitute into previous equation: I(h1) + E(h1) = I(h2) + E(h2)

  46. Thus we have developed an estimate of the truncation error in terms of the integral estimates and their step sizes. This estimate can then be substituted into: I = I(h2) + E(h2) to yield an improved estimate of the integral:

  47. What is the equation for the special case where the interval is halved? i.e. h2 = h1 / 2

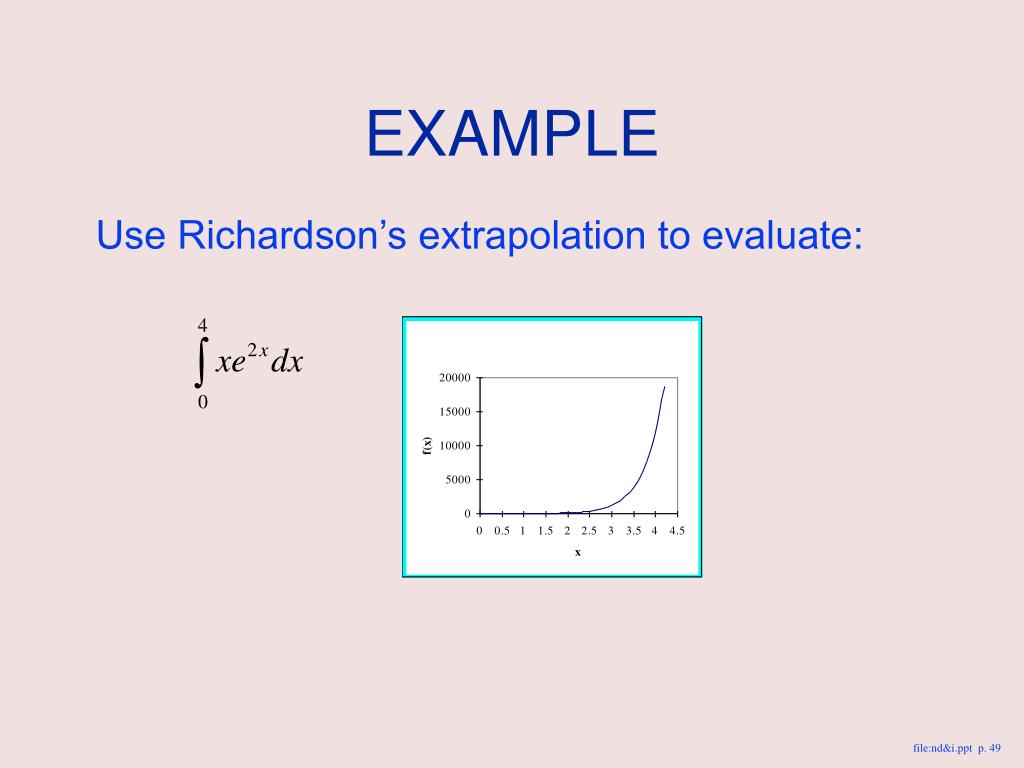

  48. EXAMPLE Use Richardson’s extrapolation to evaluate:

  49. ROMBERG INTEGRATION We can continue to improve the estimate by successive halving of the step size to yield a general formula: k = 2; j = 1 Note: the subscripts m and l refer to more and less accurate estimates
