  1. Chapter 16 Aldehydes & Ketones: Nucleophilic Addition to the Carbonyl Group

  2. Introduction • Carbonyl compounds

  3. Nomenclature of Aldehydes &Ketones • Rules: • Aldehyde as parent (suffix) • Ending with “al”; • Ketone as parent (suffix) • Ending with “one”. • Number the longest carbon chain containing the carbonyl carbon and starting at the carbonyl carbon.

  4. Examples:

  5. group as a prefix: methanoyl or formyl group • group as a prefix: ethanoylor acetyl group (Ac) • groups as a prefix: alkanoylor acyl groups

  6. Physical Properties • Comparison:

  7. Synthesis of Aldehydes 4A. Aldehydes by Oxidation of 1oAlcohols:

  8. e.g.

  9. 4B. Aldehydes by Ozonolysis ofAlkenes:

  10. e.g.

  11. 4C. Aldehydes by Reduction of AcylChlorides, Esters, and Nitriles: Not a good method for aldehydes. LiAlH4 is to reactive.

  12. LiAlH4 is a very powerful reducing agent, and aldehydes are easily reduced. • Usually reduced all the way to the corresponding 1o alcohol. • Difficult to stop at the aldehyde stage. • Using LiAlH4 is not a good method to synthesize aldehydes.

  13. Two derivatives of aluminum hydride that are less reactive than LiAlH4. • These are effective where LiAlH4 is not. For acid chlorides For esters and nitriles

  14. Aldehydes from acyl chlorides: RCOCl RCHO: • e.g.

  15. Reduction of an Acyl Chloride to an Aldehyde

  16. Aldehydes from esters and nitriles: • RCO2R’ RCHO RC≡N RCHO • Both esters and nitriles can be reduced to aldehydes by DIBAL-H.

  17. Reduction of an ester to an aldehyde:

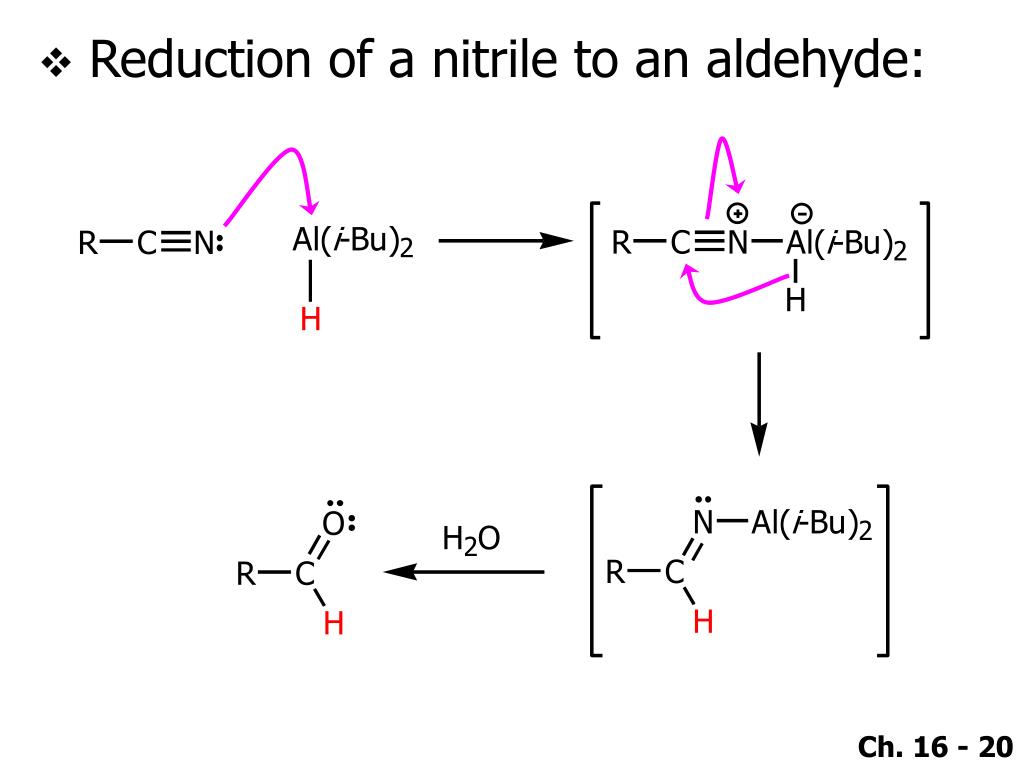

  18. Reduction of a nitrile to an aldehyde:

  19. Examples:

  20. Synthesis of Ketones 5A. Ketones from Alkenes, Arenes,and 2o Alcohols: • Ketones (and aldehydes) by ozonolysis of alkenes.

  21. Examples:

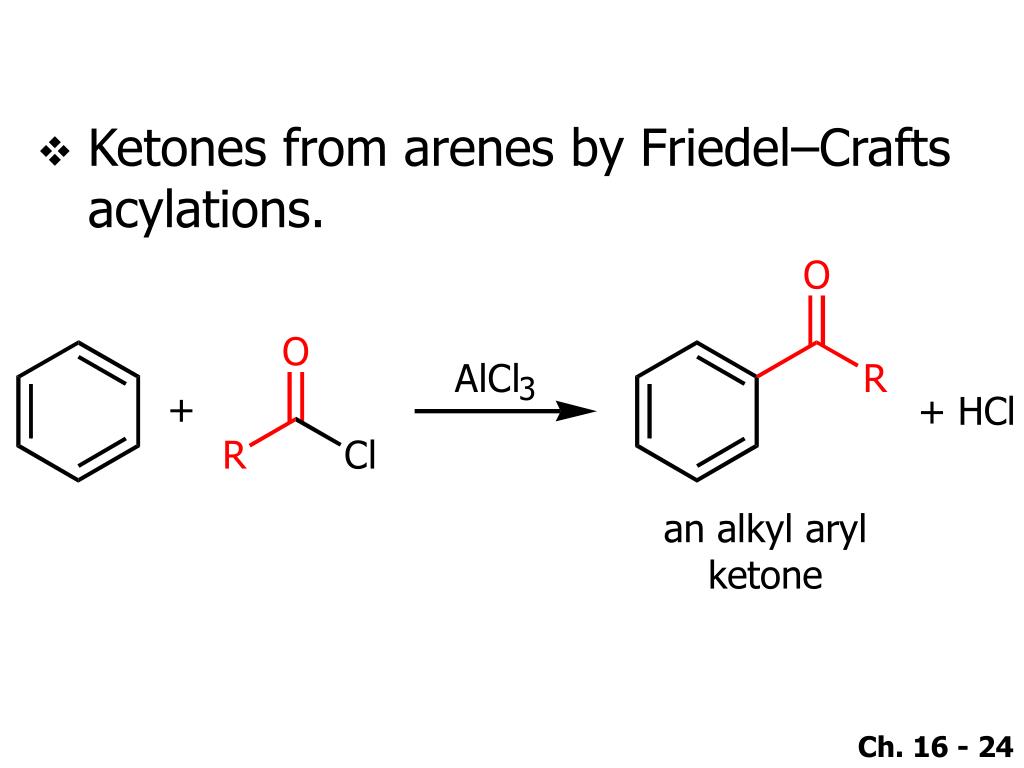

  22. Ketones from arenes by Friedel–Crafts acylations.

  23. Ketones from secondary alcohols by oxidation.

  24. 5B. Ketones from Nitriles:

  25. Examples:

  26. Suggest synthesis of: from and

  27. 5 carbons here 4 carbons here • Retrosynthetic analysis:  need to add one carbon

  28. disconnection disconnection • Retrosynthetic analysis:

  29. Synthesis:

  30. Suggest synthesis of: from and

  31. 5 carbons here 5 carbons here • Retrosynthetic analysis:  no need to add carbon

  32. disconnection • Retrosynthetic analysis:

  33. Synthesis

  34. Nucleophilic Addition to theCarbon–Oxygen Double Bond • Structure: Nu⊖ • Carbonyl carbon: sp2 hybridized • Trigonal planar structure

  35. Polarization and resonance structure: • Nucleophiles will attack the nucleophilic carbonyl carbon. • Note: nucleophiles usually do not attack non-polarized C=C bond.

  36. With a strong nucleophile:

  37. Also would expect nucleophilic addition reactions of carbonyl compounds to be catalyzed by acid (or Lewis acid). • Note: full positive charge on the carbonyl carbon in one of the resonance forms. • Nucleophiles readily attack.

  38. Mechanism:

  39. Mechanism:

  40. 6A. Reversibility of NucleophilicAdditions to the Carbon–OxygenDouble Bond • Many nucleophilic additions to carbon–oxygen double bonds are reversible; the overall results of these reactions depend, therefore, on the position of an equilibrium.

  41. 6B. Relative Reactivity: Aldehydesvs. Ketones

  42. small large • Steric factors:

  43. Electronic factors: (positive inductive effect from both R & R' groups)  carbonyl carbon less d+ (less nucleophilic) (positive inductive effect from only one R group)

  44. The Addition of Alcohols:Hemiacetals and Acetals • Acetal & Ketal Formation: Addition of Alcohols to Aldehydes: Catalyzed by acid

  45. Mechanism:

  46. Mechanism (Cont’d):

  47. Mechanism (Cont’d):

  48. Note: All steps are reversible. In the presence of a large excess of anhydrous alcohol and catalytic amount of acid, the equilibrium strongly favors the formation of acetal (from aldehyde) or ketal (from ketone). • On the other hand, in the presence of a large excess of H2O and a catalytic amount of acid, acetal or ketal will hydrolyze back to aldehyde or ketone. This process is called hydrolysis.
