  1. Saia® System catalogueChapter A1 – Automation stations | PCD2 series

  2. Saia® PCD2.M5xxx controllers PCD2.M5440 Basic PCD2.M5540 Extended with Ethernet Switch Saia® PCD2 programmablelogiccontrollers • Saia®PCD2 module holder for I/O expansion • PCD2.C2000 8 I/Os • Expendableupto 1023 I/Os • Saia®PCD2 Input/Output Modules • PCD2.Exxx Digital inputmodules • PCD2.Axxx digital outputmodules • PCD2.Bxxx Combined digital input / outputmodules • PCD2.Wxxx Analogueinput/outputmodules • Saia®PCD2 interfacemodules • Plug-in modules to expand the communication interfaces (up to 4 modules or 8 interfaces) • serial interfaces RS 232, RS 422/RS 485 • BACnet MSTP, DALI, M-Bus, Belimo MP-Bus • Saia®memory modules • PCD2.R6xx Basic module for SD flash memory card for slots 0…3 • PCD7.R-SD SD flash memory cards for PCD3.R6xx • PCD7.R5xx Flash memory module for slots M1 & M2 System catalogue | Chapter A1 | PCD2 series 2 2 2

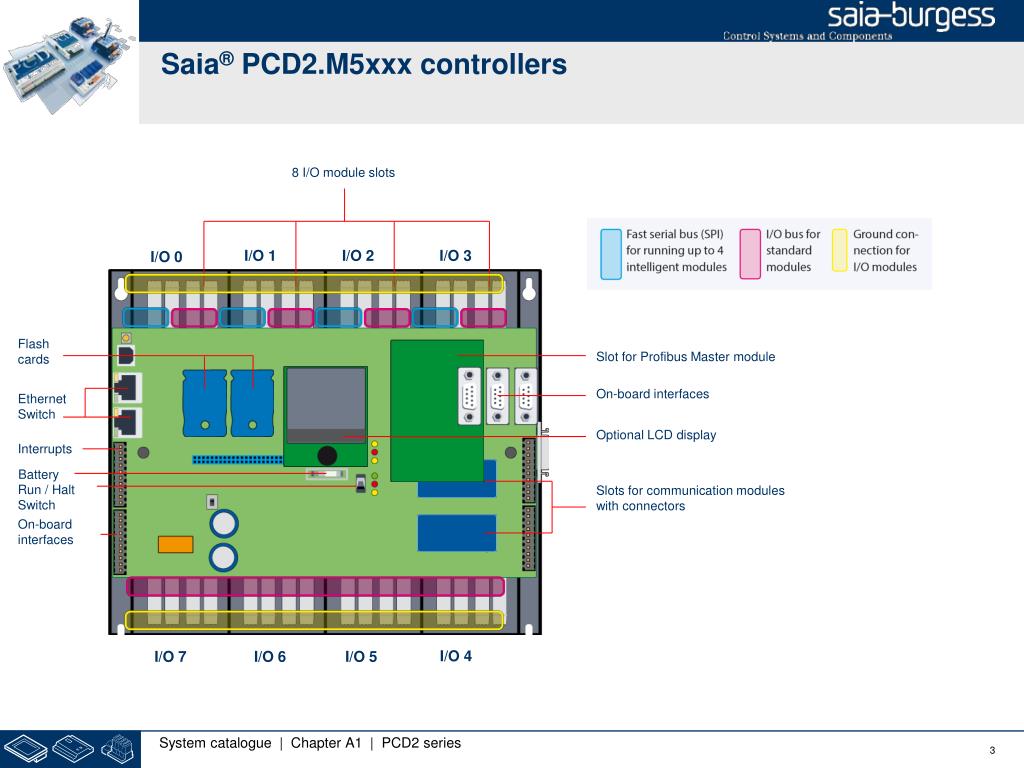

  3. Saia® PCD2.M5xxx controllers 8 I/O moduleslots I/O 1 I/O 2 I/O 3 I/O 0 Flash cards Optional LCD display On-board interfaces Slot forProfibus Master module Slots forcommunicationmoduleswithconnectors Ethernet Switch Run / Halt Switch On-board interfaces Battery Interrupts I/O 4 I/O 7 I/O 6 I/O 5 System catalogue | Chapter A1 | PCD2 series

  4. Saia® PCD2.Cxxxx module holder System catalogue | Chapter A1 | PCD2 series

  5. System canbeextendedupto1023 I/Os System catalogue | Chapter A1 | PCD2 series

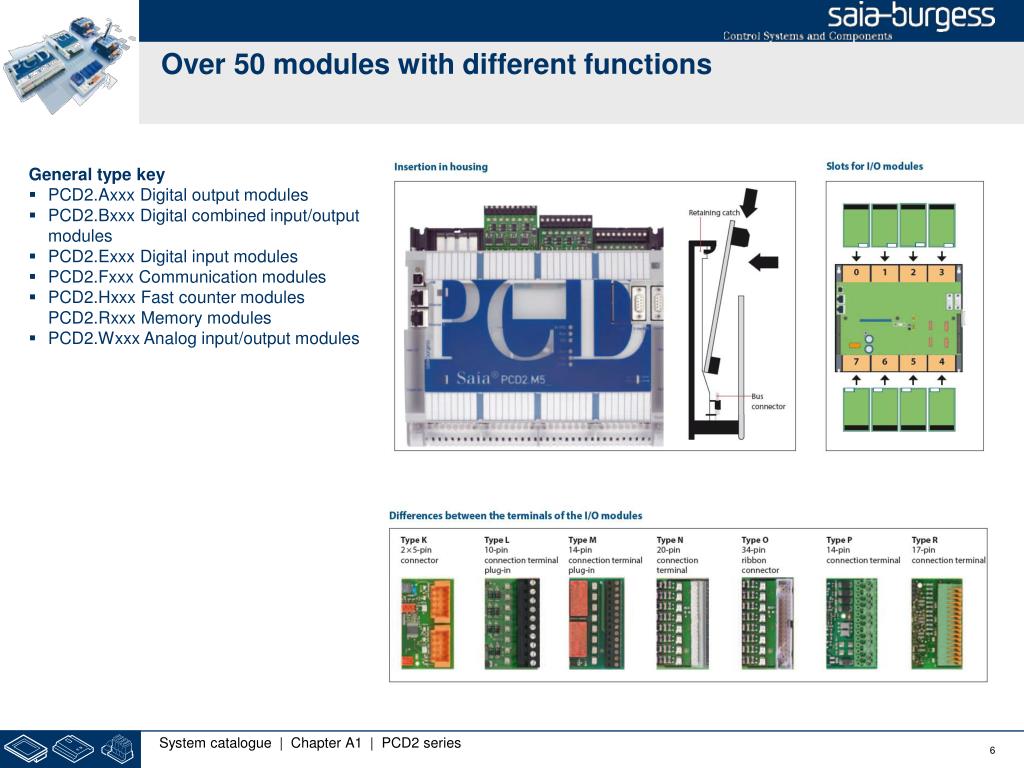

  6. Over 50 moduleswith different functions • General type key • PCD2.Axxx Digital outputmodules • PCD2.Bxxx Digital combinedinput/outputmodules • PCD2.Exxx Digital inputmodules • PCD2.Fxxx Communication modules • PCD2.Hxxx Fast countermodulesPCD2.Rxxx Memory modules • PCD2.Wxxx Analog input/outputmodules System catalogue | Chapter A1 | PCD2 series

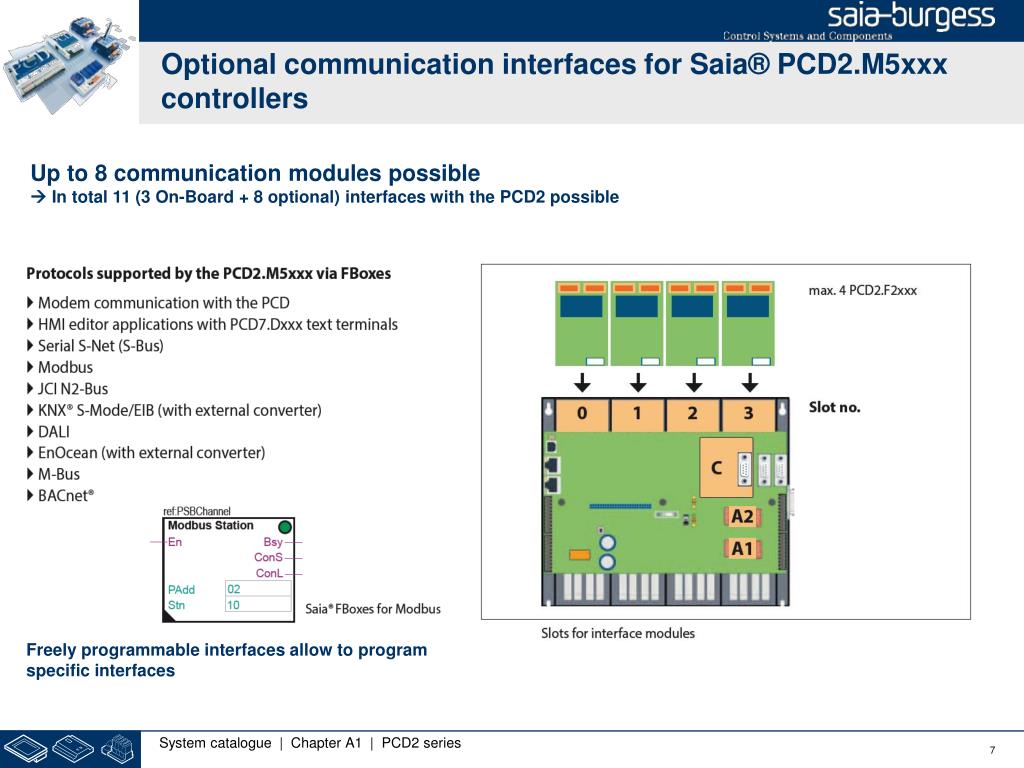

  7. Optional communicationinterfacesforSaia® PCD2.M5xxx controllers Upto 8 communicationmodulespossible In total 11 (3 On-Board + 8 optional) interfaceswiththe PCD2 possible Freelyprogrammableinterfacesallowtoprogramspecificinterfaces System catalogue | Chapter A1 | PCD2 series

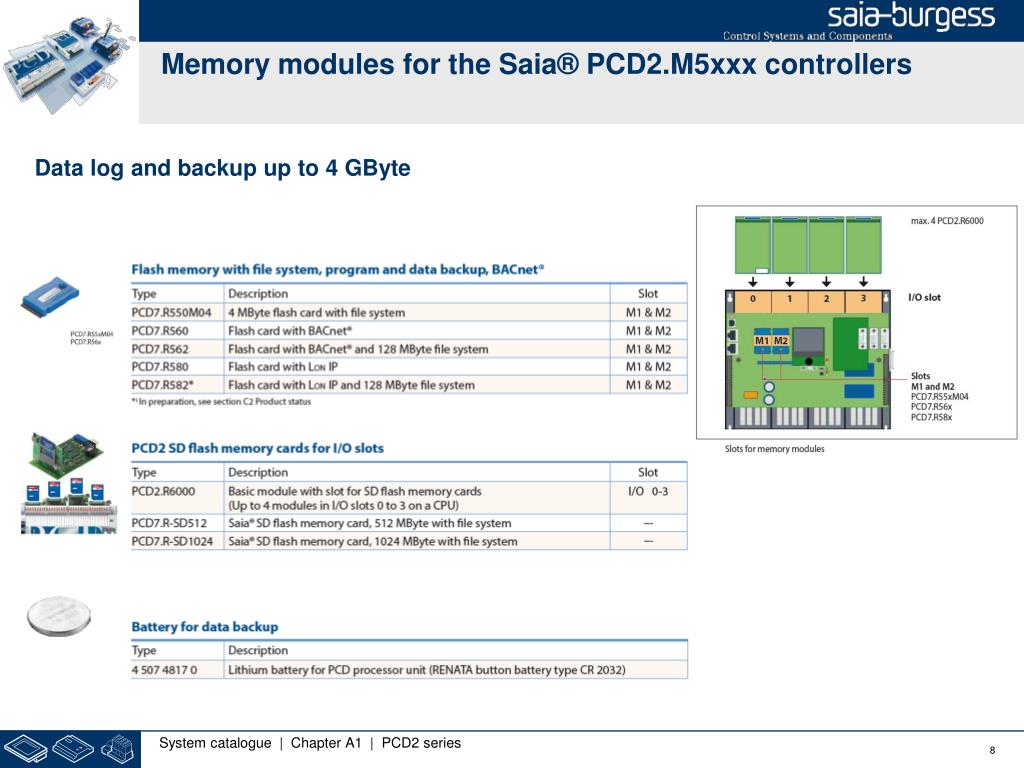

  8. Memory modulesforthe Saia® PCD2.M5xxx controllers Data log andbackupupto4 GByte System catalogue | Chapter A1 | PCD2 series
