  1. PATHFAST® Training Belo Horizonte, June 16, 2011

  2. Characteristics • Compact immunoanalyzer • Full Automation • Wholeblood, plasma, serum • Multiitemprocessing ( up tosix) • Short Assay Time ( 17 minutes) • Easyto Use • HightSensitivity / Acccuracy/ Reproducibility • WideDinamicRange • Minimun Cross Contamination • Barcode Control • SampleRecognition sensor

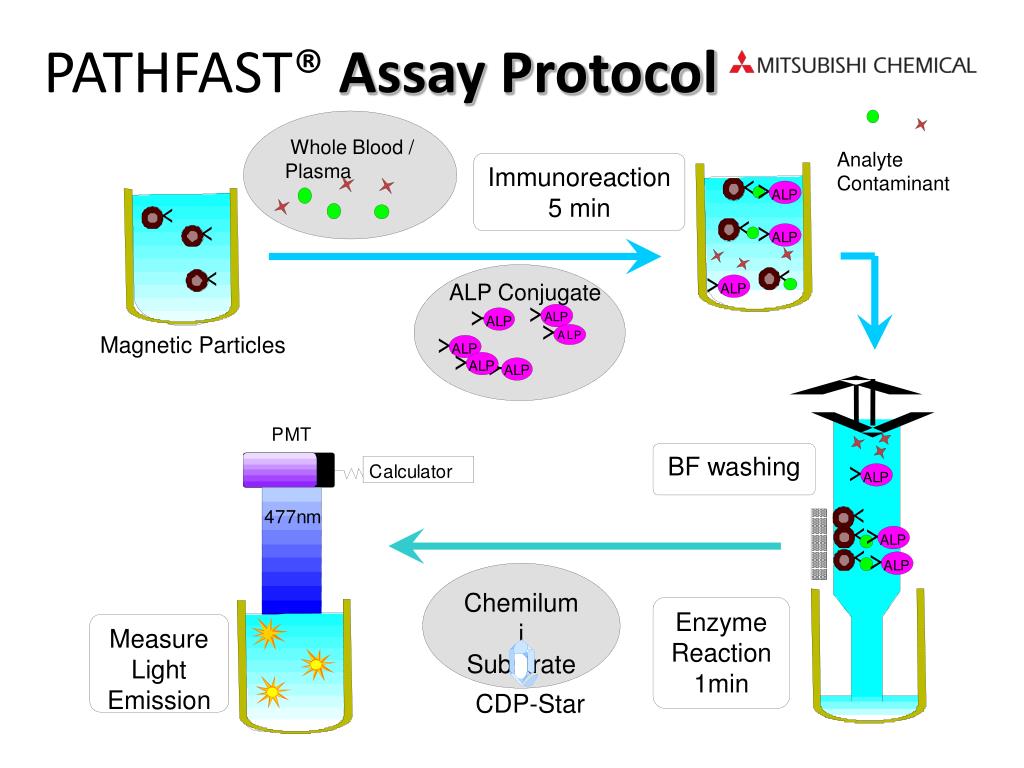

  3. Whole Blood / Plasma Y Y A L P A L P Y A L P Ｙ Y A L P Ｙ Ｙ P M T Ｙ Ｙ C a l c u l a t o r Ｙ Ｙ 4 7 7 n m Ｙ Ｙ Y Y Y Y Y Y Y Y A A A A A A A A L L L L L L L L P P P P P P P P PATHFAST® Assay Protocol Analyte Contaminant Immunoreaction 5 min ALP Conjugate Magnetic Particles BF washing Chemilumi Substrate Enzyme Reaction 1min Measure Light Emission CDP-Star

  4. Kits Each kit contains; Reagent cartridges (6 cartridges x 10 boxes) Calibrators (2 levels x 2 bottles) Calibrator Diluents ( 4 tubes) …for cTnI, CK-MB, D-Dimer Package Insert (IFU) & MC Entry Card *Stored at 2 to 8 ℃

  5. Reagent Cartridge ■Magnetic particles ■ALP conjugate ■Chemilumin. Substrate (CDP-Star with SapphireII) ●Sample Diluent ●Washing Buffer ■ ● ■ ■ ● ● ● Sample Well Detection Well

  6. Cartridge Serial Number Lot number Lot expiration Sample well Assay item Detection well Reagent Cartridge

  7. Calibrators & Controls Calibrators & Calibrator Diluents are included. Controls are not included. MKI suggests users to use Biorad controls. PATHFAST data are described in package insert of Biorad controls.

  8. PATHFAST®Disposables PATHFAST TIP PATHFAST Waste Box Change once a week (10 boxes / package) Printer Roll Paper Use one per test (42 tips x 5 boxes / Carton) (10 rolls / package)

  9. 4. PATHFAST®Components

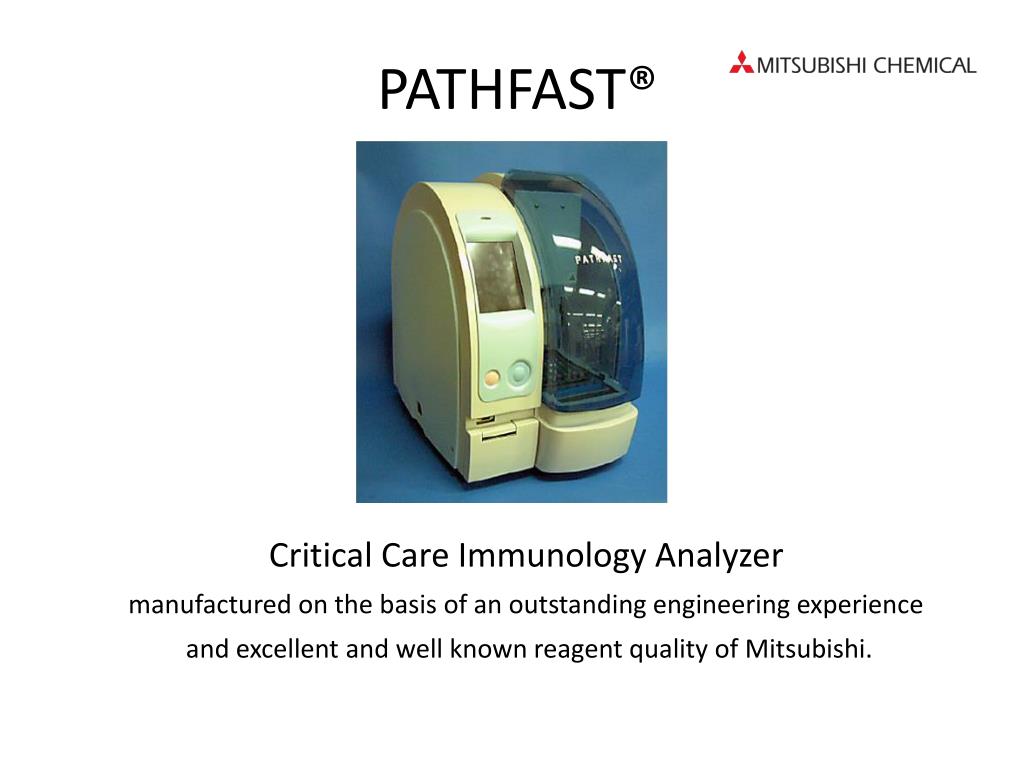

  10. PATHFAST® Critical Care Immunology Analyzer manufactured on the basis of an outstanding engineering experience and excellent and well known reagent quality of Mitsubishi.
