  1. Pulse-Width Modulation (PWM) Discussion 13.1 Example 35

  2. Motor Driver Circuit Solid-state relay

  3. MOS FET Relays G3VM-61B1

  4. Motor – Generator Experiment

  5. Using an AC Relay

  6. Pulse-Width Modulation

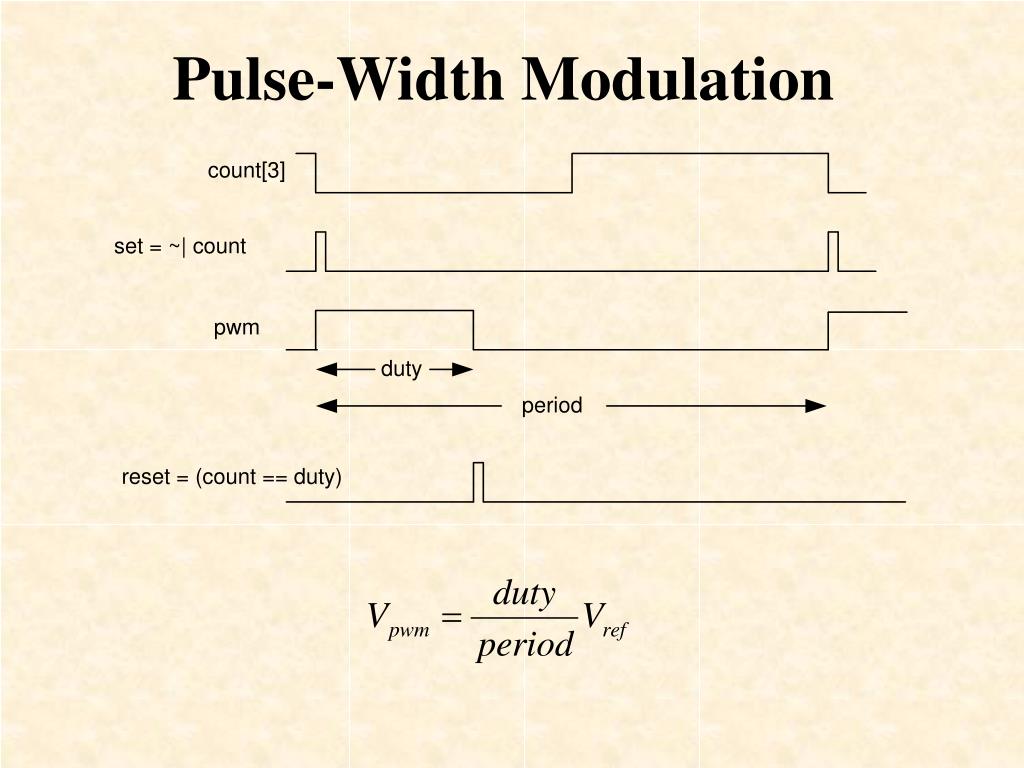

  7. Pulse-Width Modulation

  8. pwm4.v // Example 35a: PWM signal module pwm4( input wire clk, input wire clr, input wire [3:0] duty, input wire [3:0] period, output reg pwm ); reg [3:0] count; wire set, reset; // 4-bit counter always @(posedge clk or posedge clr) if(clr == 1) count <= 0; else if(count == period-1) count <= 0; else count <= count + 1;

  9. pwm4.v (cont.) assign set = ~| count; assign reset = (count == duty); always @(posedge clk) begin if(set == 1) pwm <= 1; if(reset == 1) pwm <= 0; end endmodule

  10. Controlling the Position of a Servo using PWM

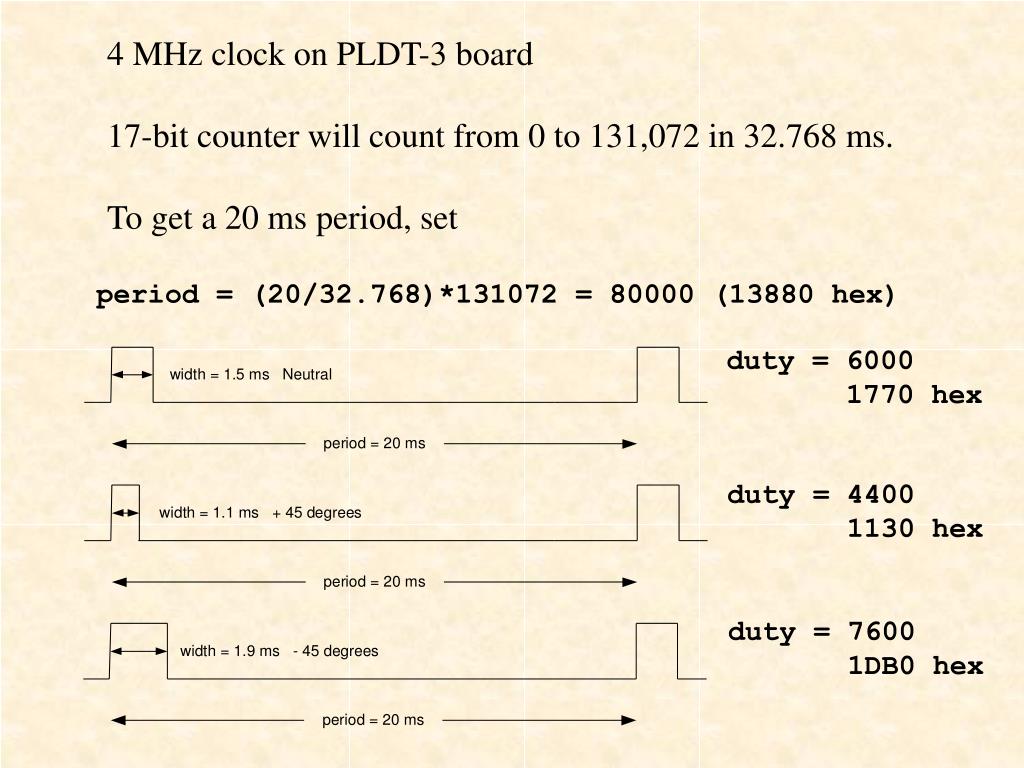

  11. 4 MHz clock on PLDT-3 board 17-bit counter will count from 0 to 131,072 in 32.768 ms. To get a 20 ms period, set period = (20/32.768)*131072 = 80000 (13880 hex) duty = 6000 1770 hex duty = 4400 1130 hex duty = 7600 1DB0 hex

  12. // Example 35b: General PWM signal module pwmg #(parameter N = 17) (input wire clk, input wire clr, input wire [N-1:0] duty, input wire [N-1:0] period, output reg pwm ); reg [N-1:0] count; wire set, reset; // N-bit counter always @(posedge clk orposedge clr) if(clr == 1) count <= 0; else if(count == period-1) count <= 0; else count <= count + 1; pwmg.v

  13. pwmg.v (cont.) assign set = ~| count; assign reset = (count == duty); always @(posedge clk) begin if(set == 1) pwm <= 1; if(reset == 1) pwm <= 0; end endmodule

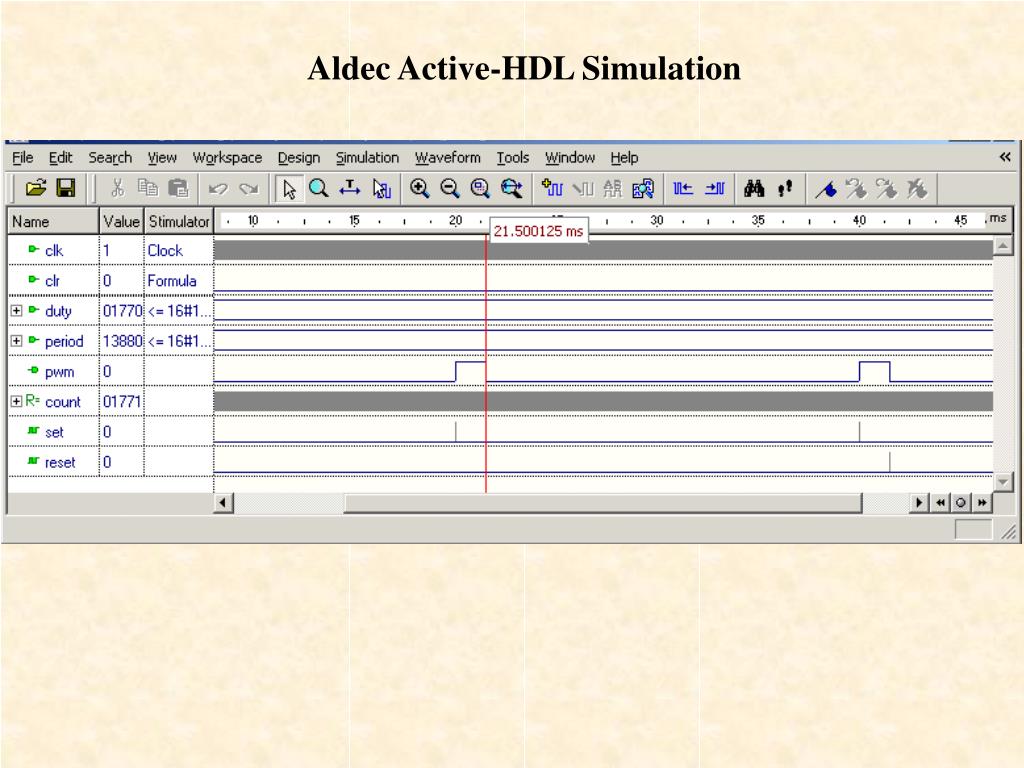

  14. Aldec Active-HDL Simulation
