품 목 : Voltage Control Box 모델명 : VCB 제조사 : BIAMP

품 목 : Voltage Control Box 모델명 : VCB 제조사 : BIAMP. Specifications - Dimensions (H x W x D) : 1.5" x 6.875" x 3" ( 40.64mm x 174.63mm x 76.2mm) - power consumption : 920mW @ 12~24 Volts DC ( from Audia / Nexia device)

lethia
Télécharger la présentation

품 목 : Voltage Control Box 모델명 : VCB 제조사 : BIAMP

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

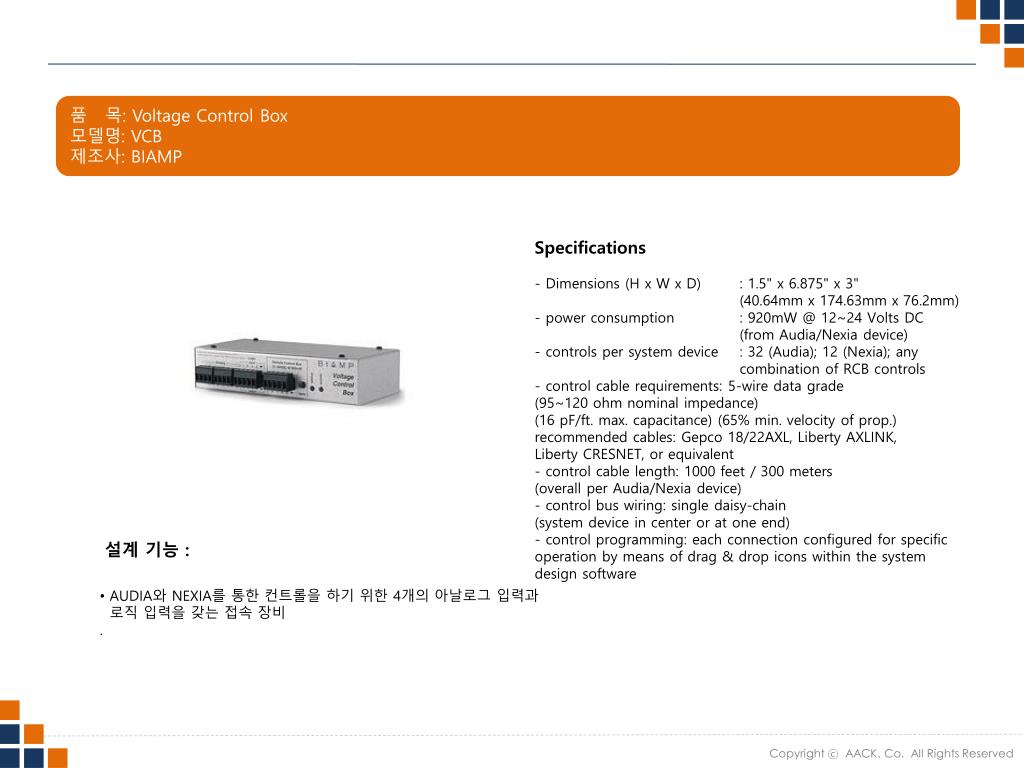

  1. 품 목: Voltage Control Box 모델명: VCB 제조사: BIAMP Specifications - Dimensions (H x W x D) : 1.5" x 6.875" x 3" (40.64mm x 174.63mm x 76.2mm) - power consumption : 920mW @ 12~24 Volts DC (from Audia/Nexia device) - controls per system device : 32 (Audia); 12 (Nexia); any combination of RCB controls - control cable requirements: 5-wire data grade (95~120 ohm nominal impedance) (16 pF/ft. max. capacitance) (65% min. velocity of prop.) recommended cables: Gepco 18/22AXL, Liberty AXLINK, Liberty CRESNET, or equivalent - control cable length: 1000 feet / 300 meters (overall per Audia/Nexiadevice) - control bus wiring: single daisy-chain (system device in center or at one end) - control programming: each connection configured for specific operation by means of drag & drop icons within the system design software • 설계 기능 : • AUDIA와 NEXIA를 통한 컨트롤을 하기 위한 4개의 아날로그 입력과 • 로직 입력을 갖는 접속 장비 • .
