Receptors Act as Transducers

Chemical Mechanical Electromagnetic Temperature Pain . Gustation, Olfaction, pH, oxygen Hearing, Balance, Position, Touch Vision, Electric, Magnetic. Receptors Act as Transducers . Receptors Act as Amplifiers .

libitha
Télécharger la présentation

Receptors Act as Transducers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

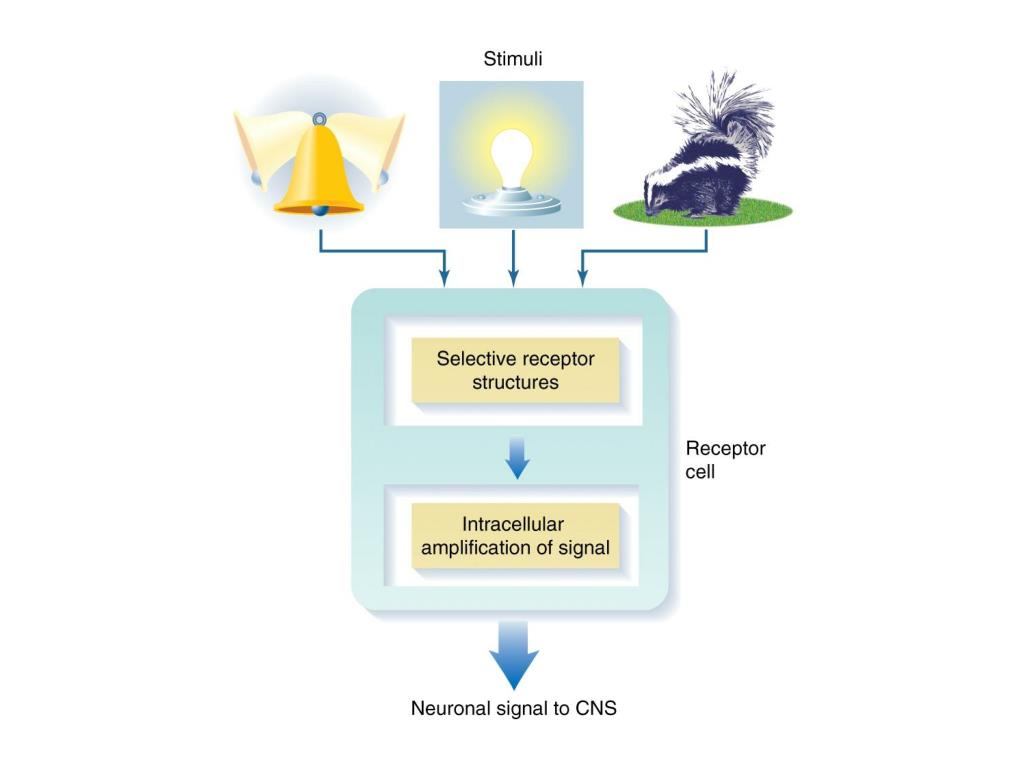

  1. Chemical Mechanical Electromagnetic Temperature Pain Gustation, Olfaction, pH, oxygen Hearing, Balance, Position, Touch Vision, Electric, Magnetic Receptors Act as Transducers

  2. Receptors Act as Amplifiers • One photon of light contains 3 x 10 –19 joules of energy, the action potential it produces has 5 x 10-14 joules of energy , so energy is increased 1.7 x 10 5 • Receptor thresholds; • Eye – 10 photons • Olfaction – 1 molecule in 25,000 • Taste – 3 x 10-5 M quinine as bitter

  3. Ion Channels and Senses • Hearing and Stretch – mechanical stretching of the membrane and channel • Temperature – temperature dependent Na/K channel • Taste – Phosporylation mediated Na/K channel • Olfaction – cAMP mediated Na/K channel • Sight – GMP mediated Na+ channel • Electricty – Voltage gated Na+ channel

  4. Receptors Relay Information Proportional to the Log of the Stimulus Strength

  5. Receptors are more sensitive in the lower range of their perceptual field

  6. Receptors Present Relative Information • Receptor types may be phasic or tonic • Some receptors require biochemical regeneration • Receptors have different thresholds • Receptors my have different fields • Receptors can be laterally inhibited • Information may be interpreted differently by the CNS

  7. Some Receptors are Phasic, Some are Tonic

  8. Receptors can fatigue – Example Olfaction

  9. Sensitivity and sensation is modified by the number of neurons serving an area.

  10. Lateral Inhibition

  11. Receptor input can be modified by the CNS

  12. SYNESTHESIA

  13. Information Presented • Modality • Location of Stimulus • Intensity and Duration of Stimulus

  14. Umami – the taste of deliciousness also involves a G protein complex but its effectors is not known This receptor is triggered by the the amino acid glutamate. Like the NMDA receptor involved in long term potentiation, the receptor allows Ca++ and Na+ to enter and depolarize the cell– making it more sensitive. A much lower amount of another molecule will be required to initiate firing. Glutamate – monosodium glutamate is a primary ingredient of soy sauce.

  15. Thresholds in Humans • .05 M NaCl • .17 M Sucrose • .001 H+ for sour • 3.0 x 10-5 quinine for bitter

  16. General Taste Receptors • Most organisms show a general chemical sense. Protozoa respond positively to amino acids and sugars and are repelled by acids and salts. Glycine and taurine are generally food attractants. Frogs whip their legs to remove acids and salts. These receptors are found on the skin or external surface.

  17. Internal Chemical Receptors • There are internal receptors for H+, salts, sugars and oxygen distributed in the digestive, respiratory and excretory tracts.

  18. Contact Receptors • In flies, taste receptors on the feet have 4-5 neurons. One responds to touch, one responds to water, one responds to sugar and one to salts. The last cell responds to fatty acids – pheromones used as sexual attractants. When the fly feeds the crop swells and neurons from the crop reduce the sensitivity of the taste receptors.
