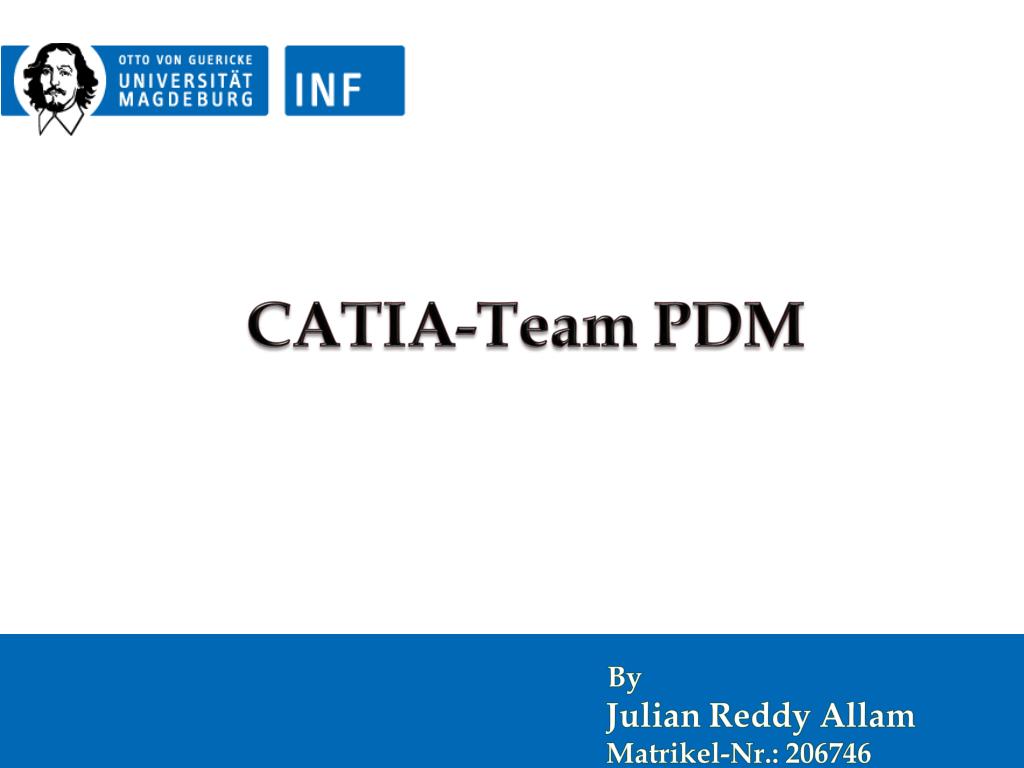

  1. CATIA-Team PDM By JulianReddyAllam Matrikel-Nr.: 206746

  2. CONTENTS • Introduction • Product Data management • CATIA team PDM • CATIA Integration • SmarTeam • File Management • Customization Tools • Advantages and Disadvantages • Conclusion • Open question 2 SS14

  3. Introduction • Efficient product development. • Documents should be organized. • For better Product Development Result SS14 3

  4. Product Data Management • Tool to manage data and Product Development process. • Stores large data. • Interlinking the departments. SS 14 4

  5. SS 14 5

  6. What is CATIA team PDM ? • Subset of a PDM-system called SmarTeam, developed by SmarTeam Corporation Ltd. • For controlling. • Facilitatesdata management. - Data access and navigation - Maintains information integrity in case of modifications - Allows teamwork - Re-working is avoided. SS 14 6

  7. CATIA Integration • Integration between CATIA and SmarTeam. - Saved in SmarTeam database • Mapping data. • Enhanced usability - Preview of a document - Easy to search SS 14 7

  8. Manages documents Easy search and query mechanism Enrich products information. • Manages the product structure Navigation through linked documents Logical links: Documents, projects… • Manages data modifications Automatic tracking of revisions with history: major and minor revisions Allows and secures team work • Offers a highly secured environment Secure Vault and User Security Settings. SS 14 8

  9. SmarTeam • Manages more types of product data. • Other add-on modules use together with Team PDM are • SmarFlow • SmarBOM • SmarWeb etc… SS 14 9

  10. SS 14 10

  11. File Management • Controls documents • Revision state of Documents will be known. • So easy to modify any information. • Different Document states in Team PDM are * Check In * Check Out * Release * New-Release * Obsolete SS 14 11

  12. SS 14 12

  13. The Life-cycle flow of documents in Team PDM SS 14 13

  14. Revision management • Assembly management • Drawings • User Maintenance • Viewer • Search Tool • Export/Import of Data SS 14 14

  15. Customization Tools • Smart Wizard Can define own data model and specific requirements of companies. SS 14 15

  16. Advantages • Very good CATIA integration. • Easy to work with assemblies. • Good security. • Good Lifecycle Management. • Powerful search tool. • User-friendly interface. • Easy to create drawings. SS 14 16

  17. Disadvantages • No solution for variant management. • Unnecessarily many administration options if only used as a file manager for CATIA files. • Confusing with all add-on modules. It is hard to know how to combine them in order to get the right configuration SS 14 17

  18. Conclusion • A PDM-system is a powerful tool for file and revision management. • Maintenance Should be balanced. • Flexible and User-Friendly with good CATIA Integration SS 14 18

  19. Does CATIA Team PDM provide enough functionality to cover all requirements ? Open question SS 14 19

  20. REFERENCES • [1] CIMdata; Product Data Management: The Definition, An Introduction to • Concepts, Benefits and Terminology, Fourth Edition, 1997. • [2] Wesikko, Mikael; Product Data Management in Distributed and Large Scale, • 1998. • [3] CIMdata; Product Lifecycle Management, Empowering the Future of Business, • 2002. • [4] Williams, Christopher S; What is Product Data Management and Why should I • Care, http://www.pdmic.com/articles/whatspdm.html • [5] Dahlström, Henrik; Val av PDM-stöd för Unigraphics-användare, Examensarbete • [6] SmarTeam Administrator’s Guide, SmarTeam Corporation Ltd., 2001. • [7] SmarTeam User Course, SmarTeam Corporation Ltd., 2003. SS 14 20

  21. SOURCE • http://www.catia.com.pl/tutorial/z2/catia_team_pdm.pdf • http://en.wikipedia.org/wiki/CATIA#History • http://www.cce.de/produkte/catia SS 14 21
