1. Technion- Israel institute of technology department of Electrical Engineering High speed digital systems laboratory High-Throughput FFT Student : AndreyKuyelSupervised by MonyOrbachSpring 2011Midterm Presentation (One semestrial project)

2. Project goals • The project goal is to design and implement on FPGA device FFT that capable to deal with data transmitted at the rates up to 10Ms/sec*. • The design will be written on VHDL • The project has aspects of: signal processing and logic design and high rate data processing. *- 5Ms/sec for each of I and Q components .

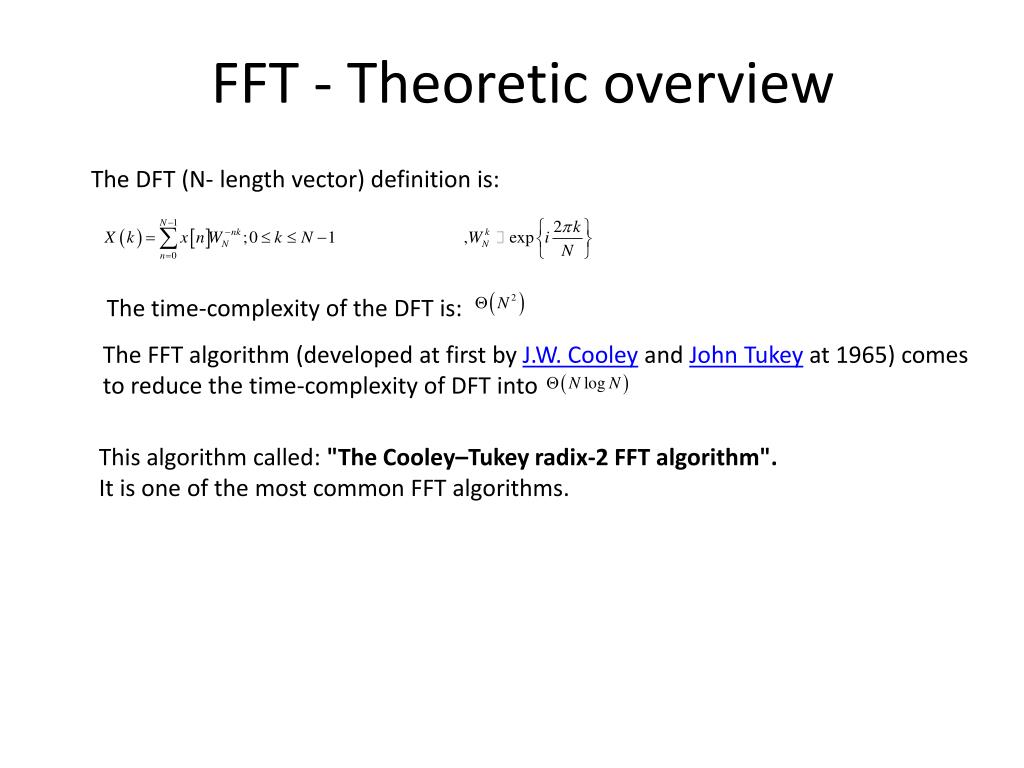

3. The DFT (N- length vector) definition is: FFT - Theoretic overview The time-complexity of the DFT is: The FFT algorithm (developed at first by J.W. Cooleyand John Tukey at 1965) comes to reduce the time-complexity of DFT into This algorithm called: "The Cooley–Tukey radix-2 FFT algorithm". It is one of the most common FFT algorithms.

4. FFT radix-2 - Theoretic overview The Cooley–Tukey radix-2 FFT algorithm The idea of algorithm is to compute in two parts: 1. Calculation two series While: : The first series is using all of the even components of the input vector - , and the second uses the odd components - This calculation takes

5. FFT radix-2 - Theoretic overview • Calculation of the twiddles: The FFT (N- length vector) definition is:

6. FFT radix-2 - Theoretic overview The FFT schematic Radix-2 diagram (for N=2) – called butterfly unit: 4 real multipliers and 2 add/sub 16*16 bit 2 (16bits)adders/substractors The butterfly unit is used as a sub-unit in any Radix-2 FFT-N-size unit. The "twiddle factor" is the sine/cosine imaginary/real factor:

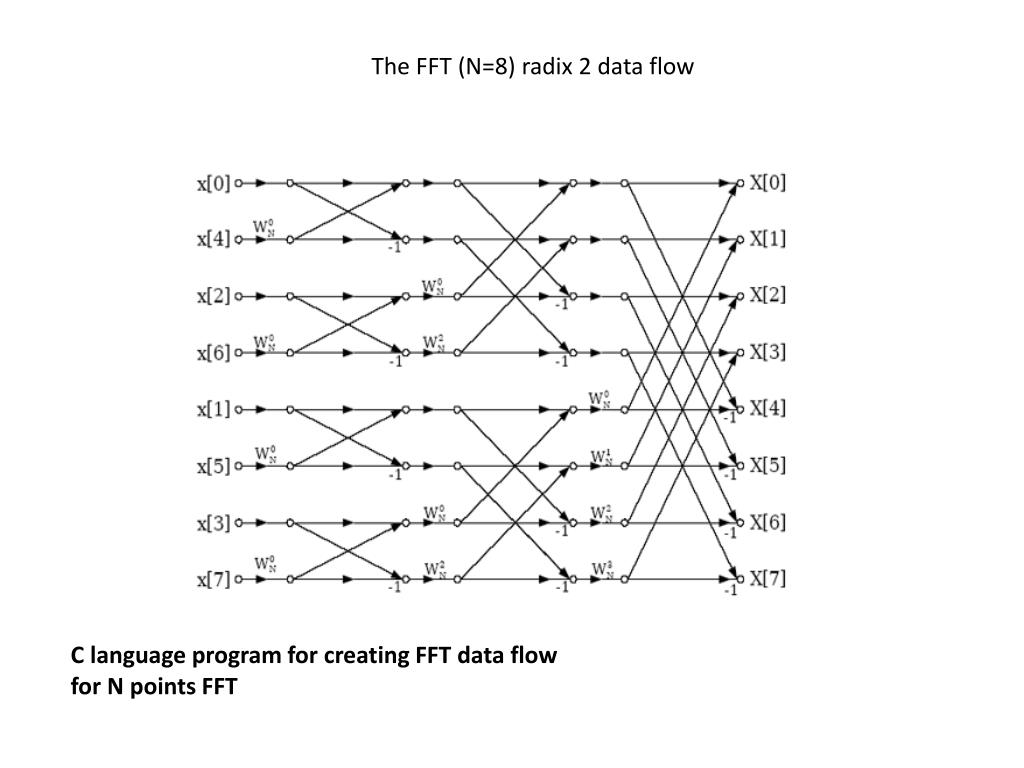

7. The FFT (N=8) radix 2 data flow C language program for creating FFT data flow for N points FFT

8. FFT core features • FFT core will have the following features: • Real and imaginary Inputs: 8 bits width each (for each of N point). • Real and imaginary outputs: 16 bits width each, where 8 MSB bits for integer part and 8 LSB bits for fractional part (for each N point). • Drop-in module for Virtex-6 (xc6vlx240T) • Forward complex FFT • Transform sizes N = 16,32,(possibly 64 and 128 ) • Arithmetic type: Fixed-point • Truncation after the butterfly • Block RAM or/and Distributed RAM for data storage • Bit/digit reversed or natural output order • Input data at frequency 10 Gs/sec (total rate for real and image part of data )

9. Parallel N points radix 2 FFT – Block diagram clock Parallel N points radix 2 FFT Synchronization signals Controls signals Input data (real). N points each of 8 bits width Output data (real). N points each of 16 bits width Input data (imag). N points each of 8 bits width Input data (imag). N points each of 16 bits width

10. The FFT (N=16) radix 2 data flow – pipeline stages separation

11. FFT verification and performance measurement • The FFT core will be tested on Virtex-6 FPGA (Ml605 based on xc6vlx240T) Test module • Virtex-6 FPGA A2D@10Gs/sec* Output signals Data in Data out FFT core Controls out Controls in Stimulus Memory MEM DATA@10Gs/sec • Currently implementation will be made on Virtex-6 FPGA Family (xc6vlx240T), the devise contains 768 DSP slices, distributed RAM 3,650 Kb and block RAM of the size 14,976 Kb. • See attached specification table at the end of document. *- Primary verification will be done on the reference data from FPGA internal memory that will emulate data sampled at the rate 10Ms/sec

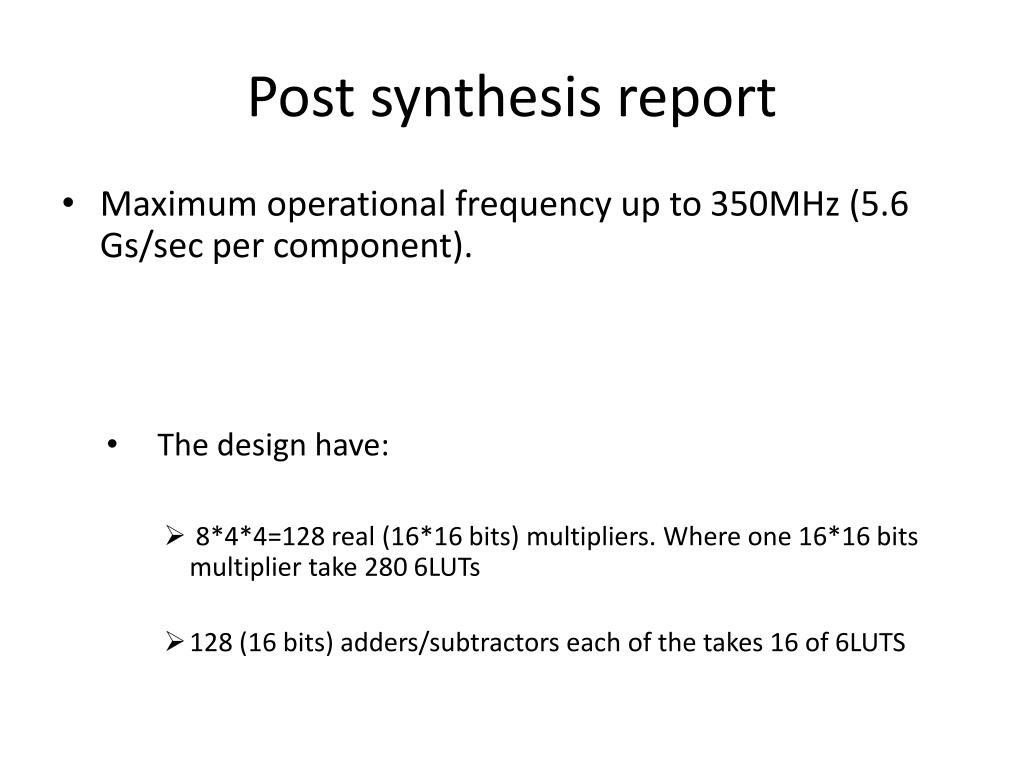

12. Post synthesis report • Maximum operational frequency up to 350MHz (5.6 Gs/sec per component). • The design have: • 8*4*4=128 real (16*16 bits) multipliers. Where one 16*16 bits multiplier take 280 6LUTs • 128 (16 bits) adders/subtractors each of the takes 16 of 6LUTS

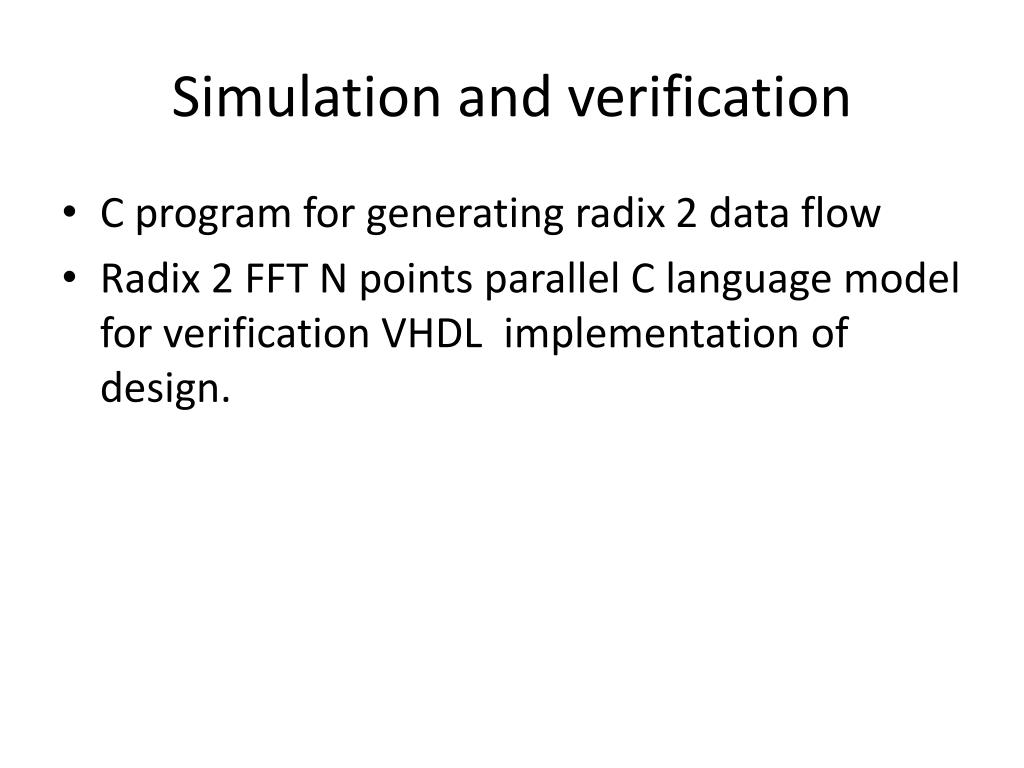

13. Simulation and verification • C program for generating radix 2 data flow • Radix 2 FFT N points parallel C language model for verification VHDL implementation of design.
