LIMESTONE

www. CHEMSHEETS .co.uk. LIMESTONE. © www.chemsheets.co.uk GCSE 026 08-April-13. Limestone quarry. Topley Pike quarry in the Peak District National Park. All built with limestone. Paving. Chippings. To neutralise acidic lakes. Chippings in roads. CaCO 3  CaO + CO 2.

louise
Télécharger la présentation

LIMESTONE

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. www.CHEMSHEETS.co.uk LIMESTONE © www.chemsheets.co.uk GCSE 026 08-April-13

  2. Limestone quarry

  3. Topley Pike quarry in the Peak District National Park

  4. All built with limestone

  5. Paving Chippings To neutralise acidic lakes Chippings in roads

  6. CaCO3 CaO + CO2 calcium carbonate calcium oxide (limestone) (quicklime) CaO + H2O  Ca(OH)2 calcium oxide calcium hydroxide (quicklime) (slaked lime)

  7. Lime kilns (old and new)

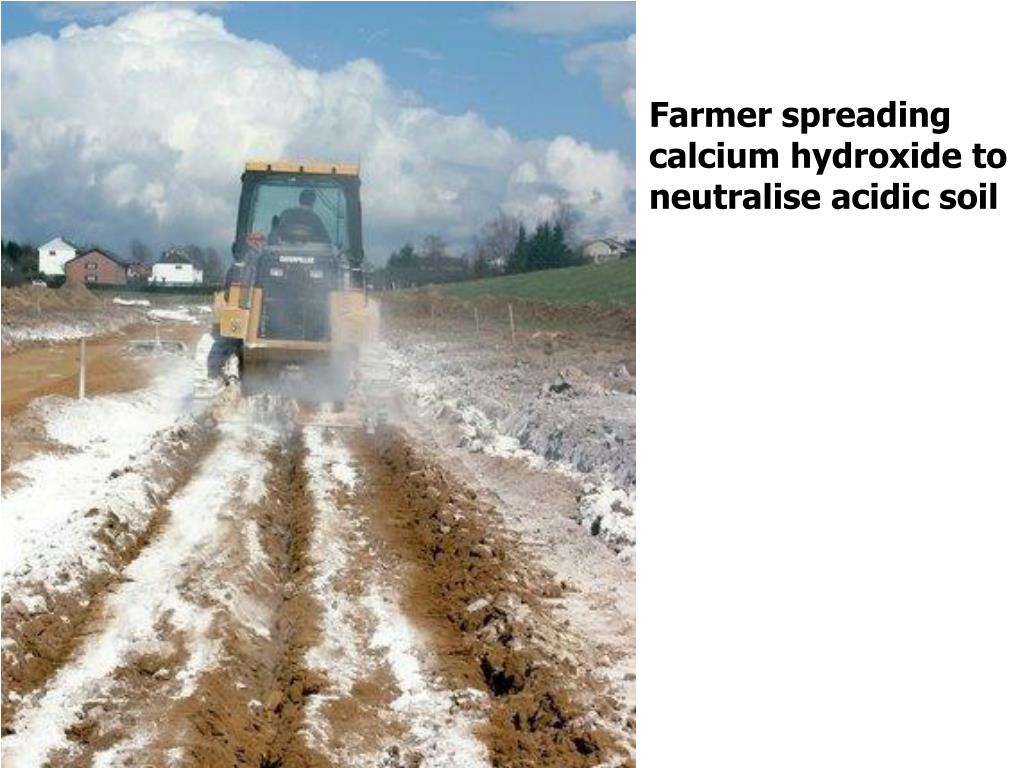

  8. Farmer spreading calcium hydroxide to neutralise acidic soil

  9. Testing for CO2 with limewater Limewater = calcium hydroxide solution Testing for CO2 with limewater (calcium hydroxide solution)

  10. Powdered limestone + Powdered clay Heat in rotary kiln CEMENT

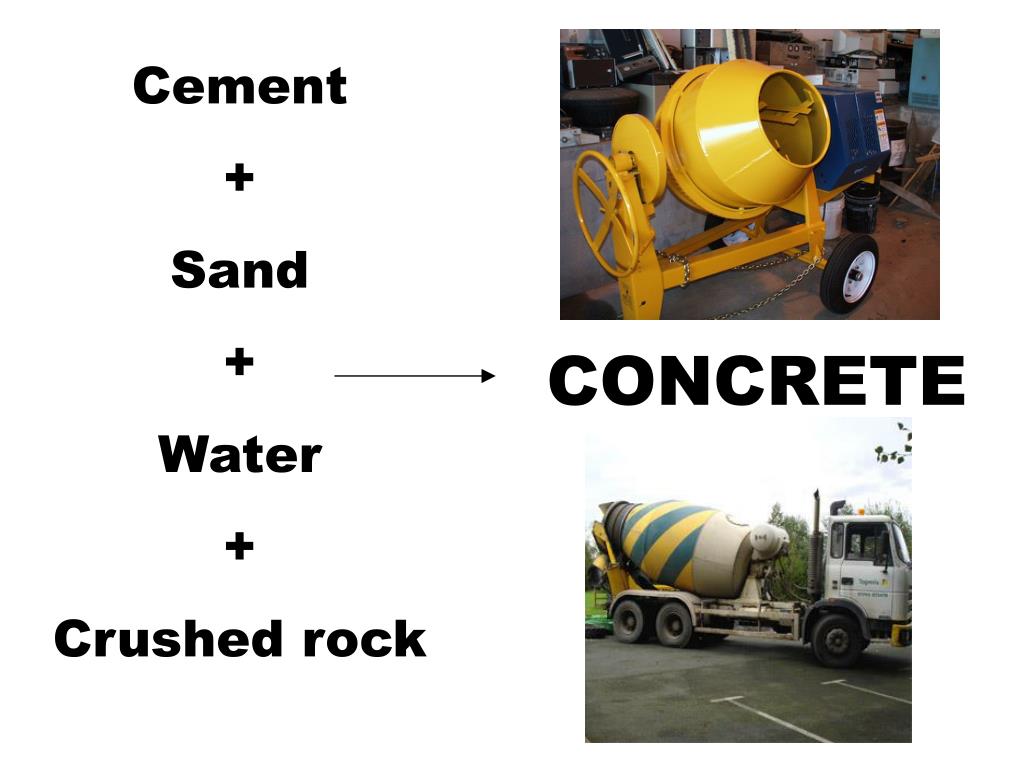

  11. Cement + Sand + Water + Crushed rock CONCRETE

  12. Concrete can break if stretched or bent

  13. Steel reinforced concrete

  14. Steel reinforced concrete

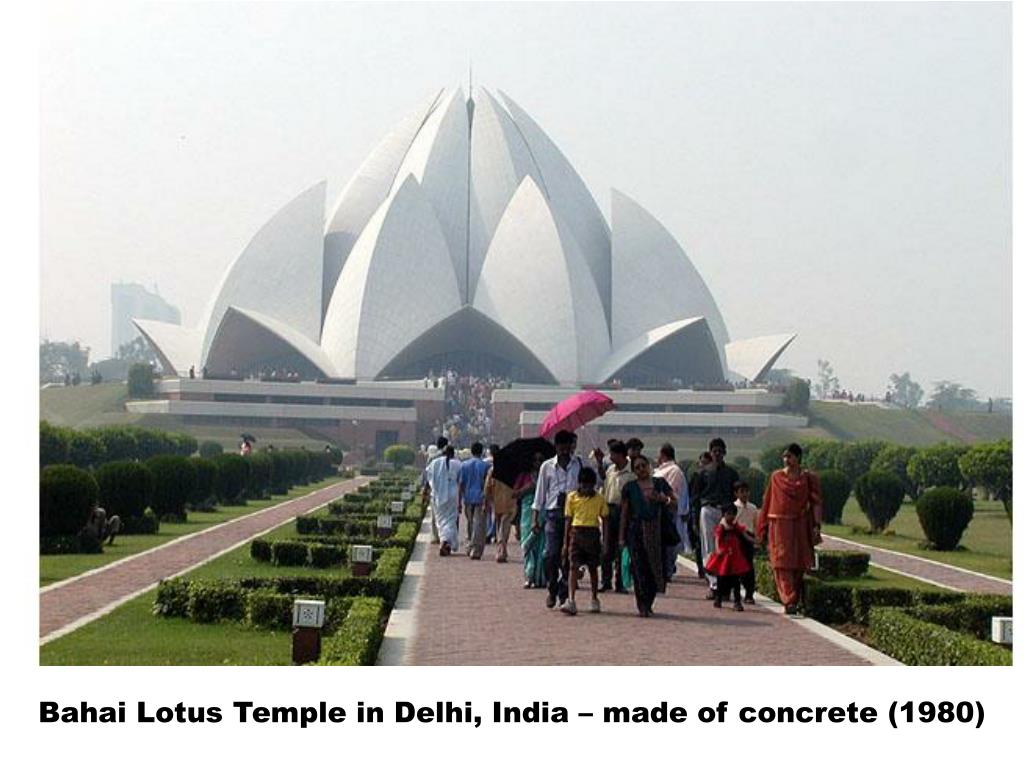

  15. Bahai Lotus Temple in Delhi, India – made of concrete (1980)

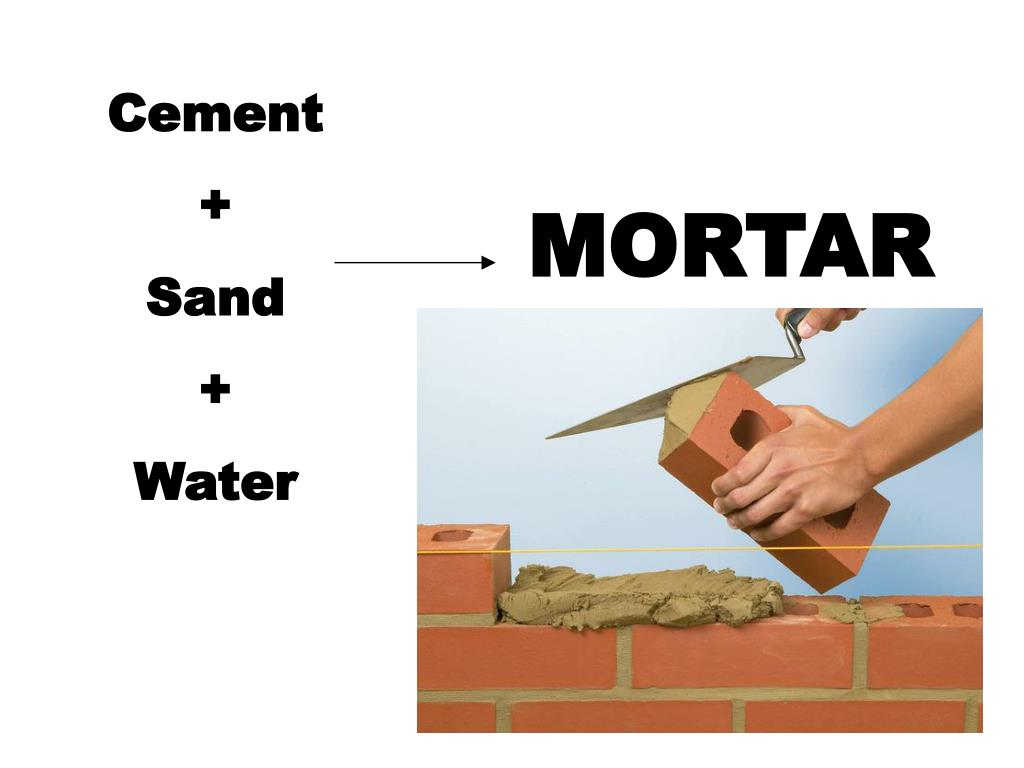

  16. Cement + Sand + Water MORTAR

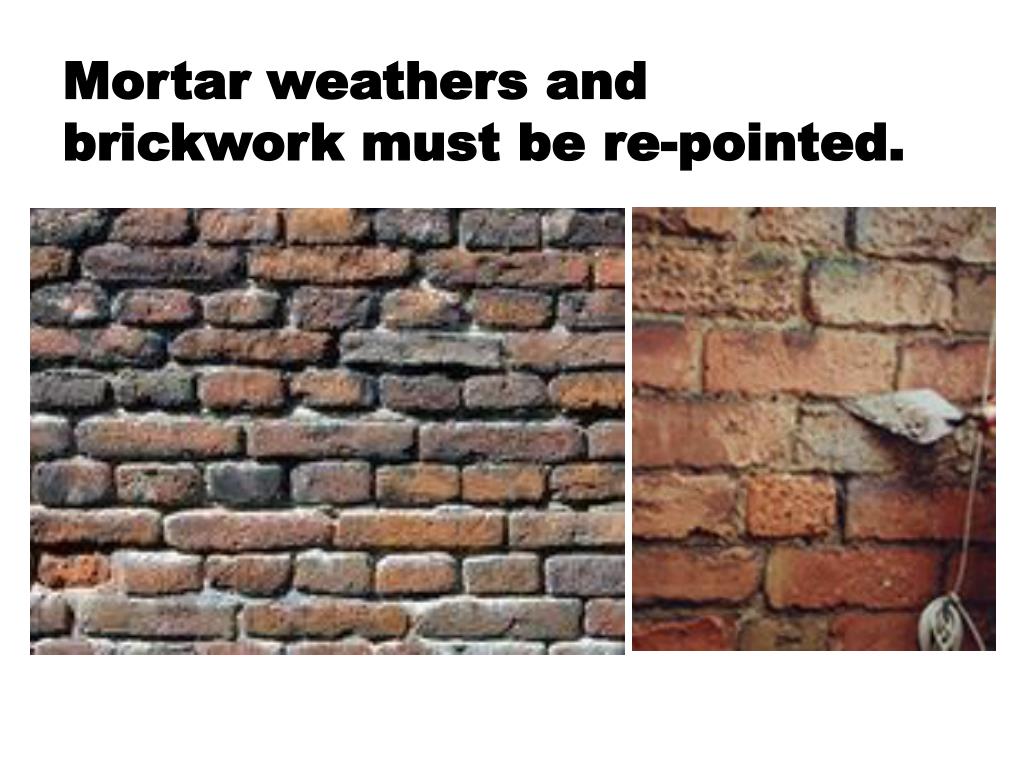

  17. Mortar weathers and brickwork must be re-pointed.
