E-Commerce Architecture I

E-Commerce Architecture I. Request. Web Server. Browser. HTTP. Response. Internet Explore Netscape. Microsoft IIS Apache Web Server IBM HTTP Server. E-Commerce Architecture II. Web Server. Browser. Middle Ware. HTML,DHTML,XML JavaScript VBScript Java Applet .

makala
Télécharger la présentation

E-Commerce Architecture I

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

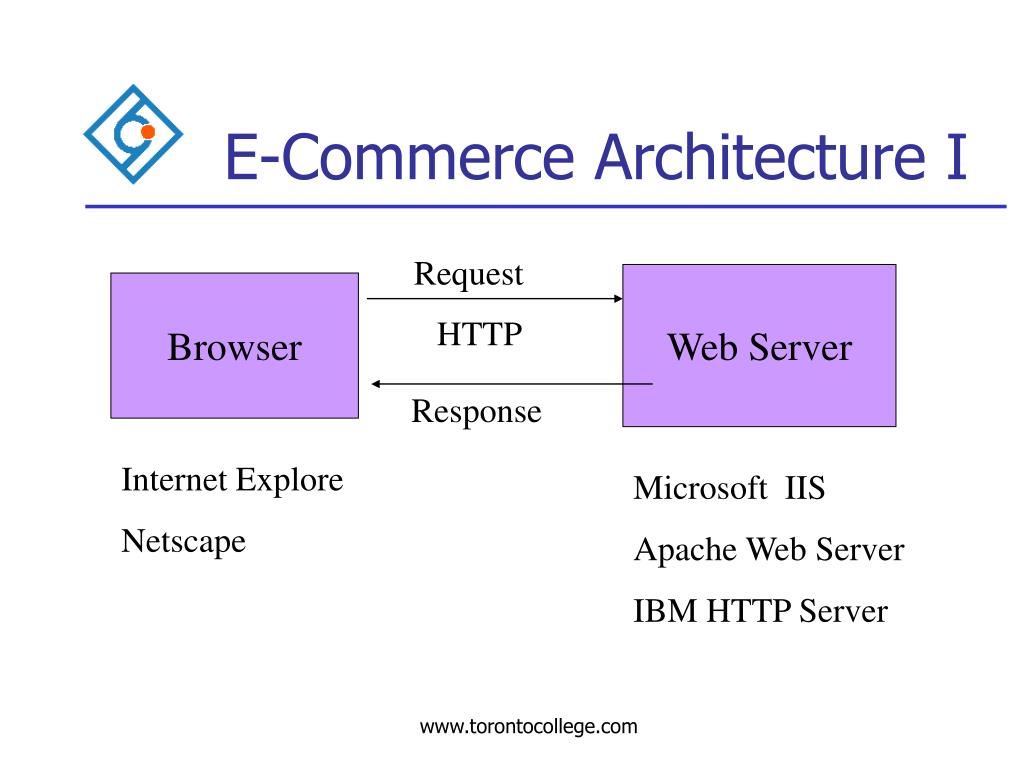

  1. E-Commerce Architecture I Request Web Server Browser HTTP Response Internet Explore Netscape Microsoft IIS Apache Web Server IBM HTTP Server www.torontocollege.com

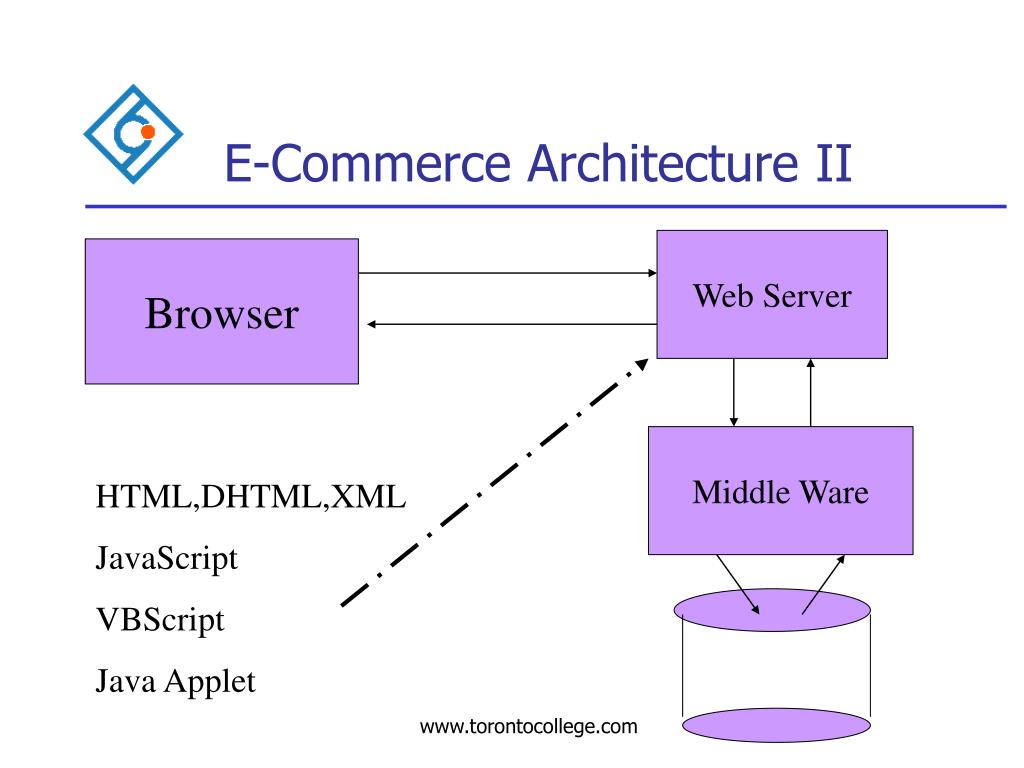

  2. E-Commerce Architecture II Web Server Browser Middle Ware HTML,DHTML,XML JavaScript VBScript Java Applet www.torontocollege.com

  3. E-Commerce Architecture II Web Server Browser Middle Ware Java Servlet/JSP JDBC JavaBeans RMI/CORBA J2EE/EJB Oracle9i DB2 mySQL JDBC Driver www.torontocollege.com

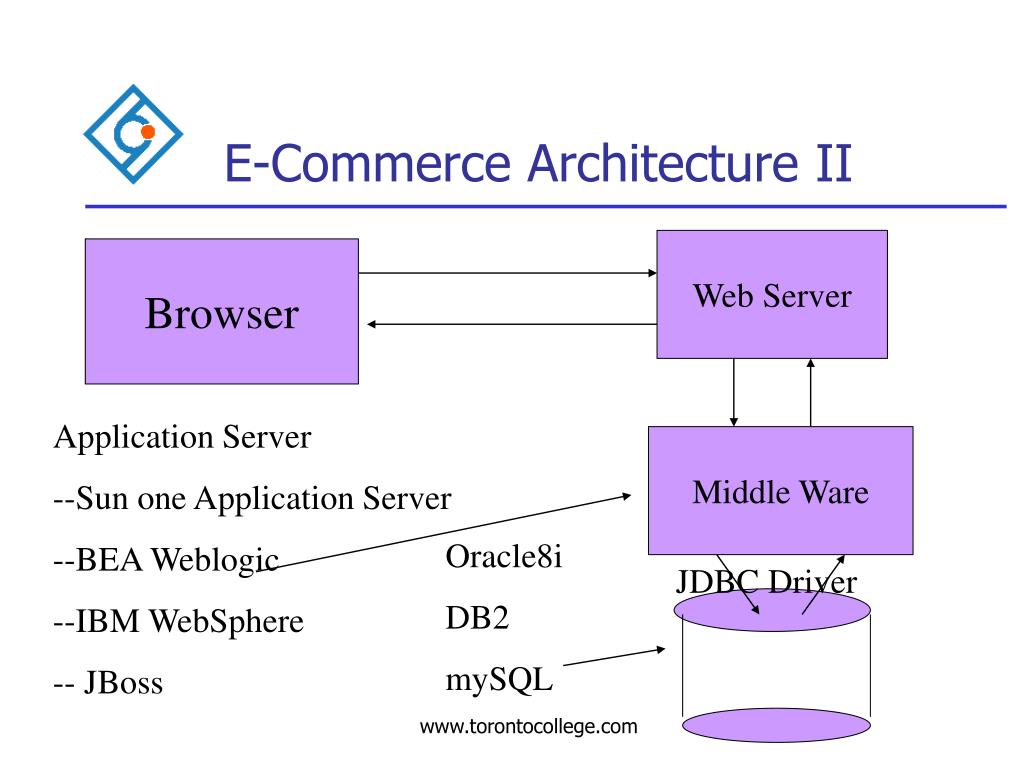

  4. E-Commerce Architecture II Web Server Browser Application Server --Sun one Application Server --BEA Weblogic --IBM WebSphere -- JBoss Middle Ware Oracle8i DB2 mySQL JDBC Driver www.torontocollege.com

  5. E-Commerce Architecture:Three-Tier Browser Tier 1 Web Server Presentation Layer Tier 2 Application Server Business Logic Layer Tier 3 Data Layer Database www.torontocollege.com

  6. Summary • Java Technologies for E-Commerce Application: Servlets, JSP, JDBC • Java Technologies for Enterprise Application: RMI, EJB www.torontocollege.com
