  1. Muscle Topic 4-1 February 2014

  2. Mid-term Exam • Friday, Feb. 14th • 9:00-9:50 am • Mix multiple choice, short answer, fill in the blank, label a diagram • Pathways are important

  3. Lecture Overview • Muscle structure • Sarcomeres • Excitation-contraction coupling • Ca2+ control of contraction • Sliding filament model • Actino-myosin activity • Relaxation

  4. Muscle structure

  5. Skeletal Muscle

  6. Muscle Cells • Two main types of muscle cells are based on the arrangement of actin and myosin • Striated (striped appearance) • Smooth (do not appear striped) Figure 5.16

  7. endomysium perimysium Normal muscle structure and collagen distribution

  8. endomysium perimysium

  9. 18 mo 27 mo 30 mo 33 mo 36 mo 39 mo Lushaj EB, Johnson JK, McKenzie D, Aiken JM. Sarcopenia accelerates at advanced ages in Fisher 344xBrown Norway rats. J Gerontol A Biol Sci Med Sci. 2008;63:921–7.

  10. Fiber Types

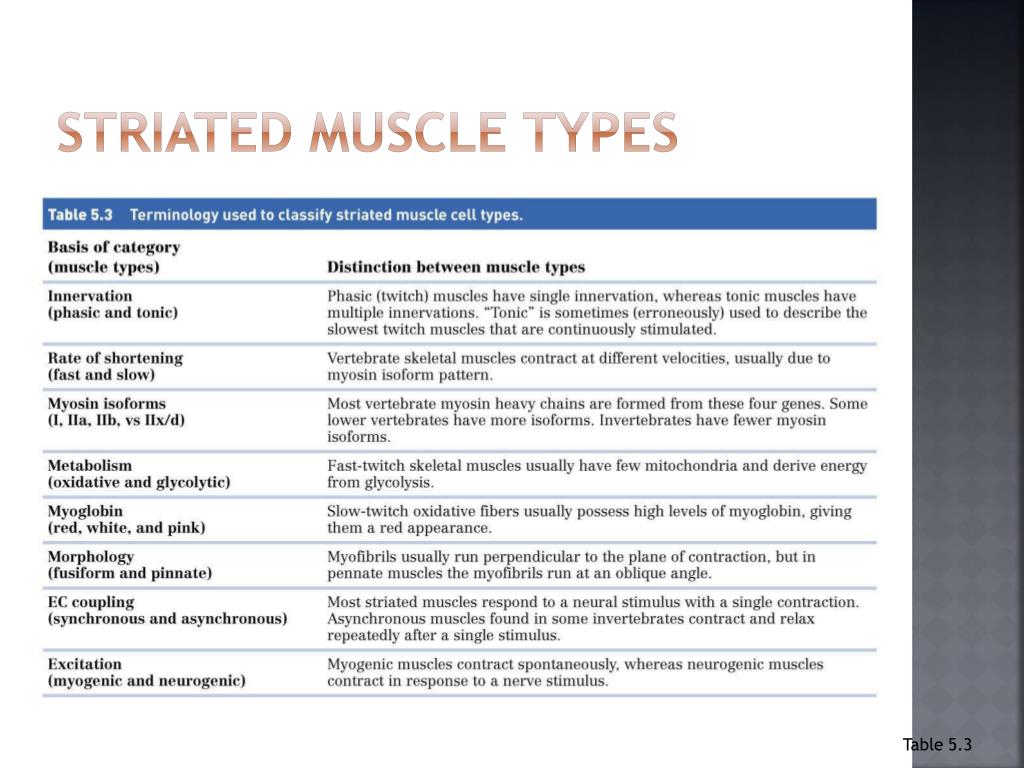

  11. Striated Muscle Types Table 5.3

  12. Myofibrils in Muscle Cells Figure 5.20

  13. Myofibrils • Single, linear continuous stretch of interconnected sarcomeres (i.e., in series) • Have parallel arrangement in the cell • More myofibrils in parallel can generate more force

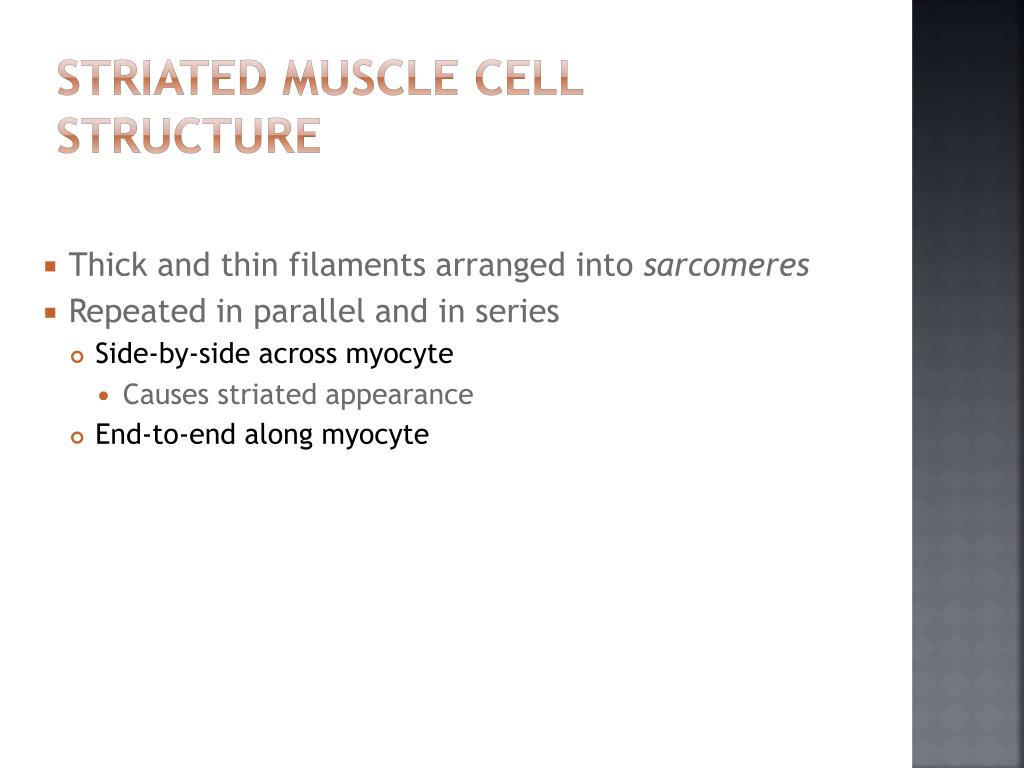

  14. Striated Muscle Cell Structure • Thick and thin filaments arranged into sarcomeres • Repeated in parallel and in series • Side-by-side across myocyte • Causes striated appearance • End-to-end along myocyte

  15. Sarcomeres • Structural features of sarcomeres • Z-disk • A-band (anisotropic band) • I-band (isotropic band) • M-line

  16. Actin & Myosin • Major components of microfilaments • Used for movement and movement of cellular components (vesicles)

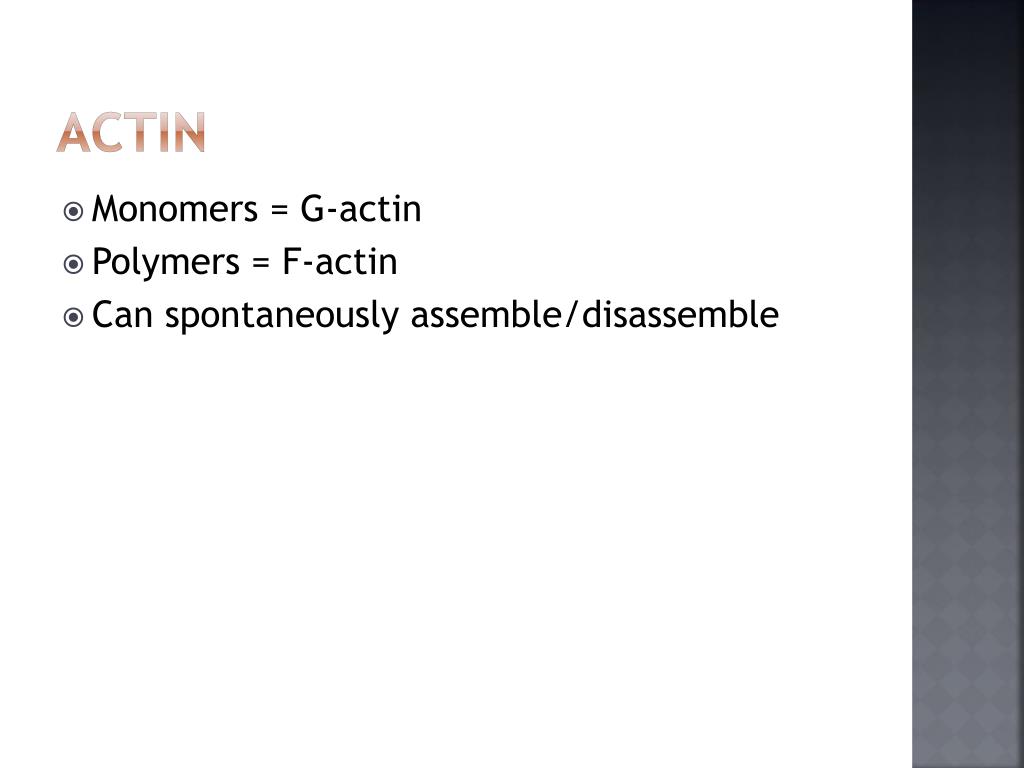

  17. Actin • Monomers = G-actin • Polymers = F-actin • Can spontaneously assemble/disassemble

  18. Actin polymerization Figure 5.9

  19. Myosin • 17 different classes of myosin • Multiple isoforms within each class • Muscle myosin = type II • General organization • Head • Neck • Tail

  20. Myosin Figure 5.12

  21. Myosin Isoforms • Properties of isoforms affect contraction • Multiple isoforms of myosin II in muscle • Isoforms can change over time Table 5.4

  22. Contractile Elements • Thick filaments • Polymers of myosin • ~300 myosin II hexamers • Thin filaments • Polymers of -actin • Ends capped by tropomodulin and CapZ to stabilize • Proteins troponin and tropomyosin on outer surface

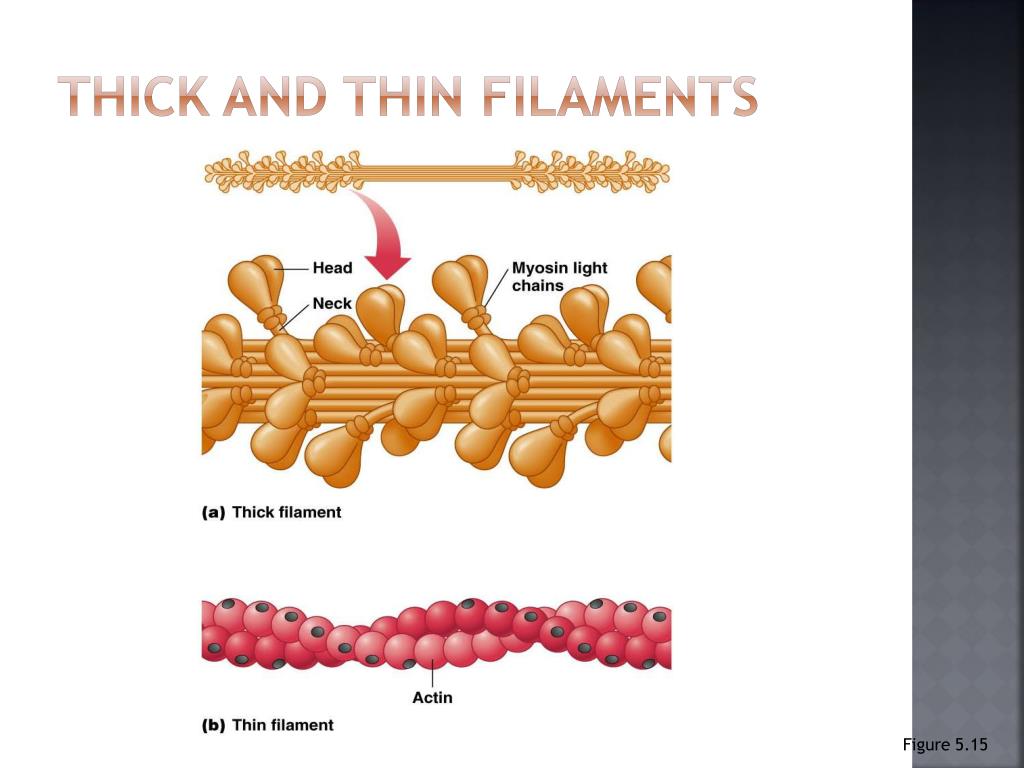

  23. Thick and Thin Filaments Figure 5.15

  24. http://education.vetmed.vt.edu/curriculum/VM8054/Labs/Lab10/IMAGES/305-03%20SMALL.jpghttp://education.vetmed.vt.edu/curriculum/VM8054/Labs/Lab10/IMAGES/305-03%20SMALL.jpg

  25. Three-Dimensional Structure of Sarcomere Figure 5.18

  26. Sarcomeres Figure 5.17

  27. Auxiliary Proteins • Nebulin • Along length of thin filament • Titin • Keeps thick filament centered in sarcomere • Attaches thick filament to Z-disk

  28. Excitation-contraction coupling

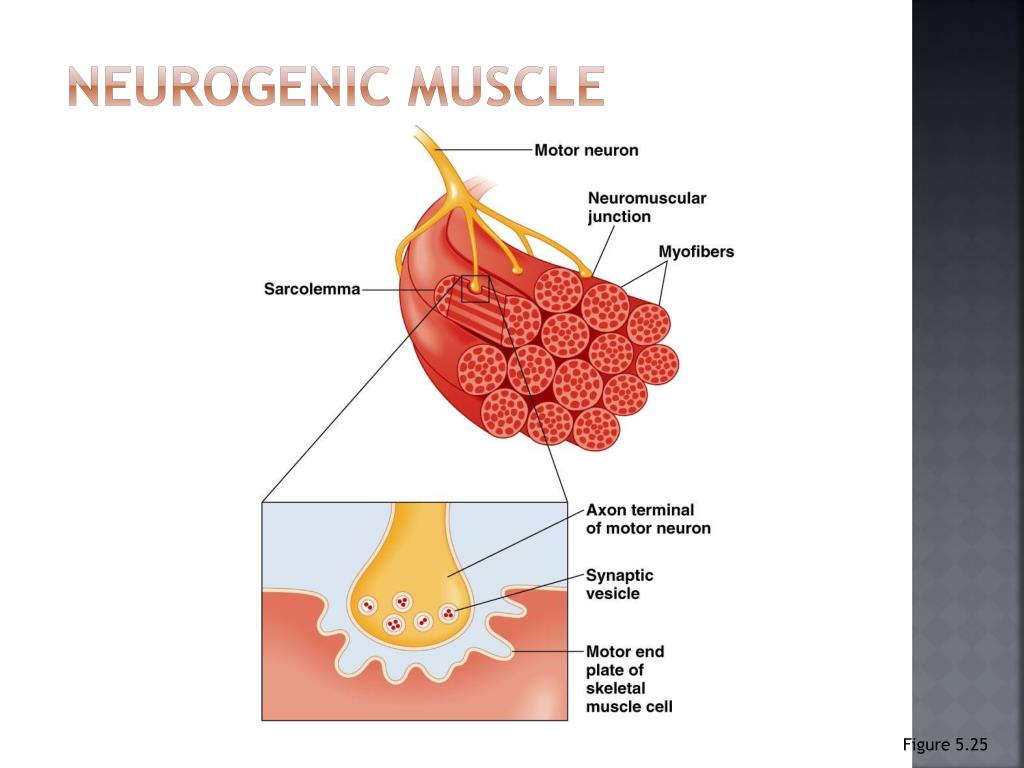

  29. Neurogenic Muscle Figure 5.25

  30. Motor Units

  31. http://scientopia.org/blogs/scicurious/files/2010/11/neuromuscular-junction.jpghttp://scientopia.org/blogs/scicurious/files/2010/11/neuromuscular-junction.jpg

  32. http://fig.cox.miami.edu/~cmallery/150/neuro/neuromuscular-sml.jpghttp://fig.cox.miami.edu/~cmallery/150/neuro/neuromuscular-sml.jpg

  33. Acetylcholine Figure 4.17

  34. Acetylcholine • 1 of many NTs in autonomic system • Sole NT for motor division of the somatic system • 1st identified by Henry Dale http://t0.gstatic.com/images?q=tbn:ANd9GcR8mzV4vXbaOt8PSXQTlcSPmqJOOTMlz3TY2OO1_P2_F-K5QToy

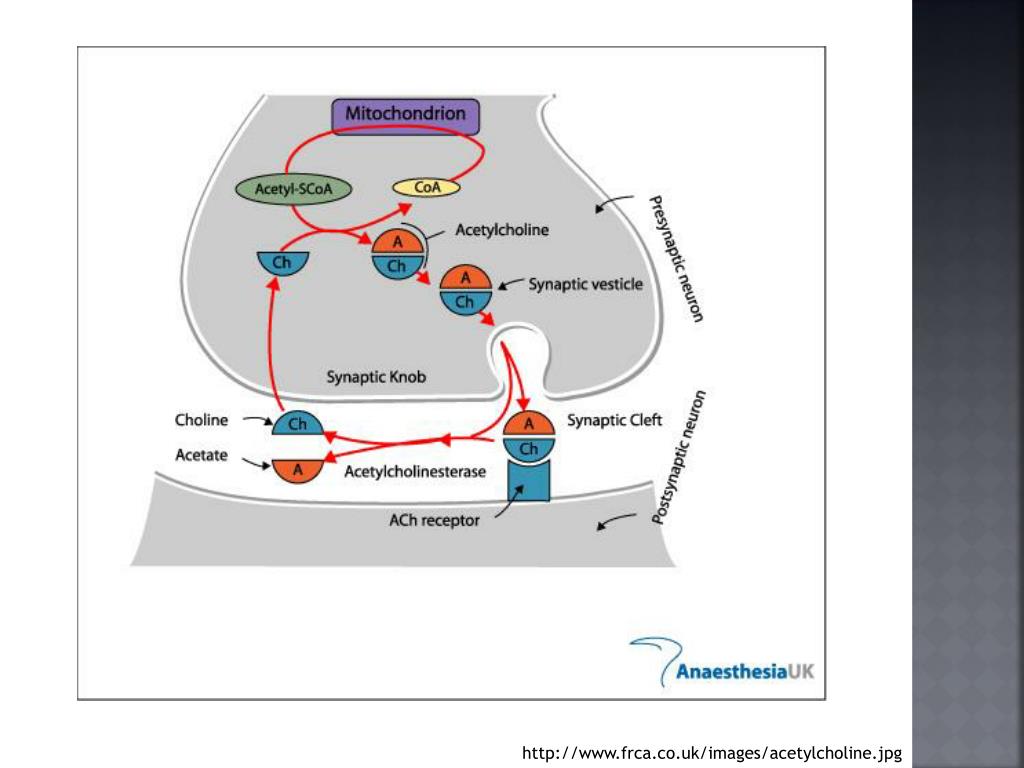

  35. http://www.frca.co.uk/images/acetylcholine.jpg

  36. Receptors for Acetylcholine • Cholinergic receptors • Nicotinic receptor • Ionotropic • Muscarinic receptor • Metabotropic • Linked to ion channel function via G-protein

  37. Receptors for Acetylcholine Figure 4.29

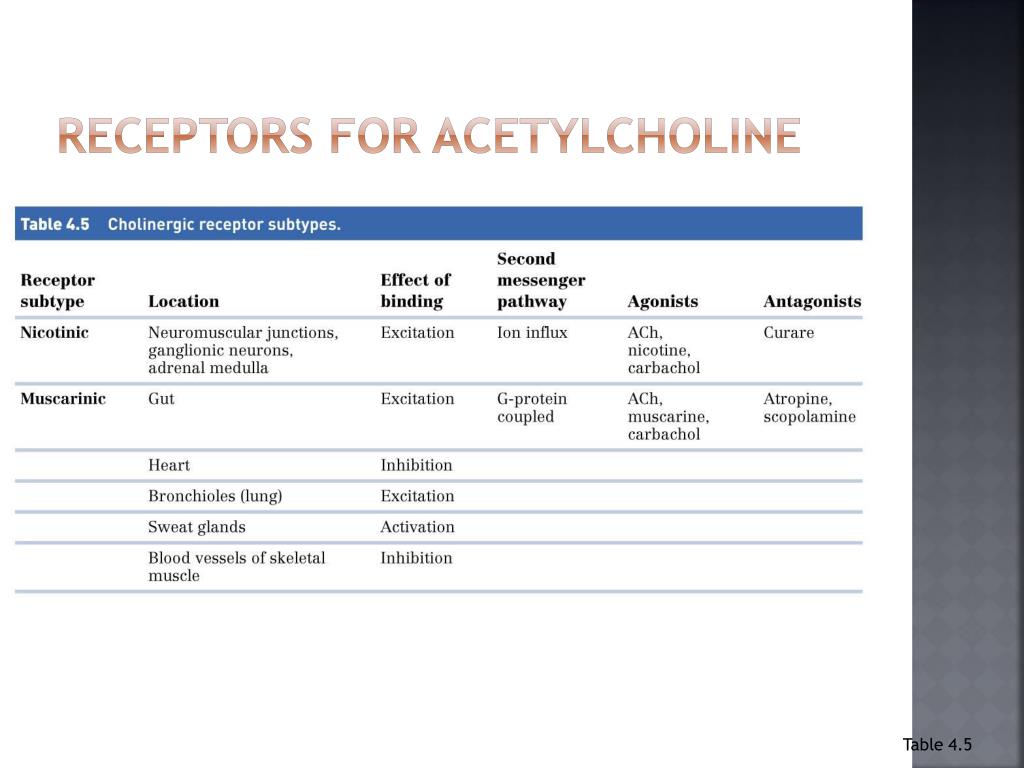

  38. Receptors for Acetylcholine Table 4.5

  39. Depolarization • Neurogenic (“beginning in the nerve”) • Excited by neurotransmitters from motor nerves • Can have multiple (tonic) or single (twitch) innervation sites • Receptor is nicotinic • ionotropic

  40. Action Potentials • APs along sarcolemma signal contraction • Na+ enters cell when Na+ channels open • Depolarization • Voltage-gated Ca2+ channel open • Increase in cytoplasmic [Ca2+] • Na+ channels close • K+ leaves cell when K+ channels open • Repolarization • Reestablishment of ion gradients by Na+/K+ ATPase and Ca2+ ATPase

  41. Time Course of Depolarization Figure 5.24

  42. T-Tubules and SR Figure 5.28

  43. http://people.eku.edu/ritchisong/301images/Transverse_tubule.jpghttp://people.eku.edu/ritchisong/301images/Transverse_tubule.jpg

  44. Ca2+ Channels and Transporters Figure 5.27
