Quadratic Graph Drawing.

meyerm avatar
meyerm
17 diapositives · 374 Views · Dec 21, 2019

Learn how to sketch various types of quadratic graphs and understand key points such as intercepts and turning points through step-by-step instructions. Master the art of graphing quadratic equations effectively.

#quadratic graph drawing. #quadratic graph drawing. ppt #powerpoint #presentation

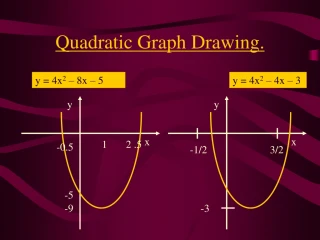

Quadratic Graph Drawing. - slide 1
01 / 17Quadratic Graph Drawing.
1 / 17

Télécharger la présentation

Quadratic Graph Drawing.
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. y y y = 4x2 – 8x – 5 x x -1/2 3/2 1 2 .5 -0.5 -3 -5 -9 Quadratic Graph Drawing. y = 4x2 – 4x – 3

  2. y 2 x 1 3 Quadratic Graph Structure. Consider the typical quadratic graph shape below: To draw a quadratic graph you must be able to calculate all the points numbered on the diagram:

  3. y 2 x 1 3 The significance of each point and the starting point to finding the point are given below: • Point of intersection with the y axis. “Graph cuts y axis when x = 0” (2) Point of intersection with x axis. “Graph cuts x axis when y=0” These are “the roots” of the equation. (3) Turning point of graph. Turning point x coordinate is the midpoint of the roots.

  4. y x -3 3 -9 Graph Of Type y = x2 – a2 Sketch the graph of y = x 2 - 9 (1) Find the y axis intercept. Graph cuts y axis when x = 0 Point ( 0, -9 ) is on the graph. (2) Find the x axis intercept. Graph cuts x axis when y = 0. (x – 3 ) (x + 3 ) = 0 The points (3,0) and (-3,0) are on the graph. x = 3 x = - 3

  5. y x -3 3 -9 (3) Turning point of graph. Y = x2 - 9 Turning point x coordinate is the midpoint of the roots. From the symmetry of the graph we can see that this point must be (0,-9). Now sketch the graph.

  6. Example 2 y x -5 5 -25 Sketch the graph of y = x 2 - 25 (1) Find the y axis intercept. Graph cuts y axis when x = 0 Point ( 0, -25 ) is on the graph. (2) Find the x axis intercept. Graph cuts x axis when y = 0. (x – 5 ) (x + 5 ) = 0 The points (5,0) and (-5,0) are on the graph. x = 5 x = - 5

  7. y x -5 5 -25 (3) Turning point of graph. Y = x2 - 25 Turning point x coordinate is the midpoint of the roots. From the symmetry of the graph we can see that this point must be (0,-25). Now sketch the graph.

  8. y y Y = x2 - 4 Y = x2 - 36 x x -2 -6 2 6 -4 -36 What Goes In The Box ? 1 Sketch the graph of the following functions: (1) y = x2 - 4 (2) y = x2 - 36

  9. y x -6 4 -24 Graphs Of Type y = ax2 + bx + c Sketch the graph of y = x 2 + 2x –24 (1) Find the y axis intercept. Graph cuts y axis when x = 0 The point (0,-24) is on the graph. (2) Find the x axis intercept. Graph cuts x axis when y = 0. (x + 6) (x – 4) = 0 The points (-6,0) and (4,0) are on the graph. x = - 6 x = 4

  10. y x -6 -1 4 -24 -25 (3) Turning point of graph. y = x 2 + 2x –24 Turning point x coordinate is the midpoint of the roots. Substitute x = -1 into the equation y = x 2 + 2x –24 to find the y coordinate. y = (-1)2 +(2 x –1) – 24 = - 25 The point (-1,-25) is the minimum turning point. Now sketch the graph.

  11. Example 2. y x -1/2 3/2 -3 Sketch the graph of y = 4x2 – 4x – 3 (1) Find the y axis intercept. Graph cuts y axis when x = 0 Y = – 3 The point (0,-3) is on the graph. (2) Find the x axis intercept. Graph cuts x axis when y = 0. ( 2x + 1 )( 2x – 3 ) = 0 The points (-1/2,0) and (3/2,0) are on the graph.

  12. y x 1/2 -1/2 3/2 -3 -4 (3) Turning point of graph. y = 4x2 – 4x – 3 Turning point x coordinate is the midpoint of the roots. Substitute x = ½ into the equation y = 4x2 – 4x – 3 to find the y coordinate. y= - 4 Minimum turning point (1/2, -4) Now sketch the graph.

  13. y y (2) (1) y = x2 – 2x – 8 y = 4x2 – 8x – 5 x x 4 1 2 .5 -2 -0.5 1 -5 -8 -9 -9 What Goes In The Box? 2 Sketch the graphs of the equations given below:

  14. y 25 x Graph Of Type y = a2 – x2 Sketch the graph of y = 25 – x2 y = 25 – x2 (1) Find the y axis intercept. Graph cuts y axis when x = 0 y = 25 The point ( 0,25 ) is on the graph (2) Find the x axis intercept. 5 -5 Graph cuts x axis when y = 0. 25 – x2 = 0 ( 5 – x ) ( 5 + x ) = 0 The effect of the negative x2 is to make the graph “A” shaped. x = 5 x = - 5 The points (0,5 and (0,-5) are on the graph. Now sketch the graph.

  15. y 6 -2 3 x Example 2 Sketch the graph of y = – x2 + x + 6 (1) Find the y axis intercept. Graph cuts y axis when x = 0 y = 6 The point ( 0,6 ) is on the graph (2) Find the x axis intercept. Graph cuts x axis when y = 0. – x2 + x + 6 =0 Divide throughout by -1 x2 - x - 6 =0 ( x – 3) ( x + 2 ) = 0 The points ( 3, 0 ) and ( -2 , 0 ) are on the graph. x = 3 x = - 2

  16. y 6.25 6 -2 0.5 3 x (3) Turning point of graph. y = - x2 + x + 6 Turning point x coordinate is the midpoint of the roots. Substitute x = ½ into the equation y = - x2 + x + 6 to find the y coordinate. The maximum turning point is ( 0.5, 6.25 ) Now sketch the graph.

  17. y y 8 (1) y = 36 – x2 (2) y = - x2 + 2x + 8 9 36 -2 4 x x 6 1 -6 What Goes In The Box ? 3 Sketch graphs of the quadratic equations below:
