Counters . Discussion D8.3. Counters. Divide-by-8 Counter Behavioral Counter in Verilog Counter using One-Hot State Machine. Divide-by-8 Counter. A state diagram for a divide by 8 counter . Present state Next state. State Q2 Q1 Q0 D2 D1 D0. s0 0 0 0 0 0 1

michel
Télécharger la présentation

Counters

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Counters Discussion D8.3

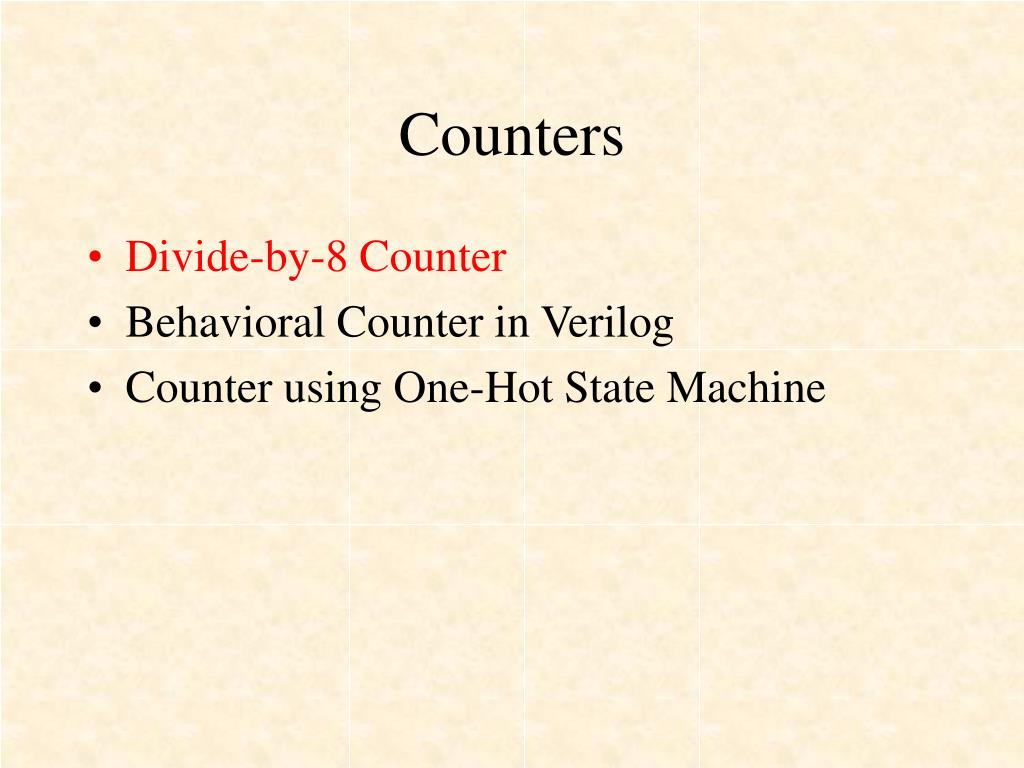

  2. Counters • Divide-by-8 Counter • Behavioral Counter in Verilog • Counter using One-Hot State Machine

  3. Divide-by-8 Counter A state diagram for a divide by 8 counter

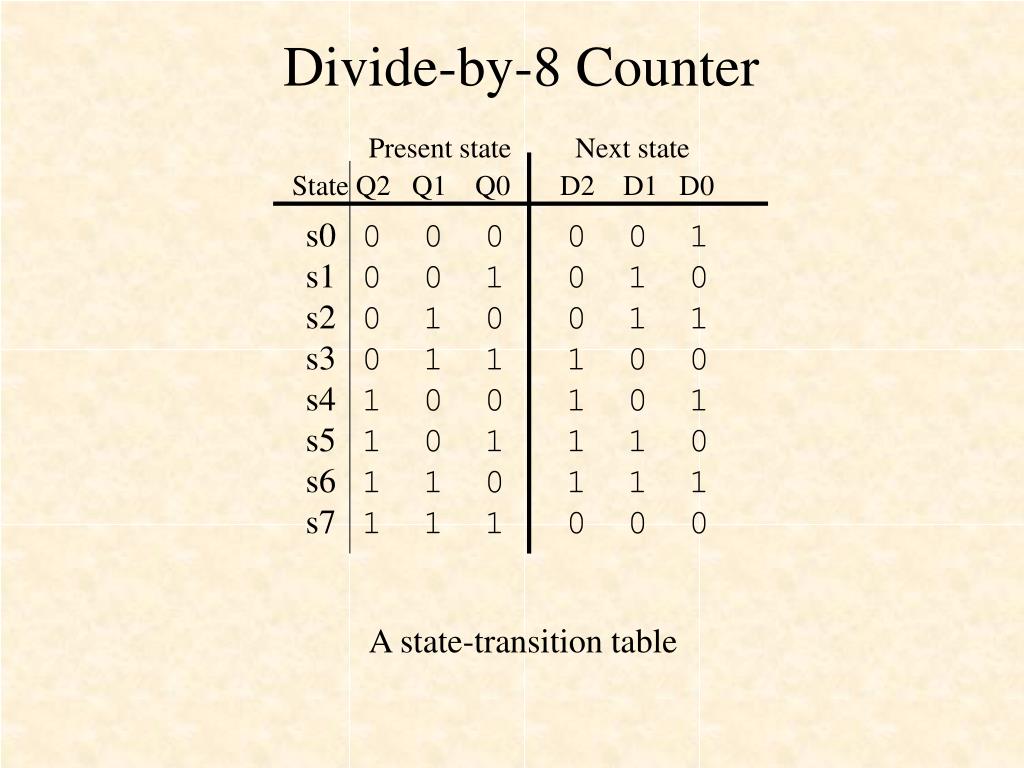

  4. Present state Next state State Q2 Q1 Q0 D2 D1 D0 s0 0 0 0 0 0 1 s1 0 0 1 0 1 0 s2 0 1 0 0 1 1 s3 0 1 1 1 0 0 s4 1 0 0 1 0 1 s5 1 0 1 1 1 0 s6 1 1 0 1 1 1 s7 1 1 1 0 0 0 Divide-by-8 Counter A state-transition table

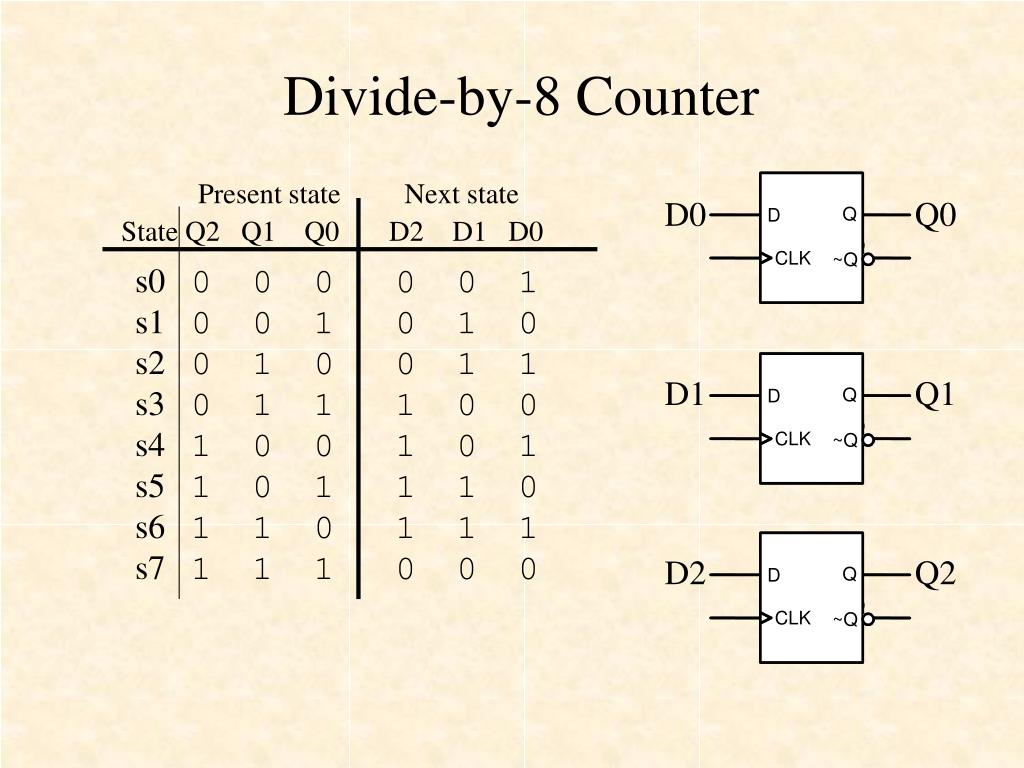

  5. Present state Next state State Q2 Q1 Q0 D2 D1 D0 D0 Q0 s0 0 0 0 0 0 1 s1 0 0 1 0 1 0 s2 0 1 0 0 1 1 s3 0 1 1 1 0 0 s4 1 0 0 1 0 1 s5 1 0 1 1 1 0 s6 1 1 0 1 1 1 s7 1 1 1 0 0 0 D1 Q1 D2 Q2 Divide-by-8 Counter

  6. Present state Next state State Q2 Q1 Q0 D2 D1 D0 s0 0 0 0 0 0 1 s1 0 0 1 0 1 0 s2 0 1 0 0 1 1 s3 0 1 1 1 0 0 s4 1 0 0 1 0 1 s5 1 0 1 1 1 0 s6 1 1 0 1 1 1 s7 1 1 1 0 0 0 Divide-by-8 Counter Q1 Q0 00 01 11 10 Q2 1 0 1 1 1 1 D2 D2 = ~Q2 & Q1 & Q0 | Q2 & ~Q1 | Q2 & ~Q0

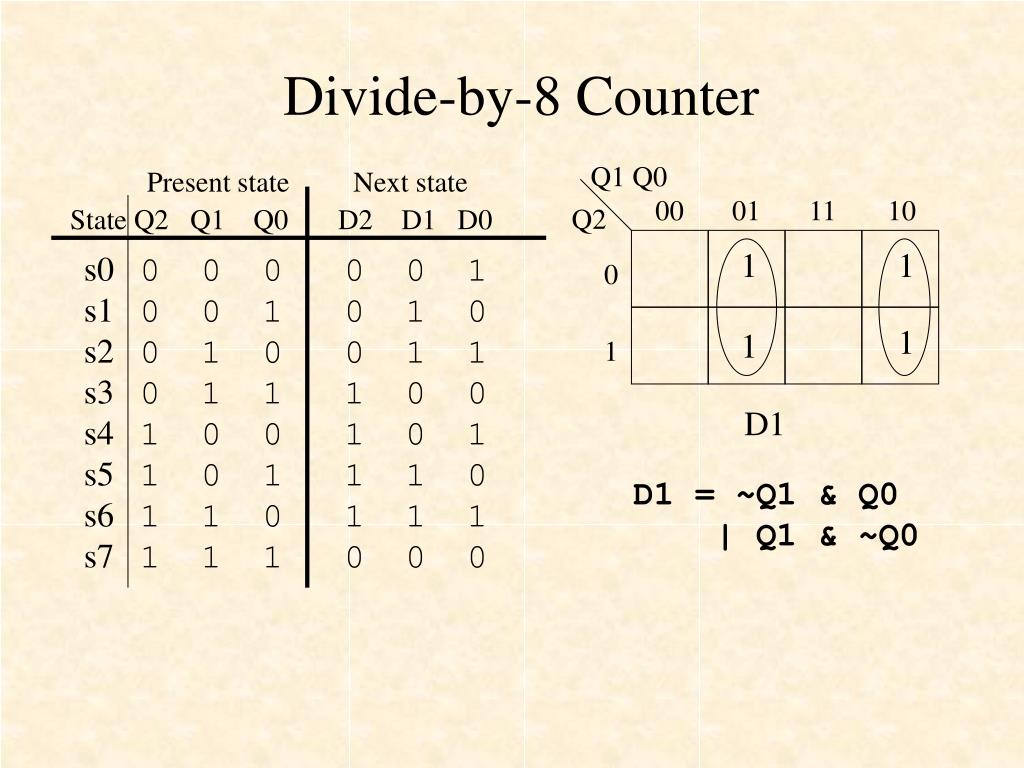

  7. Present state Next state State Q2 Q1 Q0 D2 D1 D0 s0 0 0 0 0 0 1 s1 0 0 1 0 1 0 s2 0 1 0 0 1 1 s3 0 1 1 1 0 0 s4 1 0 0 1 0 1 s5 1 0 1 1 1 0 s6 1 1 0 1 1 1 s7 1 1 1 0 0 0 Divide-by-8 Counter Q1 Q0 00 01 11 10 Q2 1 1 0 1 1 1 D1 D1 = ~Q1 & Q0 | Q1 & ~Q0

  8. Present state Next state State Q2 Q1 Q0 D2 D1 D0 s0 0 0 0 0 0 1 s1 0 0 1 0 1 0 s2 0 1 0 0 1 1 s3 0 1 1 1 0 0 s4 1 0 0 1 0 1 s5 1 0 1 1 1 0 s6 1 1 0 1 1 1 s7 1 1 1 0 0 0 Divide-by-8 Counter Q1 Q0 00 01 11 10 Q2 1 1 0 1 1 1 D0 D0 = ~Q0

  9. Divide-by-8 Counter A Divide by 8 counter Circuit using D Flip-flops

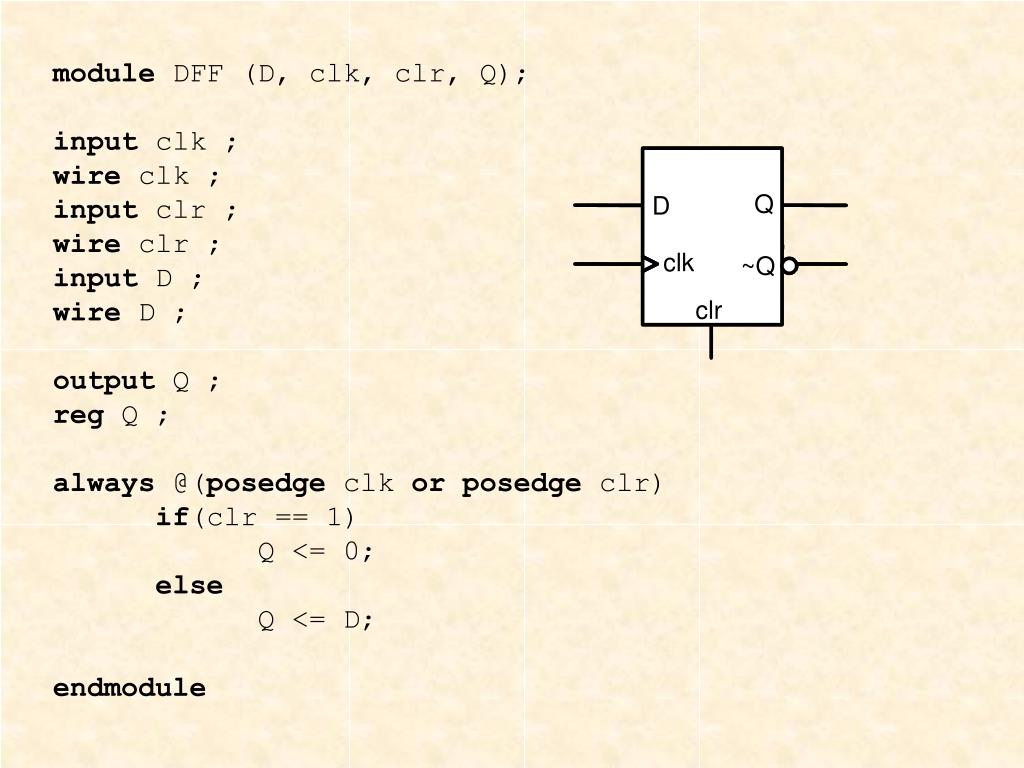

  10. module DFF (D, clk, clr, Q); input clk ; wire clk ; input clr ; wire clr ; input D ; wire D ; output Q ; reg Q ; always @(posedge clk orposedge clr) if(clr == 1) Q <= 0; else Q <= D; endmodule

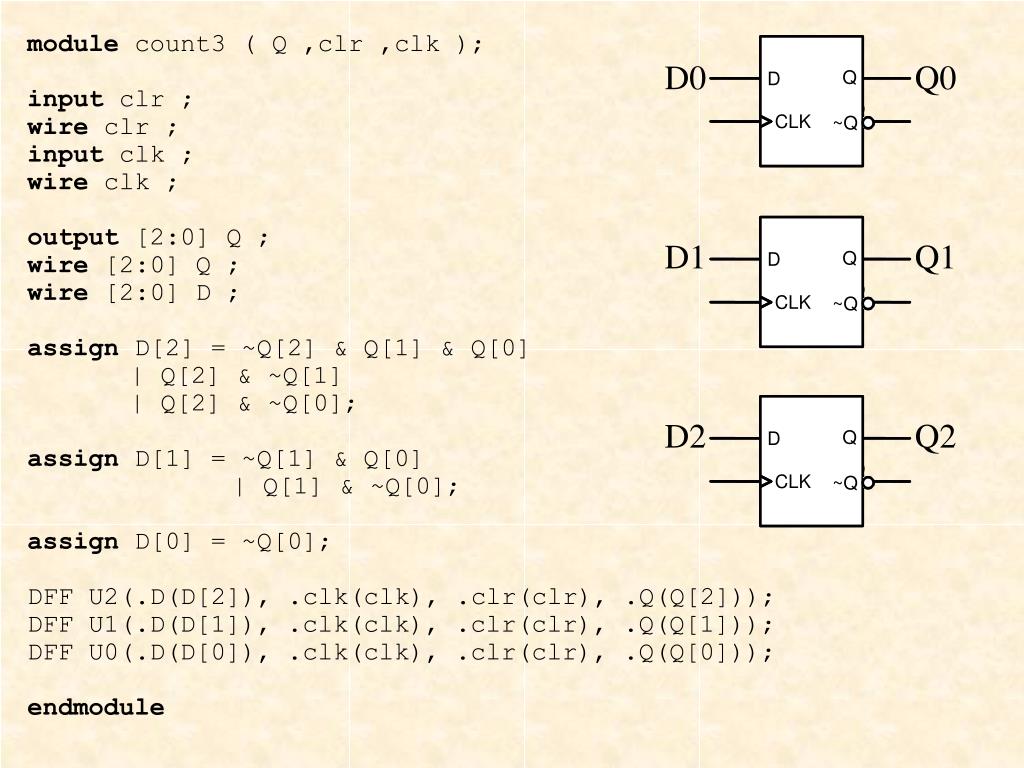

  11. D0 Q0 D1 Q1 D2 Q2 module count3 ( Q ,clr ,clk ); input clr ; wire clr ; input clk ; wire clk ; output [2:0] Q ; wire [2:0] Q ; wire [2:0] D ; assign D[2] = ~Q[2] & Q[1] & Q[0] | Q[2] & ~Q[1] | Q[2] & ~Q[0]; assign D[1] = ~Q[1] & Q[0] | Q[1] & ~Q[0]; assign D[0] = ~Q[0]; DFF U2(.D(D[2]), .clk(clk), .clr(clr), .Q(Q[2])); DFF U1(.D(D[1]), .clk(clk), .clr(clr), .Q(Q[1])); DFF U0(.D(D[0]), .clk(clk), .clr(clr), .Q(Q[0])); endmodule

  12. count3 Simulation

  13. Counters • Divide-by-8 Counter • Behavioral Counter in Verilog • Counter using One-Hot State Machine

  14. count3 clr Q(2 downto 0) clk 3-Bit Counter Behavior always @(posedge clk orposedge clr) begin if(clr == 1) Q <= 0; else Q <= Q + 1; end

  15. counter3.v module counter3 (clk, clr, Q ); input clr ; wire clr ; input clk ; wire clk ; output [2:0] Q ; reg [2:0] Q ; // 3-bit counter always @(posedge clk orposedge clr) begin if(clr == 1) Q <= 0; else Q <= Q + 1; end endmodule Asynchronous clear Output count increments on rising edge of clk

  16. counter3 Simulation

  17. Present state Next state State Q2 Q1 Q0 D2 D1 D0 D0 Q0 s0 0 0 0 0 0 1 s1 0 0 1 0 1 0 s2 0 1 0 0 1 1 s3 0 1 1 1 0 0 s4 1 0 0 1 0 1 s5 1 0 1 1 1 0 s6 1 1 0 1 1 1 s7 1 1 1 0 0 0 D1 Q1 D2 Q2 Recall Divide-by-8 Counter Use Q2, Q1, Q0 as inputs to a combinational circuit to produce an arbitrary waveform.

  18. Q1 Q0 1 1 00 01 11 10 Q2 0 1 1 1 1 1 0 0 0 1 0 1 1 1 0 0 0 1 0 1 Example State Q2 Q1 Q0 D2 D1 D0 y s0 0 0 0 0 0 1 1 s1 0 0 1 0 1 0 1 s2 0 1 0 0 1 1 0 s3 0 1 1 1 0 0 0 s4 1 0 0 1 0 1 0 s5 1 0 1 1 1 0 1 s6 1 1 0 1 1 1 0 s7 1 1 1 0 0 0 1 y = ~Q2 & ~Q1 | Q2 & Q0

  19. Counters • Divide-by-8 Counter • Behavioral Counter in Verilog • Counter using One-Hot State Machine

  20. D0 Q0 D1 Q1 D2 Q2 One-Hot State Machines Instead of using the minimum number of flip-flops (3) to implement the state machine, one-hot encoding uses one flip-flop per state (8) to implement the state machine.

  21. Why use One-Hot State Machines? Using one-hot encoding or one flip-flop per state (8) will normally simplify the combinational logic at the expense of more flip-flops. Let's see how for the 3-bit counter

  22. One-Hot Encoding Present state Next state State Q2 Q1 Q0 D[0:7] Think of each state as a flip-flop s0 0 0 0 s1 s1 0 0 1 s2 s2 0 1 0 s3 s3 0 1 1 s4 s4 1 0 0 s5 s5 1 0 1 s6 s6 1 1 0 s7 s7 1 1 1 s0 D[i] = s[i-1] This is just a ring counter!

  23. 3-bit Counter State Q2 Q1 Q0 s0 0 0 0 s1 0 0 1 s2 0 1 0 s3 0 1 1 s4 1 0 0 s5 1 0 1 s6 1 1 0 s7 1 1 1 Q2 = s4 | s5 | s6 | s7 Q1 = s2 | s3 | s6 | s7 Q0 = s1 | s3 | s5 | s7

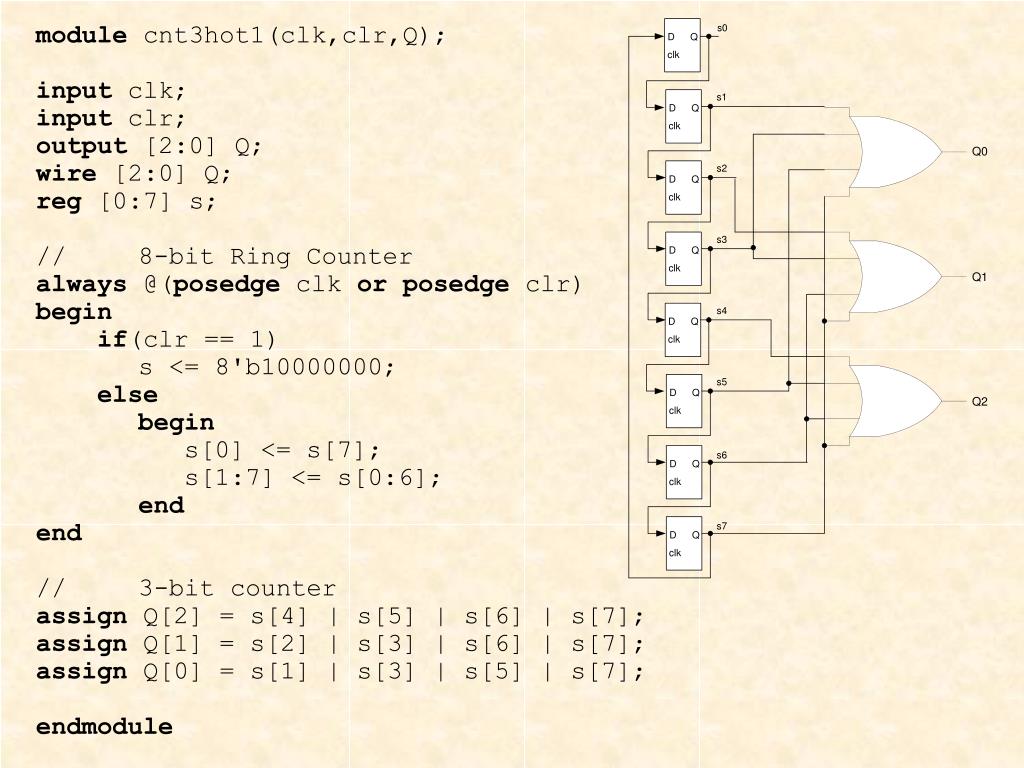

  24. module cnt3hot1(clk,clr,Q); input clk; input clr; output [2:0] Q; wire [2:0] Q; reg [0:7] s; // 8-bit Ring Counter always @(posedge clk orposedge clr) begin if(clr == 1) s <= 8'b10000000; else begin s[0] <= s[7]; s[1:7] <= s[0:6]; end end // 3-bit counter assign Q[2] = s[4] | s[5] | s[6] | s[7]; assign Q[1] = s[2] | s[3] | s[6] | s[7]; assign Q[0] = s[1] | s[3] | s[5] | s[7]; endmodule
