Cell Structures and Functions

Cell Structures and Functions. Goes with Table 1 page 199 of Textbook. SC.912.L.14.2: Relate structure to function for the components of plant and animal cells. Explain the role of cell membranes as a highly selective barrier (passive and active transport). Cell Parts.

mirra
Télécharger la présentation

Cell Structures and Functions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Cell Structures and Functions Goes with Table 1 page 199 of Textbook. SC.912.L.14.2: Relate structure to function for the components of plant and animal cells. Explain the role of cell membranes as a highly selective barrier (passive and active transport).

  2. Cell Parts • Cells – the basic unit of life • Organelles - small structures inside a cell with specific functions. Analogy – City of Apopka

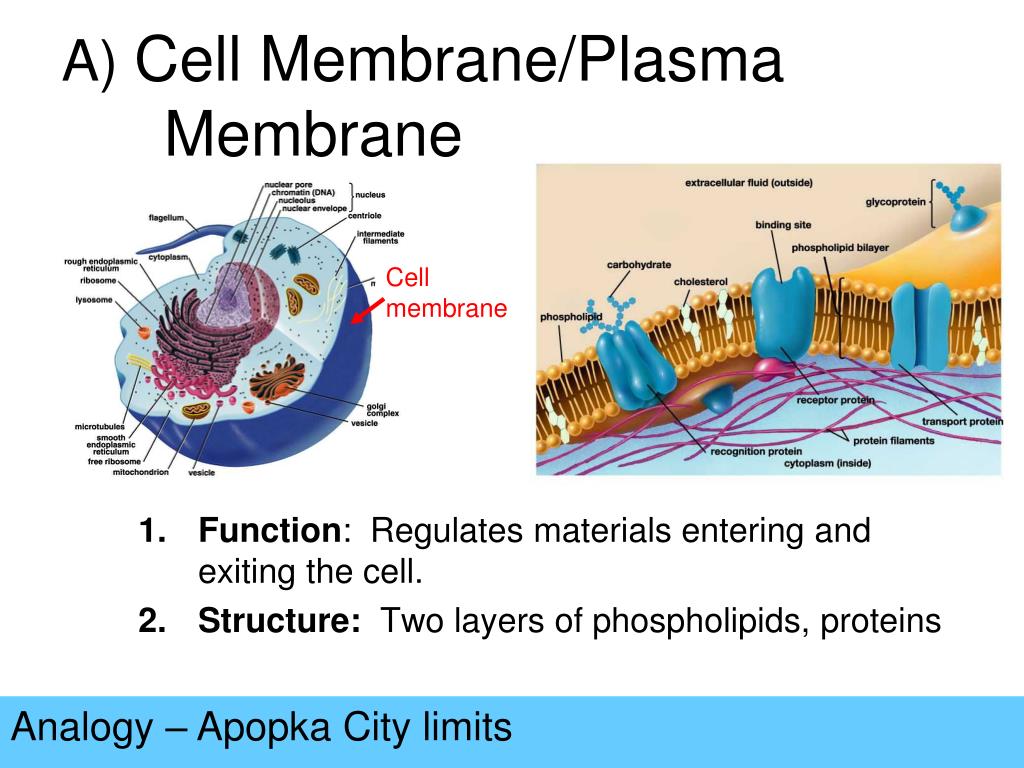

  3. A) Cell Membrane/Plasma Membrane Cell membrane • Function: Regulates materials entering and exiting the cell. • Structure: Two layers of phospholipids, proteins Analogy – Apopka City limits

  4. B) Cytoplasm Cytoplasm • Function: All cell contents that lie between the cell membrane and the nucleus. (organelles + cytosol) a. Cytosol = liquid portion/non-organelles. • Structure: made up of fluid and organelles except for nucleus Analogy – All air, water, life that are in Apopka, except City Hall

  5. C) Nucleus Nucleus • Function: “Control Center.” Regulates DNA & RNA actions. • Structure: membrane bound, contains DNA Analogy – City Hall

  6. D) Nuclear Envelope Nuclear Envelope • Function: Regulates what enters or exits the nucleus. • Structure: Double Layer of Lipids Analogy – Walls & Doors of City Hall

  7. E) Nucleolus Nucleolus • Function: Produces RNA, which are used to make all proteins. • Structure: Inside Nucleus, separate from DNA Analogy – The Mayor

  8. F) DNA – Deoxyribonucleic acid DNA (chromatin) • Function: information on how to make proteins. • Chromatin – unorganized DNA (normal state) • Chromosomes – organized DNA (present before cell division • Structure: Made up of nucleotides, locked in the nucleus Analogy – The Laws or City Code

  9. G) Endoplasmic Reticulum Rough ER Smooth ER • Function: Transportation route for proteins. • Rough ER: has ribosomes • Smooth ER: no ribosomes • Structure: tubes and channels Analogy – Roads & Sidewalks

  10. H) Ribosomes Ribosomes Free Ribosomes • Function: Makes proteins. • Structure: small circular organelles Analogy – Restaurants, Factories, Builders.

  11. I) Vacuoles & Vesicles Vesicles • Function: Storage for water, nutrients or waste. • Structure: small membrane-bound organelle. Analogy – Grocery stores, water tanks.

  12. J) Lysosomes Lysosomes • Function: packets of enzymes that break down materials in a cell. • Structure: Small membrane-bound organelles Analogy – Recycling center

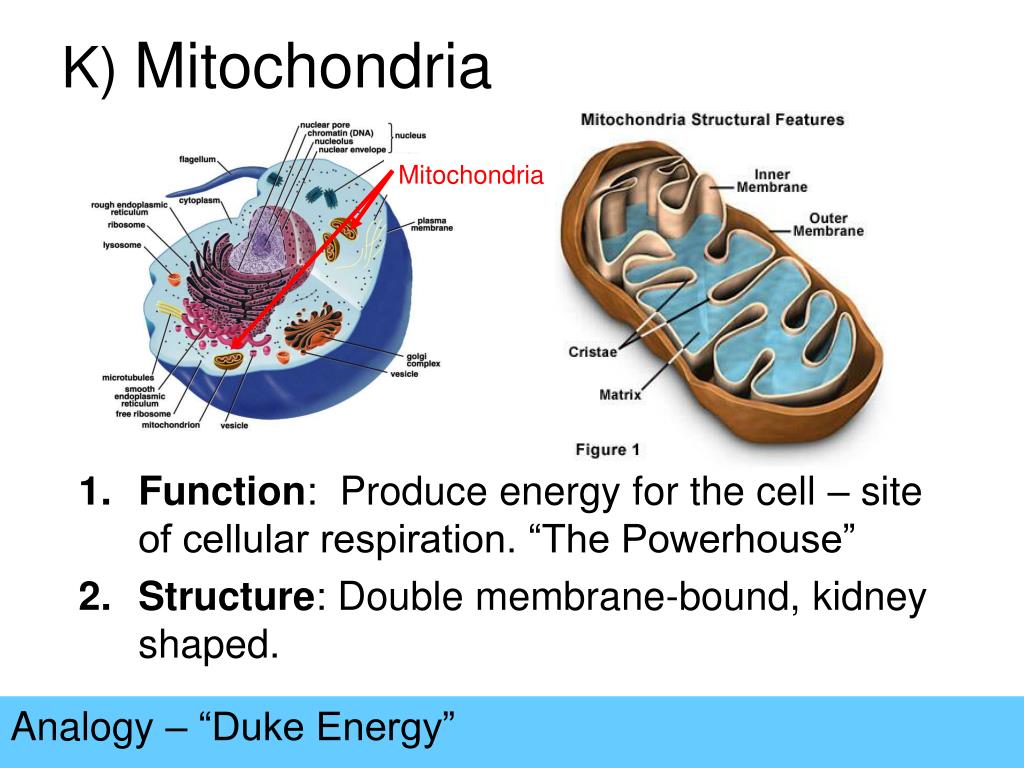

  13. K) Mitochondria Mitochondria • Function: Produce energy for the cell – site of cellular respiration. “The Powerhouse” • Structure: Double membrane-bound, kidney shaped. Analogy – “Duke Energy”

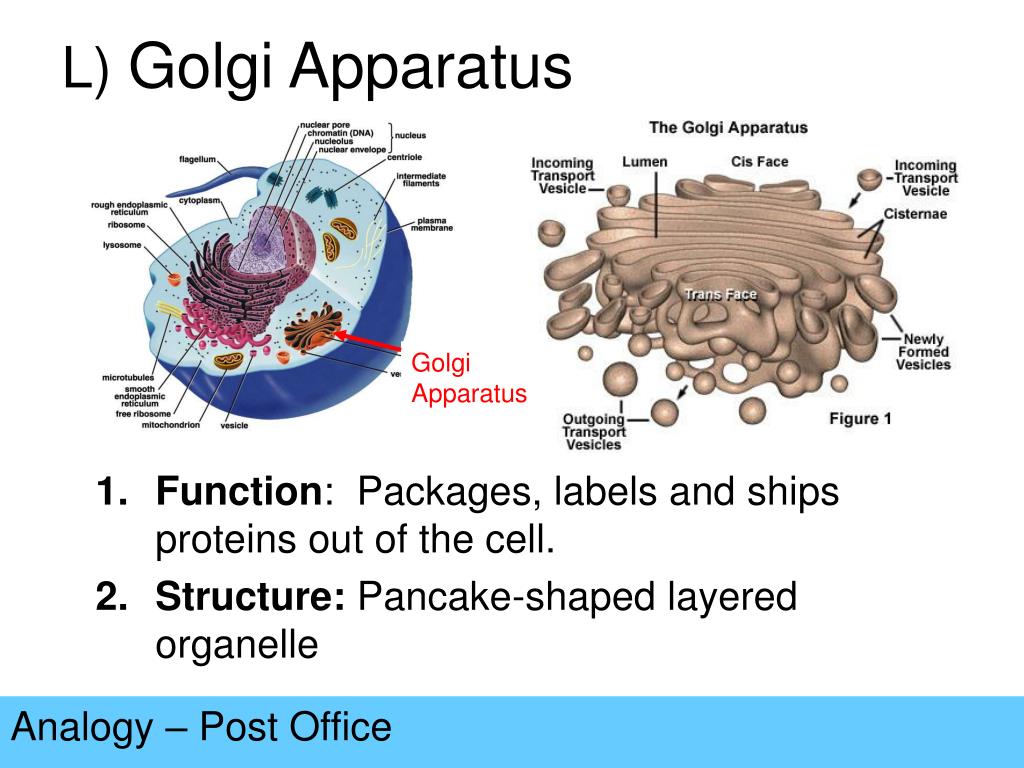

  14. L) Golgi Apparatus Golgi Apparatus • Function: Packages, labels and ships proteins out of the cell. • Structure: Pancake-shaped layered organelle Analogy – Post Office

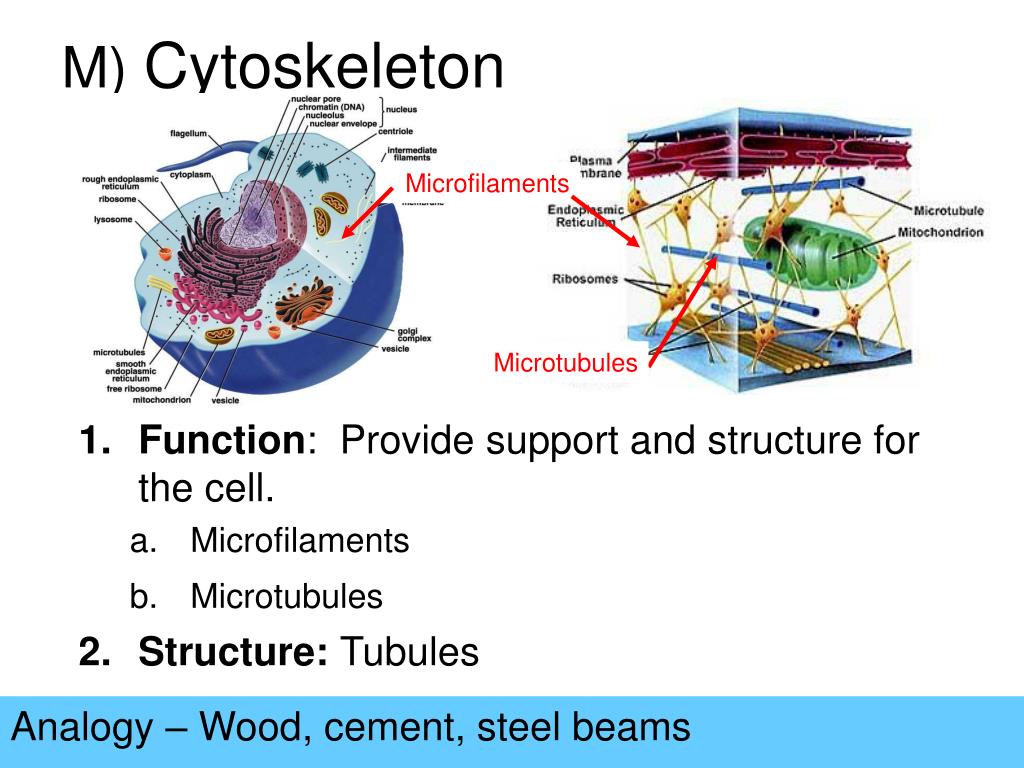

  15. M) Cytoskeleton Microfilaments Microtubules • Function: Provide support and structure for the cell. • Microfilaments • Microtubules • Structure: Tubules Analogy – Wood, cement, steel beams

  16. N) Centrioles (Animals Only) Centrioles • Function: microtubules that help divide the cell during cell division. • Structure: Tubules Analogy – Apopka High School vs. Wekiva High School

  17. O) Cilia & Flagella Cilia Flagella Flagella • Function: provides movement for the cell or objects moving by the cell. • Structure: • Flagella – 1 long fiber • Cilia – many short fibers Analogy – Cars or bicycles.

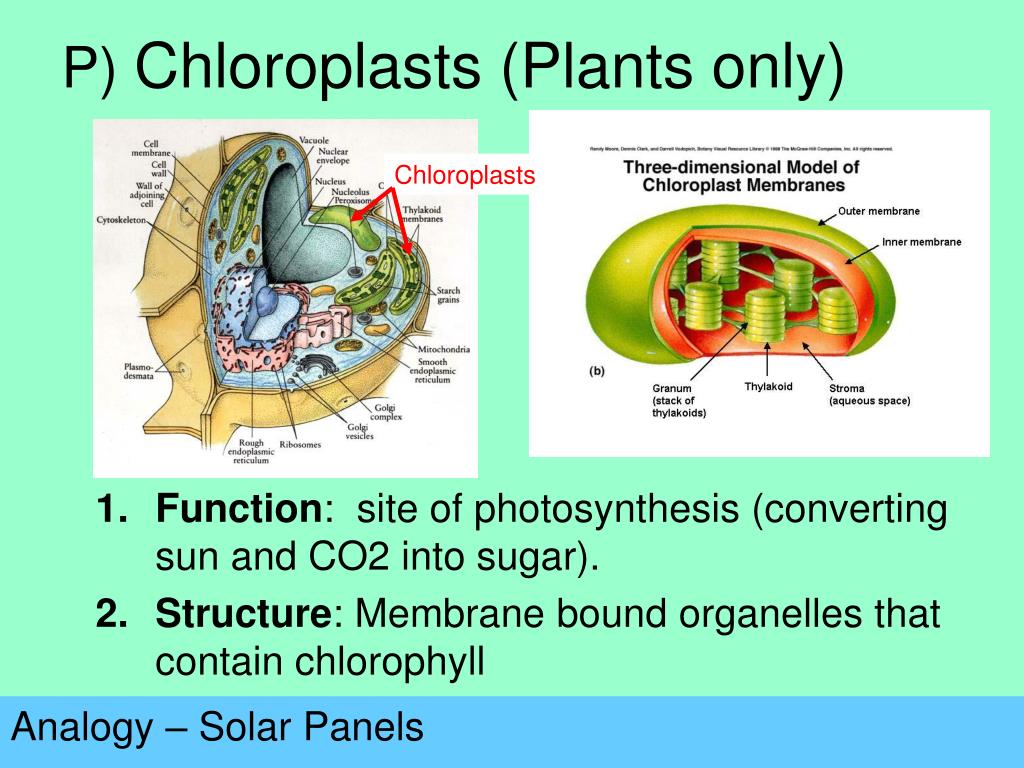

  18. P) Chloroplasts (Plants only) Chloroplasts • Function: site of photosynthesis (converting sun and CO2 into sugar). • Structure: Membrane bound organelles that contain chlorophyll Analogy – Solar Panels

  19. Q) Cell Wall (Plant cells only) Cell Wall • Function: Provides support for the cell and the plant. • Structure: Made of cellulose Analogy – ground, rock wall

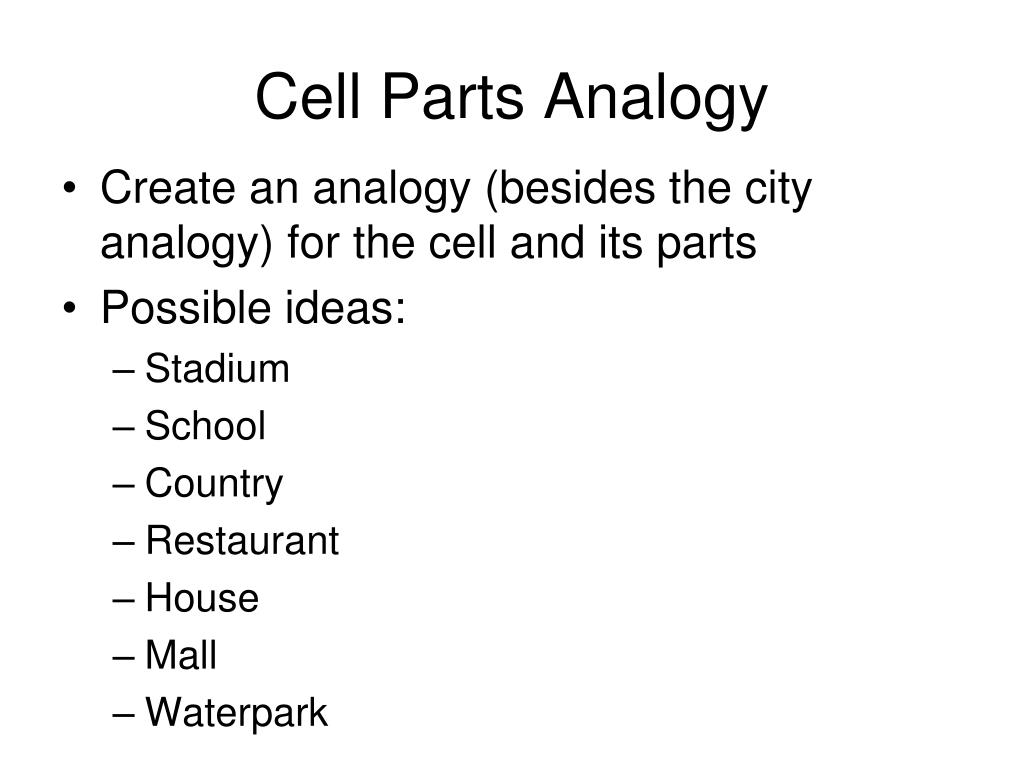

  20. Cell Parts Analogy • Create an analogy (besides the city analogy) for the cell and its parts • Possible ideas: • Stadium • School • Country • Restaurant • House • Mall • Waterpark

  21. Stadium Example: • Cell membrane: wall of stadium, gates • Cytoplasm: everything inside the stadium. • Nucleus: the control room for the stadium. • Etc…
