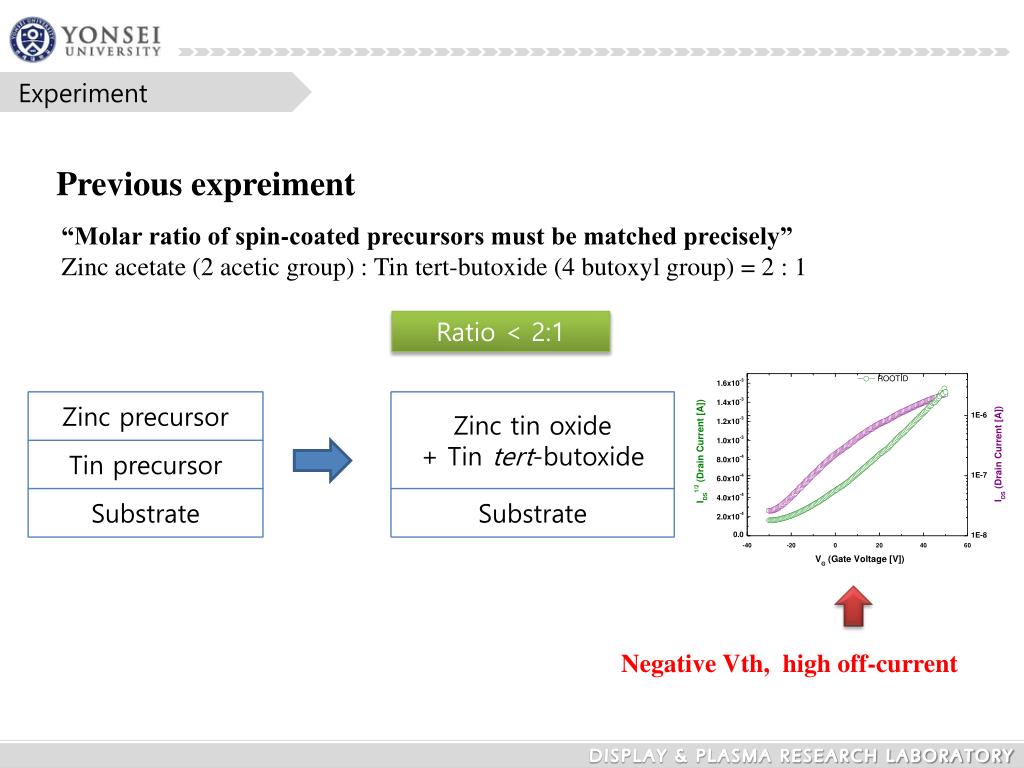

Experiment. Previous expreiment. “Molar ratio of spin-coated precursors must be matched precisely” Zinc acetate (2 acetic group) : Tin tert-butoxide (4 butoxyl group) = 2 : 1. Ratio < 2:1. Zinc precursor. Zinc tin oxide + Tin tert -butoxide. Tin precursor. Substrate. Substrate.
